Sorts | Type | Parameters | ||||
System | Operating system | Linux | ||||
Online visitor | Supports 4 visitors at the same time | |||||
APP | O-KAM Pro | |||||
Collection | CPU | T23ZX | ||||
Internal storage | 1Gbit | |||||
Image sensor | GC2083+GC2083+GC2083 1/3CMOS | |||||
Min. Illumination | 0.8Lux/F1.4(color mode),0.3Lux/F1.4(B&W mode) | |||||
LEN | Panorama camera: focal length 4mm,1G3P Panorama camera: focal length 4mm, 1G3P | |||||
Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |||||
Pan&tilt | Adjust the angle of the tracking camera via App, horizontal 270 °, vertical 90 °; Manually adjust the angle of the panorama camera, horizontal 180 °, vertical 90 °. | |||||
Viewing angle | D100° | |||||
Video | Night vision | Full-color night vision, dual light source | ||||
Compression standard | H.264 /MJPEF/JPEG | |||||
Multi stream | Main stream: 1080P/12fps Sub stream: 360P/10fps | |||||
IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. | |||||
Bit rate | CBR/VBR two rate control modes, and the output rate range is 128~4096kbps | |||||
Image adjustment | Vertical, horizontal adjustable, OSD display | |||||
Audio | Input | Built-in-38dB microphone | ||||
Output | Built-in 8Ω1W speaker | |||||
Sampling frequency/bit width | 8KHz/16bit | |||||
Compression standard/Bit Rate | G711A | |||||
AI | Human detection | Human detection, filtering invalid video contents | ||||
Area detection | Free daub, only monitoring the areas concerned by users | |||||
Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |||||
Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |||||
More AI functions (testing) | Pets, vehicles, parcels, etc | |||||

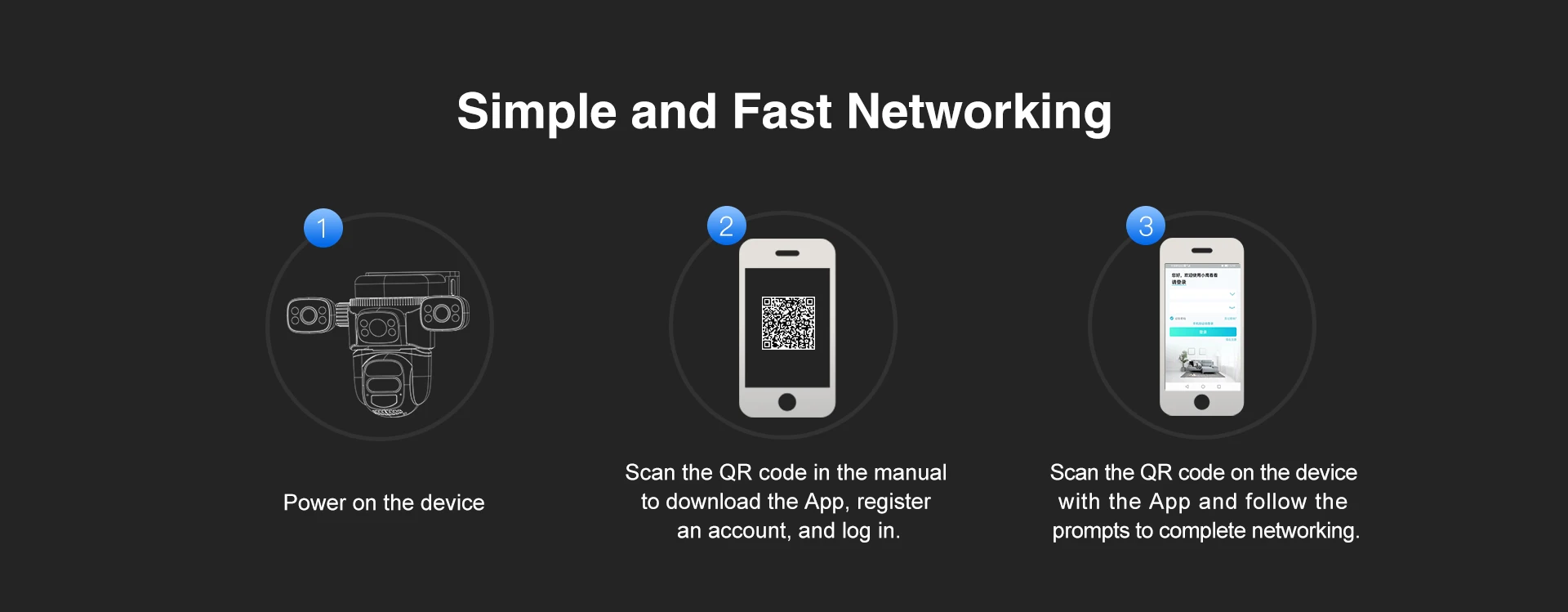

Network | Network connection | Use APP to scan the QR code on device to add; Use the device to scan QR code on APP to add | ||||
ASIA 4G | FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 | |||||
EU 4G | WCDMA:B1/B5/B8;FDD:B1/B3/B7/B8/B20;TDD: B40/B41 | |||||
Key/interface | Key 1 | On/Off key | ||||
Reset key | Long press to restore factory settings | |||||
Storage | External TF card | Support TF card (up to 256GB) | ||||
Cloud storage | Free cloud storage | |||||
Alarm | Sound light alarm | Sound and light alarm | ||||
Alarm detection | Support human detection, PIR detection range: 10 meters | |||||
Physical Indicators | Rated voltage | DC5V/2.5A±5% | ||||
Power supply | Built-in 8000mAh battery, optional 20000mAh | |||||
Consumption | Sleep standby 300uA, working: 350mA-1.8A max | |||||
Operating condition | Working temperature: -10~55℃, working humidity | |||||
Weight | Net weight: 818g | |||||

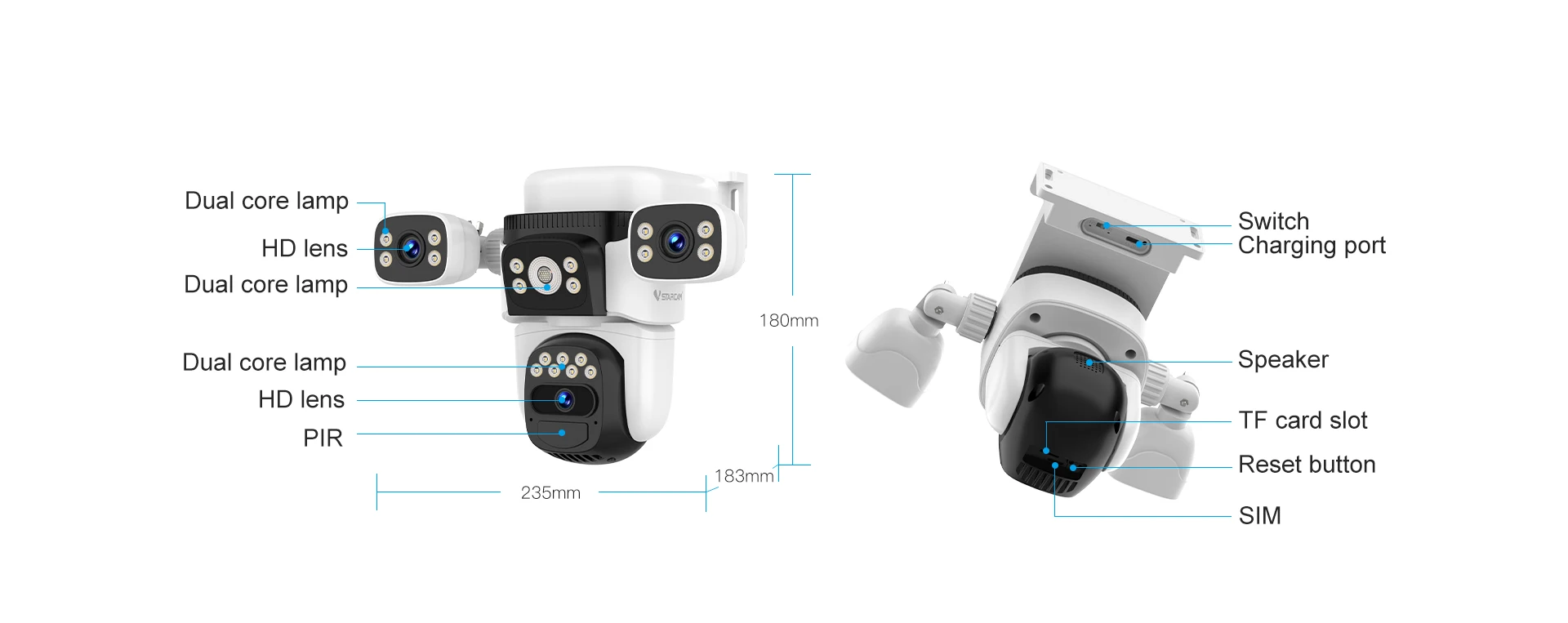

Size | Product Size: 154x235x185mm Color Box Size: 165x210x255mm Outer CTN Size: 525x435x525mm Qty/CTN:12PCS NW/PC: 605g GW/PC:1185g | |||||

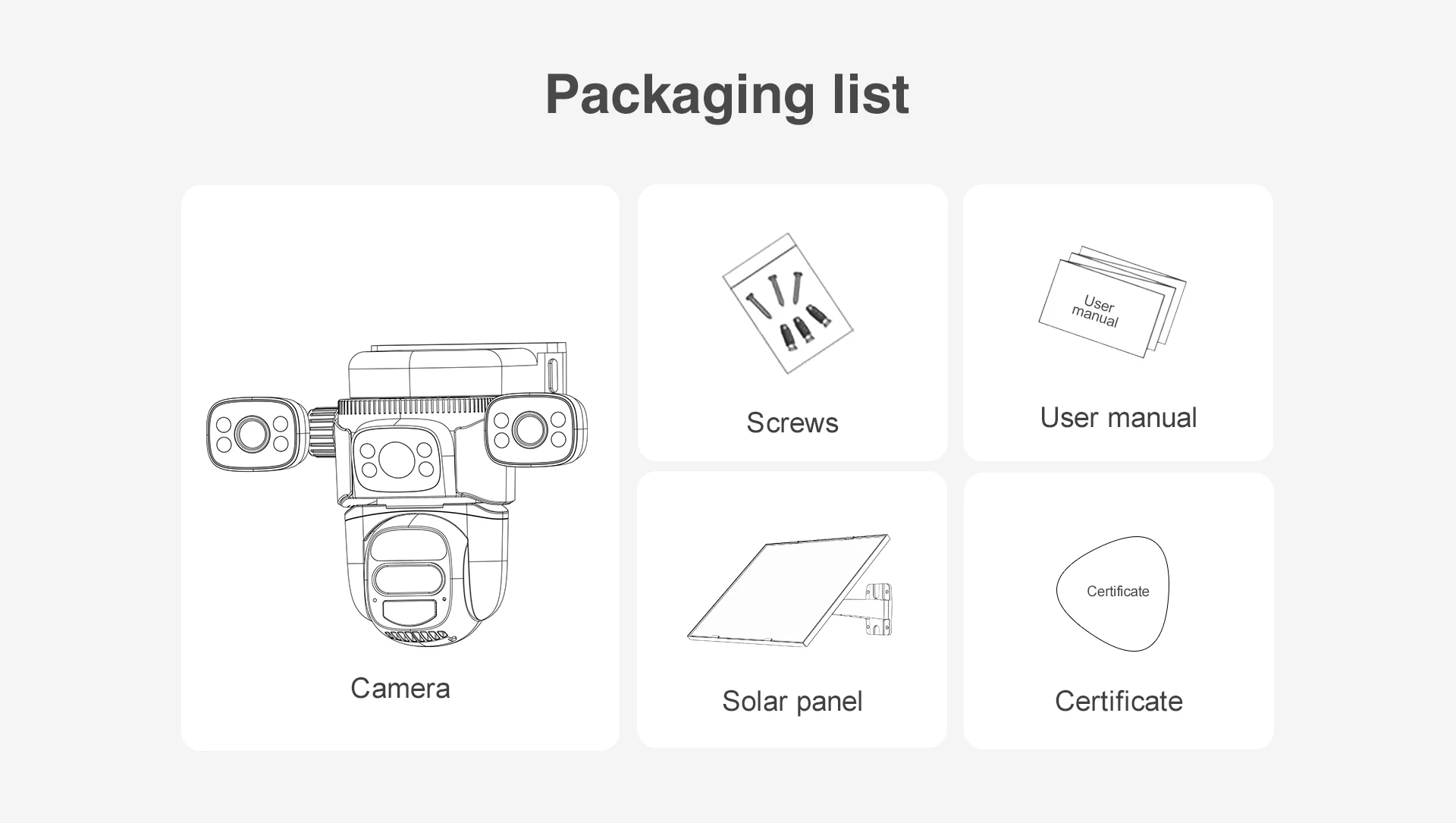

Packing list | Camera*1, TYPE-C*1, manual*1, solar panel*1, solar panel bracket*1 |
