Automatic Aquatic Weed Harvester Water Plants Conveyor Belt Used In River/Lake/Lagoon/Park /Sea Port
- Category: >>>
- Supplier: Qingzhou Keda Environment Protection Machinery Co. Ltd.Qingzhou Ltd.
Share on (1601366087953):
Product Overview
Description
Product Description

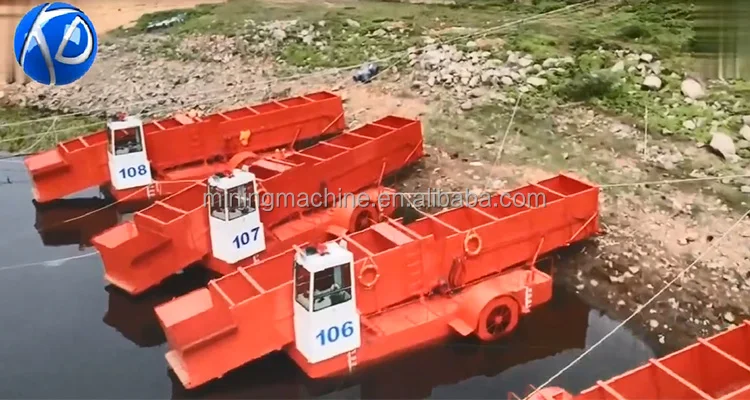

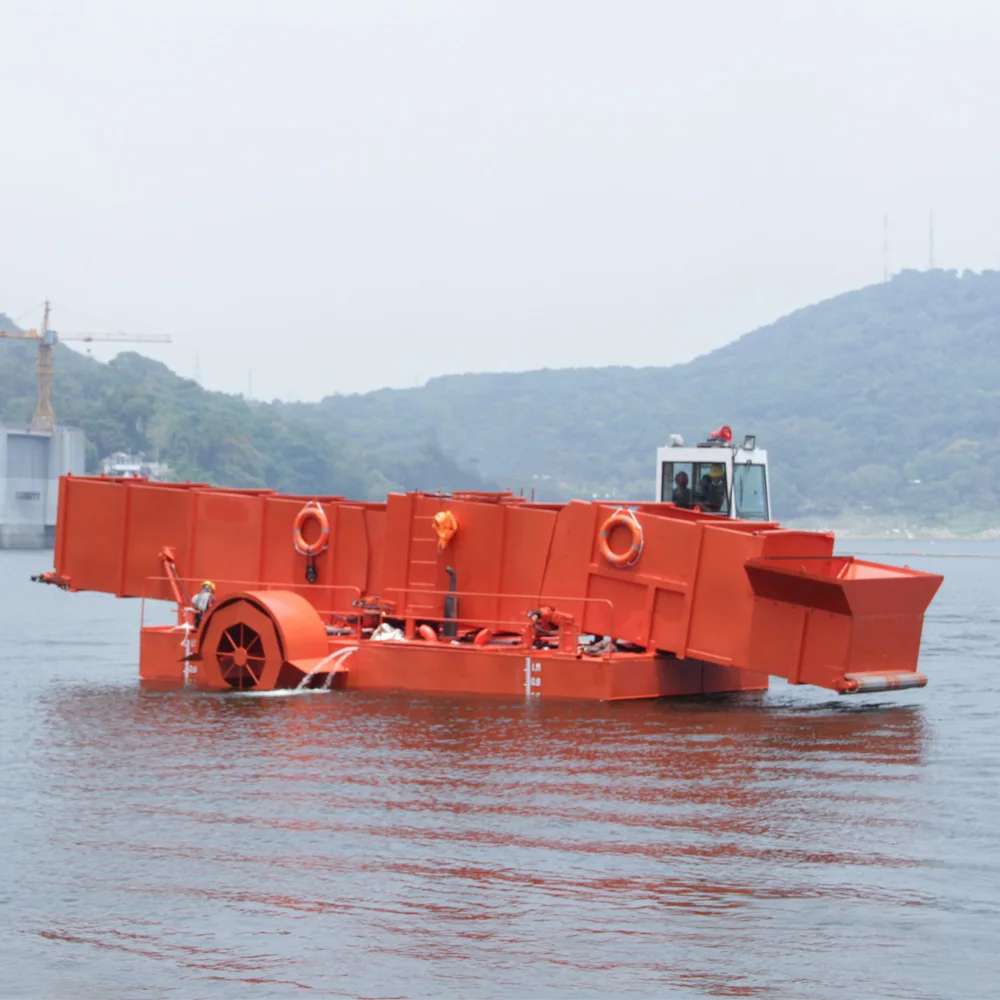

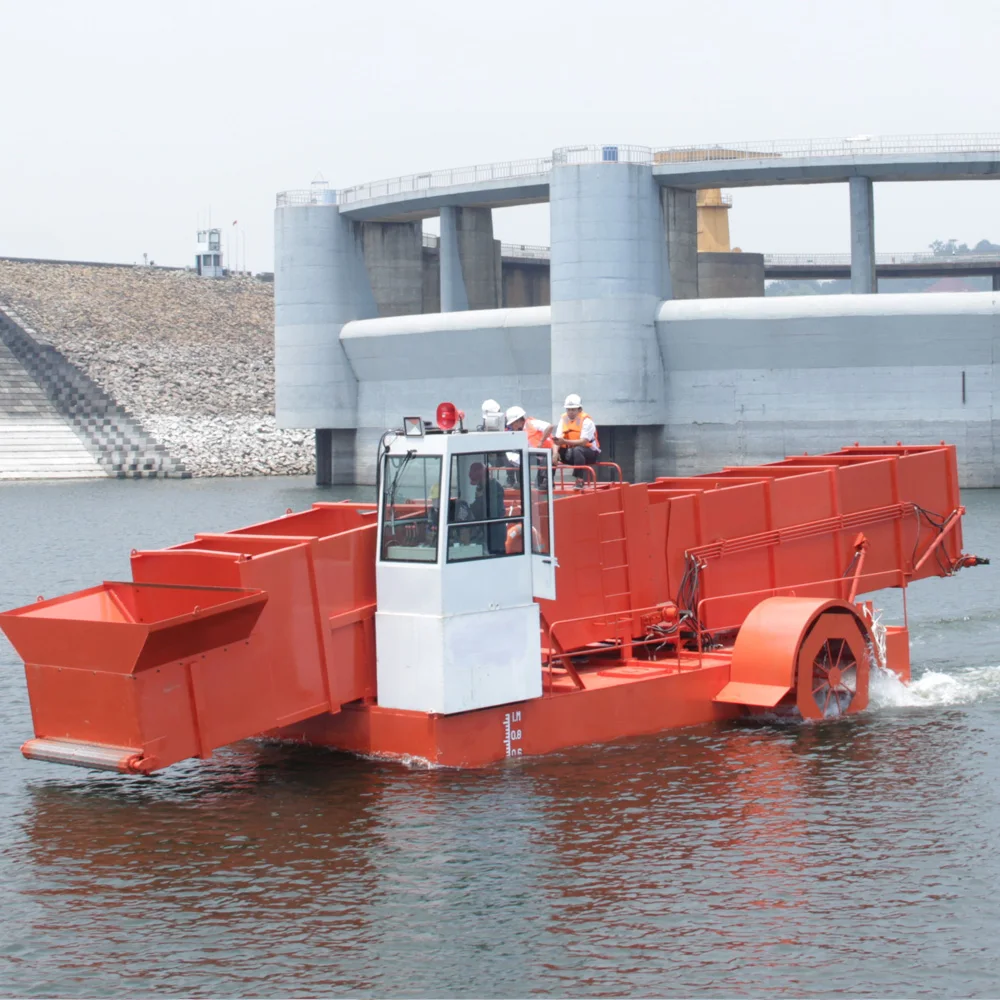

Aquatic transport barge for water hyacinth
Applications
Application:
1. Transporting water hyacinth
2. Transporting Floating Lotus
3.Transporting Water Weed
4.Transporting Duckweed
5.Transporting Water Peanut
6.Transporting Floating Garbage
Manufacturing Technique
Spec. | Model | TWB-1 | TWB-2 |
Size | 15.5x5.5x3m | 17.3x5.5x3.3m | |
Power | 70kw | 70kw | |
Driven | Wheel paddle | Wheel paddle | |
Volume | 45m³ | 60m³ | |
Discharge height | 3m | 3m | |
Hull | Size | 9x4x1.25m | 11x4x1.25m |
Material | 5mm carbon steel bottom, 3mm deck | 5mm carbon steel bottom, 3mm deck | |
Conveyor mesh | Size | 15x1.8x1.8m | 16.8x1.8x2m |
Mesh width | 1.8m | 2m | |
Material | Stainless | Stainless | |
Sector | 3 | 3 | |
Driven | Hydraulic motor | Hydraulic motor | |
Lifting | Cylinder | Cylinder | |
Wheel paddle | Diameter | 1.7m | 1.7m |
Width | 0.8m | 0.8m | |
Qty | 2 | 2 | |
Motor | 2 | 2 | |
Diesel engine | Model | Weichai | Weichai |
Power | 70kw | 70kw | |
Speed | 1500 | 1500 | |
Cooling | Water | Water | |
Start | Electrical | Electrical | |
Hydraulic pump | Type | Gear pump | Gear pump |
Displacement | 90ml | 90ml | |
Pressure | 20mpa | 20mpa | |
Control valves | Type | Valves manual | Valves manual |
Container NO. | Two 40 with one 20 | Three 40 |
Why Choose Us

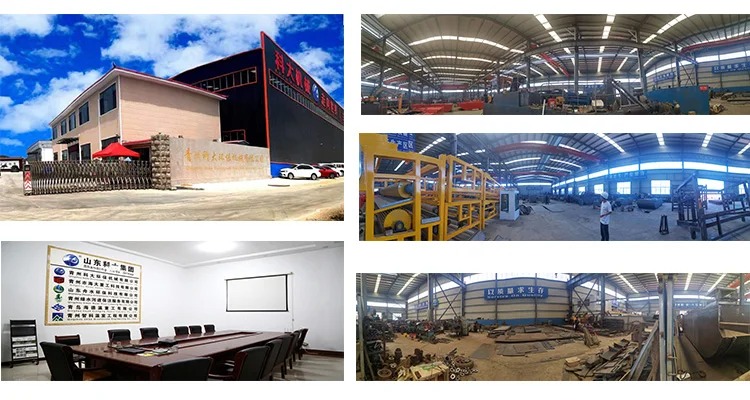

Qingzhou KEDA Environment Protection Machinery Co., Ltd
Our company attaches great importance to development of scientific researching and manufacturing. Main products:
Cutter suction dredger series, weed harvester dredger series, gold mining equipment series, sand suction dredger series and sand washing equipment series. Five series and more than one hundred products.
Our company has more than 10 years of experience in mechanical production, and the factory covers an area of 22,000 square meters.
Certifications

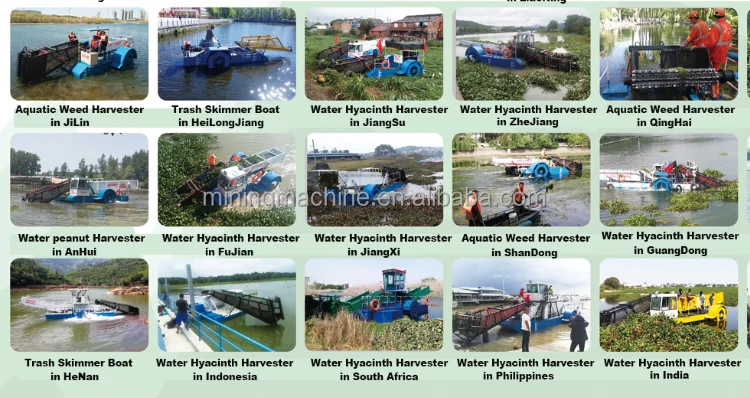

Our Cases
