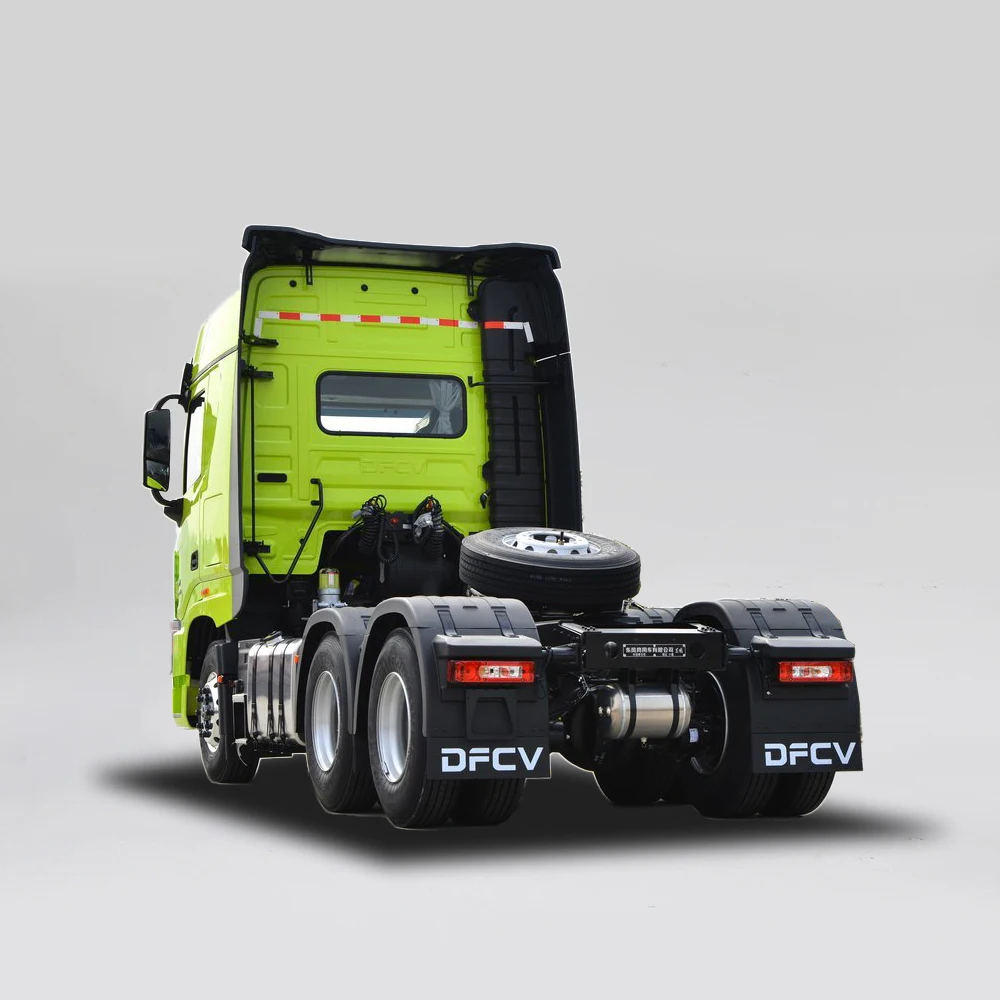

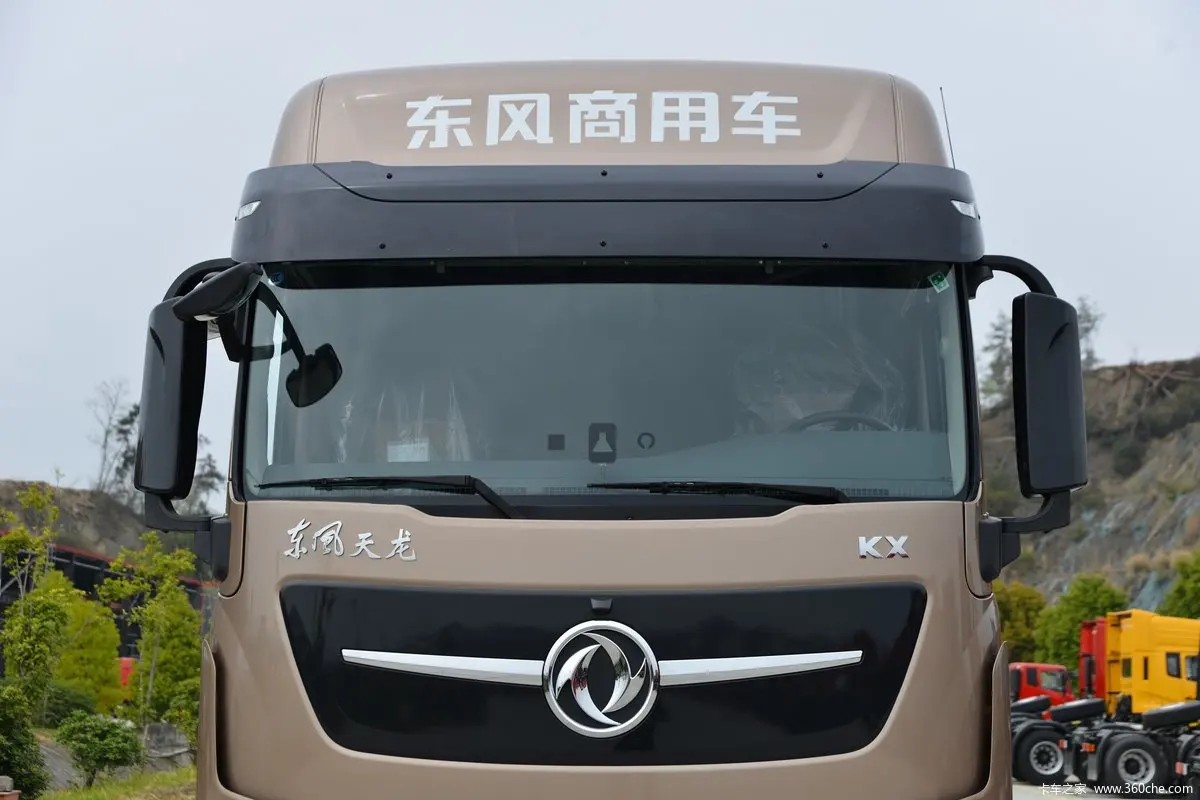

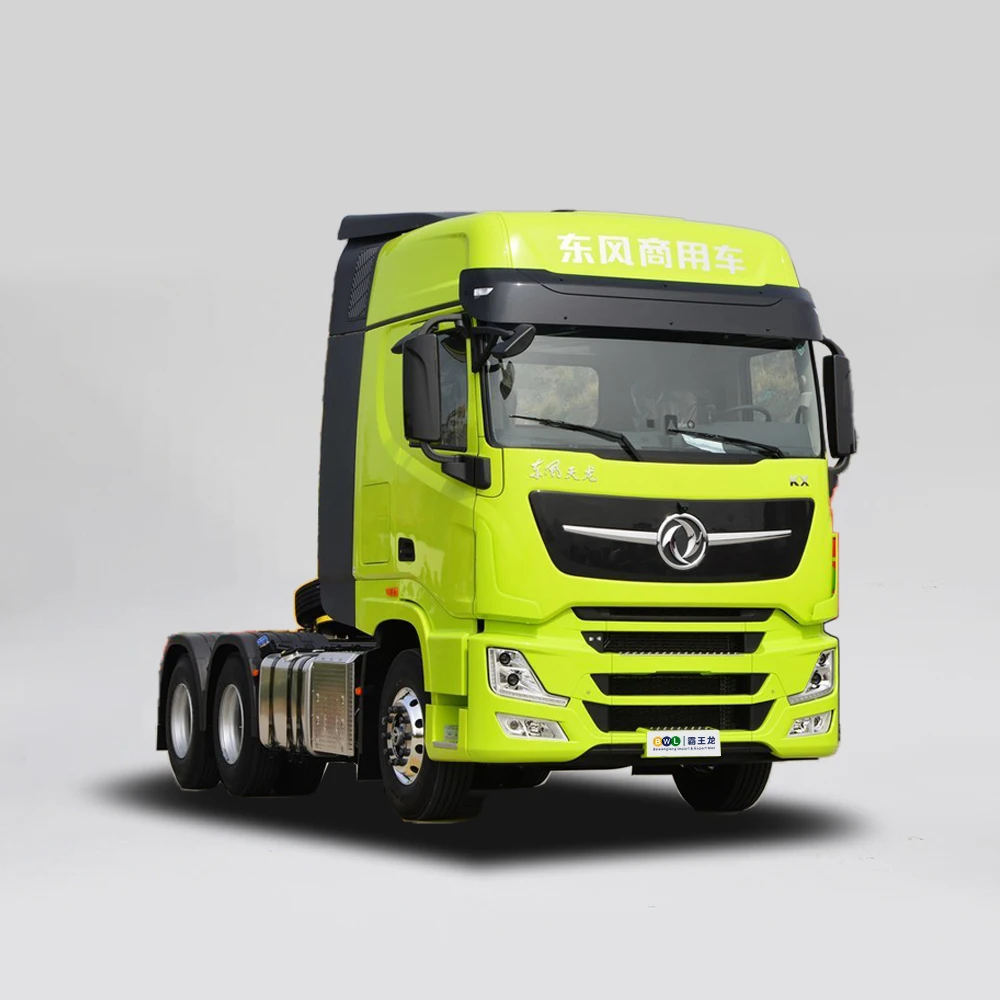

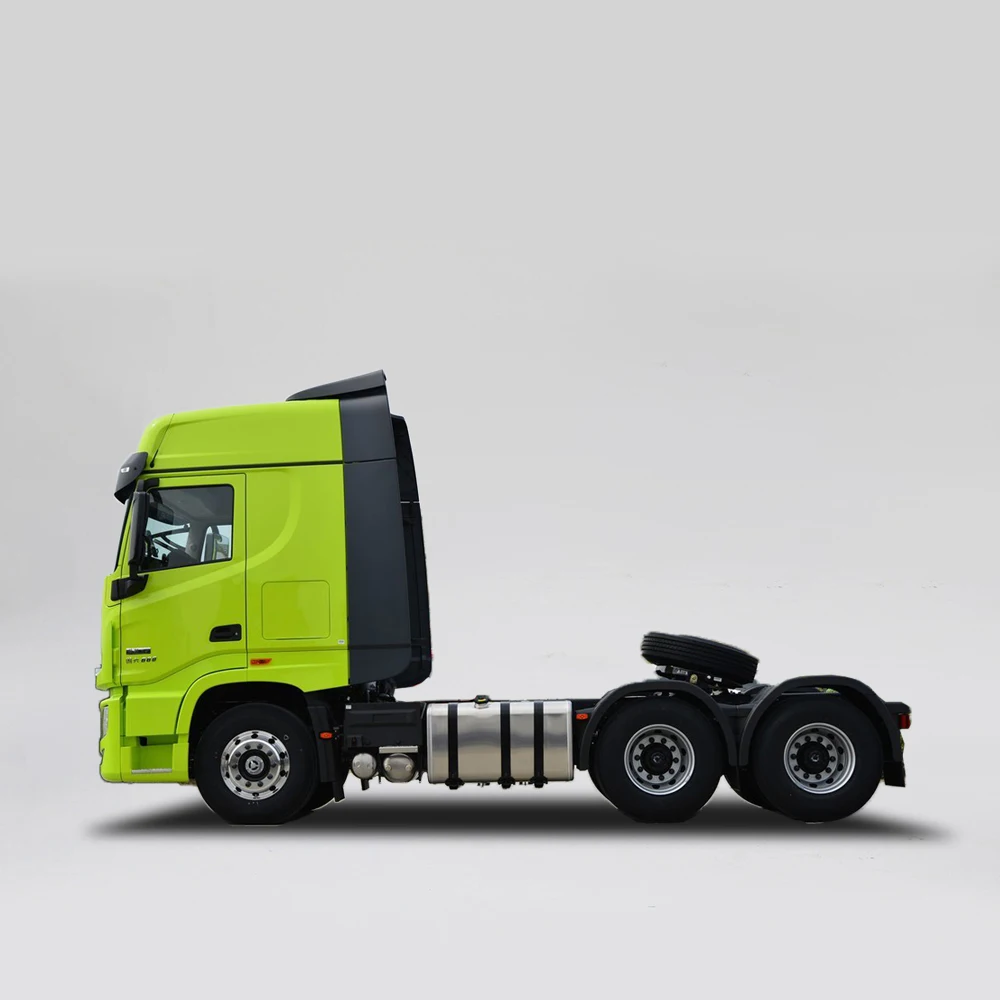

Made in China The new Dongfeng Tianlong KX diesel tractor truck head for freight trailers
- Category: >>>
- Supplier: Sichuan Bawanglong Special Vehicle Manufacturing Co. Ltd.Sichuan Ltd.
Share on (1601366423396):
Product Overview
Description
information | Items | details |
Basic Information | Announcement Model | DFH4250C7 (DFH4250CX7) |
Manufacturing Origin | Shiyan, Hubei | |
Drive Form | 6X4 | |
Wheelbase | 3350 + 1350 mm | |
Vehicle Body Length | 6.99 meters | |
Vehicle Body Width | 2.524 meters | |
Vehicle Body Height | 3.96 meters | |
Maximum Towing Mass | 38.67 tons (The maximum towing capacity can reach 40 tons) | |
Maximum Speed | 89 km/h | |
Vehicle Weight | 8.8 tons | |
Permitted Passenger Capacity | 2 persons | |
Seat Row Arrangement | Semi-berth | |
Engine | Engine Model | Dongfeng Cummins Z14NS6B600 |
Cylinder Arrangement | Inline | |
Number of Cylinders | 6 | |
Displacement | 13.48 L | |
Horsepower | 600 horsepower | |
Output Power | 441 kW | |
Torque | 2750 N·m | |
Maximum Torque Rotational Speed | 900 - 1400 rpm | |
Rated Rotational Speed | 1800 rpm | |
Transmission | Transmission Model | Dongfeng DT1425 OD / Endurant 12-speed AMT |
Shift Mode | Manual / AMT Manual-automatic | |
Number of Forward Gears | 14 gears | |
Number of Reverse Gears | 2 gears | |
Chassis | Rear Axle Description | Dual 440 single-stage axles |
Allowable Load of Rear Axle (for two-axle group) | 18000 kg | |
Rear Axle Ratio | 2.69 | |
Number of Leaf Springs | 2/3 | |
Fuel Tank/Air Tank | Material of Fuel Tank/Air Tank | Aluminum alloy |
Capacity of Fuel Tank/Air Tank | 650 + 250 L | |
Tires | Tire Specification | 12R22.5 18PR, 295/80 R22.5 18PR |
Number of Tires | 10 | |
Cab | Cab | High-roof |
Safety Configuration | Braking System | Anti-lock Braking System (ABS), Electronic Braking System (EBS), Pneumatic Braking System, The parking brake system is air cut-off brake, and both the front and rear wheels are drum brakes |
Vehicle Stability System | Equipped | |
Differential Lock | Inter-axle differential lock, Wheel differential lock | |
Intelligent Safety System | Internet of Vehicles System, Cruise Control, Adaptive Cruise Control, Forward Collision Warning System, Emergency Braking Assist System, Lane Change Support, Tire Pressure Monitoring System, Fatigue Driving Monitoring | |
Interior and Multimedia | Steering Wheel | Leather multifunctional steering wheel |
Windows | Electric windows | |
Rear-view Mirrors | Electric rear-view mirrors, Rear-view mirror heating | |
Air Conditioning | Automatic air conditioning, Original parking air conditioning and parking heater | |
Multimedia | Color touch screen on the center console, GPS/BeiDou vehicle data recorder, External audio source interface | |
Instrument Panel | 12.3-inch high-resolution liquid crystal instrument panel | |
Lighting Configuration | Headlights | LED headlights |
Fog Lights | Front fog lights | |
Others | Daytime running lights, Adjustable headlight height |
Frequently Asked Questions
Powertrain-related issues -
**Question**: What could be the reasons for insufficient engine power? -
**Answer**: It might be that the air filter is clogged, resulting in insufficient air intake. In this case, you need to clean or
replace the air filter. It could also be that the fuel filter is clogged or there is a problem with the fuel pump, causing an
obstruction in the fuel supply. You'll need to check and replace the fuel filter or repair the fuel pump. Additionally, carbon
deposits on or malfunction of the fuel injectors might affect the fuel injection effect, requiring the fuel injectors to be
cleaned or replaced. -
**Question**: What should I do if the engine malfunction light comes on? -
**Answer**: First, park the vehicle safely and check whether there are any obvious abnormalities in the engine, such as strange
noises or smoke. Then use a professional diagnostic device to read the fault codes and conduct troubleshooting according to the
prompts of the fault codes. It could be a sensor malfunction, a wiring problem, or a failure of internal engine components. For
example, if the fault code is 415, which indicates low oil pressure, you need to check the oil level and the oil pump.
### Transmission-related issues -
**Question**: What causes rough or jerky shifting? -
**Answer**: If it's a manual transmission, it might be that the clutch disc is severely worn and needs to be replaced. It could
also be that the shift cable is improperly adjusted and needs to be readjusted. If it's an AMT transmission, it might be that the
transmission fluid level is too low or the fluid has deteriorated. In this case, you need to check and replenish or replace the
transmission fluid. It could also be an electrical control system malfunction, which requires inspection and repair at a
professional maintenance shop. -
**Question**: How can I solve the problem of abnormal noise from the transmission? -
**Answer**: First, check whether the transmission fluid is sufficient and of normal quality. If the fluid is okay, it might be
that the gears are severely worn, the bearings are damaged, or there is a problem with the synchronizer. In this situation, the
transmission needs to be disassembled for inspection and repair.
### Chassis-related issues -
**Question**: What should I do if the vehicle drifts to one side while driving? -
**Answer**: First, check whether the tire pressures are consistent. If they are different, adjust them to the standard pressure.
Then check whether the front wheel alignment is accurate. If there is a deviation, a four-wheel alignment adjustment is needed.
You also need to check whether the chassis suspension components, such as tie rods and ball joints, are loose or damaged. If there
are any problems, replace them in time. -
**Question**: What's the matter with abnormal noise from the rear axle? -
**Answer**: It might be that the rear axle gears are severely worn, with the tooth surfaces flaking or deforming, and the rear
axle gears need to be replaced. It could also be a problem with the differential, such as damage to the planetary gears or wear of
the axle shaft gears. In this case, the differential needs to be disassembled for repair. It's also possible that the bearings are
damaged and need to be replaced.
### Braking system-related issues -
**Question**: What should I do if the braking distance is too long? -
**Answer**: Check the wear conditions of the brake pads and brake drums. If they are severely worn, replace them in time. Check
whether there is air leakage in the braking system. If there is, find the air leakage points and repair them. You also need to
check the brake fluid level and quality. If the level is too low, replenish it. If the quality has deteriorated, replace the brake
fluid. -
**Question**: How should I handle the situation when the ABS malfunction light comes on? -
**Answer**: It might be a problem with the wheel speed sensor, poor wiring connection, or a malfunction of the ABS control module.
First, check whether the wheel speed sensor is damaged or dirty. If so, clean or replace it. Then check whether the wiring is
loose or broken. If there are any problems, repair them in time. If both the sensor and the wiring are normal, it might be a
problem with the control module, and you need to take it to a professional maintenance shop for inspection and repair. ###
Electrical system-related issues -
**Question**: What could be the reasons for difficulty in starting or failure to start the vehicle? -
**Answer**: It might be that the battery power is insufficient. In this case, you need to check the battery and charge or replace
it. It could also be a problem with the starter, such as worn carbon brushes or a damaged solenoid switch. You'll need to repair
or replace the starter. You also need to check whether the wiring between the engine ECU and the starter is normal. If there is an
open or short circuit, repair it in time. -
**Question**: What should I do if the indicator lights on the instrument panel don't light up or display abnormally? -
**Answer**: Check whether the fuse for the instrument panel is blown. If it is, replace the fuse. Check whether the wiring
connections are good. If they are loose or broken, repair them. If both the fuse and the wiring are normal, it might be a problem
with the instrument panel itself, and you need to take it to a professional maintenance shop for inspection and repair or
replacement of the instrument panel.
**Question**: What could be the reasons for insufficient engine power? -
**Answer**: It might be that the air filter is clogged, resulting in insufficient air intake. In this case, you need to clean or
replace the air filter. It could also be that the fuel filter is clogged or there is a problem with the fuel pump, causing an
obstruction in the fuel supply. You'll need to check and replace the fuel filter or repair the fuel pump. Additionally, carbon
deposits on or malfunction of the fuel injectors might affect the fuel injection effect, requiring the fuel injectors to be
cleaned or replaced. -
**Question**: What should I do if the engine malfunction light comes on? -
**Answer**: First, park the vehicle safely and check whether there are any obvious abnormalities in the engine, such as strange
noises or smoke. Then use a professional diagnostic device to read the fault codes and conduct troubleshooting according to the
prompts of the fault codes. It could be a sensor malfunction, a wiring problem, or a failure of internal engine components. For
example, if the fault code is 415, which indicates low oil pressure, you need to check the oil level and the oil pump.
### Transmission-related issues -
**Question**: What causes rough or jerky shifting? -
**Answer**: If it's a manual transmission, it might be that the clutch disc is severely worn and needs to be replaced. It could
also be that the shift cable is improperly adjusted and needs to be readjusted. If it's an AMT transmission, it might be that the
transmission fluid level is too low or the fluid has deteriorated. In this case, you need to check and replenish or replace the
transmission fluid. It could also be an electrical control system malfunction, which requires inspection and repair at a
professional maintenance shop. -
**Question**: How can I solve the problem of abnormal noise from the transmission? -
**Answer**: First, check whether the transmission fluid is sufficient and of normal quality. If the fluid is okay, it might be
that the gears are severely worn, the bearings are damaged, or there is a problem with the synchronizer. In this situation, the
transmission needs to be disassembled for inspection and repair.
### Chassis-related issues -
**Question**: What should I do if the vehicle drifts to one side while driving? -
**Answer**: First, check whether the tire pressures are consistent. If they are different, adjust them to the standard pressure.
Then check whether the front wheel alignment is accurate. If there is a deviation, a four-wheel alignment adjustment is needed.
You also need to check whether the chassis suspension components, such as tie rods and ball joints, are loose or damaged. If there
are any problems, replace them in time. -
**Question**: What's the matter with abnormal noise from the rear axle? -
**Answer**: It might be that the rear axle gears are severely worn, with the tooth surfaces flaking or deforming, and the rear
axle gears need to be replaced. It could also be a problem with the differential, such as damage to the planetary gears or wear of
the axle shaft gears. In this case, the differential needs to be disassembled for repair. It's also possible that the bearings are
damaged and need to be replaced.
### Braking system-related issues -
**Question**: What should I do if the braking distance is too long? -
**Answer**: Check the wear conditions of the brake pads and brake drums. If they are severely worn, replace them in time. Check
whether there is air leakage in the braking system. If there is, find the air leakage points and repair them. You also need to
check the brake fluid level and quality. If the level is too low, replenish it. If the quality has deteriorated, replace the brake
fluid. -
**Question**: How should I handle the situation when the ABS malfunction light comes on? -
**Answer**: It might be a problem with the wheel speed sensor, poor wiring connection, or a malfunction of the ABS control module.
First, check whether the wheel speed sensor is damaged or dirty. If so, clean or replace it. Then check whether the wiring is
loose or broken. If there are any problems, repair them in time. If both the sensor and the wiring are normal, it might be a
problem with the control module, and you need to take it to a professional maintenance shop for inspection and repair. ###
Electrical system-related issues -
**Question**: What could be the reasons for difficulty in starting or failure to start the vehicle? -
**Answer**: It might be that the battery power is insufficient. In this case, you need to check the battery and charge or replace
it. It could also be a problem with the starter, such as worn carbon brushes or a damaged solenoid switch. You'll need to repair
or replace the starter. You also need to check whether the wiring between the engine ECU and the starter is normal. If there is an
open or short circuit, repair it in time. -
**Question**: What should I do if the indicator lights on the instrument panel don't light up or display abnormally? -
**Answer**: Check whether the fuse for the instrument panel is blown. If it is, replace the fuse. Check whether the wiring
connections are good. If they are loose or broken, repair them. If both the fuse and the wiring are normal, it might be a problem
with the instrument panel itself, and you need to take it to a professional maintenance shop for inspection and repair or
replacement of the instrument panel.
