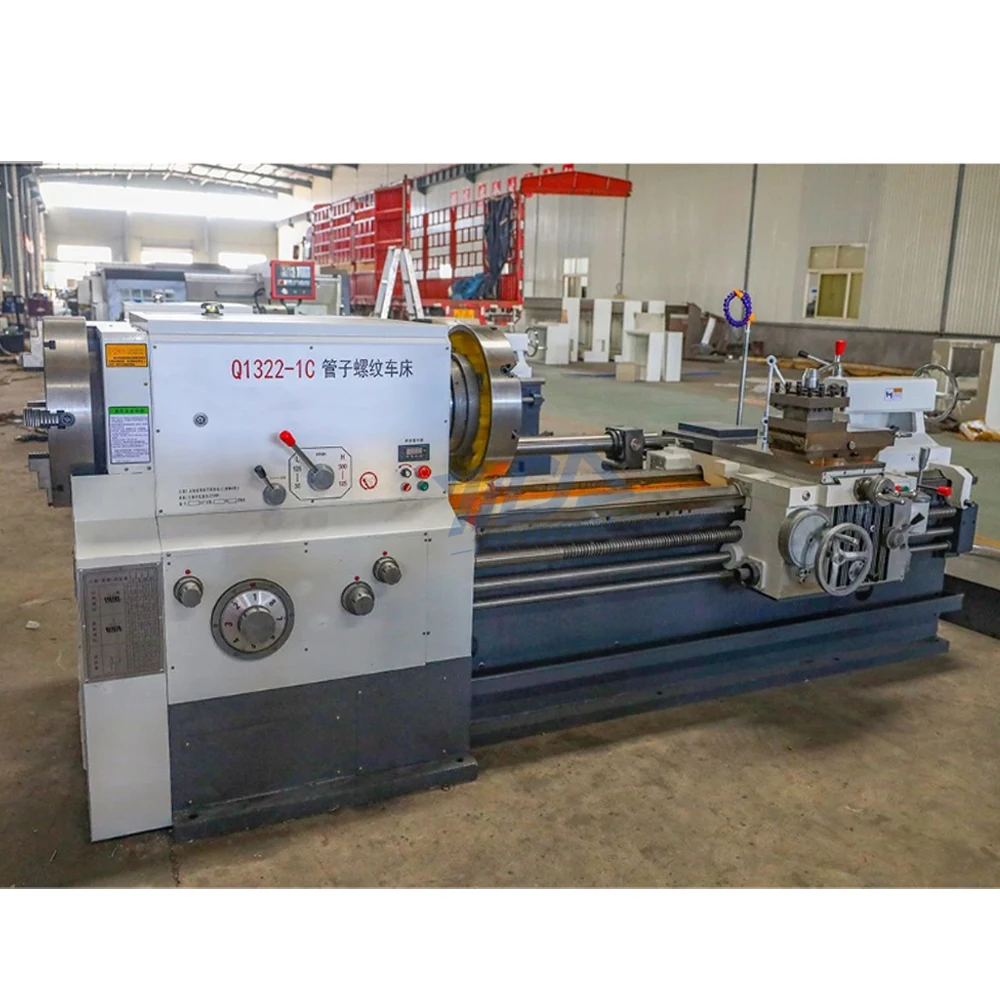

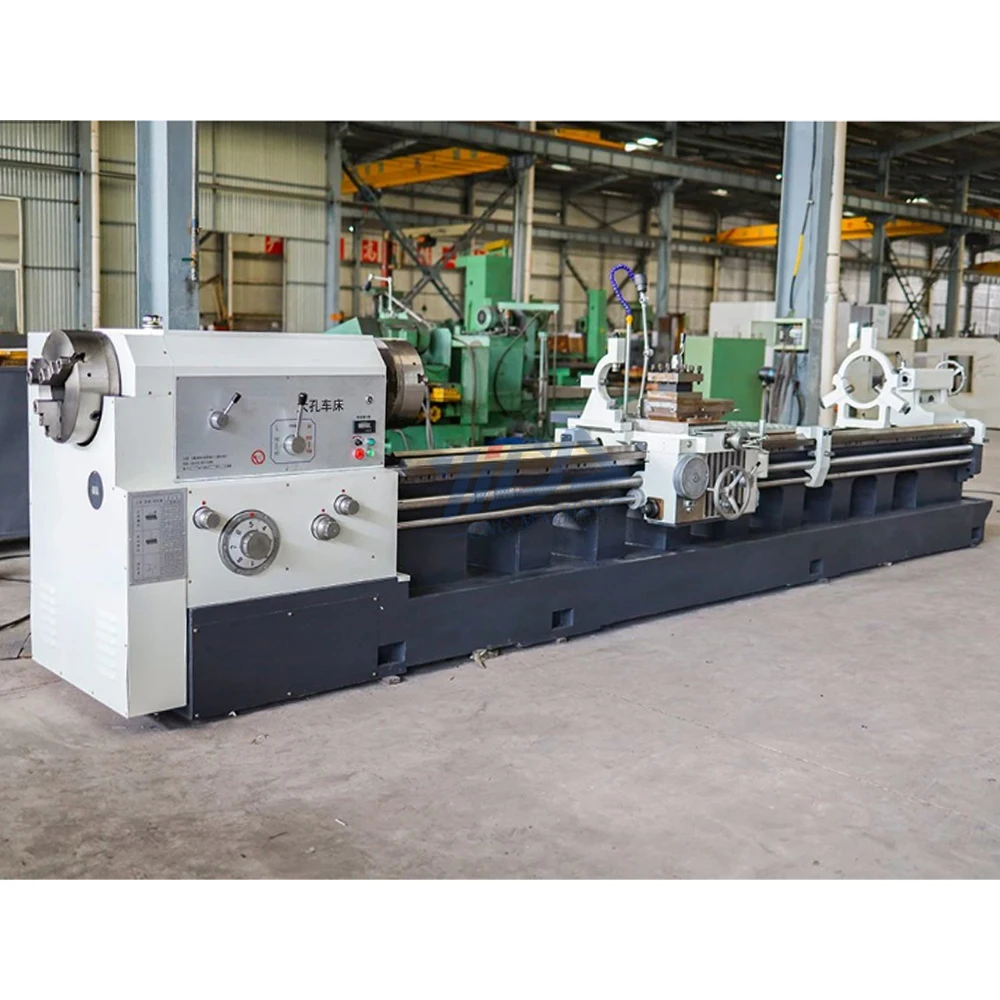

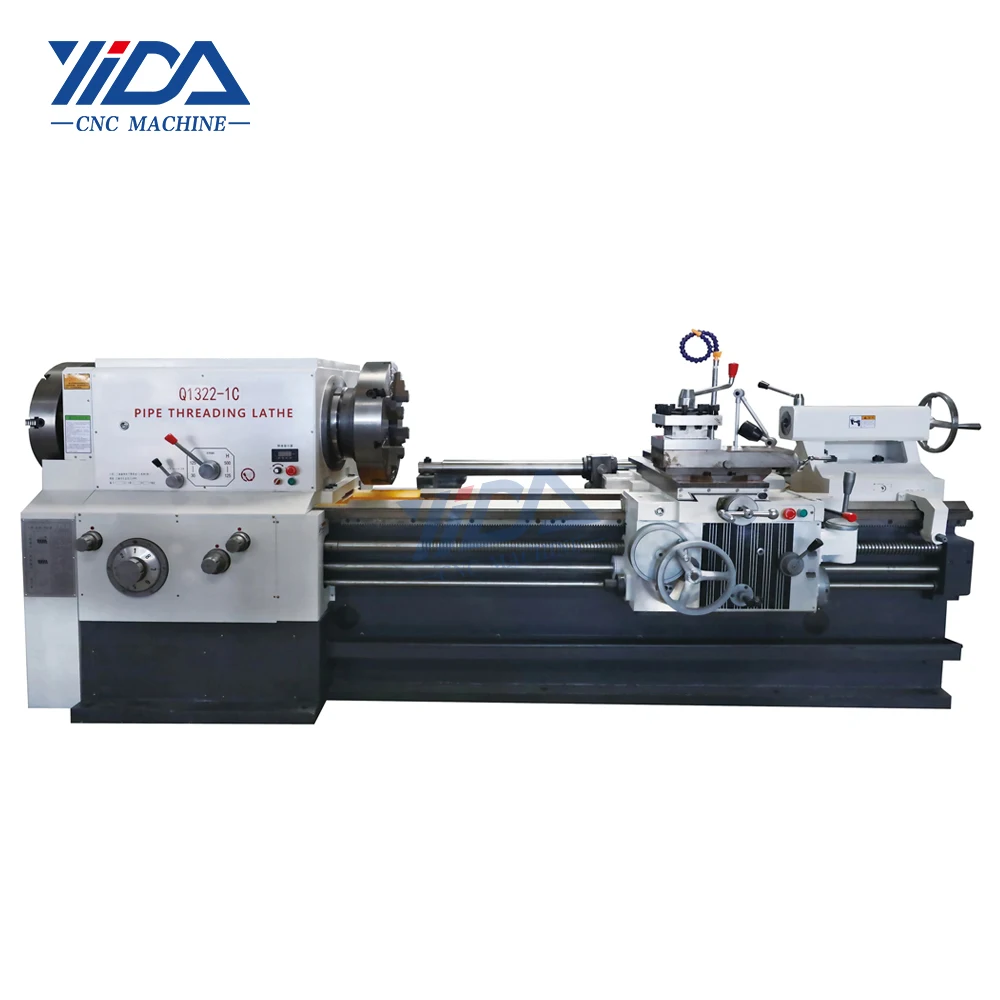

Efficient manual metal lathe Q1322 pipe threading lathe with steady rest horizontal lathe machine for metal
- Category: >>>
- Supplier: Shandong Yida CNC Machine Tool Co. Ltd.Shandong Ltd.
Share on (1601366521135):
Product Overview
Description
Products Description
The main performance characteristics：

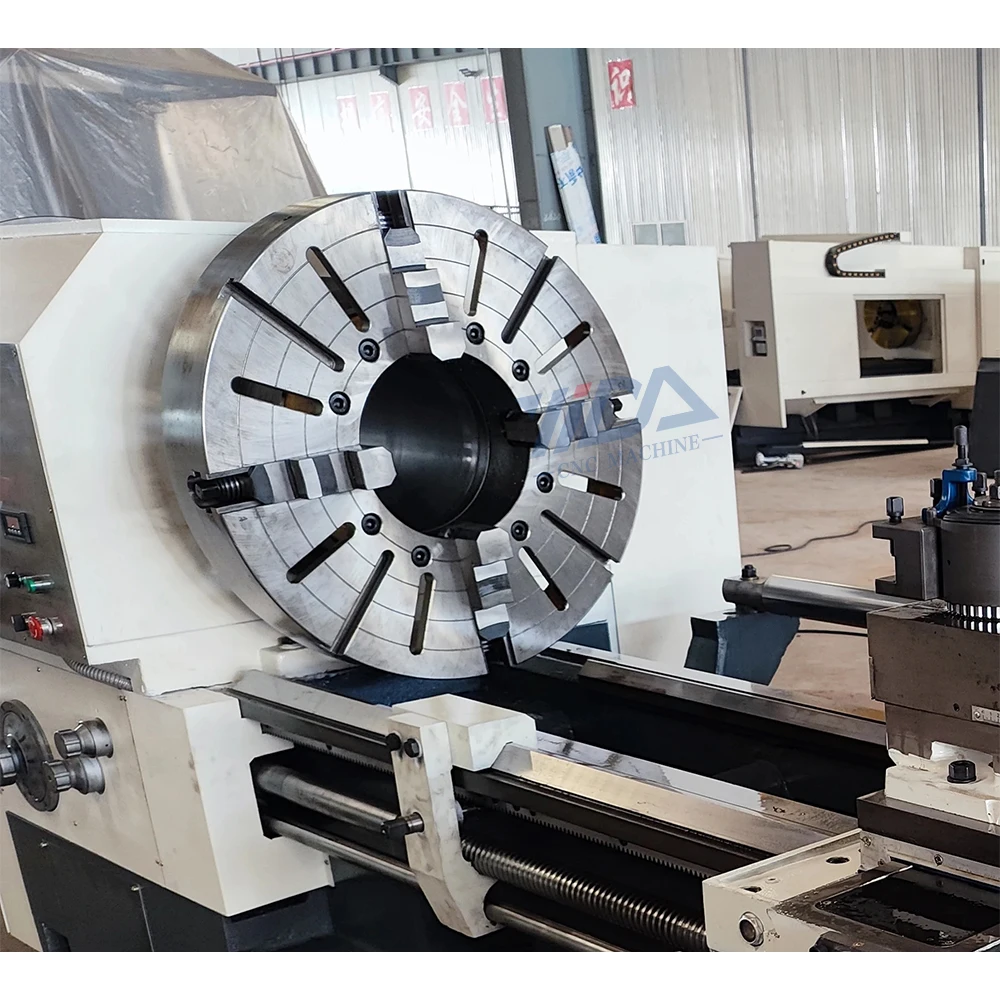

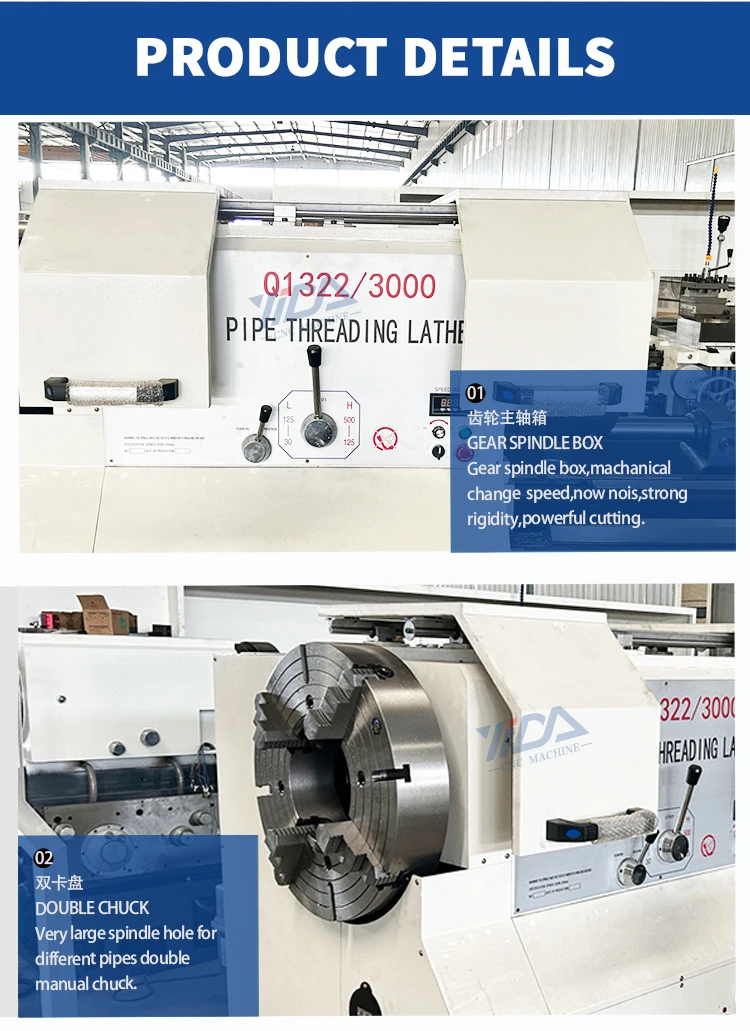

Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic requency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic requency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Application:
Q1322 heavy duty pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread couplingand so on.
Standard accessories:
Tool post,Tailstock,Chuck,taper guide bar,Lighting lamp,Coolant pump,Rear support bracket,Pad iron etc.
Optional accessories:
Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Signal light,Protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.
Q1322 heavy duty pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread couplingand so on.
Standard accessories:
Tool post,Tailstock,Chuck,taper guide bar,Lighting lamp,Coolant pump,Rear support bracket,Pad iron etc.
Optional accessories:
Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Signal light,Protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.
Product Paramenters
SPECIFICATIONS | Units | Q1322 |
Swing over bed | mm | 630/800 |
Swing over cross slide | mm | 340/520 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 50-220 |
Guideway width | mm | 550 |
Max. load capacity | kg | 3000 |
Spindle bore | mm | 230 |
Spindle speed steps | - | VF. 4 steps |
Spindle speed range | rpm | 20-550 |
Chuck | mm | φ520 4-jaw manual |
Turret/tool post | - | Manual 4 position |
Tool shank size | mm | 32 x 32 |
X axis travel | mm | 320/420 |
Z axis travel | mm | 1350/2850 |
X axis feed steps/range | mm/r | 22/0.02-0.45 |
Z axis feed steps/range | mm/r | 26/0.07-1.33 |
X axis rapid traverse | mm/min | 2300 |
Z axis rapid traverse | mm/min | 4000 |
Metric thread kinds /range | mm | 1-15 |
Inch thread kinds /range | T.P.I | 14-1 |
Tailstock quill diameter | mm | 100 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 250 |
Main spindle motor | kw | 11 |
Rapid traverse motor | kw | 0.3 |
Coolant pump motor | kw | 0.125 |
Weight for 1500 | kg | 4500 |
Weight for 3000 | kg | 5700 |
Dimension for 1500 | mm | 3700x1650x1550 |
Dimension for 3000 | mm | 5200x1650x155 |
