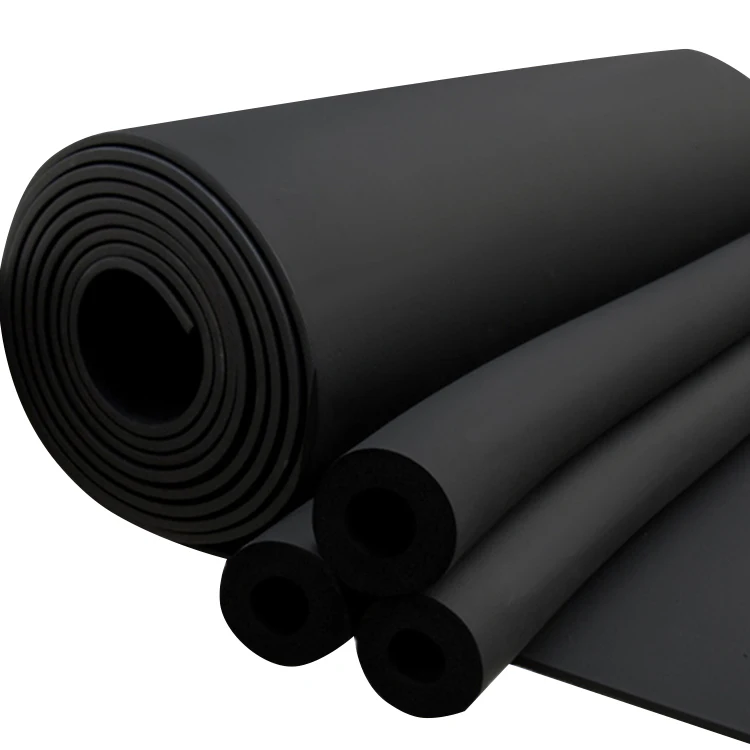

Rubber Roofing sheets Iso Board Rubber insulation High Temperature Foam 1 Inch sheet 5cm Thick Heat insulation Material
- Category: >>>
- Supplier: Jinan Retek Industries IncJinan Inc
Share on (1601366550286):
Product Overview
Description
Product Description

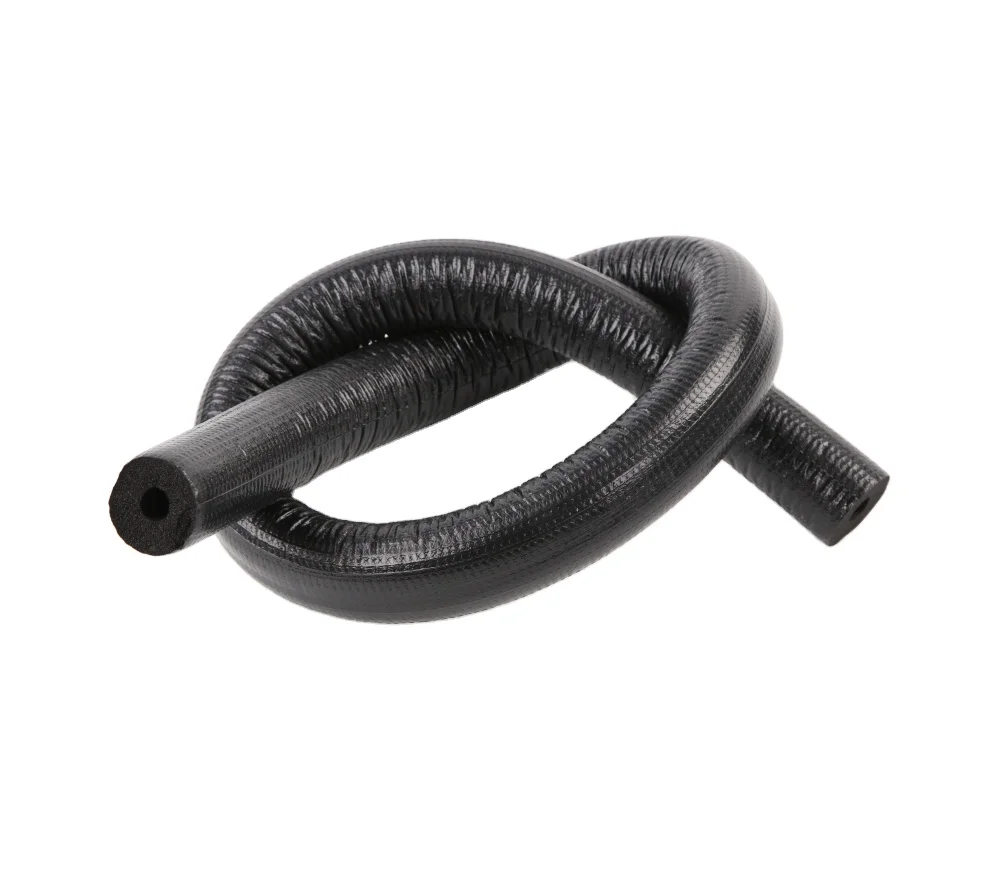

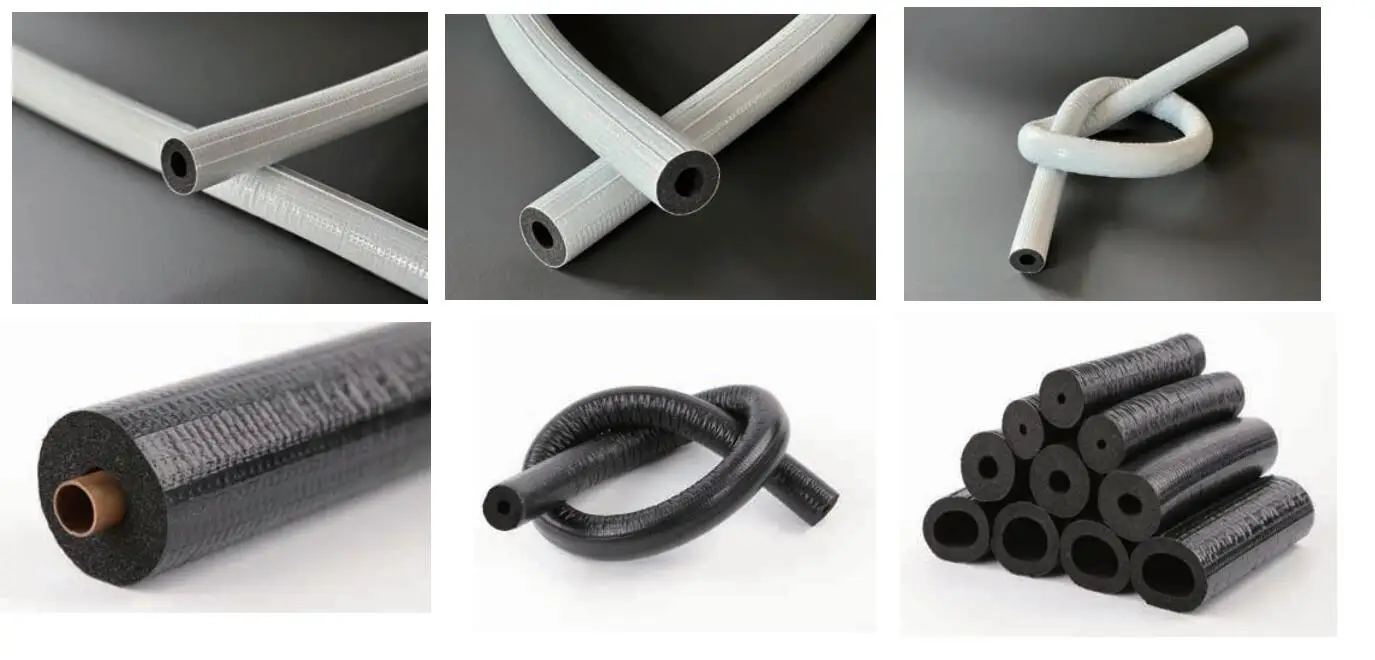

Gold diamond series Insulation Tube
Product description
Gold diamond series is a kind of rubber and plastic insulation material which is extruded with flexible polymeric cladding.It can be used in NBR/PVC or EPDM pipe insulation system. The product comes with a polymer cladding material with excellent flexibility, mechanical resistance.
Systerm application
The application temperature range is -55℃ to +150℃,The polymerized claddingenhances,
moisture flow resistance, and mechanical resistanceof insulated pipes, making it ideal for HVAC hoses. The golden diamond series tube is ideal for heat pumps and solar hot water supply systerms with high temperature requirements (expected to reach 150℃).
Outdoor application
The Gold Diamond series provide excellent UV radiation resistance，as well as good weather
resistance, with aunique polymer coating with excellent mechanical resistance.
Product description
Gold diamond series is a kind of rubber and plastic insulation material which is extruded with flexible polymeric cladding.It can be used in NBR/PVC or EPDM pipe insulation system. The product comes with a polymer cladding material with excellent flexibility, mechanical resistance.
Systerm application
The application temperature range is -55℃ to +150℃,The polymerized claddingenhances,
moisture flow resistance, and mechanical resistanceof insulated pipes, making it ideal for HVAC hoses. The golden diamond series tube is ideal for heat pumps and solar hot water supply systerms with high temperature requirements (expected to reach 150℃).
Outdoor application
The Gold Diamond series provide excellent UV radiation resistance，as well as good weather
resistance, with aunique polymer coating with excellent mechanical resistance.
Specification
Performance | NBR/PVC | EPDM | Test method | ||||
Density | ≤70kg/m³ | ≤70kg/m | GB6343-95 | ||||
Thermal Average | conductivity temperature | -20℃ | ≤0.033W/(m·k) | ≤0.035W/(m·k) | GBT10294 | ||
0℃ | ≤0.035W/(m ·k) | ≤0.037W/(m ·k) | |||||
40℃ | ≤0.040W(m·k) | ≤0.042W(m ·k) | |||||
Moisture permeablity | ≤2.6x10-11g/(m · s ·Pa ≥10000 | ≤1.3x10-'g/(m · s ·Pa) ≥4500 | GB/T17146 | ||||
rmeability coefficient Dampness factor | DIN52615 | ||||||
Water absorption in vacuum | ≤10% | ≤10% | GB/T17794-2008 | ||||
Dimension stability(105℃±3℃,7d) | ≤10.0% | ≤10.0% | GB/T8811 | ||||
Noise reduction performance | ~32dB | ~32dB | GB/T4760 | ||||
Mildew resistance | No mold growth | No mold growth | ASTM G21 | ||||
Operating temperature range | -40℃~+105℃ | -40℃~+105℃ | GB8871 | ||||
Corosiveness | PH=7 | PH=7 | GB/T17393 | ||||
Anti-aging(150h) | Slight wrinkle,no crack, no deformation | Slight wrinkle,no crack no deformation | GB/T16259 | ||||
Anti-uy aging | Pass | Pass | ASTM G153 | ||||
Compression rebound rate | ≥70% | ≥70% | GB/T 6669 | ||||
Tearing strength | 9N/cm | 9N/cm | GB/T 10808 | ||||
Packing & Delivery
ID | T=6mm 1/4" | T=9mm 3/8" | T=13mm 1/2" | T=20mm 3/4" | T=25mm 1" |
PC/CTN | PC/CTN | PC/CTN | PC/CTN | PC/CTN | |
1/4”(6mm | 250 | 168 | 100 | 48 | 30 |
3/8"(10mm) | 200 | 120 | 90 | 36 | 30 |
1/2"(13mm | 168 | 100 | 72 | 30 | 24 |
5/8”(16mm) | 133 | 90 | 63 | 30 | 20 |
3/4"(19mm | 113 | 72 | 56 | 25 | 20 |
7/8”(22mm) | 80 | 65 | 42 | 24 | 18 |
1"(25mm) | 70 | 49 | 42 | 20 | 16 |
1-1/8"(28mm) | 60 | 49 | 36 | 20 | 16 |
1-1/4"(32mm) | 55 | 42 | 30 | 20 | 15 |
1-3/8"(35mm) | 50 | 36 | 30 | 16 | 12 |
1-1/2"(38mm) | 34 | 30 | 16 | 12 | |
1-5/8"(42mm) | / | 30 | 25 | 1 ) | 12 |
1-7/8"(48mm) | / | 28 | 20 | 15 | 10 |
2"(51mm) | / | 24 | 20 | 12 | 9 |
2-1/8"(54mm) | / | 20 | 18 | 12 | 9 |
2-1/4"(57mm) | / | 20 | 18 | 12 | 9 |
2-3/8(60mm | / | 20 | 15 | 10 | 9 |
2-5/8"(67mm) | / | 18 | 13 | 9 | 8 |
2-7/8"(73mm) | / | 18 | 13 | 9 | 8 |
3"(76mm) | / | 18 | 12 | 8 | 8 |
3-1/8"(79mm) | / | 15 | 12 | 8 | 6 |
3-1/2"(89mm | / | 15 | 12 | 6 | 6 |
Company Profile

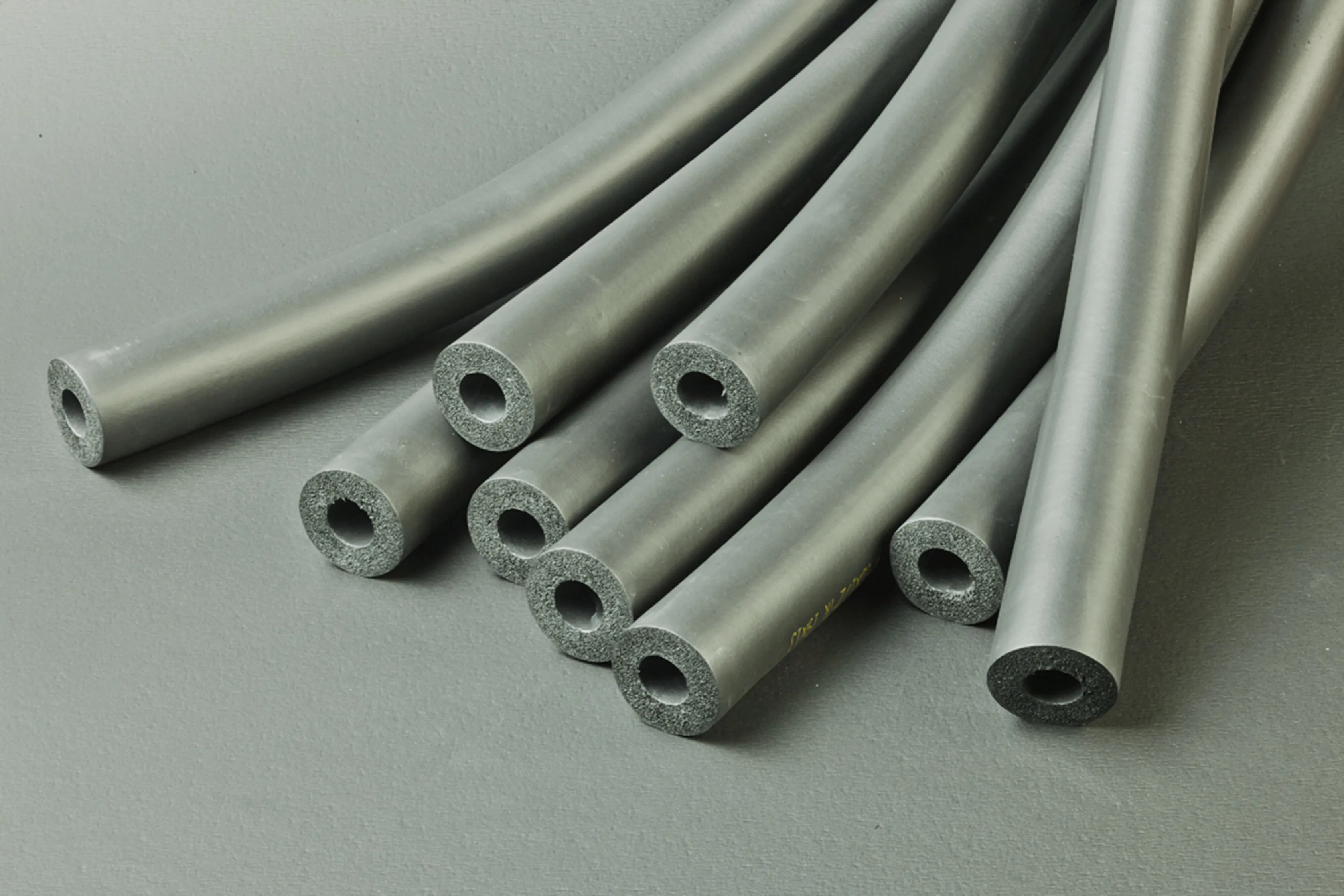

Toplon thermal insulation pipe Insulation Material uses NBR(nitrile-butadiene rubber)as main raw material for foaming and become a fully closed cell of flexible rubber insulation materials,without any fiber material,HCHO and CFCs which are bad for the ozonosphere.It is black material with excellent product performance,make the products be widely used in various public places,industrial workshop,clean room and medical education institutions,petrochemical industryetc.
