Mobile LED Billboard Trailer with Audio and Video Equipment for Exhibitions HY LT22
- Category: >>>
- Supplier: Henan Cimc Huayuan Technology Co. LtdHenan Ltd
Share on (1601366738378):
Product Overview
Description

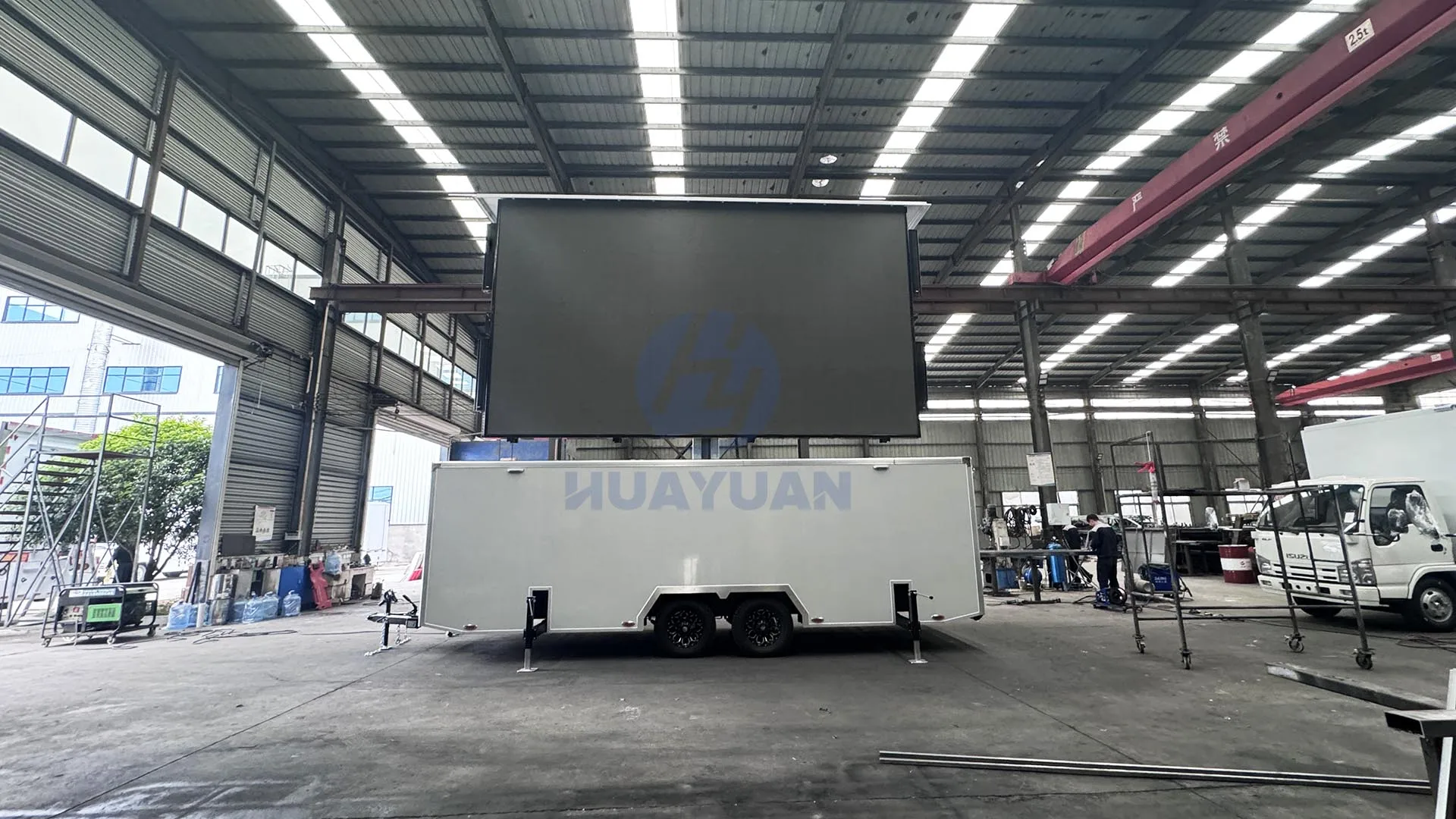

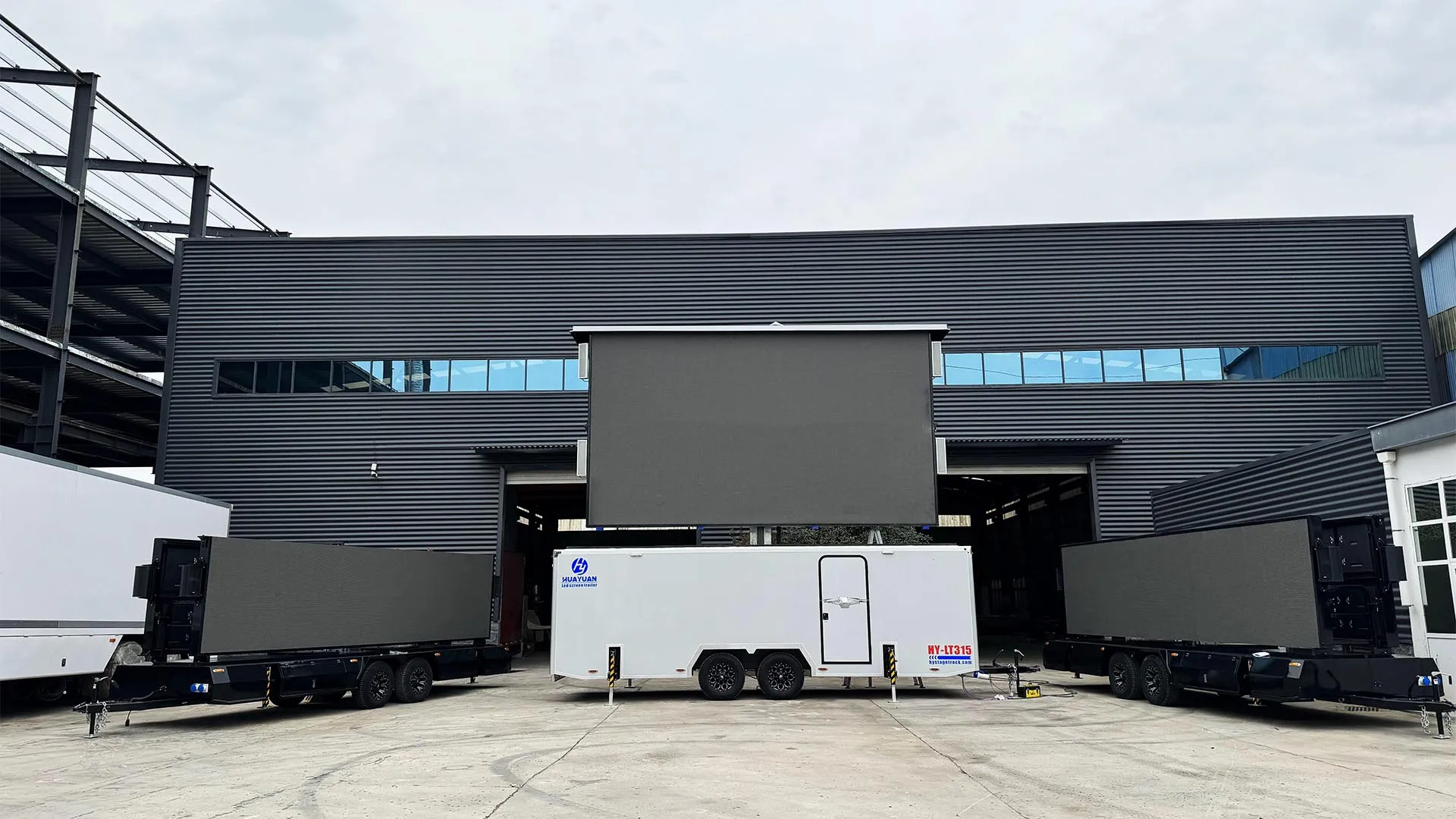

product display
Products Description
DESPECRIPTION

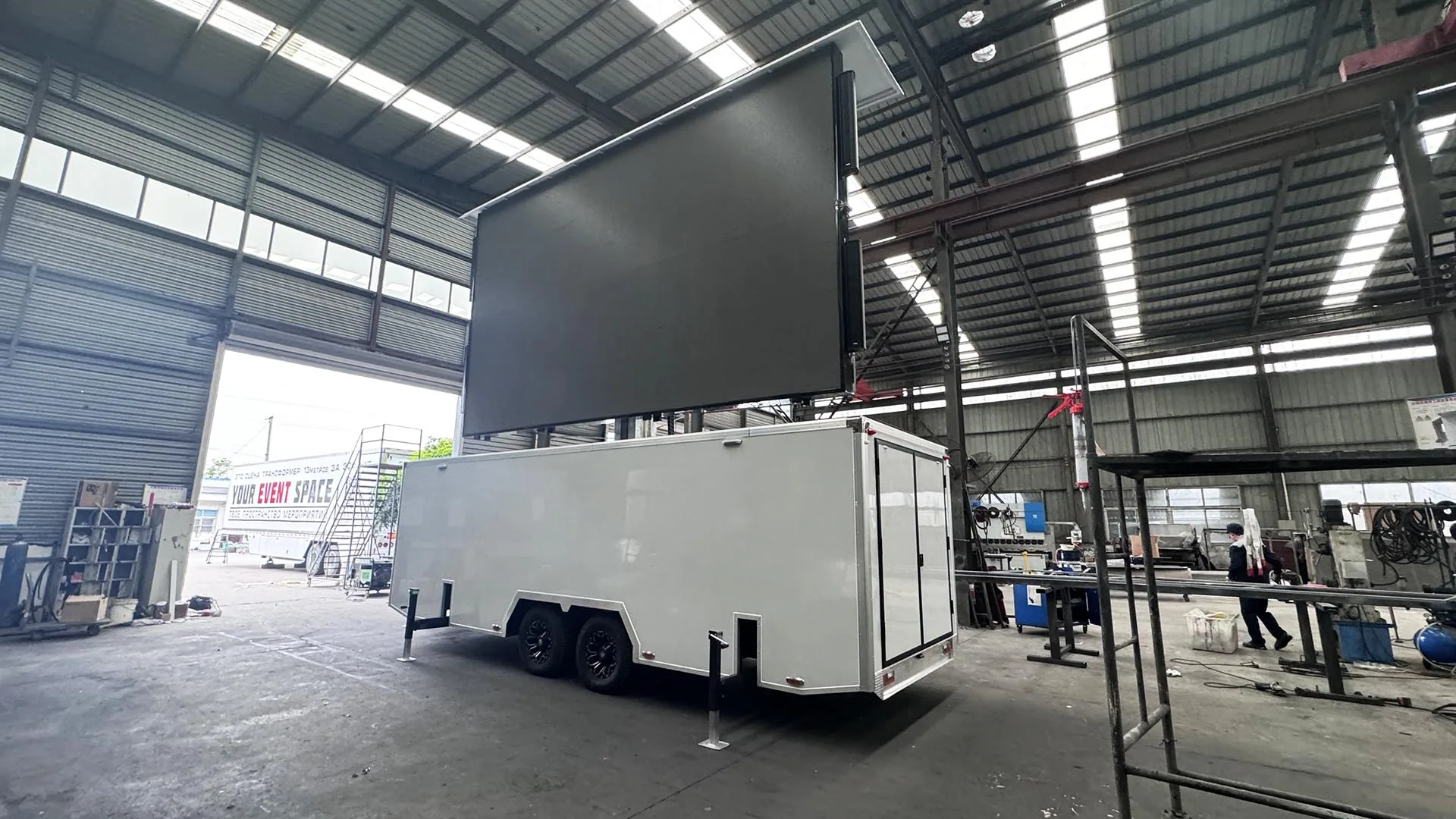

1.The LT-22 mobile LED screen trailer is a high-performance closed body trailer designed to protect LED screens and increase technician comfort in the face of inclement weather. The trailer body is formed in one piece with fiberglass sandwich panels to provide superior structural strength and thermal insulation , providing full protection for LED screens during transportation and storage.
2.Besides,widely used in various branding and outdoor advertising, sporting events and opening ceremonies , international music festivals and concerts,public events and municipal celebrations,etc.
Technical parameters
Trailer parameter | ||||||
Trailer size(mm) | 7000×2150×2615 | Display screen area | 21 square meter | |||
Weight (kg) | 4360 | Tyre | 265/70R16LT | |||
Outrigger | Mechanical expansion | Trailer Coupler | USA/European/Australian standard | |||
Maximum speed | 100Km/h | Axle | AL-KO | |||
Lift/rotate | 2270mm/telecontrol 360° | Braking mode | Electric brake | |||
package | 40HQ | |||||
LED screen parameters | ||||||
Display screen size (mm) | 6080×3520 | Dimension (mm) | 320(W)×160(H） | |||
Control card | Nova | Pixel pitch | P3/P4/P5/P6（selectable） | |||
Brightness | 5000-6000 nits | Life span | ≥100,000 hours | |||
Average power | 280watts/sqm | Max power | 850watts/sqm | |||
Multimedia equipment | ||||||
Power amplifier | EOLOSUN/LS260PM | Power | 500W | |||
Disposition | Five-way signal input (three-way microphone, two-way line), with U disk jack and remote control, power-on automatic playback function, support Bluetooth connection; Built-in FM radio and remote control function | |||||
Column loudspeaker | EOLOSUN/亿乐声 | Power | 120W×4 | |||
Disposition | Built-in high-fidelity 8 "bass unit and 3.5" horn treble unit, efficient performance; The voice and music have the characteristics of restoring the real amplification; The voice and music have the characteristics of restoring the real amplification; | |||||
Manufacturing Technique
The LT-22 trailer is equipped with a 20' × 11' LED screen, which is lifted and rotated by an advanced hydraulic system for simple and efficient operation.The structural design of the muli-stage guide column and cylinder ensures the stability of the screen during the lifting process.
At the same time,the hydraulic driven 360 degree rotation function provides a flexible and diverse display angle to adapt to the needs of various activities and display scenes.
The interior design focuses on functionality and operability, and the interior is equipped with work benches, lockers and lighting systems, which not only provides an efficient working environment for technicians,but also further extends the service life of the LED screen.
Whether in large events or daily presentations, the LT-22 provides you with a stable ,reliable guarantee that your creativity will be fully displayed.

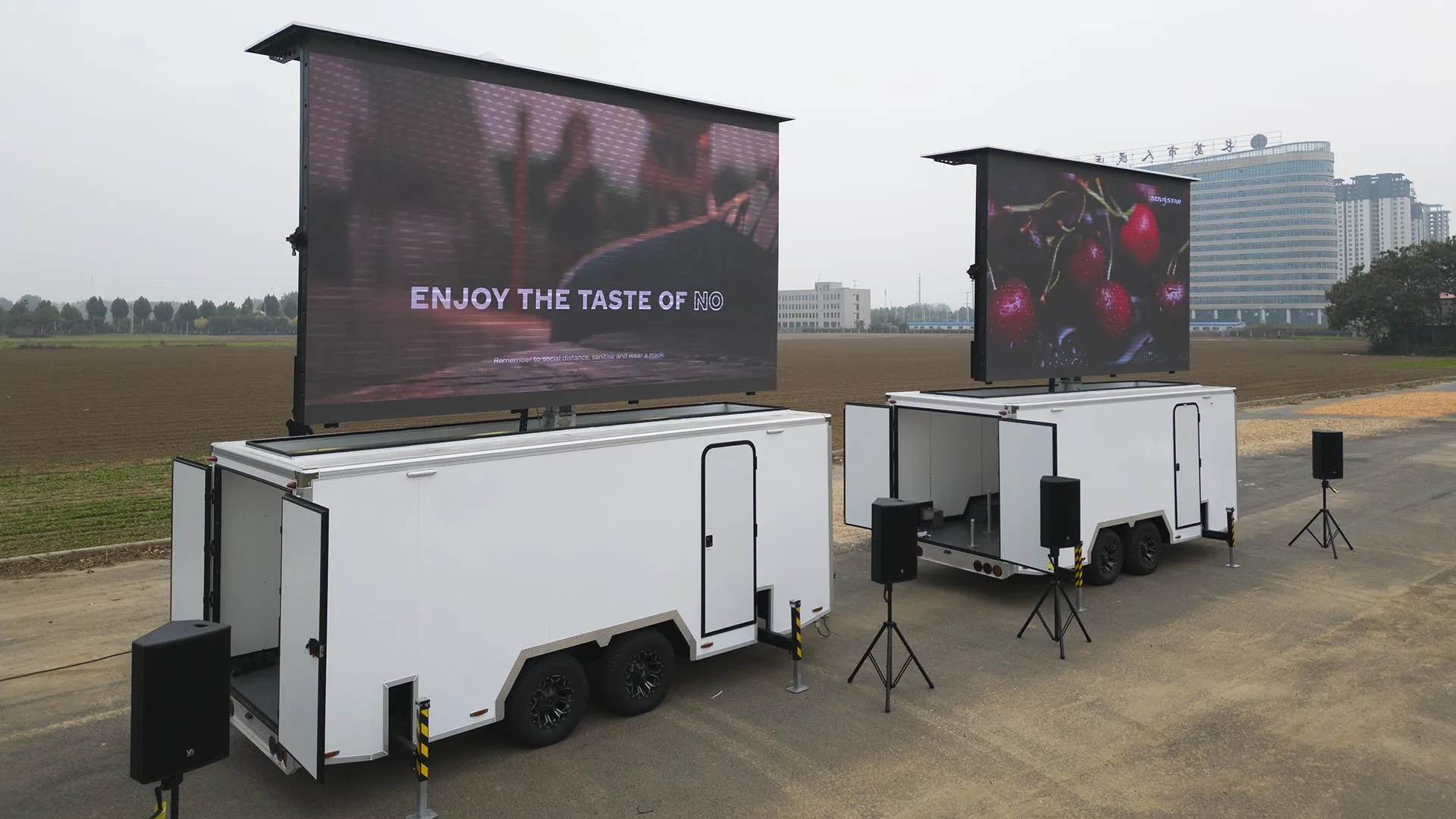

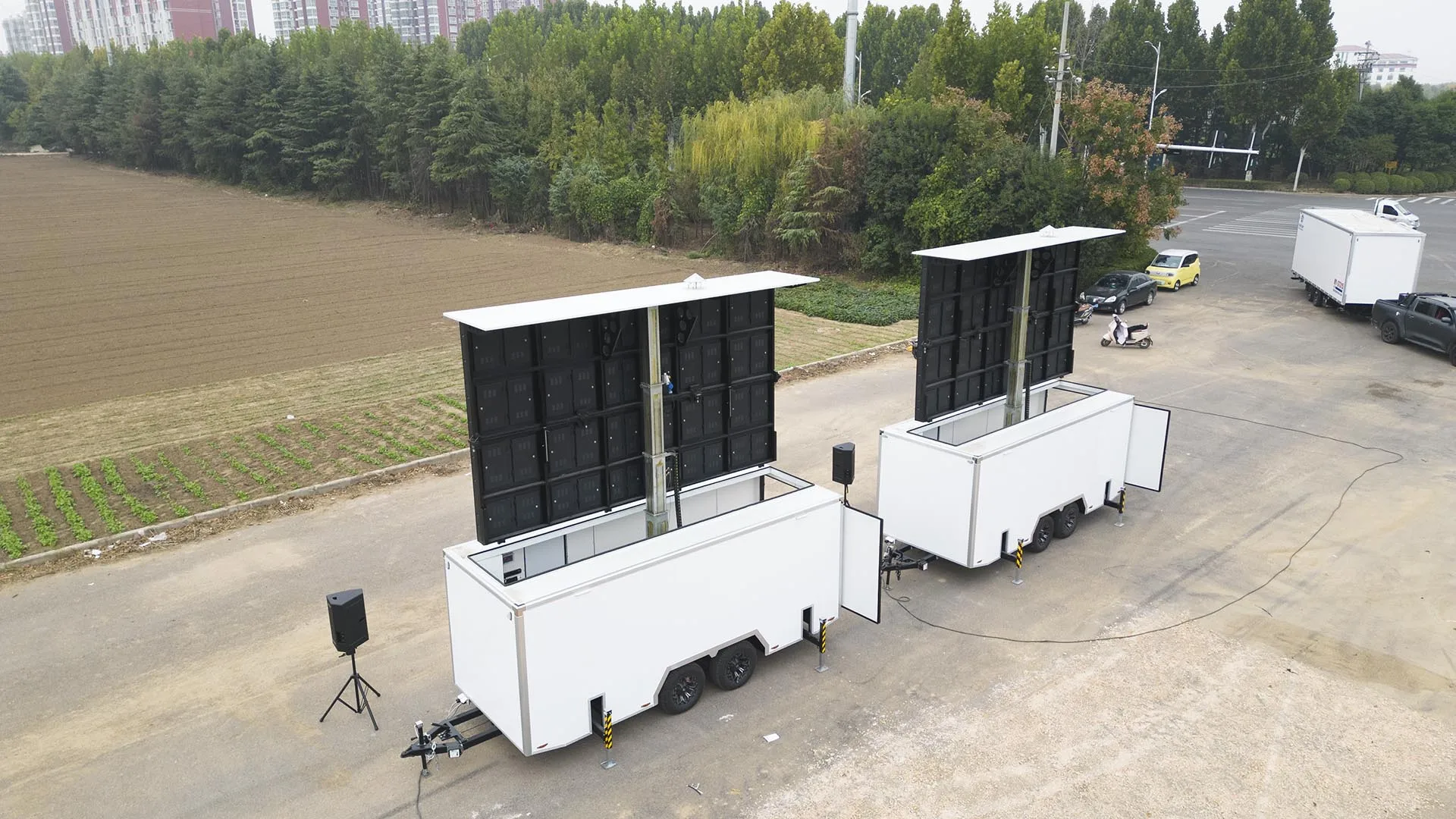

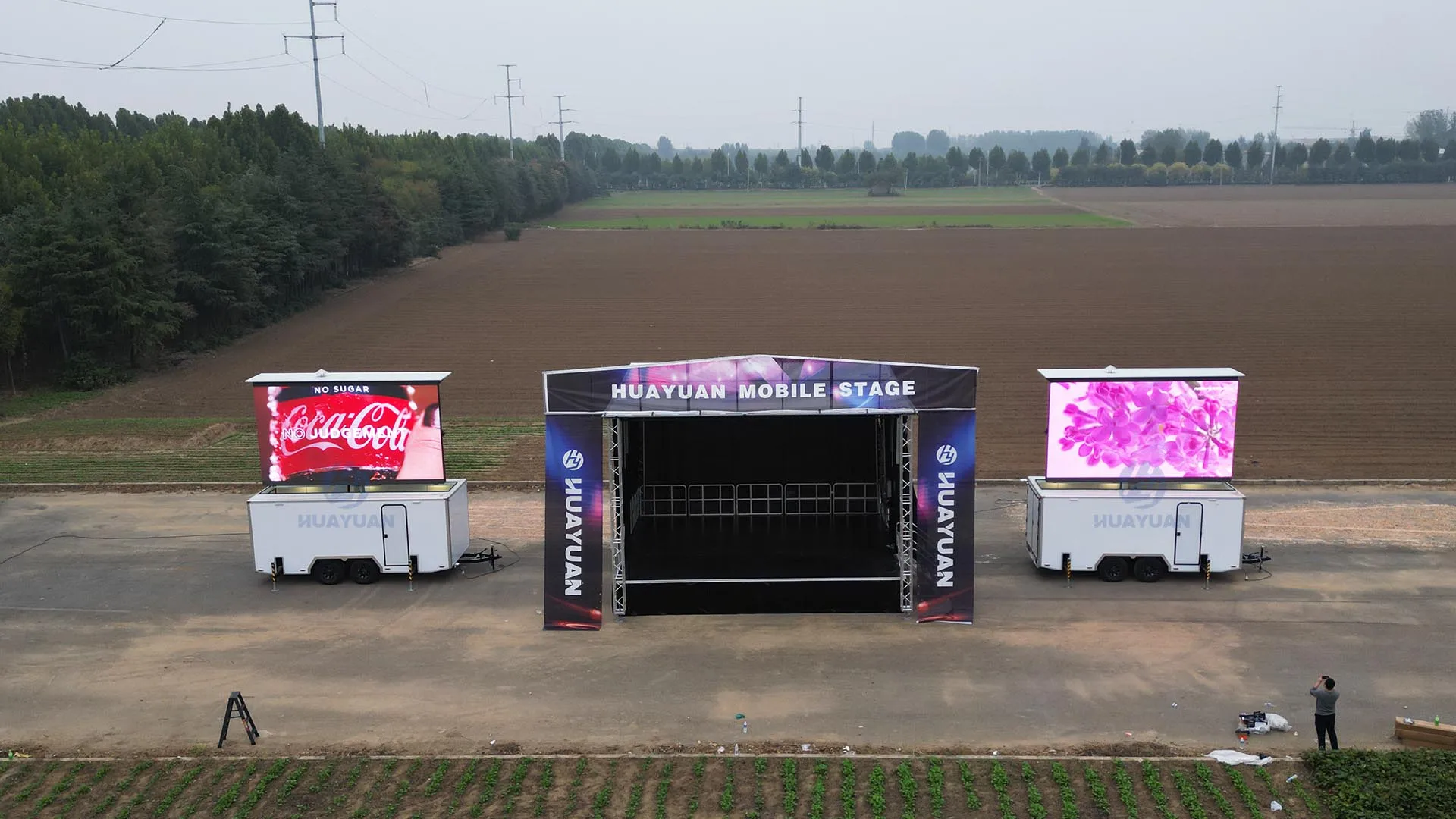

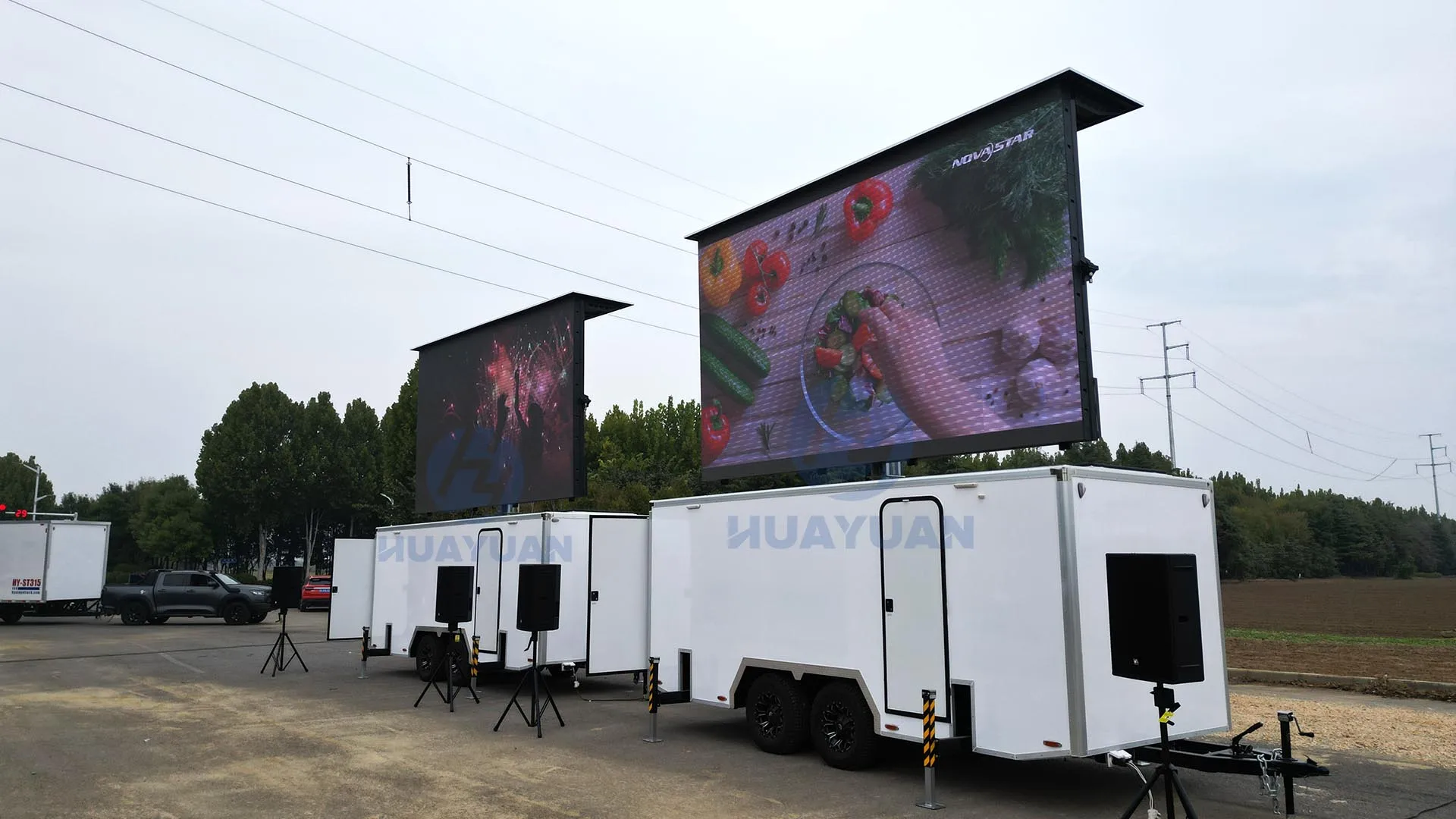

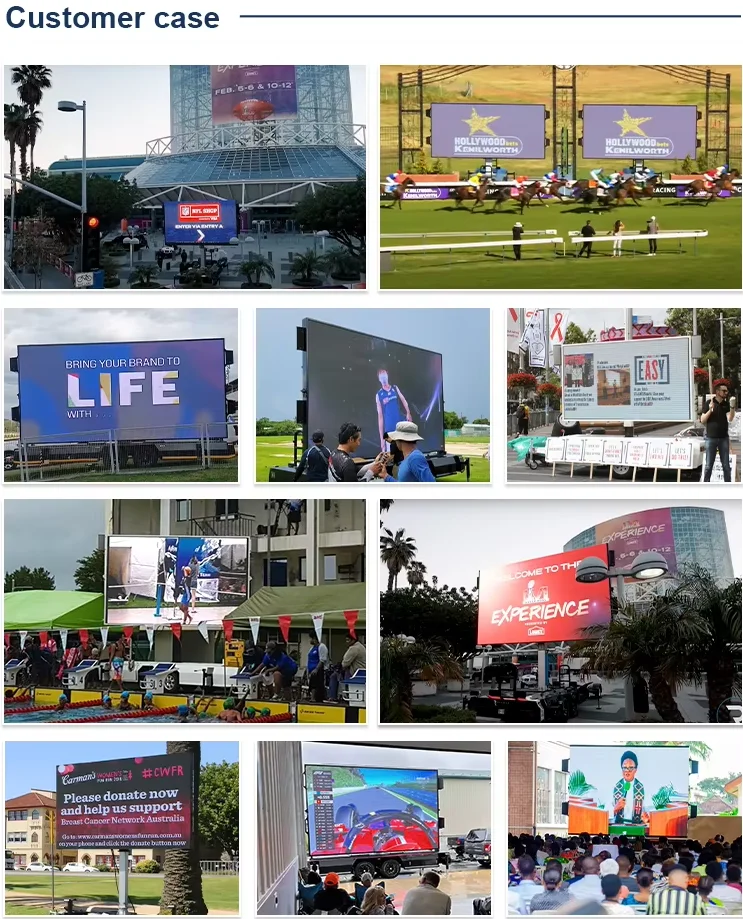

Customer Case
Company Profile
ABOUT US
Henan CIMC Huayuan Vehicle Co., LTD., specializing in the production of all kinds of mobile stage, such as: stage truck, stage trailer and semi-trailer stage; LED screen vehicles, such as LED display truck, LED billboard trailer and LED publicity vehicle; Mobile road show vehicles, such as: road show trucks, road show trailers and other special modified vehicles. We produce all kinds of outdoor stage vehicles, beautiful appearance, reasonable structure, safe use, strong bearing capacity. Suitable for soloists, small bands, product promotions, brand promotion, political speeches, church evangelism, large concerts, outdoor sports events, technology products and new car launches and other events.
We provide professional truck stage, trailer stage, caravan, road show vehicles, LED advertising vehicles, mobile space for customers. With advanced design idea, excellent performance, perfect supporting facilities and creative products, for customers to reduce activities before setting the huge manpower, time and money, improve the quality of live events, promotion company profile, and market development, consolidate the market position of customers and cultivate customer loyalty, etc., has the incomparable advantage. HUAYUAN series products have strong scene use effect and are well received by the majority of users.
Why Choose Us
1. who are we?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
China mobile stage truck,stage trailer,led screen trailer,Roadshow trailer,LED display truck.
4. why should you buy from us not from other suppliers?
5. what services can we provide?
We are based in Henan, China, start from 2015,sell to Southeast Asia(20.00%),Central America(10.00%),Mid East(10.00%),Oceania(10.00%).
2. how can we guarantee quality?Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
China mobile stage truck,stage trailer,led screen trailer,Roadshow trailer,LED display truck.
4. why should you buy from us not from other suppliers?
Henan Cimc Huayuan Technology Co., Ltd specializes in the production of various types of mobile stage truck, stage trailer, LED billboard trailer, LED screen truck, road show truck, road show trailer, and Gospel truck and other special modified vehicles.We are a large vehicle company and manufacturer integrating industry and trade, with a number of factories, which can be visited at any time.
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram, Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
FAQ
1.Payment method: TT (Telegraphic Transfer)
2.Do you accept customization? We accept customization
3.Order processing time. 50% via T/T as deposit, balance needs to be paid before delivery
4. Mode of transport. According to different types of products, we recommend bulk cargo, container, frame, roll-on and so on.
5.Quality control We have our own experienced QC, each order will pass strict inspection and testing before shipment. Customers can check the goods by video or through third-party testing.
6.Post-service.
6.Post-service.
A. Our sales team will respond to your questions within 24 hours (except holidays)
B.Provide technical support and video guidance at any time.
