20km High definition PAN TILT Ptz Nvr lens Auto Continuous Optical Zoom Thermal Image Ptz Camera
- Category: >>>
- Supplier: Jinan Farsight Electro-Optical Technology Co. Ltd.Jinan Ltd.
Share on (1601366915640):
Product Overview
Description
Product Description

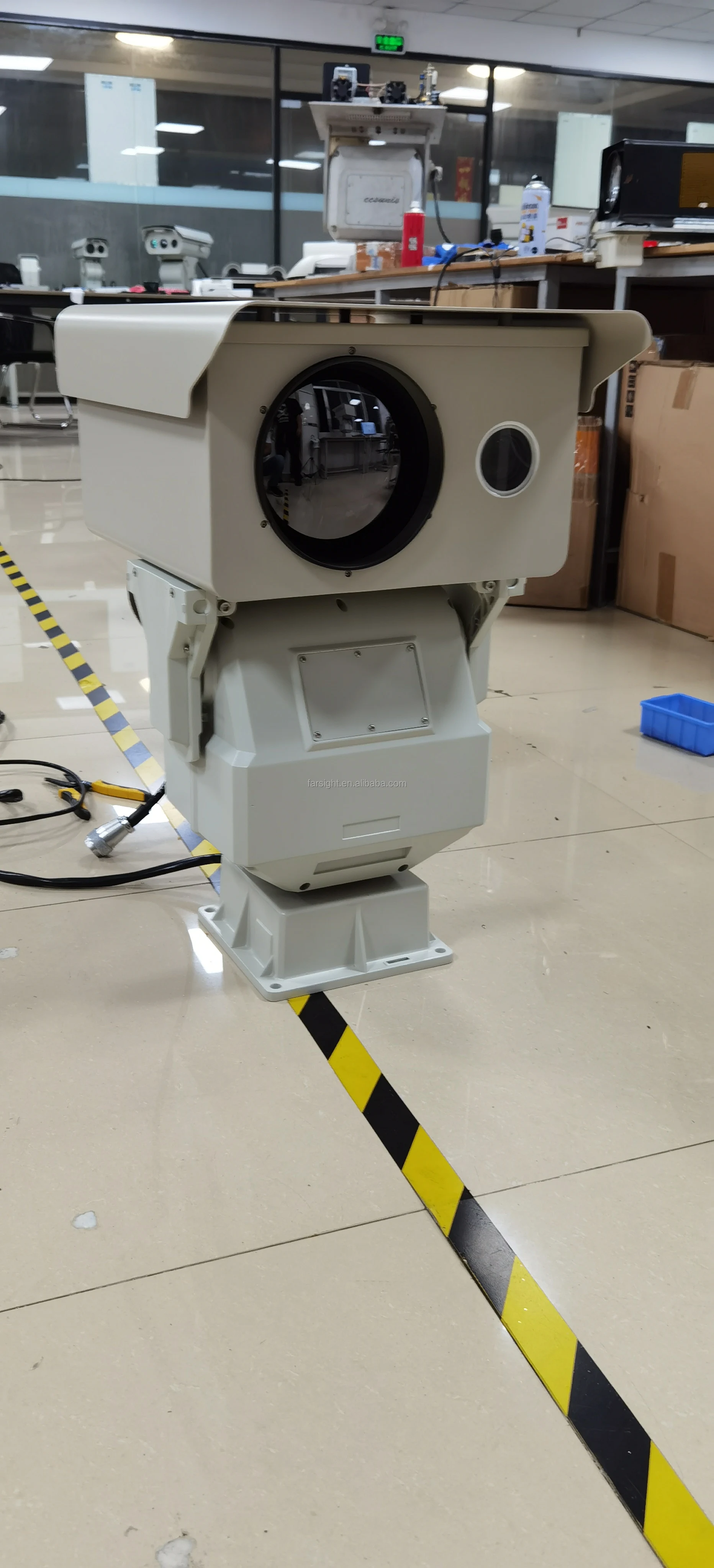

DHW22509K18033AI Long Distance Day/Night Dual Vision AI PTZ Camera
Based on the company's original visible light and infrared thermal imaging dual-light cameras, we have added an AI intelligent algorithm module. The equipment can automatically identify targets such as people, vehicles, airplanes, drones, and ships. The operator can either manually select the target to implement the tracking function of the PTZ camera, or the device can automatically select the identified target to start the tracking function.In addition, the camera also has panoramic imaging capabilities.

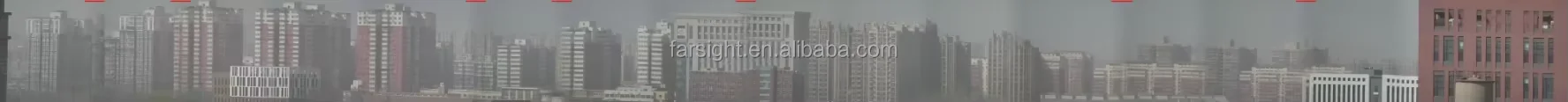

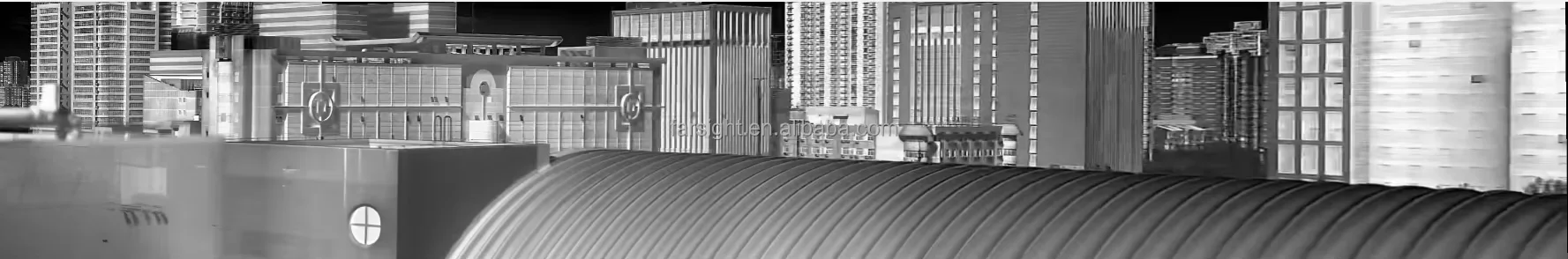

360° panoramic imaging

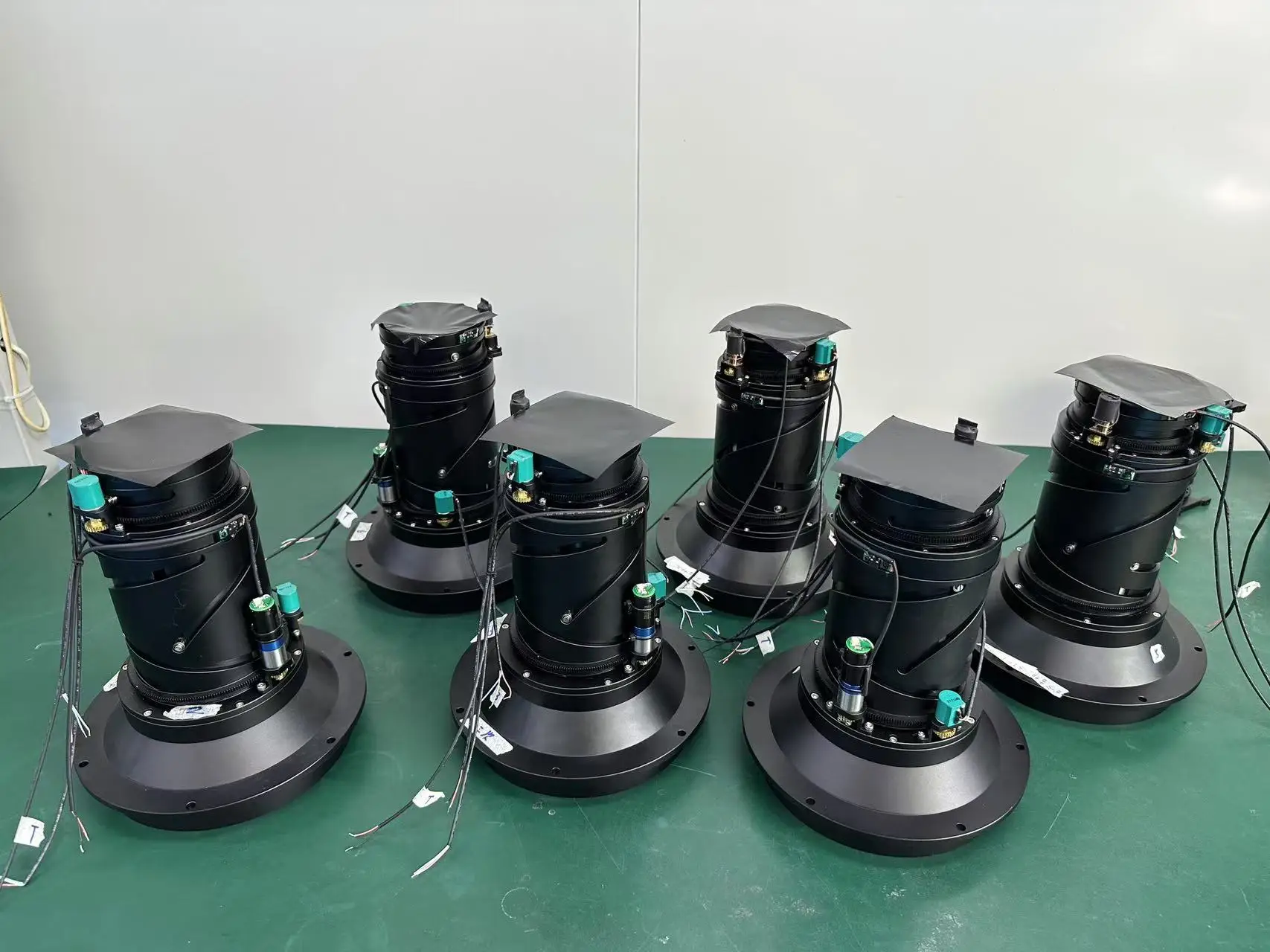

The infrared thermal imaging part uses an 11x optical continuous zoom lens with a focal length of 25~225mm. The movement uses a
purely domestic 17(12)μm pixel uncooled infrared detector (Vox).
purely domestic 17(12)μm pixel uncooled infrared detector (Vox).
HD day camera:
The high-definition visible light part uses a 33x 2MP pixel CMOS camera with a focal length of 5.5~180mm and optical continuous zoom.

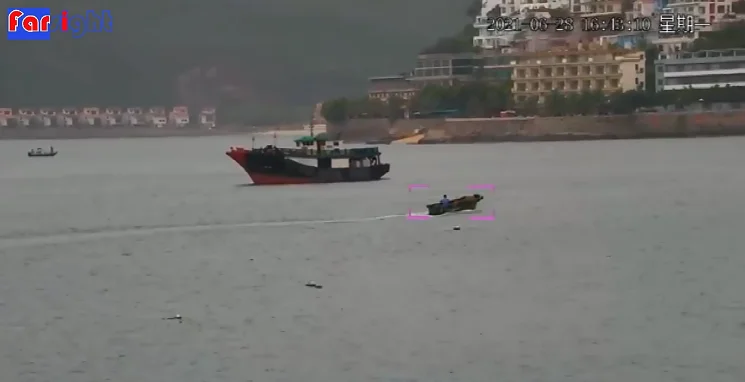

AI Target Recognition
Artificial intelligence target recognition algorithm can identify ships, aircraft, drones, people, cars and other targets. The algorithm's target recognition sensitivity can be manually adjusted. The operator can set the required sensitivity according to on-site needs.

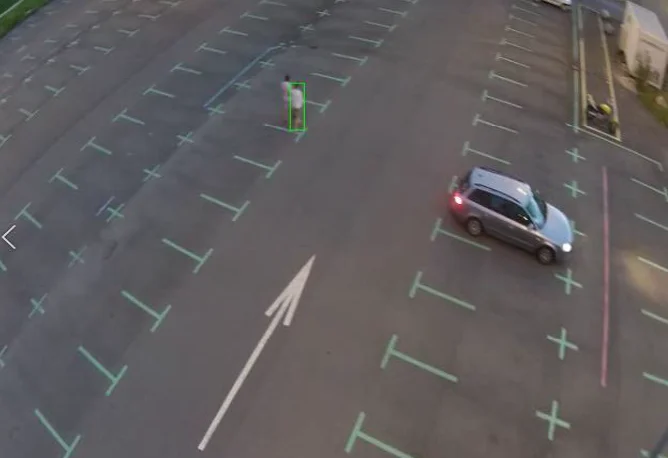

AI Target Tracking:
In automatic tracking mode, the device will enter tracking mode after 3 seconds after identifying the target. Operators can also
choose manual tracking and freely select targets.
choose manual tracking and freely select targets.
Features:
(1) Target (Human Vehicle) recognition, intrusion alarm, target tracking functions.(2) Adopt thermal imaging technology, not limited by light source, clear imaging.
(3) Day and night low-light color-to-black camera, which can realize continuous monitoring day and night.
(4) The universal variable speed pan tilt realizes all-round monitoring without blind angle, and achieves high-precision positioning.
(5) Passive thermal imaging has good concealment and not easy to be found.
(6) Professionally designed shell, beautiful, light, strong, high temperature resistance.corrosion resistance, waterproof, acid rain proof.
(7) Low power consumption of the whole device, less heat generation, stable working performance.

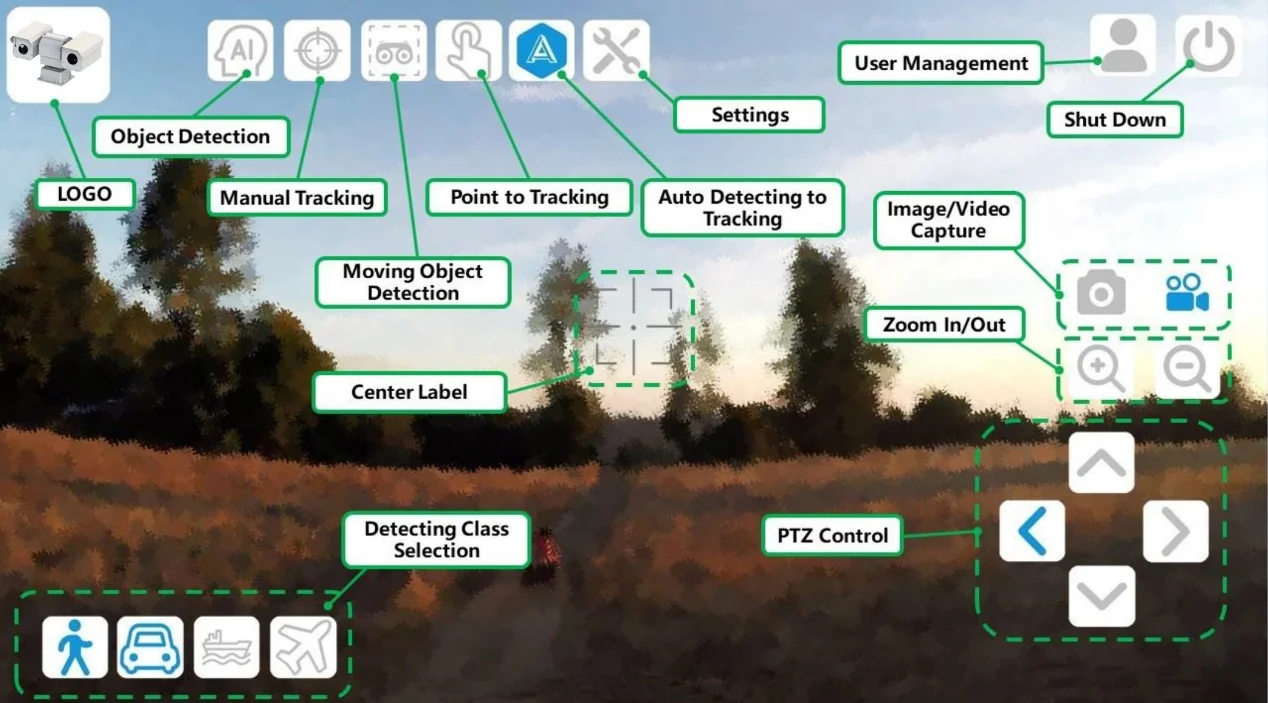

Functions

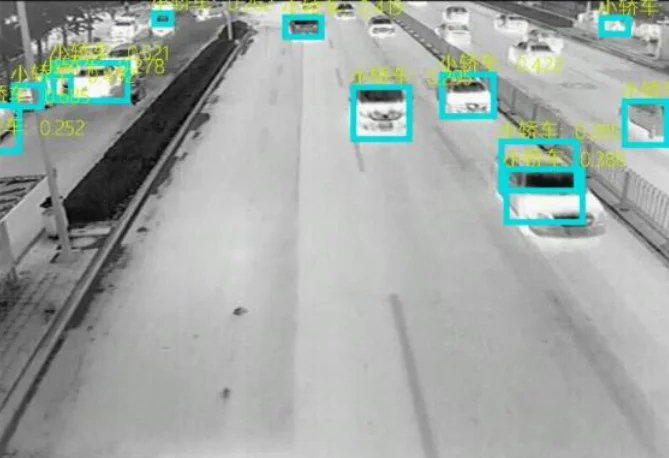

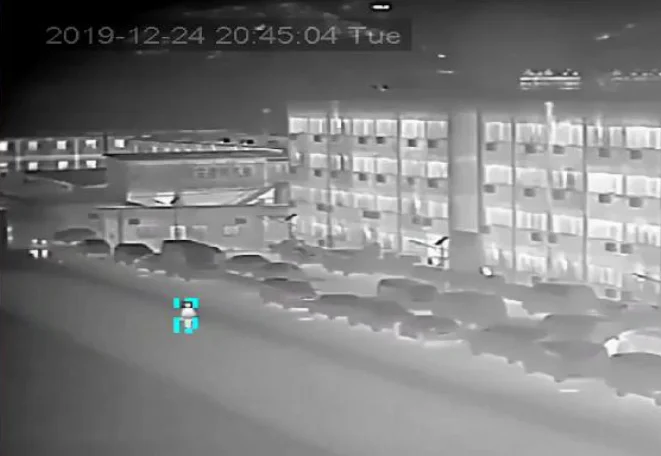

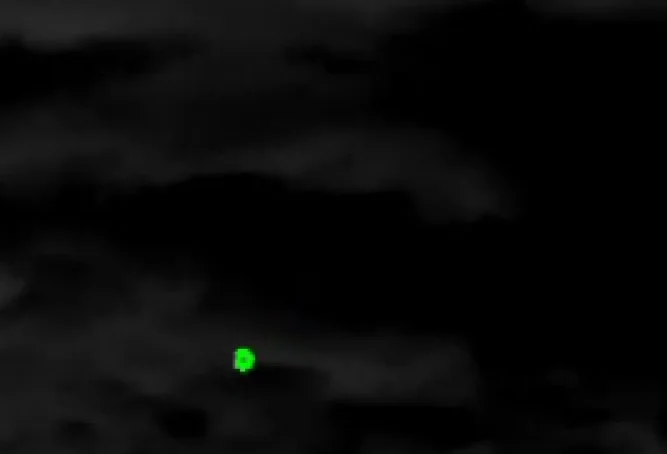

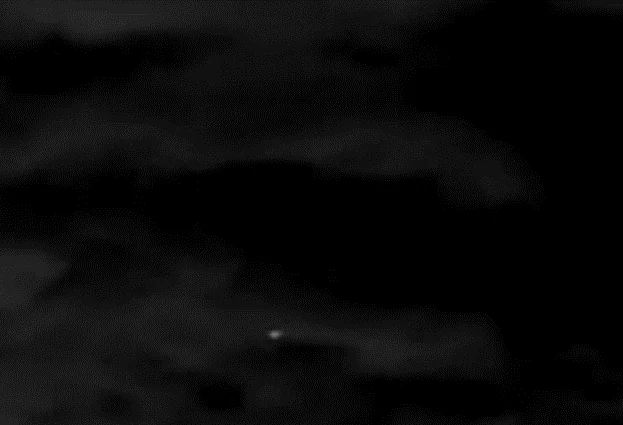

Original Thermal lmage Object Detection lmage
Dual-spectrum Imaging and Object Detecting
Picture in Picture Display
lmage Fusion(Optional）

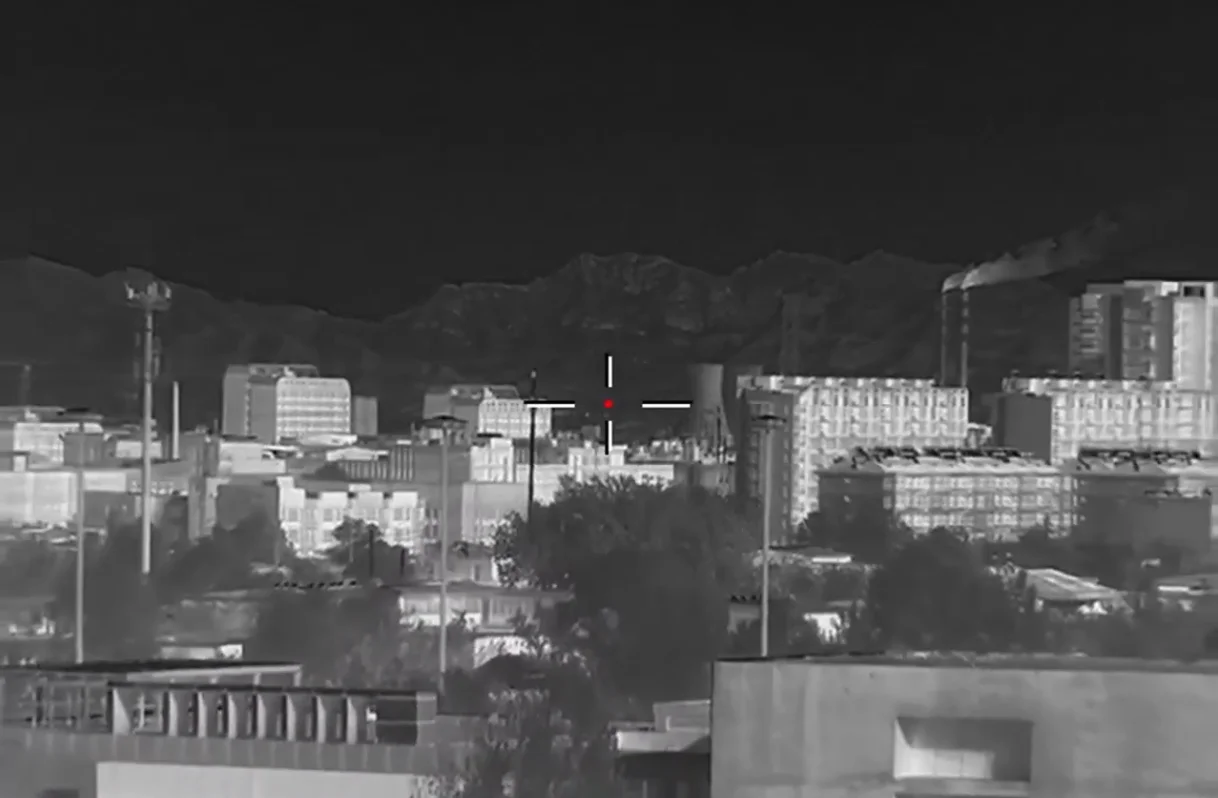

Object Tracking in Thermal and Visual Image

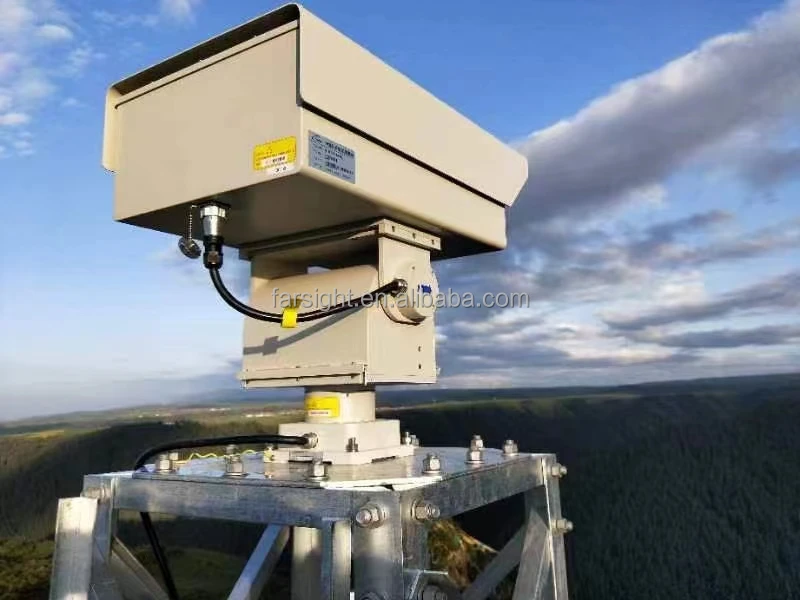

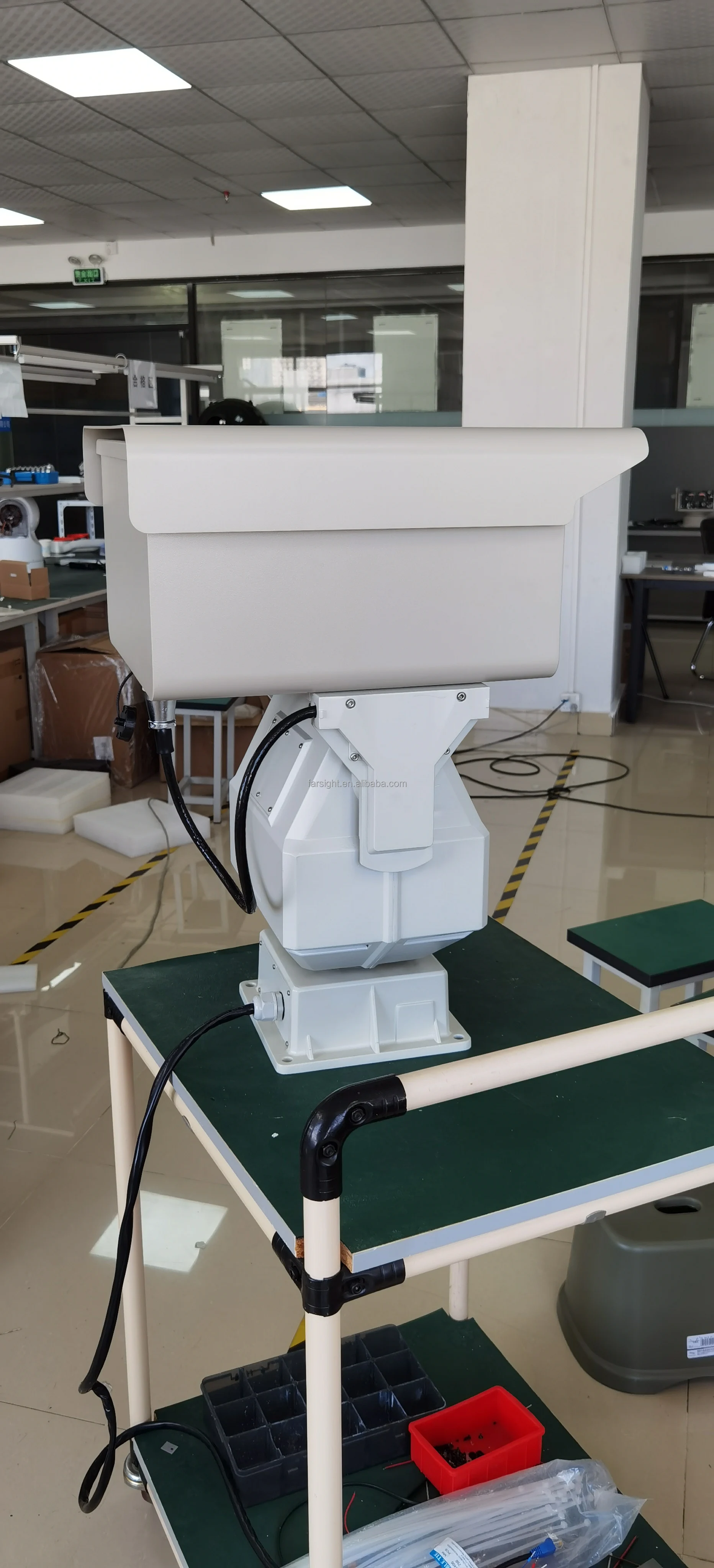

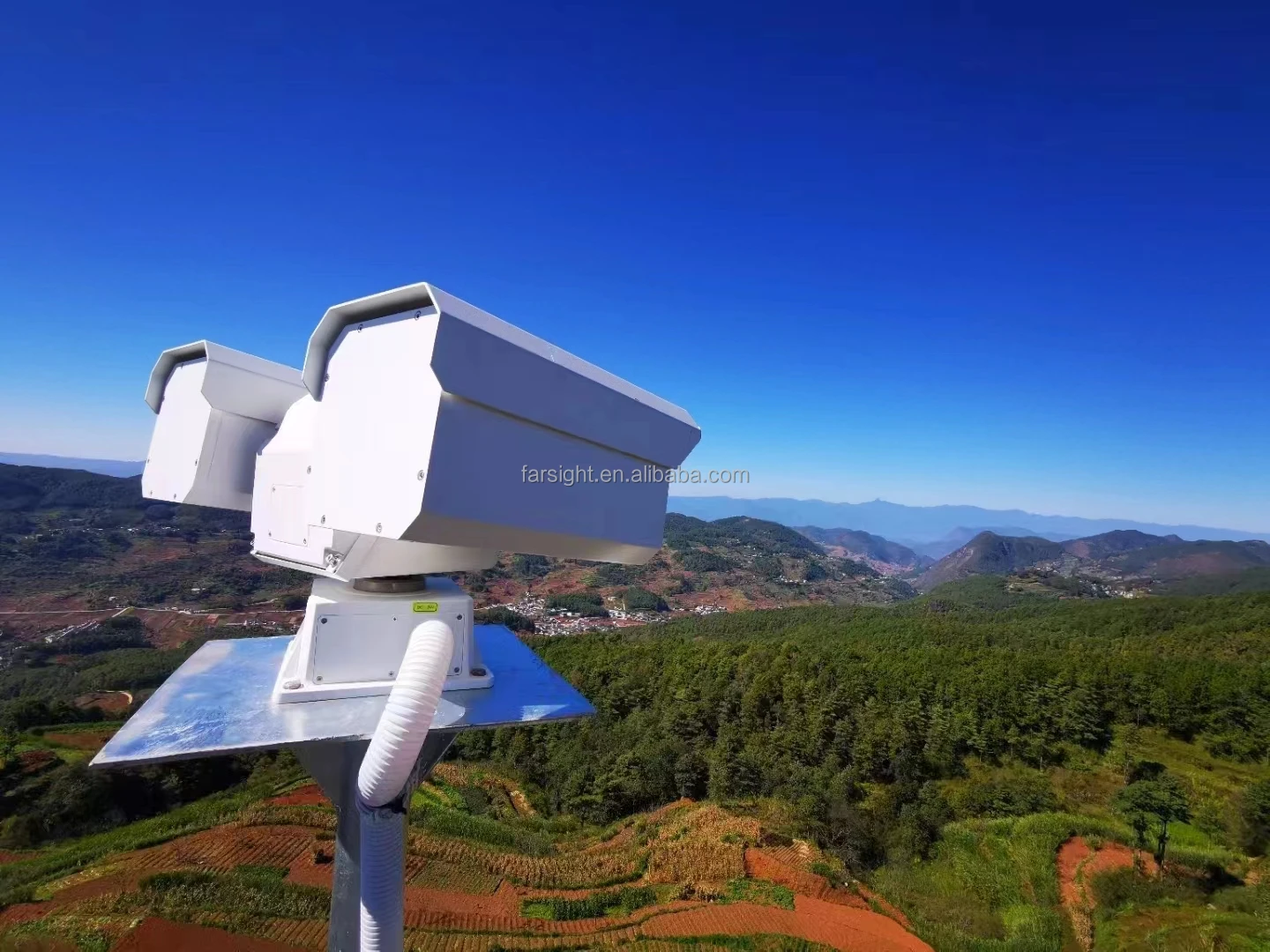

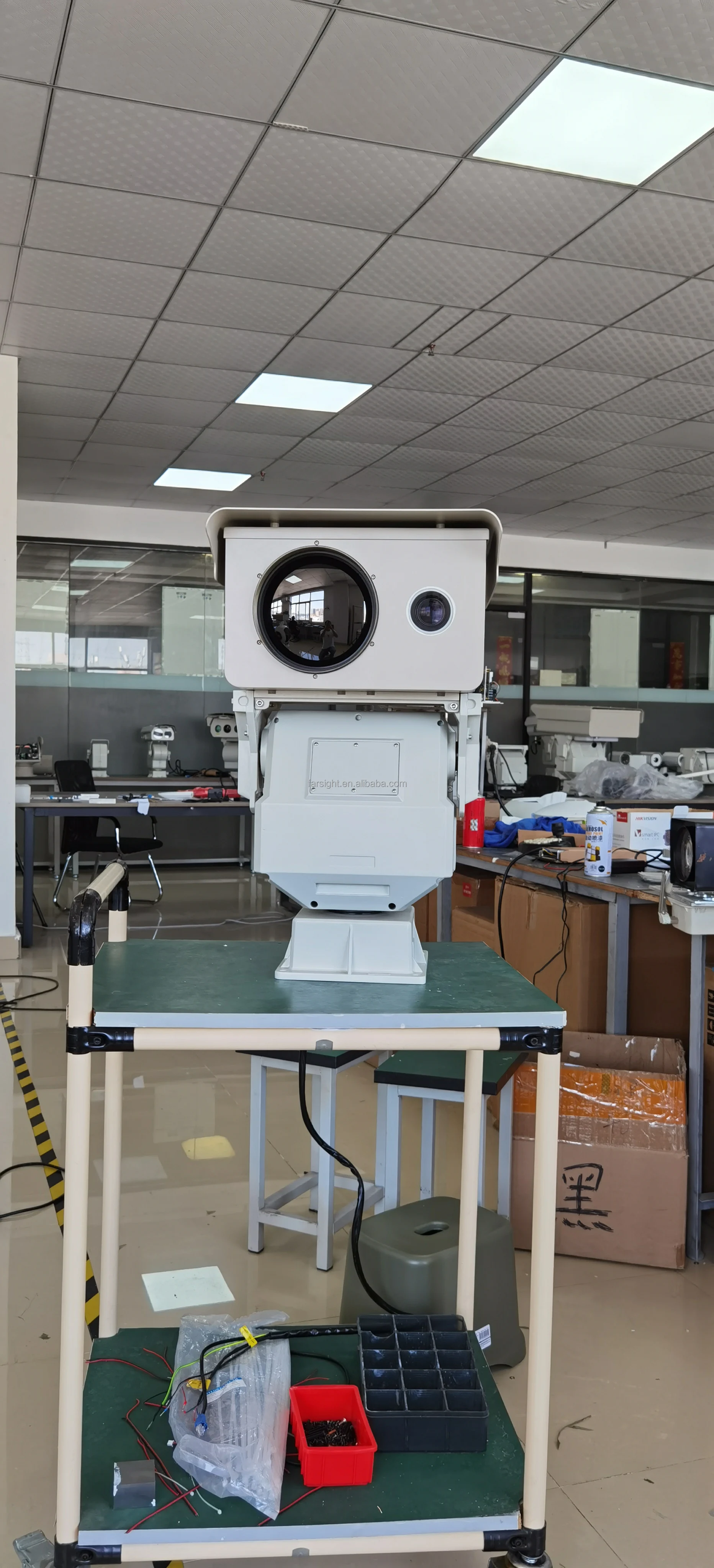

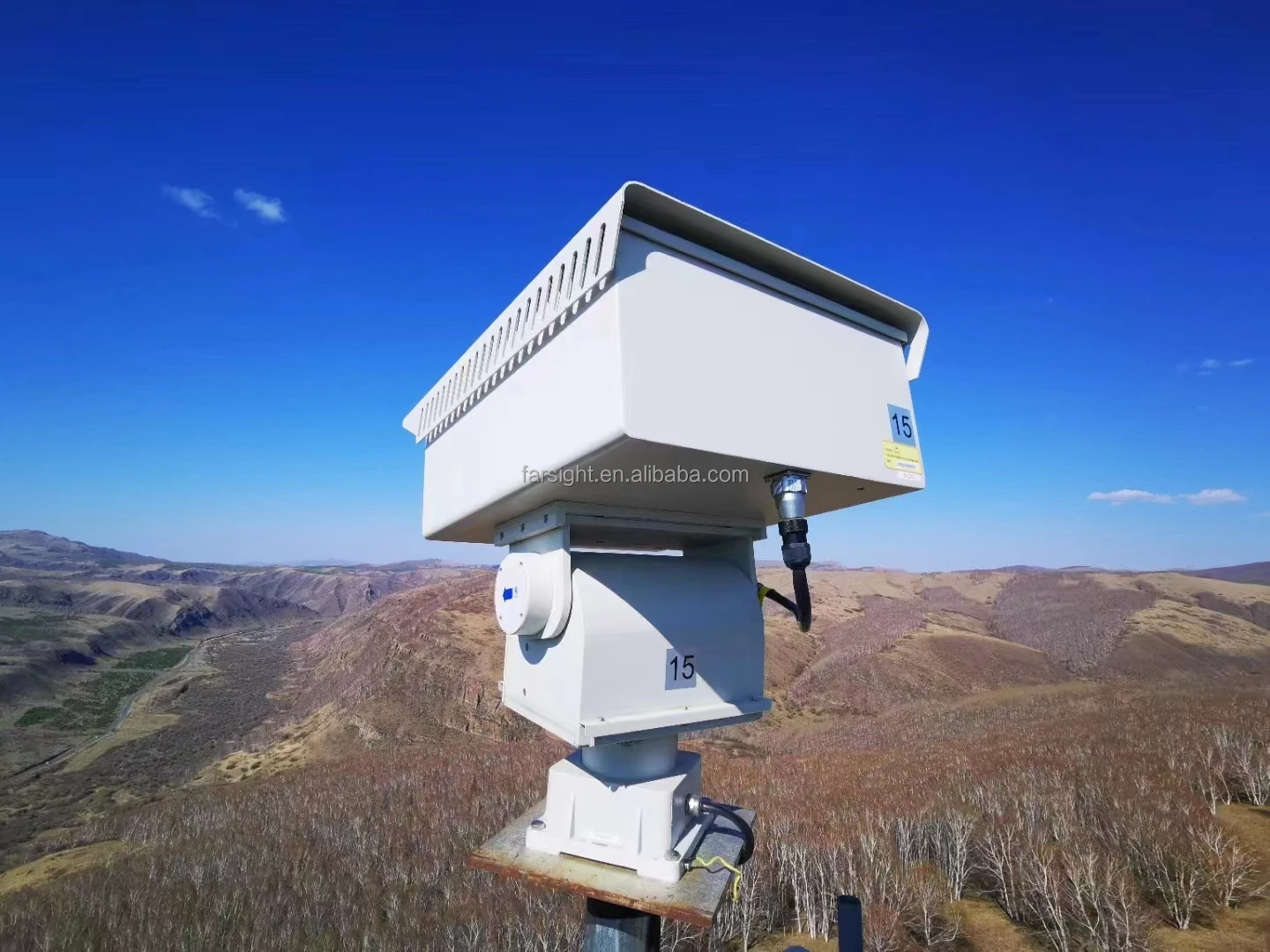

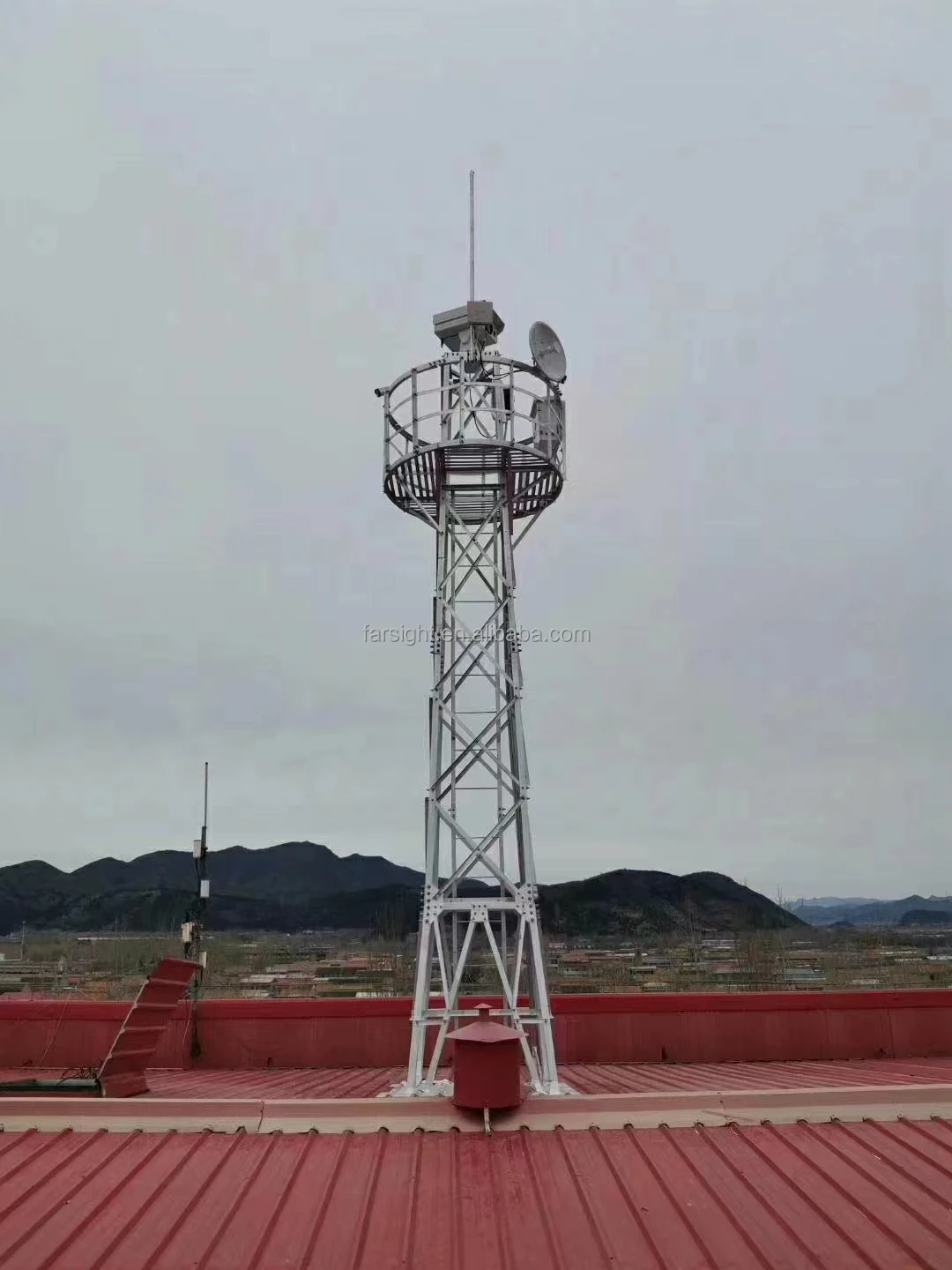

Application scenarios And Details Images
Specification
Operating distance | ||||||
Thermal camera | Target | Human（1.8m×0.5m） | Vehicle（2.3m×2.3m） | |||
Detection | 8930m | 25500m | ||||
Recognition | 2970m | 6370m | ||||
Identification | 1480m | 3190m | ||||
Thermal camera | ||||||
Detector type | Uncooled microbolometer focal plane array（VOx） | |||||
Effective pixels | 640×512@12μm | |||||
Spectral range | 8～14μm | |||||
NETD | ≤50mK@F1.0,300K | |||||
Frame rate | 25f/s | |||||
Pseudo color | Black-hot, white-hot, fusion and rainbow color, etc. | |||||
Focal length | 25～225mm, 9x optical zoom | |||||
FOV | 2.8°×2.2°～24.6°×19.8° | |||||
F value | F0.8～F1.5 | |||||
Lens control | 4x digital-zoom, auto focus | |||||
Pseudo color | Black hot, white hot, rainbow, etc. | |||||
Visible light camera | ||||||
Sensor type | 1/1.8" Progressive Scan CMOS | |||||
Total pixels | 4 MP | |||||
Lens focal length | 5.5～180mm, 33x optical zoom，16x digital zoom | |||||
FOV | 2.3°～60.5° | |||||
Coding format | H.265/H.264/H.264H/MJPEG | |||||
Video resolution | H264/H265：1920*1080@25/30fps | |||||
Pan/Tilt | ||||||
Carrying capacity | 35kg | |||||
Angle | Horizontal 360°continuous rotation, tilt -75°~+40° | |||||
Speed | Horizontal 0.01°-60°/s, tilt 0.01°-30°/s | |||||
Preset | 200 | |||||
Positioning accuracy | ≤0.1° | |||||
3D location | Support | |||||
Auto functions | Line sweep/Cruise | |||||
Video recording | ||||||
Encoding format | H.264/H.265 | |||||
Video resolution | Thermal: 640x512; Daylight: 1920x1080 | |||||
AI target detection | Detect moving objects above 1.5 pixels | |||||
AI target recognition | Accurate object recognition based on deep learning for pedestrians, vehicles and other objects with more than 20 pixels in thermal infrared and visible light | |||||
AI target tracking | Initiate tracking independently, and control the gimbal independently to track within the field of view of the target object | |||||
Interface | ||||||
Power supply | AC/DC24V±10% | |||||
Network interface | 1×10Base-T/100Base-TX, RJ45 | |||||
Environment indicators | ||||||
Operation temp | -30℃～+55℃ | |||||
Storage temp | -40℃～+60℃ | |||||
Protection grade | IP66 | |||||
Power supply | ||||||
Power supply | Equipped 100~240VAC to 24VAC/5A water proof power adopter | |||||
Power consumption | ≤200W | |||||
Packing & Delivery
Recommend Products
Our Advantages
Various configurations are optional and customizable
1. Cameras can be configured according to the specific requirements of the project;
2. Different modules can be selected according to the project budget;
3. OEM and ODM are available;
4. New products can also be jointly developed
3. OEM and ODM are available;
4. New products can also be jointly developed

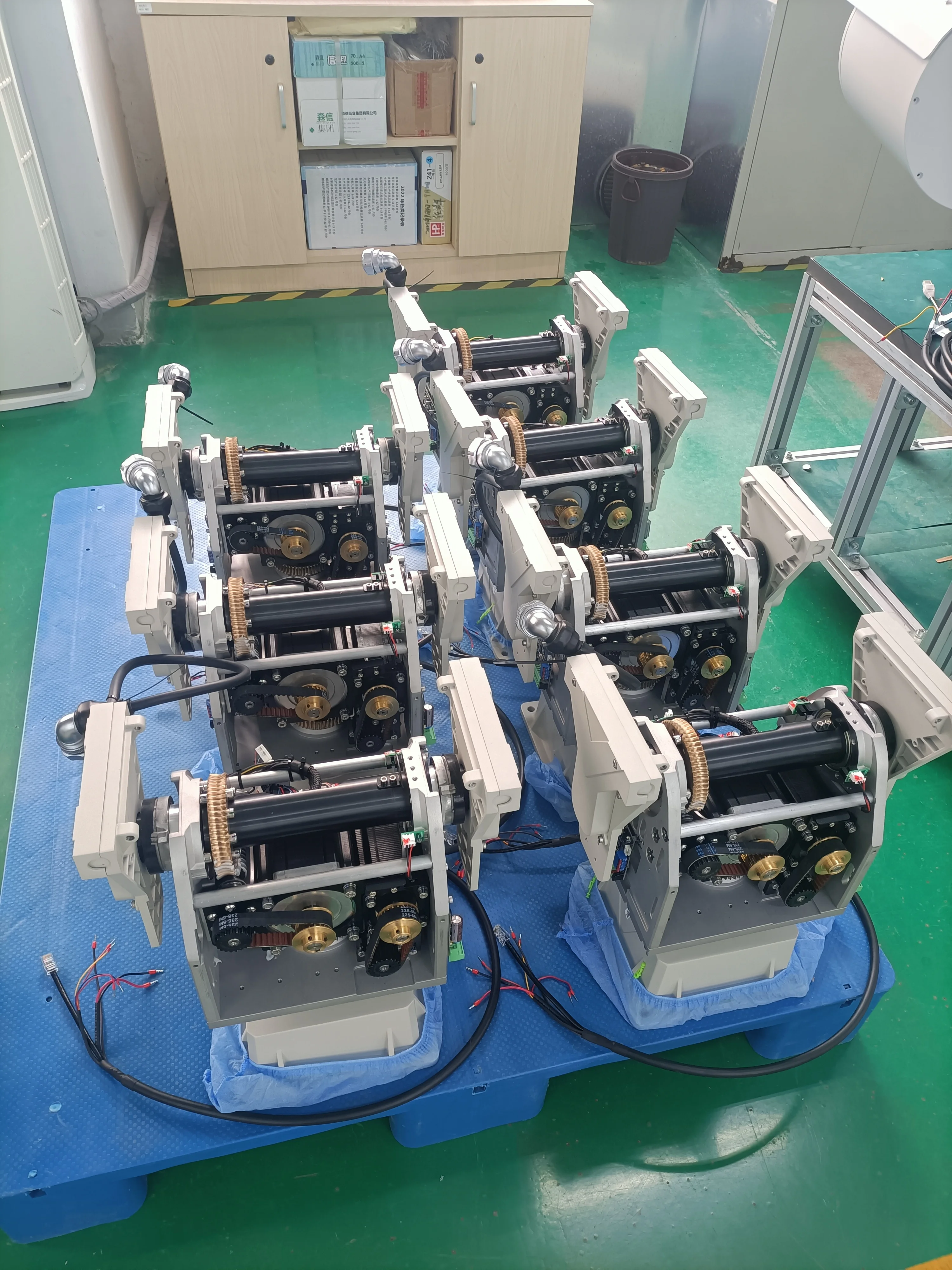

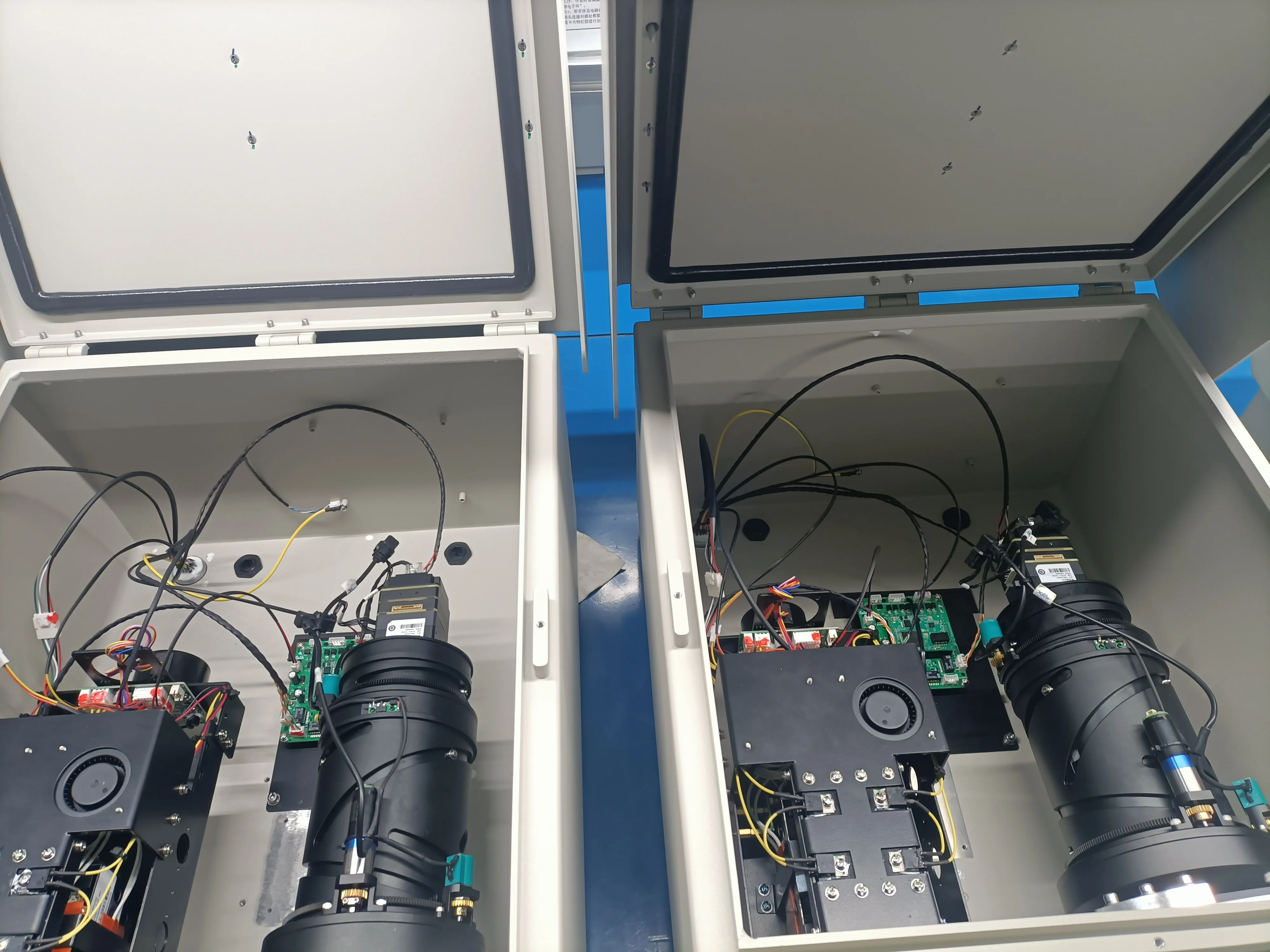

Modular design, easy maintenance
1. Device firmware can be upgraded remotely, and engineers can remotely solve device program failures
2. Hardware modular assembly, people with basic electrical knowledge can realize the replacement of faulty modules. Greatly saves the time and cost of maintenance.
3.In normal use, cleaning and maintenance are simple, and there is almost no additional cost
3.In normal use, cleaning and maintenance are simple, and there is almost no additional cost
Multiple Shipping Methods
Express, air, sea, land and other methods are optional. You can choose the best way you prefer.
Third Party Guarantee
Alibaba online credit insurance orders to protect your rights to the greatest extent
FAQ
How to get the latest price?
You can contact sales online to get latest price; Or you can leave message to us. Our sales will contact you as soon as possible. And the price we provide is normally FOB price.
What is MOQ?
Our minimum order quantity is 1 pc.
What is the lead time?
Please contact sales to confirm if we still have goods in stock. If yes, we will ship goods to you in one week time after we
receive your payment. If not, please confirm with sales.
receive your payment. If not, please confirm with sales.
How to ship goods to customer?
Usually we ship goods to customer via express, such as DHL, FedEx, UPS, TNT or airway transportation. You can also ask us to send goods to your forwarder in China. And we will pay domestic freight.
Do you provide customization service?
Yes, we provide OEM/ODM service. Lead time of customized products need to be confirmed with sales. Usually we will ship products after 2 months time after we receive customer's payment.
