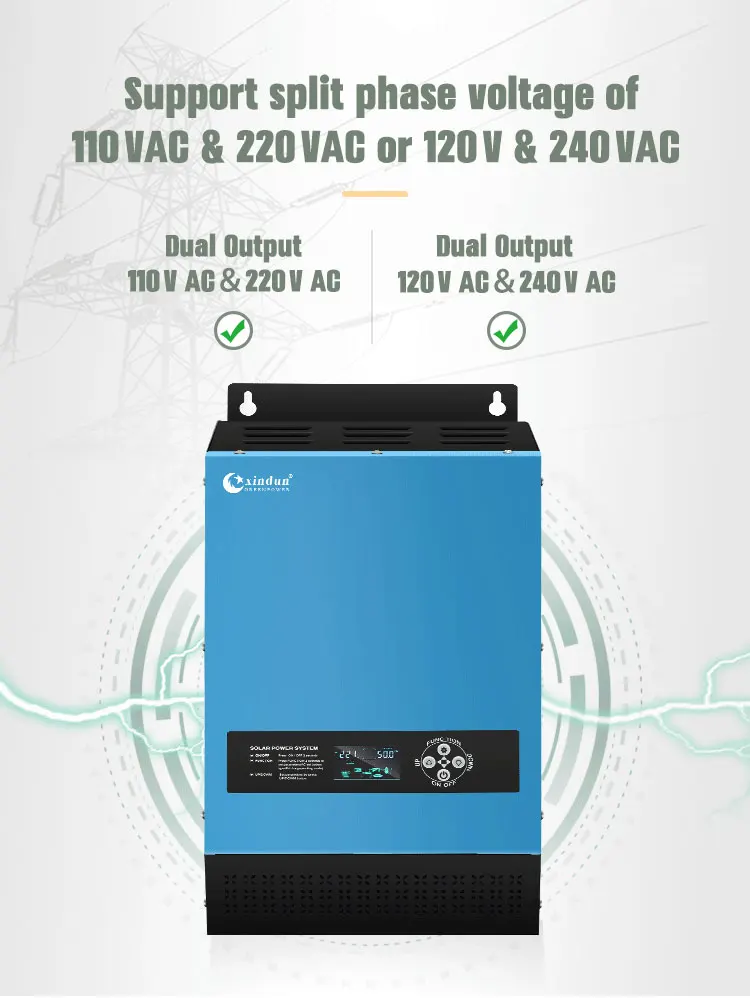

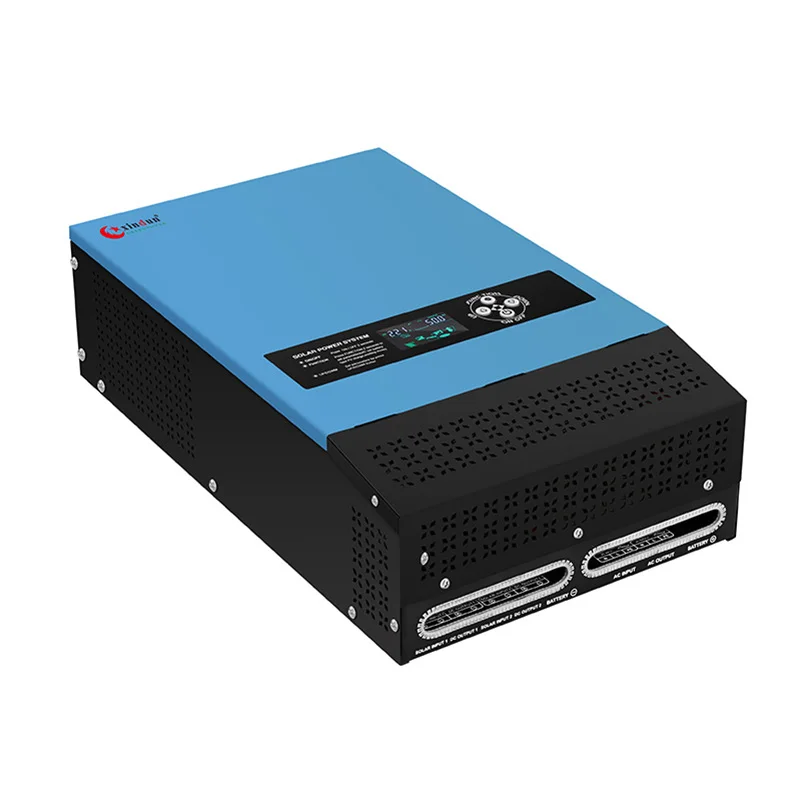

Novel Design Reasonable Good Price Solar Inverter 48V 1000W Onda Pura 3000 Watt 3Kw Split Phase Inverter 48Vdc 120/240Vac
- Category: >>>
- Supplier: Guangdong Xindun Power Technology Co. Ltd.Guangdong Ltd.
Share on (1601366961151):
Product Overview
Description
Feature
1. Pure sine wave output;

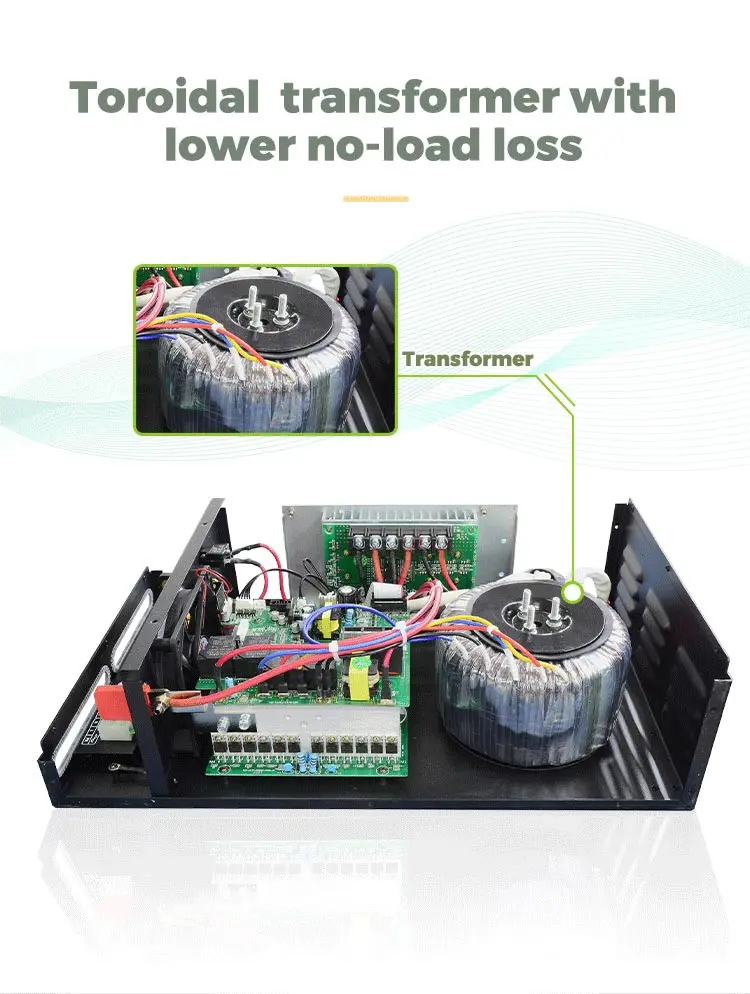

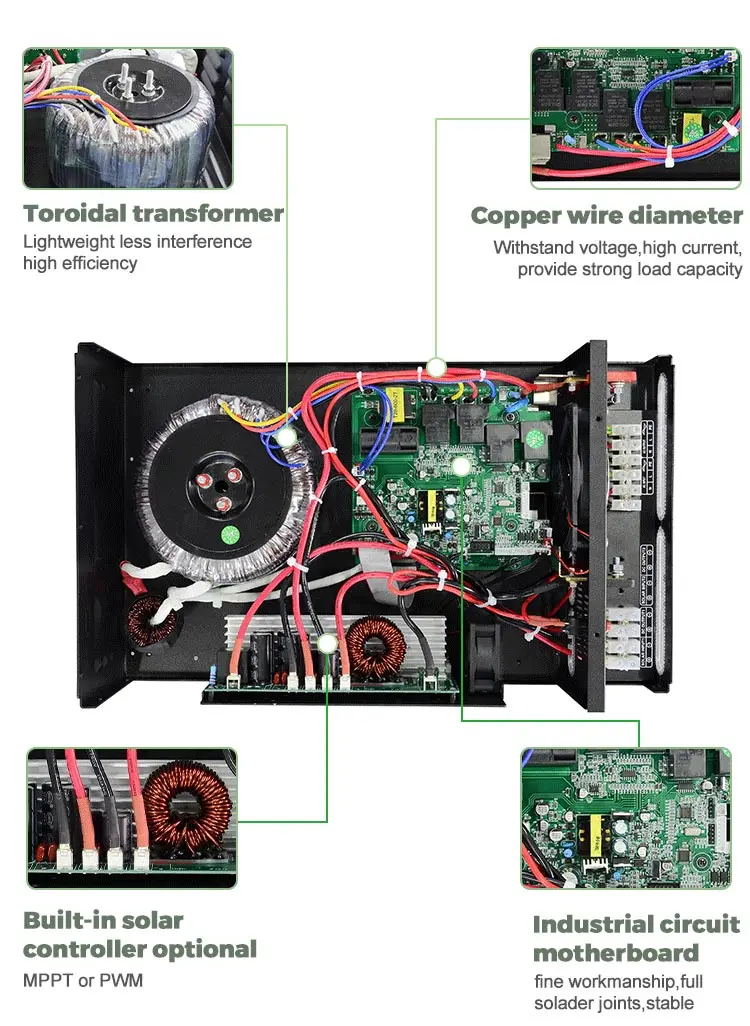

2. Low frequency toroidal transformer lower loss;

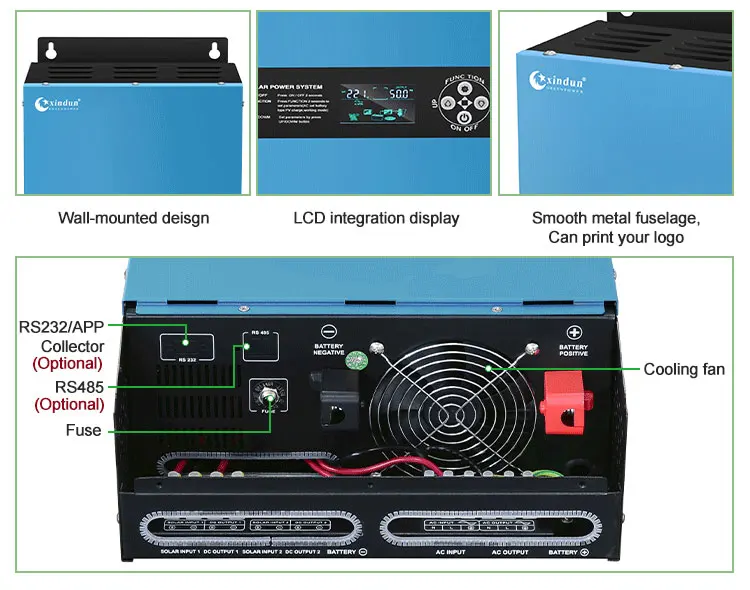

3. Intelligent LCD integration display;
4. Built-in PWM or MPPT controller optional;
5. AC charge current 0~30A adjustable, three working modes selectable;
6. Peak power more than 3 times, full-automatic and perfect protection function;
7. Added fault code query function, easy to monitor the operation in real time;
8. Supports diesel or gasoline generator, adapt any tough electricity situation;
9. Combine industrial and home usage, wall-mounted design, convenient installation.
2. Low frequency toroidal transformer lower loss;
3. Intelligent LCD integration display;
4. Built-in PWM or MPPT controller optional;
5. AC charge current 0~30A adjustable, three working modes selectable;
6. Peak power more than 3 times, full-automatic and perfect protection function;
7. Added fault code query function, easy to monitor the operation in real time;
8. Supports diesel or gasoline generator, adapt any tough electricity situation;
9. Combine industrial and home usage, wall-mounted design, convenient installation.
Highlight
Product Detail
Specification
Specification | ||||||||||||||||
Model LS/LS-T | 10212/24/48 (102) | 15212/24/48 (152) | 20212/24/48 (202) | 30224/48 (302) | 40224/48 (402) | 50248 (502) | 60248 (602) | |||||||||
Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |||||||||
Peak Power（20ms) | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | |||||||||
Start Motor | 1HP | 1.5HP | 2HP | 3HP | 3HP | 4HP | 4HP | |||||||||
Battery Voltage | 12/24/48VDC | 24/48VDC | 24/48VDC | 48VDC | ||||||||||||
Size(L*W*Hmm) | 500*300*140 | 530*335*150 | ||||||||||||||
Packing Size(L*W*Hmm) | 565*395*225 | 605*430*235 | ||||||||||||||
N.W.(kg) | 12 | 13.5 | 18 | 20 | 22 | 24 | 26 | |||||||||
G.W.(kg)（Carton Packing） | 13.5 | 15 | 19.5 | 21.5 | 24 | 26 | 28 | |||||||||
Installation Method | Wall-Mounted | |||||||||||||||
Parameter | ||||||||||||||||
Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | ||||||||||||||
AC Input Voltage Range | 85VAC~138VAC（110VAC） / 95VAC~148VAC（120VAC） / 170VAC~275VAC（220VAC） / 180VAC~285VAC（230VAC） / 190VAC~295VAC（240VAC） | |||||||||||||||
AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | |||||||||||||||
Max AC charging current | 0~30A(Depends on model) | |||||||||||||||
AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||||||||||
Output | Efficiency(Battery Mode) | ≥85% | ||||||||||||||

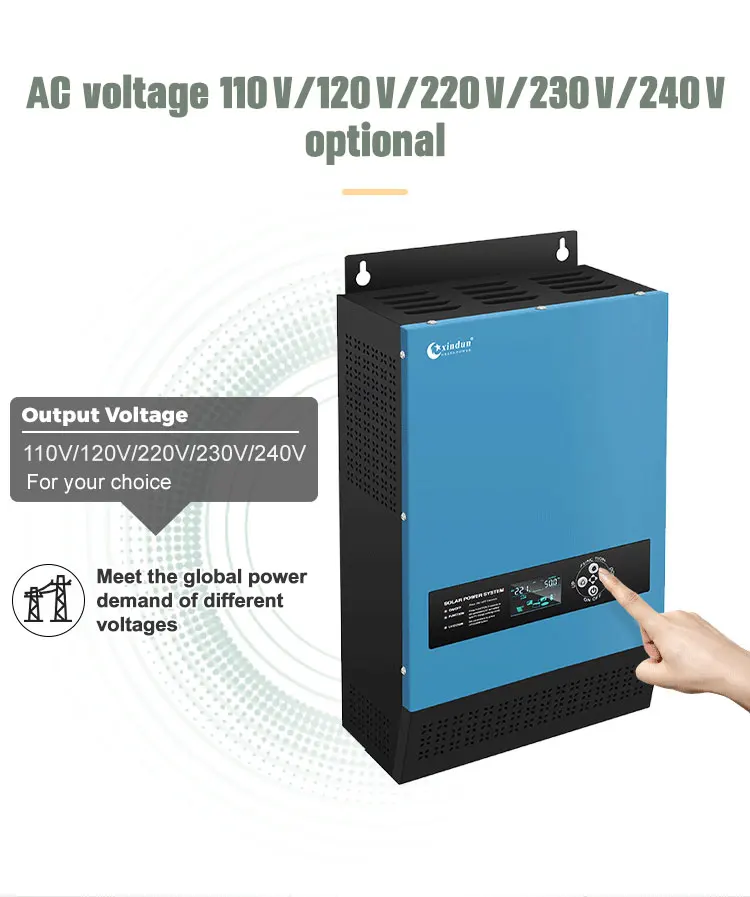

Output Voltage(Battery Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | |||||||||||||||
Output Frequency(Battery Mode) | 50/60Hz±1% | |||||||||||||||
Output Wave(Battery Mode) | Pure Sine Wave | |||||||||||||||
Efficiency(AC Mode) | >99% | |||||||||||||||
Output Voltage(AC Mode) | 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% | |||||||||||||||
Output Frequency(AC Mode) | Follow input | |||||||||||||||
Output waveform distortion (Battery Mode) | ≤3%（Linear load） | |||||||||||||||
No load loss(Battery Mode) | ≤0.8% rated power | |||||||||||||||
No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | |||||||||||||||
No load loss (Energy saving Mode) | ≤10W | |||||||||||||||

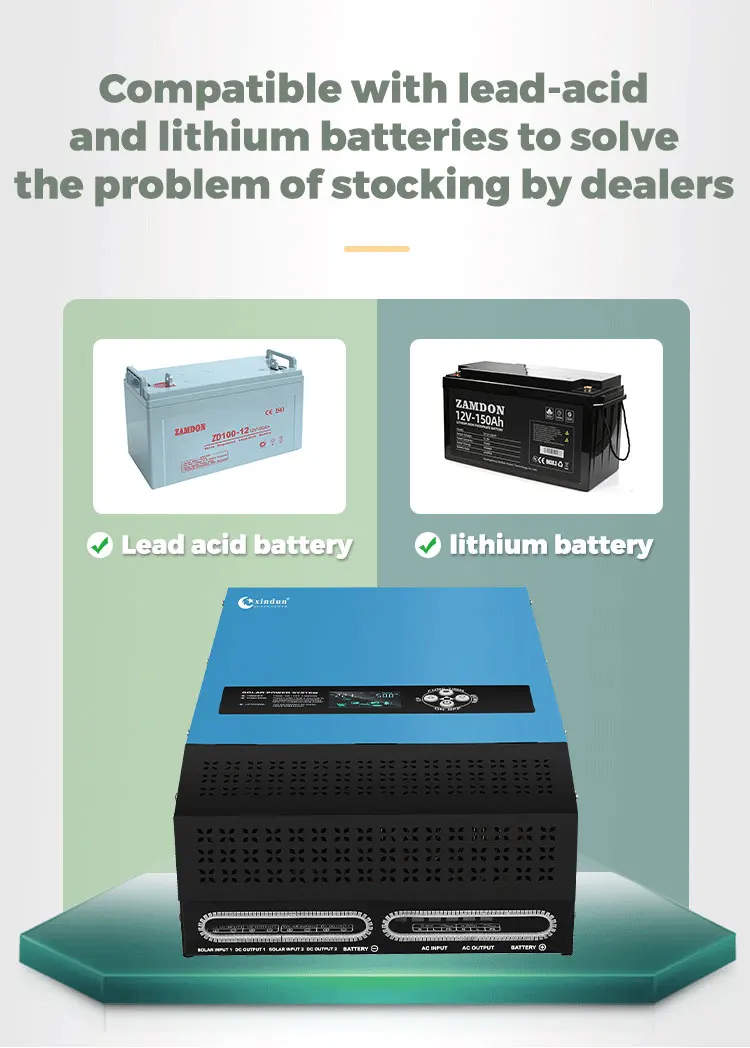

Battery Type | VRLA Battery | Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage） | ||||||||||||||
Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) | |||||||||||||||
Protection | Battery undervoltage alarm / Battery undervoltage protection / Battery overvoltage alarm / Battery overvoltage protection / Battery overvoltage recovery voltage / Overload power protection / Inverter output short circuit protection / Temperature protection | |||||||||||||||
Alarm | A | Normal working condition, buzzer has no alarm sound | ||||||||||||||
B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | |||||||||||||||
C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | |||||||||||||||
Inside Solar controller (Optional) | Charging Mode | MPPT or PWM | ||||||||||||||
Charging current | 10A~60A（PWM or MPPT） | 10A~60A(PWM ) / 10A~100A(MPPT) | ||||||||||||||
PV Input Voltage Range | PWM: 15V-44V(12V System); 30V-44V(24V System); 60V-88V(48V System) MPPT: 15V-120V(12V System); 30V-120V(24V System); 60V-120V(48V System) | |||||||||||||||
Max PV Input Voltage(Voc) (At the lowest temperature) | PWM: 50V(12V/24V System ); 100V(48V System) / MPPT: 150V | |||||||||||||||
PV Array Maximum Power | 12V System: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A）/1120W(80A)/1400W(100A）; 24V System: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A; 48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A） | |||||||||||||||
Standby loss | ≤3W | |||||||||||||||
Maximum conversion efficiency | >95% | |||||||||||||||

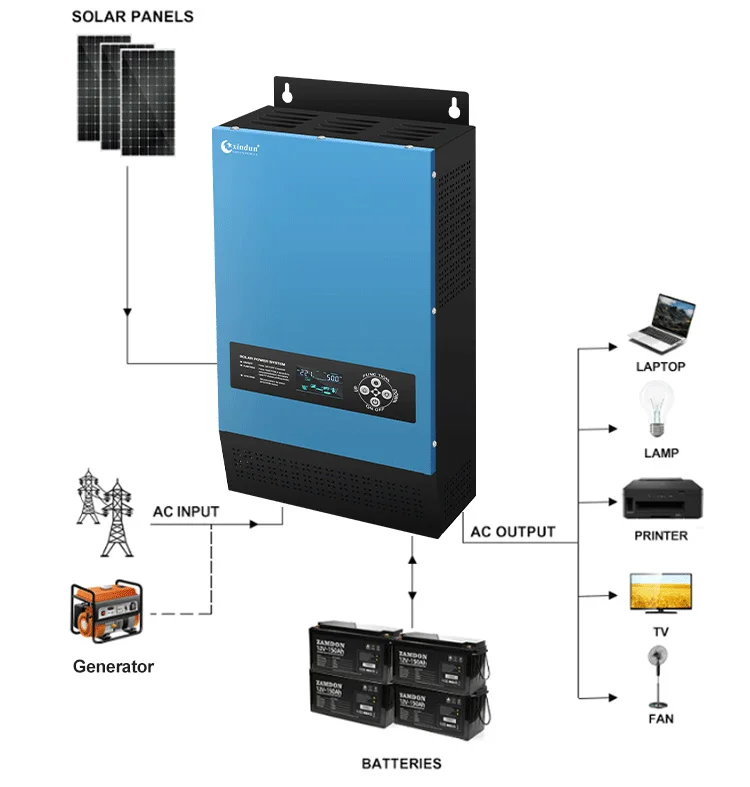

Wiring Diagram
1. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.

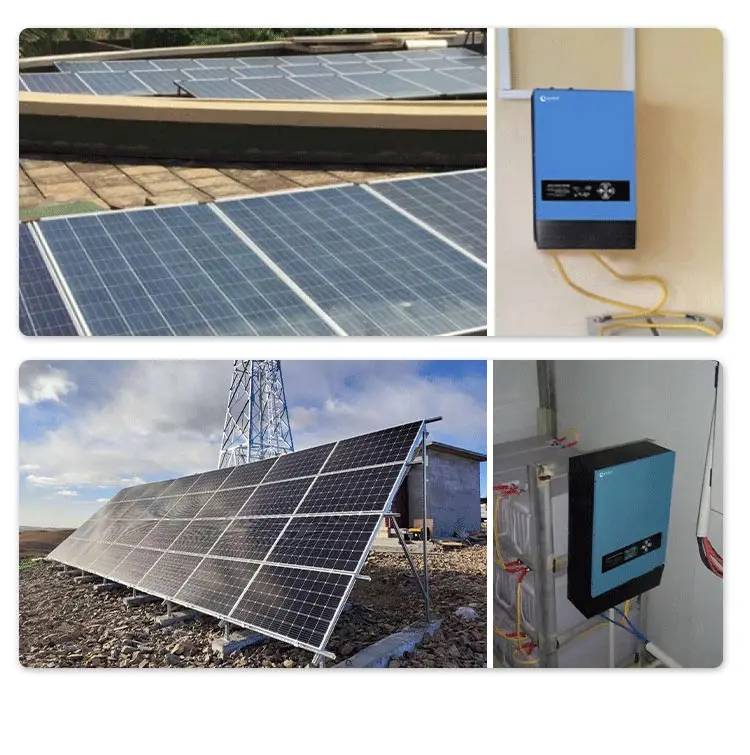

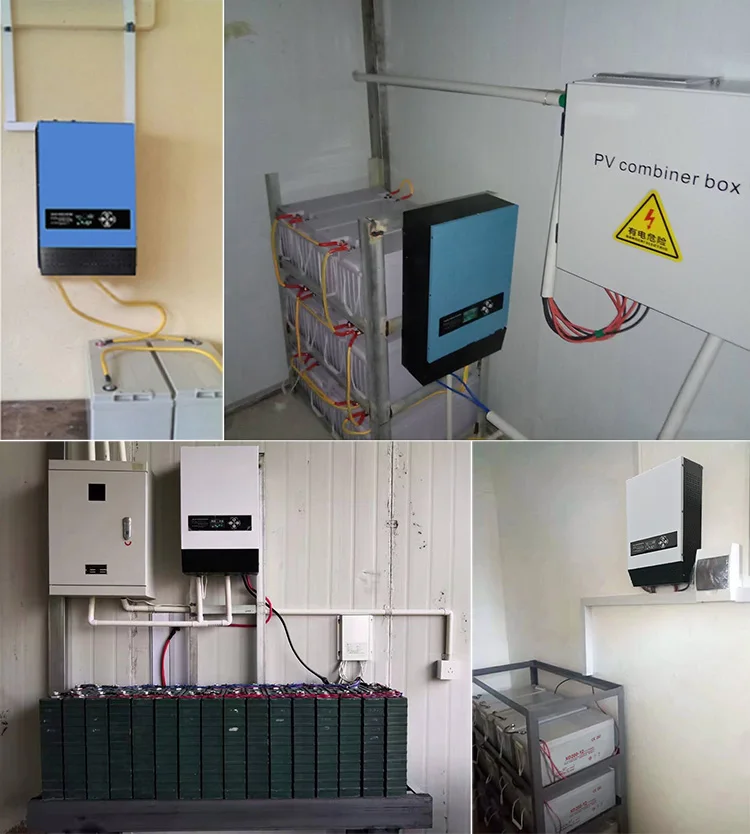

Application
Packing & Delivery

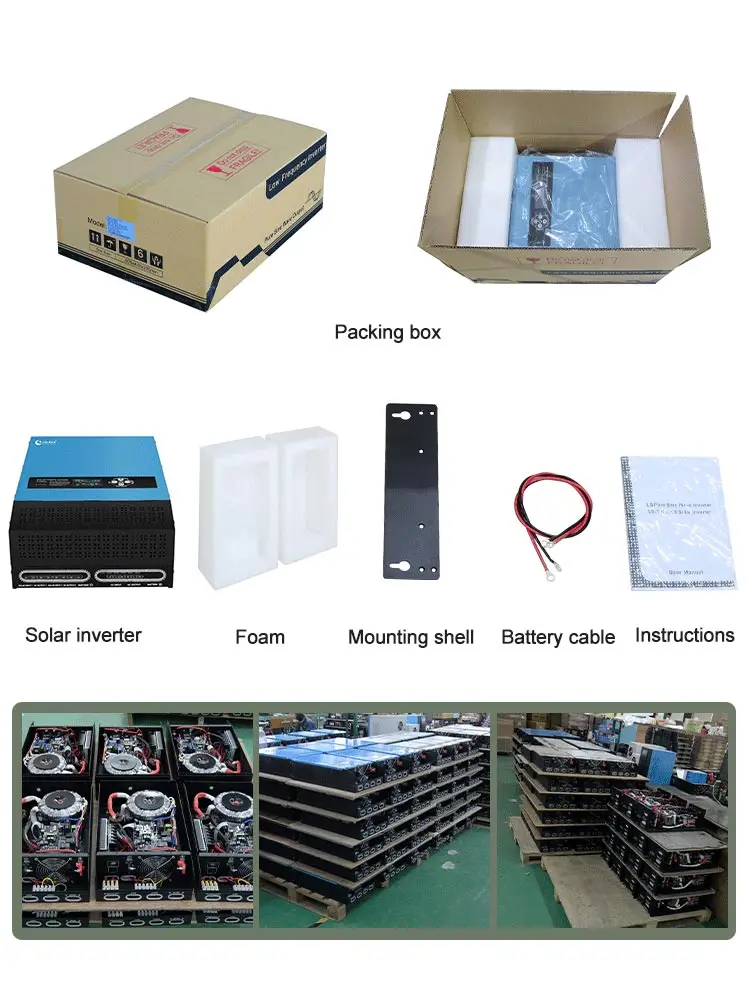

Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment | ||||
T/T | EXW | 30% T/T in advance, balance paid before dispatch | ||
FOB | ||||
CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |||
CIF | ||||
L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||||
Company Profile
Guangdong Xindun Power Technology Co.,Ltd | ||
Factory Location | Foshan,Guangdong,China | |
Industry Experience | 15-year manufacturer, 17-year trading, 11-year alibaba gold supplier | |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system | |
Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) | |

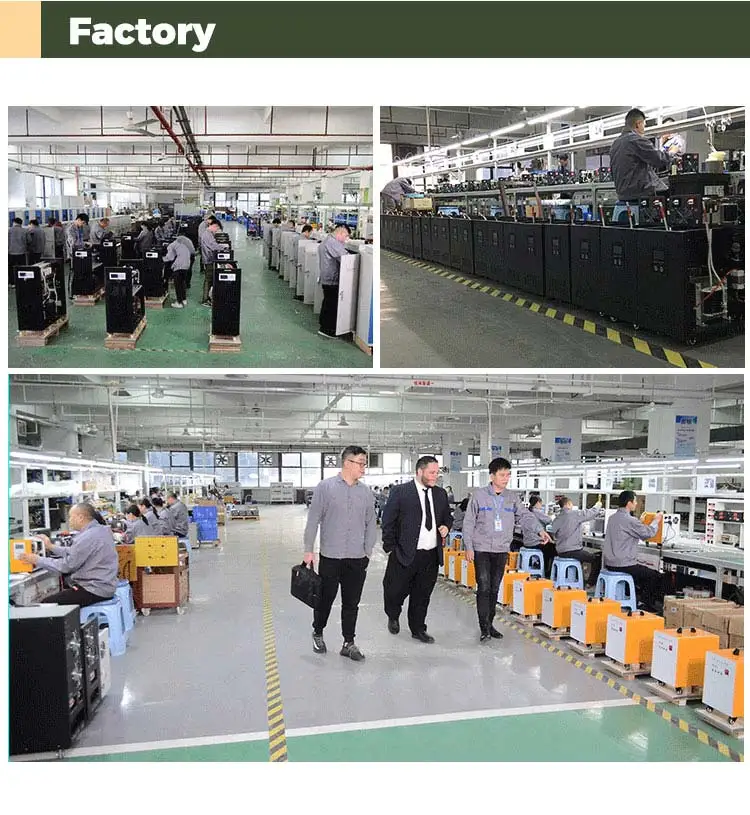

Factory | 7000 Square Meters, 100+ workers | |
Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department | |
Certificate | ISO 14001:2015, CE, IEC, TUV, etc. | |
Patent | Software Paten, Design Patent, Project Pantent | |
