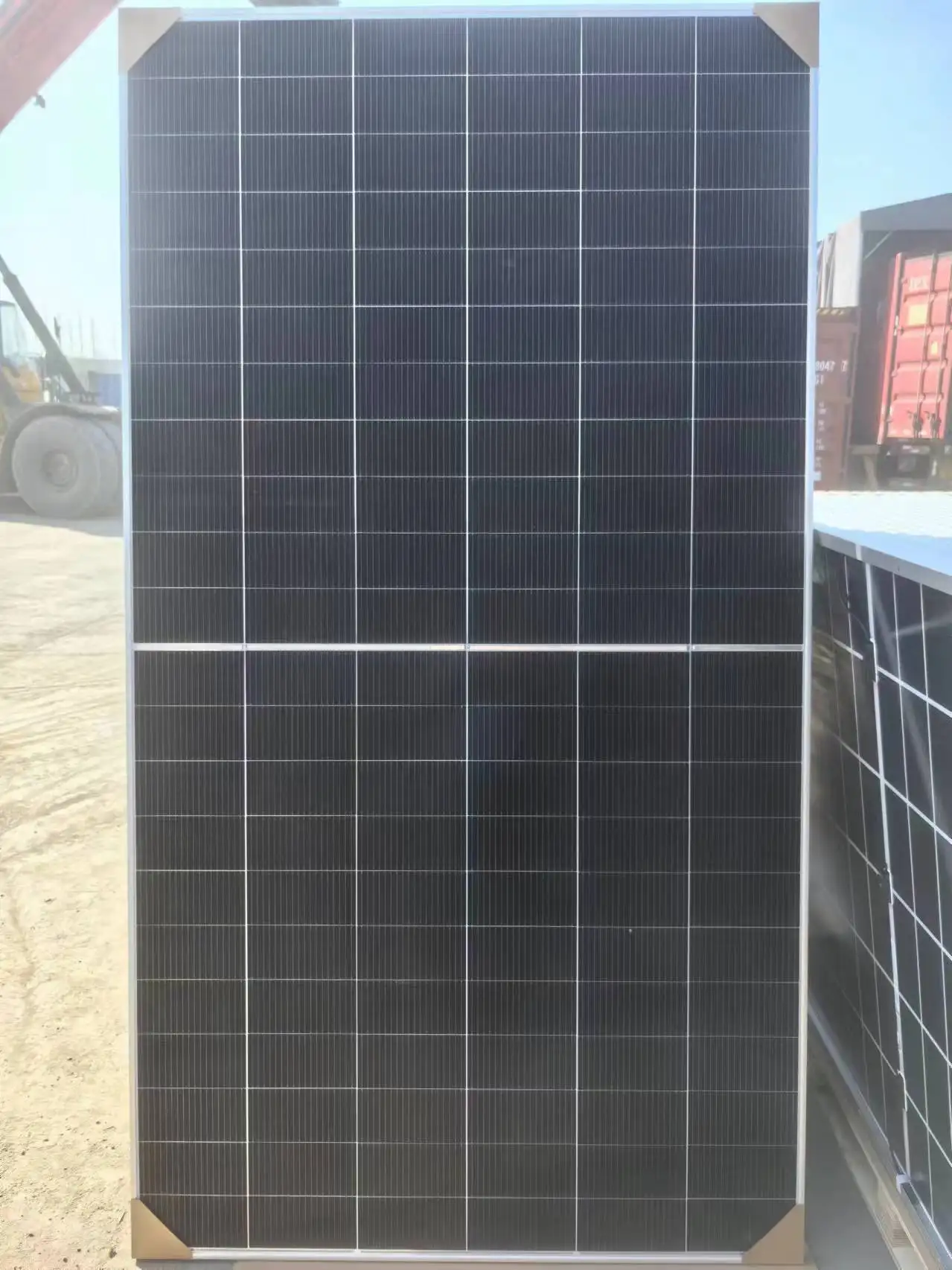

Solar Panels 700w 705w 710w 715w Dual Glass PV Modules with 30 Years Warranty Solar Boards for Industrial Using Trina NEG21C.20
- Category: >>>
- Supplier: Pacific Energy Co. ltdPacific ltd
Share on (1601367047995):
Product Overview
Description
Product Description
Specification
MECHANICAL SPECIFICATIONS | ||
Solar Cells | N-type Monocrystalline | |
No. of cells | 132 cells | |
Module Dimensions | 2382×1303×33 mm | |
Weight | 38.3 kg | |
Front Glass | 2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass | |
Encapsulant material | POE/EVA | |
Back Glass | 2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass) | |

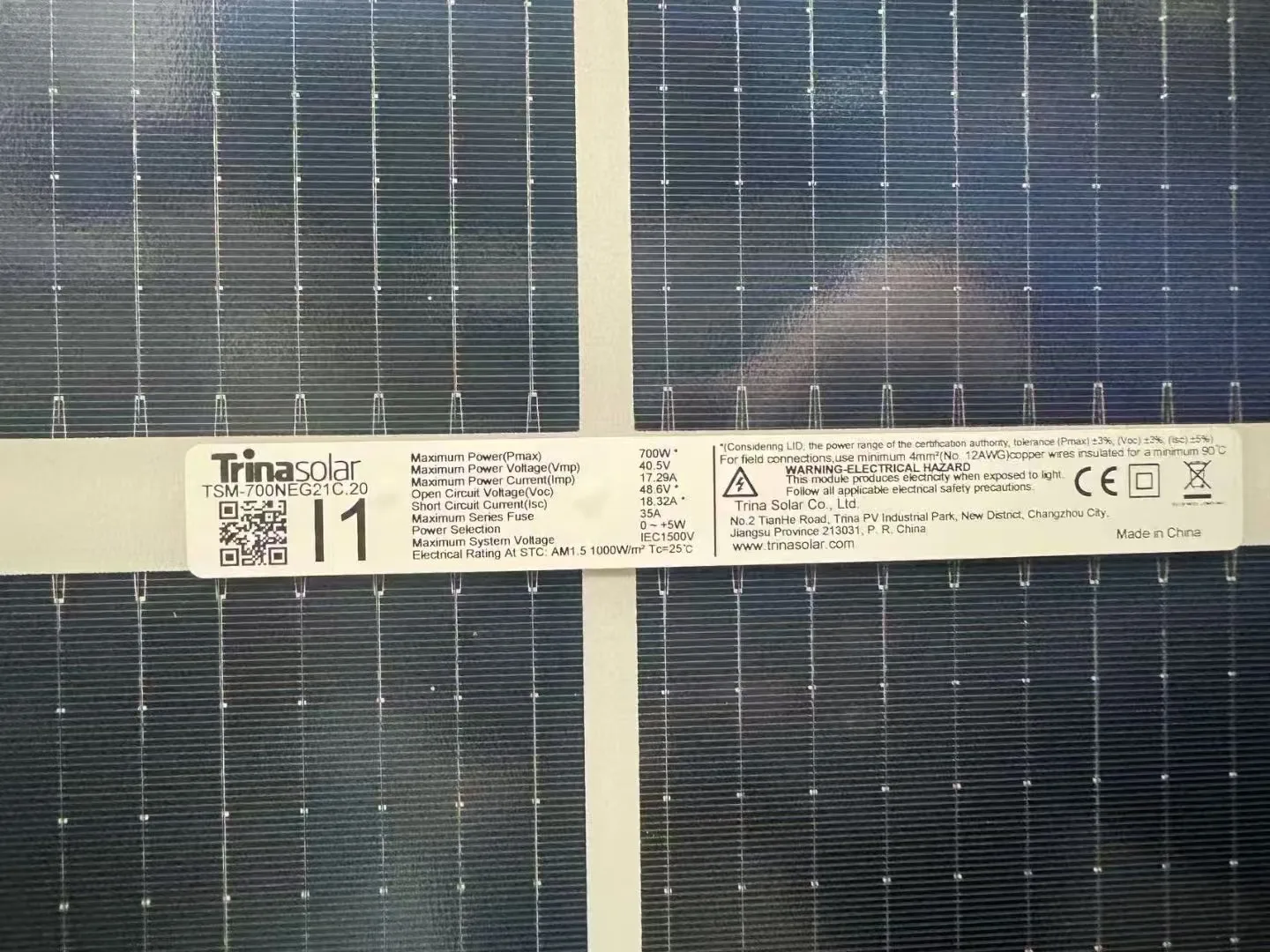

ELECTRICAL SPECIFICATIONS（STC Testing Condition） | ||||||||||||
Maximum Power (Pmax/W) | 695 | 700 | 705 | 710 | 715 | 720 | ||||||
Maximum Power Voltage-VMPP(V) | 40.3 | 40.5 | 40.7 | 40.9 | 41.1 | 41.3 | ||||||
Maximum Power Current-IMPP(A) | 17.25 | 17.29 | 17.33 | 17.36 | 17.40 | 17.44 | ||||||
Open Circuit Voltage-VOC(V) | 48.3 | 48.6 | 48.8 | 49.0 | 49.2 | 49.4 | ||||||
Short Circuit Current-ISC(A) | 18.28 | 18.32 | 18.36 | 18.40 | 18.44 | 18.49 | ||||||
Module Efficiency η m (%) | 22.4 | 22.5 | 22.7 | 22.9 | 23.0 | 23.2 | ||||||
Power Tolerance-PMAX(W) | 0~3% | |||||||||||
Temprature Coefficient (Pmax) | - 0.29%/°C | |||||||||||
Temprature Coefficient (Voc) | -0.24%/℃ | |||||||||||
Temprature Coefficient (Isc) | 0.04%/℃ | |||||||||||
Company Profile

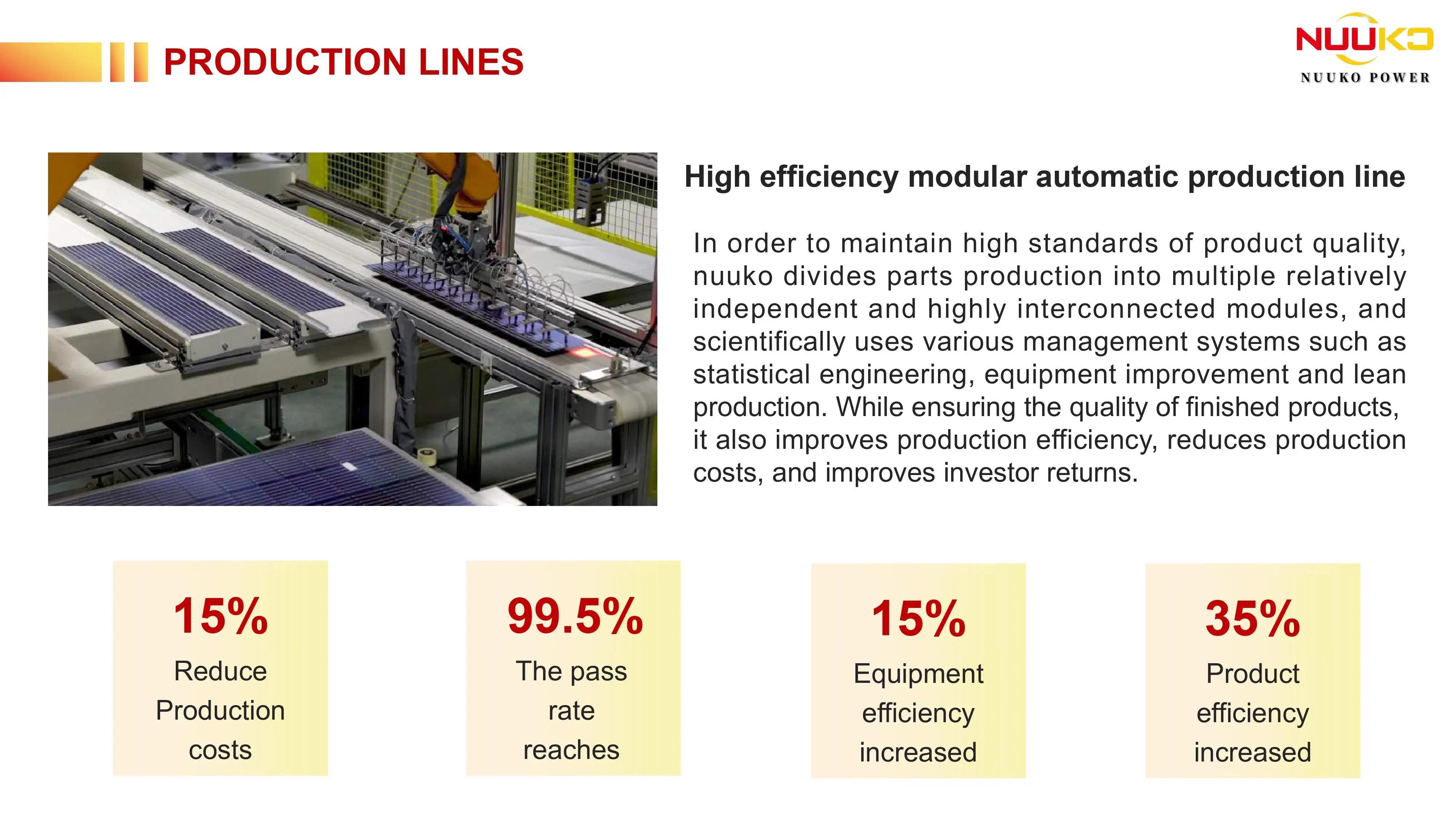

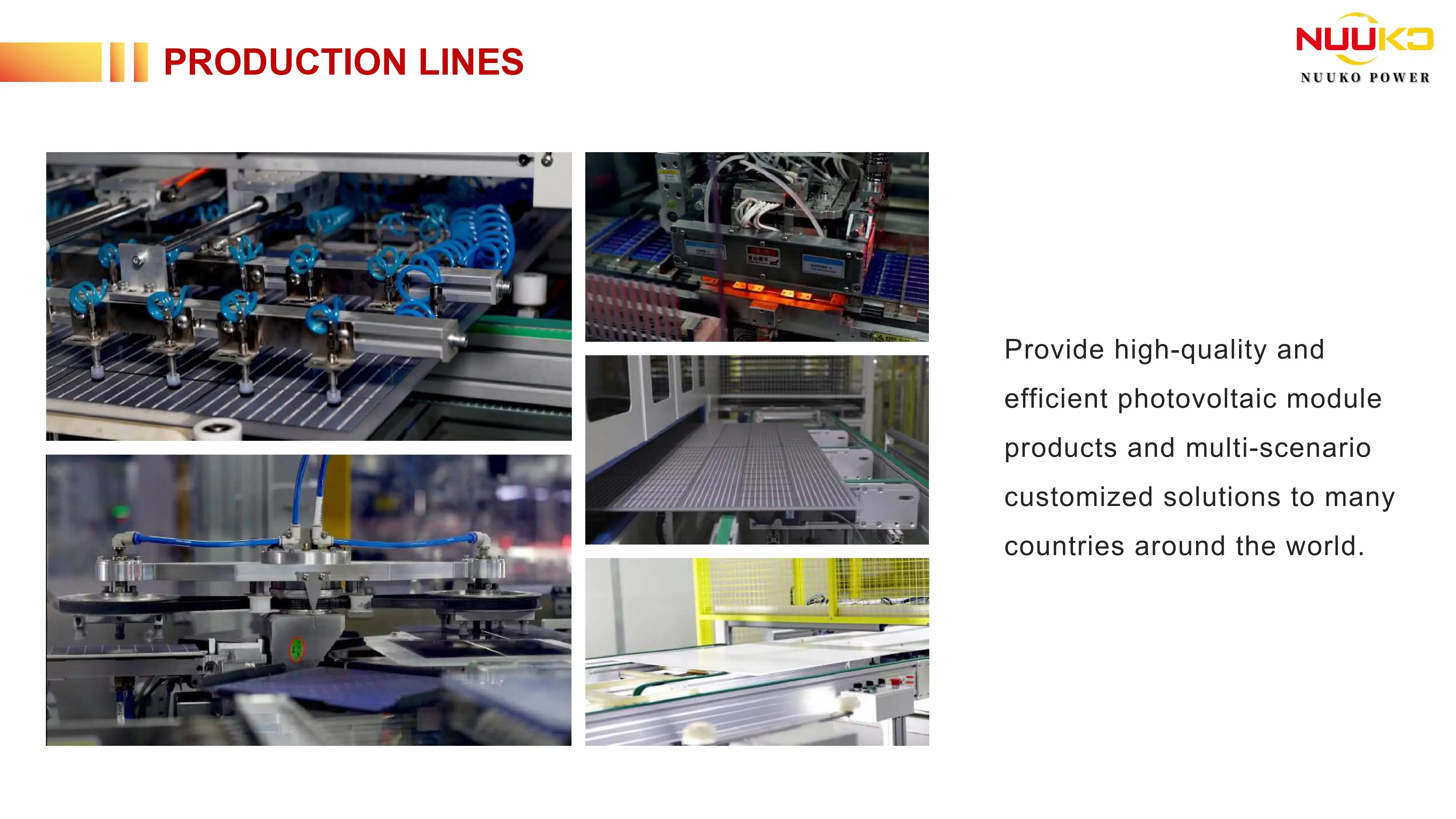

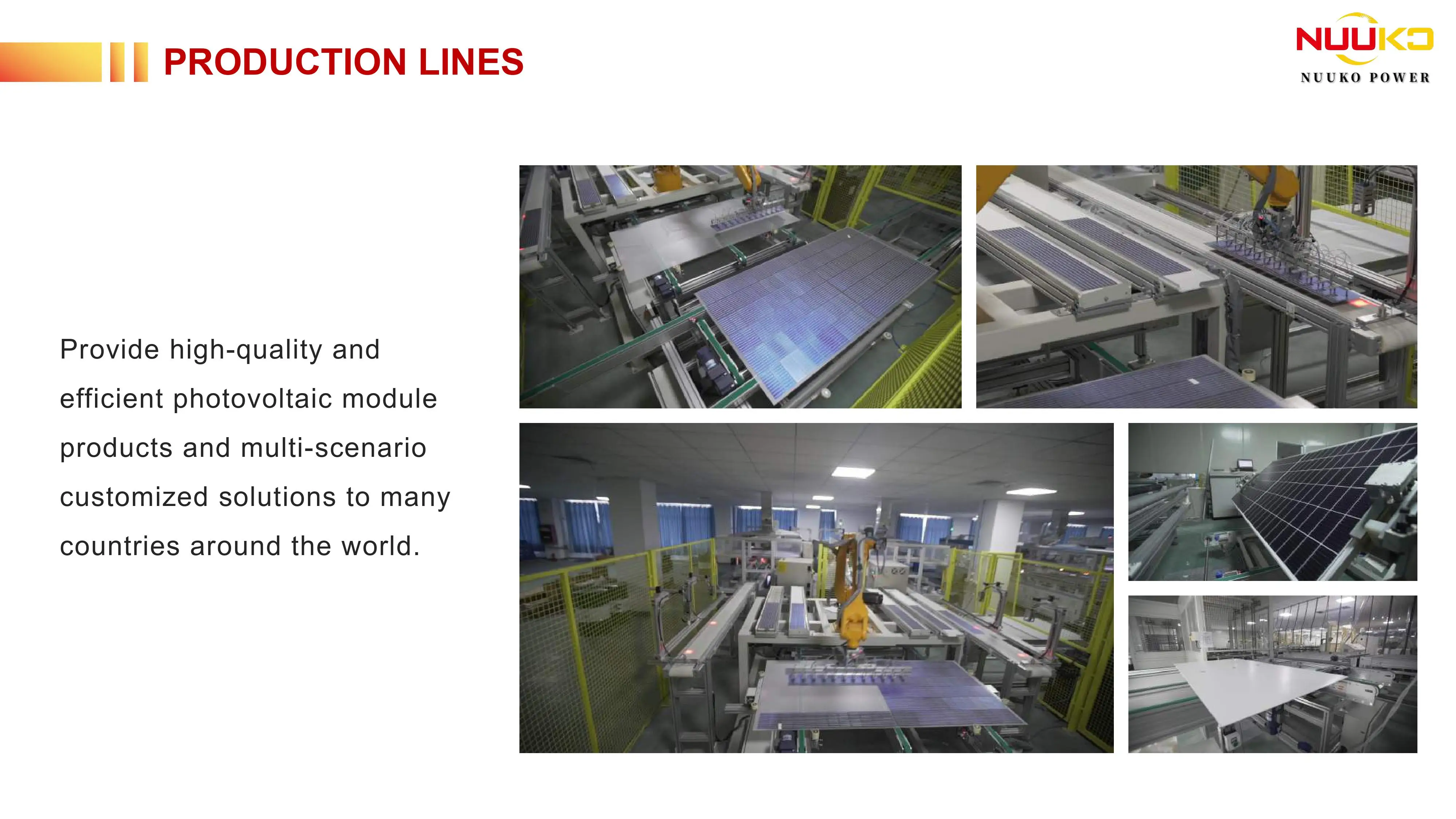

Production Process
Our Advantages

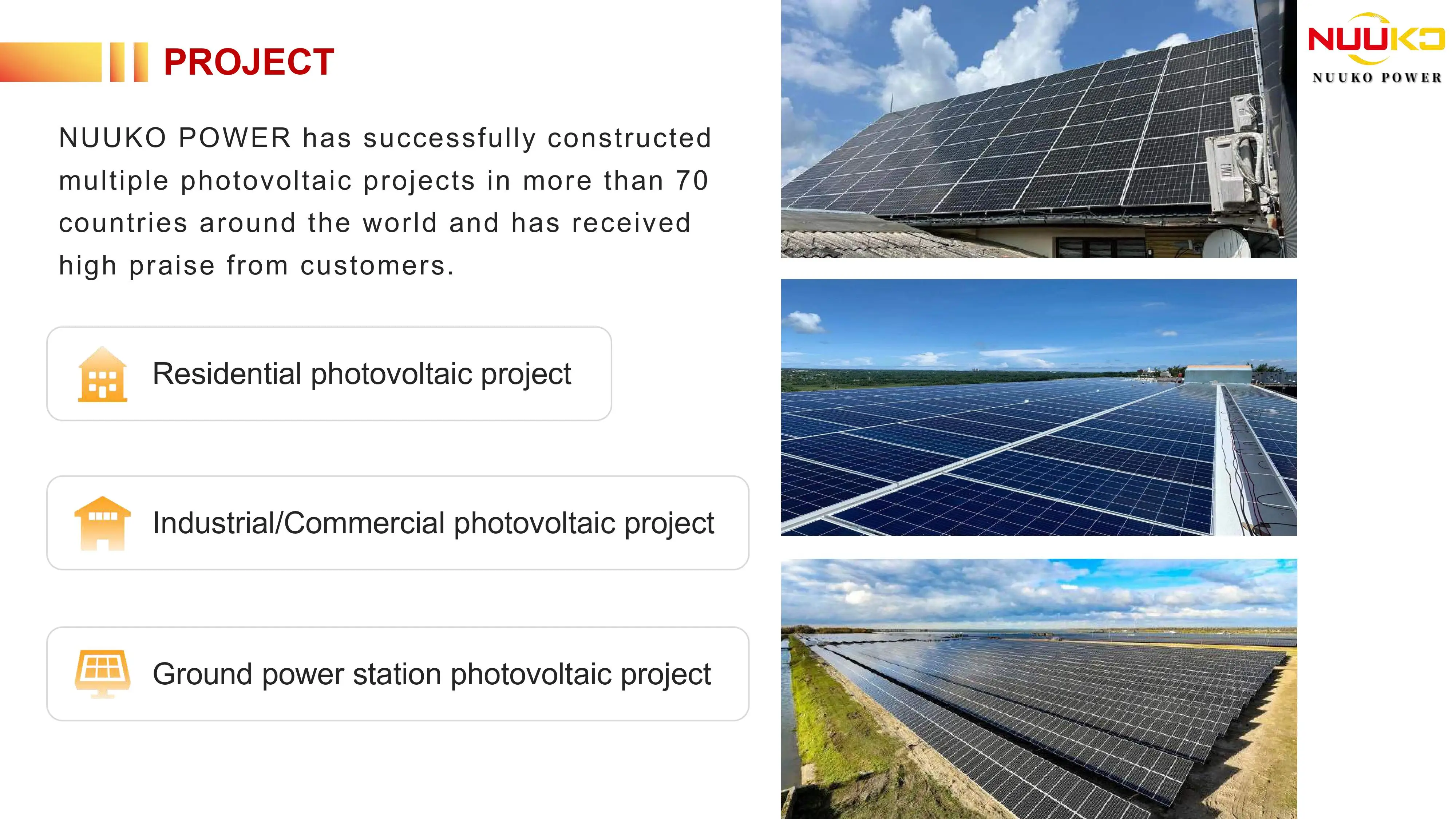

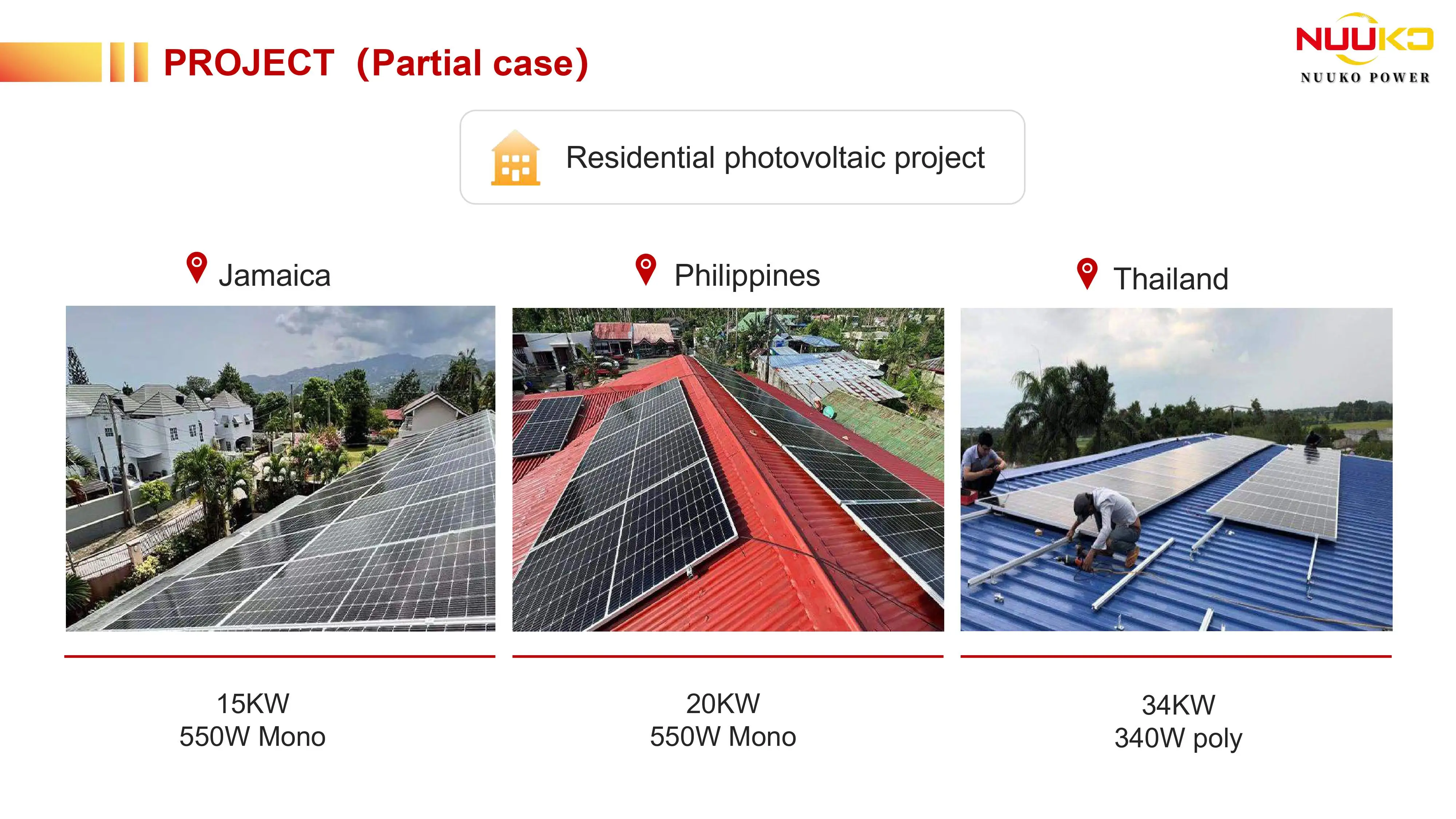

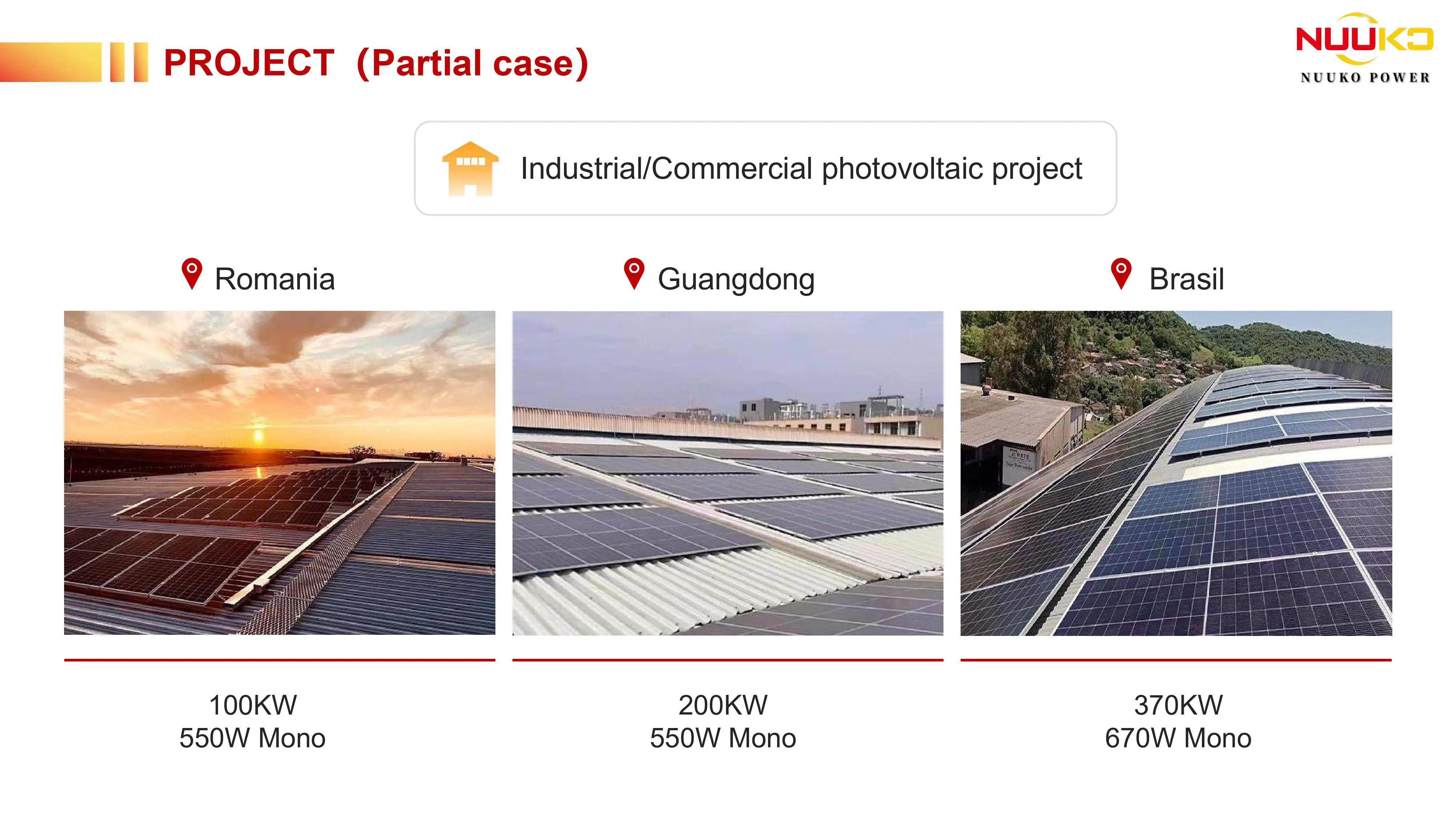

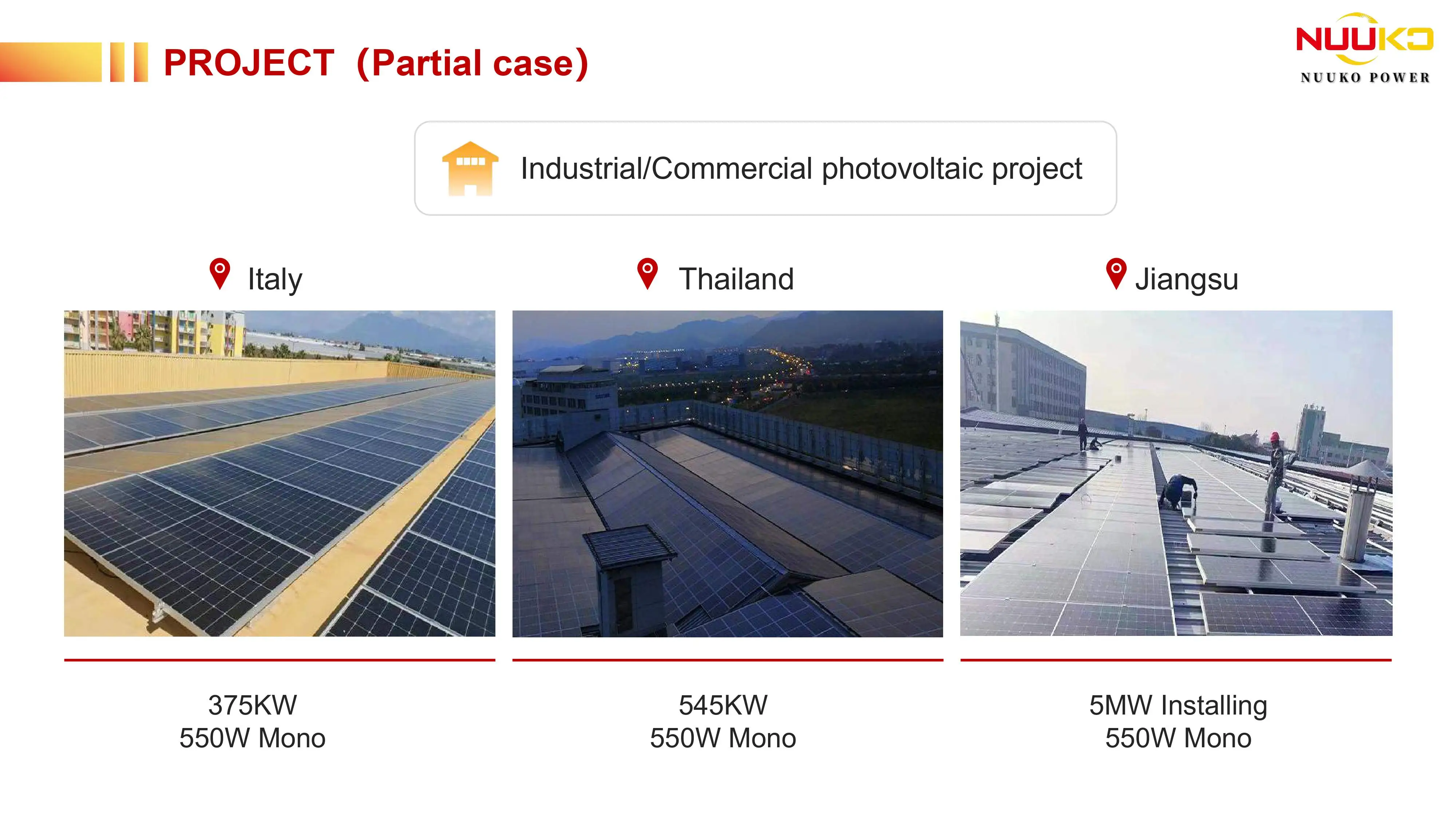

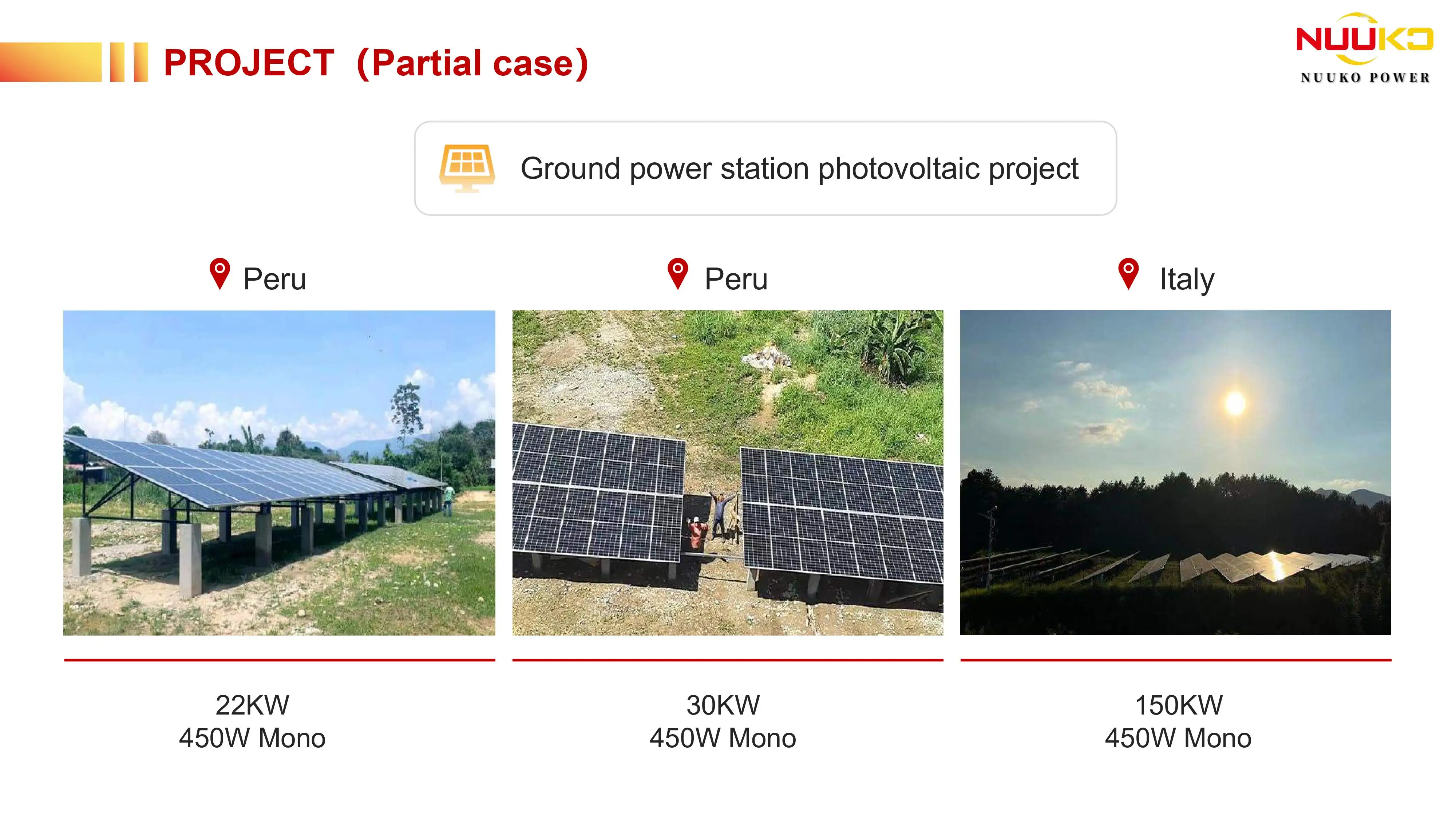

Project Examples
Exhibition
FAQ
Q: How much experience do you have in solar manufacturing industry?
A: We have more than 10 years experience in PV industry.
Q: Can you provide customization options for your products?
A: We have more than 10 years experience in PV industry.
Q: Can you provide customization options for your products?
A: Yes, we provide OEM Service as per your request.
Q: What are the advantages of your company?
A: We have own factory, and we also cooperate with other Tier 1 brands, aiming to provide customers with competitive prices and more choices.
Q: May I have a piece of sample to check the quality?
A: Sample is available to you for checking and evaluating.
Q: How about the delivery time?
A: About 15-20 working days after receiving your payment. (The specific delivery time depends on the items and the order quantity.)
Q: Where is the port of loading?
A: Shanghai or any port in China.
Q: What are the advantages of your company?
A: We have own factory, and we also cooperate with other Tier 1 brands, aiming to provide customers with competitive prices and more choices.
Q: May I have a piece of sample to check the quality?
A: Sample is available to you for checking and evaluating.
Q: How about the delivery time?
A: About 15-20 working days after receiving your payment. (The specific delivery time depends on the items and the order quantity.)
Q: Where is the port of loading?
A: Shanghai or any port in China.
