Heavy Duty Truck AI BSD Backup Camera For Truck, Trailer, Van With Waterproof IP69K reversing camera
- Category: >>>
- Supplier: Veise (guangzhou) Electronics Co. Ltd.Veise Ltd.
Share on (1601367177249):
Product Overview
Description
Product Description

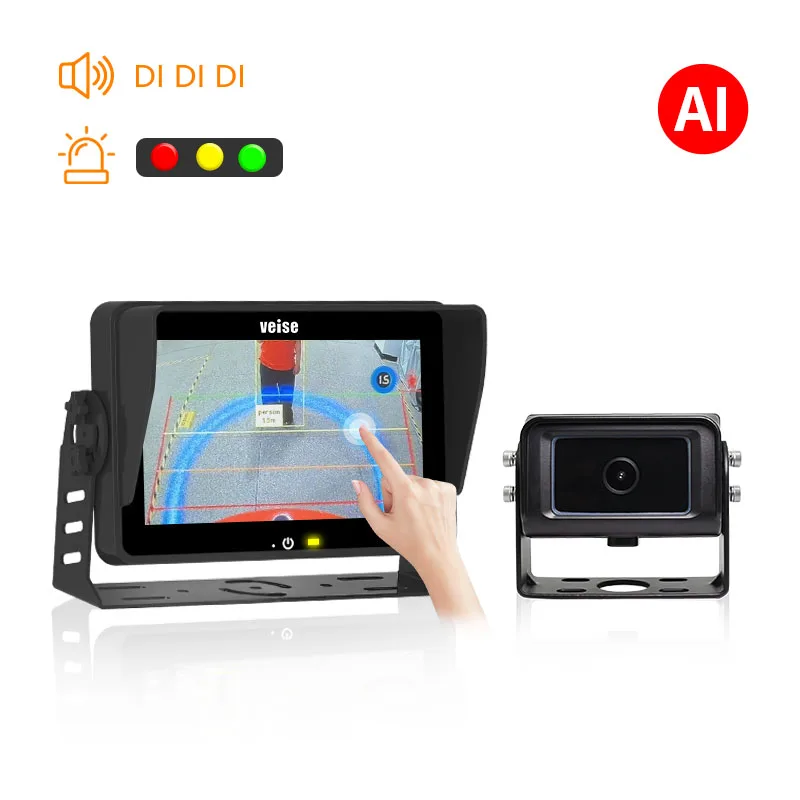

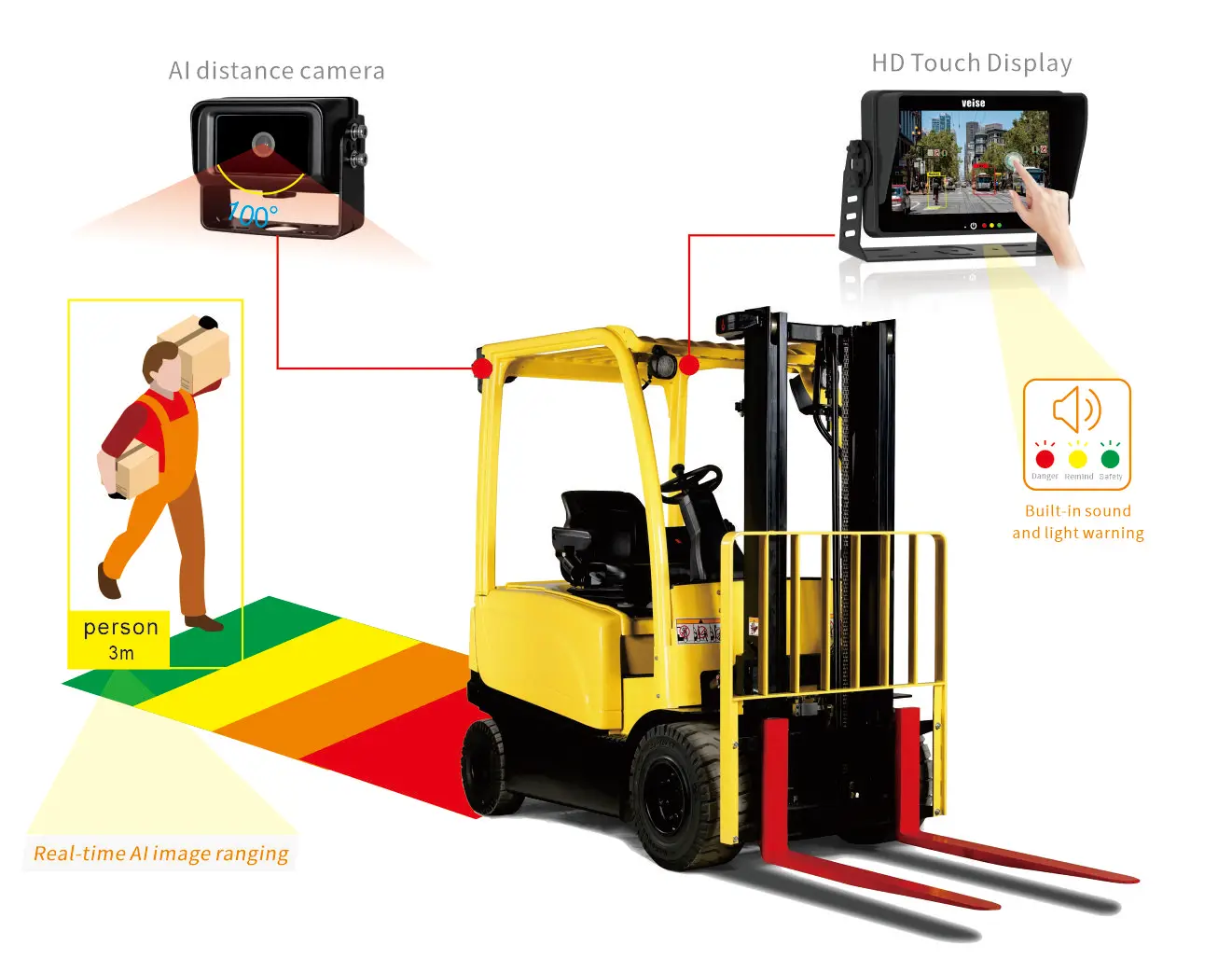

AI Pedestrian Detection Early Warning Rearview Camera system - Built-in Sound and Light Reminders
Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. This is especially true in situations where no reverse radar warning system is installed. During vehicle operation, this can easily create safety hazards for personnel, leading to economic losses.
The AI pedestrian detection warning rearview system not only eliminates the need for the complex wiring and installation of reverse radar,but also allows the AI human shape analysis camera to capture personnel in the monitoring area in real time, unlike ordinary cameras. It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver, thus enhancing vehicle operation efficiency, eliminating safety hazards, and preventing economic losses. The monitor supports real-time recording, playback, and safe distance display functions.

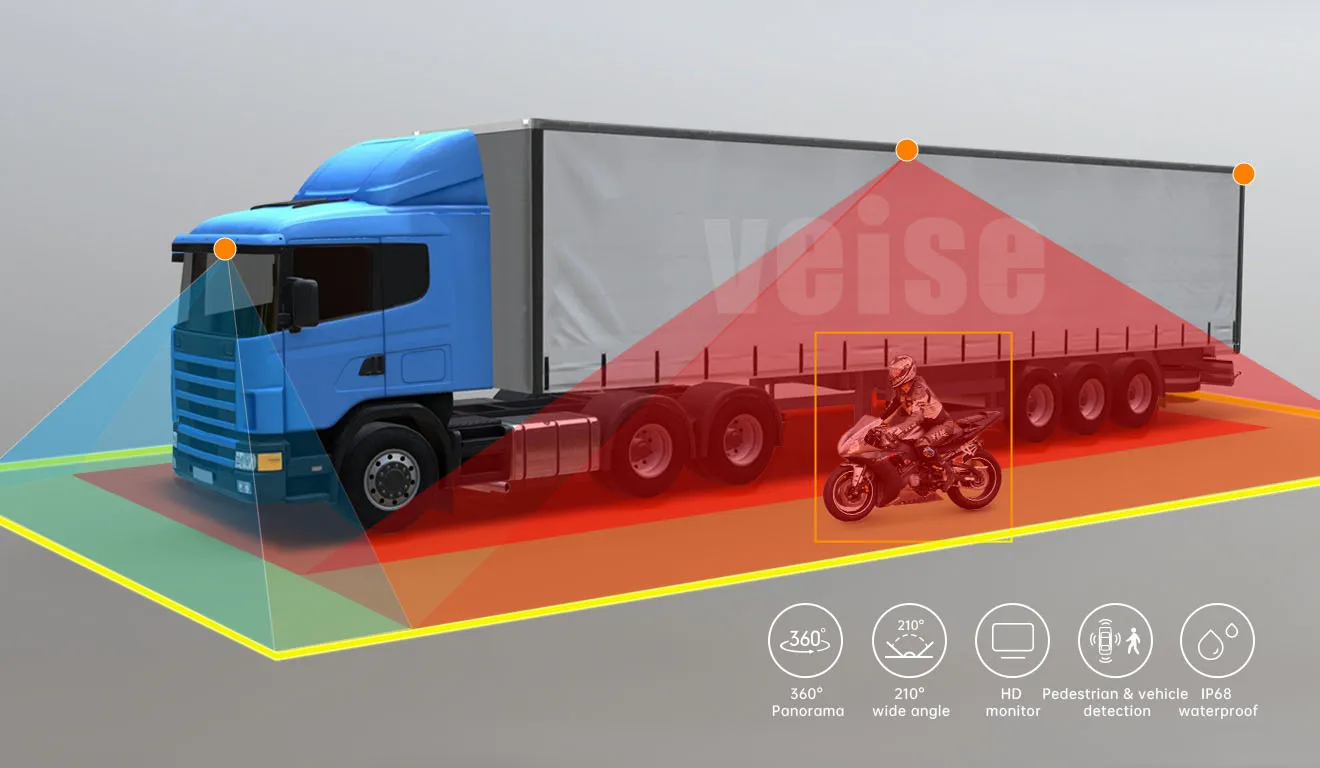

Dangers of Large Vehicle Blind Spots
Large vehicles such as trucks, freight trucks, and buses have significant blind spots. When these vehicles are driving at high speeds and encounter motorcyclists changing lanes or pedestrians suddenly appearing during turns, accidents can occur easily.

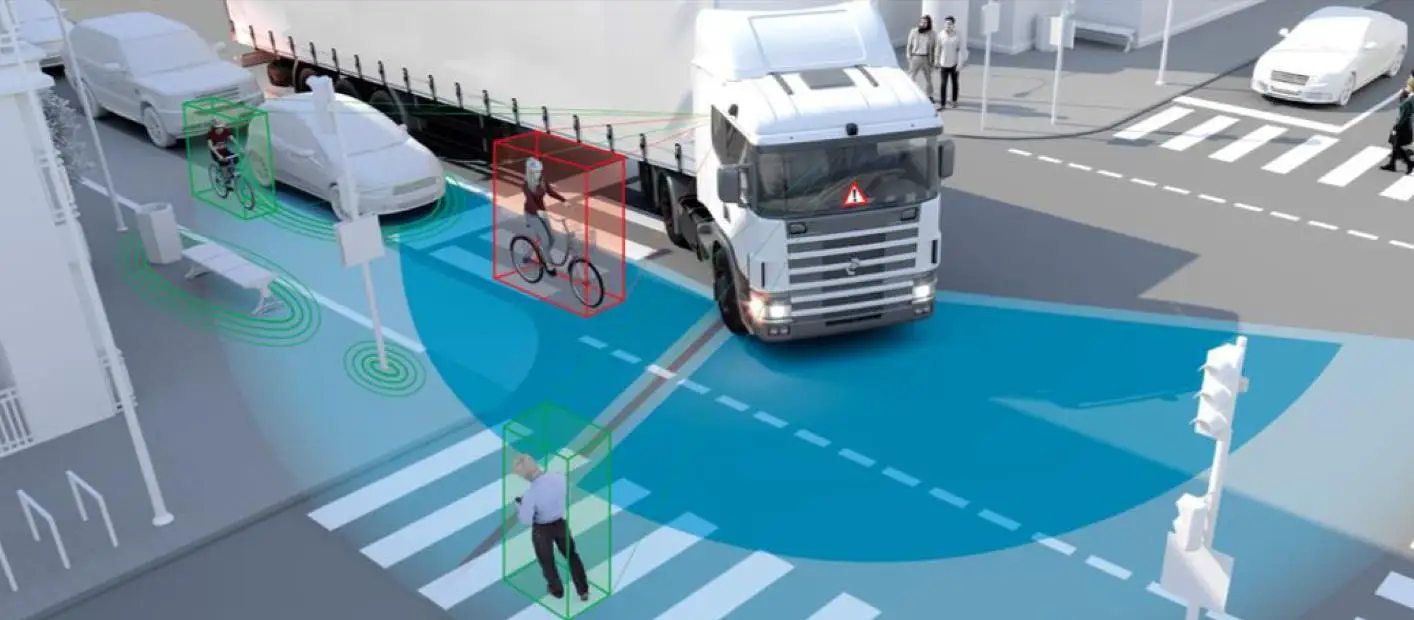

Pedestrian & Vehicle Detection

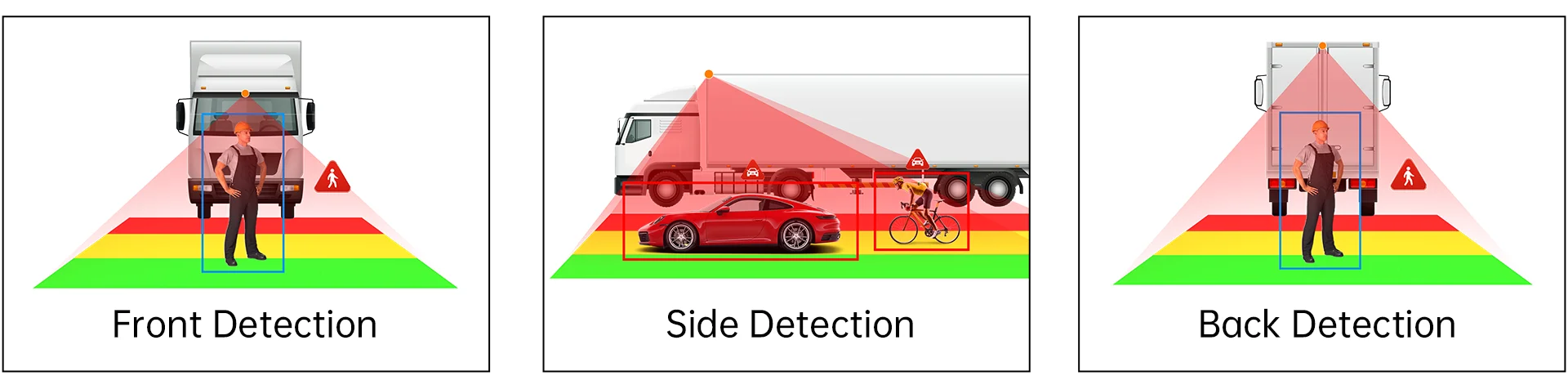

It can detect bicycle/electric bicycle riders, pedestrians, and vehicles. Users can activate or deactivate the pedestrian and vehicle detection alert function at any time. (According to user preferences, the camera can be installed on the left, right, rear, or overhead position)

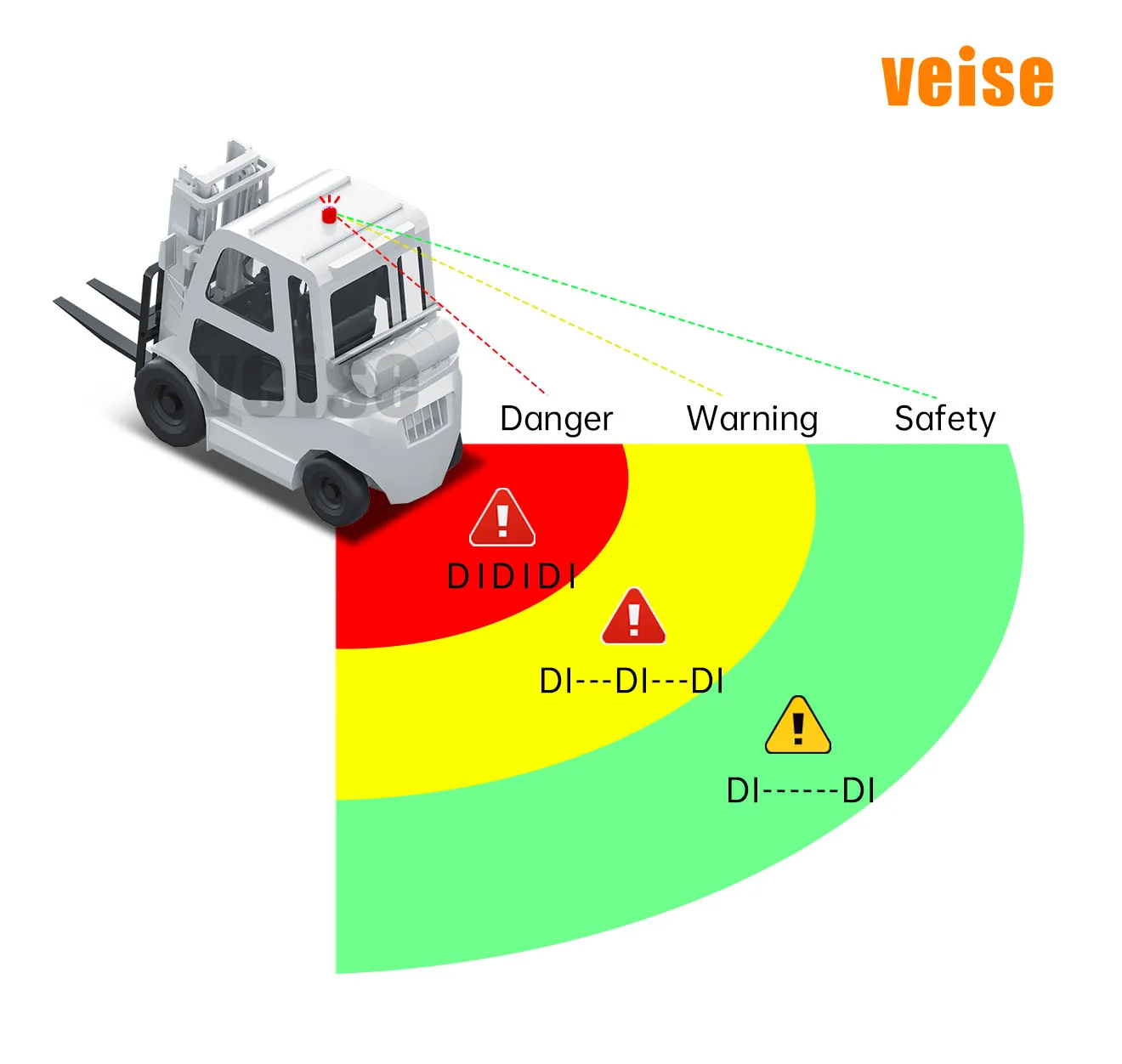

Blind Spot Audible And Visual Alarm Warning Driver
Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. AI pedestrian vehicle detecting and warning camera to capture personnel in the monitoring area in real time, It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver.
Wide Angle View
The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.
Specification

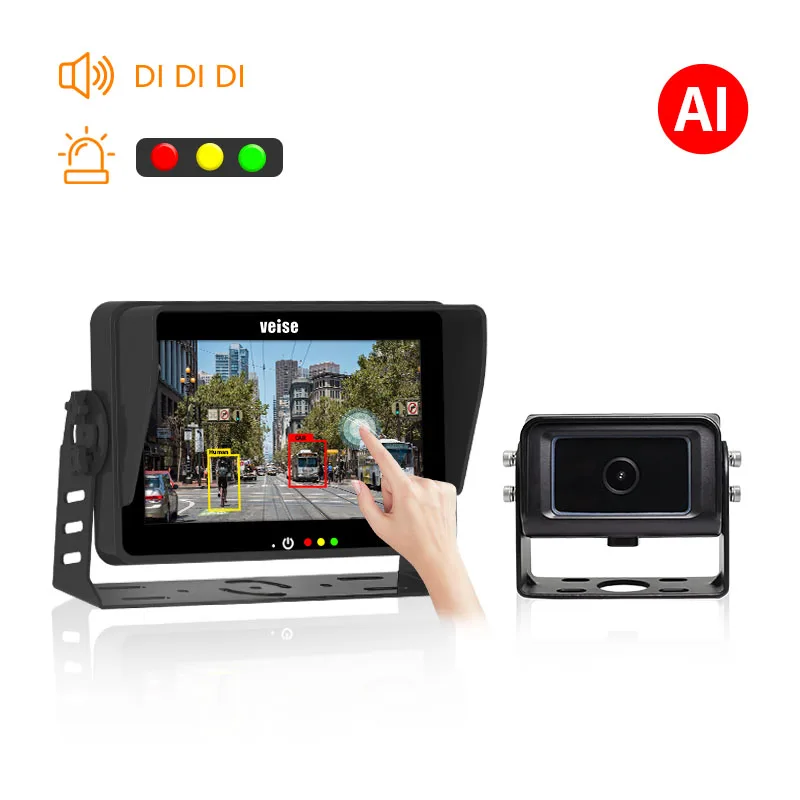

HD Touch Monitor
* 7-inch Touch Monitor: Supports four video inputs, IPS display for true color representation and fast response times.
* Functions: Supports real-time recording and playback functions, with screen brightness that automatically adjusts according to
ambient light.
* Hardware: Automotive-grade industrial DSP with built-in sound and light safety warnings.
* Operation: Fully touch-operated graphical menu for simple and easy use.
* Voltage Protection: DC 8~32V wide range working voltage, load dump pulse voltage protection, external power supply polarity
reverse protection, and constant current and voltage protection for LEDs to prevent misuse and ensure product longevity.
* 7-inch Touch Monitor: Supports four video inputs, IPS display for true color representation and fast response times.
* Functions: Supports real-time recording and playback functions, with screen brightness that automatically adjusts according to
ambient light.
* Hardware: Automotive-grade industrial DSP with built-in sound and light safety warnings.
* Operation: Fully touch-operated graphical menu for simple and easy use.
* Voltage Protection: DC 8~32V wide range working voltage, load dump pulse voltage protection, external power supply polarity
reverse protection, and constant current and voltage protection for LEDs to prevent misuse and ensure product longevity.
HD Touchscreen Monitor (MHD-7154MDJ) | ||
Resolution | 1024 x 600 pixels (RGB) | |
Video Inputs | 4 channels | |
Display Modes | 1/2/3/4-screen split | |
Video Signal Inputs | CVBS/AHD720P/1080P | |
Sound and Light Indicators | ●Red (danger), ●Yellow (reminder), ●Green (safe) | |
Recording Function | Real-time recording (2GB per hour per channel) | |
Recording File Format | AVI | |
Connector Socket | 18-core waterproof interface | |
Dimensions (L x W x T) | 210 x 143 x 84 mm | |
Vibration Resistance | GB/T 2423.56-2018 standard (random 5G vibration) | |

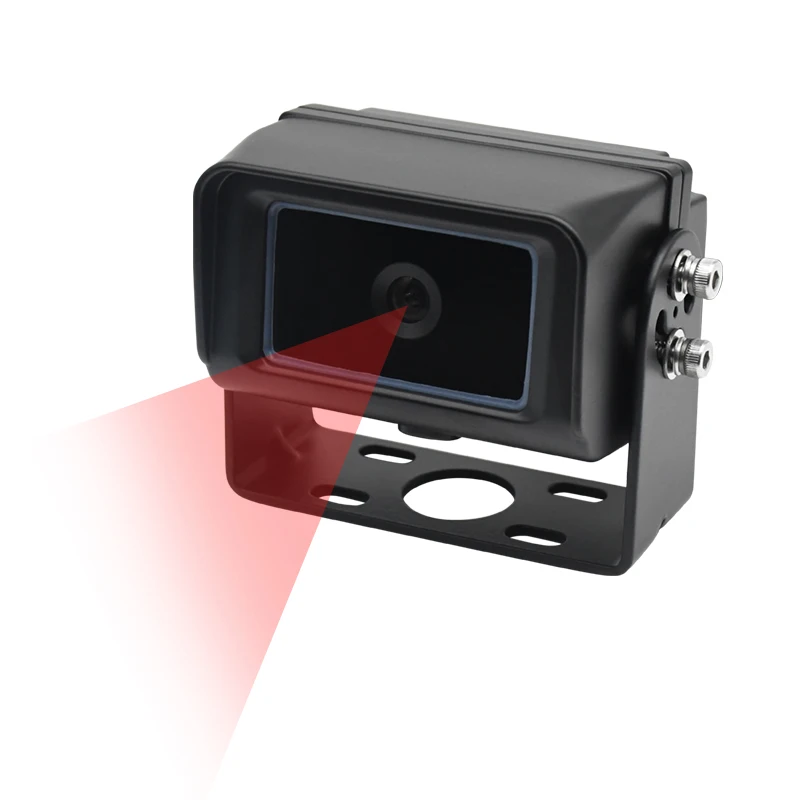

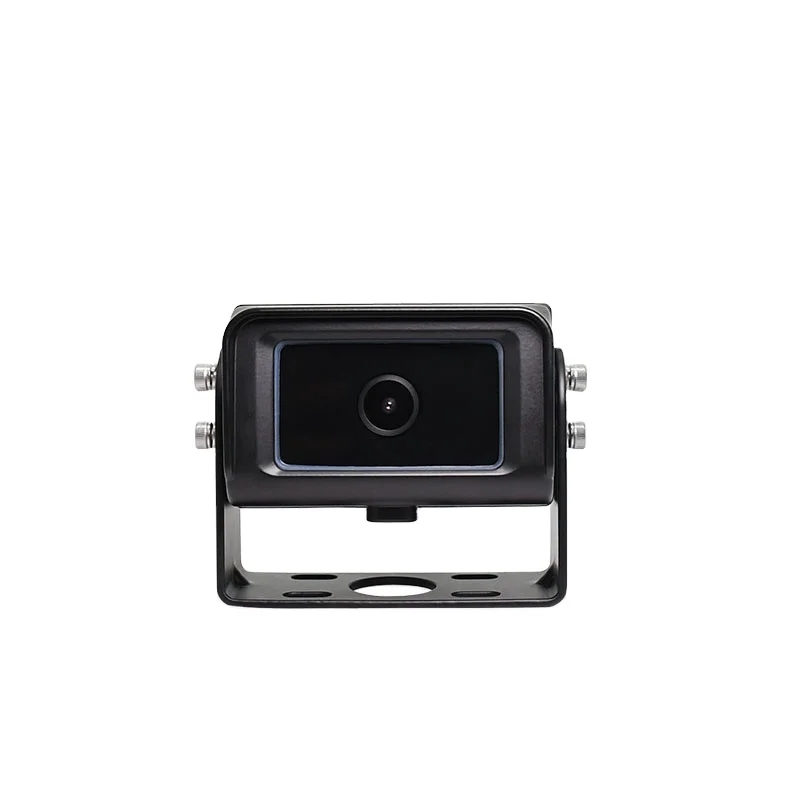

AI Human Shape Analysis Camera
* Intelligent Recognition: Based on cloud-based intelligent recognition algorithms, it can learn and recognize specific human body movements.
* Application: Can accurately recognize humans in complex environments, primarily used for monitoring restricted areas for unauthorized entry or specific body movements in designated areas, and sending warning signals to the relevant monitoring system.
* Image Distance Measurement: 2 meters (customizable within 0-5 meters).
* Hardware Specifications: 100° wide-angle, automotive-grade DSP, 2 million high-definition pixels, IP69K waterproof rating, cold-resistant and waterproof signal tail cable.
* Intelligent Recognition: Based on cloud-based intelligent recognition algorithms, it can learn and recognize specific human body movements.
* Application: Can accurately recognize humans in complex environments, primarily used for monitoring restricted areas for unauthorized entry or specific body movements in designated areas, and sending warning signals to the relevant monitoring system.
* Image Distance Measurement: 2 meters (customizable within 0-5 meters).
* Hardware Specifications: 100° wide-angle, automotive-grade DSP, 2 million high-definition pixels, IP69K waterproof rating, cold-resistant and waterproof signal tail cable.
Image Sensor | 1/2.9 Color CMOS |
Effective Pixels | 1920(H) x 1080(V) |
View angle | 100° |

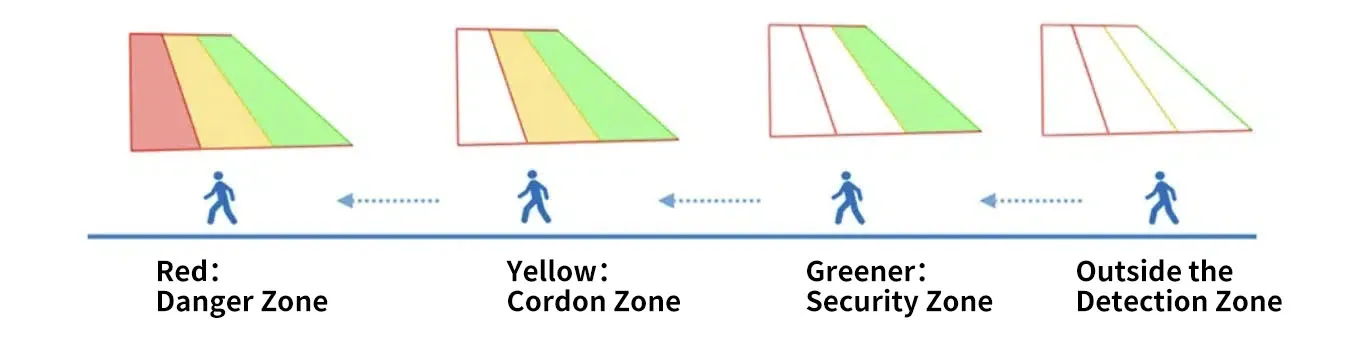

Alert Zones | 1-4 levels (customizable) |
Detection Targets | Pedestrians/non-motorized vehicles |
Image Ranging | 0-5 meters (customizable) |
Housing Material | Aluminum alloy |
Waterproof Rating | IP69K |
Product Dimensions | 74(W) x 64(H) x 56(D) mm |

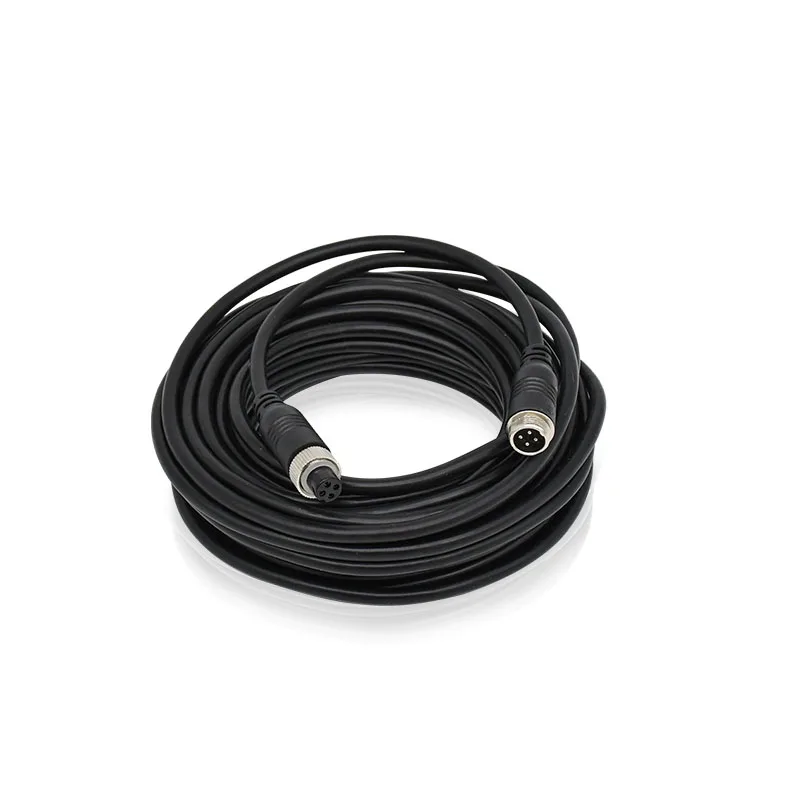

Video Power Connecting Cable
Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.
Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.
Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.
Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.
