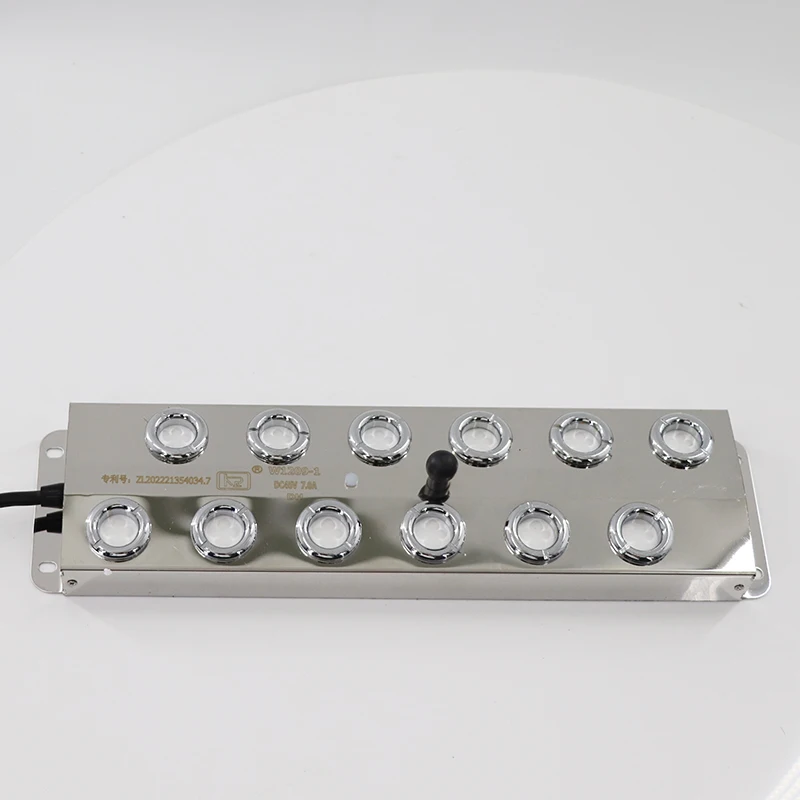

DC48V Ultrasonic Fog Mist Maker Greenhouse Aeromist Hydroponics Humidifier Ultrasonic Fogger To 12 Heads Ultrasonic Atomizer
- Category: >>>
- Supplier: Yueqing Wuke Electric Appliance Co. Ltd.Yueqing Ltd.
Share on (1601367402374):
Product Overview
Description
Product Parameters
Parameter | Test Conditions | W1209-1 | Unit | |||||||
Min. | Typ. | Max. | ||||||||
The following are the test results under standard operating conditions (initial water temperature 25 ℃, ambient temperature 30 ℃, ambient humidity 55% RH) | ||||||||||
Working Voltage | Normal spray | 42 | 45 | 48 | V | |||||
Working Current | 6.8 | 6.9 | 7.2 | A | ||||||
Working Water Temperature | Clean tap water | 5 | 25 | 45 | ℃ | |||||
PH Value | 5 | 6.5 | 8 | / | ||||||
Fogging Amount | 6 | 7.5 | 9 | L/H | ||||||
Foggy Particles | 1 | 5 | 10 | μm | ||||||
Optimal Water Tevel | 28 | 30 | 33 | mm | ||||||
Protect Water Level | 10 | 13 | 16 | mm | ||||||
Temperature Protection Activated | 55 | 60 | 65 | ℃ | ||||||
Temperature Protection Recovery | 40 | 45 | 50 | ℃ | ||||||
Atomization Plate Attenuation | 3000 | 3500 | 4000 | hour | ||||||

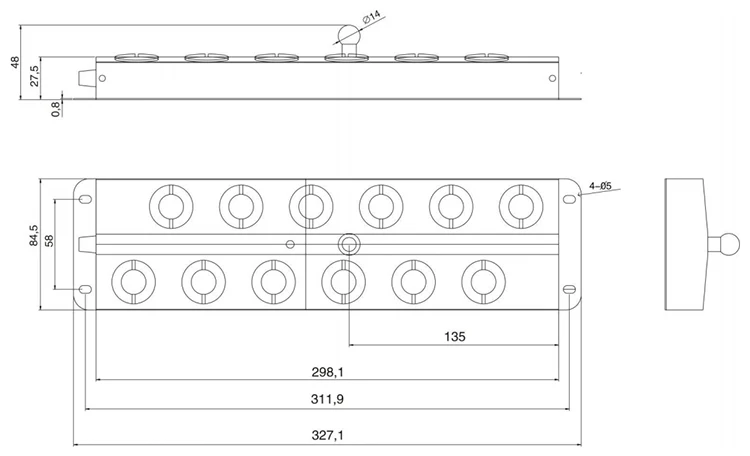

Appearance Specifications | Length * Width * Height | / | 327.1*84.5*27.5 | / | mm | |||||
Power Cord | Length | / | 1500 | / | mm | |||||

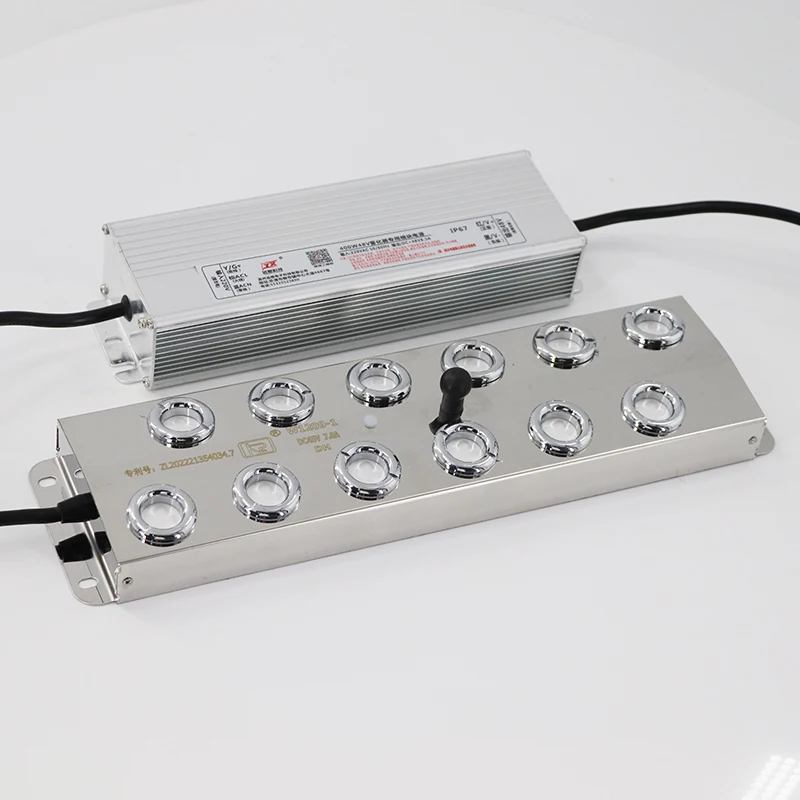

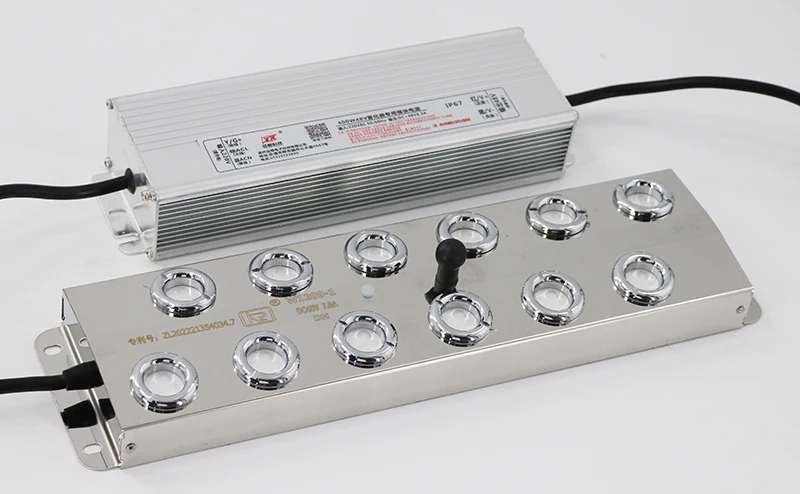

Adaptive Power Supply | Suggest adapting AC220V-45V>400W power transformer | |||||||||
Other | Nebulizer shell material: polished 304 stainless steel, atomizer blade Ø 20mm, frequency 1.7MHz | |||||||||
Model | 1 Head | 2 Head | 3 Head | 4 Head | 6 Head | 8 Head | 10 Head | 12 Head | ||||||
Fog Capacity | 0.5kg/h | 1kg/h | 1.5kg/h | 2-3kg/h | 3-4kg/h | 4-5kg/h | 5-6kg/h | 6-7kg/h | ||||||
Voltage | DC24V | DC36V | DC36V | DC45V | DC45V | DC45V | DC45V | DC45V | ||||||
Power | 50W | 80W | 120W | 150W | 250W | 300W | 350W | 400W | ||||||
Fogging Aread (square meter) | 0.5-1 | 1-1.5 | 1.5-2 | 2-3 | 3-4 | 4-5 | 5-6 | 7-8 | ||||||
Water Depth | 6cm | 8cm | ||||||||||||
Size (mm) | 46*46*35 | 125*42*26 | 171*42*26 | 141*85*28 | 182*85*28 | 237*85*28 | 278*85*28 | 328*85*28 | ||||||
Product Description
1. Stable operation within the working voltage range of DC45-48V;
2. Input power reverse protection and overvoltage transient suppression circuit;
3. Built in over temperature protection thermal relay switch;
4. Water shortage protection (capacitive);
5. Built in separate constant current circuit for safe and stable operation;
6. Atomization plate oscillation frequency of 1.7MHz;
7. Integrated aluminum profile heat dissipation substrate;
8. 304 polished stainless steel shell, brass nickel chromium plated metal pressure ring.
2. Input power reverse protection and overvoltage transient suppression circuit;
3. Built in over temperature protection thermal relay switch;
4. Water shortage protection (capacitive);
5. Built in separate constant current circuit for safe and stable operation;
6. Atomization plate oscillation frequency of 1.7MHz;
7. Integrated aluminum profile heat dissipation substrate;
8. 304 polished stainless steel shell, brass nickel chromium plated metal pressure ring.
