Mechanical name

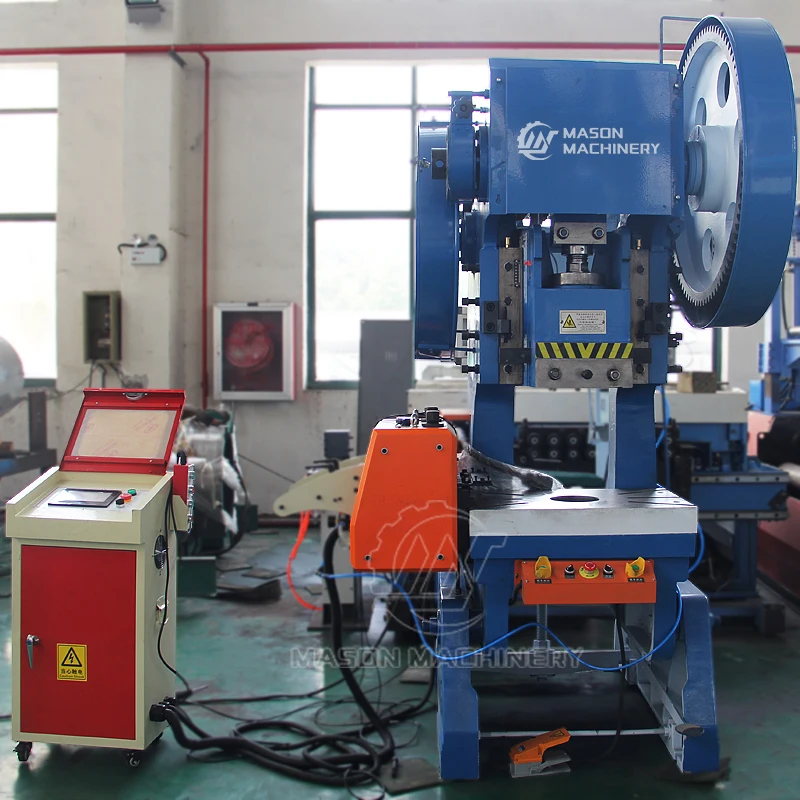

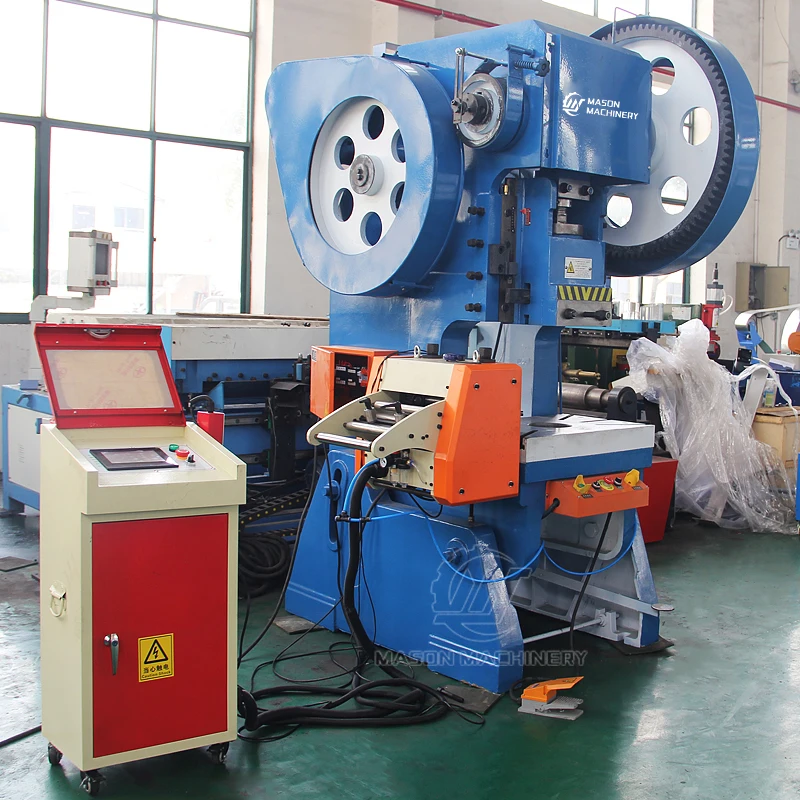

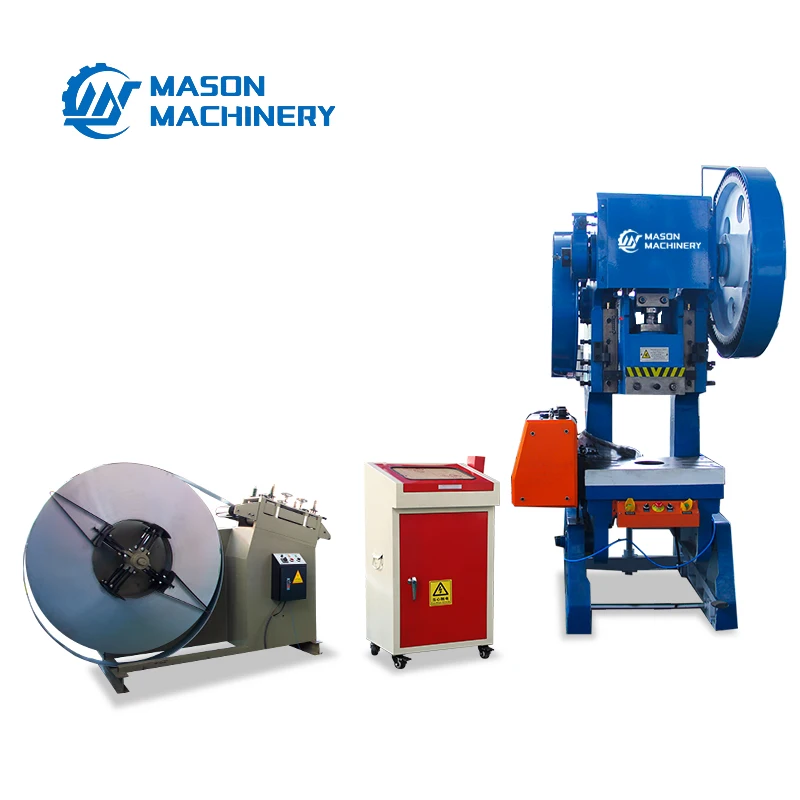

Mechanical punching machine JB23 mechanical punch Ful-automatic corner production line mold can be customized




Overall structure
1.The C-frame provides maximum stiffness and minimum deflection for precise parts and longer tool life.Steel welded frame, high rigidity, small deformation, compact. Thick plates and large columns provide you with a stable platform for demanding applications.
2. Wide body frame eliminates vibration, improves IDE life and machine, economical and practical. The operating space is wide, and the movable workbench can be moved out of the frame to set up the mold. The structure is simple and the electrical appliances are also very beautiful.
3. High precision, high efficiency, simple and convenient operation, good performance, favorable price, and the best service.




1. The workbench and slider body are made of cast iron structure, and the overall structure is tempered. These connections are used for transmission, and the crankshaft of the transmission part is placed horizontally. The flywheel and gear are both externally open, making maintenance convenient

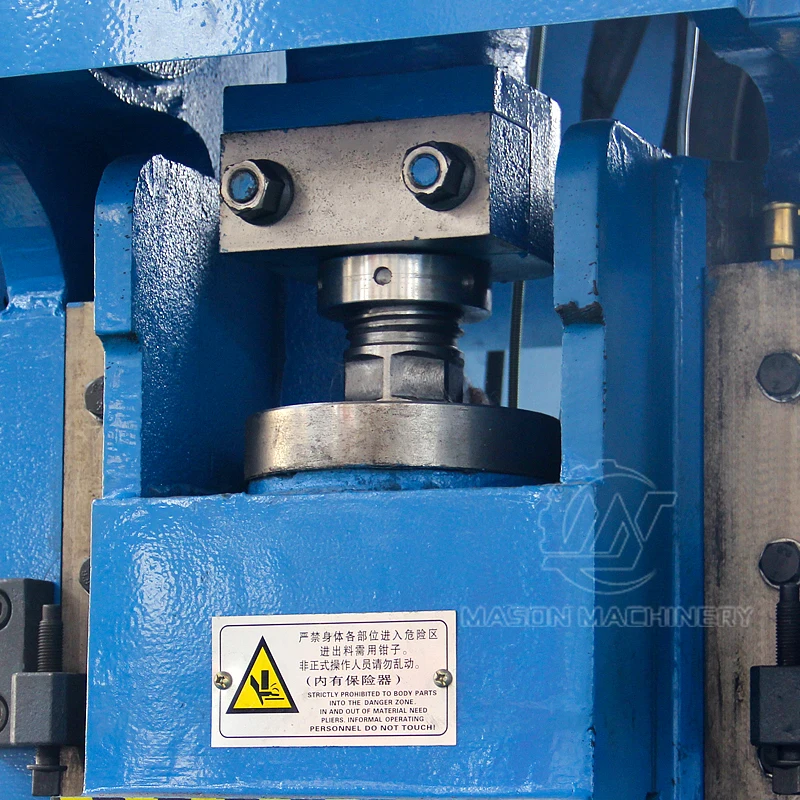

2. The slider is a cast box type with a rigid structure and a simple structure. The slide type collapse installation pressure overload protection device has a simple structure. If the slide is overloaded and the fuse collapses and is damaged, it will protect the machine tool and mold from damage.

3. The height adjustment of the slider mold adopts manual mode, using V-shaped slider guide rails for easy adjustment


Product parameter
Model
JB23-63T
JB23-80T
JB23-100T
Nominal Capacity
630KN
800KN
1000KN
Motor
5.5kw
7.5KW
7.5KW
Weight
2800KG
4100KG
5200KG
Dimensions
1700*1250*2400mm
1790*1320*2600mm
1800*1360*2750mm
