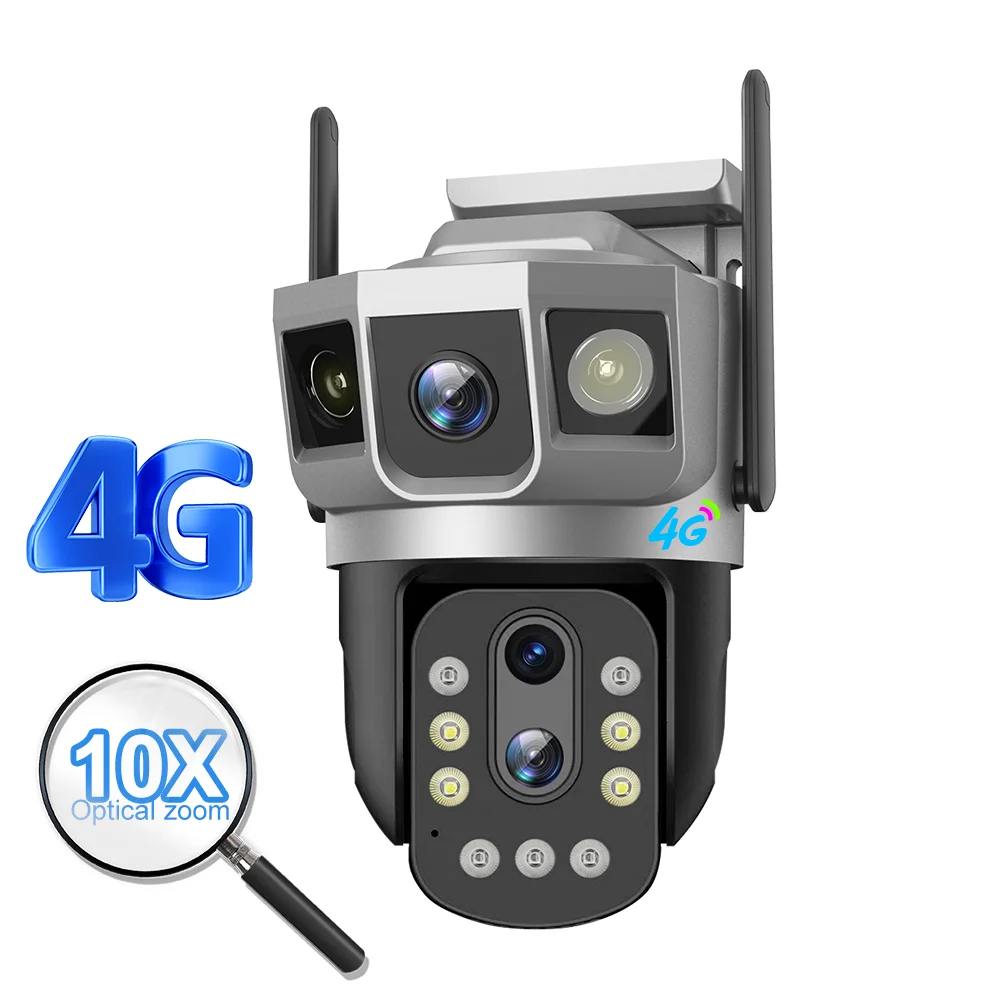

V380 Pro Outdoor auto motion tracking CCTV camera 4G P2P wireless 360 degree Smart video Security IP PTZ Camera

Model:

SC23-G-DL

APP:

V380 Pro

System structure:

Embedded Linux system, ARM chip structure

Chip:

KM01N + AIR780E

Resolution:

2+2=4MP

Sensor Resolution:

1/2.9" SC2336*2

Lens:

fixed-focus 2.8mm and 8mm+3.6mm

View angle:

2*60° + 1*80°

Pan-tilt:

Rotates Horizontal:355° Vertical：90°

Preset point quantity:

6

Video compression standard:

H.265/15FPS

Video format:

PAL

Minimum illumination:

0.01Lux@（F2.0，VGC ON),O.Luxwith IR

Electronic shutter:

Auto

Backlight compensation:

Support

Noise reduction:

2D、3D

LED quantity:

Bullet camera: 2pcs Dual Core LED
PTZ camera: 4pcs White LED + 5pcs Infrared Led

Network connection:

Suport 4G-SIM card and adapt to RJ45 Network port

Band

B1/3/5/8/38/39/40/41

Night vision

IR-CUT switch Automatic，about 5-8meters (It varies from environment)
White Led can be remote control via APP:①Turn ON ②Turn OFF ③ Auto
(In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision auto , it can intelligently
detected human body, and Turn ON/OFF the White light intelligently )

Audio:

Built-in microphone and speaker, support two-way audio and real-time transmission.
ADPCM audio compression standard, self-adapt to code stream

Network protocol:

TCP/IP、DDNS、DHCP

Alarm:

①Motion detection and picture push ②AI Human intrusion Detection

Storage:

TF Card（Max 128G）；Cloud storage /Cloud disk (optional)

Power input:

12V/2A (not including power supply)

Work environment:

Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH
