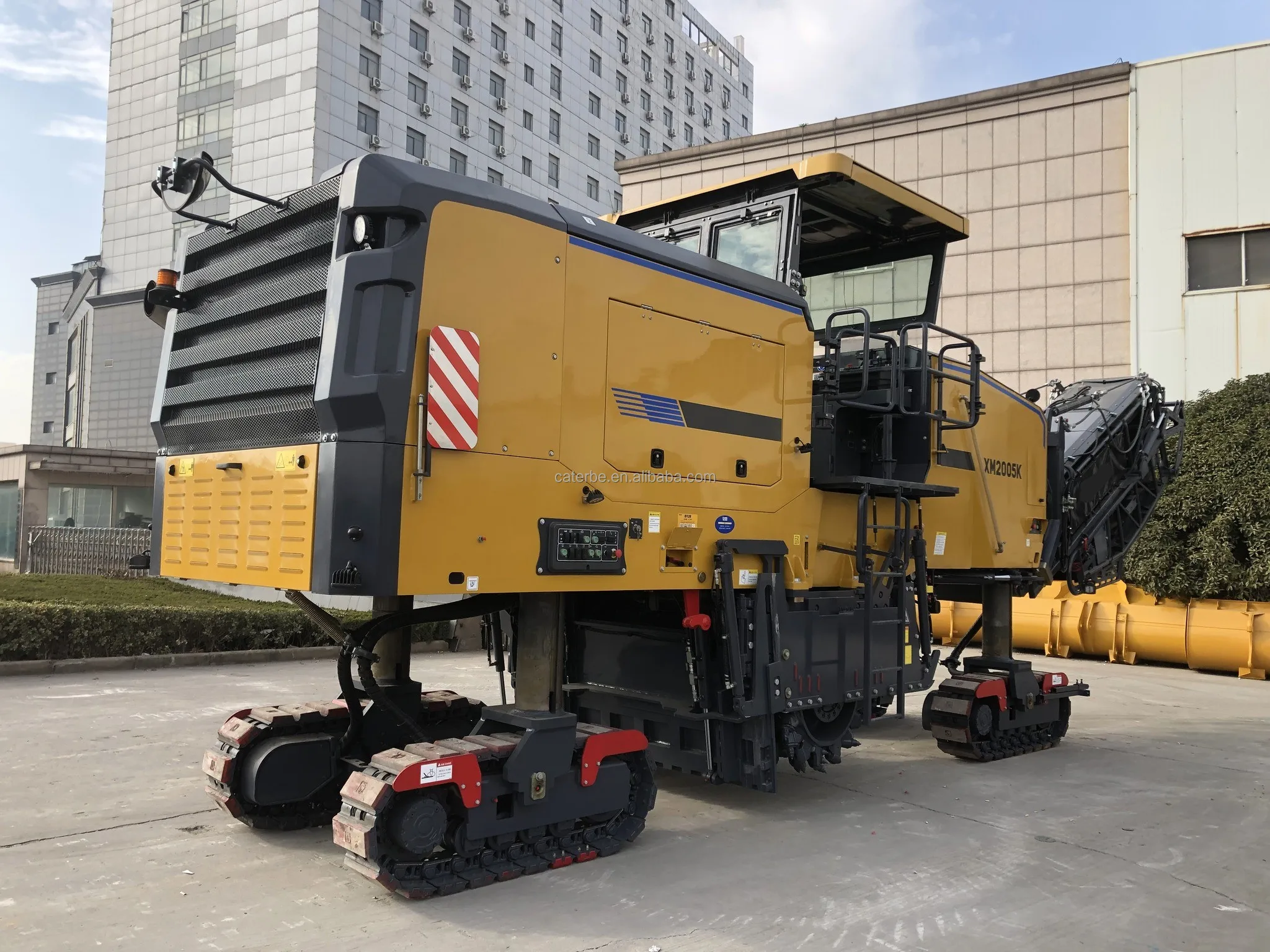

China Cold Milling Machine XM2005K XM2005 2m Asphalt Pavement Road Repair
- Category: >>>
- Supplier: Caterbe Construction Equipment (Wuhan) Co. Ltd.Caterbe Ltd.
Share on (1601367705975):
Product Overview
Description
Company Profile
Sales Manager：Leyla Huang
Email：leyla@caterbe.com
WhatsApp/Wechat/Tel：+86-1778603-7177
Product Description
2m Cold Milling Machine
XM2005K XM2005 Asphalt Pavement
MAIN DATA
* Total mass(kg): 30500
* Engine Model: QSZ13
* Rated power/speed (kW/rpm): 447/2100(Option 470/2100)
* Maximum milling width (mm) : 2000
* Maximum milling depth (mm): 330
* Minimum milling radius(mm): 1020
FEATURE
Efficient and stable milling
447kw high-pressure common rail EFI engine (optional 470kw engine), in line with China III/Euro III emission standards, optimized power and torque curve, can adapt to milling different media, different depth milling needs;
Using engine three-speed milling technology, it can adapt to the engine is always in the best working condition and the highest efficiency when it is from brushing to thick milling;
Intelligent temperature control and heat dissipation system with independent monitoring of water temperature, oil temperature and intercooler to reduce starting resistance, fuel consumption, noise pollution and power loss;
Using engine three-speed milling technology, it can adapt to the engine is always in the best working condition and the highest efficiency when it is from brushing to thick milling;
Intelligent temperature control and heat dissipation system with independent monitoring of water temperature, oil temperature and intercooler to reduce starting resistance, fuel consumption, noise pollution and power loss;

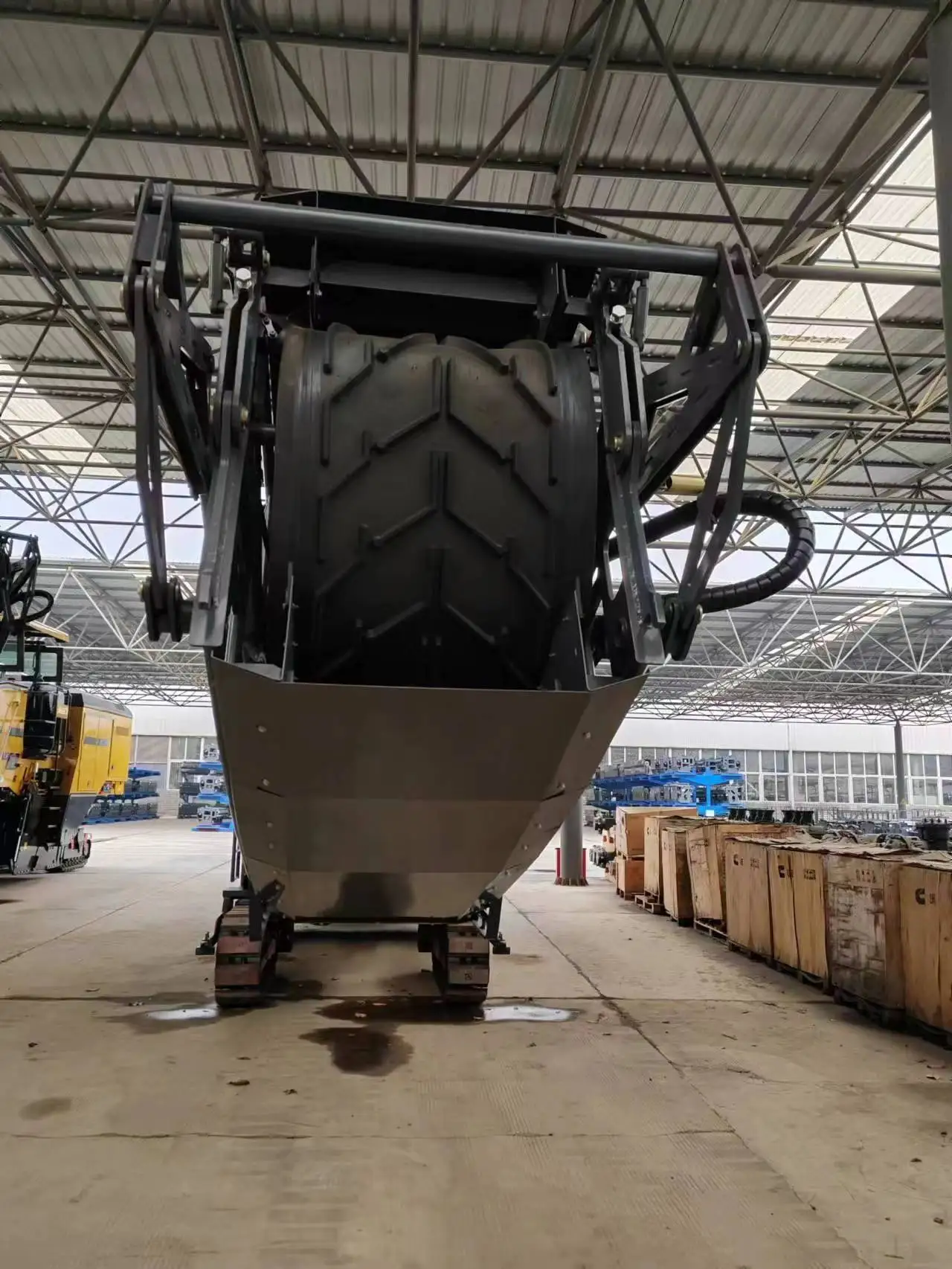

Fast and environmentally friendly feeding
Using 630 displacement motor, the conveying speed is 20% higher than before, and the waste carrying capacity is stronger; With the instant speed increase 2s function, the instantaneous carrying capacity of the belt is as high as 500m³;
A new generation of customized imported pattern belt, with reduced pitch, smoother discharging and higher reliability;
The left and right swing angle of the conveying belt is the highest in the industry, up to 65°, which effectively handles special working conditions such as roundabout construction and green belt construction;
A new generation of customized imported pattern belt, with reduced pitch, smoother discharging and higher reliability;
The left and right swing angle of the conveying belt is the highest in the industry, up to 65°, which effectively handles special working conditions such as roundabout construction and green belt construction;
Flexible walking
The walking system adopts stepless speed regulation to achieve 0-6km/h walking, and the maximum walking speed can reach 6km/h when moving in a small range;
It has four steering modes (front wheel steering, rear wheel steering, turning, wedge) for good maneuverability.
It has four steering modes (front wheel steering, rear wheel steering, turning, wedge) for good maneuverability.

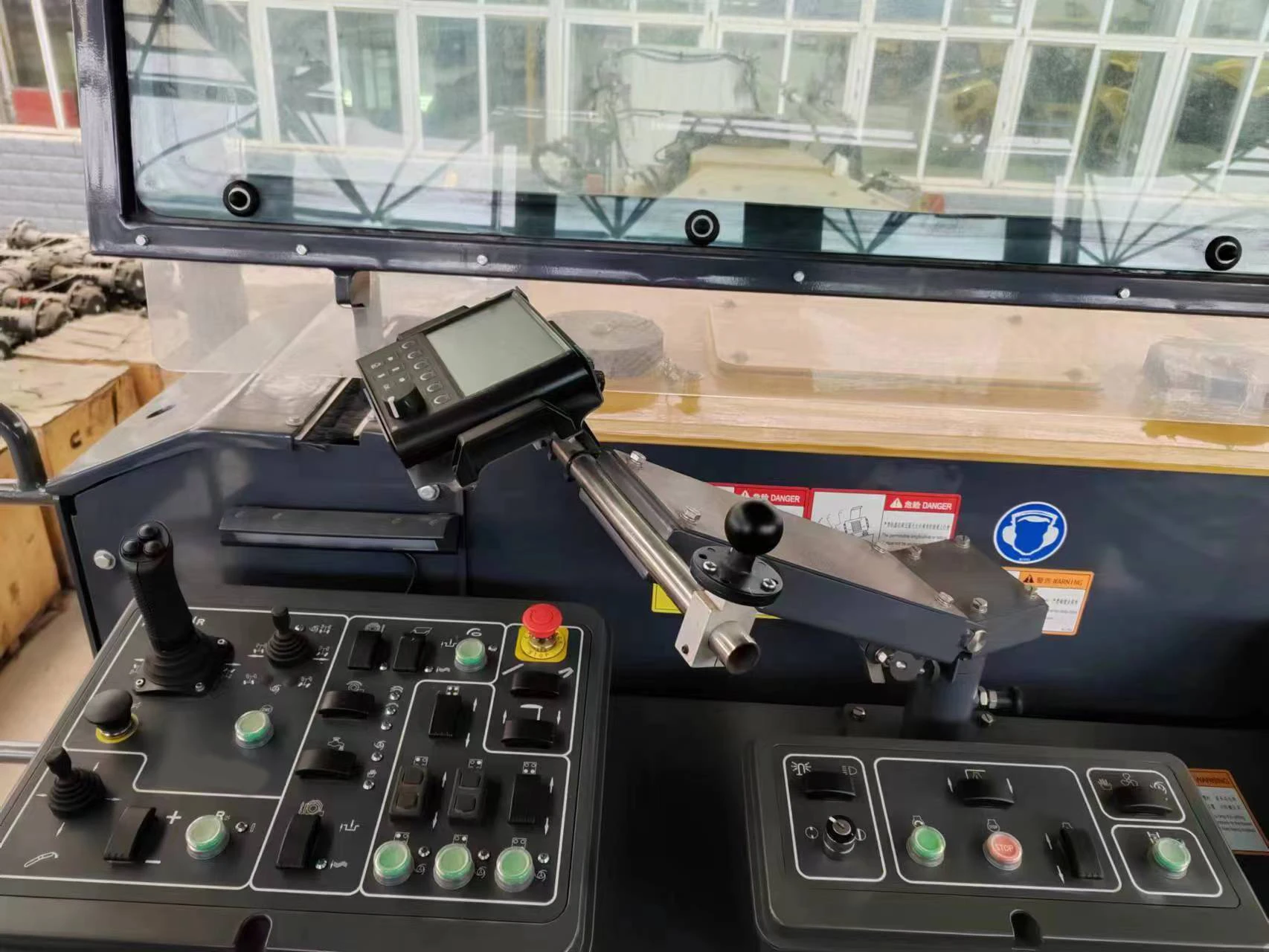

Intelligent and comfortable control

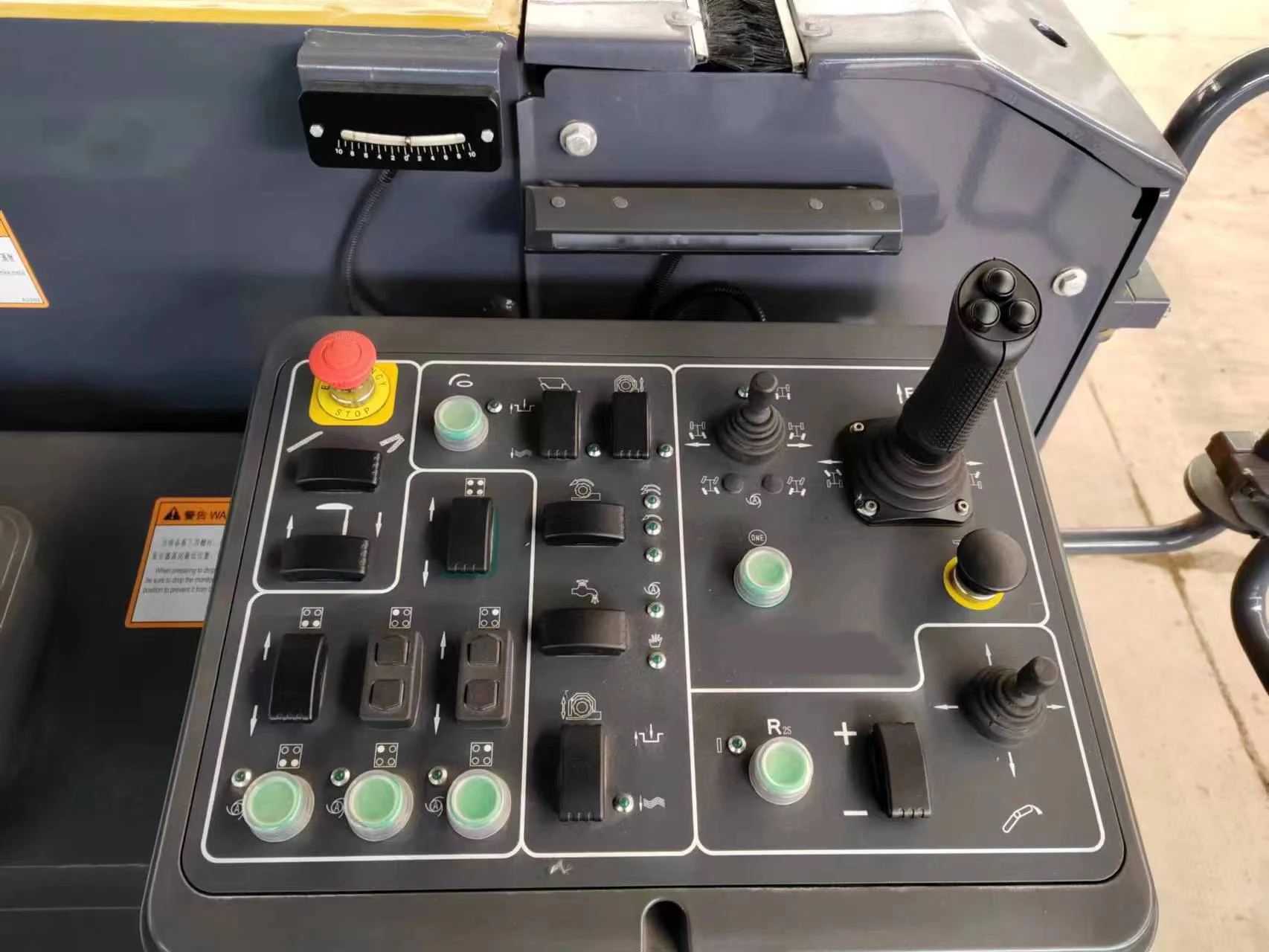

In addition to the conventional forward and backward enable buttons, the electronic control handle adds a cruise control memory button (long press the button for more than 3S in the driving mode of the milling operation, and store the current walking speed. Click this button in the same milling operation driving mode to retrieve the current stored travel speed) to facilitate memory construction; At the same time, the electronic control handle is associated with sprinkling, feeding belt start and stop function;
Product Paramenters
Item | Unit | XM2005K | ||
Maximum milling width | mm | 2000 | ||
Maximum milling depth | mm | 330 | ||
Milling wheel | Tool spacing | mm | 18 | |
Number of tools | 146 | |||
Milling wheel diameter (with tool) | mm | 1020 | ||
Milling wheel maximum inclination | ° | 5 | ||
Diesel engines | Cooling method | Water cooling | ||
Model | QSZ13 | |||
Number of cylinders | 6 | |||
Rated power | kw | 410 | ||
Engine speed | rpm | 1900 | ||
Fuel consumption: full load | l/h | 96 | ||
Speed/grade ability | Working speed | m/min | 0-90 | |
Walking speed | km/h | 0-5.4 | ||
Theoretical Gradeability (Working Blocks) | % | 60 | ||
Ground clearance | 330 | |||
Weight / load | Shipping weight | kg | 28500 | |
Working weight | kg | 30500 | ||
Track device | Front track | mm | 1720×300×620 | |
Rear crawler | mm | 1720×300×620 | ||
Box volume | Fuel tank | L | 1200 | |
Hydraulic tank | L | 150 | ||
Water tank | L | 3300 | ||
Electrical system | V | 24 | ||
Conveyor belt device | Aggregate conveyor belt width | mm | 850 | |
Discharging conveyor width | mm | 850 | ||
Conveyor belt conveying capacity | ≤m3/h | 375 | ||
Shipping dimensions | Machinery (length×width×height) | mm | 12597×2500×3000 | |
Belt conveyor (length × width × height) | mm | 8060×1150×1500 | ||

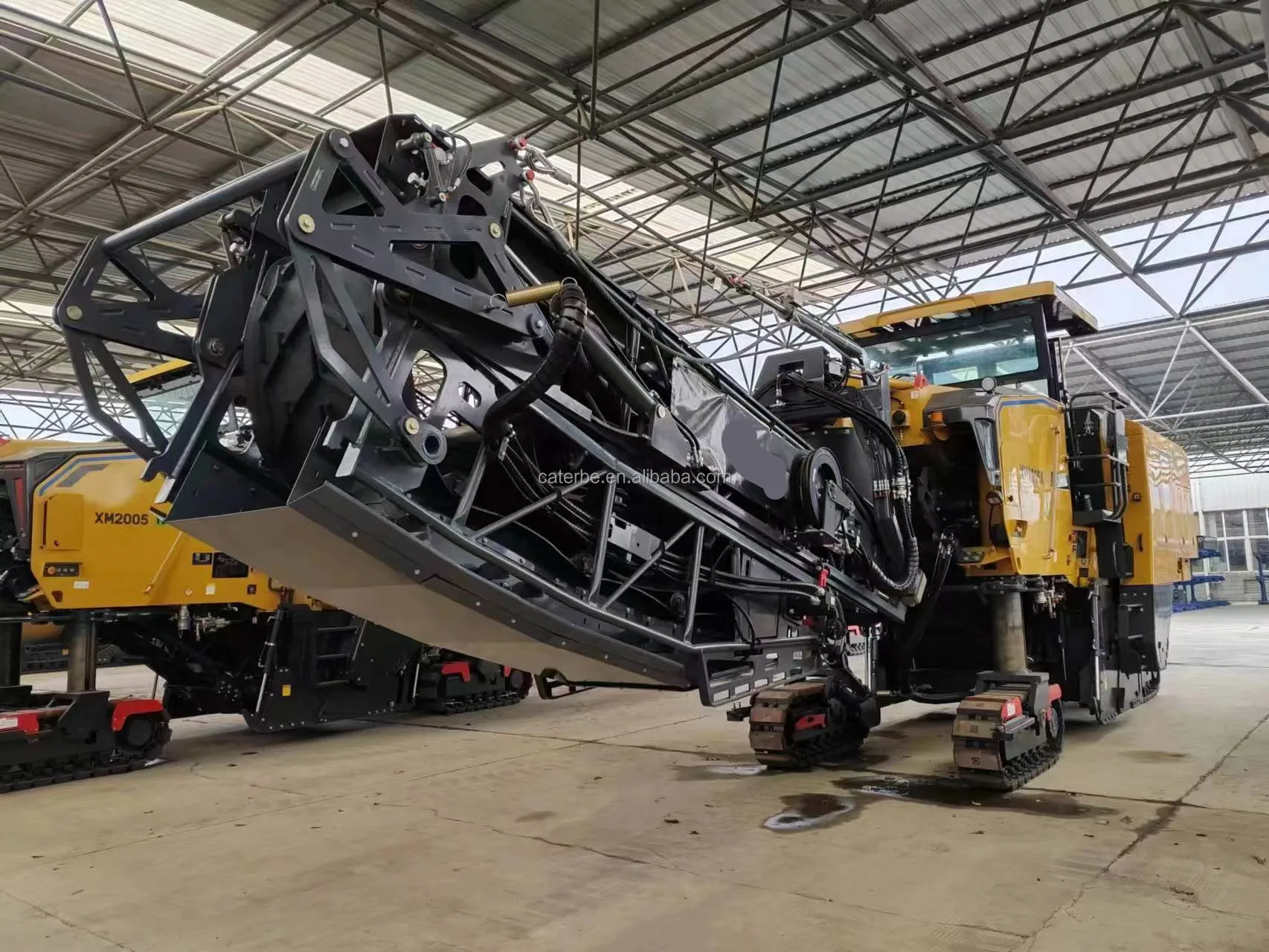

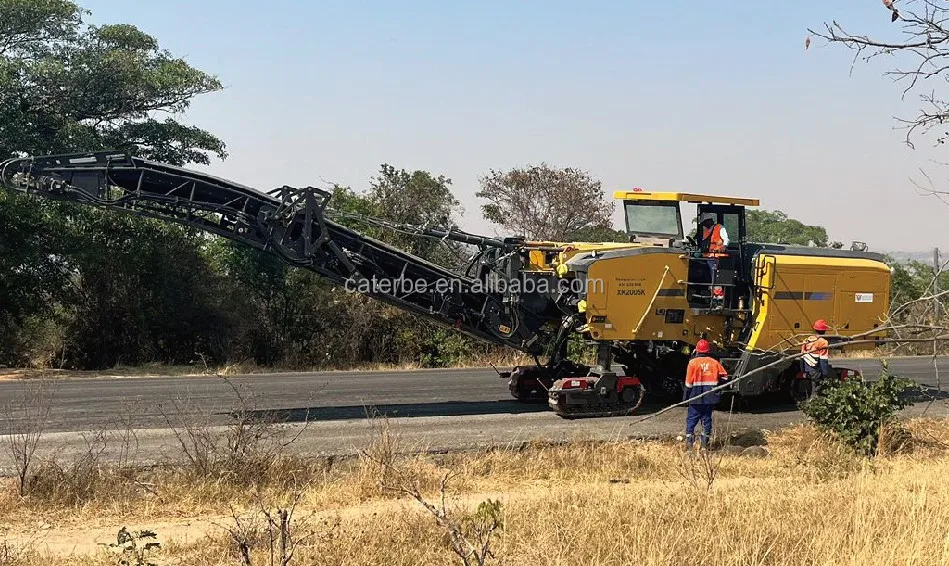

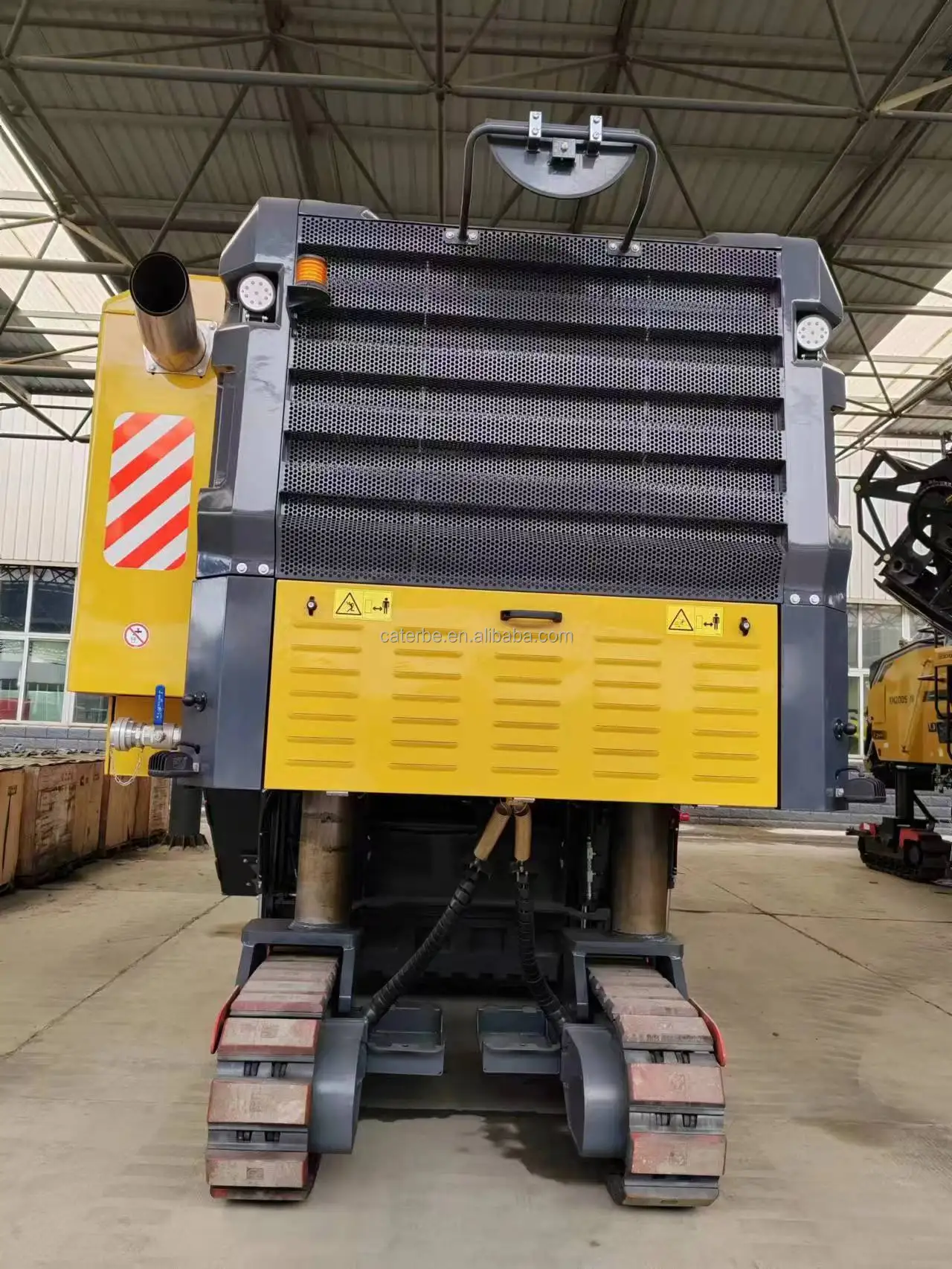

Detailed Images
