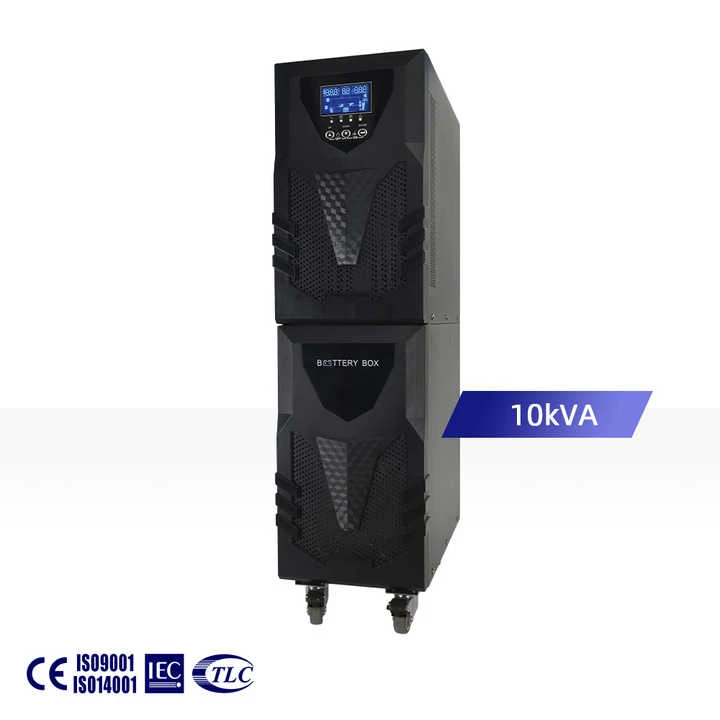

Factory Supply High Backup UPS Uninterrupted Power Supply Long Time Backup Built in Battery 10KVA 10KW UPS
- Category: >>>
- Supplier: Guangdong Chuangfeng New Energy Technology Co. Ltd.Guangdong Ltd.
Share on (1601367732704):
Product Overview
Description
Specification
Models | CQ1K (S) | CQ2K (S) | CQ3K (S) | CQ6K (S) | CQ10K (S) | |||||||
Phase | Single-phase | |||||||||||

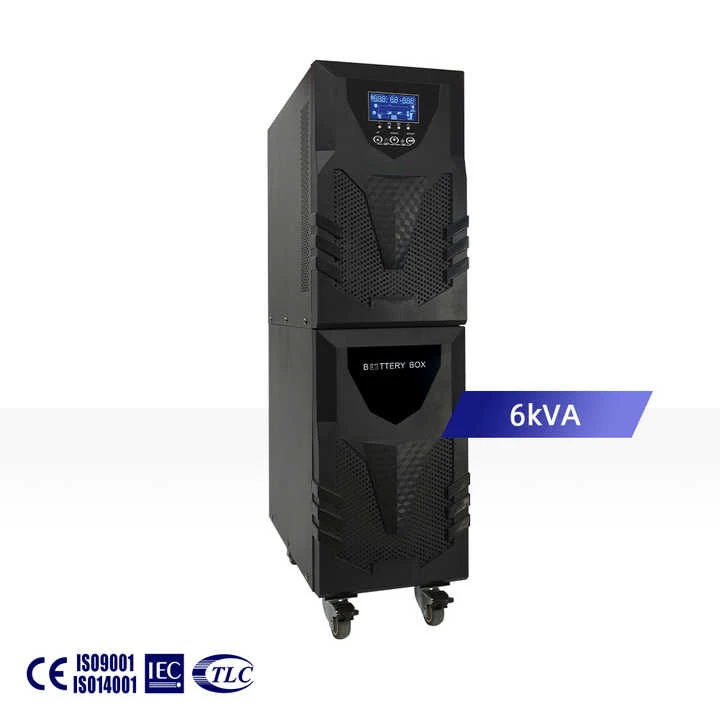

Capacity | 1KVA / 1KW | 2KVA / 2KW | 3KVA /3KW | 6KVA / 6KW | 10KVA / 10KW | |||||||
Input | ||||||||||||
Voltage range | 110 - 300VAC | |||||||||||
Frequency range | 50HZ/60HZ | |||||||||||

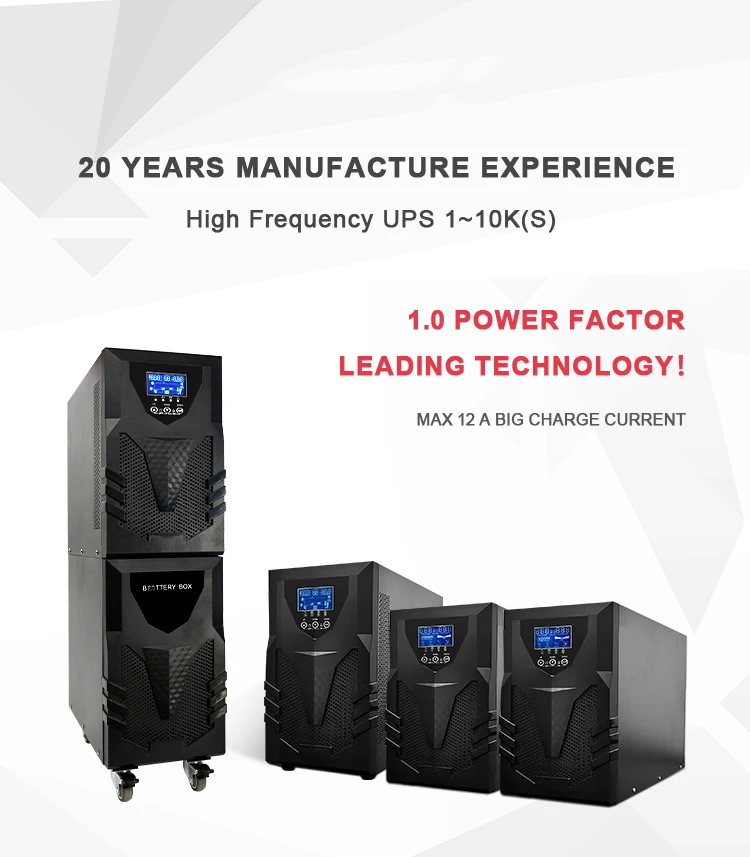

Power factor | 1.0 | |||||||||||
Output | ||||||||||||

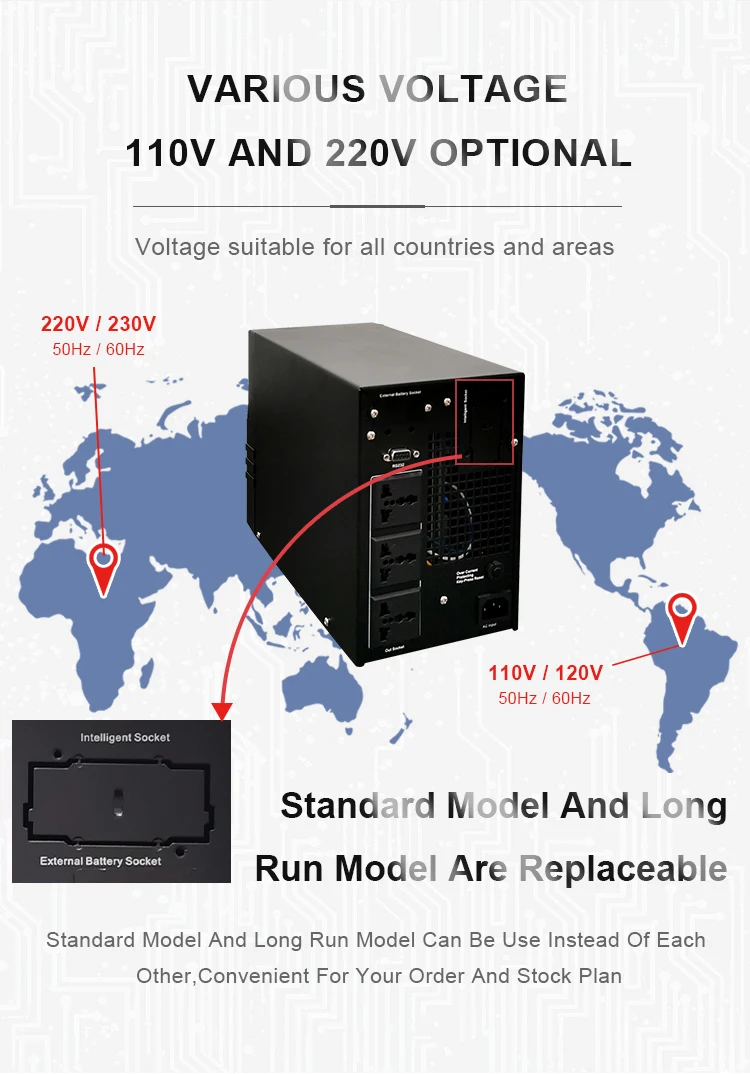

Output voltage | 220VAC±1% (208, 220, 230, 240 adjustable on LCD screen), 110VAC±1% Optional | |||||||||||
Frequency range (battery mode) | 50 Hz （60HZ selectable）± 0.25 Hz | |||||||||||
Transfer time | 0ms | |||||||||||
Wave form | Pure sine wave | |||||||||||
Battery | ||||||||||||
Standard | Battery model | 12V / 7AH（Standar) 12V /9AH（Optional) | ||||||||||
Quantity/DC Voltage | 2PCS/24VDC | 4PCS/48VDC | 6PCS/72VDC | 12PCS/144VDC | 16PCS/192VDC | |||||||
Max. charging current | 1.0A (Maximum) | 1A, 2A, 3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A adjustable | ||||||||||
Long-run | Battery model | Depends on the users | ||||||||||
DC Voltage | 36VDC | 72VDC | 96VDC | 192VDC | 192VDC | |||||||

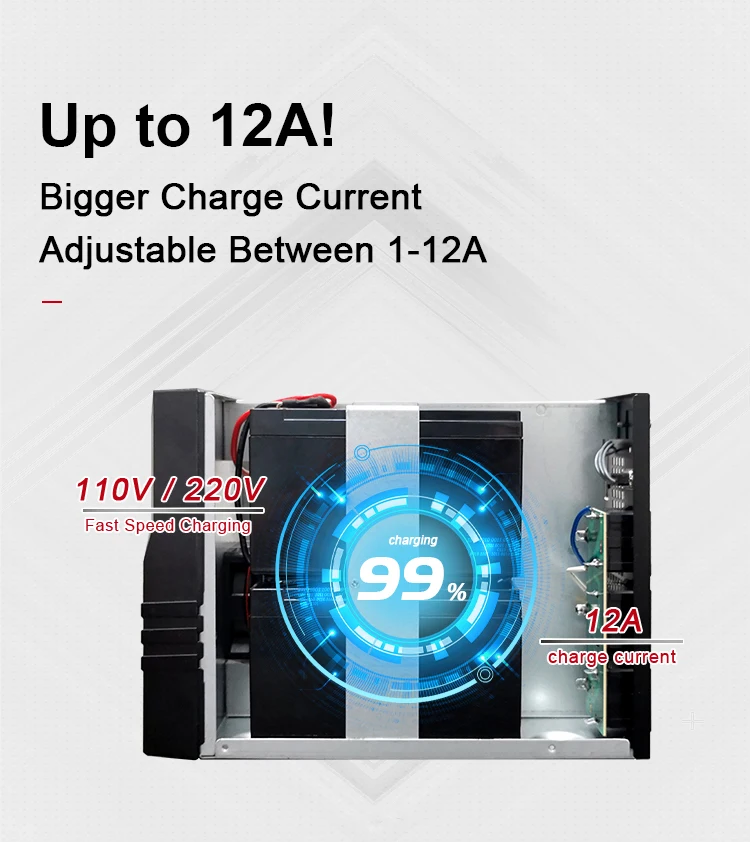

Max. charging current | 1A, 2A ,3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A adjustable | |||||||||||
LCD or LED display | Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication | |||||||||||
Control management | Smart RS-232、SNMP optional | |||||||||||
