900mm Horizontal Directional Drilling XZ400 horizontal directional drilling equipment with Automatic double anchor
- Category: >>>
- Supplier: Richmchn Machinery Engineering (Shanghai) Co. Ltd.Richmchn Ltd.
Share on (1601367820596):
Product Overview
Description
PRODUCT DESCRIPTION
XZ400 HDD Horizontal Drilling Directional Machine
The XZ400 horizontal directional drilling rig with compact structure and aesthetic design adopts various advanced control
technologies and the proprietary technologies of the company.
lts main performance parameters and control technologies have reached the international advanced level. The hydraulic system, electrical system and transmission system and other main components are of top-grade domestic and international brand products with high reliability.
* High power: it adopts 179kW diesel engine with the feature to increase turbine torque, ensuring that drilling rig can lay the pipes well in various complicated geological conditions.
* Dual speed unit head: it operates at low speed when drilling and back-dragging to ensure that it works smoothly; it can slide more quickly when the rod breaker moves back and forth under unloaded condition to reduce the auxiliary time and improve work efficiency.
* Floating-type vise: it can effectively extend the service life of the drill rod to apply the proprietary floating-type vise of
the factory.
* Rotatable control console: it can extend the visual field and reduce the fatigue of the operator to make the drilling rig
operation simpler and more comfortable.
* Easy operation: The operation can be available by rotating and pushing and pulling the power head respectively, and it is easy for operator to operate the whole drilling rig after a short-term training.
* Convenient maintenance: it is easy to carry out the engine maintenance and replacement of filter element for the hydraulic system because of the rational design of the engine hood.
technologies and the proprietary technologies of the company.
lts main performance parameters and control technologies have reached the international advanced level. The hydraulic system, electrical system and transmission system and other main components are of top-grade domestic and international brand products with high reliability.
* High power: it adopts 179kW diesel engine with the feature to increase turbine torque, ensuring that drilling rig can lay the pipes well in various complicated geological conditions.
* Dual speed unit head: it operates at low speed when drilling and back-dragging to ensure that it works smoothly; it can slide more quickly when the rod breaker moves back and forth under unloaded condition to reduce the auxiliary time and improve work efficiency.
* Floating-type vise: it can effectively extend the service life of the drill rod to apply the proprietary floating-type vise of
the factory.
* Rotatable control console: it can extend the visual field and reduce the fatigue of the operator to make the drilling rig
operation simpler and more comfortable.
* Easy operation: The operation can be available by rotating and pushing and pulling the power head respectively, and it is easy for operator to operate the whole drilling rig after a short-term training.
* Convenient maintenance: it is easy to carry out the engine maintenance and replacement of filter element for the hydraulic system because of the rational design of the engine hood.

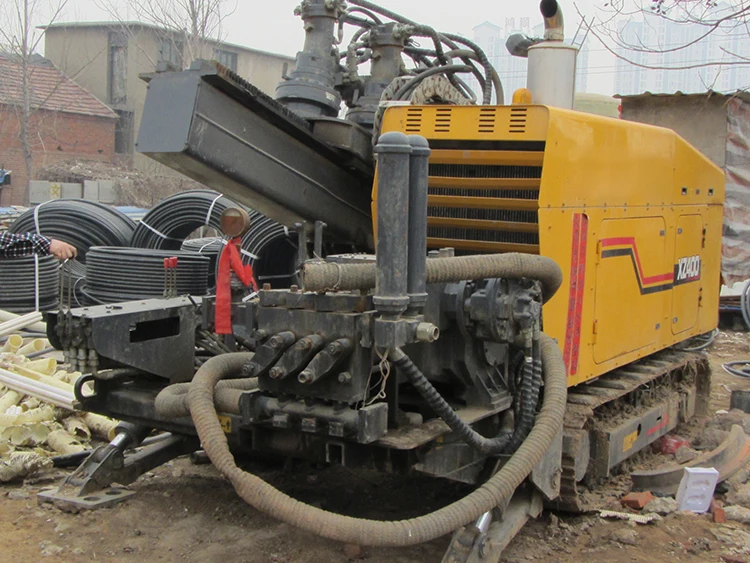

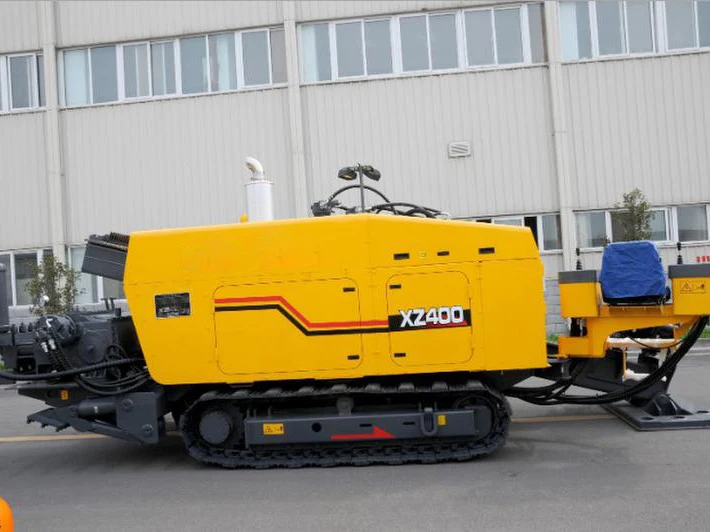

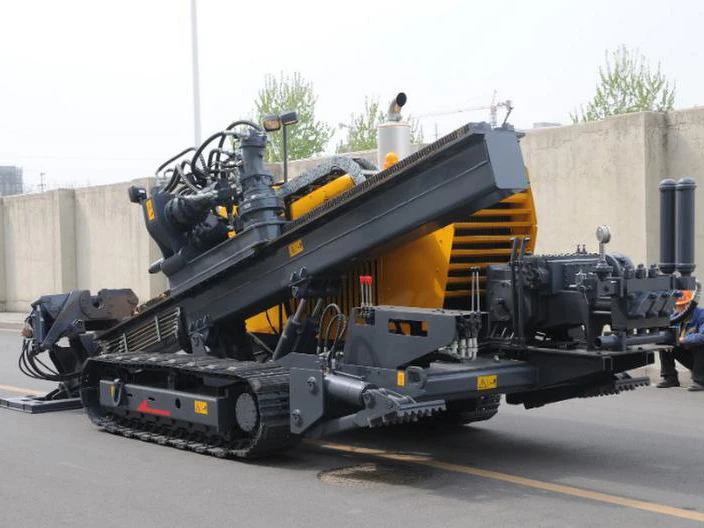

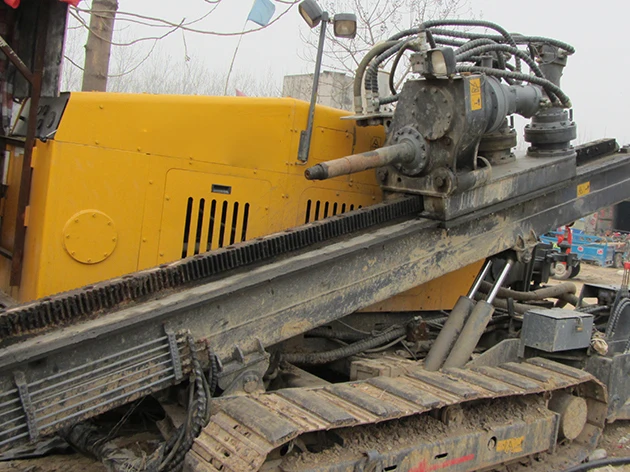

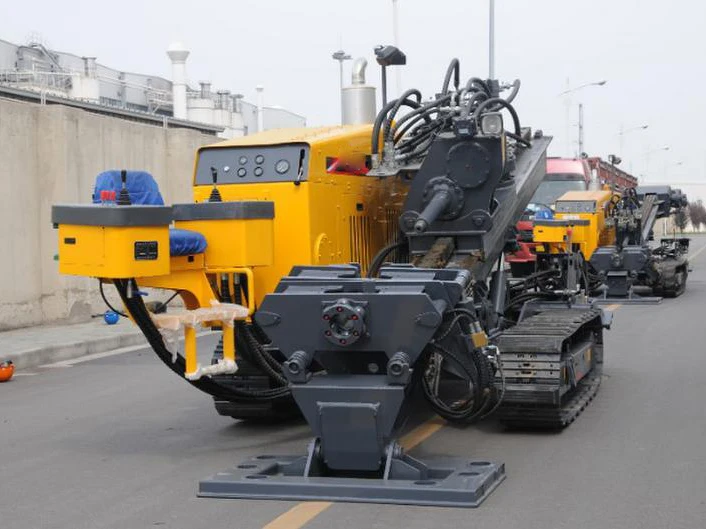

Pictures
Product Paramenters
Model | XZ400 |
Engine | 6CTA8.3-C240 |
Rated power | 179kW |
Push-pull | Rack and pinion |
Max.pullback/thrusting | 400/400kN |
Spindle torque(max) | 14000N.m |
Spindle speed | 0~100r/min |
Travelling speed of power head | 20m/min |
Backreaming diameter | Φ900mm |
Pipe length(single) | 3m |
Pipe diameter | Φ83mm |
Entry angle | 10-23° |
Mud flow ratw(max) | 450L/min |
Mud pressure(max) | 100bar |
Overall weight | 12000kg |
Dimension(LxWxH) | 7100x2250x2450mm |
