LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00
Nucleon Insulation enclosed overhead crane 50 ton casting double girder overhead cranes
- Category: >>>
- Supplier: Nucleon (xinxiang) Crane Co. Ltd.Nucleon Ltd.
Share on (1601367966918):
Product Overview
Description
Product Overview

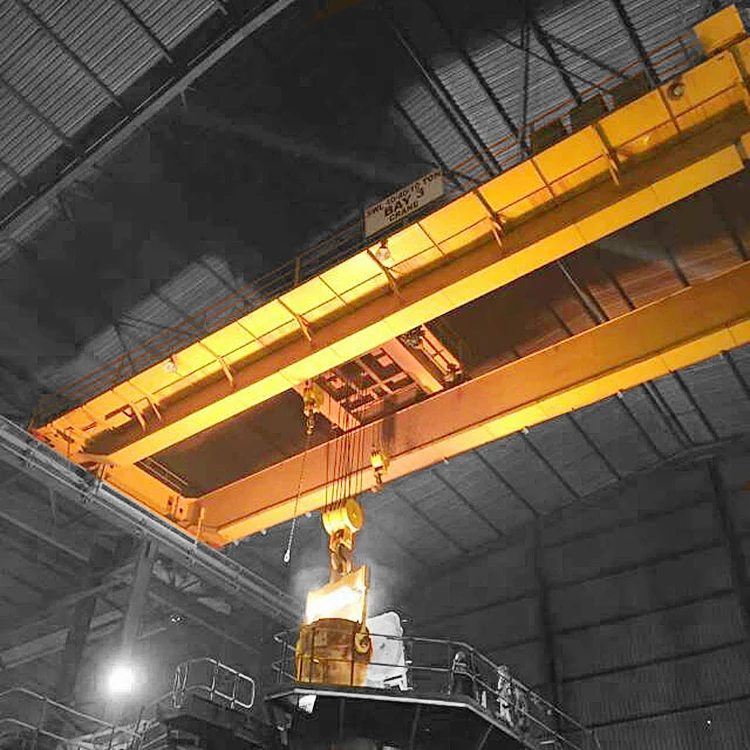

Double Beam Casting Foundry Overhead Crane

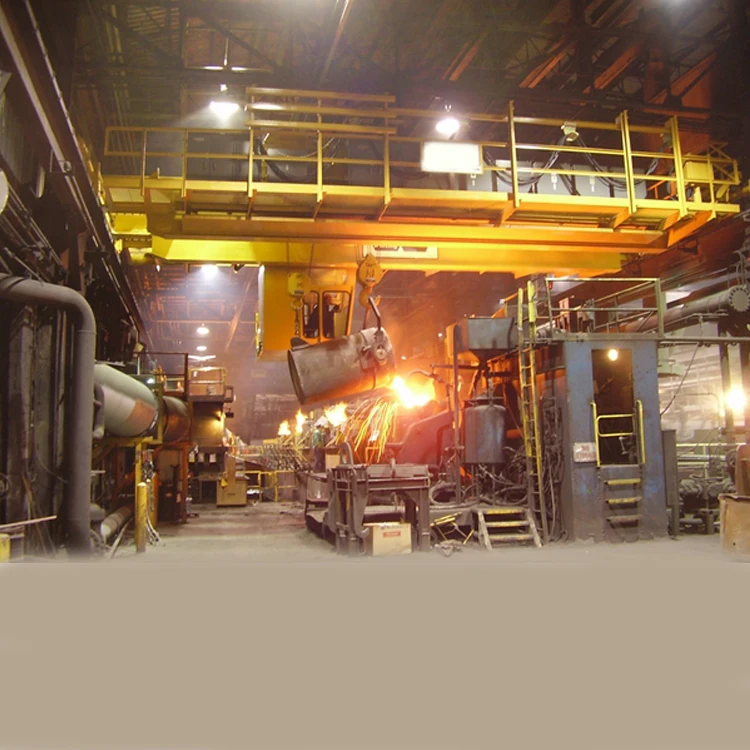

QDY type Top quality heavy duty double beam E.O.T ladle crane for steel factory is one of the main equipment in the continuous casting technology of steel manufacturing. It is mainly used for smelting metal transporter, casting and hot metal charging.

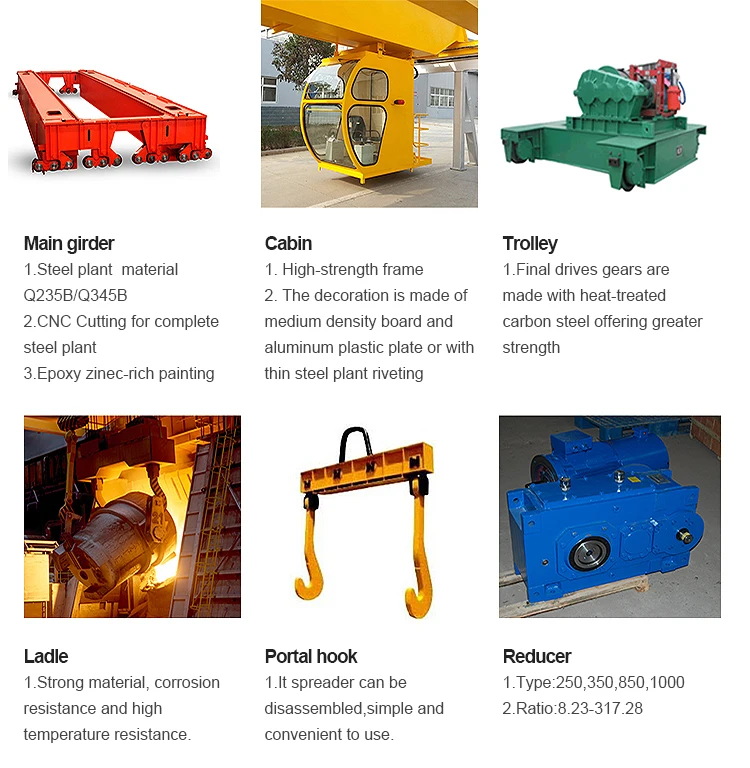

It is mainly composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.
It is mainly composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.
PRODUCT SPECIFICATIONS
Lifting Capacity | 5~50/10 ton |
Span | 10.5~31.5m |
Lifting Height | 16~22m |
Duty | A7 |
Hoisting Speed | 12.5~13 m/min |
Crab Traveling Speed | 39.5~44.9 m/min |
Trolley Traveling Speed | 118.6 m/min, 119.3 m/min, 114.9 m/min |
Power Supply | 3-phase A.C. 50Hz 380V |
