High quality led linear light Interior Lightning Suspended Led Pendant for Office High Luminous Efficiency 40W 4ft
- Category: >>>
- Supplier: Shenzhen Litehome Optoelectronic Technology Co. Ltd.Shenzhen Ltd.
Share on (1601368084559):
Product Overview
Description
Products Description

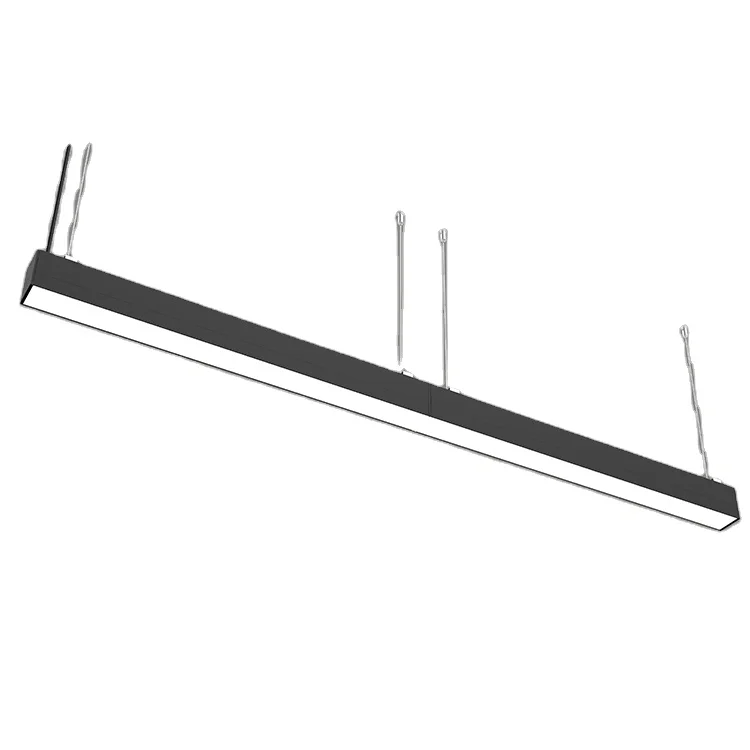

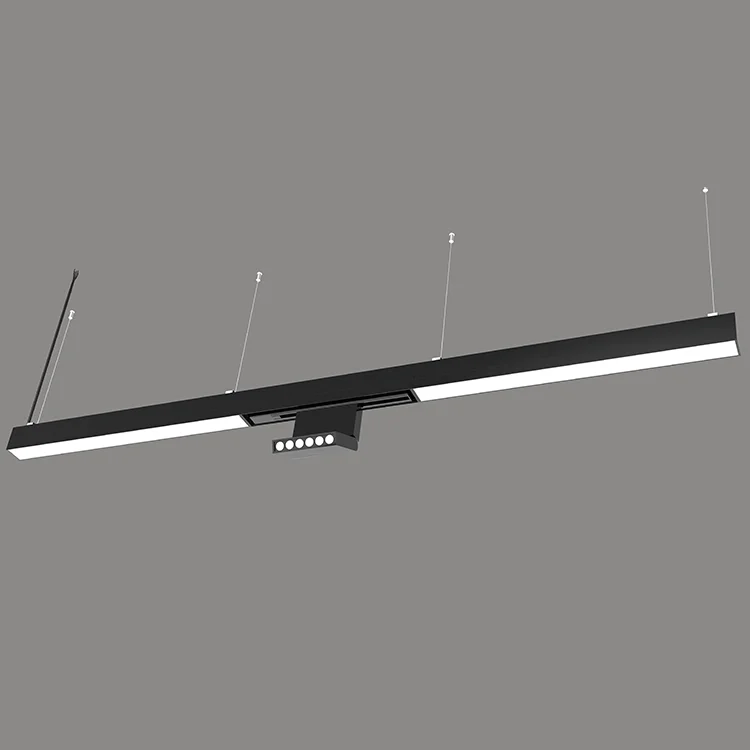

120° LED Linear Light

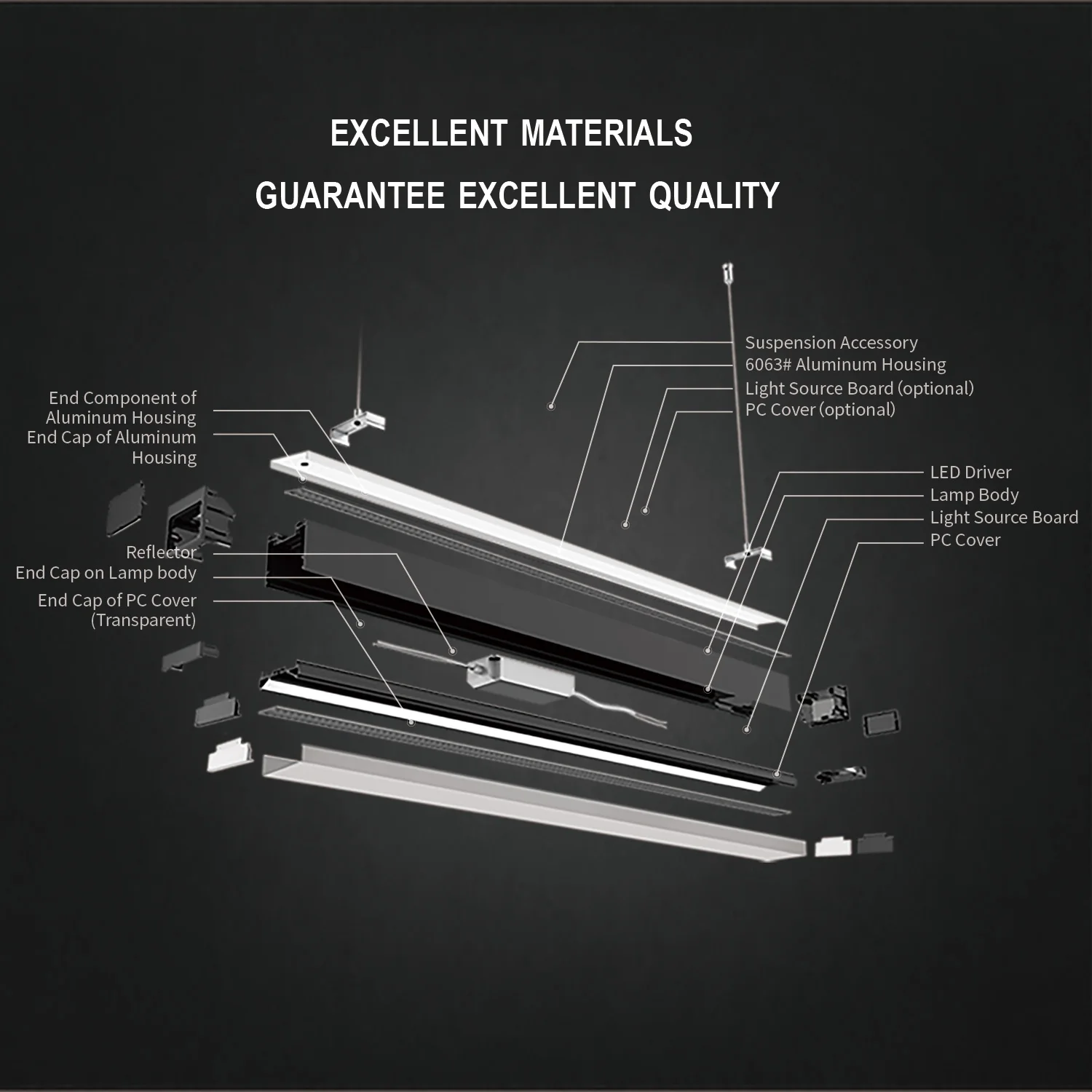

The body of this series of linear lights can be opened. It is very convenient when you install lamps in series. Another advantage is that the shell can be reused. After 8 years, the Light can be replaced without replacing the shell, only the power supply and light source need to be replaced. More environmentally friendly.
Our products will not be easily blown by the wind when they are hoisted.
There are DALI dimming and 0/1-10V dimming to choose from.

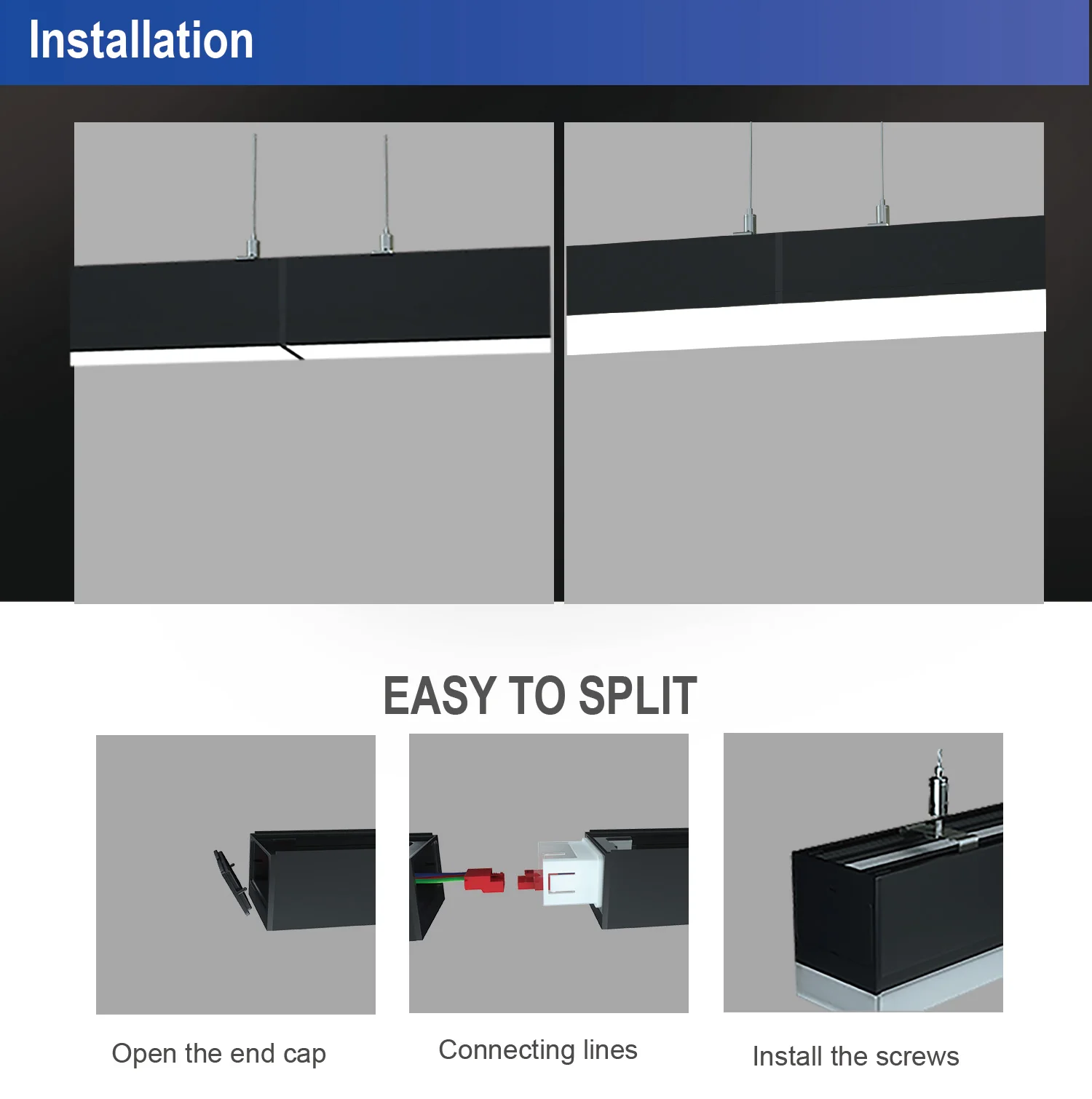

Installation

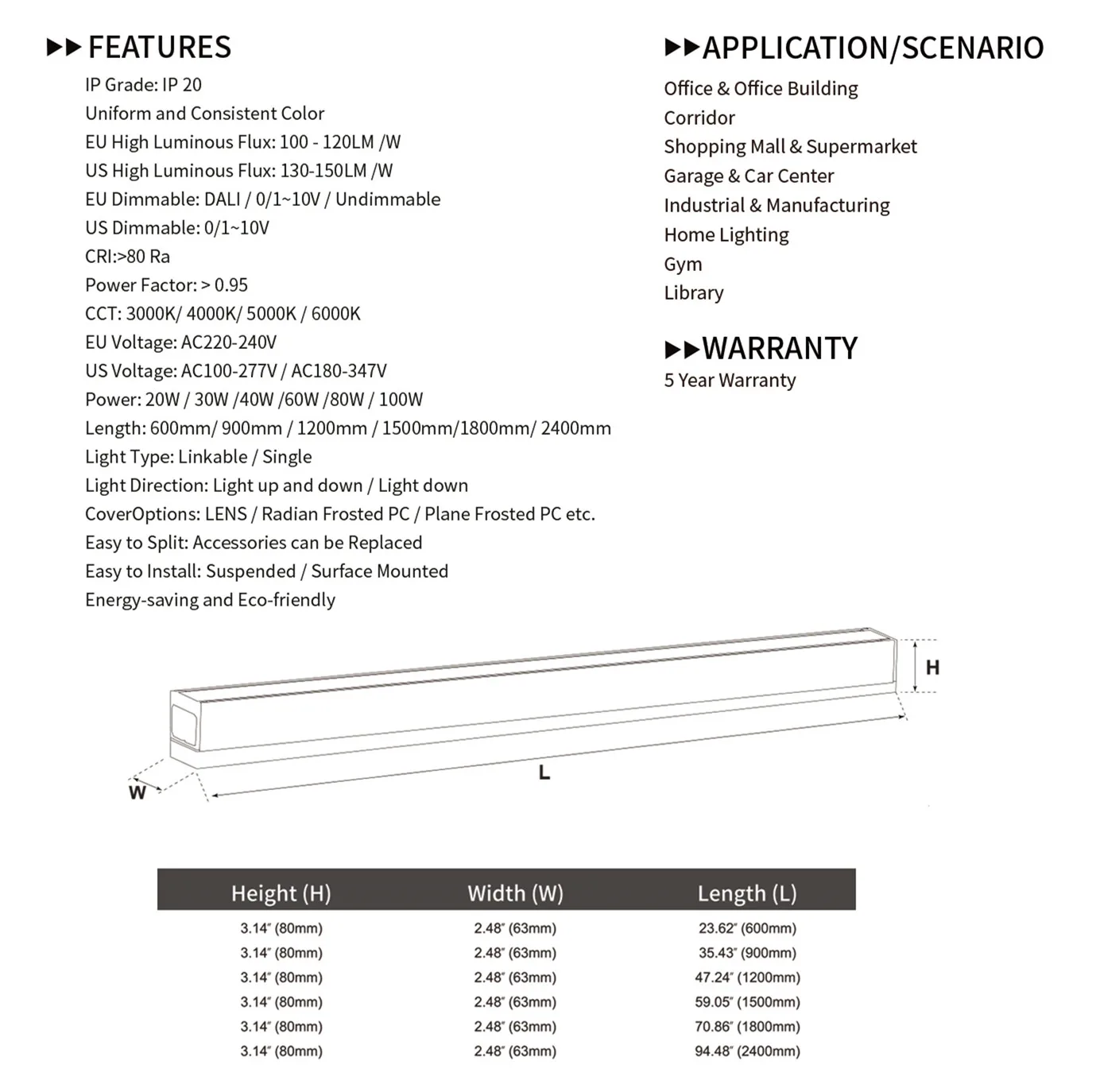

Dimensions
Code No. | Beam angle | Size | Dimming Type | Power | Lumen |
LH-LIAP2-020 | 120° | 600*63*80mm | No/DALI/0-10V | 20W | 100-120lm/w |
LH-LIAP3-030 | 120° | 900*63*80mm | No/DALI/0-10V | 30W | 100-120lm/w |
LH-LIAP4-040 | 120° | 1200*63*80mm | No/DALI/0-10V | 40W | 100-120lm/w |
LH-LIAP5-060 | 120° | 1500*63*80mm | No/DALI/0-10V | 60W | 100-120lm/w |
LH-LIAP6-080 | 120° | 1800*63*80mm | No/DALI/0-10V | 80W | 100-120lm/w |
LH-LIAP8-100 | 120° | 2400*63*80mm | No/DALI/0-10V | 100W | 100-120lm/w |
Parameter
Manufacturer | LiteHome |
Product Name | 120° LED linear light |
Input Voltage | AC 220-240V/AC 100-277V/AC 180-347V |
Output Voltage | DC 36-42V |
Power | 40W |
Product Length | 4ft |
Beam Angle | 120° |
Dimmable | NO |
EU Luminous Efficacy | 100-120lm / w |
Lumen | >4000lm |
CRI | ≥ 80Ra/90Ra |
Power Factor | > 0.95 |
Color | Silver / White / Black |
Color Temperature | 3000K / 4000K / 5000K / 6000K |
Material | 6063 # Aluminum + PC |
Light Source | SMD 2835 |
Operating Temperature | -20℃-+45℃ |
Warranty | 5 years, L80B10(Ta=25℃) |

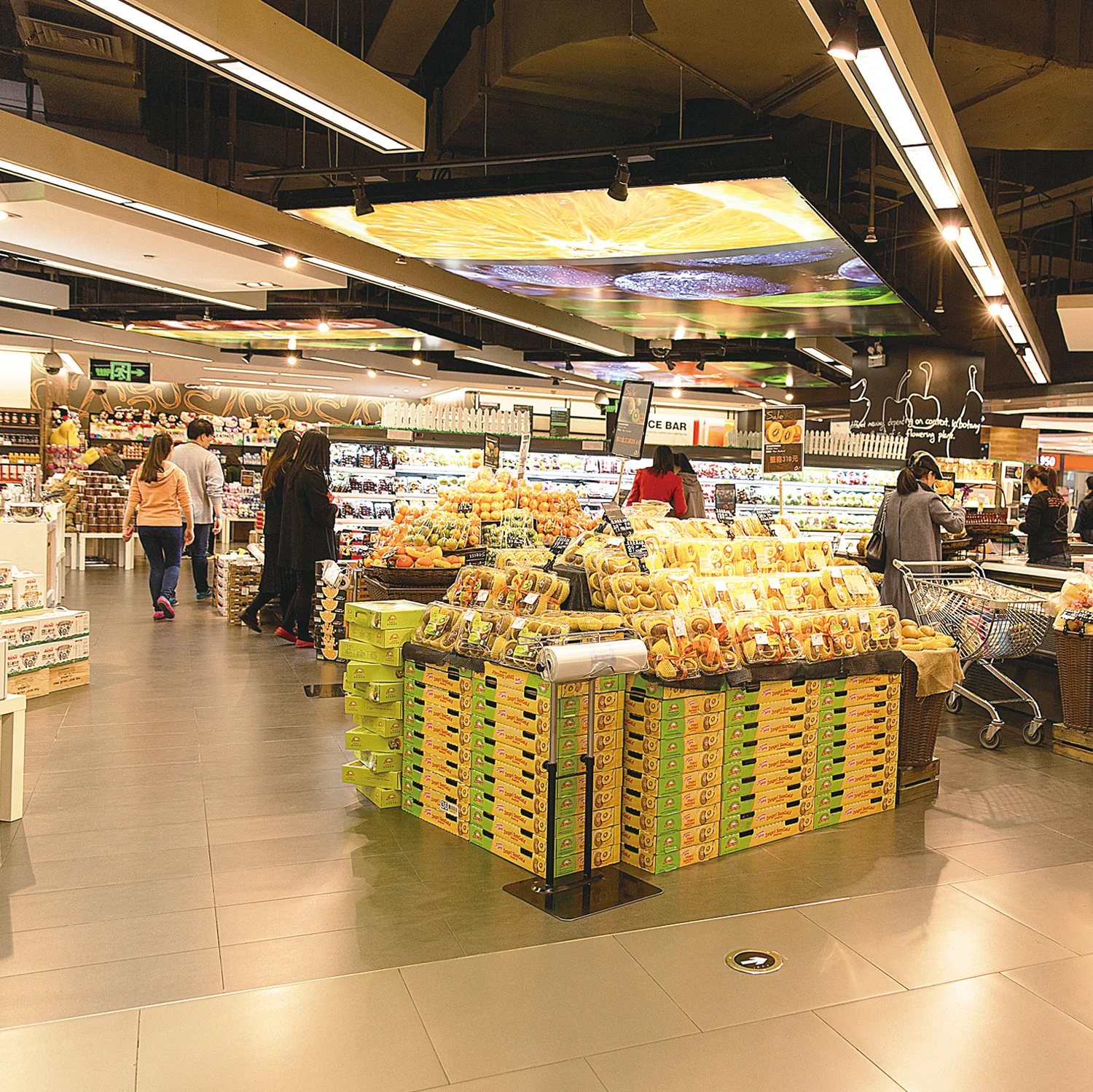

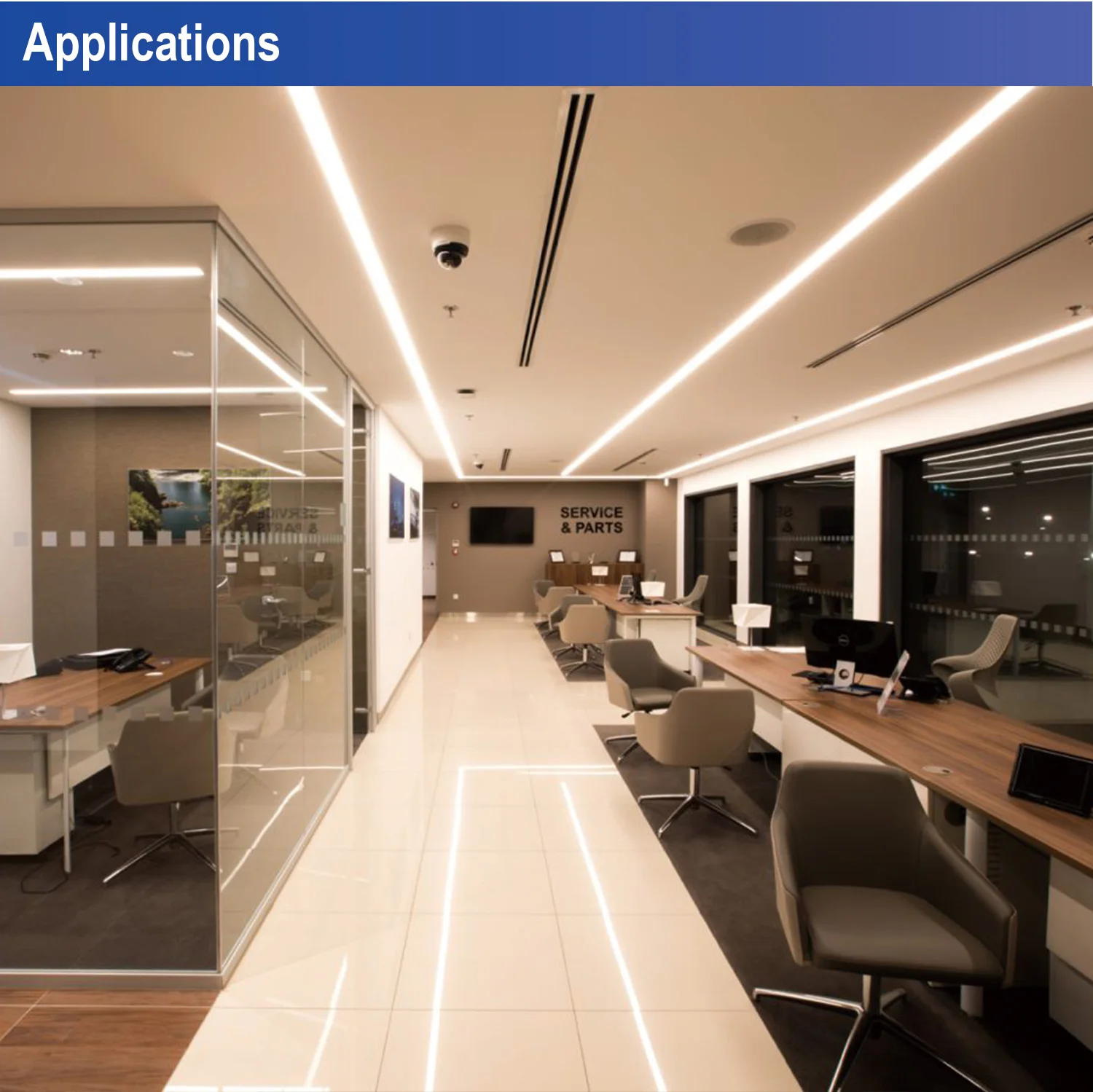

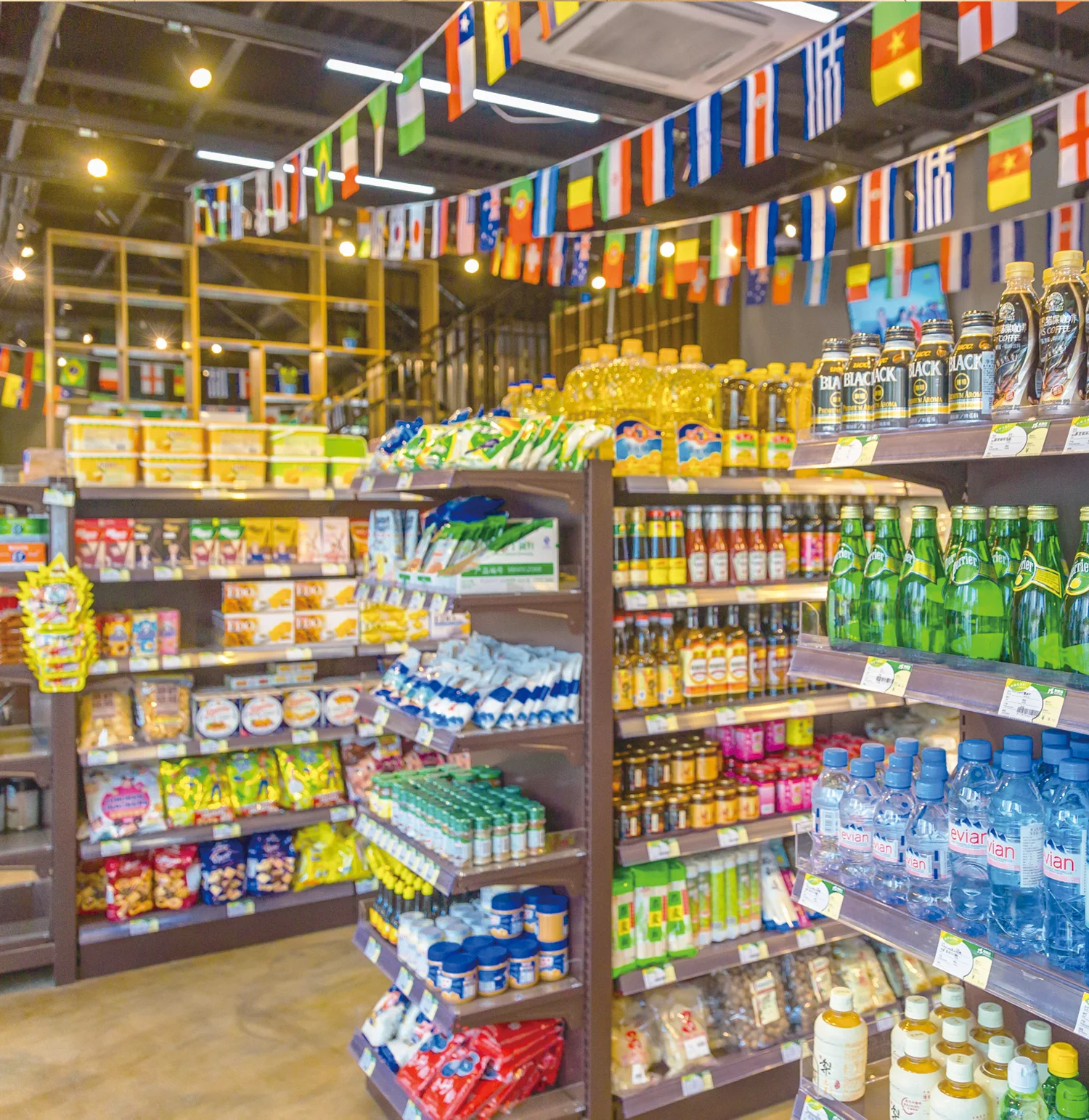

Application Scenarios
