Factory Price 20ft 40ft Granny Flat 2 3 4 Bedroom Prefabricated House Prefab Modular Homes Outdoor Storage Shed Large House
- Category: >>>
- Supplier: Shandong Zhonghao Metal Materials Co. Ltd.Shandong Ltd.
Share on (1601368202549):
Product Overview
Description
Products Description

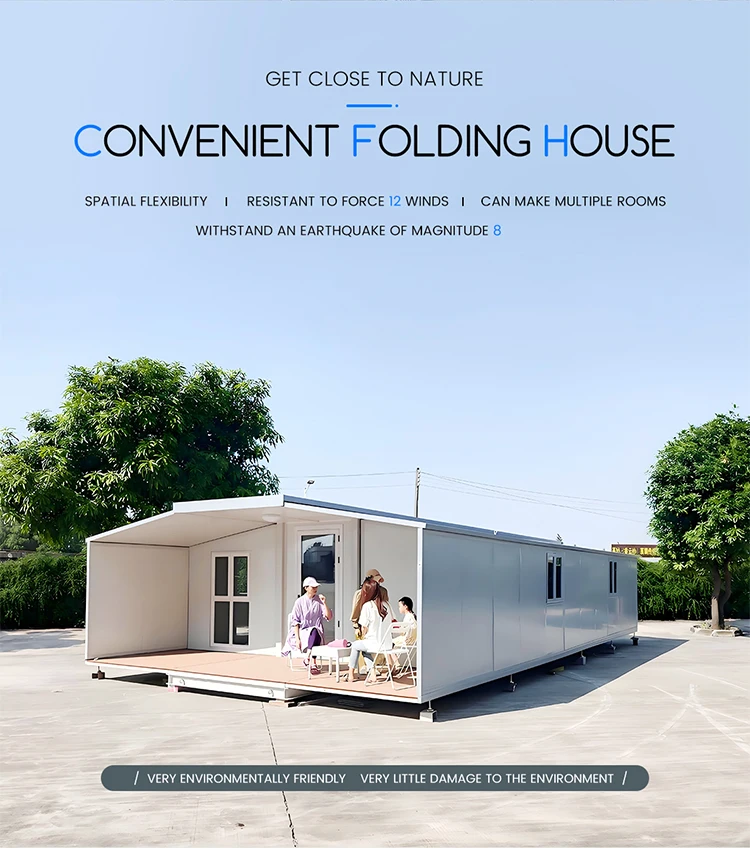

What is Expansion Container house?
The EXPANSION CONTAINER HOUSE also calls double wing expansion house ,itadopts a light steel hot-dip galvanized frame as the
supporting structure, ensuring the stability and safety of the overall structure.
The exterior is covered with environmentally friendly composite material panels, which are both lightweight and have good
insulation, heat insulation, and sound insulation properties.
Double wing expansion houses can achieve space expansion through simple assembly and disassembly processes.
As a detachable and movable modular house, the double wing expansion box house is composed of high-strength materials and advanced
insulation technology, which is both safe and durable.
Its unique double wing expansion design allows the house to meet basic living needs while also expanding its functions according
to personal preferences, such as adding leisure areas, work areas, sunrooms, or storage areas.
Another significant feature of the twin wing expansion box house is the ability to achieve energy self-sufficiency.
Through solar panels and wind power generation systems, the twin wing expansion box house can meet daily energy needs, allowing
you to enjoy a comfortable life while also contributing to environmental protection.
The EXPANSION CONTAINER HOUSE also calls double wing expansion house ,itadopts a light steel hot-dip galvanized frame as the
supporting structure, ensuring the stability and safety of the overall structure.
The exterior is covered with environmentally friendly composite material panels, which are both lightweight and have good
insulation, heat insulation, and sound insulation properties.
Double wing expansion houses can achieve space expansion through simple assembly and disassembly processes.
As a detachable and movable modular house, the double wing expansion box house is composed of high-strength materials and advanced
insulation technology, which is both safe and durable.
Its unique double wing expansion design allows the house to meet basic living needs while also expanding its functions according
to personal preferences, such as adding leisure areas, work areas, sunrooms, or storage areas.
Another significant feature of the twin wing expansion box house is the ability to achieve energy self-sufficiency.
Through solar panels and wind power generation systems, the twin wing expansion box house can meet daily energy needs, allowing
you to enjoy a comfortable life while also contributing to environmental protection.
Product Paramenters
BASIC FEATURE(20FT) | EXTERNAL DIMENSION(MM) | 5900*6320*2480 | |
FOLDING STATE (MM) | 5900*2200*2480 | ||
TOTAL MASS(KG) | 2900 | ||
BASIC FETAURE(40FT) | EXTERNAL DIMENSION(MM) | 11800*6320*2480 | |
FOLDING STATE (MM) | 11800*2200*2480 | ||
TOTAL MASS(KG) | 4700 | ||
OTHER SIZE | CUSTOMIZED ACCORDING TO REQUIREMENTS | ||
FRAME STRUCURE | STEEL STRUTURE | Q235 GALVANIZED STEEL FRAME | |
MIDDLE ROOF BEAM | Q235 GALVANIZED STEEL FRAME(2.5-3MM) | ||
MIDDLE BASE BEAM | Q235 GALVANIZED STEEL FRAME(2.5-3MM) | ||
SIDE BEAM | Q235 GALVANIZED STEEL FRAME(1.5-2MM) | ||
SIDE WALL FRAME | Q235 GALVANIZED STEEL FRAME(1.5-2MM) | ||
MIDDLE PILLIAR | Q235 GALVANIZED STEEL FRAME(2.5-3MM) | ||
SUB- FRAME | Q235 GALVANIZED STEEL FRAME(1.5-2MM) | ||
PROTECTIVE COATING FOR INTEGRAL FRAME | ELECTROSTASIC SPRAYING/WHITE PLASTIC POWDER SPRAYING | ||
TOP OF CONTAINER | EXTERNAL ROOF BOARD | FIREPROOF AND FLAME-RETARDANT EPS INSULTED SANDWICH PANEL&ROOF CORRUGATED VENEER | |
INTERNAL CELLING BOARD | 0.25 TYPE-200 CELLING | ||
WALL PANEL | HEAT PRESERVATION OF MIDDLE TOP | 50MM FIREPROOF AND FLAME-RETARDANT INSULATION SANDWICH PANEL/COLOR STEEL PLATE WITH GLASSFILAMENT COTTON | |
SIDE WALL,FRONT WALL PANEL&BACK WALL PANEL | 65MM FIREPROOF AND FLAME-RETARDANT INSULATION SANDWICH PANEL/COLOR STEEL PLATE WITH GLASSFILAMENT COTTON | ||
INTERNAL PARTITION | 55M ENVIRONMENTALLY FRIENDLY INSULATION MATERIALS | ||
FLOOR | MIDDLE FLOOR | 18MM FIREPROOF GLASS MAGNESIUM BOARD/FIREPROOF CEMENT FIBER FLOORING | |
FLOOR ON BOTH SIDES | 18MM BAMBOO FLOORING/THICK BAMBOO PLYWOOD | ||
ELECTRICIAL SYSTEM (CUSTOMIZED) | ELECTRICAL WIRING,INSTALLING IN STRICT ACCORDANCE WITH THE MOISTURE-PROOF SPECIFICATIONS,ALL ELECTRICAL PRODUCTS SHALL COMPLY WITH CERTIFICATION. CONNECT THE CIRCUIT ACCORDING TO THE CIRCUIT ENGINEERING SPECIFICATION,INDOOR:2 LED LIGHTS,2 CEILIING LAMP,3 FIVE- HOLE SINGLE SOCKET,1 SINGLE SWITCH,3 TEN HOLE SOCKET,1 AIR CONDITIONER SOCKET,1 20A-LEAKAGE PROTECTOR.VOLTAGE 220V,50HZ | ||
WE CAN CUSTOMIZE CIRCUITS THAT MEET CERTIFICATION REQUIREMENTS ACCORDING TO DIFFERENT COUNTRIES. | |||
DOOR | BROKEN BRIDGE ALUMINUM ENTRANCE DOOR (WITH PASSWORD LOCK),BEDROOM METAL SWING DOOR | ||
WINDOWS | ALUMINUM ALLOY WINDOWS,DOUBLE-LAYER INSULATED TEMPERED GLASS | ||
Materials
Better Materials

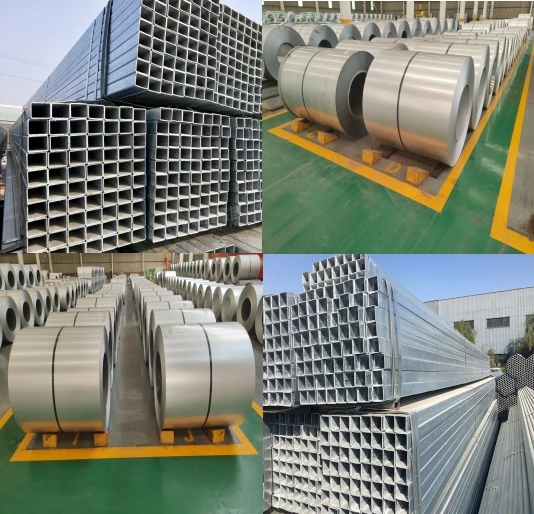

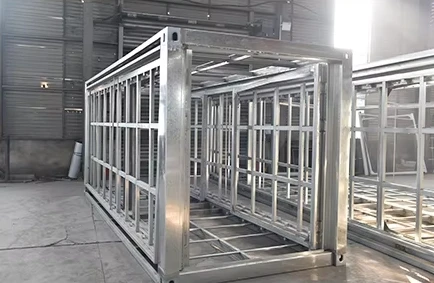

We use Q235 hot-dip galvanized steel pipes, and the hot-dip galvanized anti-corrosion treatment on the surface makes the overall frame more corrosion-resistant and durable.
Professional welding techniques make the overall framework more stable.
Installation Instructions

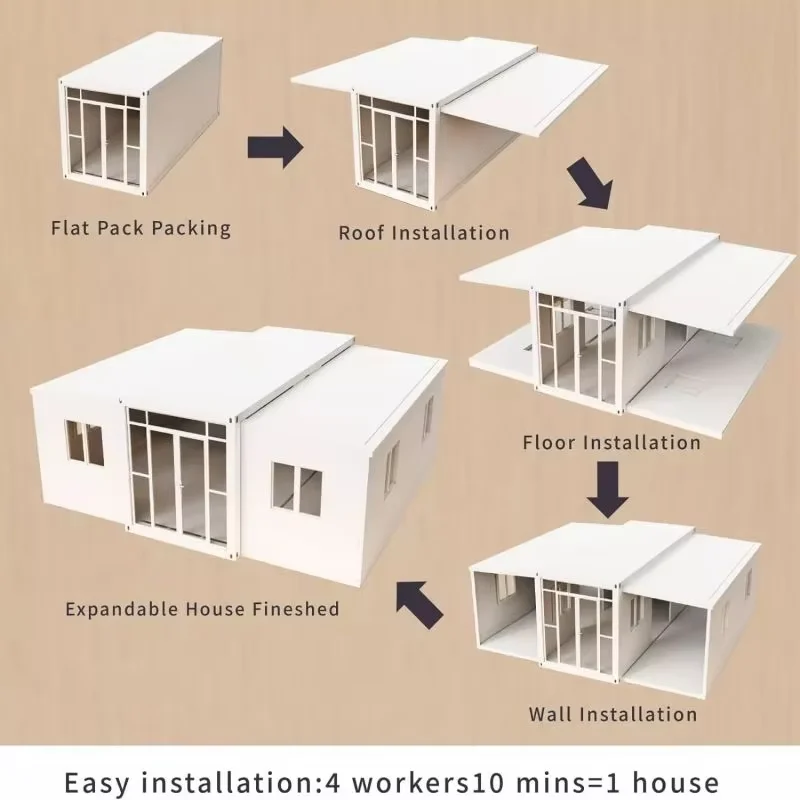

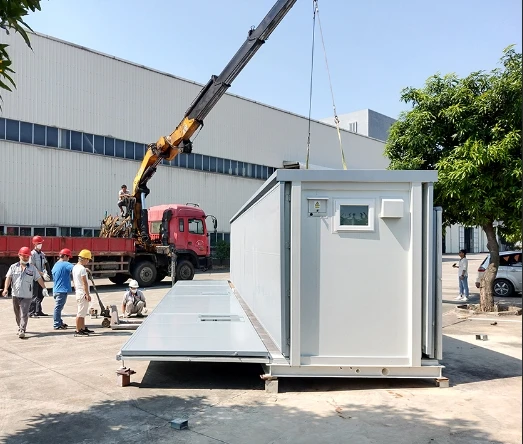

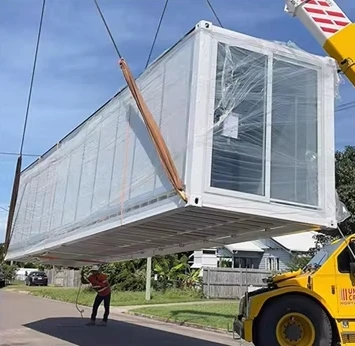

The installing method of a double wing expansion house is very simple.As shown in the picture,it can be unfolded and reinforced to obtain a spacious and bright house.
4 works with 10 mins=1 house
Compared to traditional housing construction,the double wing expansion box/expansion container house is lighter and easier to install.

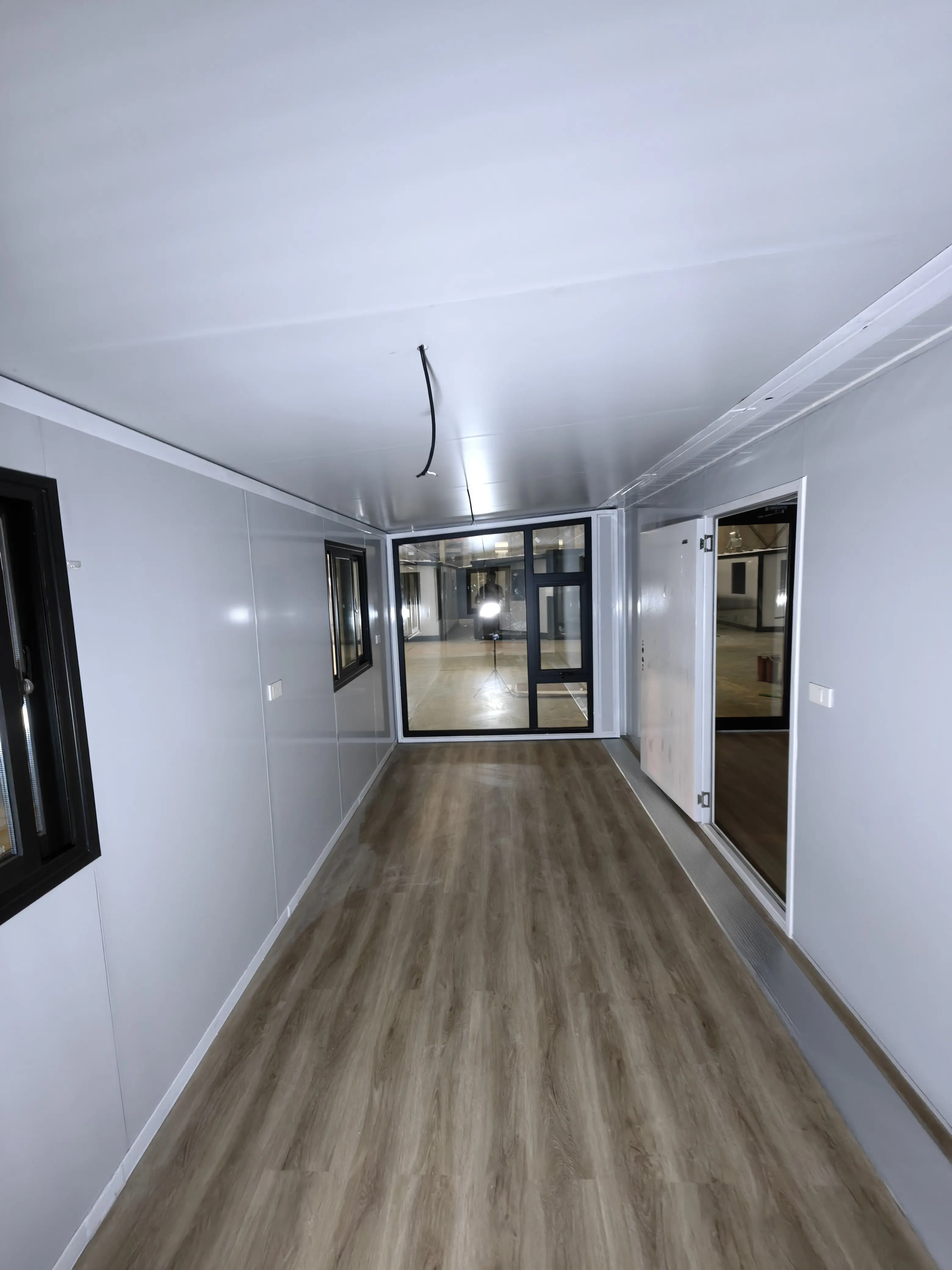

You can be inhabited in the shortest possible time.The indoor furniture is fully equipped with water and electrit,making it a new choice for modern life.
Our Advantages
With the development of society and people's exploration of new things,more and more people are choosing movable houses.Why are more consumers willing to become our loyal customers,and why do more camping sites choose us as their mobile home supplier?Because we have a more obvious advantage.
ADVANTAGE 1: FACTORY OUT LET
1.RAW MATERIAL
Being able to ensure the quality of raw materials and manufacturing welding processes at the source,strict quality control make our product quality more competitive.
2.PRICE AND QUALITY ADVANTAGES
On the premise pf equal quality,the price is more competitive without intermediaries.
3.CUSTOMIZED SERVICES
We can customized products for you according to your needs,
and all questions can be promptly responded to and handled.
ADVANTAGE 2: GROUP COMPANY,
STRONG STRENGTH

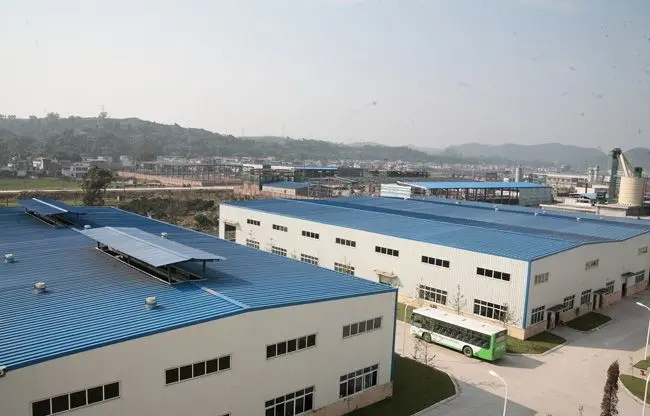

At present,factories have been established in multiple cities in ShanDong,with main products covering board houses,packing box houses,folding houses,wing expansion houses,space craft,apple pods and other products.

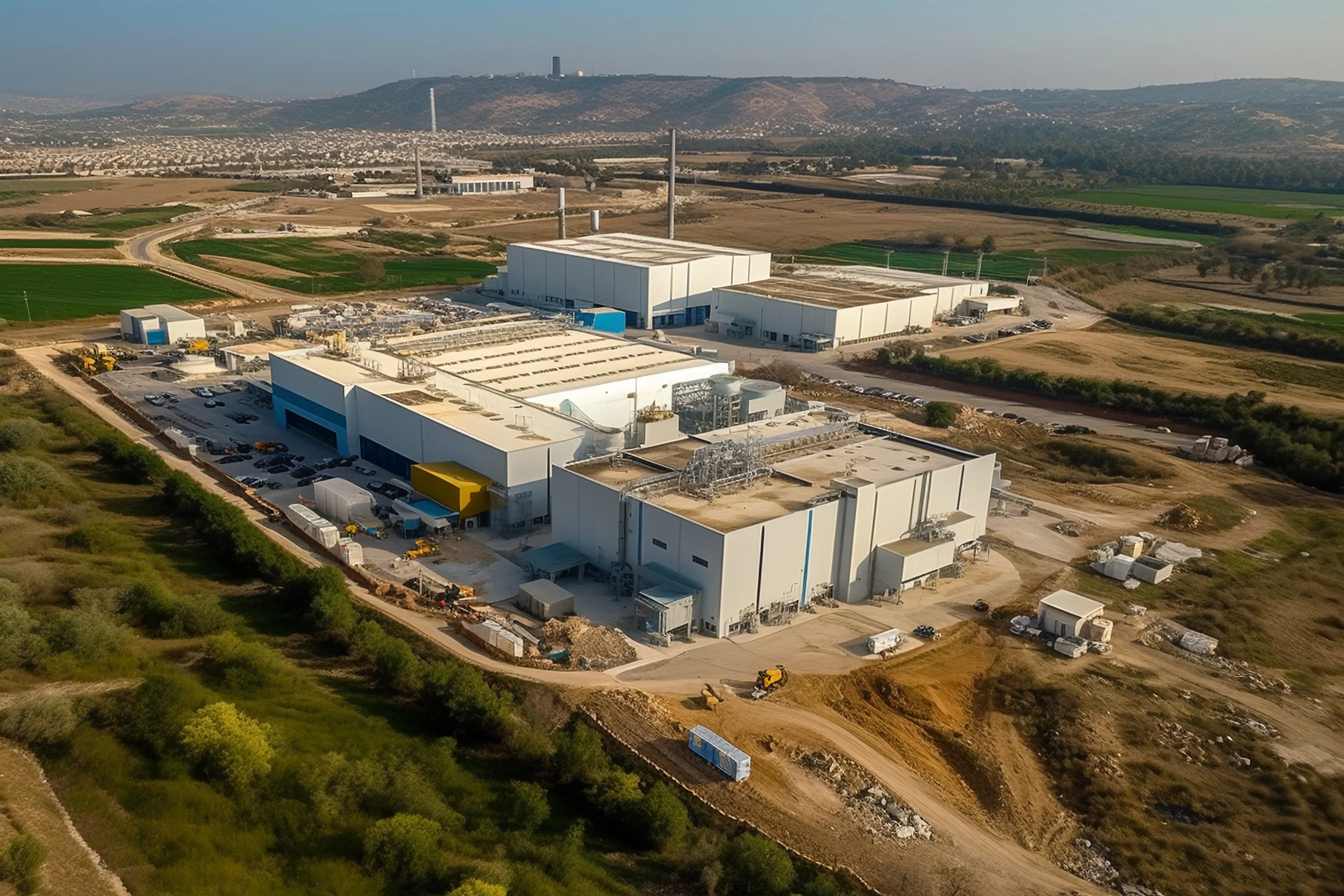

A new production line will be built in Zhangqiu city,Shandong province by the end of 2024,and the new factory area is expected to be completed by 2025.after being put into operation in 2025,we will cooperate with more raw material suppliers to reduce raw material costs ,control production processes and,provide global customers with higher quality and more diverse mobile home products at more competitive prices.
ADVANTAGE 3:PROFESSIONAL TEAM,EFFICIENT SERVICE
PERSONAL TEAM
We have a professional team to help you answer your questions and are online 24/7, so if there is something you don't understand,
ask and we'll answer it for you!
ask and we'll answer it for you!
HIGHLY SKILLED WORKERS

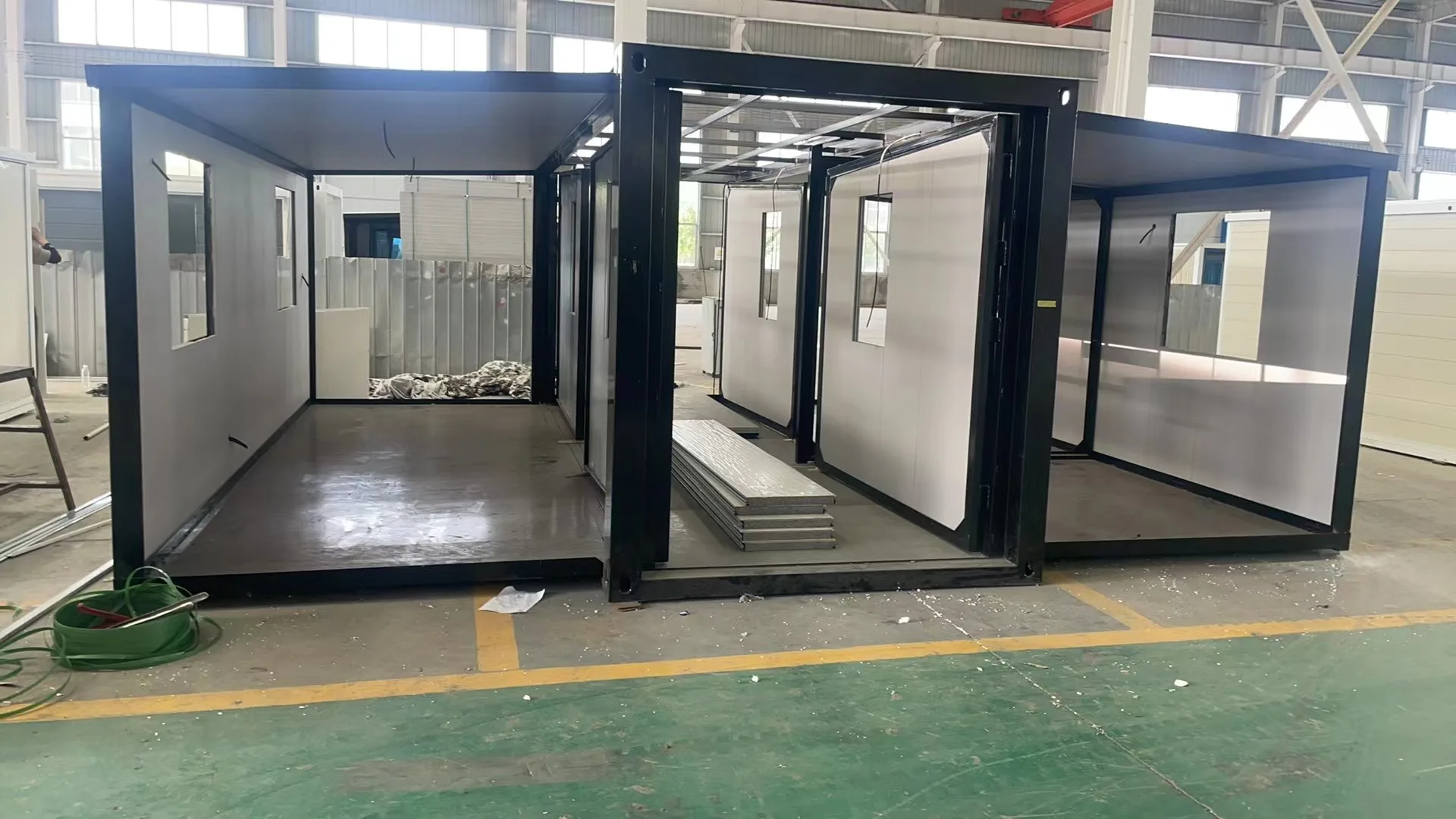

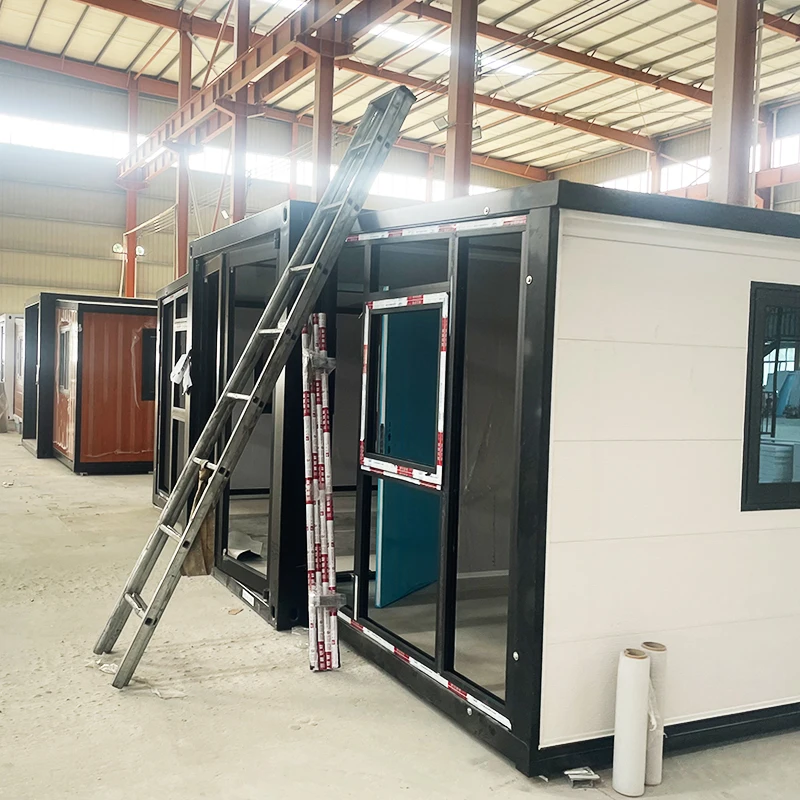

Workers' rich working experience and serious working attitude will provide you with good quality and satisfactory products.

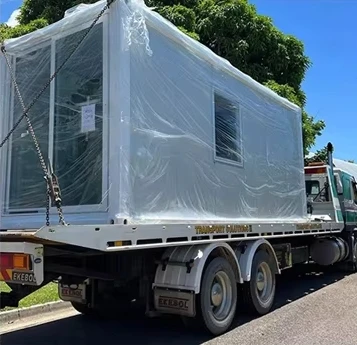

PACKING&DELIVERY

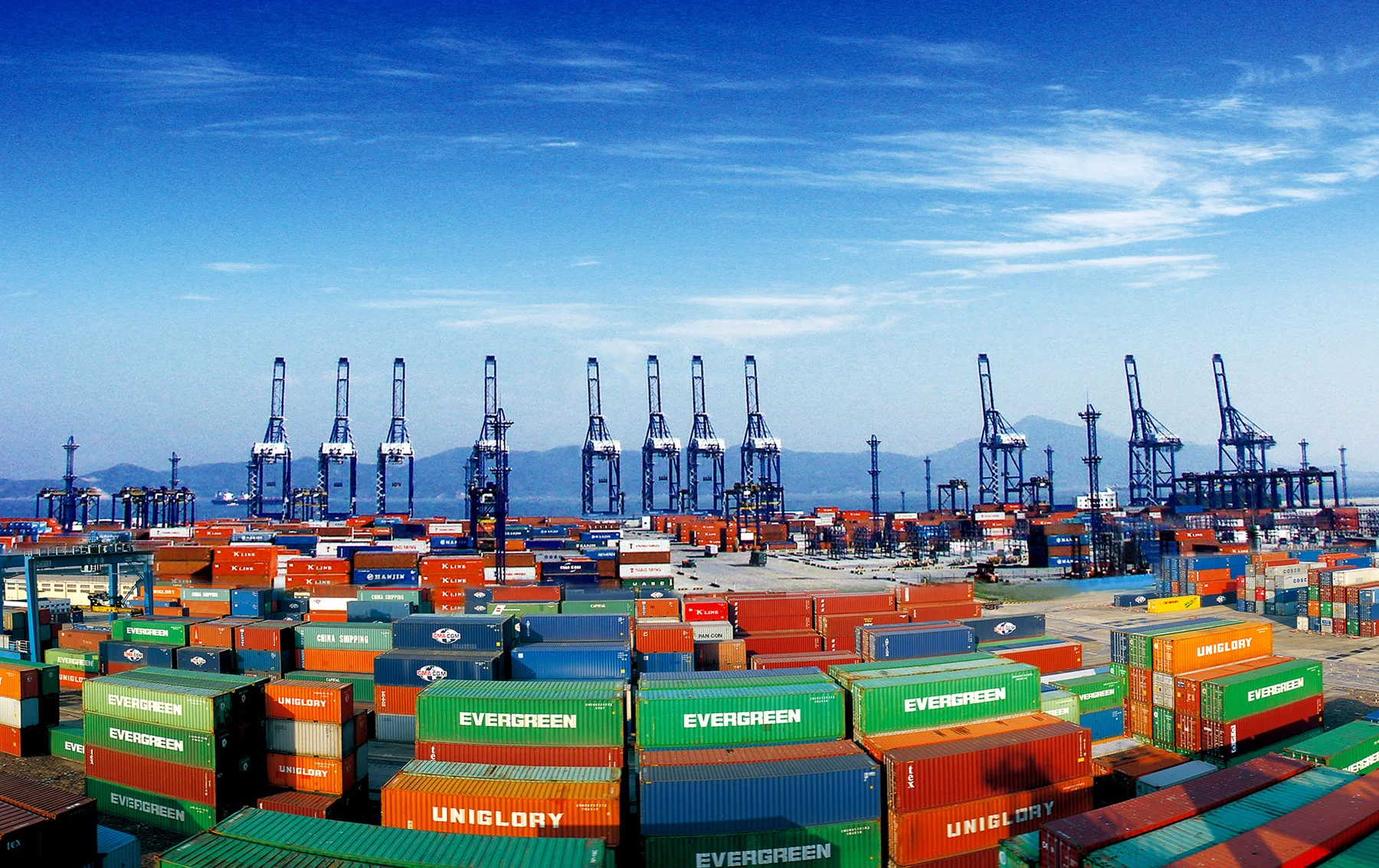

We will provide waterproof sealed packaging for each folding house at the factory to ensure its integrity and cleanliness during
transportation,and strictly follow the sea freight packaging requirements for final container loading.
transportation,and strictly follow the sea freight packaging requirements for final container loading.
Exhibition
RECOGNITION FROM GLOBAL CUSTOMERS
After years of production and manufacturing,we have gone abroad and provide high-quality and cost-effective container houses and double wing expansion container houses to more customers worldwide.
We have also received unanimous praise from multiple cultural and tourism projects abroad.
We will continue to improve our technology,expand production capacity,reduce costs,and provide high-qualityservices to global customers.
FAQ
On-site Installation Service
Q：Do we offer on-site installation?
A：We furnish highly detailed installation instructions,blueprints, and videos for every project. For substantial projects, installers and supervisors will be dispatched on-site. The cost of such on-site services is subject to negotiation with the customer.
Delivery Timeline
Delivery Timeline
Q: What is our delivery time frame?
A: Typically, it's 7 - 10 days following the receipt of the deposit. For large-volume orders, the delivery schedule is
A: Typically, it's 7 - 10 days following the receipt of the deposit. For large-volume orders, the delivery schedule is
negotiable.
Product Service Life
Q:Do our products have a defined service life?If so, how long?
A:In a conventional climatic setting, the service life of the steel frame of the container house is 20 years.
Handling Quality Issues
The warranty period spans 2 years.During this period, zhonghao Port will take responsibility for all production-induced quality problems.
Product Quality Control Measures
Design Quality: Anticipate potential issues in advance and present top-notch design solutions.
Raw Material Quality: Opt for qualified raw materials.
Production Quality: Employ a precise manufacturing process, experienced workers, and conduct strict quality inspections.
Designs for Different Climates In Strong Wind Zones: Enhance the wind resistance of the internal structure.
In Cold Areas: Augment the wall thickness or utilize excellent insulation materials to boost the structure's compressive strength.
In High Corrosion Areas: Employ corrosion-resistant materials or apply anti-corrosion coatings.
Product Service Life
Q:Do our products have a defined service life?If so, how long?
A:In a conventional climatic setting, the service life of the steel frame of the container house is 20 years.
Handling Quality Issues
The warranty period spans 2 years.During this period, zhonghao Port will take responsibility for all production-induced quality problems.
Product Quality Control Measures
Design Quality: Anticipate potential issues in advance and present top-notch design solutions.
Raw Material Quality: Opt for qualified raw materials.
Production Quality: Employ a precise manufacturing process, experienced workers, and conduct strict quality inspections.
Designs for Different Climates In Strong Wind Zones: Enhance the wind resistance of the internal structure.
In Cold Areas: Augment the wall thickness or utilize excellent insulation materials to boost the structure's compressive strength.
In High Corrosion Areas: Employ corrosion-resistant materials or apply anti-corrosion coatings.
