Hydraulic Oil Degassing De water and Impurity Removal Machine
- Category: >>>
- Supplier: Chongqing TOP Oil Purifier Co. Ltd.Chongqing Ltd.
Share on (1601368242081):
Product Overview
Description

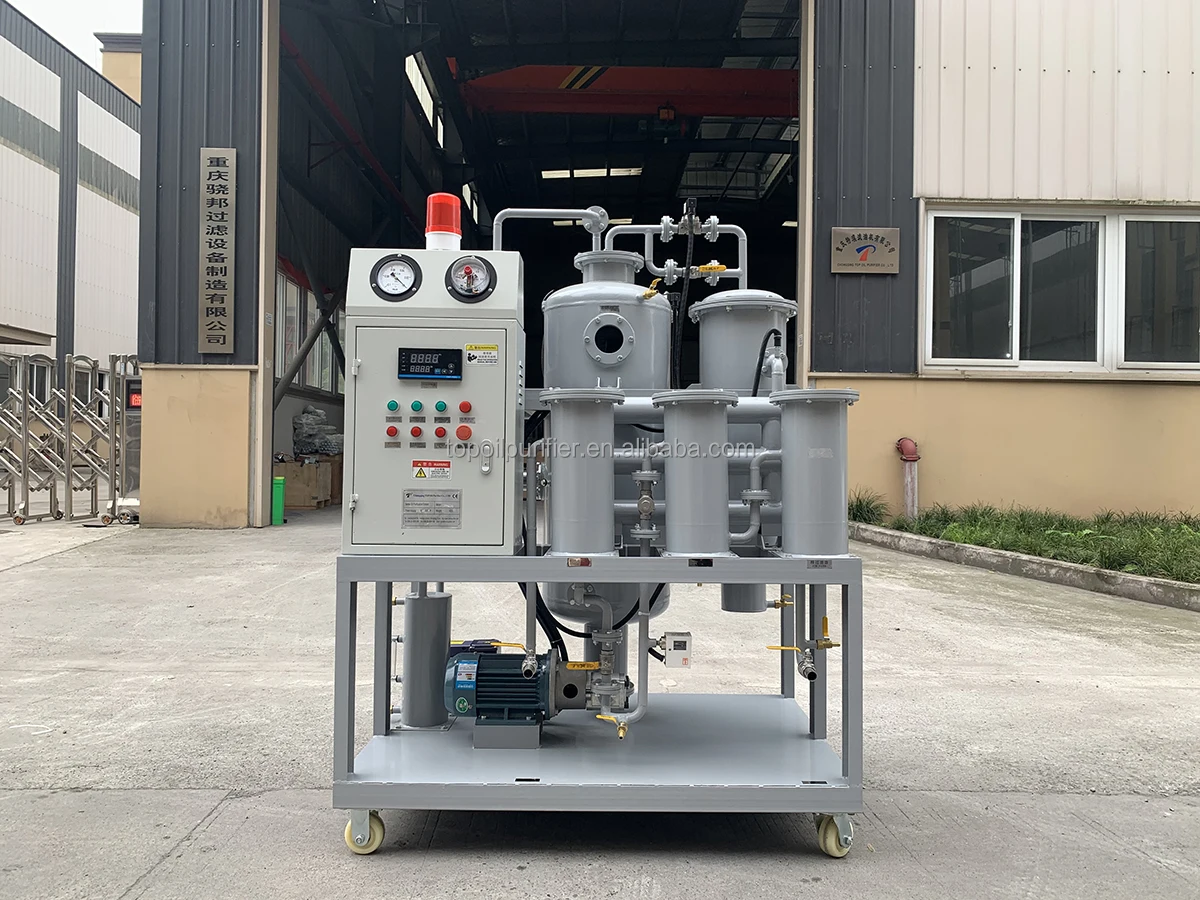

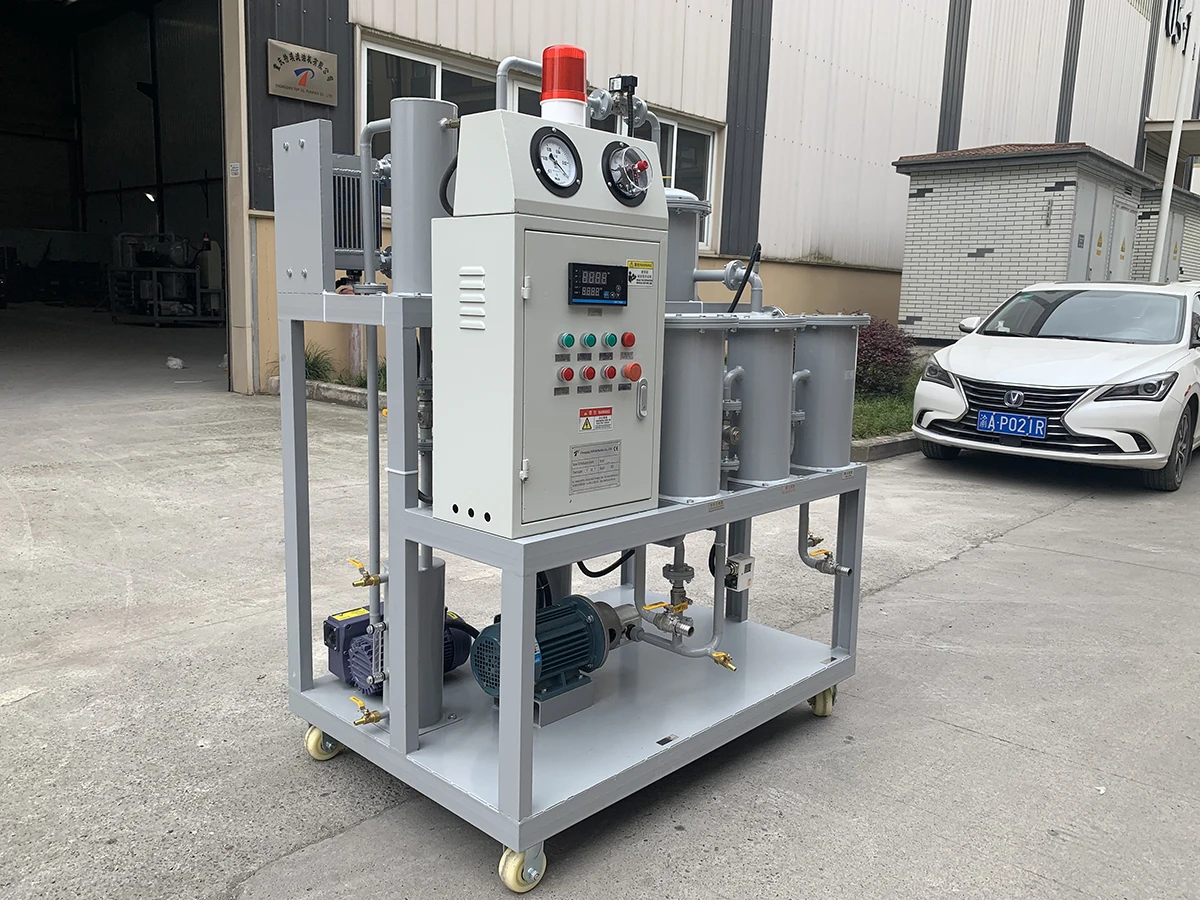

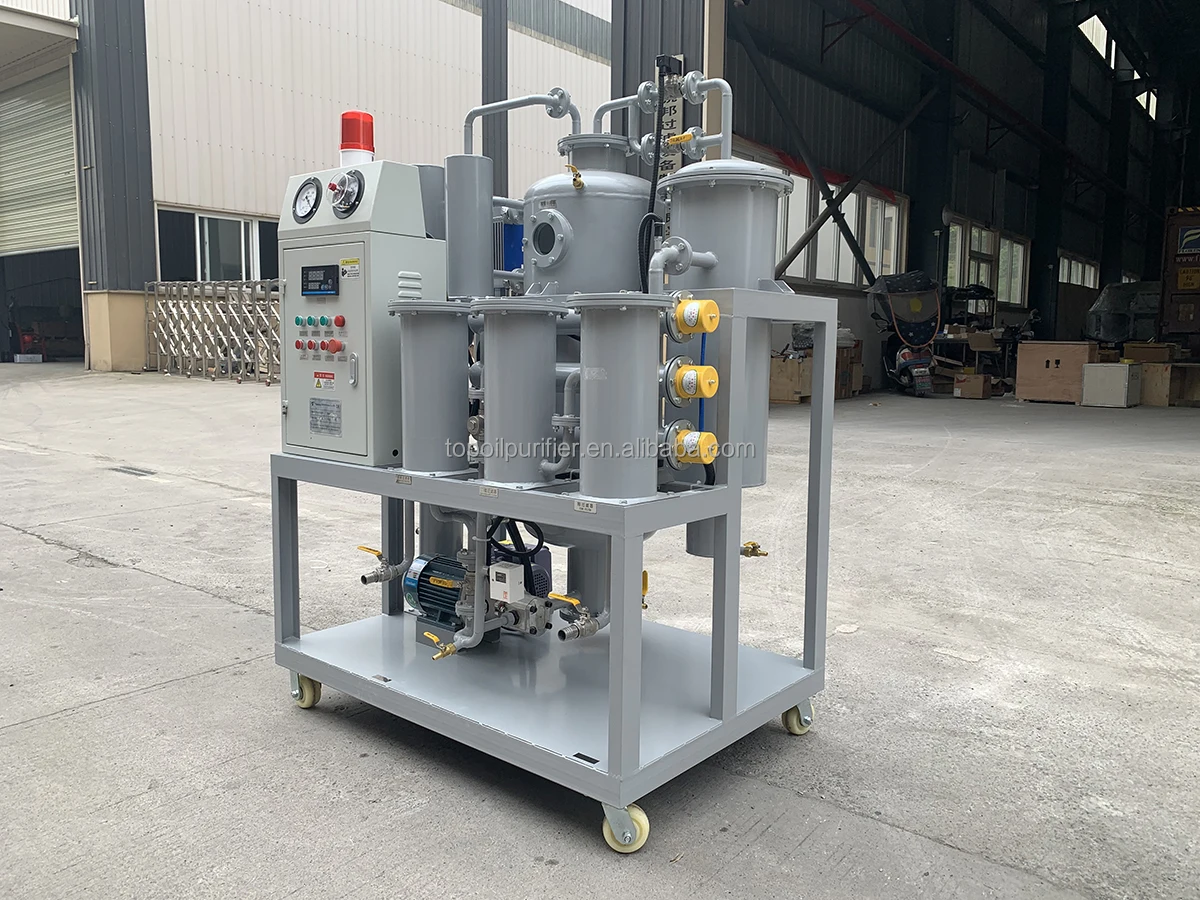

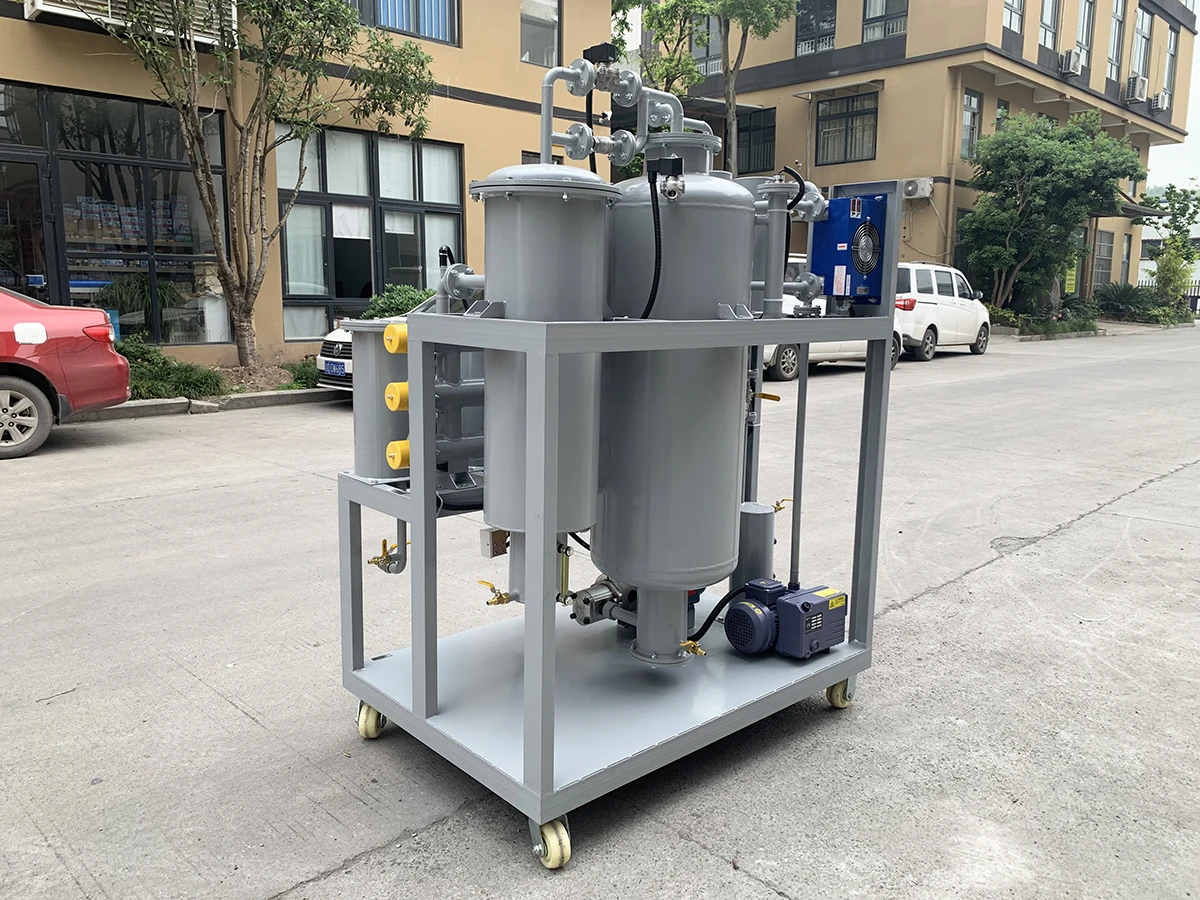

Hydraulic Oil Degassing De-water and Impurity Removal Machine
Series TYA oil purifiers remove free and dissolved water, dirt, and free and dissolved air/gases from hydraulic oil, gear oil, engine oil, compression oil, freezer oil, heat treatment oil, compressor oil, refrigeration oil and other industrial oils in metallurgy, machinery, oil field, chemistry, mine, electric power generation plant, transportation and manufacturing enterprises. TYA oil purifiers reduce system wear; improve on-line and system performance; extend fluid life and reduce fluid disposal costs and environmental risks.
1. The plant is delivered ready for operation.
2. With strong capabilities of demulsification, dehydration and degasification, TYA oil purifier adopts big-cubage, reinforced three-dimension flash distillation column, thin film evaporation technology and large area multi-level separation technology so as to remove water, gas and light hydrocarbon material efficiently and quickly.
3. Adopting high-quality filter element and sealing material with corrosion proof, high temperature resistance and excellent mechanical strength, it is suitable even for purification process of high-viscosity oil under rather high temperature conditions and in this way expanding its application scope.
4. Fine and precision multi-stage filtration system can remove mechanical particulates thoroughly and effectively.
5. With air-cooling and condensation system, it can cool the air in the vacuum system efficiently and quickly, which avoids inconvenience of water-cooling.
6. Advanced high pressure protection device and infrared oil level control system for easy operation.
7. Perfect automatic and manual oil heating temperature controller, automatic cooling and separation device, simple, safe and reliable.

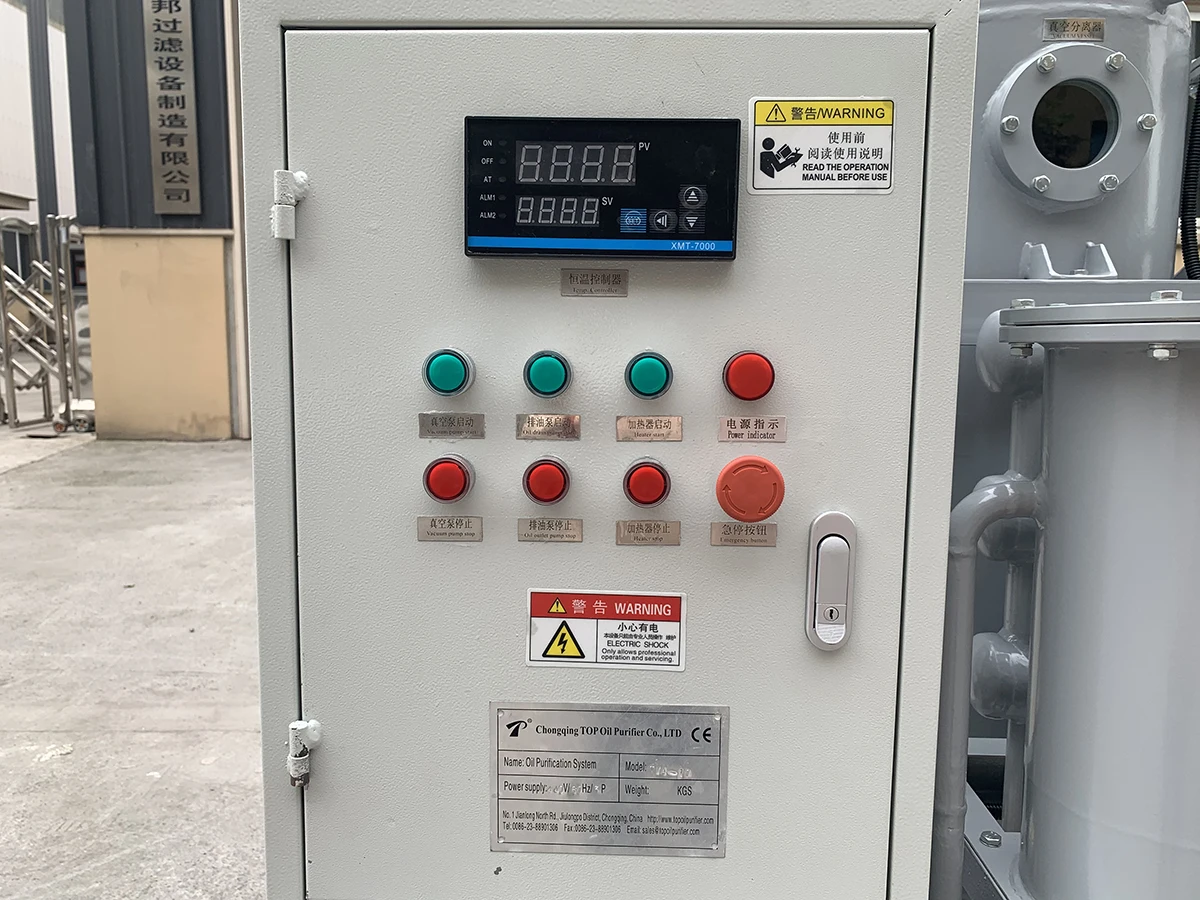

8. High-quality electrical control cabinet, with high-efficiency heat transfer and anti-explosion.
9. The equipment can also be installed with digital flow meter and timer for auto calculating and recording oil volume and working time. (it’s optional according to user’s requirements)
10. The machine can be installed with two filtration systems for easy and quick change of filter element without stopping the machine.
2. With strong capabilities of demulsification, dehydration and degasification, TYA oil purifier adopts big-cubage, reinforced three-dimension flash distillation column, thin film evaporation technology and large area multi-level separation technology so as to remove water, gas and light hydrocarbon material efficiently and quickly.
3. Adopting high-quality filter element and sealing material with corrosion proof, high temperature resistance and excellent mechanical strength, it is suitable even for purification process of high-viscosity oil under rather high temperature conditions and in this way expanding its application scope.
4. Fine and precision multi-stage filtration system can remove mechanical particulates thoroughly and effectively.
5. With air-cooling and condensation system, it can cool the air in the vacuum system efficiently and quickly, which avoids inconvenience of water-cooling.
6. Advanced high pressure protection device and infrared oil level control system for easy operation.
7. Perfect automatic and manual oil heating temperature controller, automatic cooling and separation device, simple, safe and reliable.
8. High-quality electrical control cabinet, with high-efficiency heat transfer and anti-explosion.
9. The equipment can also be installed with digital flow meter and timer for auto calculating and recording oil volume and working time. (it’s optional according to user’s requirements)
10. The machine can be installed with two filtration systems for easy and quick change of filter element without stopping the machine.
Item | Unit | TYA-10 | TYA -20 | TYA -30 | TYA -50 | TYA -100 | TYA -150 | TYA -200 | ||||||||
Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | ||||||||
Flow rate | L/hr | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | ||||||||
Working vacuum | Mpa | -0.06 ~- 0.098 | ||||||||||||||
Working pressure | Mpa | ≤0.3 | ||||||||||||||
Temperature range | ℃ | 0~100 | ||||||||||||||
Working Oil Temperature | ℃ | 45~65 | ||||||||||||||
Power supply | 380V/50HZ/3Ph 5 wire(as customer’s requirement) | |||||||||||||||
Continuous working time | H | ≥150 | ||||||||||||||
Working noise | dB(A) | ≤65 | ≤68 | ≤68 | ≤70 | ≤70 | ≤75 | ≤75 | ||||||||
Electric heating power | kW | 15 | 18 | 24 | 36 | 60 | 72 | 120 | ||||||||
Total electric power | kW | 17 | 20 | 26 | 39 | 65 | 79 | 128 | ||||||||
Outlet(inlet) caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф45 | Ф50 | ||||||||
Weight | kg | 350 | 400 | 450 | 500 | 900 | 1300 | 1500 | ||||||||
Size | L | mm | 1350 | 1400 | 1450 | 1500 | 1700 | 1800 | 2000 | |||||||
W | mm | 950 | 1000 | 1050 | 1100 | 1150 | 1250 | 1400 | ||||||||
H | mm | 1650 | 1700 | 1750 | 1800 | 1800 | 2000 | 2200 | ||||||||
Index after filtering | Moisture content | PPM | ≤50 | |||||||||||||
Gas content | % | 0.1 | ||||||||||||||
Impurity size | μm | ≤1(Customerizable) | ||||||||||||||
Cleanness degree | Degree | ≤6（NAS 1638） | ||||||||||||||
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil treatment machine, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment , black oil distillation plant etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are oil tester, electrical analysis instrument, road bituminous tester, geological analyzer, elemental analysis apparatus, sample pre-treament devices, physical optics series, chromatography/spectrometer, carbon black tester, coal tester, iron core loss tester, diffractometer , soil tester, waste water Tester, laboratory fume good and lab solution/movable lab
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil treatment machine, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment , black oil distillation plant etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are oil tester, electrical analysis instrument, road bituminous tester, geological analyzer, elemental analysis apparatus, sample pre-treament devices, physical optics series, chromatography/spectrometer, carbon black tester, coal tester, iron core loss tester, diffractometer , soil tester, waste water Tester, laboratory fume good and lab solution/movable lab
