Product Overview
Description
Company profile

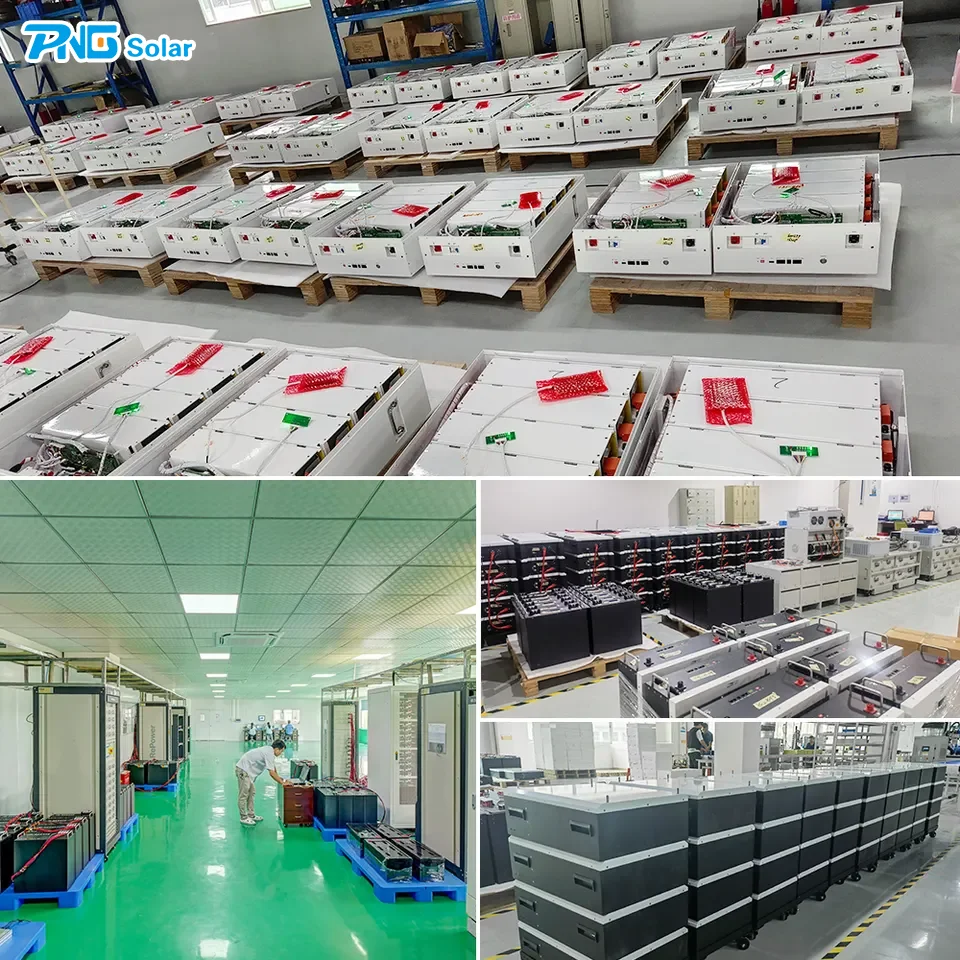

Hefei Pinergy Solar Technology Co.,Ltd was established in 2016, a professional and leading manufacturer of quality solar moduls. PNG SOLAR is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. Jinko, JA, GCL, Sungrow and BYD all sit here . PNG SOLAR has been certified by Alibaba several years ago. The business covers the R&D, production and sales of PV modules, residential, commercial and large scale solar plants. We supply turn-key service for domestic customers and all the materials for overseas markets.
3 production lines with annual capacity 1.2GW facilitate the lead produciton time .
Sophistificated production experience and global sales network is attracting more and more customers from worldwide. In 2022, the company achieved sales vloume with USD 1.5billion. And listed in the top 5 producer and exporter in our county.

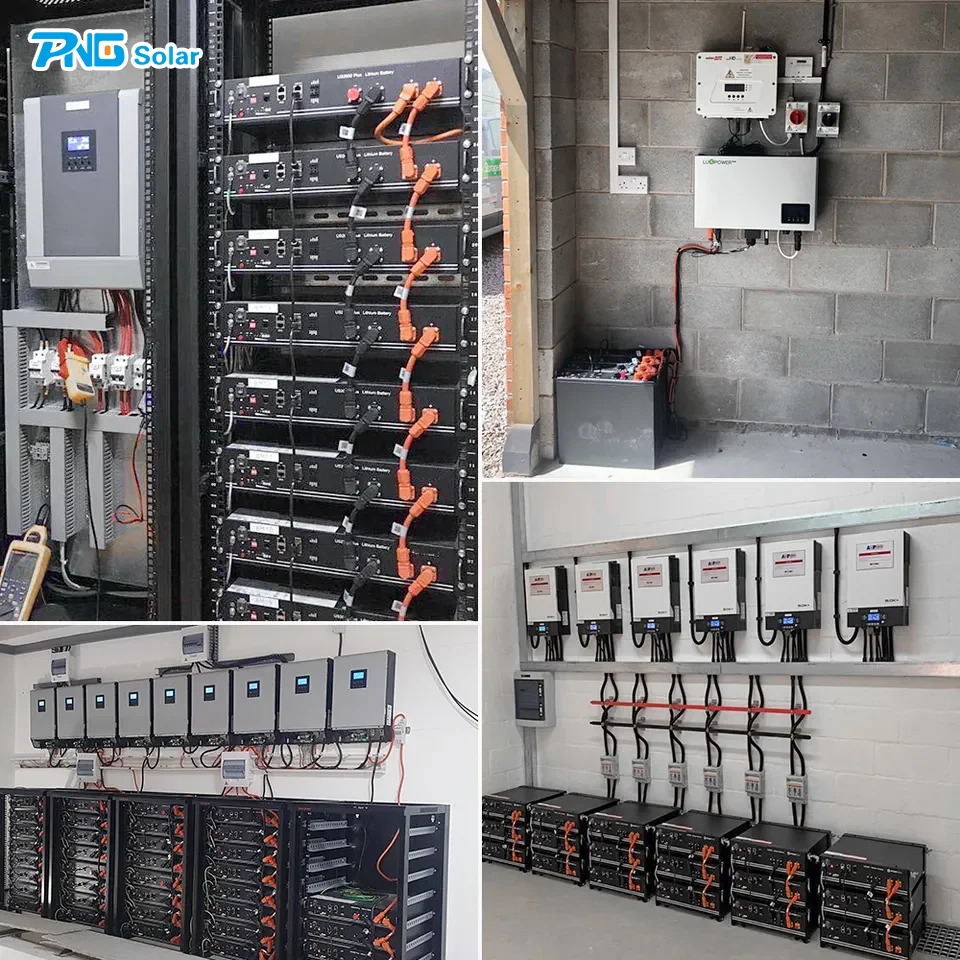

For residential and commercial solar energy system, including on-grid, off-grid and hybrid solar energy system. PNG SOLAR cooperate with famous brands, like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials . Quality is our soul.
We are Official agent of Longi, Jinko, JA solar and etc and etc.
Our principles: Integrity, Win-Win, Innvation !
3 production lines with annual capacity 1.2GW facilitate the lead produciton time .
Sophistificated production experience and global sales network is attracting more and more customers from worldwide. In 2022, the company achieved sales vloume with USD 1.5billion. And listed in the top 5 producer and exporter in our county.
For residential and commercial solar energy system, including on-grid, off-grid and hybrid solar energy system. PNG SOLAR cooperate with famous brands, like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials . Quality is our soul.
We are Official agent of Longi, Jinko, JA solar and etc and etc.
Our principles: Integrity, Win-Win, Innvation !
Note:
1. All components are warrantied.
2. Reliable after-sale sevice during warranty period,replace or repair all parts.
3. Product dimensions and physical appearance in this data sheet are nominal.
4. Pinergy Solar reserves the right to make the product changes from time to time.
5. Installation and training service .
1. All components are warrantied.
2. Reliable after-sale sevice during warranty period,replace or repair all parts.
3. Product dimensions and physical appearance in this data sheet are nominal.
4. Pinergy Solar reserves the right to make the product changes from time to time.
5. Installation and training service .
Products Description

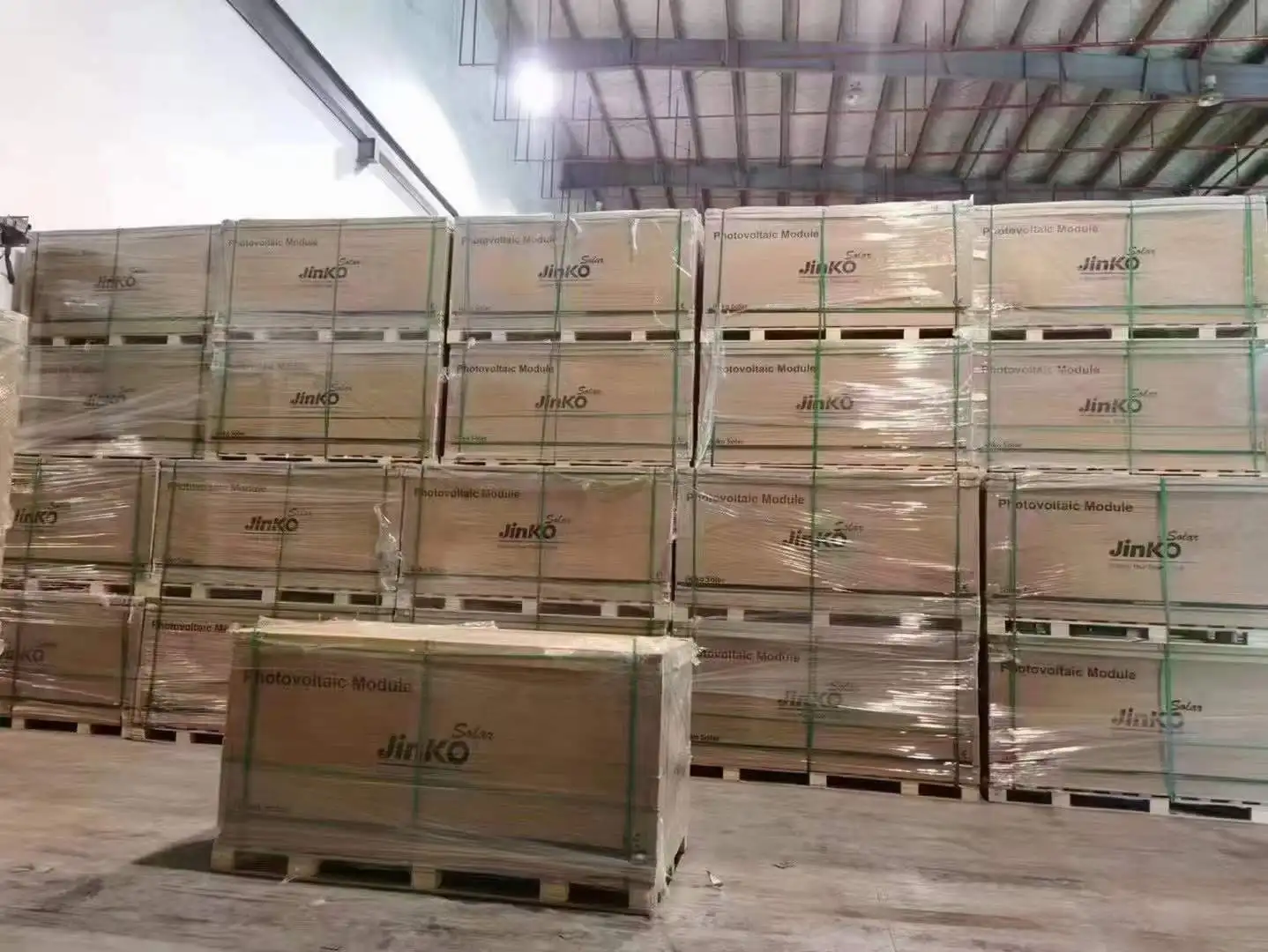

* Tier 1 brand original Jinko solar /Astronergy/ Canadian/ JA / Longi and etc
* N type mono-facial or bifacial available.
* PID-Free, Anti-salt mist corrosion and Anti-Amonia .
* 12 years materials and processing warranty, 25years 80% power output warranty.
* IEC61215/IEC61730
/ ISO9001/ISO14001/ISO45001
/MCS/FIDE/ RETIE certifications and etc.
/ ISO9001/ISO14001/ISO45001
/MCS/FIDE/ RETIE certifications and etc.
* N type mono-facial or bifacial available.
* PID-Free, Anti-salt mist corrosion and Anti-Amonia .
* 12 years materials and processing warranty, 25years 80% power output warranty.

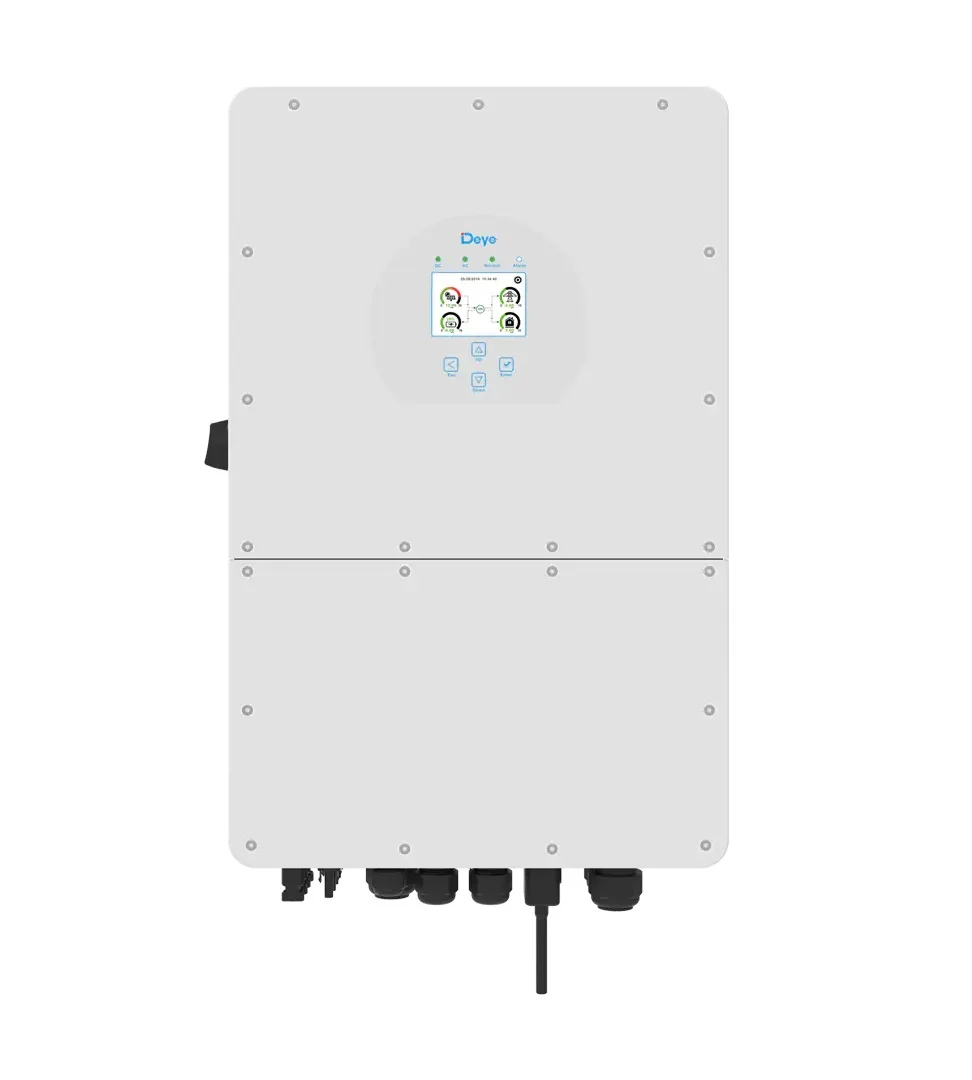

Higher yields / Safe & Reliable / Smart / User-friendly
* Colorful touch LCD, IP65 protection .
* AC couple to retrofifit existing solar system.
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current 140A
* 6 time periods for battery charging/ discharging.
* Be equipped with RS485/CAN port for battery communication.
* Colorful touch LCD, IP65 protection .
* AC couple to retrofifit existing solar system.
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current 140A
* 6 time periods for battery charging/ discharging.
* Be equipped with RS485/CAN port for battery communication.
* Higher stablity and higher unformity

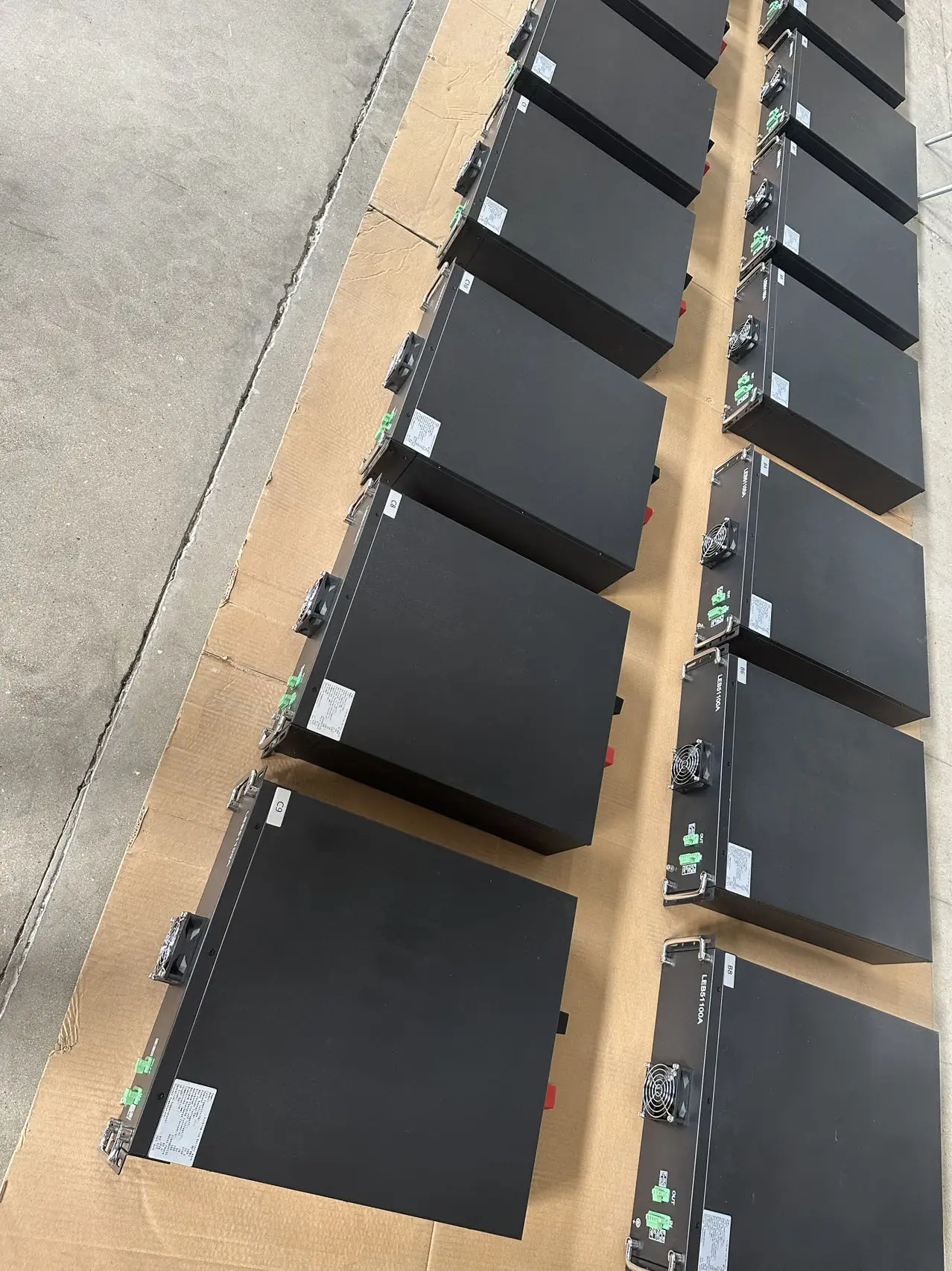

* 51.2V 280AH, HV, EVE A+ grade cells* 80% after 6000 cycle times
* Compatible with Deye/Victron/SMA and other famous inverter supplier
* 5years warranty or 6000cycle times , which comes first
* Compatible with Deye/Victron/SMA and other famous inverter supplier
* 5years warranty or 6000cycle times , which comes first

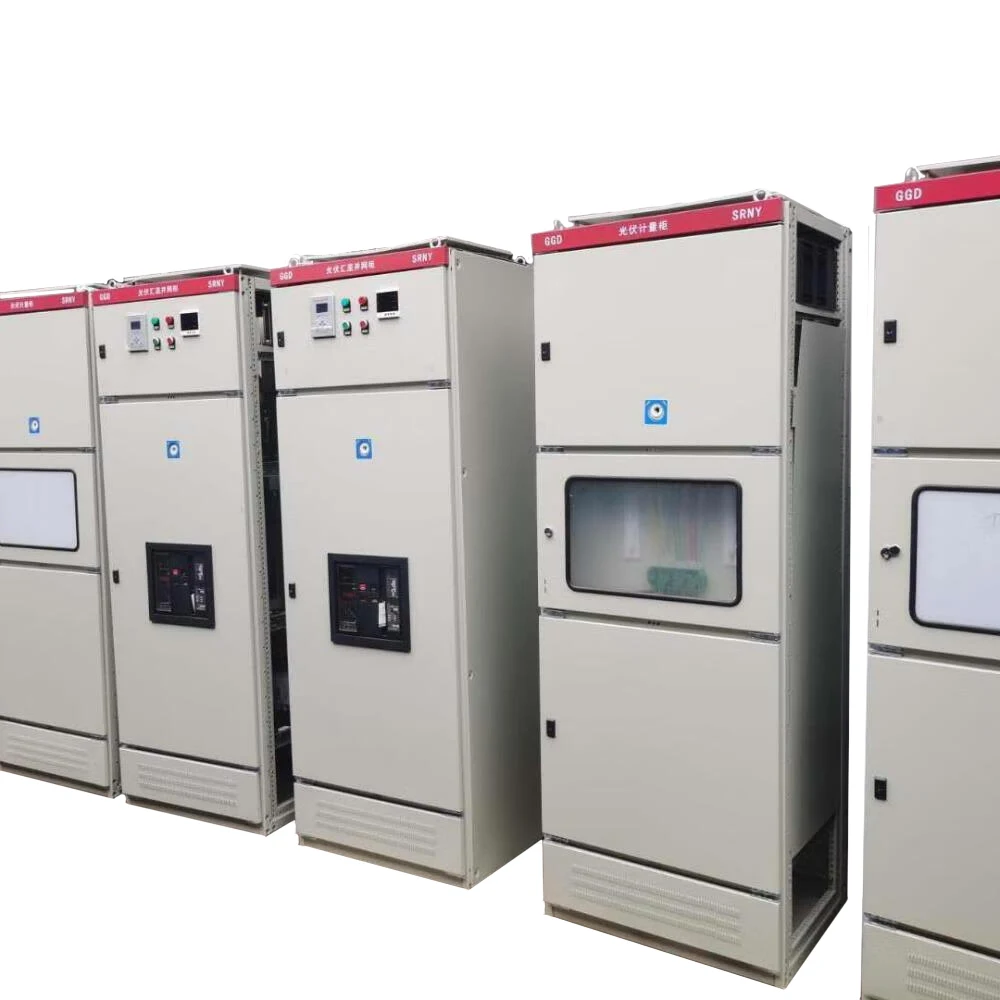

* Breaker / SPD/ Stainless steel (outdoor) or plastic ( indoor ) box
* Lightening protection, short-circuit protection, over-current protection
* Earth-leakage protection and anti-islanding protection
* Customized based on actual needs
* 5years warranty
* Lightening protection, short-circuit protection, over-current protection
* Earth-leakage protection and anti-islanding protection
* Customized based on actual needs
* 5years warranty

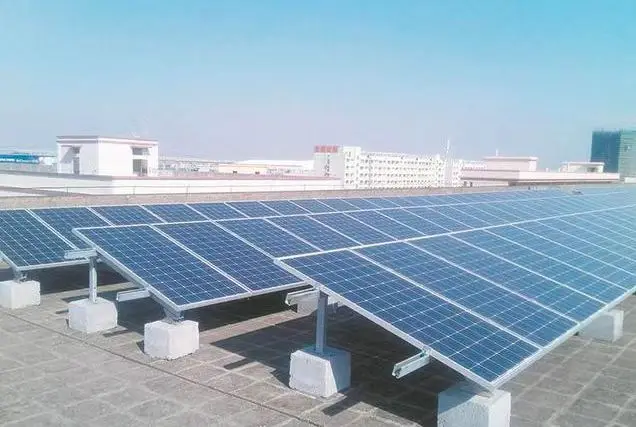

Solar Mounting System
* Pitched tiled/ flat roof mounting/ ground /carport mounted structure
* Mid-clmaping and end-clamping and all accessories.
* Hot-dip galvanized carbon steel or aluminum alloy
* Compatible with all sizes of solar modules
* 10years warranty
* Mid-clmaping and end-clamping and all accessories.
* Hot-dip galvanized carbon steel or aluminum alloy
* Compatible with all sizes of solar modules
* 10years warranty

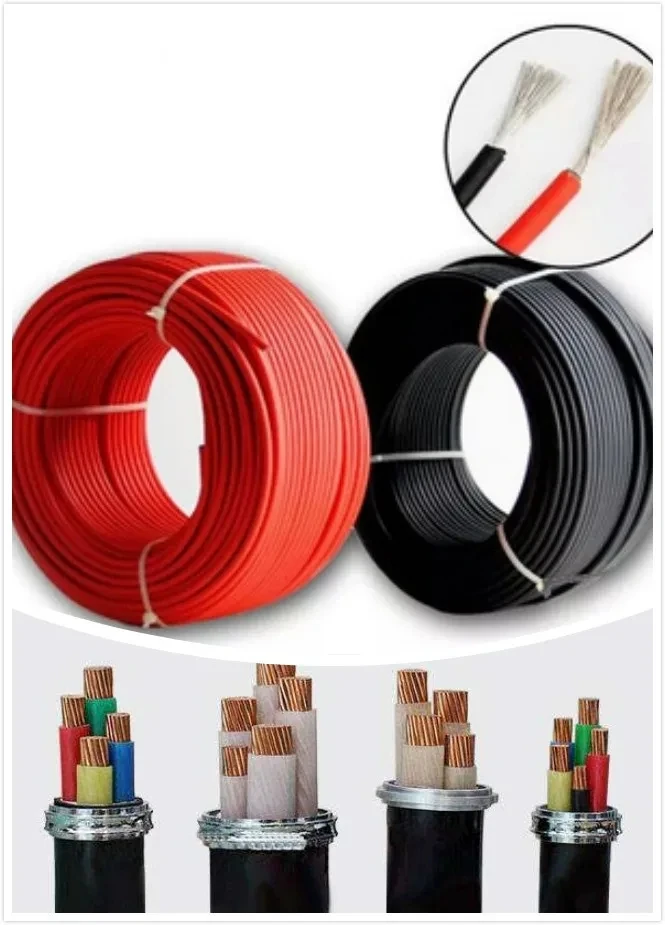

* PV1-F 1*4mm2 & PV1-F1*6mm2, red & black
* Tinned copper wire
* AC 0.6/1.0KV DC 1.0KV
* 100m per roll or 200m per roll
* 3years warranty.
* Tinned copper wire
* AC 0.6/1.0KV DC 1.0KV
* 100m per roll or 200m per roll
* 3years warranty.
Technical Specification

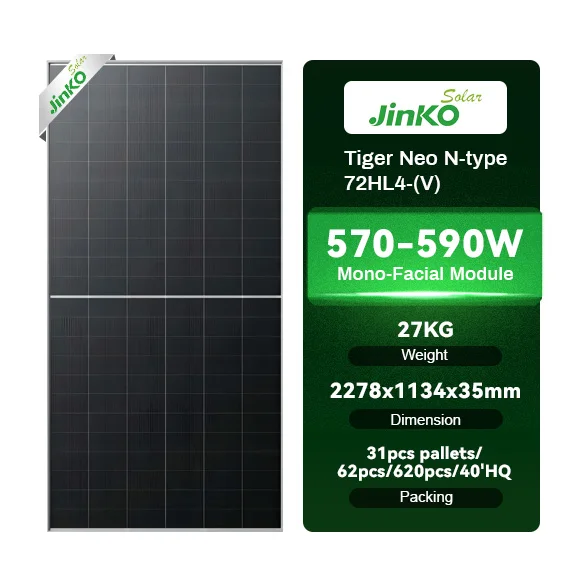

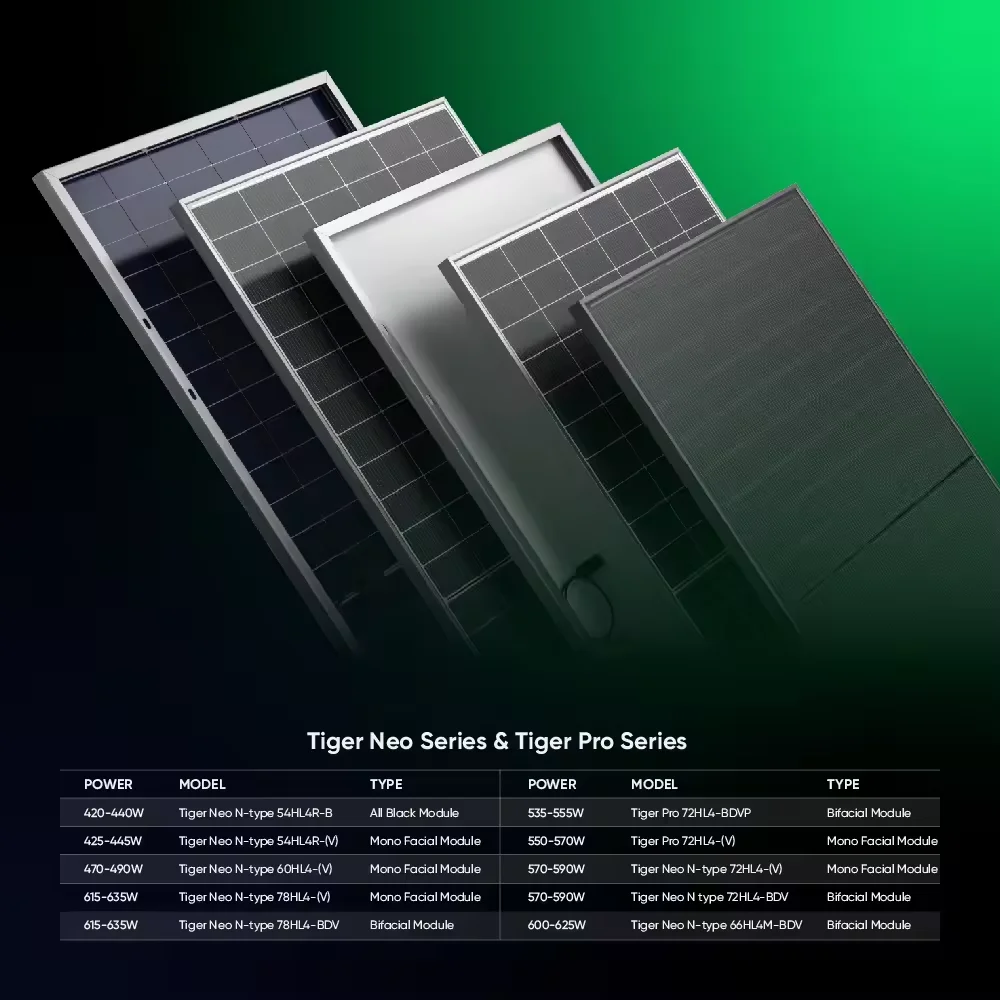

1. Specifications of Jinko 585w N type Topcon solar modules
STC: Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5Nominal Module Operating Temperature
(NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s.
(NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s.
Module Type | JKM580N-72HL4-V | JKM585N-72HL4-V | ||||
Test Condition | STC | NOCT | STC | NOCT | ||
Max. Power. Pmax(W) | 580 | 436 | 585 | 440 | ||
Open Circuit Voltage Voc (Voc/V) | 42.37 | 39.69 | 42.52 | 39.81 | ||
Short Circuit Current (Isc/A) | 13.69 | 10.99 | 13.76 | 11.05 | ||
Voltage at Max. Power (Vmp/V) | 51.02 | 48.46 | 51.16 | 48.60 | ||
Current at Max. Power (Imp/A) | 14.47 | 11.68 | 14.55 | 11.75 | ||
Module Efficiency | 22.45% | 22.65% | ||||

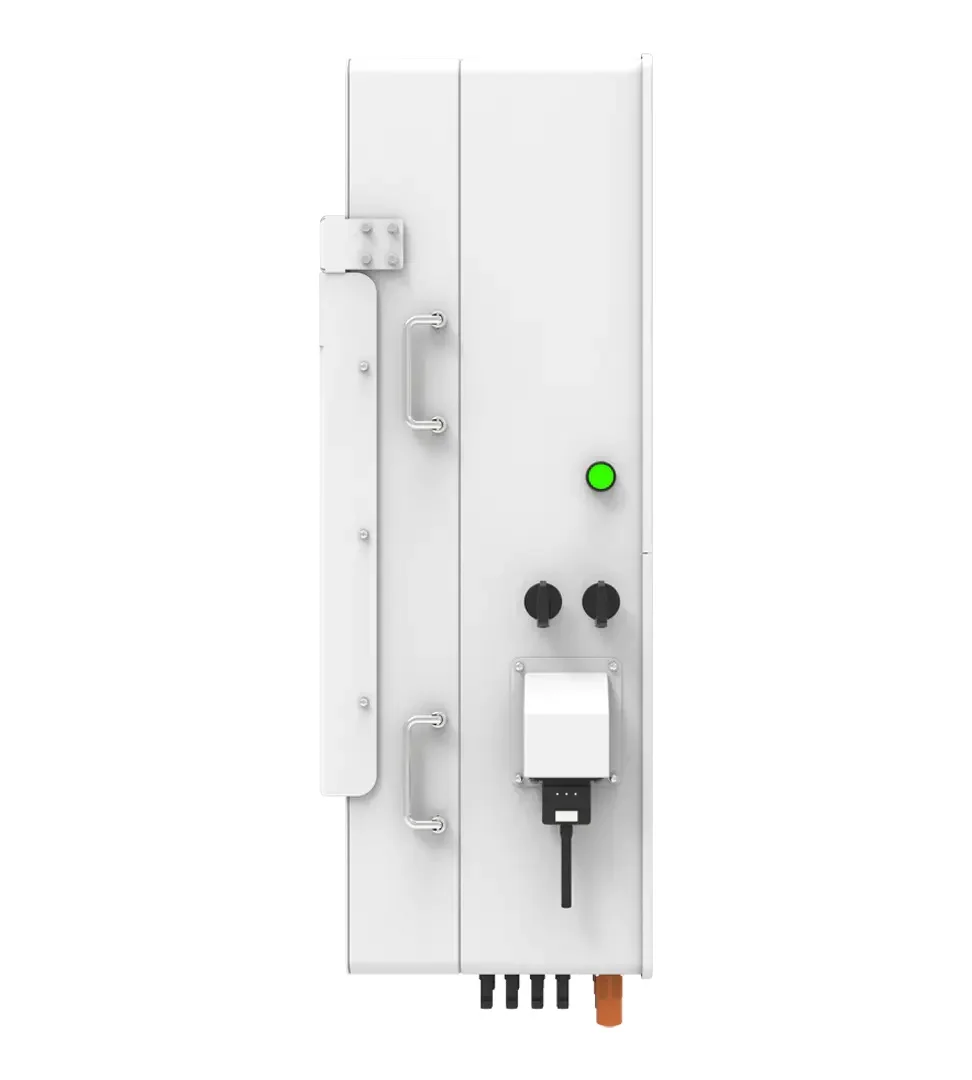

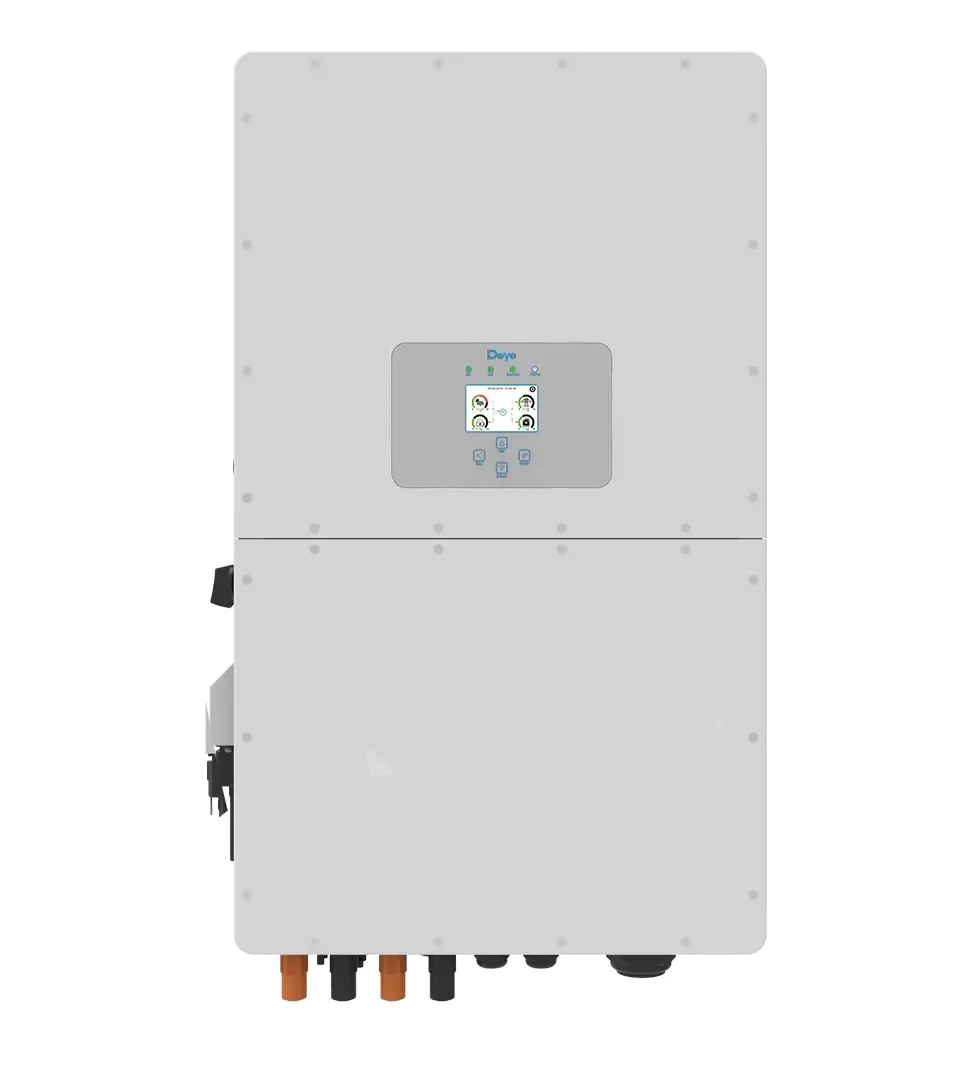

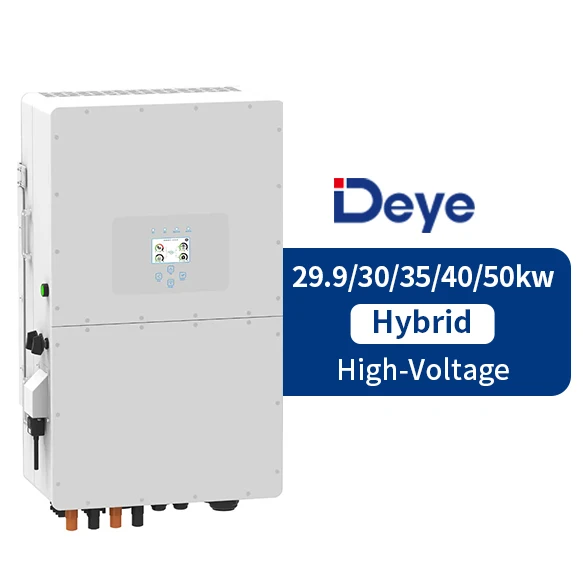

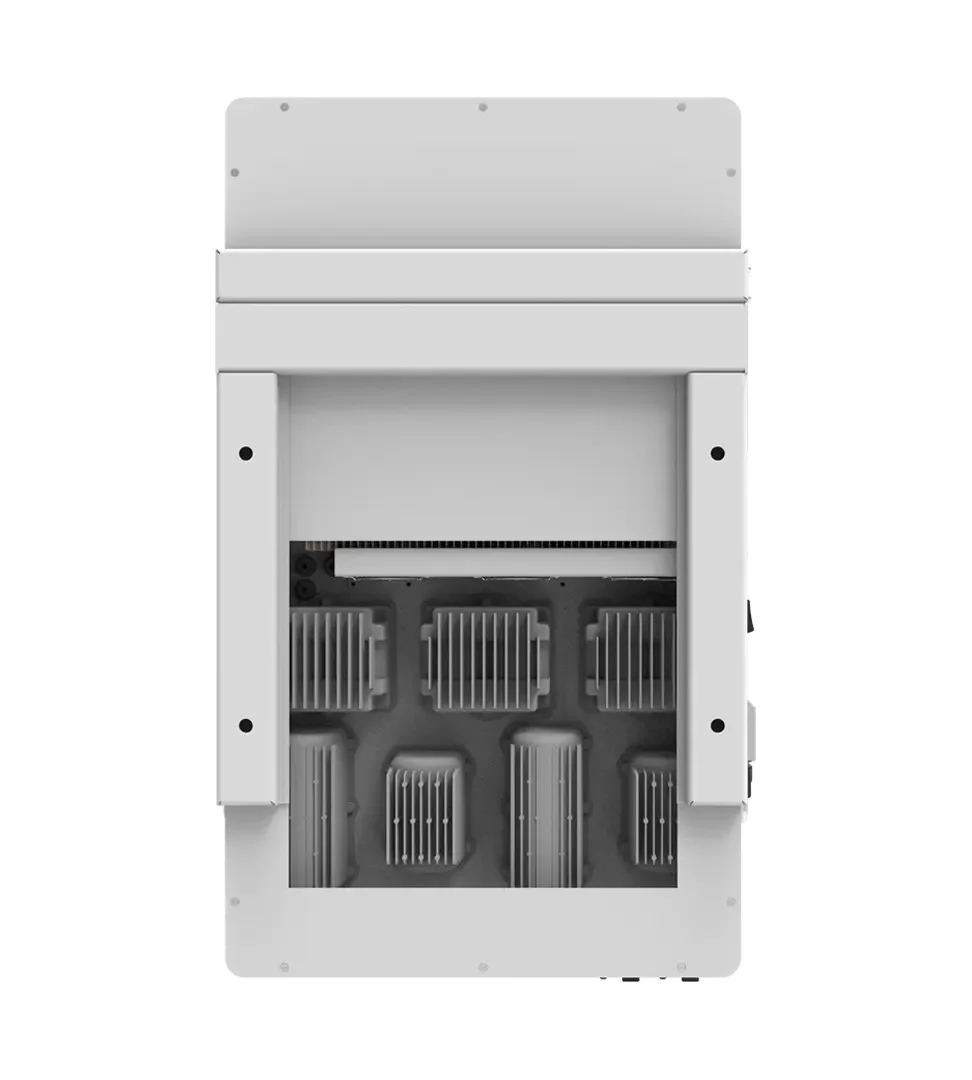

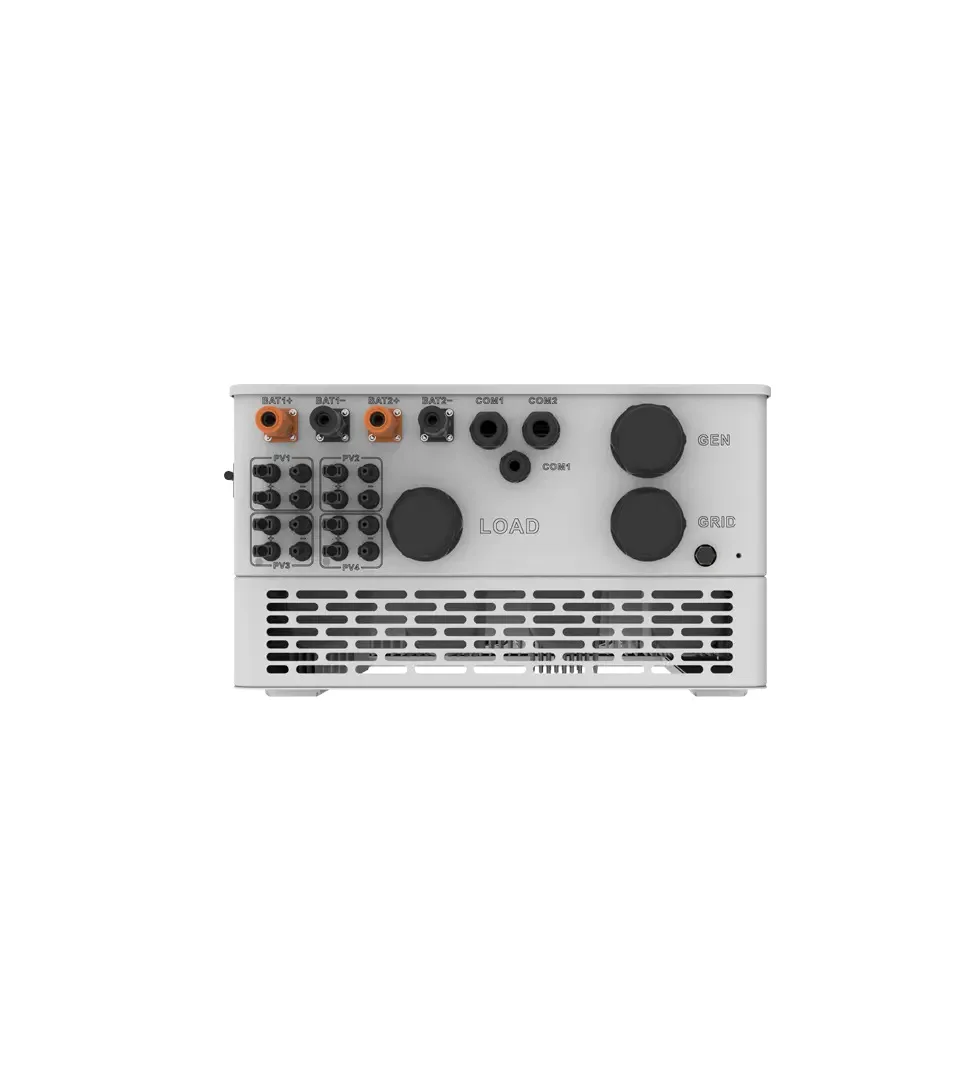

2. Specifications of Deye hybrid inverter- - SUN15/20/25K-SG01HP3-EU-AM2
Model | SUN-35K-SG01HP3-EU-BM3 | SUN-40K-SG01HP3-EU-BM4 | SUN-50K-SG01HP3-EU-BM4 | |||
Battery Input Data | ||||||
Battery Type | Lithium-iron | |||||
Battery Voltage Range (V) | 160~800 | |||||
Max.Charging Current (A) | 50+50 | |||||
Max.Discharging Current (A) | 50+50 | |||||
Number of Battery Input | 2 | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV Strings Input Data | ||||||
Max.DC Input Power (W) | 45500 | 52000 | 65000 | |||
Max. DC Input Voltage (V) | 1000 | |||||
Start-up Voltage (V) | 180 | |||||
MPPT Range (V) | 150-850 | |||||
PV Input Current (A) | 36+36+36 | 36+36+36+36 | ||||
Max. PV ISC (A) | 55+55+55 | 55+55+55+55 | ||||
No. of MPP Trackers | 3 | 4 | ||||
No.of Strings Per MPPT Tracker | 2+2+2 | 2+2+2+2 | ||||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 35000 | 40000 | 50000 | |||
Max. AC Output Power (W) | 38500 | 44000 | 55000 | |||
AC Output Rated Current (A) | 53.1/50.8 | 60.7/58 | 75.8/72.5 | |||
Max. AC Output Current (A) | 58.4/55.8 | 66.7/63.8 | 83.4/79.7 | |||
Max. Three-phase Unbalanced Output Current (A) | 60 | 70 | 83.3 | |||
Max. Continuous AC Passthrough (A) | 200 | |||||
Generator Input/Smart Load /AC Couple Current (A | 53.1 / 200 / 53.1 | 60.7 / 200 / 60.7 | 60.7 / 200 / 60.7 | |||
Peak Power(off grid) | 1.5 time of rated power, 10 S | |||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging. | |||||
Rated Input/Output Voltage/Range(V) | 220/380, 230/400 0.85Un-1.1Un | |||||
Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | |||||
Grid Connection Form | 3L+N+PE | |||||
Total Harmonics Current Distortion (THDi) | <3% (of nominal power) | |||||
DC Current Injection | <0.5% 1n | |||||
Efficiency | ||||||
Max.Efficiency | 97.60% | |||||
Euro Efficiency | 97.00% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | ||||||
Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional) | |||||
Output Over Voltage Protection | DC Type II / AC Type 3 | |||||
Certifications and Standards | ||||||
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
General Data | ||||||
Operating Temperature Range (ºC) | -40-60ºC, >45ºC Derating | |||||
Cooling | Smart Cooling | |||||
Noise (dB) | ≤65 dB | |||||
Communication with BMS | CAN | |||||
Weight (kg) | 80 | |||||
Cabinet Size (WxHxD mm) | 527*894*294 (Excluding Connectors and Brackets) | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||

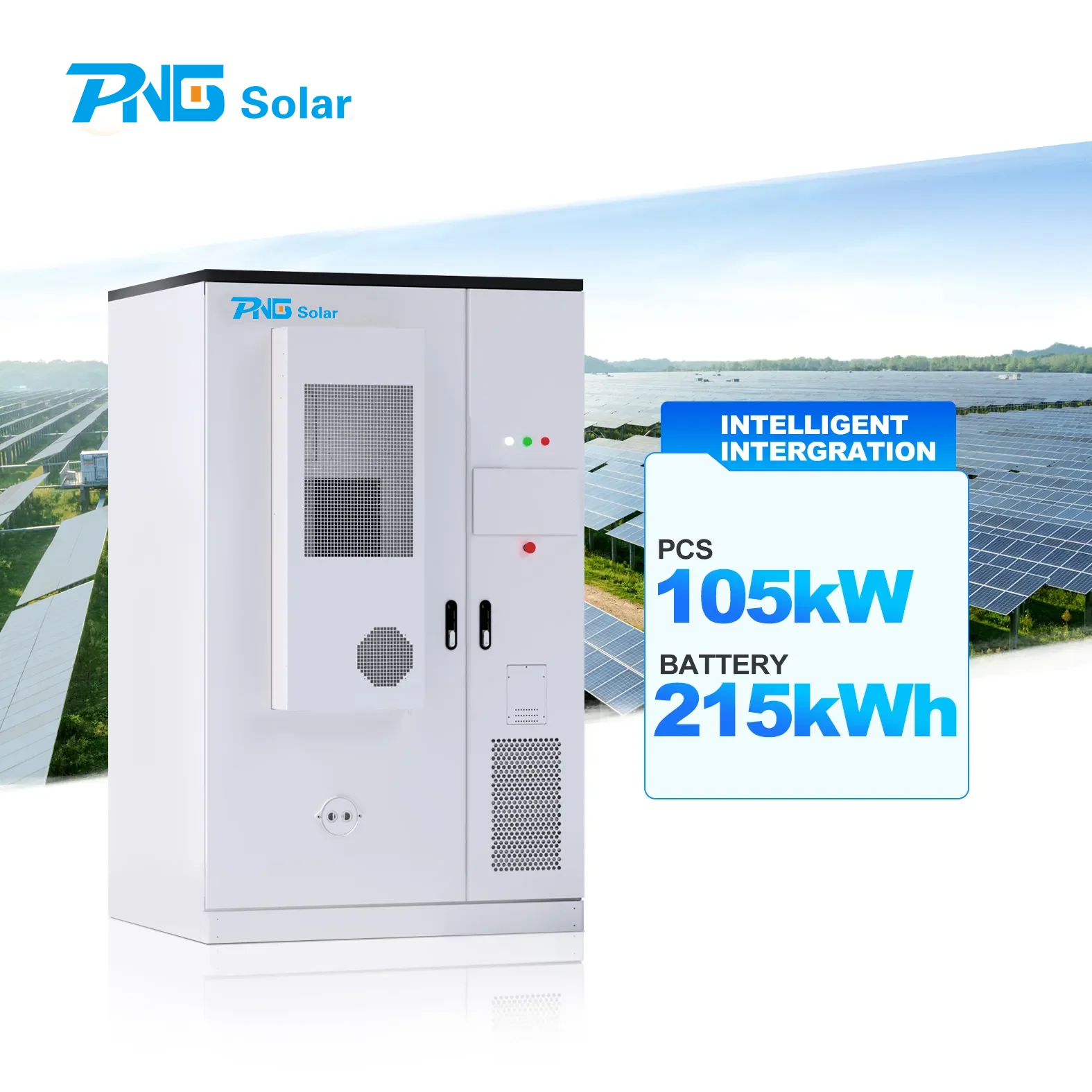

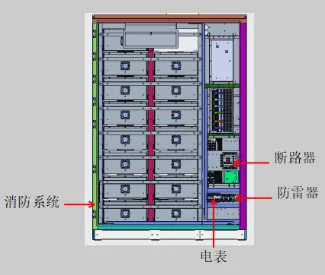

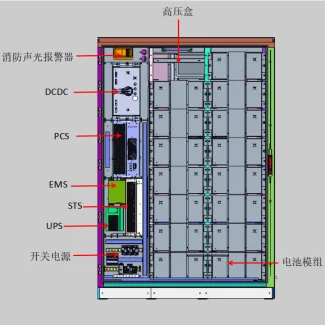

3. Technical specifications of lithium battery
Product model | PNG-215P100K-PV-STS | |
Battery parameters | ||
Cell type | Lithium iron phosphate 3.2V/280Ah | |
Battery Pack Configuration | 14.336kWh/1P16S | |
Battery system configuration | 1P240S | |
Battery system capacity | 215kWh | |
Battery rated voltage | 768VDC | |
Battery voltage range | 600~876VDC | |
Charge-discharge rate | 0.5P | |
Number of charge and discharge | 6000 | |
Battery cooling mode | Air conditioning intelligent air cooling | |
AC parameter | ||
Rated power | 100kW | |
Maximum power | 110kW(10min) 120kW(1min) | |
Current total harmonic distortion rate | ≤3% | |
Direct current component | < 0.5% output rated current | |
Rated voltage | 3*230V/400V | |
Allowable grid voltage range | 360V~440V | |
Access method | 3P4W+PE | |
Rated grid frequency | 50/60Hz | |
Power factor range | 1 (lead)~ -1 (lag) | |
Off-grid operation | Support, but only 50% of the load capacity (capacitive motor equipment needs to consider the starting current). | |
Efficiency | ||
PCS maximum efficiency | 98.8% | |
System maximum efficiency | 90% | |
STS module | ||
Rated grid-side power | 200kw | |
Rated grid-side current | 380A | |
PCS side power | 100KW | |
Load side power | 100KW | |
Rated grid voltage | 380V/400V | |
Grid voltage range | ±15% | |
Rated grid frequency | 50Hz | |
Grid frequency range | ±5Hz | |
Long-term overload capacity | 110% (ambient temperature below 40 ºC) | |
Grid connection to off-grid time | <10ms | |
Topological structure | Non-isolated | |
Operating temperature range | -40~ 60 ºC (> 45 ºC derating operation) | |
Storage temperature range | -40~70ºC | |
Relative humidity | 0~ 95%, no condensation | |
Maximum working altitude | 4000M (> 3000m derated operation) | |
Cooling mode | Forced air cooling | |
Noise (typical value) | <70dB | |
Communication method | RS485/CAN/EtherNet/DIO | |
DC/DC Module | ||
PV side | ||
Rated power | 120kW (PV input 8 * 15kW) | |
Rated current | 360A (PV input 8 * 45A) | |
Rated voltage | 350V | |
Maximum voltage | 1000V | |
Voltage range | 150~1000V | |
Full power voltage range | 340~1000V | |
Low side voltage requirements in buck mode | 150V ≤ low voltage terminal voltage ≤ high voltage terminal voltage, maximum 1000V | |
Low side starting voltage | 150V | |
Voltage stability | 1% | |
Current stability | 1% | |
DC high voltage side | ||
Rated power | 120kW | |
Rated current | 180A | |
Rated voltage | 700V | |
Maximum voltage | 1000V | |
Voltage range | 350~1000V | |
Full power voltage range | 680~850V | |
Low voltage side voltage requirement for buck mode 1000V ≥ high voltage terminal voltage * 0.95 > low voltage terminal voltage, minimum 350V | ||
High voltage side starting voltage: 350V | ||
Voltage stability: 1% | ||
Current stability 1% | ||
Protection | ||
DC input reverse protection | Support | |
AC input reverse Self-Adaptation | Support | |
Insulation impedance detection | Support | |
AC overcurrent protection | Support | |
AC overvoltage protection | Support | |
AC short circuit protection | Support | |
Grid-side surge protection | Support | |
Power grid abnormal automatic switching | Support | |
Low pressure crossing | Support | |
High voltage crossing | Support | |
Communication and human-machine interaction | ||
Communication interface | RS232/RS485/WiFi/4G/Ethernet | |
Human-machine interaction | Touch screen/indicator light | |
System parameters | ||
Weight | 2.3t | |
Dimensions (width * depth * height) | 1450*1050*2200mm | |
Protection level | IP55 | |
Noise | <75dB | |
Working temperature | -20 ºC~ + 55 ºC (reduction above 40 ºC) | |
Storage temperature | -20ºC~+55ºC | |
Relative humidity | 5%~ 95% non-condensing | |
Fire protection programme | Perfluorohexanone/aerosol (optional) | |
Working altitude | ≤ 4000m (reduction required for exceeding 2000m) | |
Cooling mode | Air conditioning intelligent air cooling | |
Packaging & Delivery

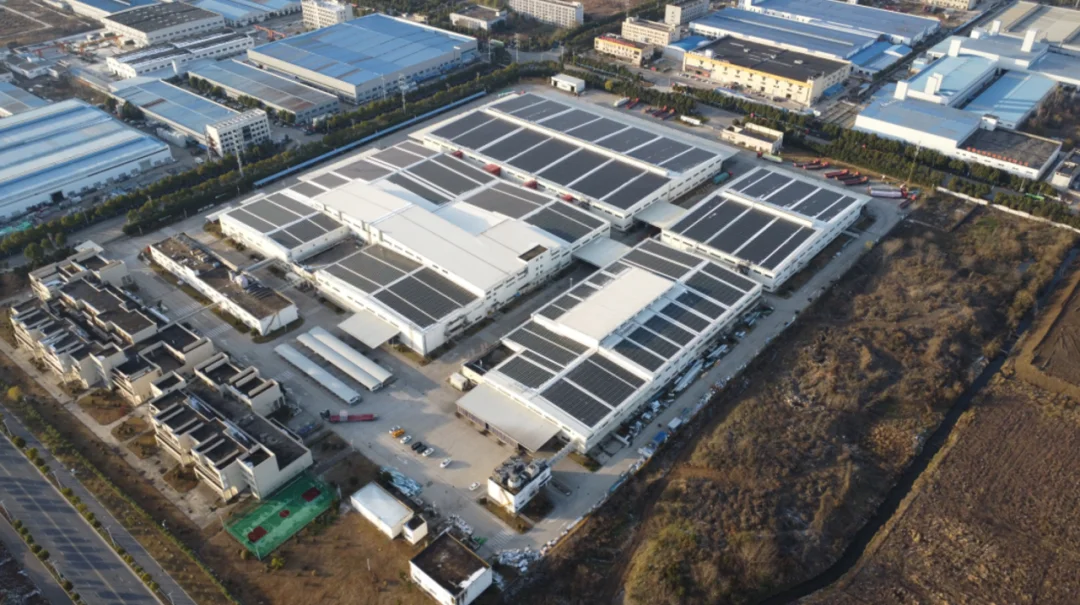

Successful Projects
Certification
FAQ
Q1. What can you buy from us?
A1: Solar Panel, Solar System, Gel Battery and lithium battery, Inverter, complete on-grid, off-grid and hybrid solar system.
Q2. Why should you buy from us not from other suppliers?
A2: PNG SOLAR is audited by Alibaba , with annual turnover 1.5bln USD .
PNG SOLAR is an official agent of Longi, Jinko , JA solar, Astronergy solar , Huawei inverter and etc.
Long-term partnership is our rules.
We only supply 100% A grade from original original factory.
Q3. What services can we provide?
A3: Pre-sales and after-sales service. In order to save your time for after-sales problems, we prefer supplying Top brand components .
Q2. Why should you buy from us not from other suppliers?
A2: PNG SOLAR is audited by Alibaba , with annual turnover 1.5bln USD .
PNG SOLAR is an official agent of Longi, Jinko , JA solar, Astronergy solar , Huawei inverter and etc.
Long-term partnership is our rules.
We only supply 100% A grade from original original factory.
Q3. What services can we provide?
A3: Pre-sales and after-sales service. In order to save your time for after-sales problems, we prefer supplying Top brand components .
Accepted Delivery Terms: FOB, CFR,CIF, EXW, DDP；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, PayPal;
Language Spoken: English,Chinese, Spanish, Japanese, German, Russian
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, PayPal;
Language Spoken: English,Chinese, Spanish, Japanese, German, Russian
Contact
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
