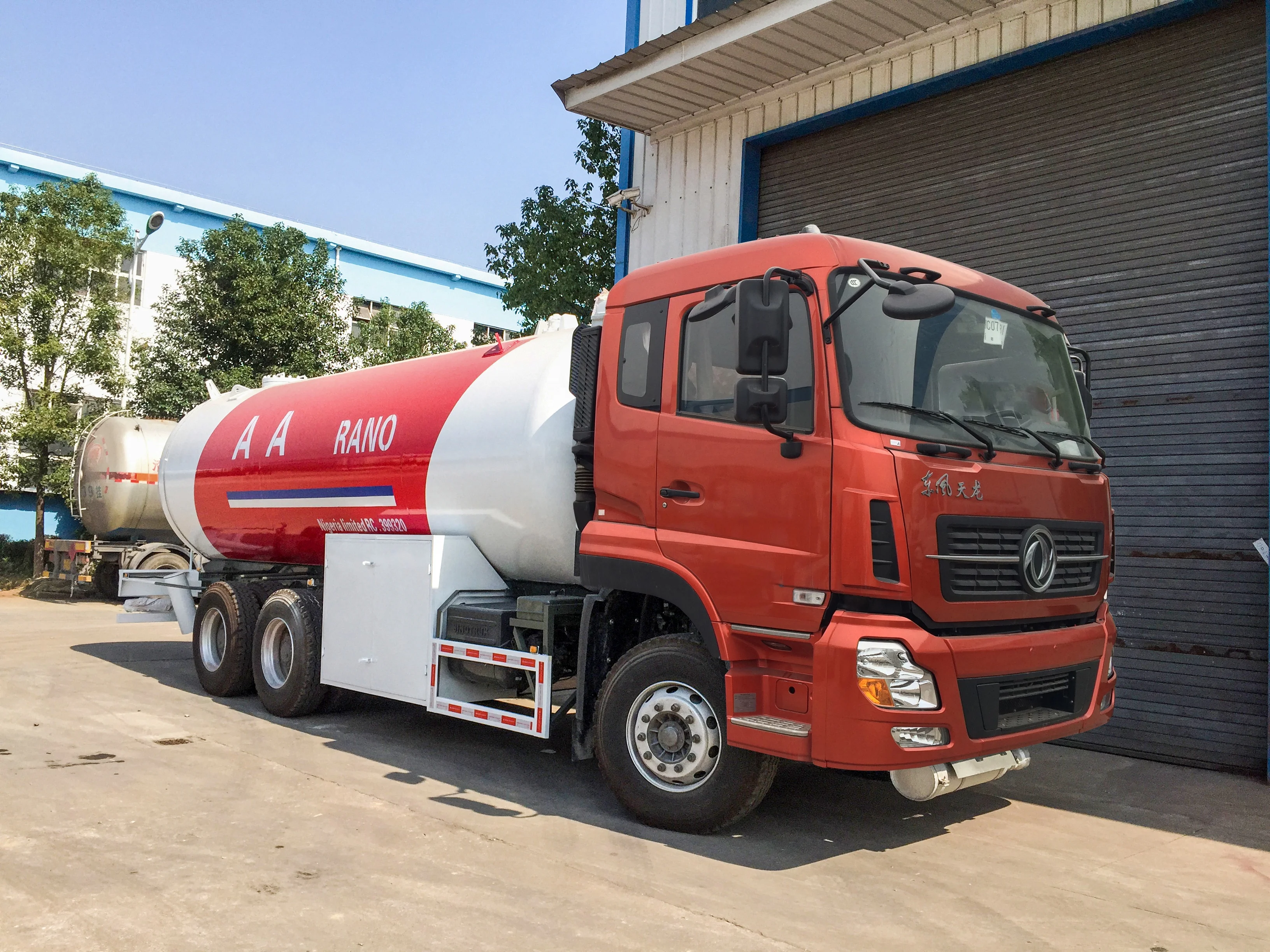

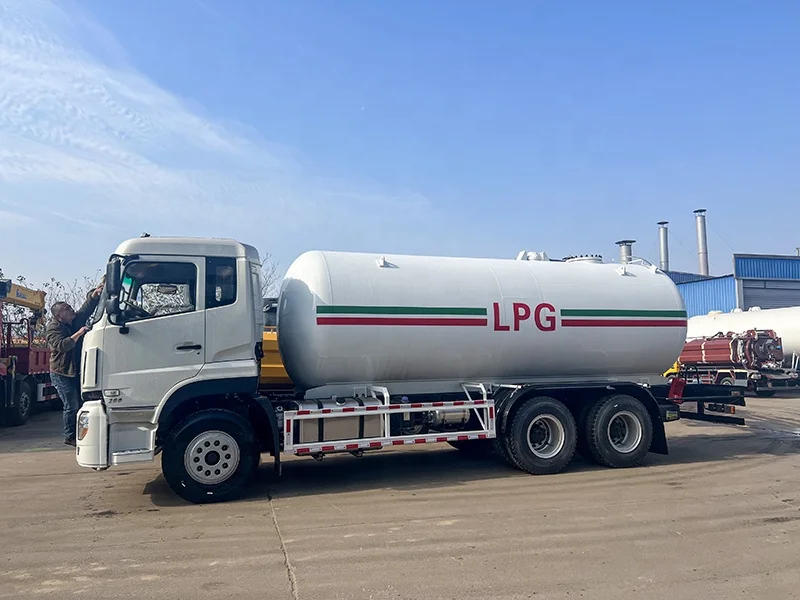

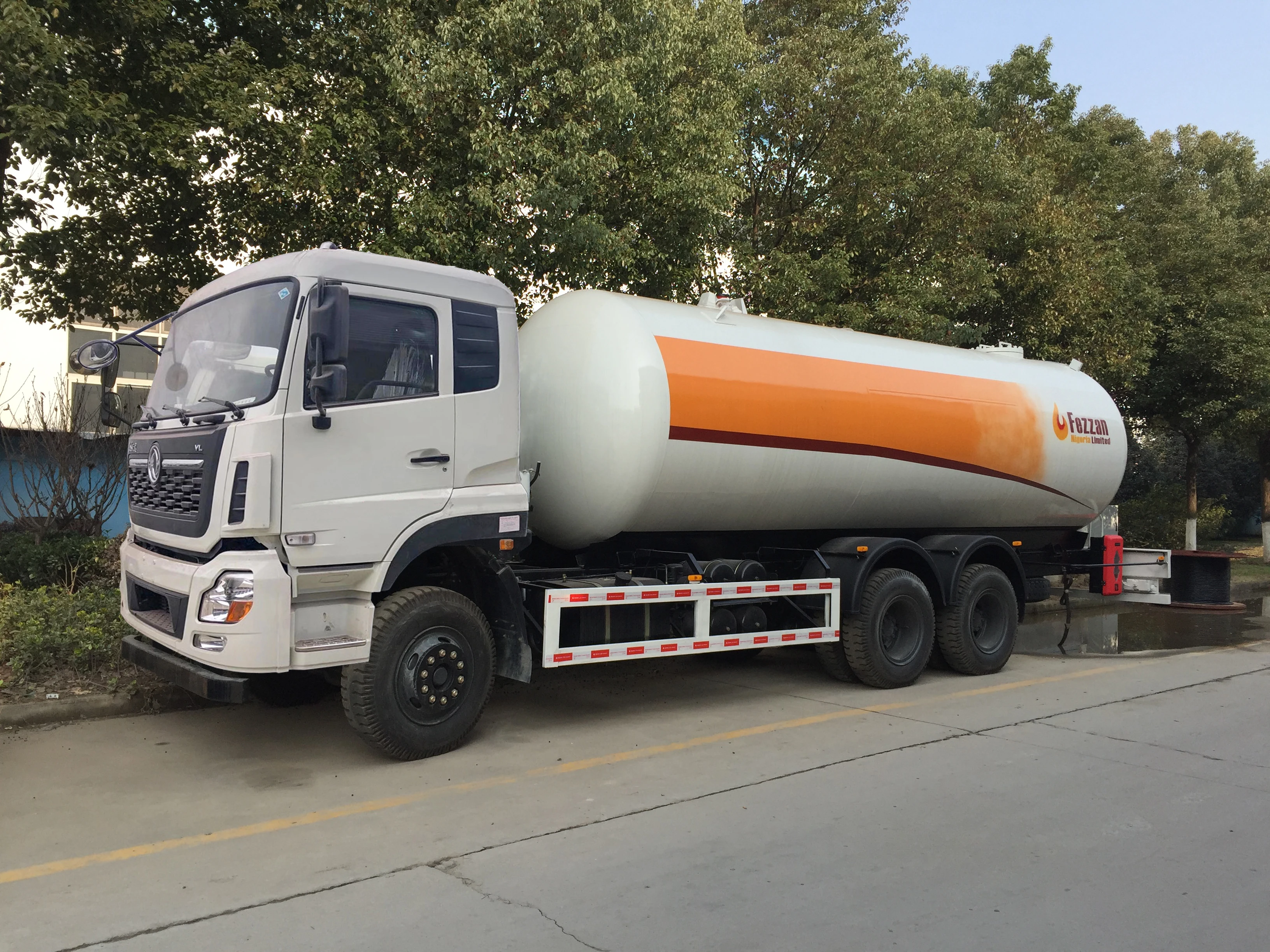

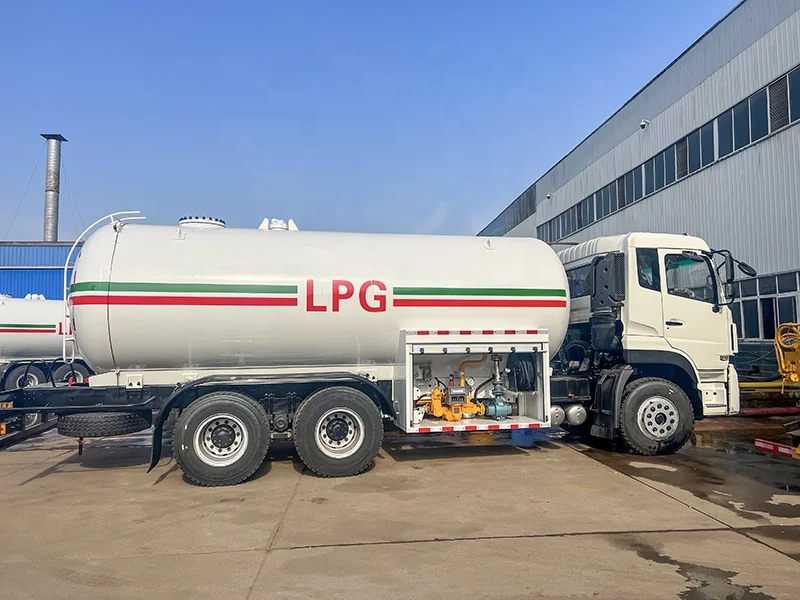

Dongfeng gas cylinder delivery truck designed 25000 liter LPG gas transport cargo truck
- Category: >>>
- Supplier: China Dongfeng Motor Industry Imp. & Exp. Co. LtdChina Ltd
Share on (1601368341640):
Product Overview
Description
China Dongfeng Motor Industry Imp.&Exp. Co., Ltd, established In May of 1983 as the professional trade company of Dongfeng Group, also the first state own and approved trade company in China's Motor vehicle industry, and to be one of the most important trade companies regulated by the Ministry of Commerce of the people’s Republic of China, Currently Dongfeng commercial vehicles brand trucks and passenger car brand fengsheng,fengxing,Fengdu, and so on, which are exported to South Asia, Middle-east, South America, and other more than 100 Countries and areas.
- Dongfeng gas cylinder delivery truck designed 25000 liter LPG gas transport cargo truck
- Main Specification
| Item | Unit | Description | ||||||||
| Model | Dongfeng KL LPG Deliverying Truck DFL1250A9 | |||||||||
| Dimension | mm | 10720*2470*3420 | ||||||||
| Tank Dimension | mm | 8060*2070 Length*diameter | ||||||||
| Curb Weight | kg | 14210 | ||||||||
| G.V.W | kg | 30000 | ||||||||
| Wheel Base | mm | 5650+1350 | ||||||||
| F/R track base | mm | 1950 / 1860 | ||||||||
| F/R Axle-Load | Kg | 7000 / 13000 /13000 | ||||||||
| Tire | Model | 11.00R20 / 10 Unit +1 Spare Unit | ||||||||
| Approach/Departure angle | . | 26/10 | ||||||||
| Traction system | Type | 6*4 | ||||||||
| Max speed | Km/h | 80 | ||||||||
| Engine model | Model | C260-33 | ||||||||
| Emission/Kw | 8300 cc, 193 Kw / 2200 r | |||||||||
| Horse Power | 260 | |||||||||
| Max Power | 1125 N.m - 1400~1600 r/min | |||||||||
| Type | Diesel, 6 cylinders, Turbocharge, Inter-Cooling | |||||||||
| Manufacture | Dongfeng Cummins Engine Power Co., Ltd | |||||||||
| Standard | Euro III | |||||||||
| Gearbox | Model | 9F&1R, Manual , 9JS119T-B | ||||||||
| Brand | Fast Brand | |||||||||
| Fuel Tank | Liter | 350 | ||||||||
| Electric system | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversible, Manual | |||||||||
| Steering | Powering , LHD | |||||||||
| Installing | Mp3, Radio , Air conditioner | |||||||||
| LPG Tank Design | ||||||||||
| Tank Dimension | mm | 25000 liter | ||||||||
| Load Substance: | Propane Gas | |||||||||
| Designed Pressure: | Mpa | 1.77 | ||||||||
| Designed TEMP: | ℃ | -20 ~ 50 | ||||||||
| Material: | model | Q345R | ||||||||
| Option ~ Q370R | ||||||||||
| LPG Pump | liter / min | 250 | ||||||||
| Manufactuere Standard | Standard | China GB150, or ASME | ||||||||

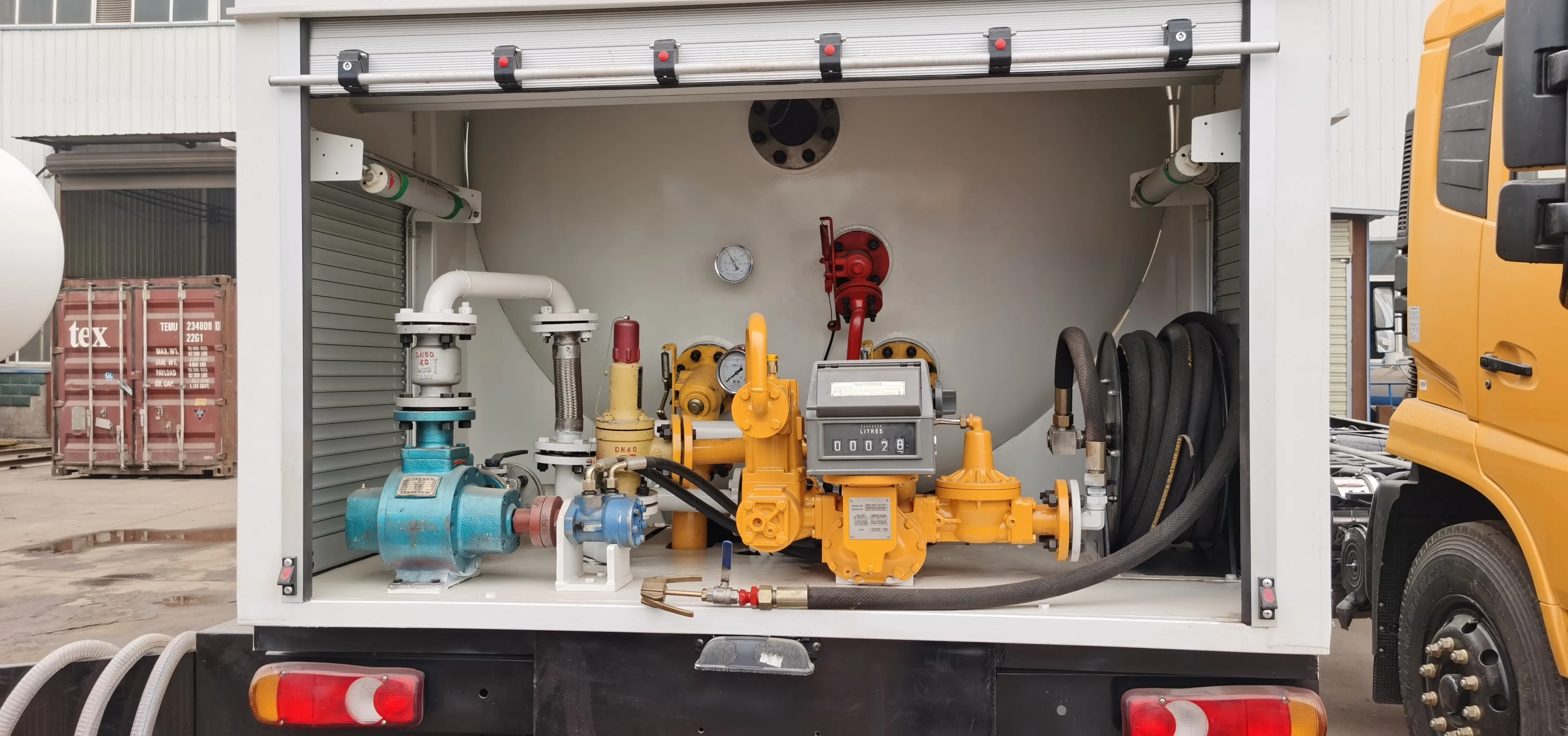

| Remark: | Equipment with Safety Valve, Liquid gage, Pressure gauge, Temperature gauge, Urgent cut off valve, Valve box, Fire extinguisher, plastic pipe of staticproof, Well-secured fenders and mudguards, Tire well-secured, fenders and mudguards. One side liquid output port, | |||||||||
- More photos showing

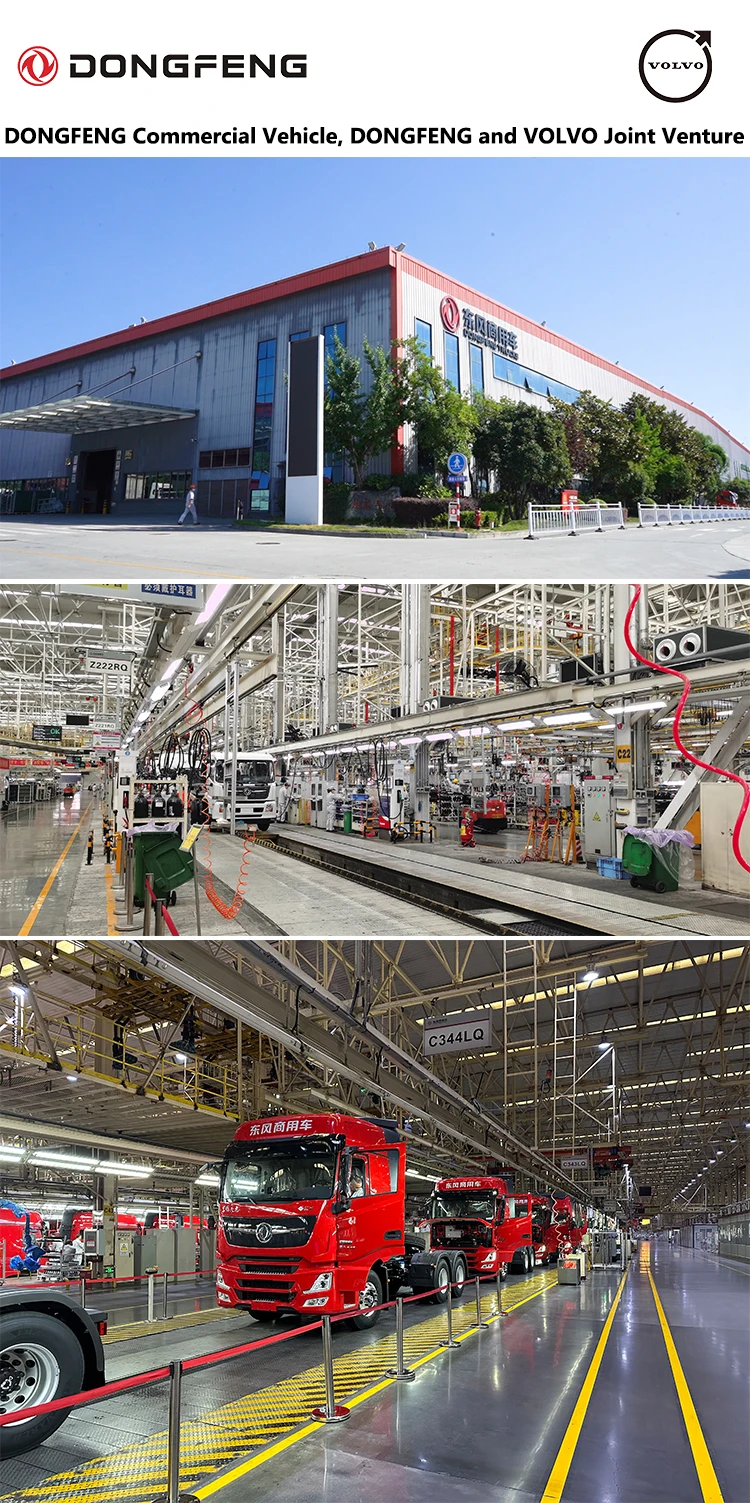

- Dongfeng Group Introduction
