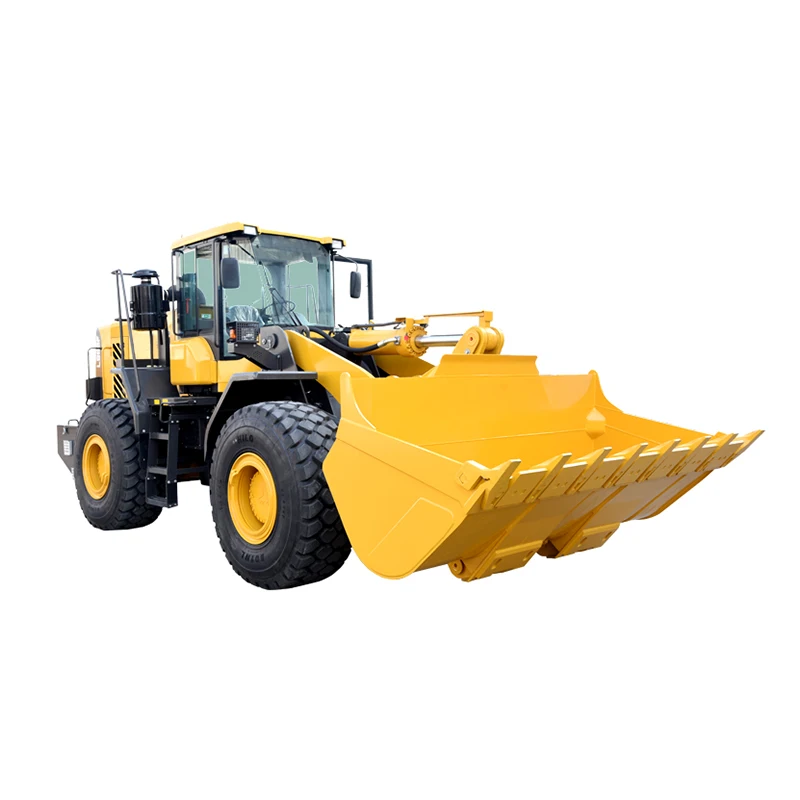

Efficient L968F Front End Loader with 4 Speed Gear System and 3.5m³ Bucket for Earthmoving and Infrastructure
Efficient L968F Front-End Loader with 4-Speed Gear System and 3.5m³ Bucket for Earthmoving and Infrastructure
Efficient L968F Front-End Loader with 4-Speed Gear System and 3.5m³ Bucket for Earthmoving and Infrastructure
Efficient L968F Front-End Loader with 4-Speed Gear System and 3.5m³ Bucket for Earthmoving and Infrastructure
Efficient L968F Front-End Loader with 4-Speed Gear System and 3.5m³ Bucket for Earthmoving and Infrastructure
Efficient L968F Front-End Loader with 4-Speed Gear System and 3.5m³ Bucket for Earthmoving and Infrastructure
Efficient L968F Front-End Loader with 4-Speed Gear System and 3.5m³ Bucket for Earthmoving and Infrastructure

Efficient L968F Front End Loader with 4 Speed Gear System and 3.5m³ Bucket for Earthmoving and Infrastructure

Share on (1601368343336):


Price:$32,000.00

Quantity:


Product Overview

Description



Company Viedo






Product Overview



•Weichai engine and capable converter are optimally matched, which significantly increase traction and ensure excellent fuel economy. Shock absorption device is added when installing the engine, which further improves the sealing effect of the cab and reduces vibration and noise.
•Extended wheel base and large counterweight contribute to larger bearing capacity. Rear mounted fuel tank is equipped for high stability and convenience of fuel filling.



Product Paramenters


Overall dimension
L*W*H
8680*3200*3470mm
Wheel base
3400mm
Min. ground clearance
530mm
Max. dumping height
3250mm
Dumping distance
1090mm
Dumping angle
45
wheel tread
2250mm
steering angle
38
horizontal crossing radius
7140mm
Min. turning radius
6062mm
Overall parameters
Backet capacity
3.5m3(optional 3.0-5.0)
Rated load
6000kg
operating weight
19950kg
Max. tractive force
180kN
Max. breakout force
210kN
Tipping load
128kN
Engine
Model
WD10G240E201
Type
Inline, watercooled, dry cylinder liner, direct injection
Rated power
178kW
Rated speed
2200r/min
Engine displacement
9726ml
Max. torque
1000N.m
Emission standard
GB 20891-2007(China Phase II)
Min. fuel-consume ratio
230g/kw.h
Transmission system
Torgue converter
single-stage three-element
single-turbine hydraulic torque converter
Transmission type
Axis-fixed electro-hydraulic transmission
Gears
Forward 4 reverse 4
Hydraulic system of working device
Type
Hydraulic pilot control
total time
10.3s
Brake system
Service brake type
Air over hydraulic disc type
Parking brake type
Electric pneumatic caliper disc type
Steering system
Type
Load sensing full hydraulic articulated steering
System pressure
21 Mpa
Fill capacity
Fuel
350L
Hydraulic oil
220L
Engine
20L
Transmission
28.4L
Drive axle
Forward 40L+ reverse 40L
Braking system
4L

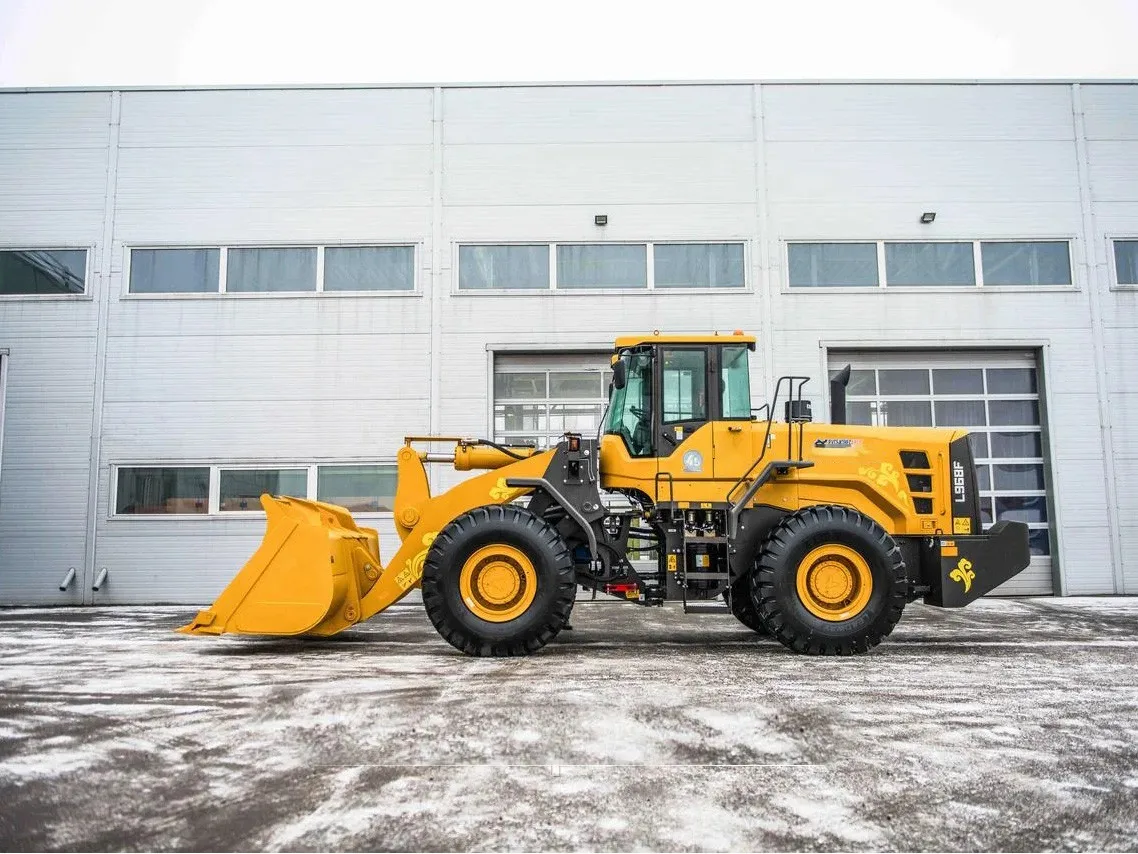

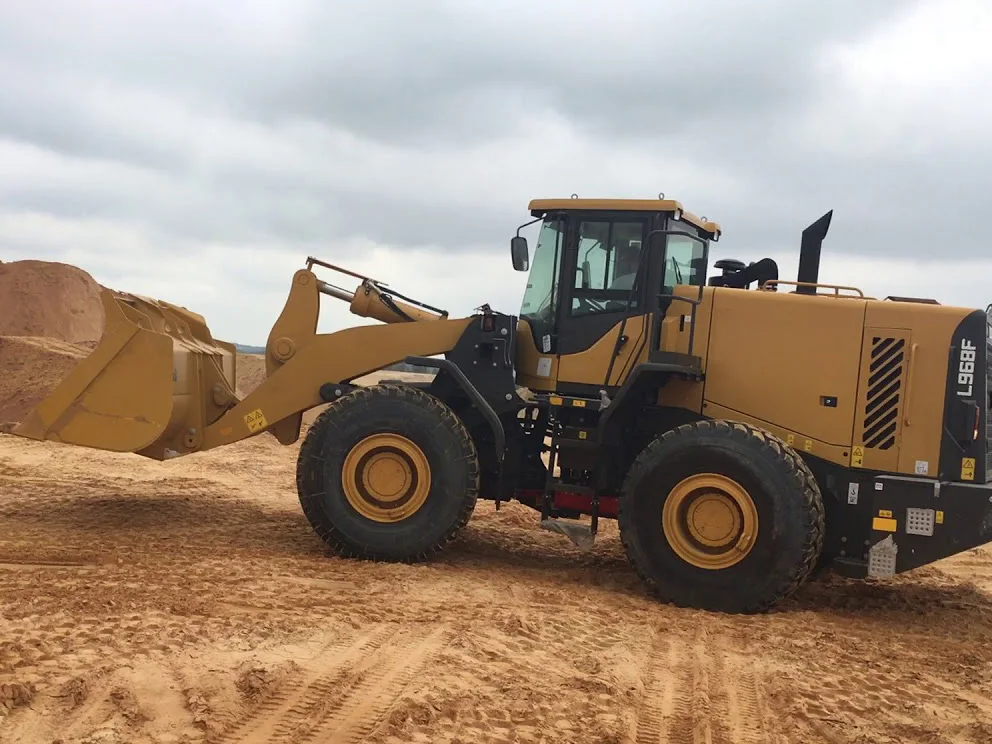

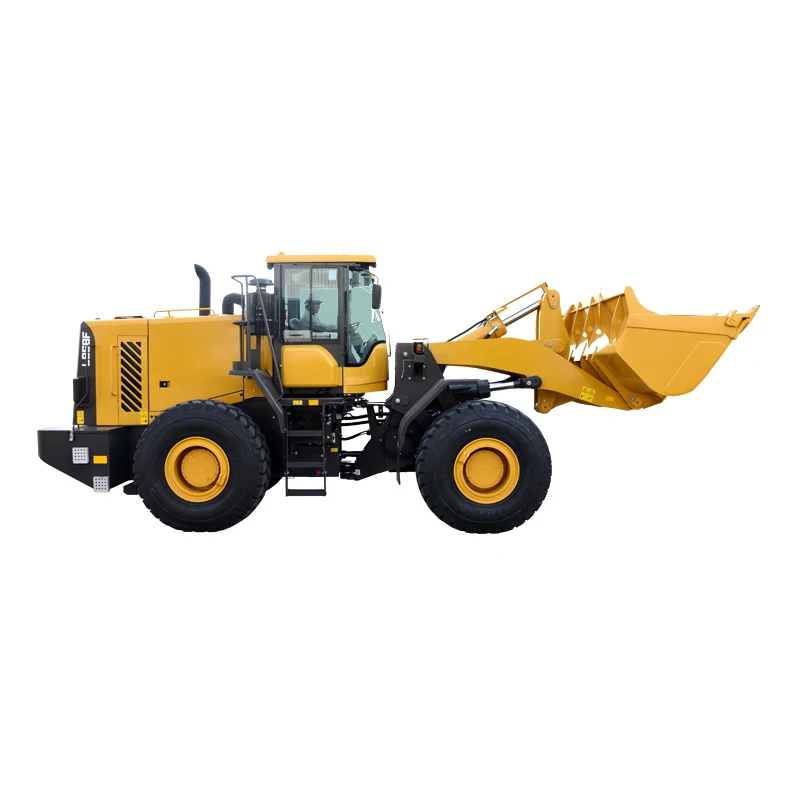

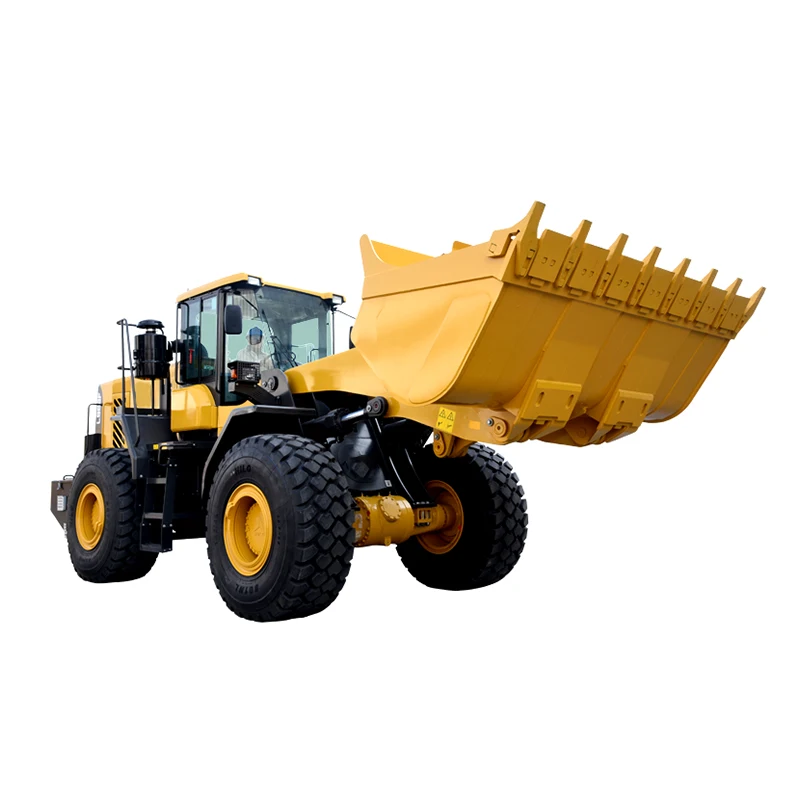

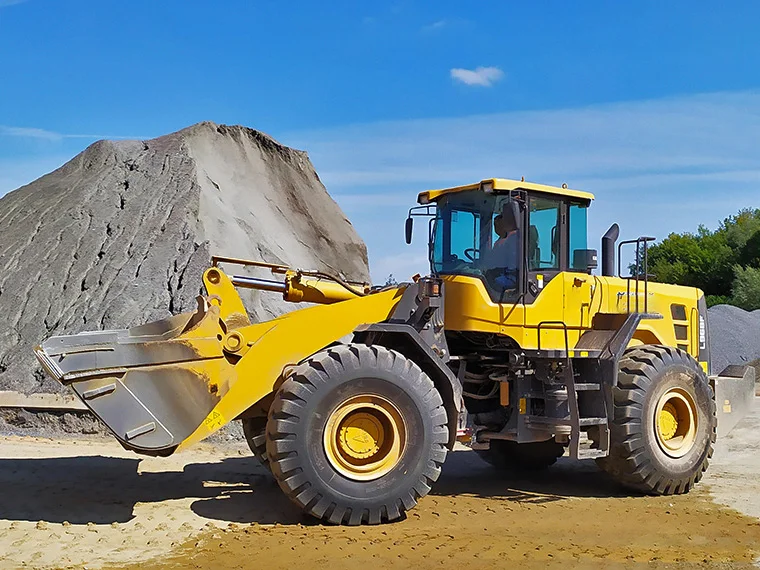

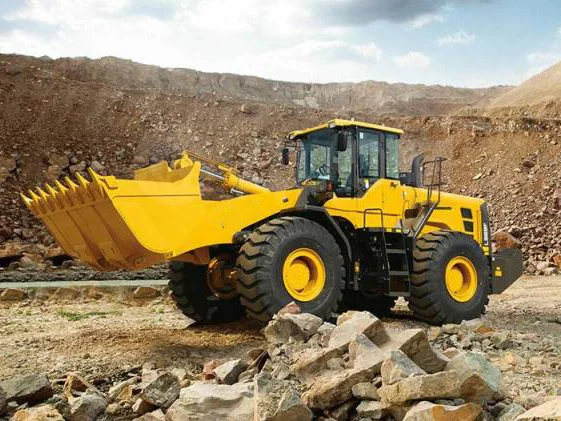

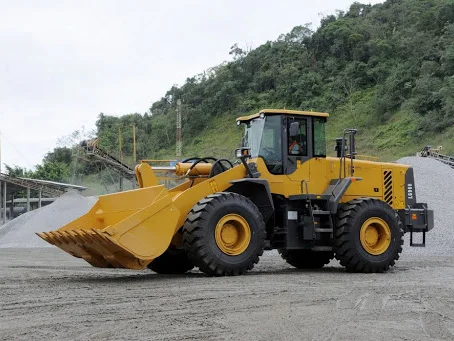

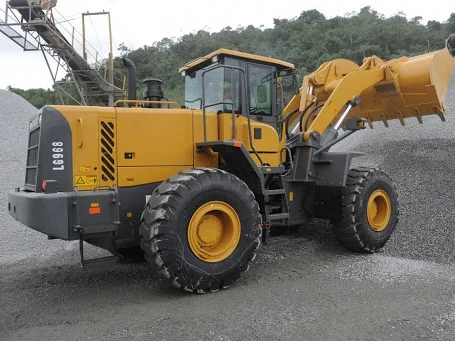

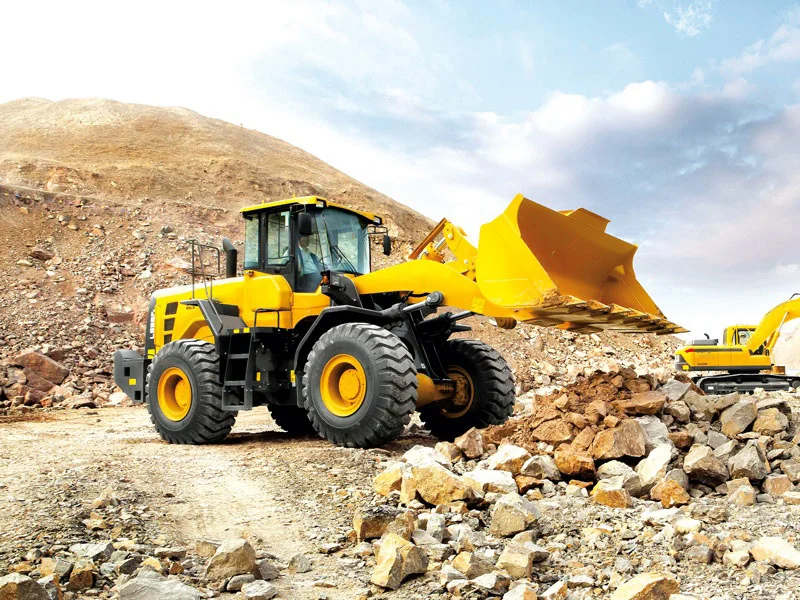

Details images
