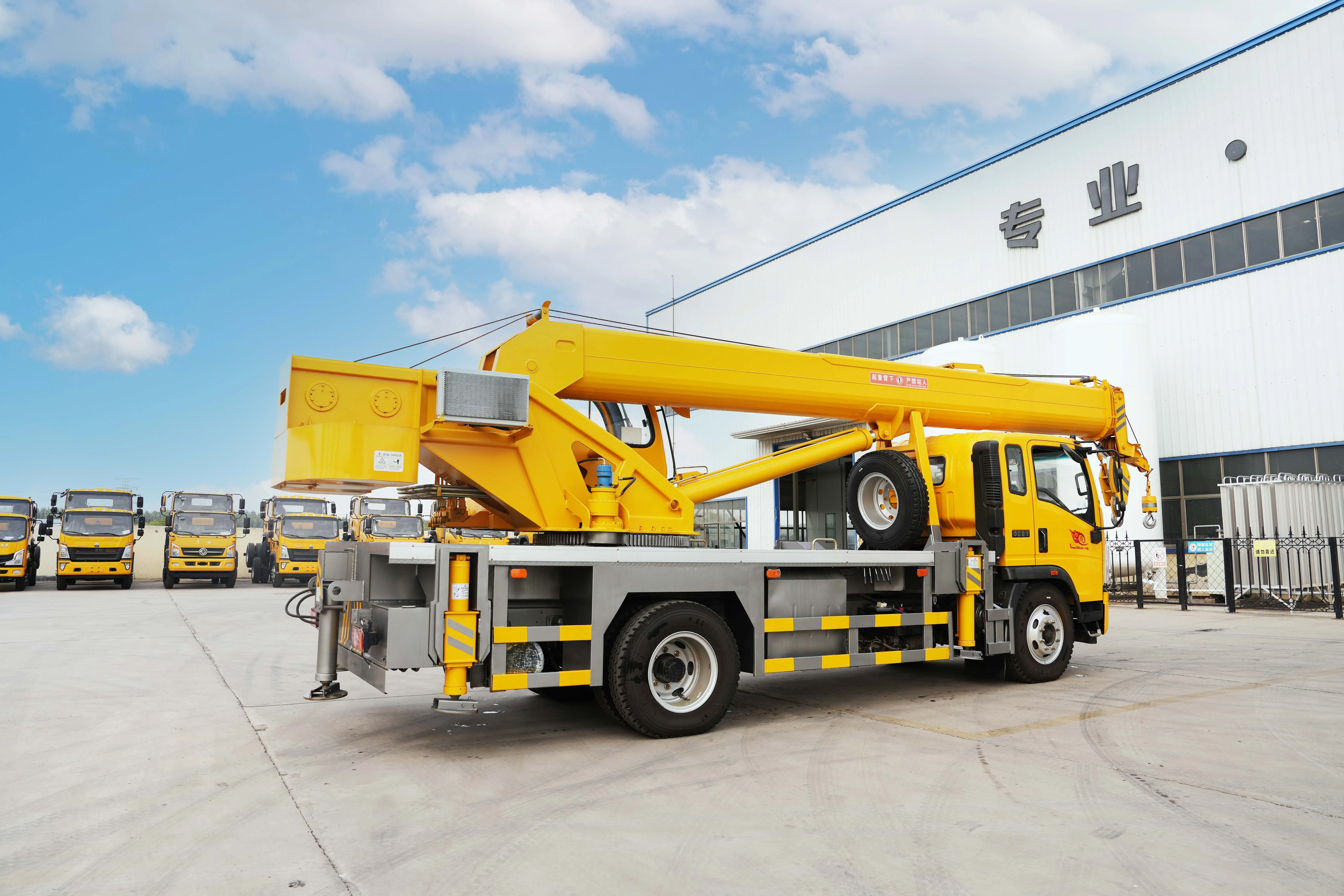

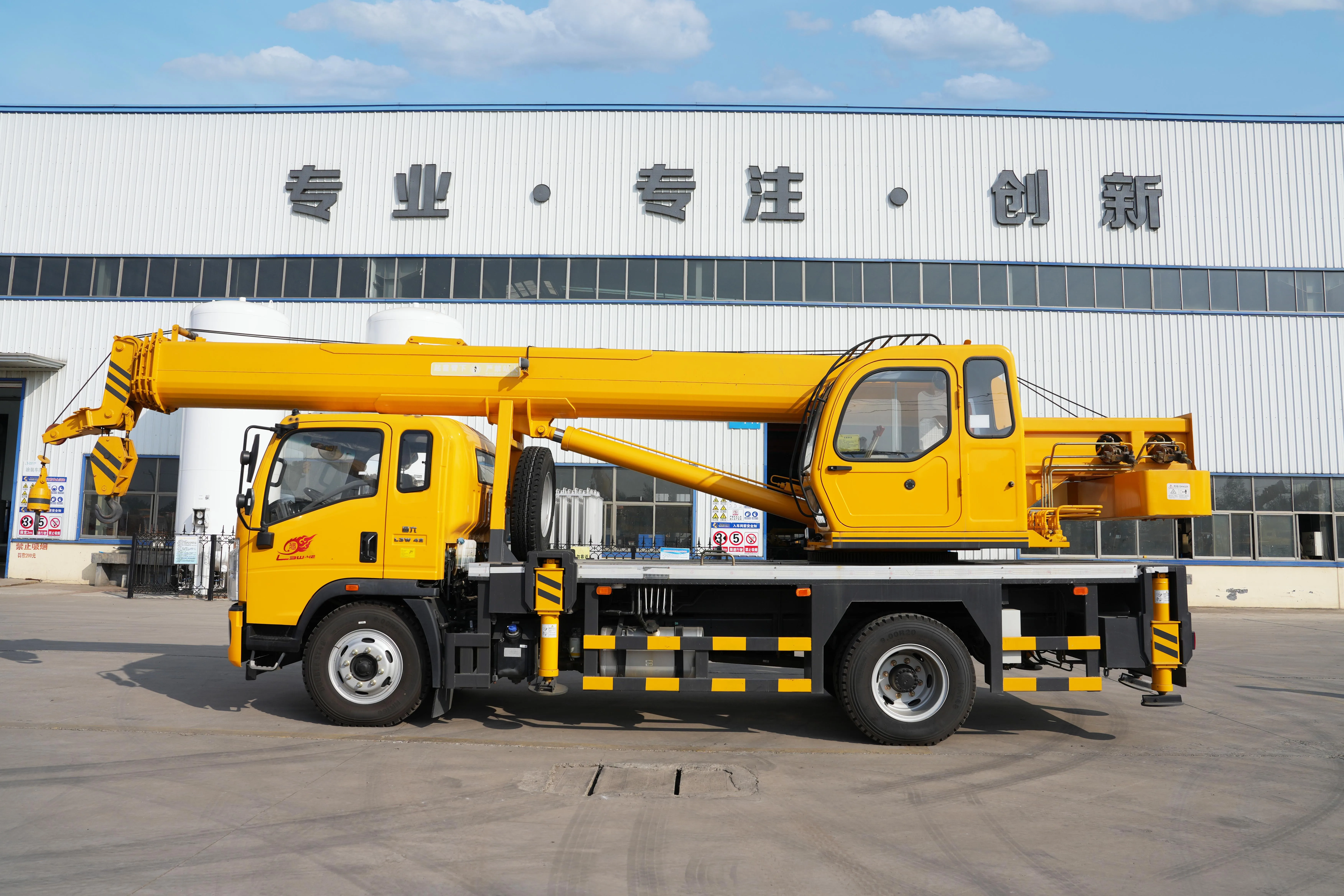

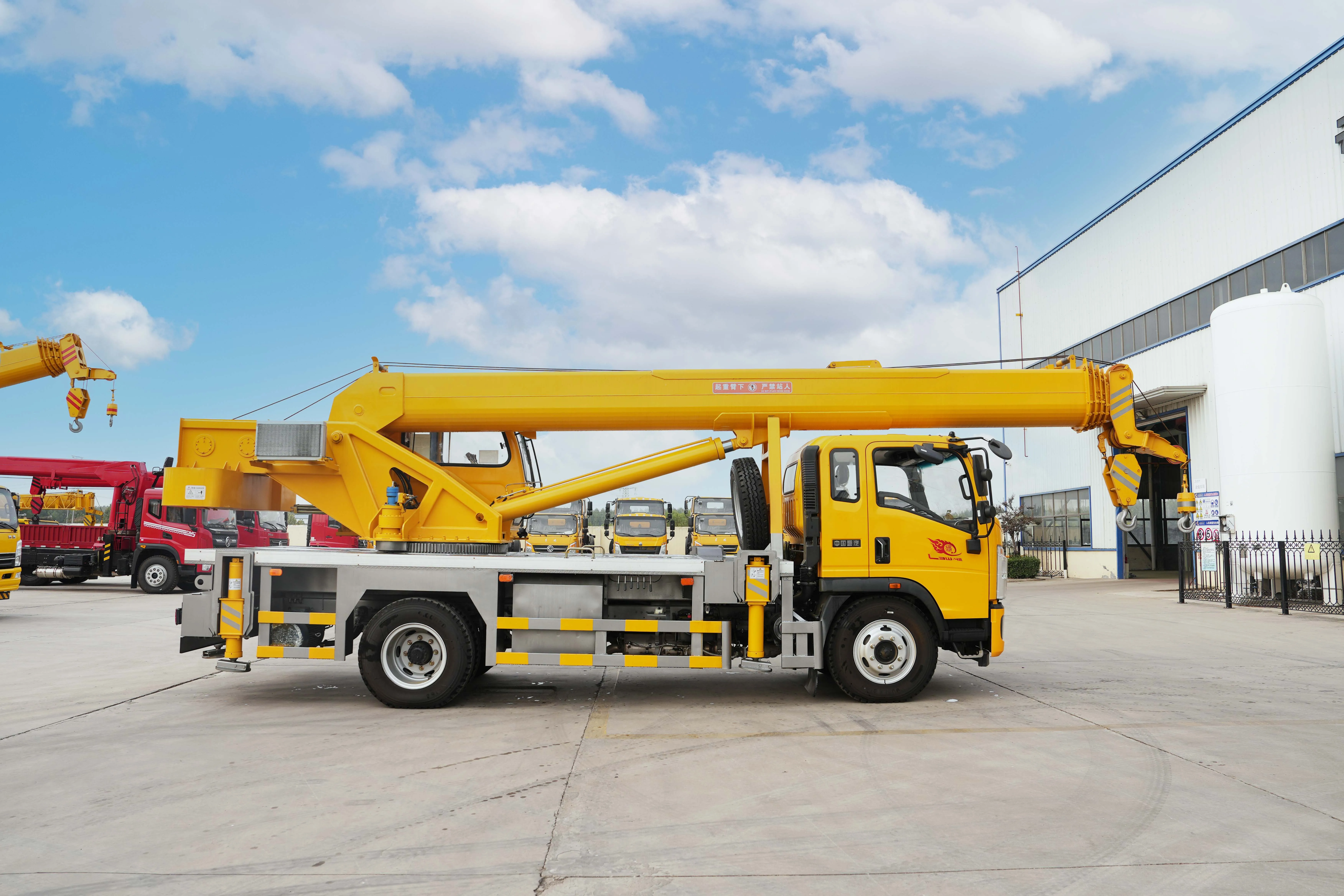

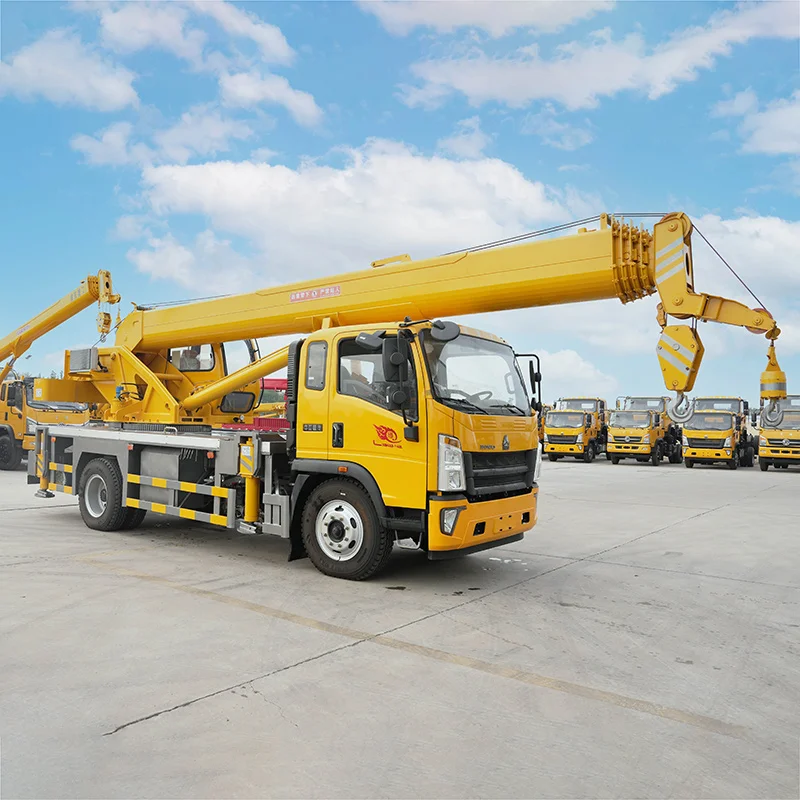

Good Selling ISUZU HOWO FOTON 5,8,10,12,16 Tons Boom Truck Hydraulic Lorry Crane Sinotruk Truck Cranes Factory
Good Selling ISUZU HOWO FOTON 5,8,10,12,16 Tons Boom Truck Hydraulic Lorry Crane Sinotruk Truck Cranes Factory
Good Selling ISUZU HOWO FOTON 5,8,10,12,16 Tons Boom Truck Hydraulic Lorry Crane Sinotruk Truck Cranes Factory
Good Selling ISUZU HOWO FOTON 5,8,10,12,16 Tons Boom Truck Hydraulic Lorry Crane Sinotruk Truck Cranes Factory
Good Selling ISUZU HOWO FOTON 5,8,10,12,16 Tons Boom Truck Hydraulic Lorry Crane Sinotruk Truck Cranes Factory
Good Selling ISUZU HOWO FOTON 5,8,10,12,16 Tons Boom Truck Hydraulic Lorry Crane Sinotruk Truck Cranes Factory
Good Selling ISUZU HOWO FOTON 5,8,10,12,16 Tons Boom Truck Hydraulic Lorry Crane Sinotruk Truck Cranes Factory

Good Selling ISUZU HOWO FOTON 5,8,10,12,16 Tons Boom Truck Hydraulic Lorry Crane Sinotruk Truck Cranes Factory

Share on (1601368680732):


Price:$11,800.00-13,800.00

Quantity:


Product Overview

Description



Product Paramenters


Configuration Table of 12 Ton Heavy Duty Truck HOWO (National VI)
brand
JQCM
Rotary mechanism
Secondary planetary steering
Chassis Model
Heavy Duty Truck HOWO
Outrigger
5 fully hydraulic outriggers
Full crane size
10380*2380*3330
Outrigger span (transverse)
6780mm
wheelbase
4200mm
Outrigger span (longitudinal)
5200mm
Maximum rated lifting capacity
14000KG
Protective devices
two-way hydraulic lock
maximum lifting height
33m
Work lights
two
engine model
in the cloud (electronic injection intercooling boost)
hydraulic pump
dual pump
gearbox model
Heavy Duty Truck 10 Speed Transmission
Dual use of oil and electricity
15KW-6 pole copper core motor
tire
900-R20
Rotation radius
2.65m
brake system
Air brake (ABS)
Frame size
400mm*200mm
Steering mechanism
Hydraulic directional assistance
top of posterior displacement
standard configuration
Main lifting mechanism
12 ton winch
Lifting operation mode
Pushrod operation
Auxiliary lifting mechanism
12 ton winch
Rod output form
Synchronous scaling
Type of boom structure
8 meters * 5 /6knots (inner rope)
Slewing bearing
1.3 meter turntable
motor power
130KW (180 horsepower)
Outrigger extension length
2 meters
Total length of lifting arm
40/48meters
The distance of the crane arm lying far away
22 meters (1 ton)


Product features: The crane is equipped with high and low speeds; original air conditioner and driving recorder; PTO power output system can stabilize the engine fixed speed and keep the pressure and flow of each lifting hydraulic system constant; Fast 8-speed gearbox, high first gear ratio, strong overall power performance; the hydraulic system of the whole vehicle adopts a new design, which is easy to operate, high working efficiency, smooth and comprehensive performance of movement, stable and reliable, flexible and comfortable.


Products Description
















Manganese steel boom
Selected high-quality materials, reliable quality, no fear of lifting weight.
Planetary reducer
360 degree rotation, easy and flexible operation, new power steering mechanism.


Independent and comfortable cab
The independent cab has a wide field of vision, comfortable riding and customizable appearance.
Fully automatic hydraulic outriggers
5 fully automatic hydraulic outriggers provide stable support and make work more secure.


Powerful power, optional single or double winches. Excellent performance, simple and efficient. More efficient and safer operation
5-16 ton cranes, customized chassis of different brands for you to choose from, providing different customization experiences.
