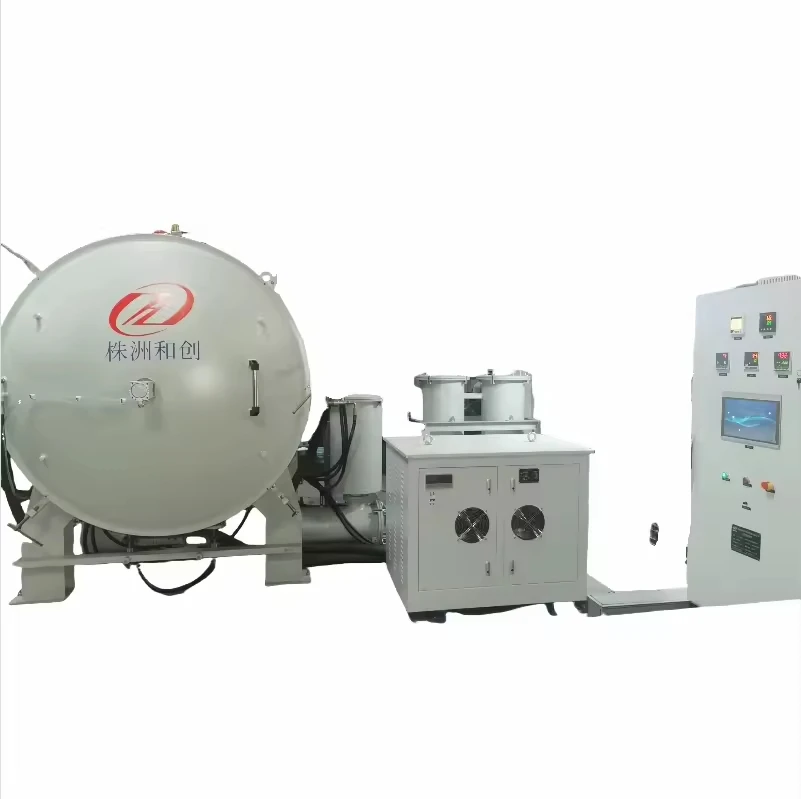

Induction Furnace Composite Metal Powder Ultimate Temperature Vacuum Silicon Carbide Sintering Pump Core For Sale
- Category: >>>
- Supplier: Zhuzhou Hechuang Medium-High Frequency Equipment Co. Ltd.Zhuzhou Ltd.
Share on (1601369181568):
Product Overview
Description
About this product:
•Ultra-high temperature and high-current power lead-in technology, enabling stable use for a long time under high temperature conditions.
•The unique furnace chamber design features independent temperature control in multiple temperature zones and boasts excellent temperature uniformity of ±3℃.
• Dual-color far-infrared temperature measurement, with a temperature measurement accuracy of 0.3% and a temperature control accuracy of ±1℃.
•Four-stage tar filtration system: intense cooling, filtration, collection and air filtration.
• The dewaxing and sintering processes of the product are completed in one go, shortening the production cycle.
•Applicable process atmospheres: vacuum/inert gas, argon, nitrogen, etc.
Application scope:

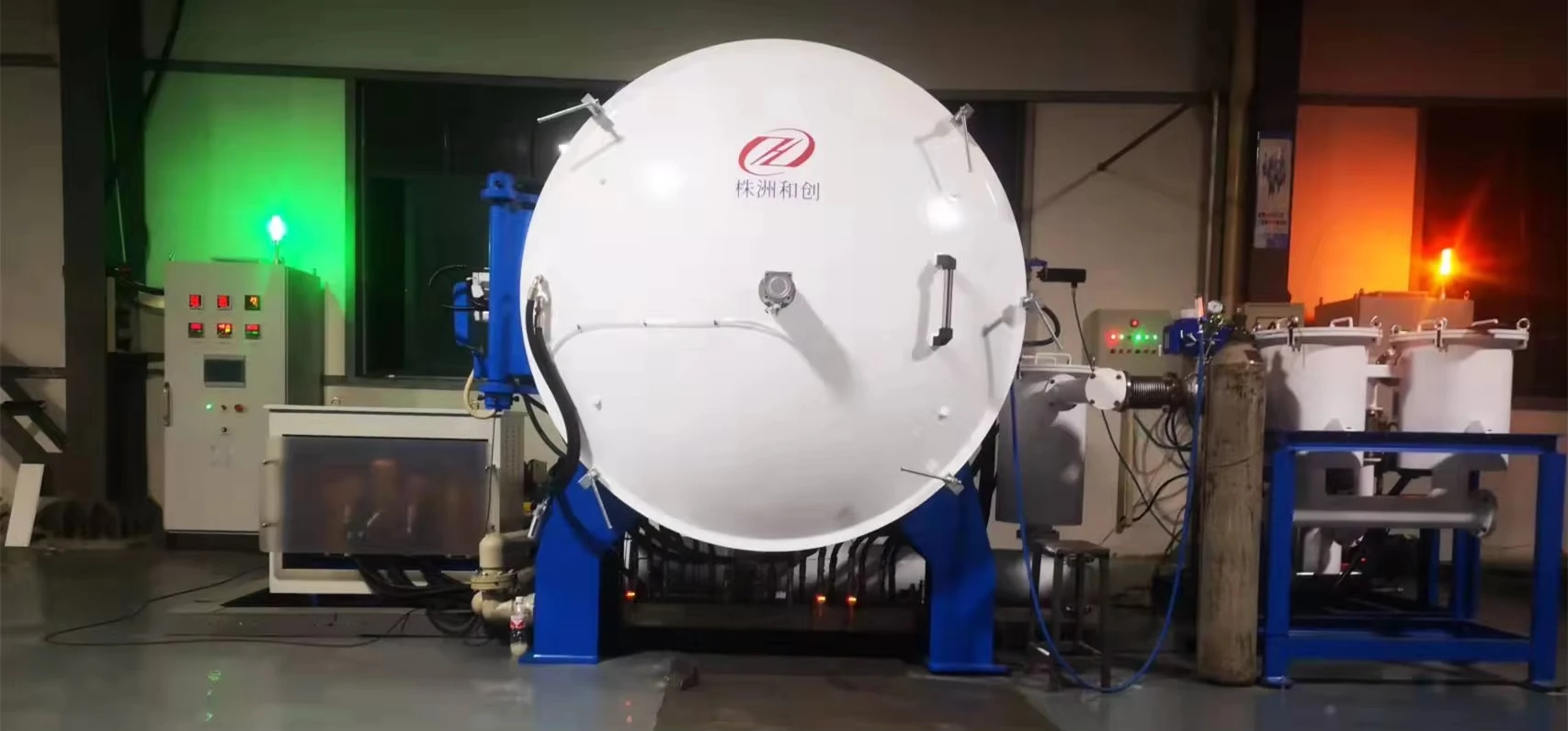

High-temperature vacuum sintering furnaces are applicable to: pressureless sintering of boron carbide ceramics, pressureless sintering of silicon carbide ceramics, sintering of recrystallized silicon carbide ceramics, sintering of aluminum nitride ceramics, sintering of high-performance ceramic substrates, precision ceramic sintering with high requirements for the consistency of the density of finished products with shrinkage dimensions, powder metallurgy sintering or high-temperature vacuum sintering of other metallic and non-metallic materials.
Parameter | Used for experiment | Used for production | ||||||||||
Model | / | HC-SJL-S | HC-SJL-45 | HC-SJL-50 | HC-SJL-60 | HC-SJL-70 | ||||||
Effective volume | cm | 30*30*40 | 45*45*75 | 50*50*120 | 60*60*150 | 70*70*150 | ||||||
Heating mode | / | Graphite heating (resistance heating) or medium frequency induction heating | ||||||||||
control mode | / | Semi automatic + automatic + mobile remote operation | ||||||||||
Loading volume | L | 36 | 151 | 300 | 540 | 735 | ||||||
Loading capacity | g | Loading area volume * product density(the loading volume is customizable) | ||||||||||
power | KW | 70 | 150 | 250 | 300 | 400 | ||||||
Ultimate vacuum | Pa | Cold state 5Pa( limit vacuum is customizable) | ||||||||||
Working temp | ℃ | 2600 | 2500 | 2500 | 2500 | 2500 | ||||||
Maximum temp | ℃ | 2650 | 2550 | 2550 | 2550 | 2550 | ||||||
Temp uniformity | ℃ | ±3 | ±3 | ±5 | ±5 | ±5 | ±10 | |||||
Sintering molding method | / | Dewaxing sintering integrated molding | ||||||||||
Professional design team, we can customize for you
according to your needs Contact us >>
Feature 1:
Made with genuine materials, the entire furnace body is constructed using 304 stainless steel and is fabricated strictly in accordance with the standards for pressure vessels, demonstrating excellent corrosion resistance and airtightness.
Feature 2:
Customers can choose between thyristor intermediate frequency power supplies and IGBT power supplies. The former is stable and
reliable with low maintenance costs, while the latter is energy-efficient, environmentally friendly, and offers high cost-performance.
reliable with low maintenance costs, while the latter is energy-efficient, environmentally friendly, and offers high cost-performance.
Feature 3:
It has a high degree of automation. Firstly, the temperature is fully automatically controlled and heated up ccording to the preset heating curve. Secondly, in the electrical part, there are fully automatic control and protection systems for water, electricity, and gas, making the operation simple and convenient.
Product application：
Vacuum sintering furnaces are applicable to:

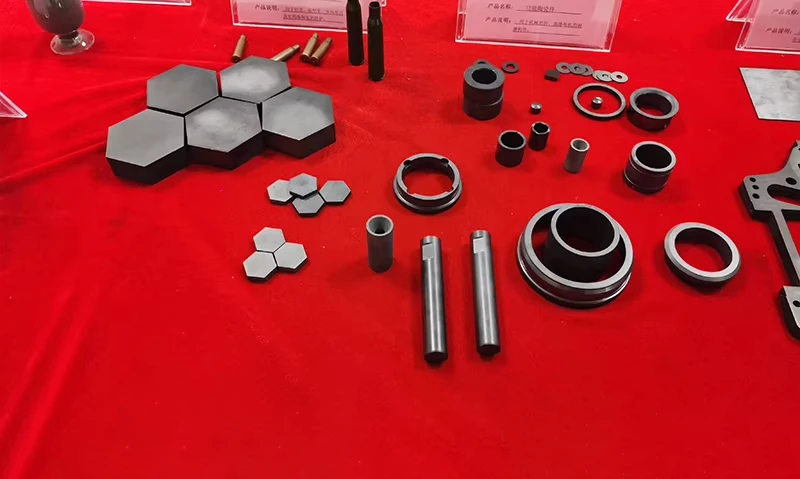

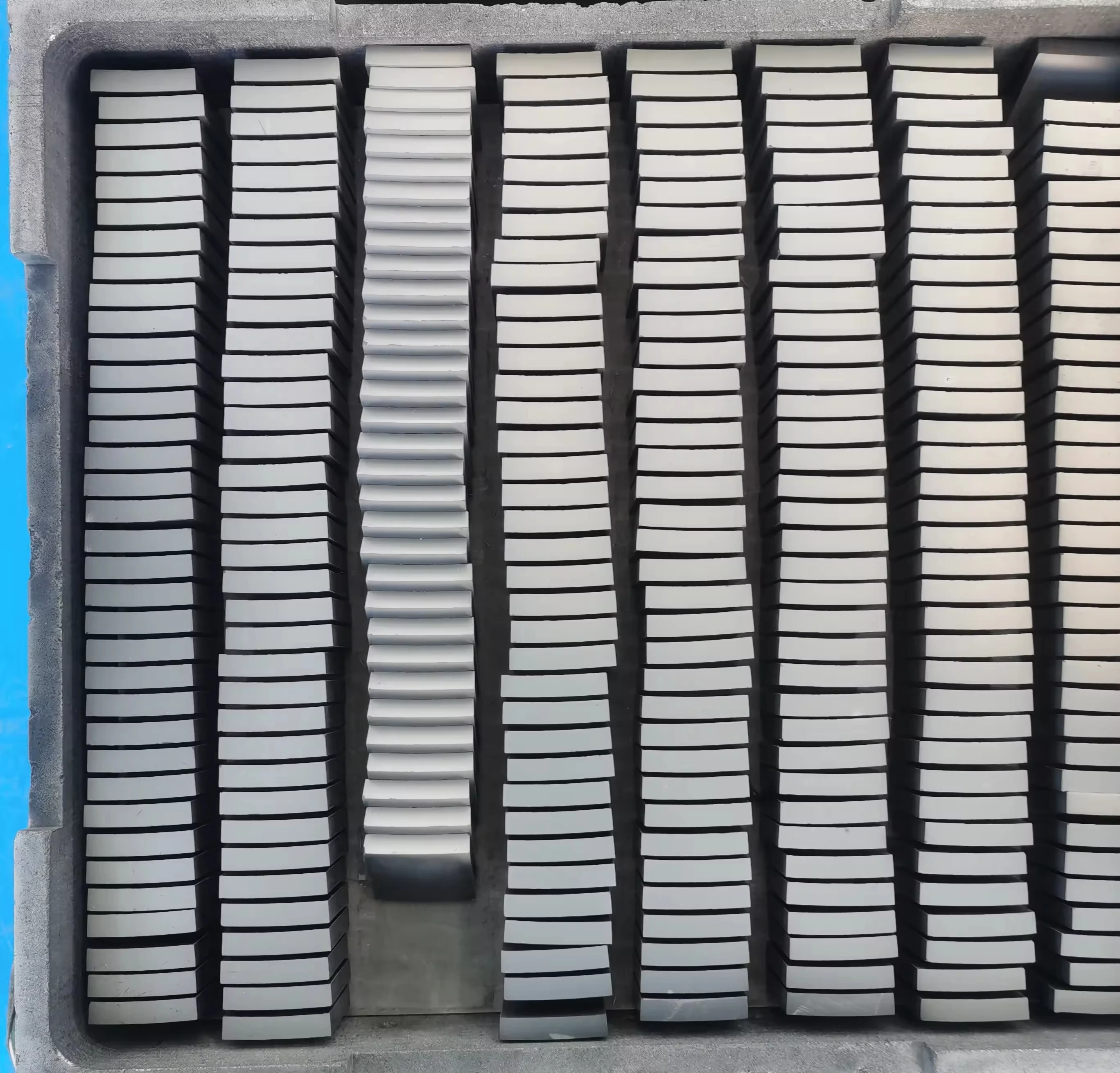

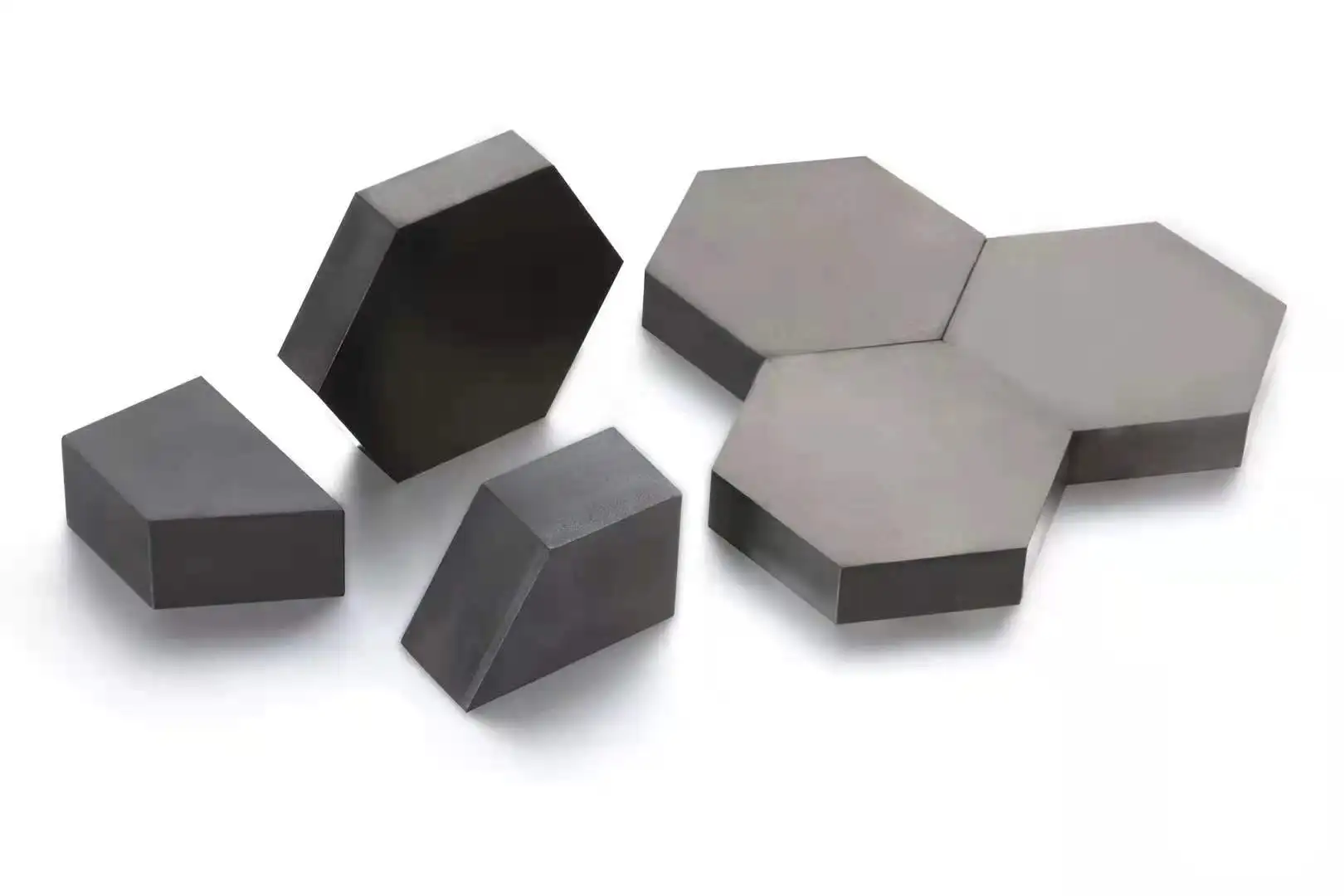

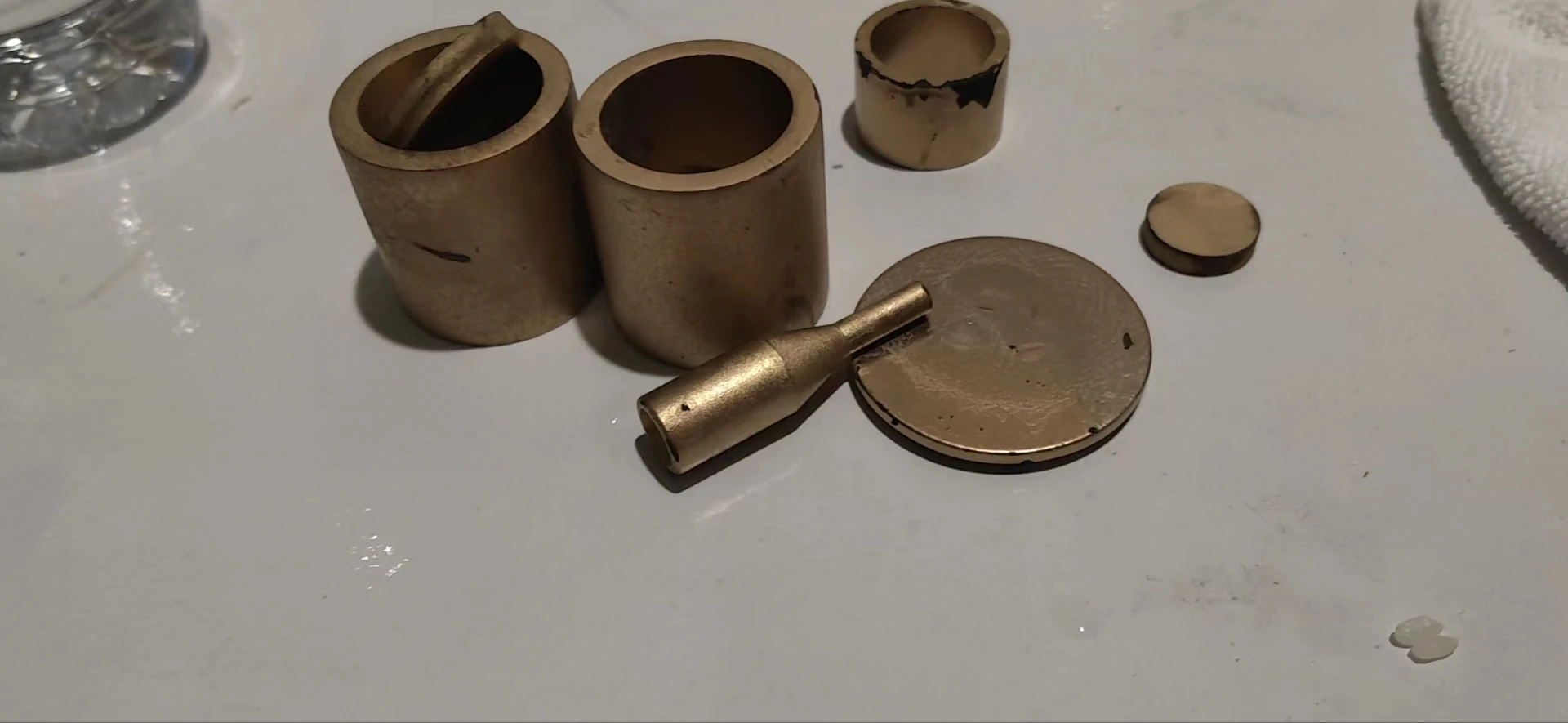

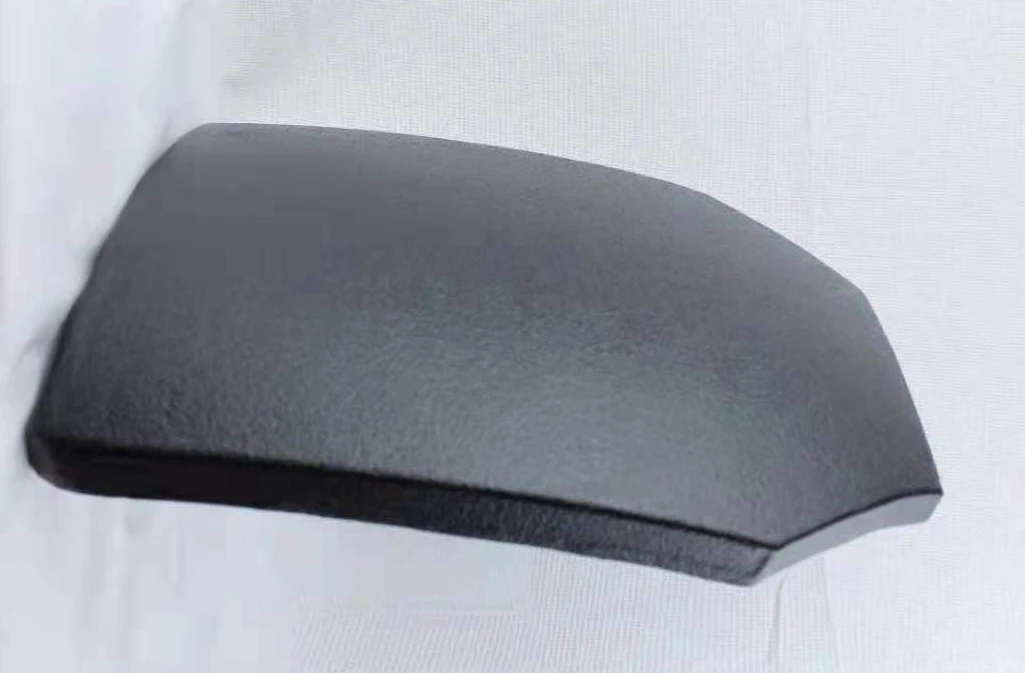

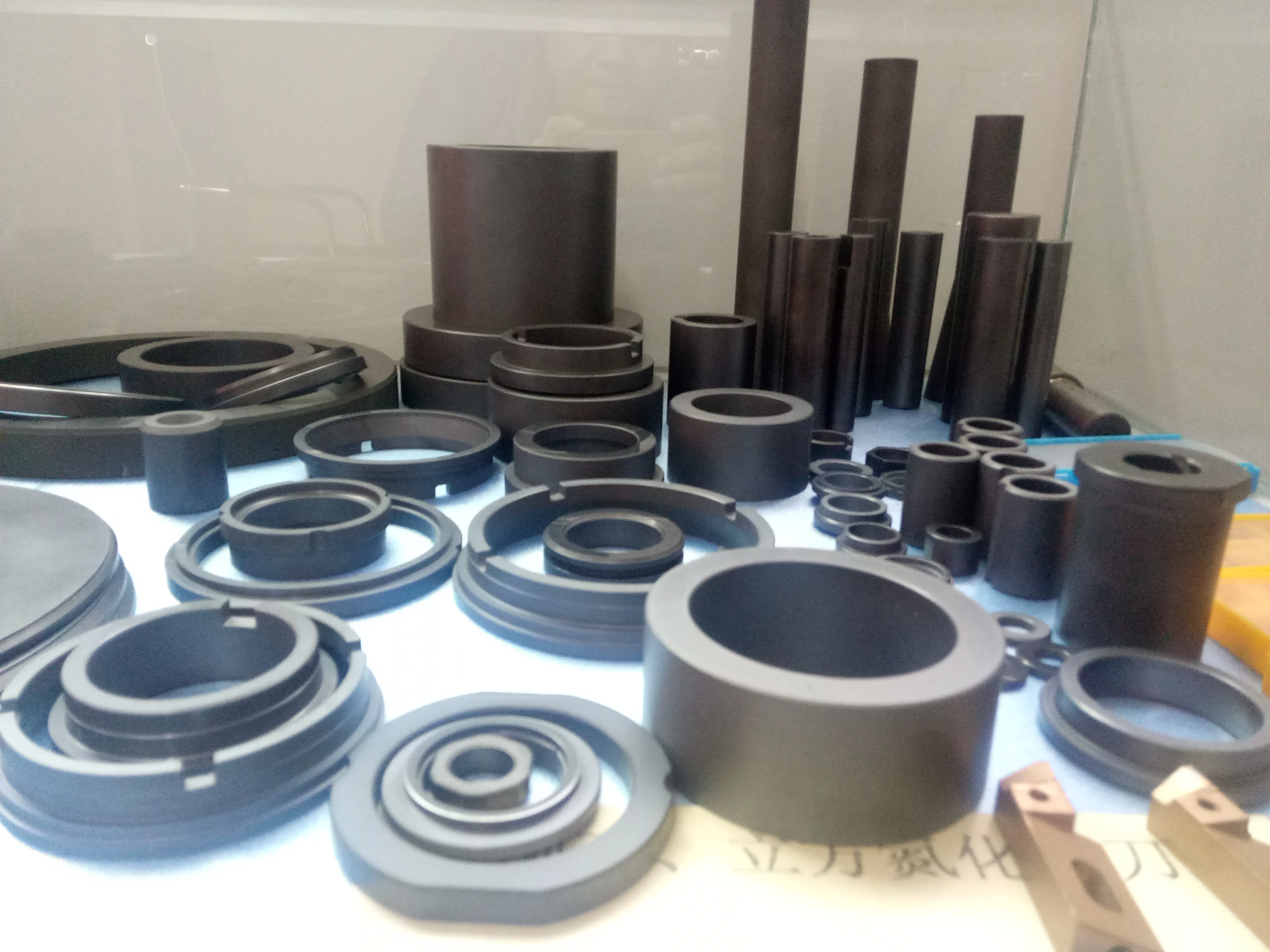

Sintering of precision ceramics such as boron carbide, silicon carbide and alumina, powder metallurgy sintering, and high-temperature vacuum sintering of metallic or non-metallic materials.
Vacuum sintering furnaces are applicable to:

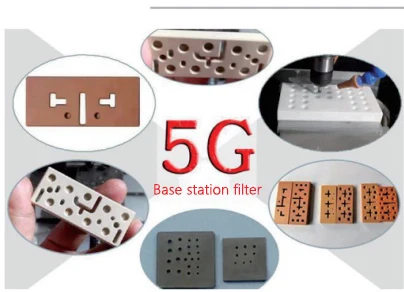

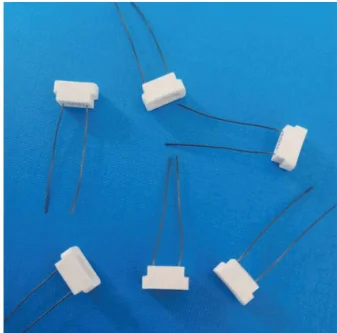

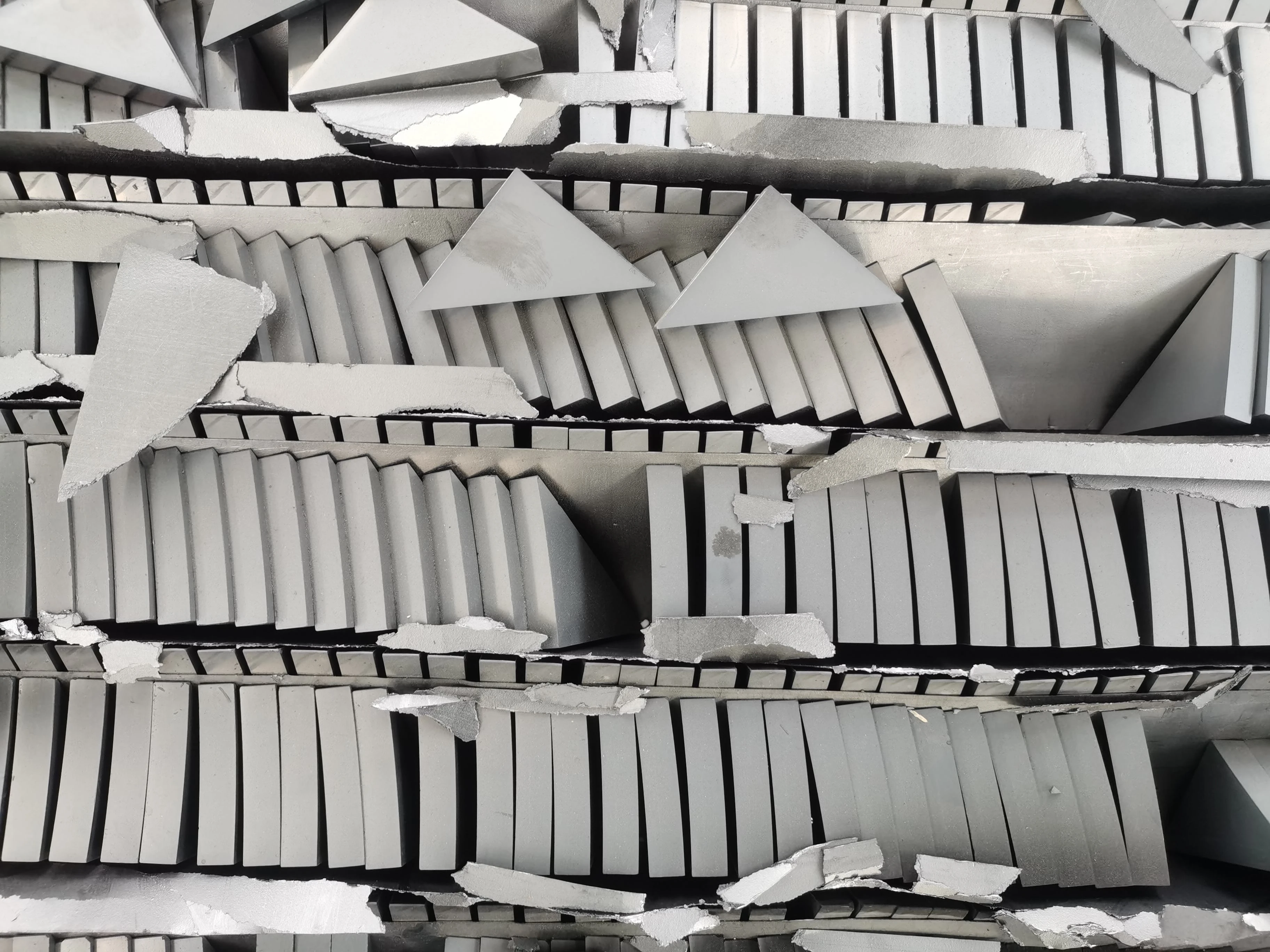

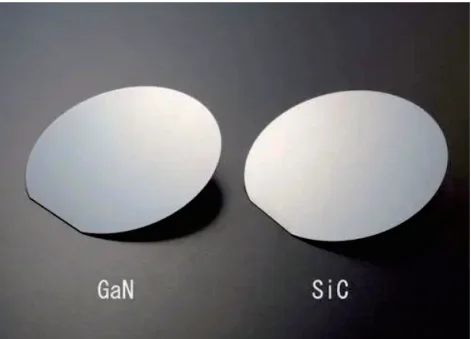

Sintering of magnetic materials, sintering of ceramic atomizing cores for e-cigarettes, sintering of high-performance semiconductor ceramics, degumming and sintering of cemented carbides, and degumming and sintering of carbon materials, etc.
The key design personnel of the company have been engaged in the research and development of medium-frequency power supplies, IGBT power supplies, complete sets of induction heating equipment and non-standard electric heating equipment for more than 16 years.
Design the optimal configuration scheme according to your needs,Maximize the benefits for the customers!

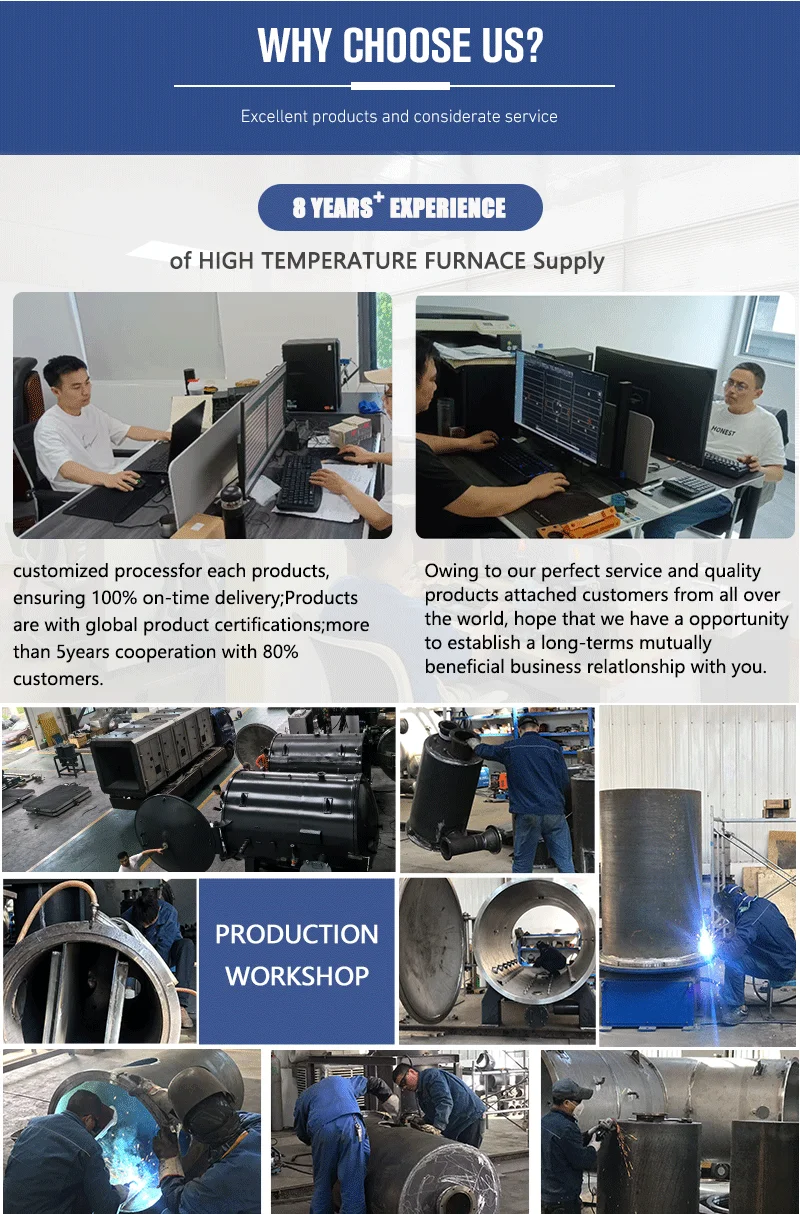

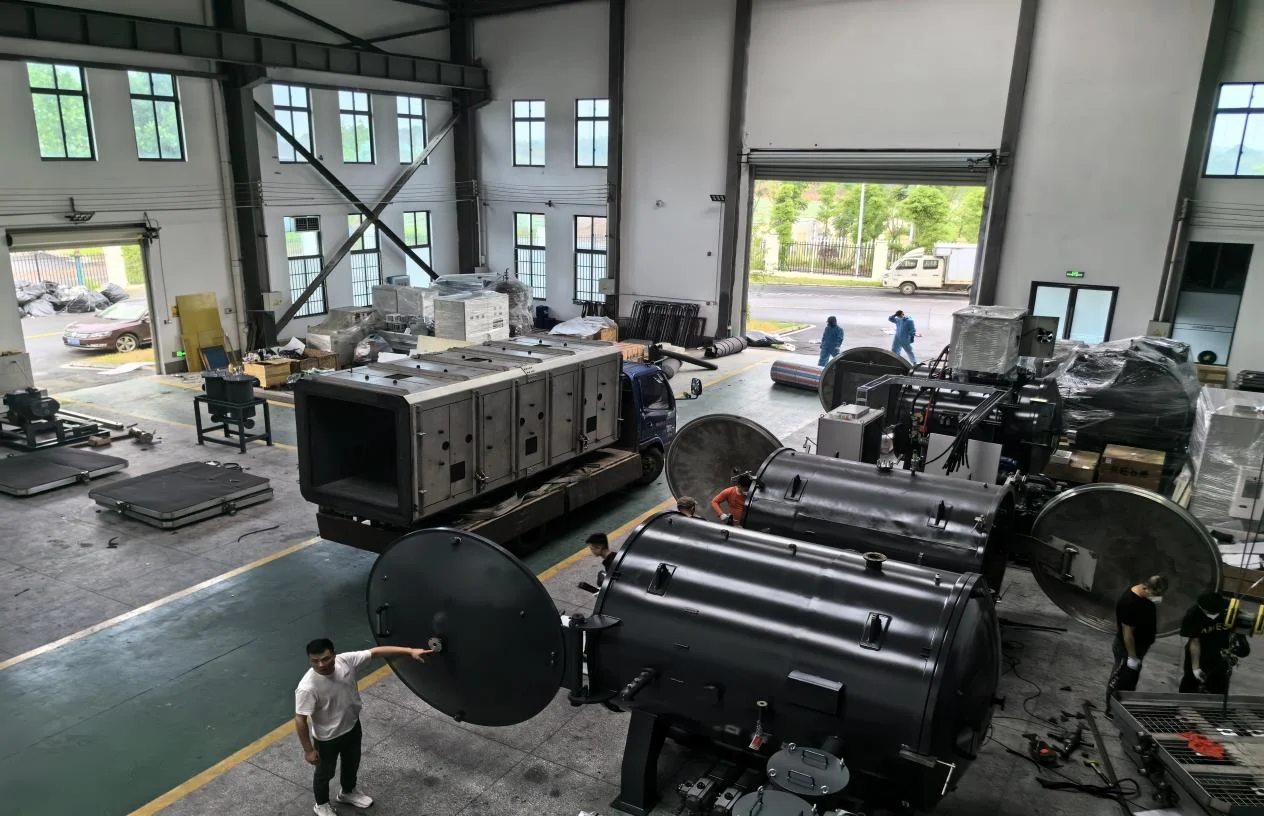

Workshop 1

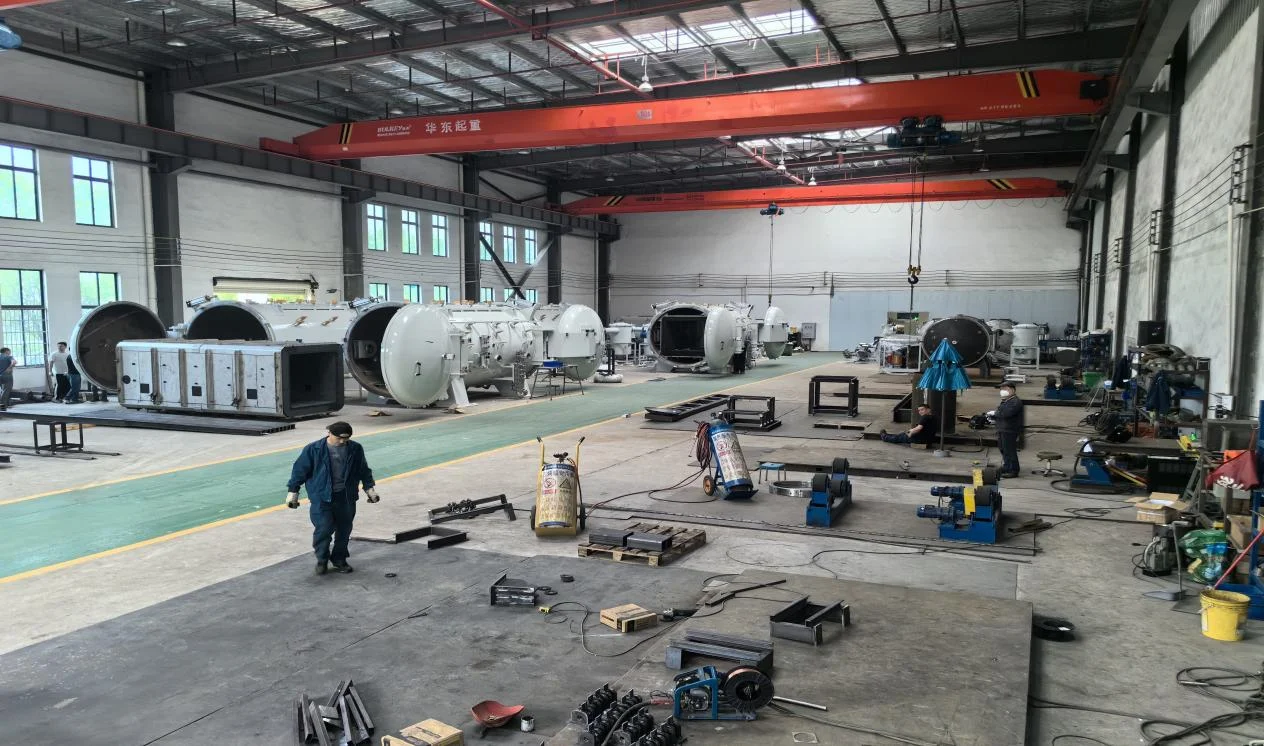

Workshop 2

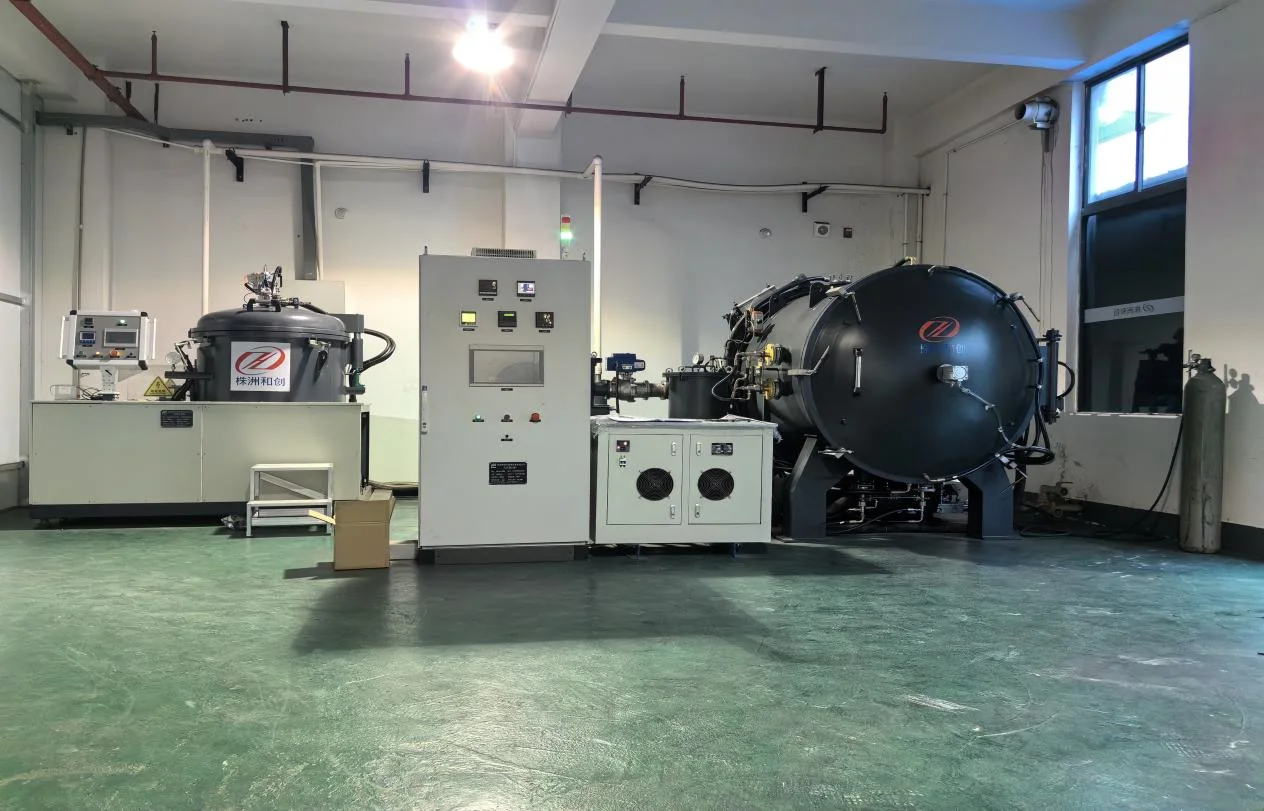

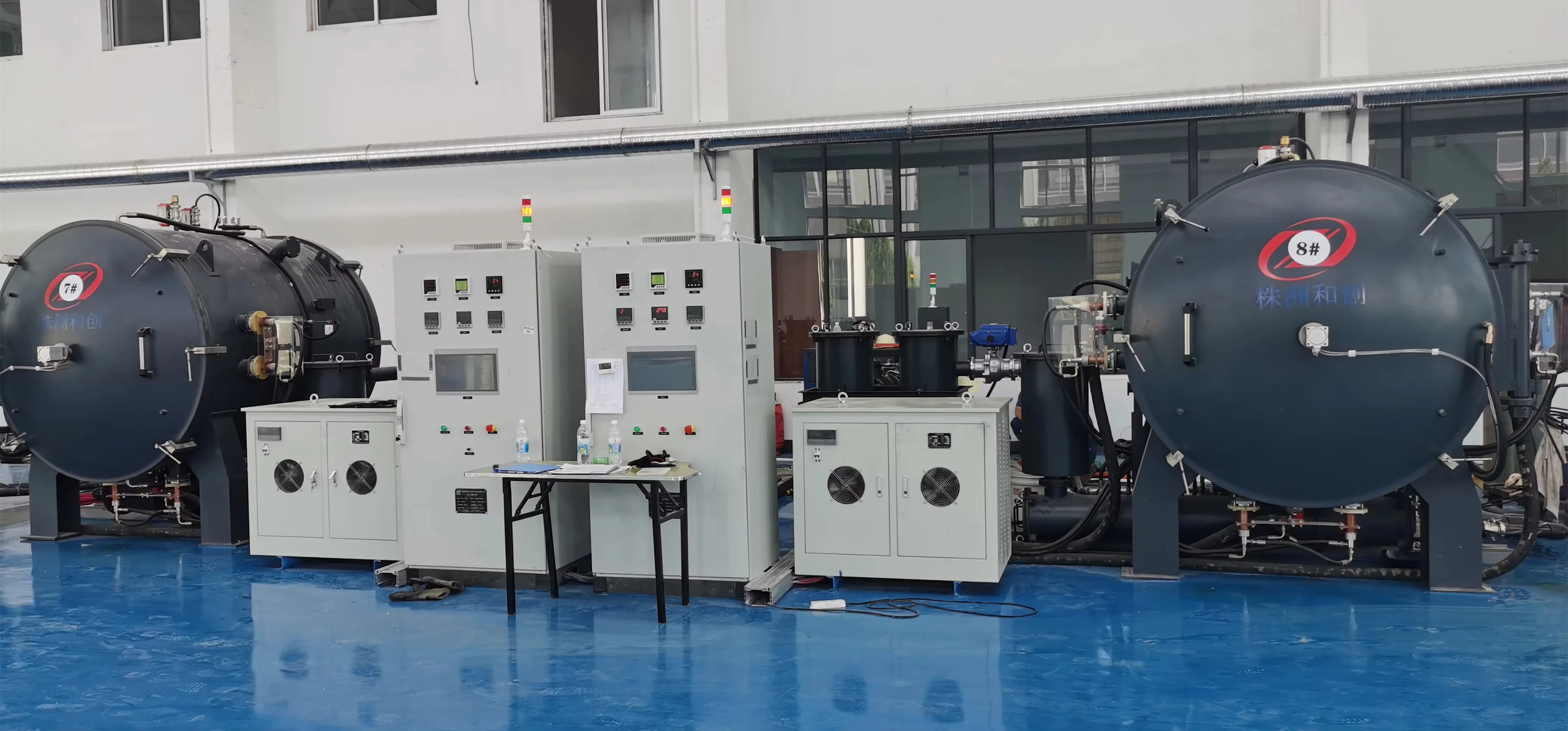

Our laboratory

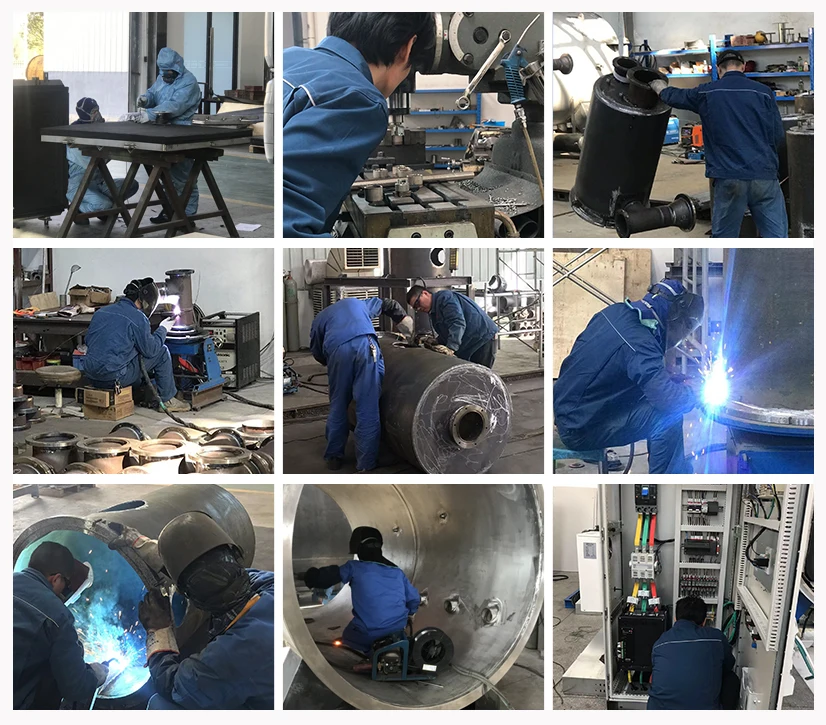

Production process
Q1: Can furnaces be customized?
R1: If you need to customize a furnace that is not included in the specification sheet, please contact us directly. We will make a sintering furnace specification book and schematic diagram that meets your requirements according to your requirements, and we will also provide professional advice and guidance to ensure that the plan is the optimal one.
Q2: Regarding after-sales issues with furnaces?
R2: The after-sales service of the furnace is a problem that we attach great importance to. Firstly, our equipment is very stable and reliable, with a very low failure rate. During the installation and debugging process of the equipment, we will also provide comprehensive training to allow users to fully understand the equipment. If there is a malfunction, please contact us in a timely manner. We have an excellent after-sales team and will establish contact with you immediately! We will provide a detailed troubleshooting manual and detailed equipment drawings. If necessary, we will go to the site to solve the equipment problem for you.
Q3: Regarding spare parts for equipment
R3: The equipment will be equipped with complete spare parts before leaving the factory, and there will be a table indicating where different parts are used and the installation method of the parts.
Q4: Regarding the trial firing sample
R4: In order to help customers better understand our equipment, our factory has equipment for conducting trial firing samples. You can communicate with us before ordering the equipment, and we can provide you with paid trial firing sample services.
R1: If you need to customize a furnace that is not included in the specification sheet, please contact us directly. We will make a sintering furnace specification book and schematic diagram that meets your requirements according to your requirements, and we will also provide professional advice and guidance to ensure that the plan is the optimal one.
Q2: Regarding after-sales issues with furnaces?
R2: The after-sales service of the furnace is a problem that we attach great importance to. Firstly, our equipment is very stable and reliable, with a very low failure rate. During the installation and debugging process of the equipment, we will also provide comprehensive training to allow users to fully understand the equipment. If there is a malfunction, please contact us in a timely manner. We have an excellent after-sales team and will establish contact with you immediately! We will provide a detailed troubleshooting manual and detailed equipment drawings. If necessary, we will go to the site to solve the equipment problem for you.
Q3: Regarding spare parts for equipment
R3: The equipment will be equipped with complete spare parts before leaving the factory, and there will be a table indicating where different parts are used and the installation method of the parts.
Q4: Regarding the trial firing sample
R4: In order to help customers better understand our equipment, our factory has equipment for conducting trial firing samples. You can communicate with us before ordering the equipment, and we can provide you with paid trial firing sample services.
