Product Overview
Description
Product Overview
Plastic Film / Bags Crushing Shredding Crusher Shredder Washing Recycling Line / Plant / Equipment / Machine / Machinery
garbage etc. recycling . after washing cleaned, you can make them to be granules with pelletizing machine.
2.Recycled the granules will be inject new plastic,but very low cost than new virgin granules .
3.The line high automatic operating and save labor cost and low after maintenance.
4.We can customize make the line according to your requirement.
Product Specification
Plastic Recycling Machine Parameter
Recycling Model | Capacity | Power | Water Supply | Manaual | Size:L*W*H |
ME-300 | 300 KG/H | 200KW | 6-8 M3/H | 1-2 | 40X4X5M |
ME-500 | 500 KG/H | 350KW | 8-10 M3/H | 1-2 | 40X4X5M |
ME-1000 | 1000 KG/H | 600KW | 15-20 M3/H | 2-3 | 55X6X6M |
ME-2000 | 2000 KG/H | 900KW | 20-25 M3/H | 3-4 | 65X6X6M |
Complete Plastic Recycling Machine Video For Waste Film / Bags With Hot Washing
Product Photos

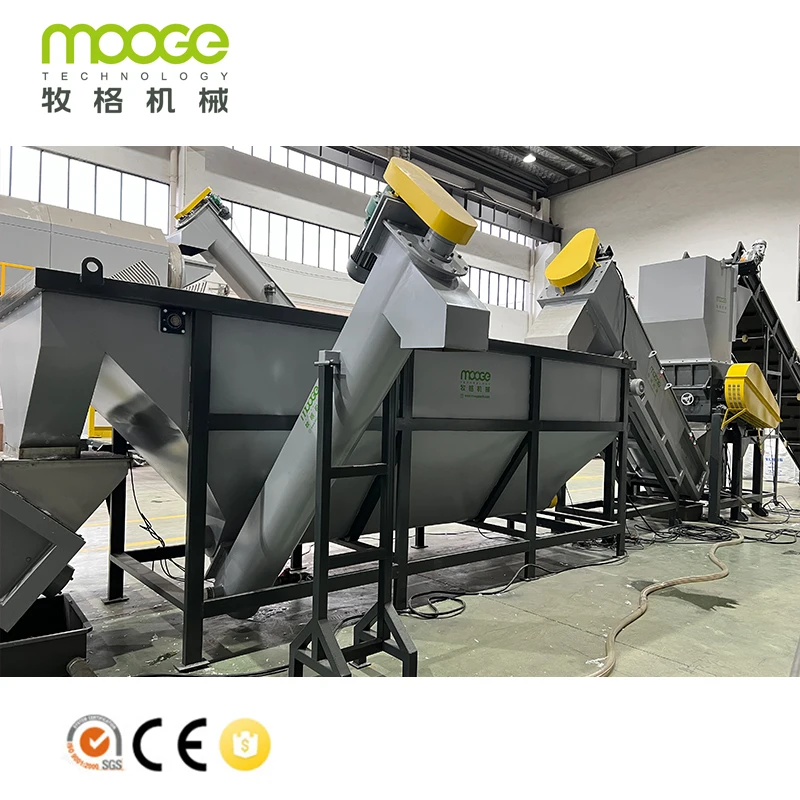

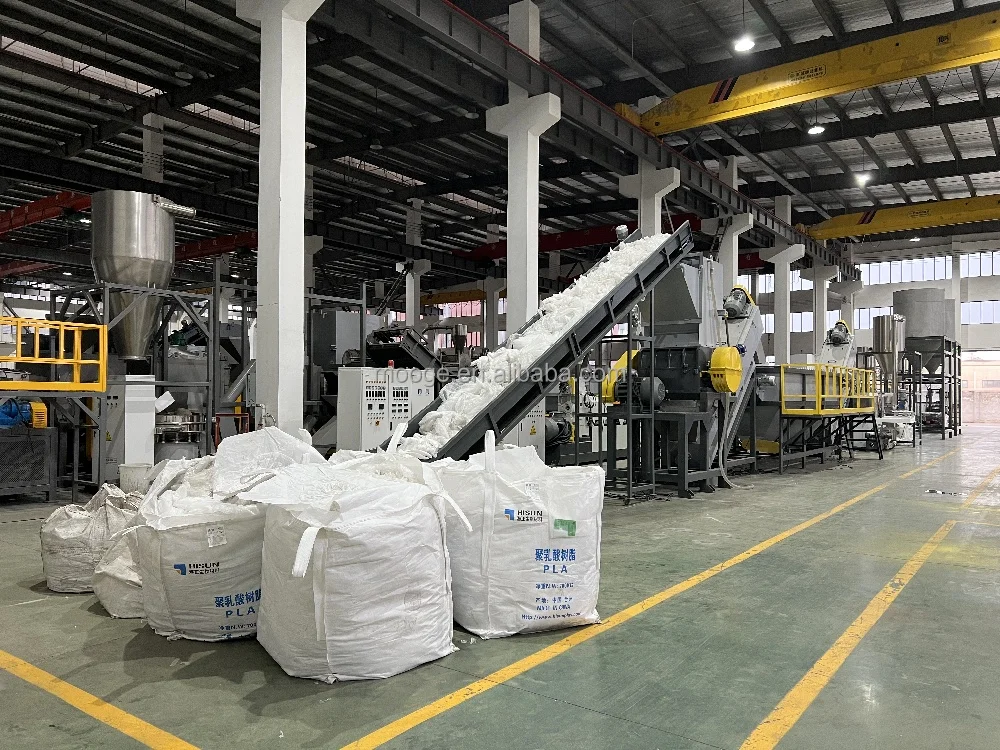

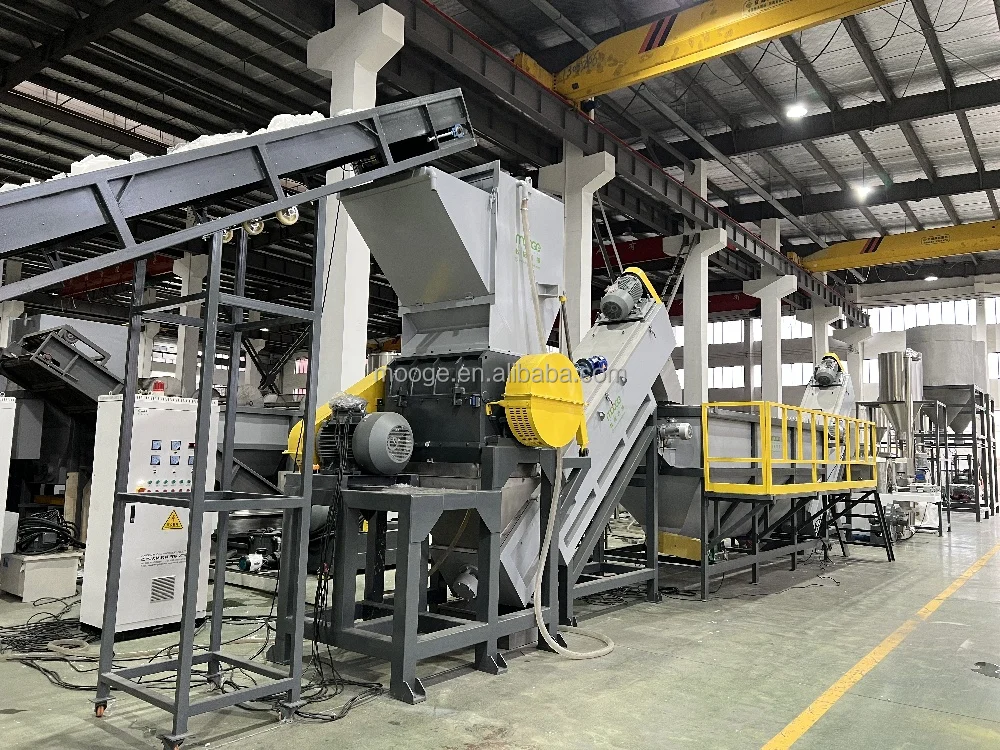

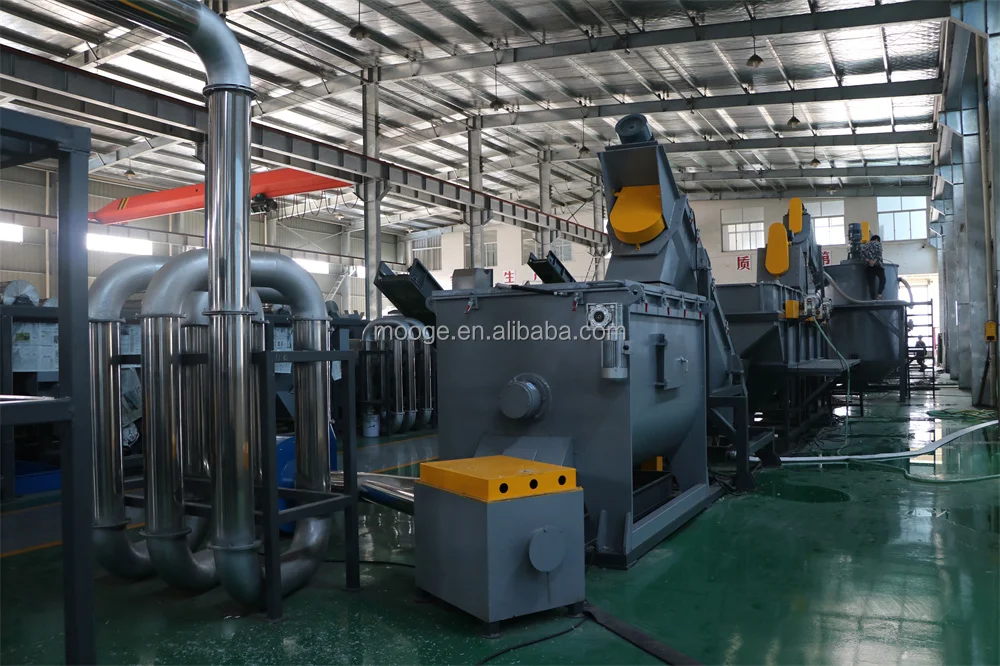

Complete Plastic Film Bags Crushing Hot Washing Recycling

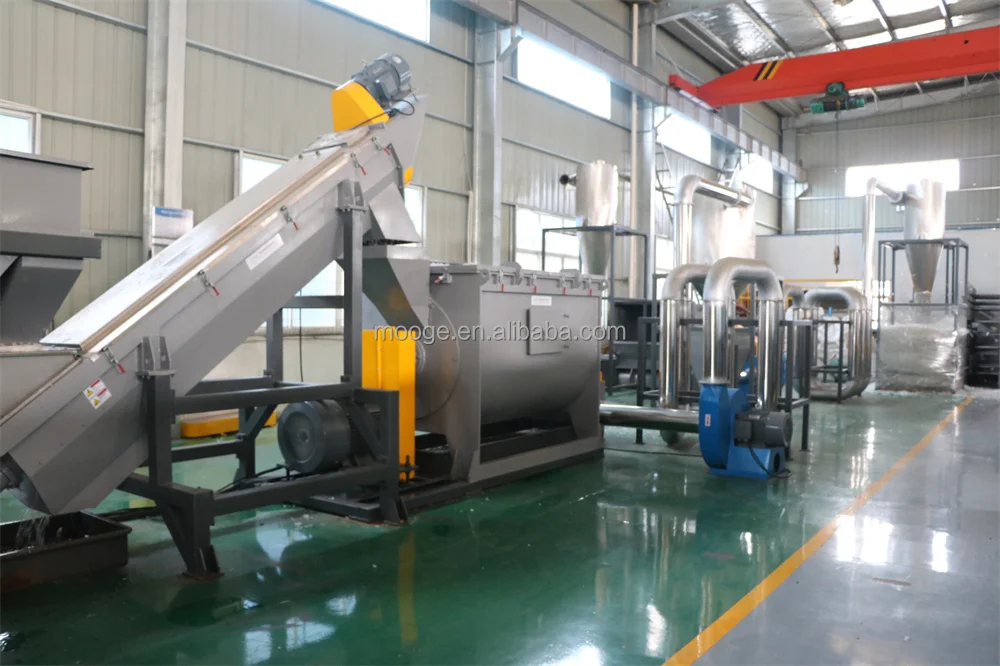

Complete Plastic Film Bags Crushing Washing Recycling(with out hot washing tank)
Waste Plastic Film / Bag Before Crushing Washing Recycling

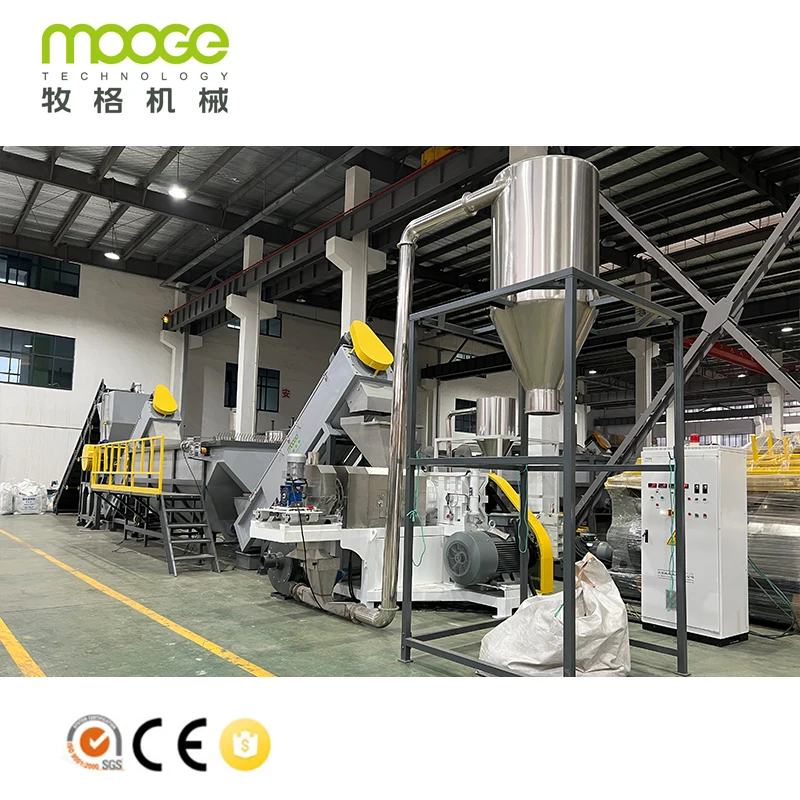

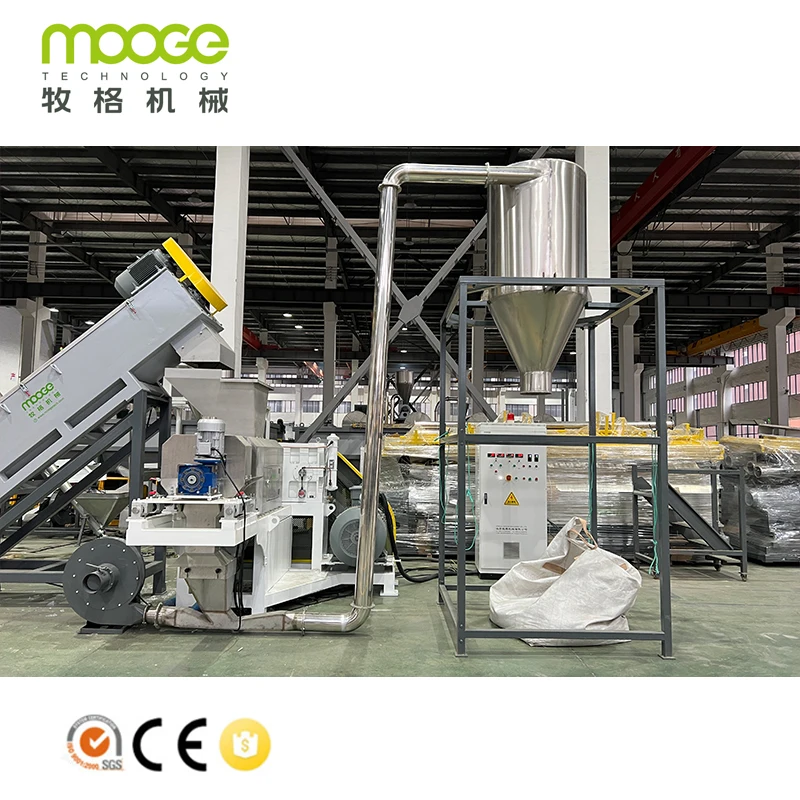

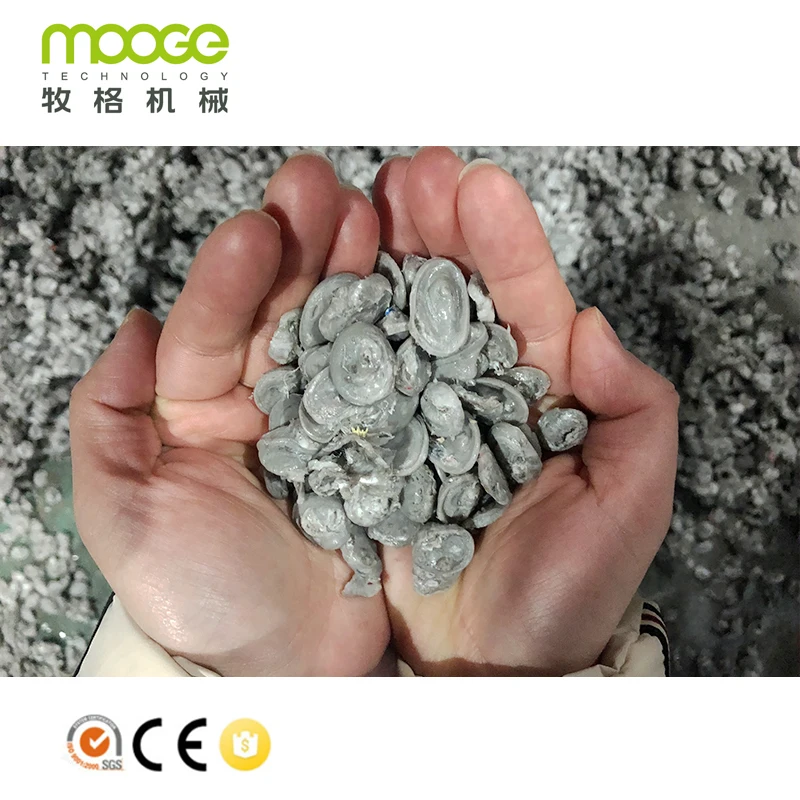

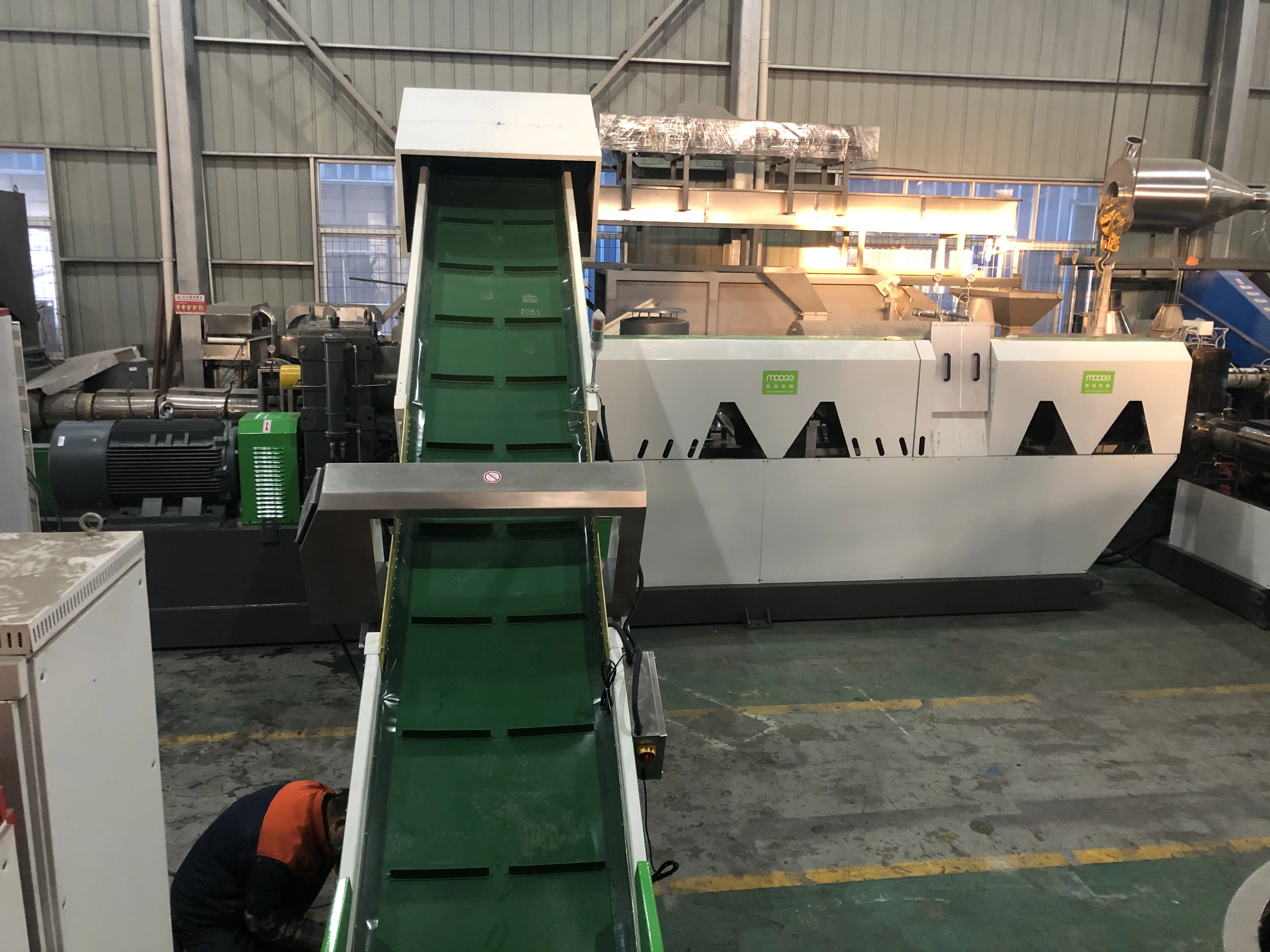

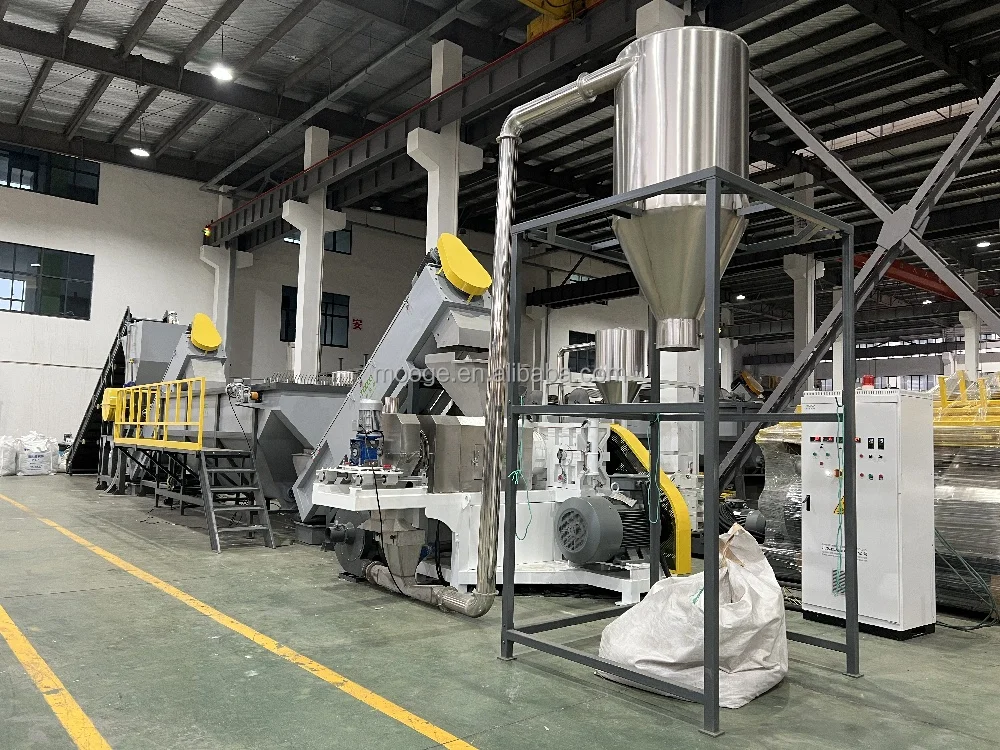

After Crushing Washing Recycling & Squeezer Agglomerator Machine
Machine Details
Washing Recycling Machine List:
1. Conveyor Belt
2. Plastic Crusher Machine / Plastic Shredder Machine
3. FW-450/650 Friction Loader Machine
4. Float Washing Tank
5. Hot Washing Tank
6. High Speed Friction Machine
7.Horizontal Dewatering Machine / Squeezer Agglomerator Machine
8.Sotrage Silo
9. Electric Control Panel (Siemen PLC Touch Screen System )
10.Free Spare List

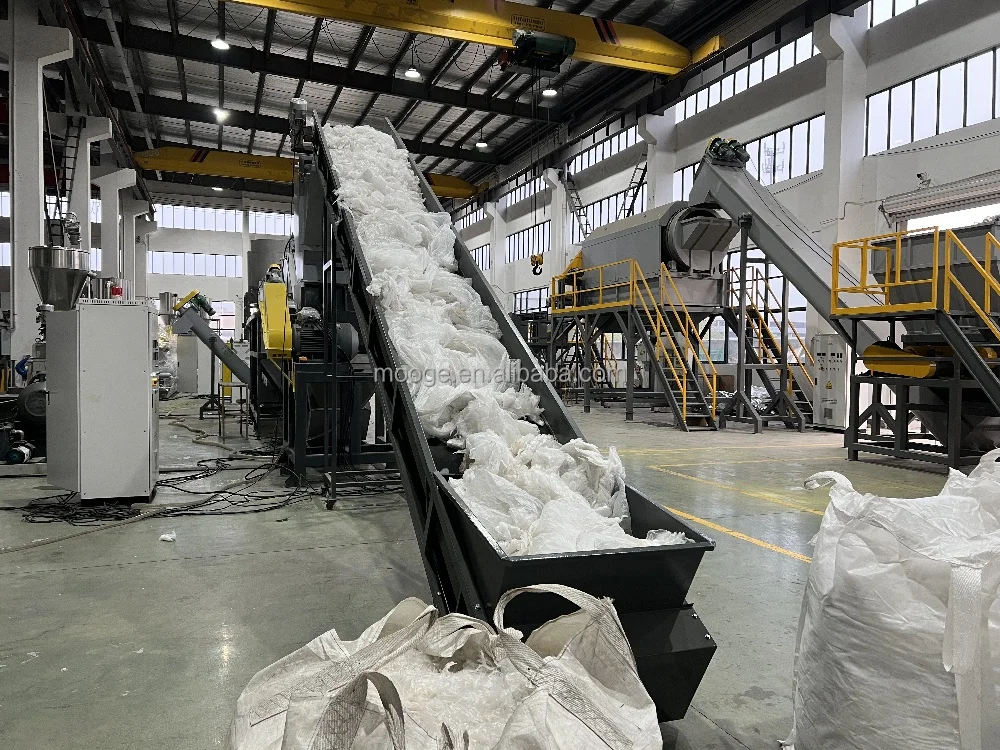

Conveyor Feeding Belt
Use rubber or pvc material , Rubber is better

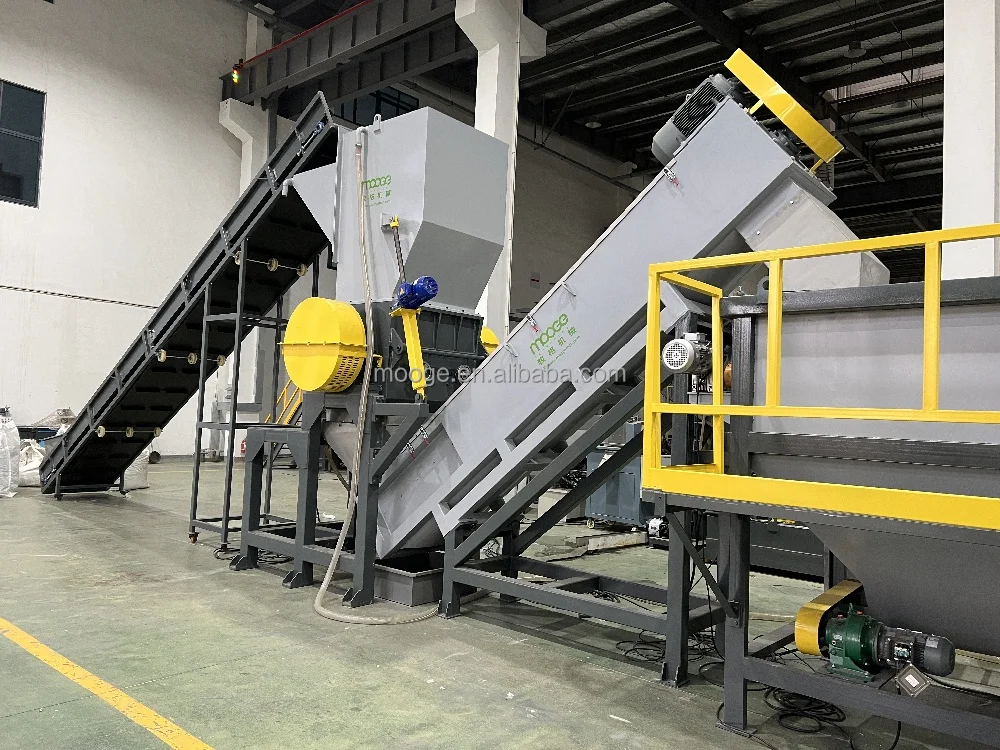

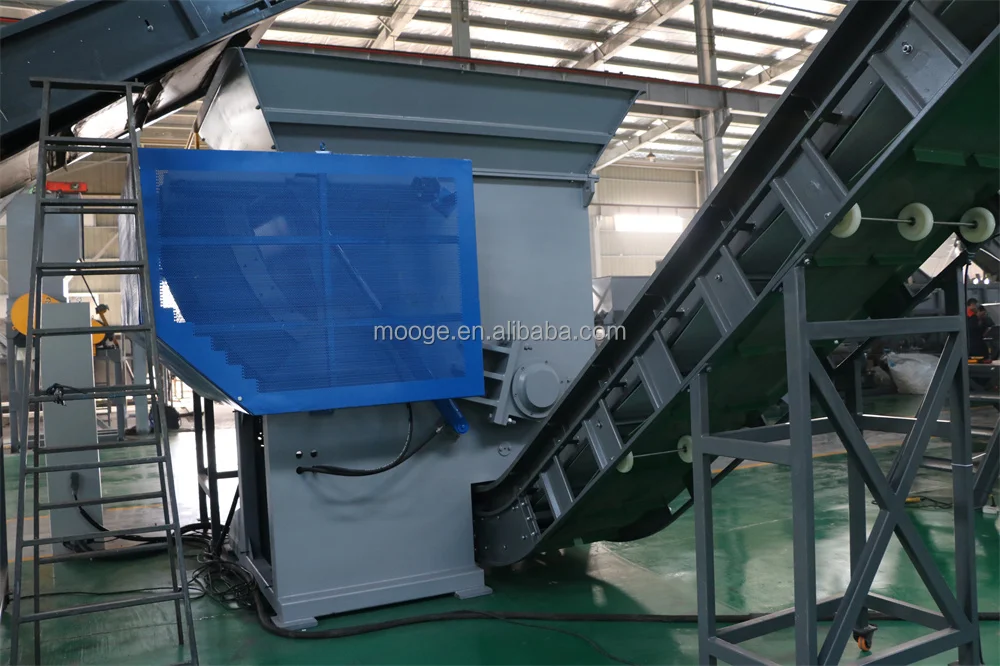

Shredding / Shredder Machine
Heavy duty shredder for 1000 kg/h , 2000 kg/h
it can shredder baled film / bags ,no need manual loose the materail before shreding , crushing
Plastic crusher / crushing machine
V shape Desgin rotary shaft,for better and high efficiency cutting film/bags
Use D-2 (USA Standard) Blade
For 300 kg/h , 500 kg/h ,1000 kg/h

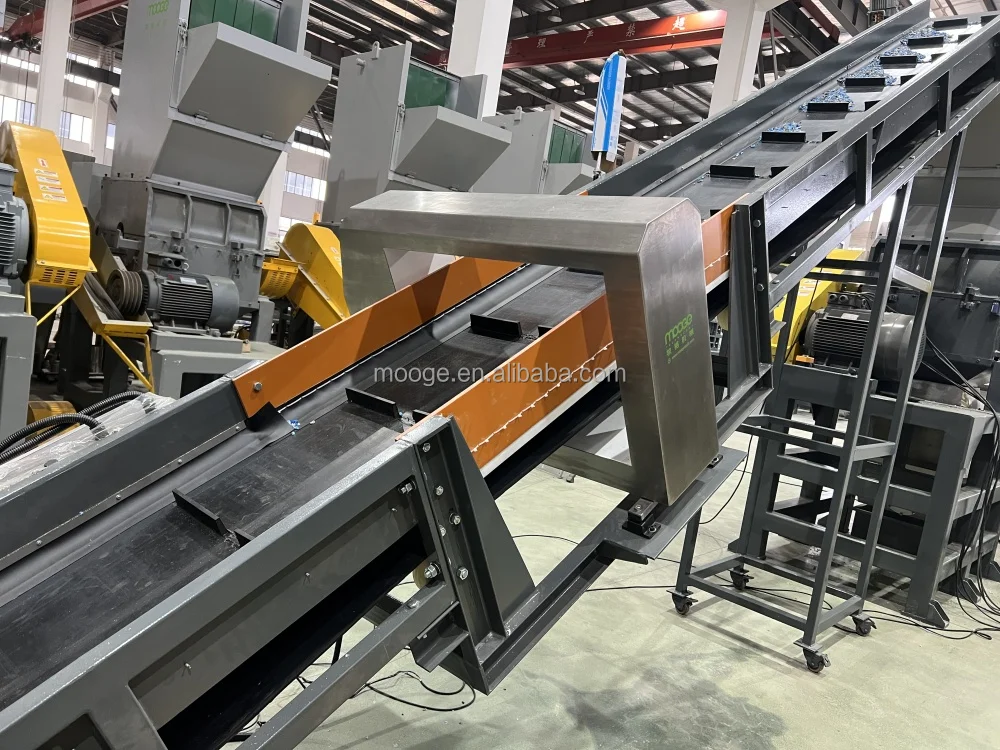

Semi-Automatic metal detector
With touch screen and password control,
The precision can adjustable, Adopt the intelligent Smart learning
For Ferrous > 8mm ,For Stainless steel > 10mm
Friction Washing Loader machine
with 600 RPM high speed rotor shaft , friction washing material , drain out dirty water at bottom, remover sand,soil etc. and loose material before go to float washing tank

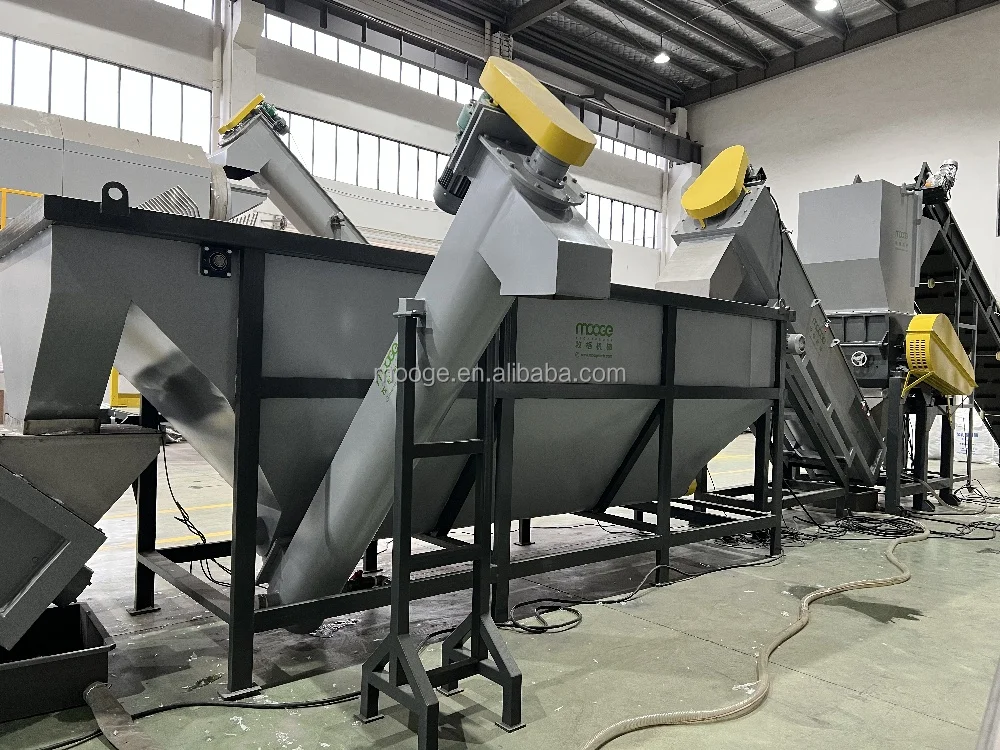

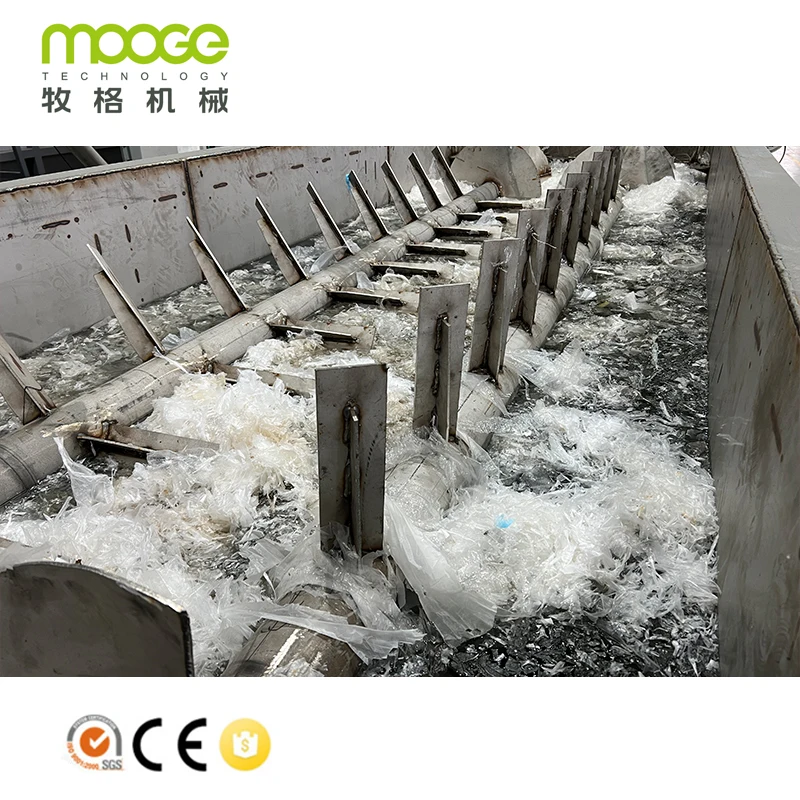

Float Washing tank
used to washing the material, with top rollers automatic take out the film or bags flakes, dirty waste sinking down and drain out at bottom,it also have electrical heating water tank and side screw loader lift
Horizotontal dewatering machine
1500 RPM high speed spin and remover dirty water for film or bags flakes, dirty water will drain out on the bottom,5~8% Moisture content

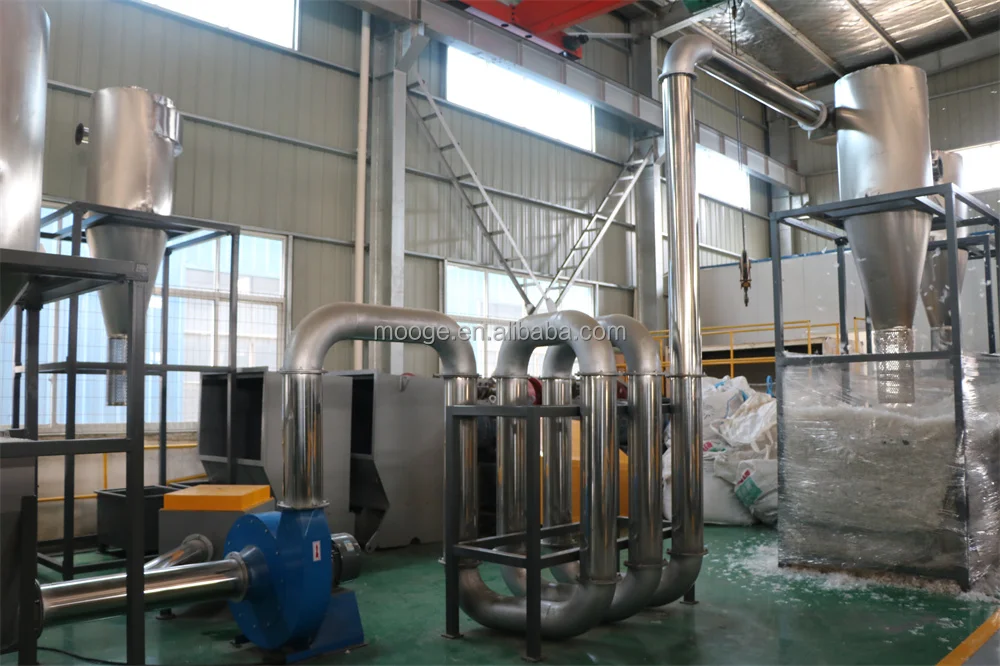

Hot Air dryer
use 219mm big diameter stainless pipe and big power thermocouple drying the wet flakes,1~2% Moisutre content
use 219mm big diameter stainless pipe and big power thermocouple drying the wet flakes,1~2% Moisutre content
Storage Silo
big volume storage silo,made by SS304

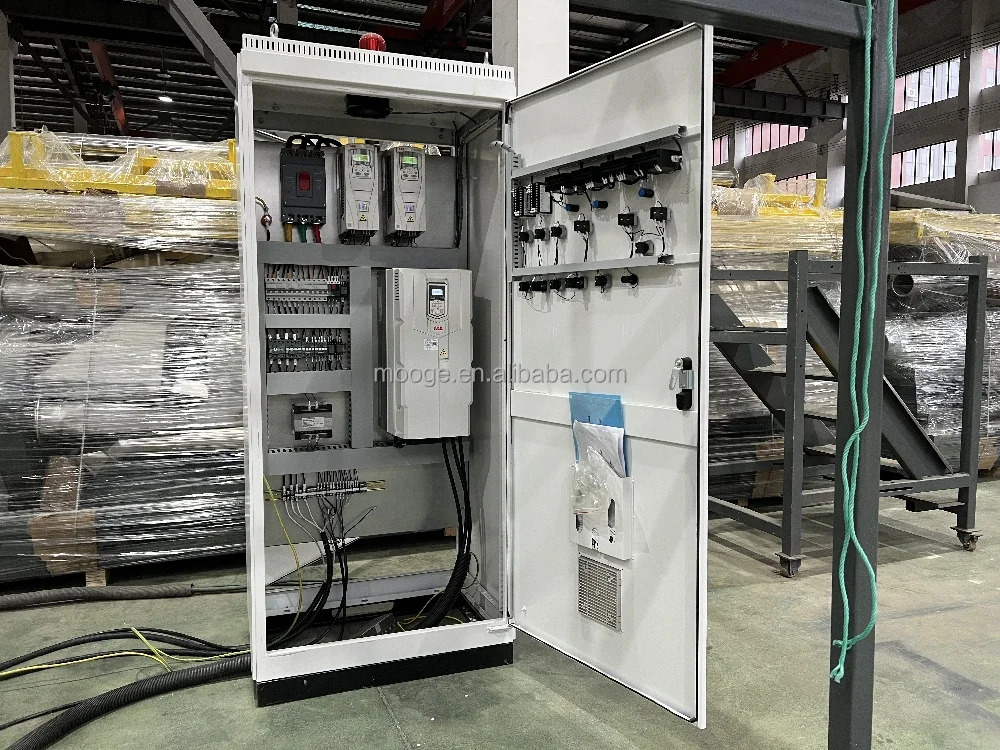

Electric control system
Use siemens PLC,ABB inverter,Schneider contactor etc.
Related Product
We also supply plastic pelletizing granules granulator granulating machine
Contacts
Customer Show

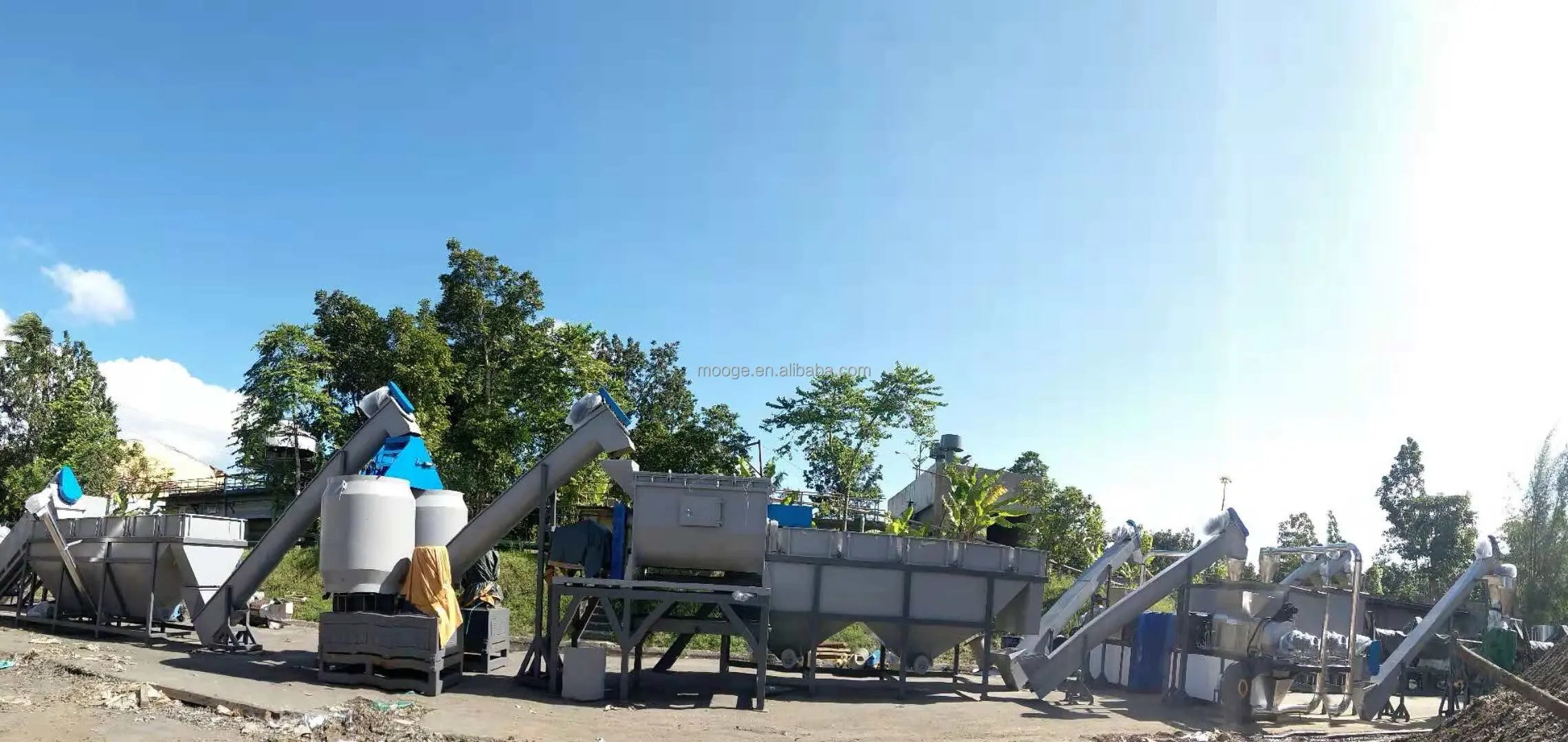

Philippines 1000 kg/h plastic film recycling line
