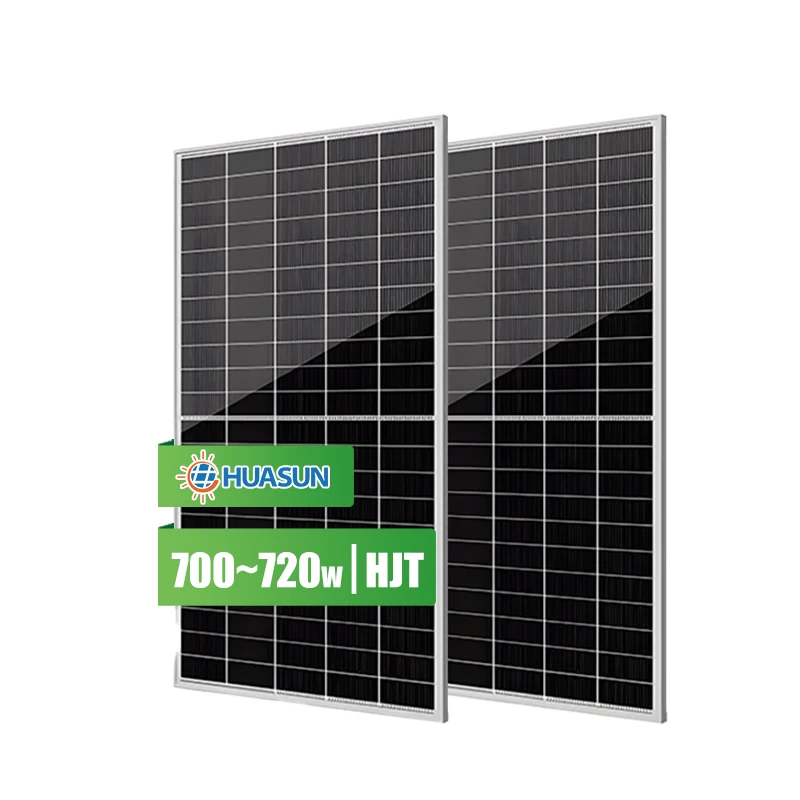

Monocrystalline Silicon 700w 710W 720w HUASUN High Efficiency Solar Panels PV Module N Type GlassPERC Topcon Half Cell High
- Category: >>>
- Supplier: Anhui Solarasia Energy Technology Co. Ltd.Anhui Ltd.
Share on (1601369855887):
Product Overview
Description
Product Parameters
STC HS-210-B132 | DS700 | DS710 | DS715 | DS720 | |||
Maximum Power (Pmax'W) | 700 | 710 | 715 | 720 | |||
Module Efficiency (%) | 22.53 | 22.86 | 23.02 | 23.18 | |||
Maximum Power Voltage (Vmp/V) | 41.78 | 41.96 | 42.05 | 42.14 | |||
Maximum Power Current (lmp/A) | 16.76 | 16.93 | 17.02 | 17.10 | |||
Open Circuit Voltage (Voc/V) | 49.77 | 49.97 | 50.07 | 50.17 | |||
Short Circuit Current (lsc/A) | 17.81 | 17.99 | 18.08 | 18.17 | |||
Cell Type | HJT | ||||||
No. of Cells | 132 (6x22) | ||||||

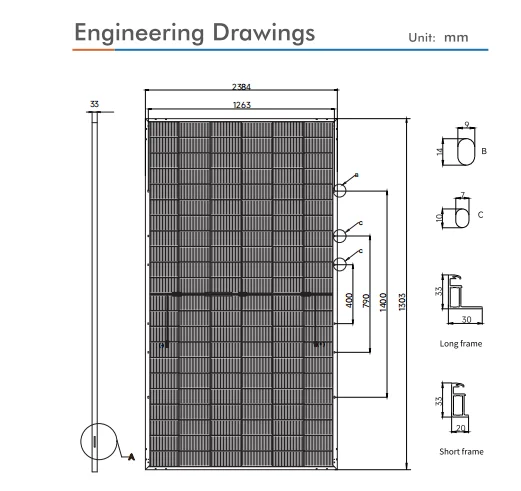

Dimensions | 2384x1303x33 mm | ||||||
Weight | 37.9kg | ||||||
Junction Box | IP68 | ||||||
Cable | 4mm2;+350/-250mm or customized；UV resistant | ||||||
Connector | tMC4/MC4-Ev02A/PV-H4/Z4S-abcd/ST4 | ||||||
Frame | Anodized aluminum alloy frame | ||||||
Glass | 5400Pa/2400Pa | ||||||
Max Static Load (front side/rear side) | Dual glass,2.0mm | ||||||
Details Images

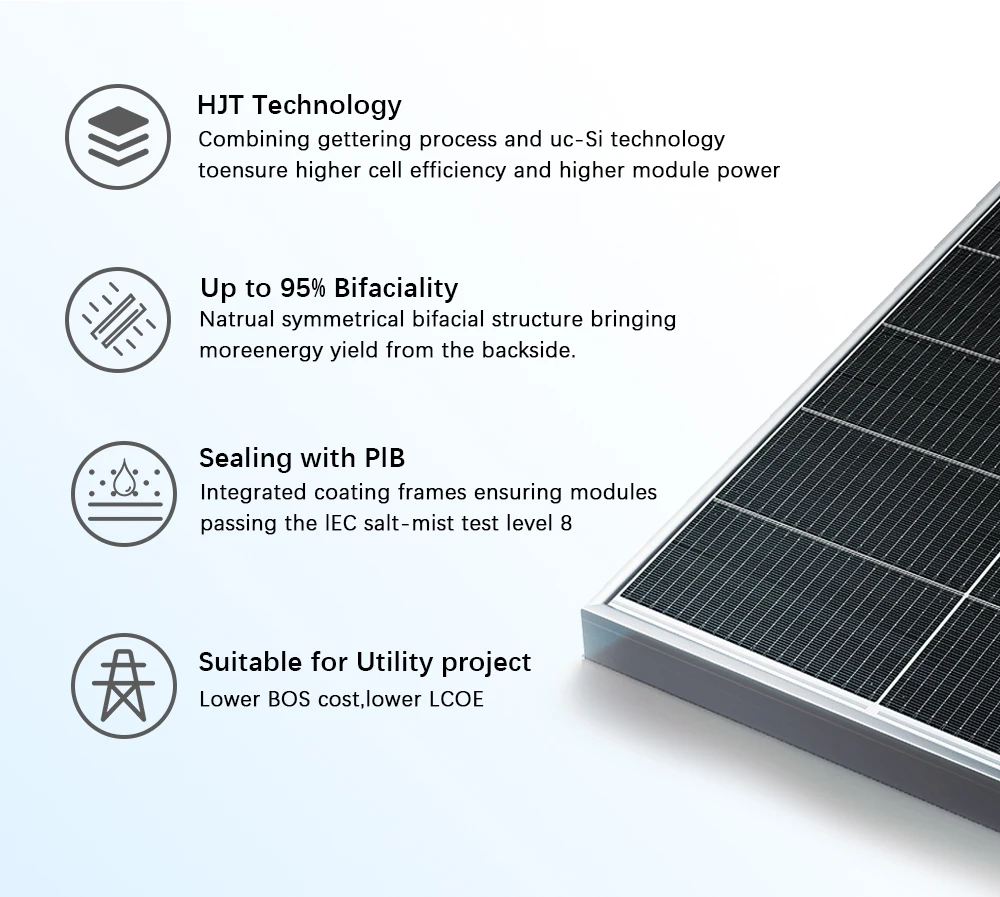

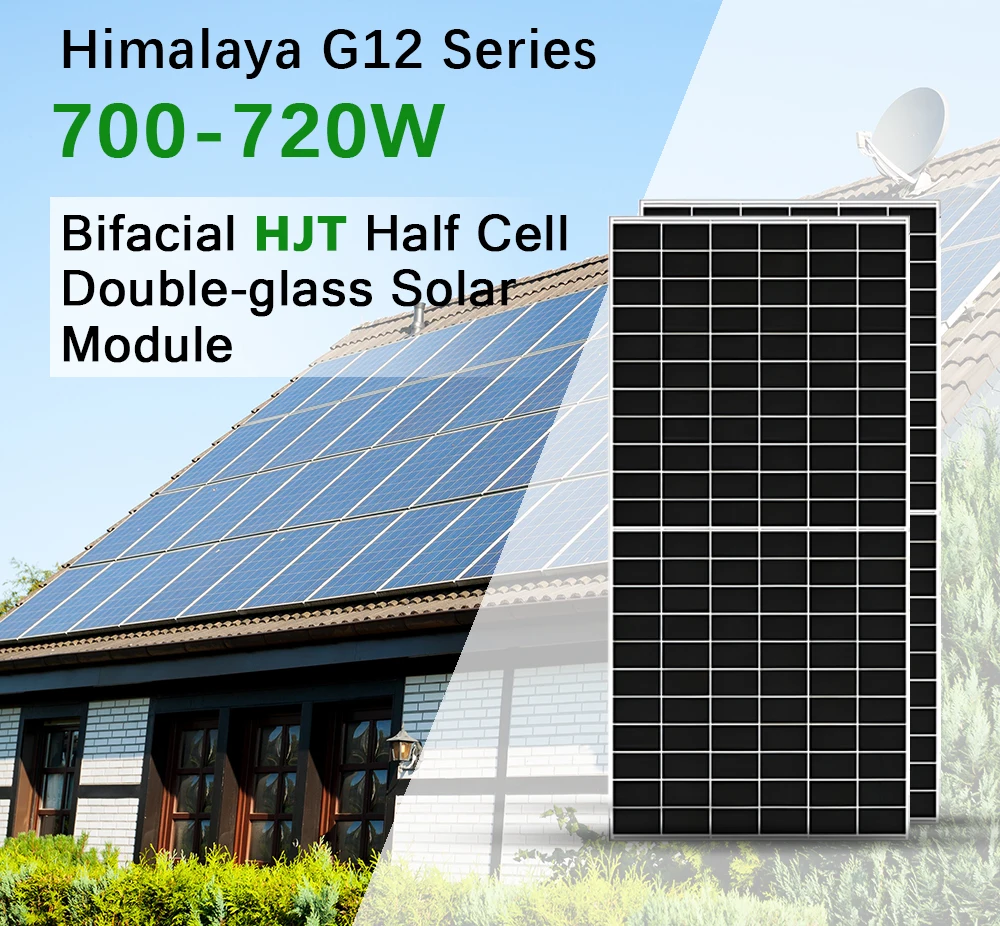

Introduction of HJT

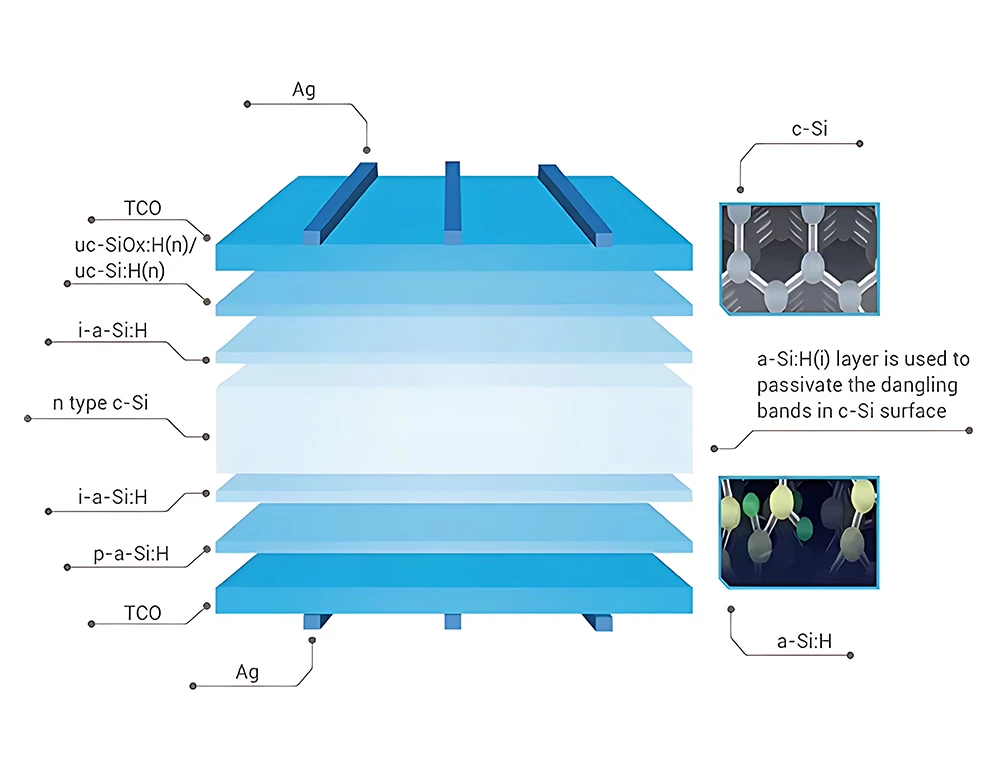

Heterojunction technology (HJT) is a N-type bifacial solar cell technology, by leveraging N.type monocrystalline silicon as a substratum and depositing silicon-based thin films withdifferent characteristics and transparent conductive films on the front and rear surfaces respectively.Combining with the benefits of crystalline silicon and amorphous silicon thin-fimtechnologies, HJT technology has excellent photo absorption and passivation effects, as wellas outstanding efficiency and performance. HJT panels are one of the technologies toimprove the conversion rate and power output to the highest level, also represent the trend ofthe new generation of solar cell platform technology.

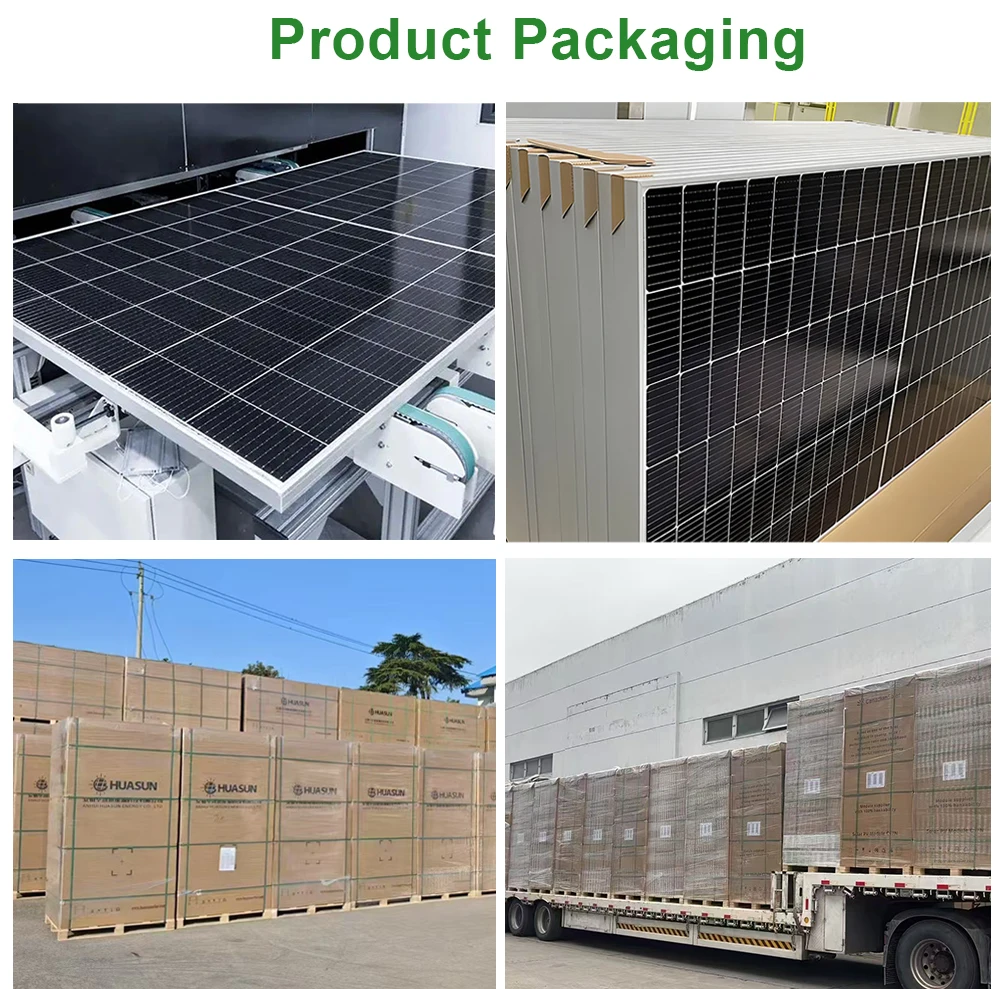

Packaging&Shipping
Patent Certificate
Related Products
FAQ
Q1: What is the minimum order quantity of this product?
A1: 33 pieces.
Q2: How about the delivery time?
Q4: How can I get better service from you?
A4: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
A1: 33 pieces.
Q2: How about the delivery time?
A2: Delivery time 7 days for sample; 15 days for bulk order.
Q3: What is the warranty for solar panels?
A3: We offer 30 years linear power warranty.
A3: We offer 30 years linear power warranty.
Q4: How can I get better service from you?
A4: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
