DAH Complete Kit 50KW 60KW 80KW 100KW 150KW 200KW 300KW 500KW 1MW Grid Tied Solar Energy System
- Category: >>>
- Supplier: DAH Solar Co. Ltd.DAH Ltd.
Share on (1601369857404):
Product Overview
Description
Commercial Use 60-200KW | ||||||||||
Module | DH60KW-ON | DH80KW-ON | DH100KW-ON | DH150KW-ON | DH200KW-ON | |||||
540W Mono Solar Panel (Pcs) | 112 | 150 | 186 | 280 | 384 | |||||
Grid Tied Inverter | 60KW | 80KW | 100KW | 150KW | 200KW | |||||
DC Cable 4mm2 | 1200 Meters ( Designable according to project requirements) | |||||||||
MC4 Connector | 50 Pairs ( Designable according to project requirements) | |||||||||
Mounting System | Customized for Rooftop or Ground | |||||||||
Installation Tools | 1 Set | |||||||||
Optional Accessories | Lightning protection/grounding device AC/DC Combiner box AC cable Smart Meter | |||||||||
Top Components

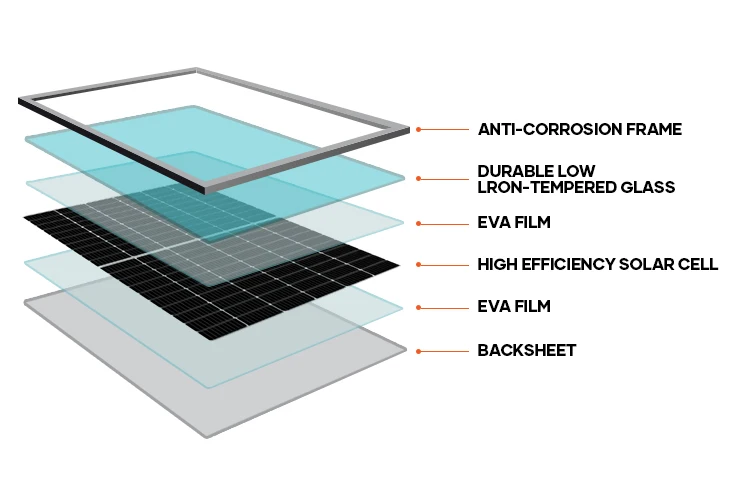

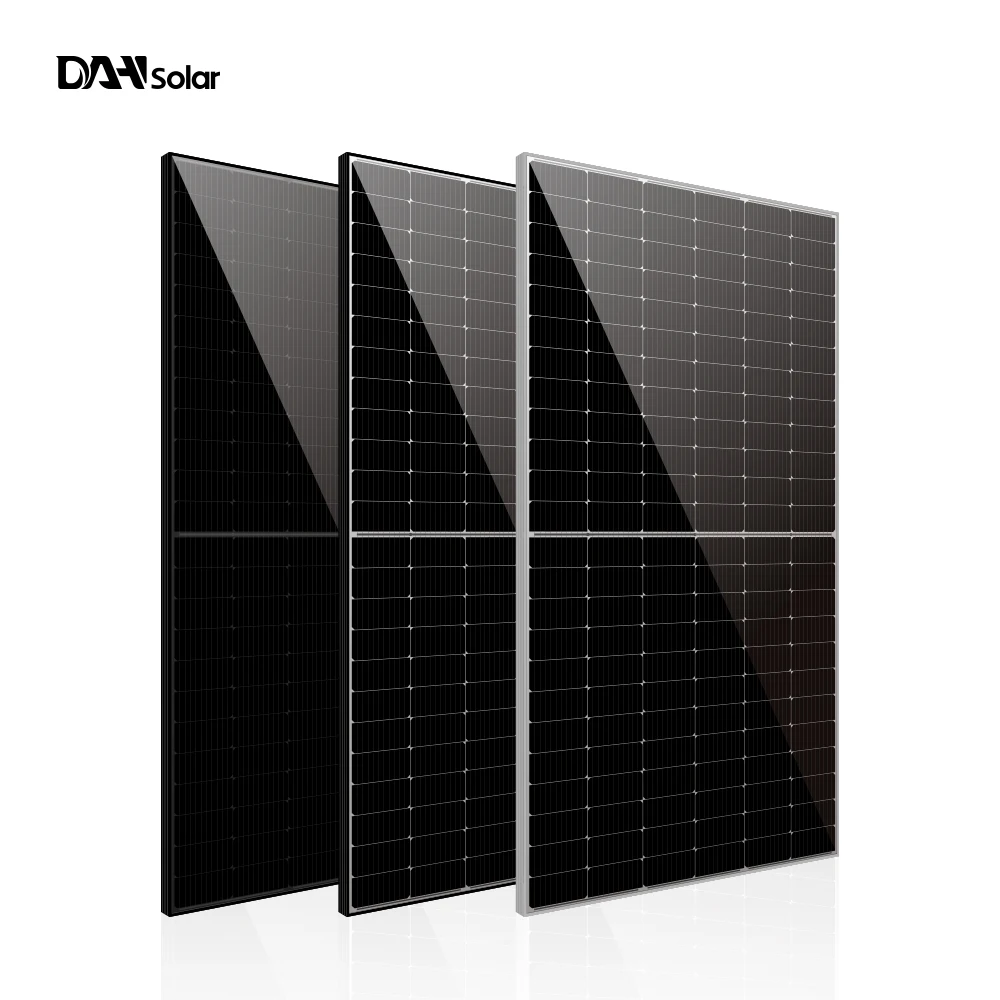

Solar Panel
PID Free PV Module
0-5W Positive Power Output Guarantee
30Years Power Output Guarantee
100% Double Full EL Inspection

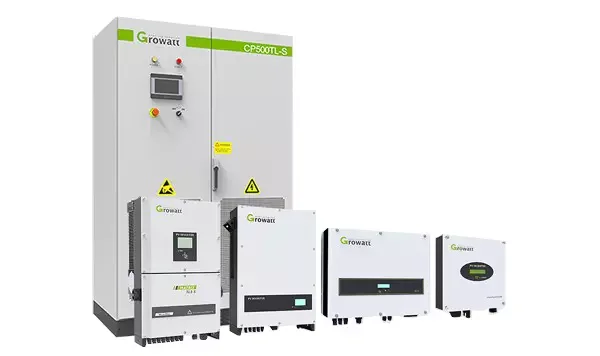

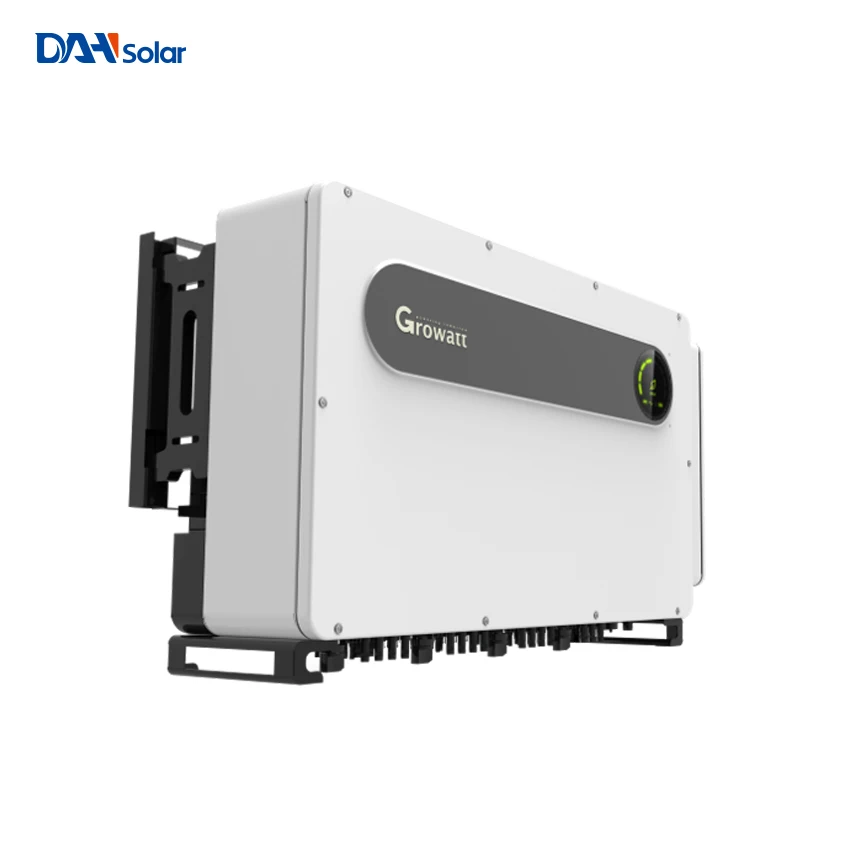

On Grid Inverter
10 years standard warranty
Support Working in Parallel
Max.Efficiency 99.6%
Integrated DC switch for added safety protection
Max.Efficiency 99.6%
Integrated DC switch for added safety protection
With WIFI Monitoring Device
Intelligent APP for PC, IOS and Android, monitoring system runs power generation, keeping the latest date in real time.
Mounting Structure
Customized for :
Rooftop(Flat/Pitched), Ground , Car Parking Lot
Adjustable tile angle from 0 to 65 degree
Compatible with all solar modules.
Rooftop(Flat/Pitched), Ground , Car Parking Lot
Adjustable tile angle from 0 to 65 degree
Compatible with all solar modules.
Accessories
PV Cable 4mm2 6mm2
MC 4 compatible Connector
AC/DC Combiner Box
AC/DC Breaker
Production & QC
DAH Solar covers an area of 38,000 square meters and has 350 employees. DAH solar is a national high-tech enterprise specializing in R & D and manufacturing of solar panels and solar panel systems. We have the complete production line and strict quality inspection for solar panels.

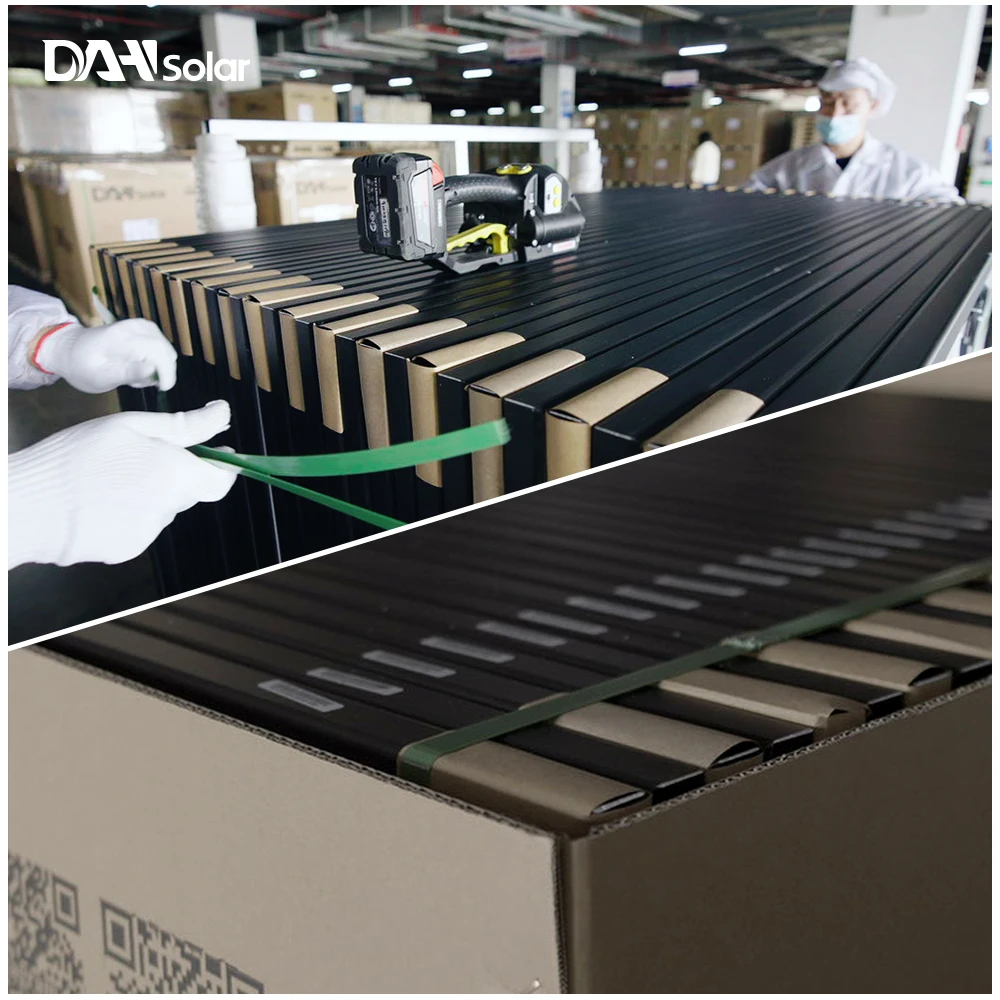

Safe Packaging

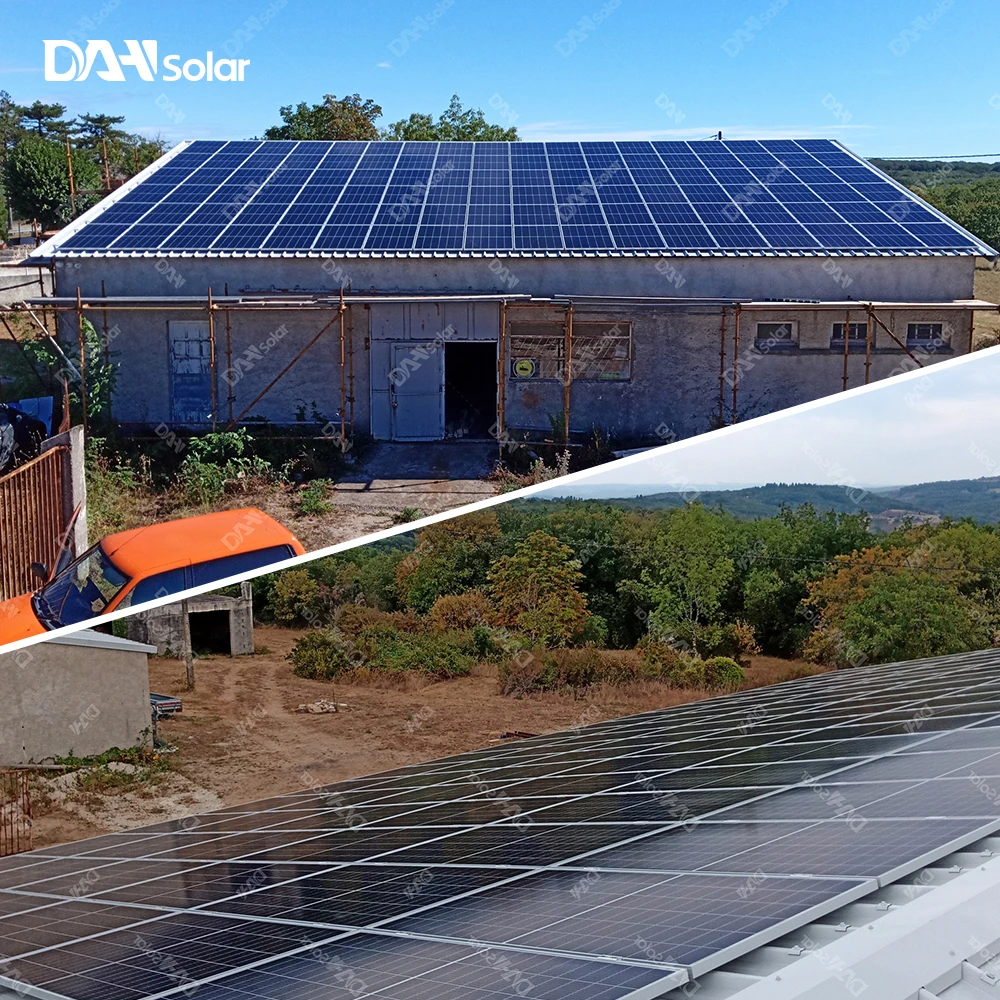

Projects Show
Solar panels are sold to more than 100 countries around the world, such as the United States, Mexico, Brazil, Argentina, the United Kingdom, France, Germany, Italy, Ukraine, Poland, Spain, Thailand, Vietnam, Japan, Oman, Kuwait, Syria, South Africa, Zambia, Nigeria and other countries.
Certificate
