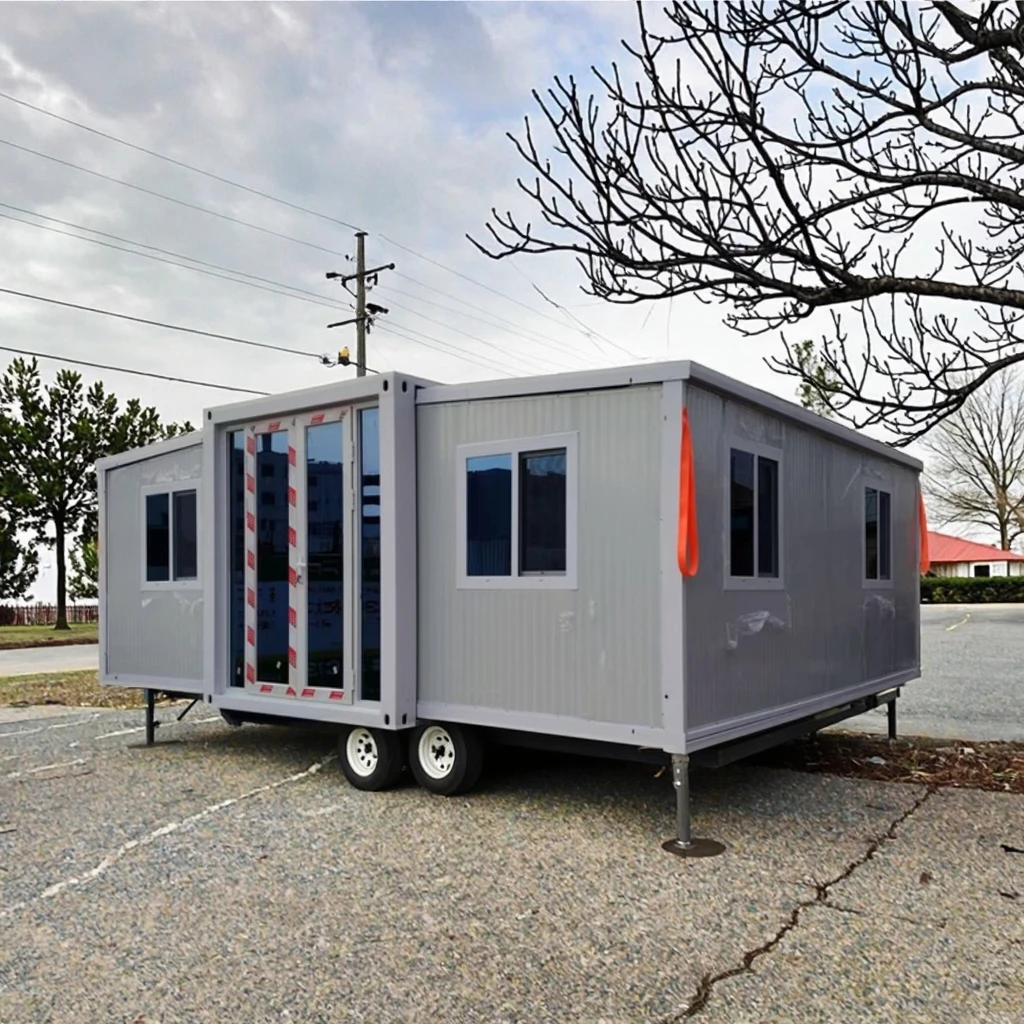

Portable Living Modular House Prefabric house Construction Building 20ft 40ft Expandable Folding House

Product Overview

Description

PRODUCT DESCRIPTION:



Foldable Container house   Model: HX-0029   Material: Galvanized Steel plate, aluminum or fiberglass   Color: Black white or other colors   Dimension: 5900mm(L)*6300mm(W)*2480mm(H)   Equipments: Customized   THE COLOR, DIMENSIONS AND EQUIPMENTS CAN BE MODIFIED TO MEET YOUR NEEDS



CONFIGURATION:





Main frame  (all galvanized):

Top side beam: 80*100*2.5mm square tube

Top beam: bending parts 3.0mm
Bottom side beam: 80*100*2.5mm square tube
Bottom end beam: bending parts 3.0mm
Galvanized head: galvanized head 210*150*160
Steel column: bending piece 3.0mm



Flank frame  (all galvanized):

Top frame: 40*80*1.5mm P-shaped tube
40*80*1.5mm P-shaped tube
Bottom frame: 60*80*2.0mm square tube
Folding hinge: 13mm galvanized hinge (built-in)



Overall frame protection coating: spray, electrostatic spray/plain plastic powder

Box top: external roof, 50mm bamboo and wood fiber graphene insulation board
Top corrugated veneer: 980 W type
Internal ceiling board: bamboo and wood fiberboard



Wood grain wall panel: side wall, front and back, 65mm bamboo and wood fiber graphene insulation board
Inner partition board: 50mm bamboo and wood fiber graphene insulation board



Main frame: fireproof glass magnesium floor 18mm thick
Two wings: bamboo plywood
18mm thick, Plastic floor: 2.0mm plastic



Broken bridge aluminum window: 920*920mm 7 sides of four, front 2, bathroom 1 small window
Broken bridge double door: 1880*2220mm,, bedroom: Titanium magnesium alloy doors *2



Circuit breaker system: 20A leakage protector 1. The voltage is 220V,50HZ
Light: 30*30 flat panel light, large ceiling light
Socket: American standard socket
Light switch: American standard
Wiring: inlet line 62, air conditioning socket 42, ordinary socket 2.52, lighting 1.52

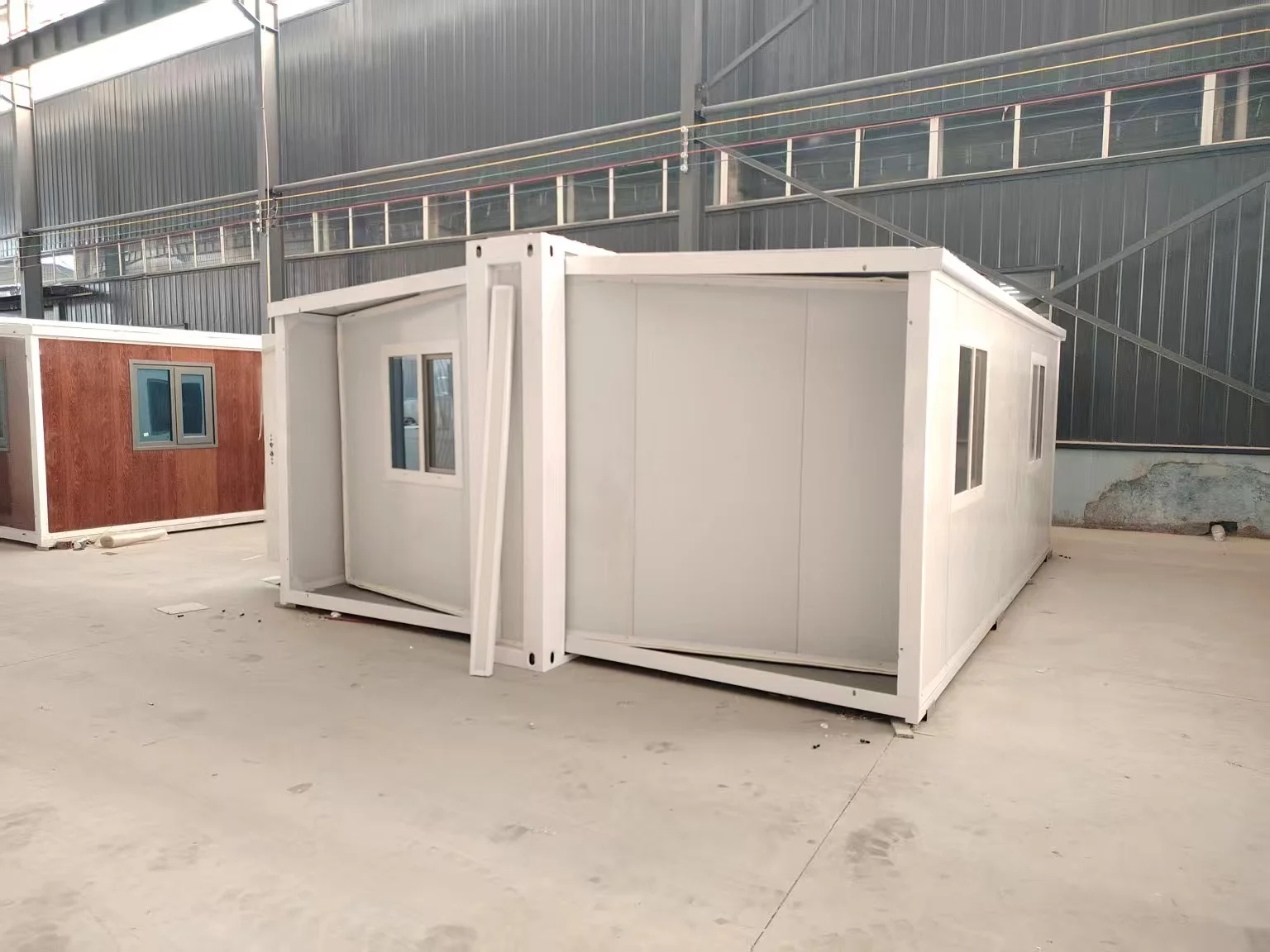

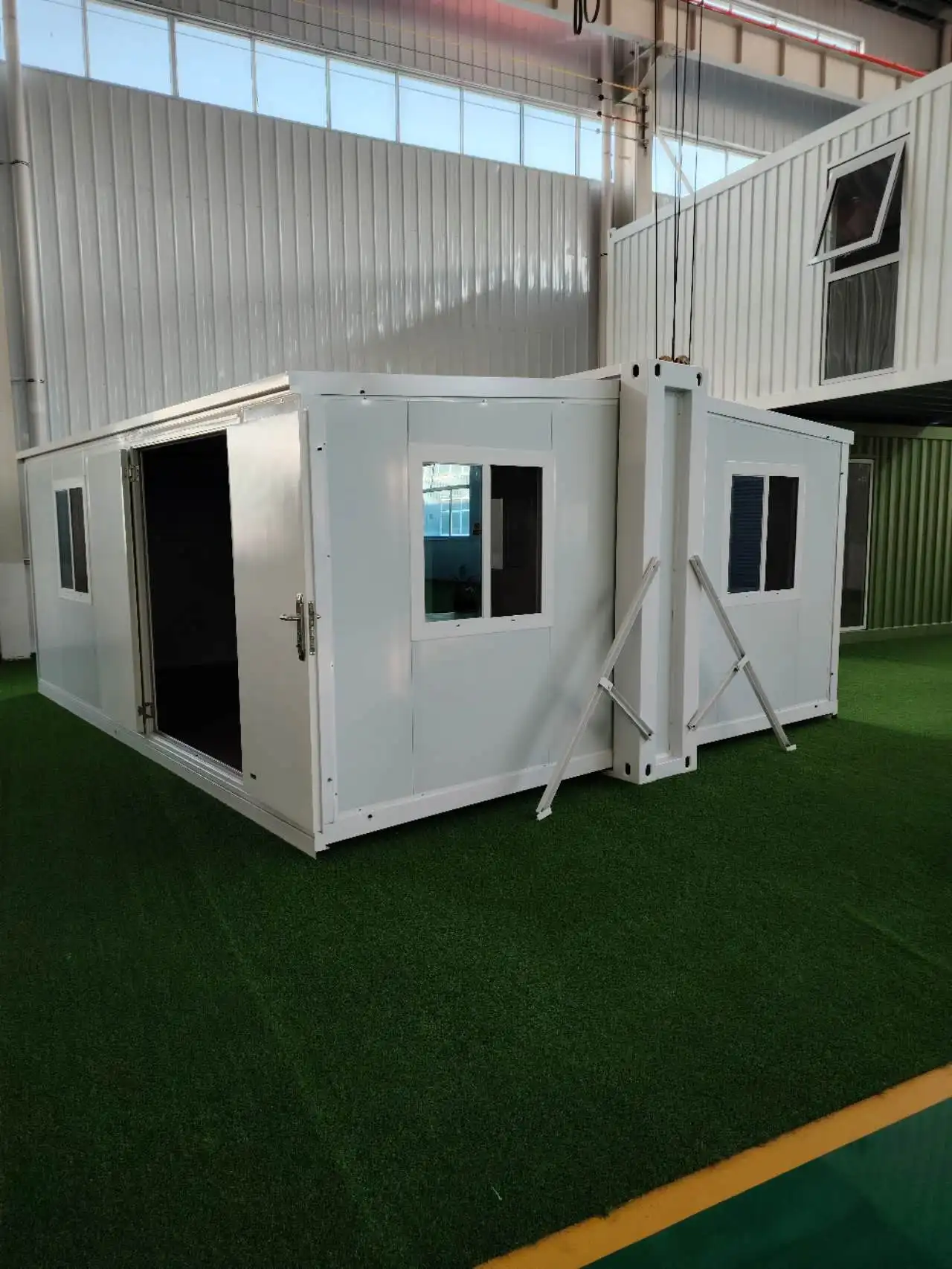

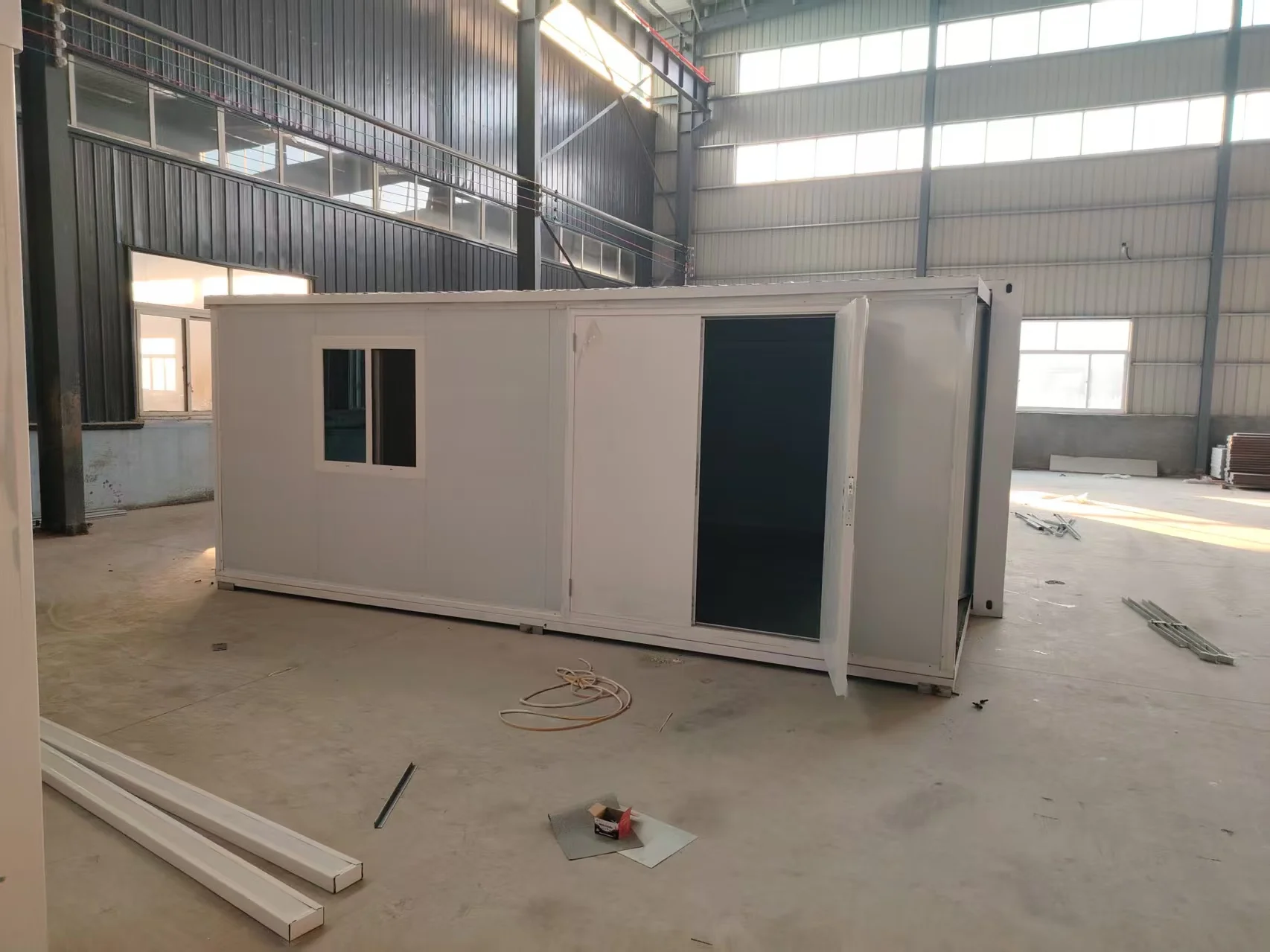

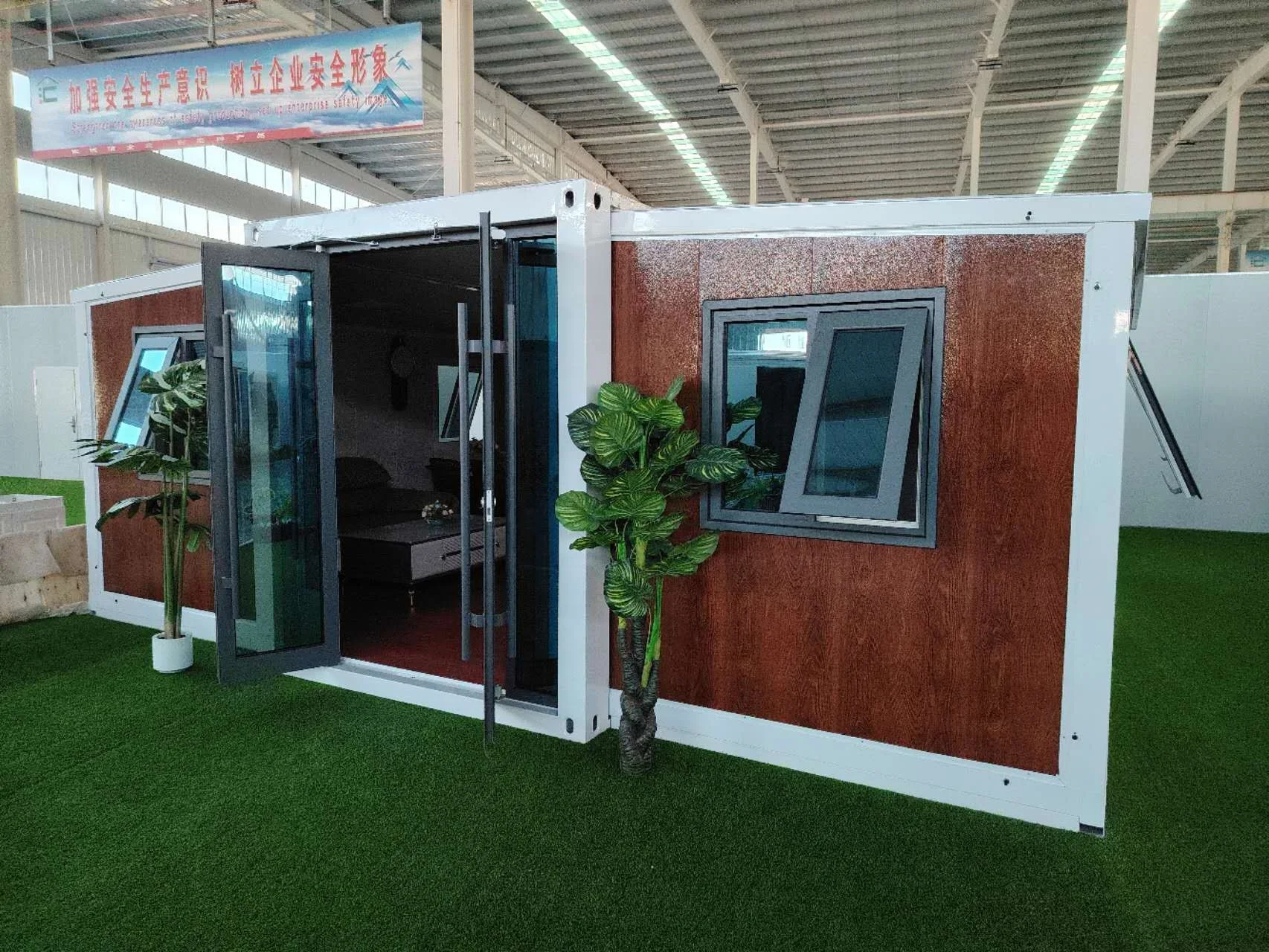

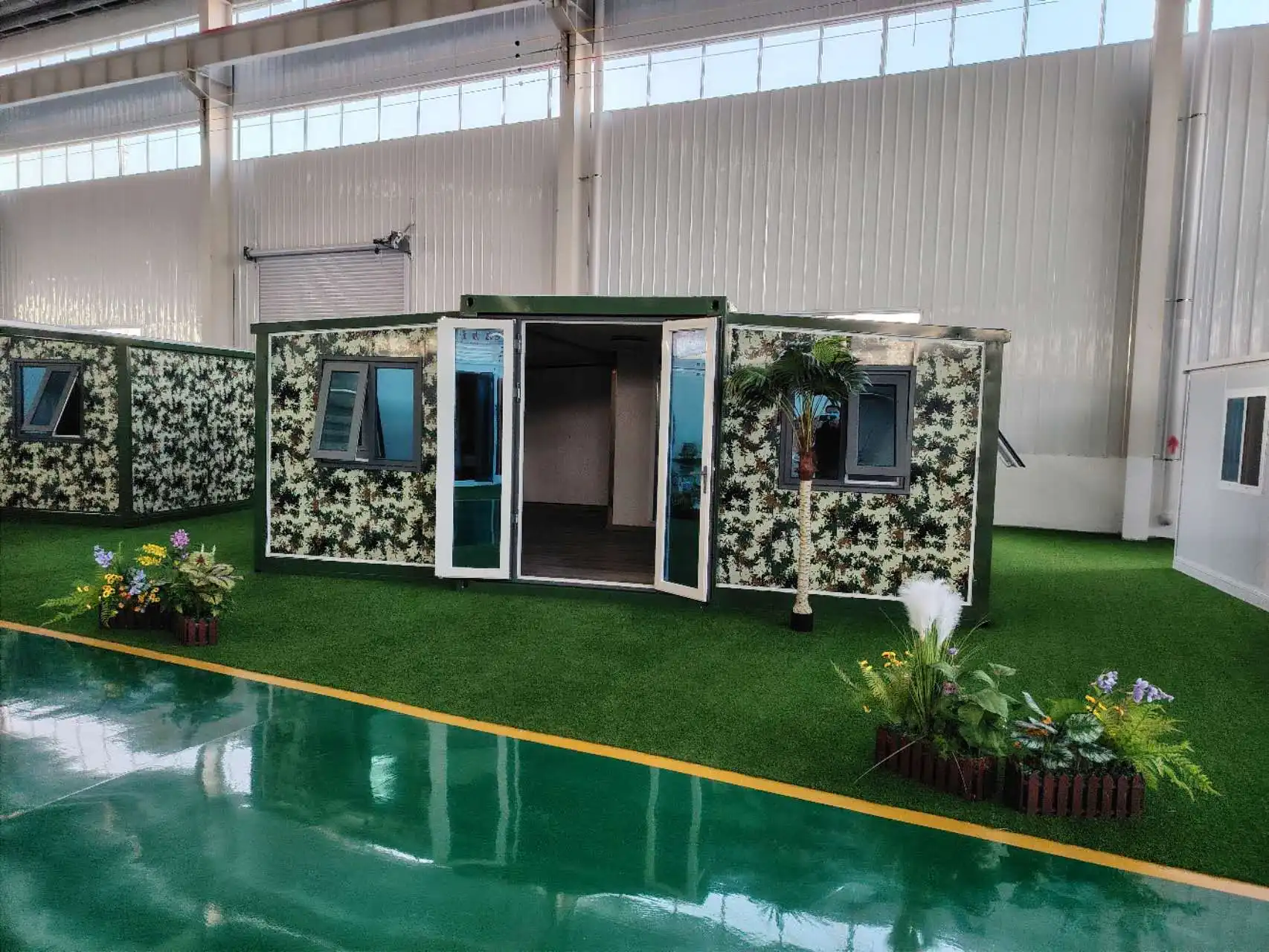

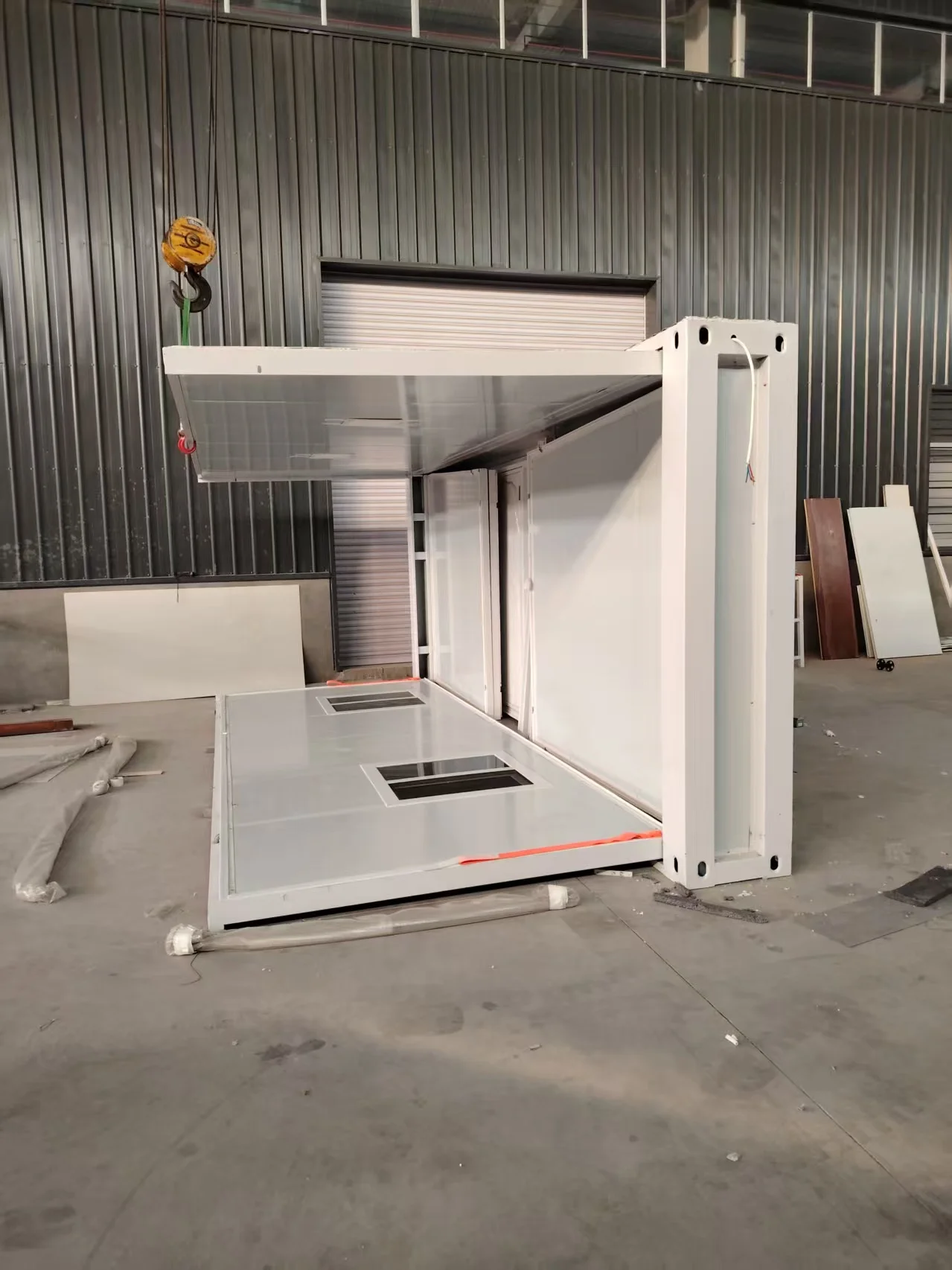

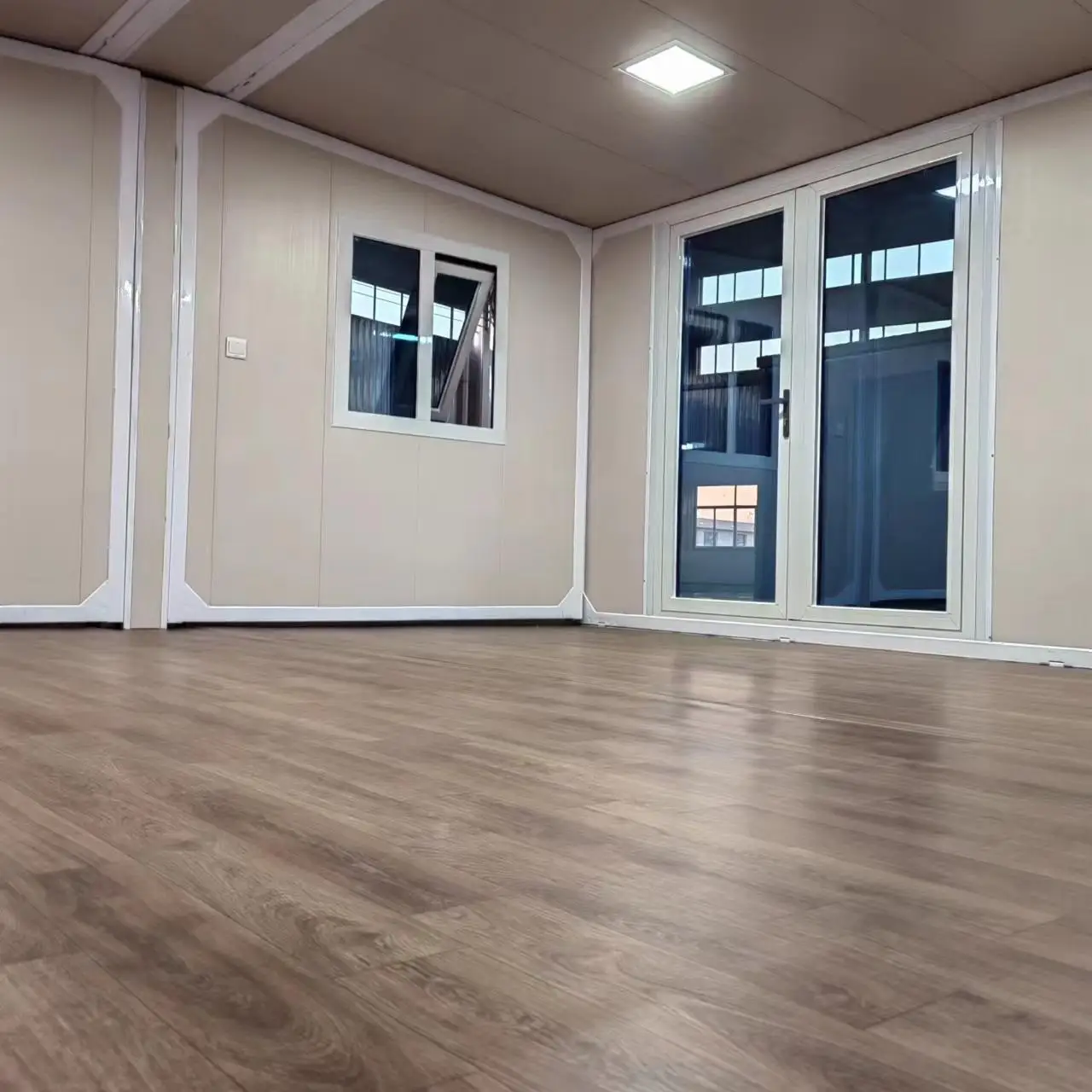

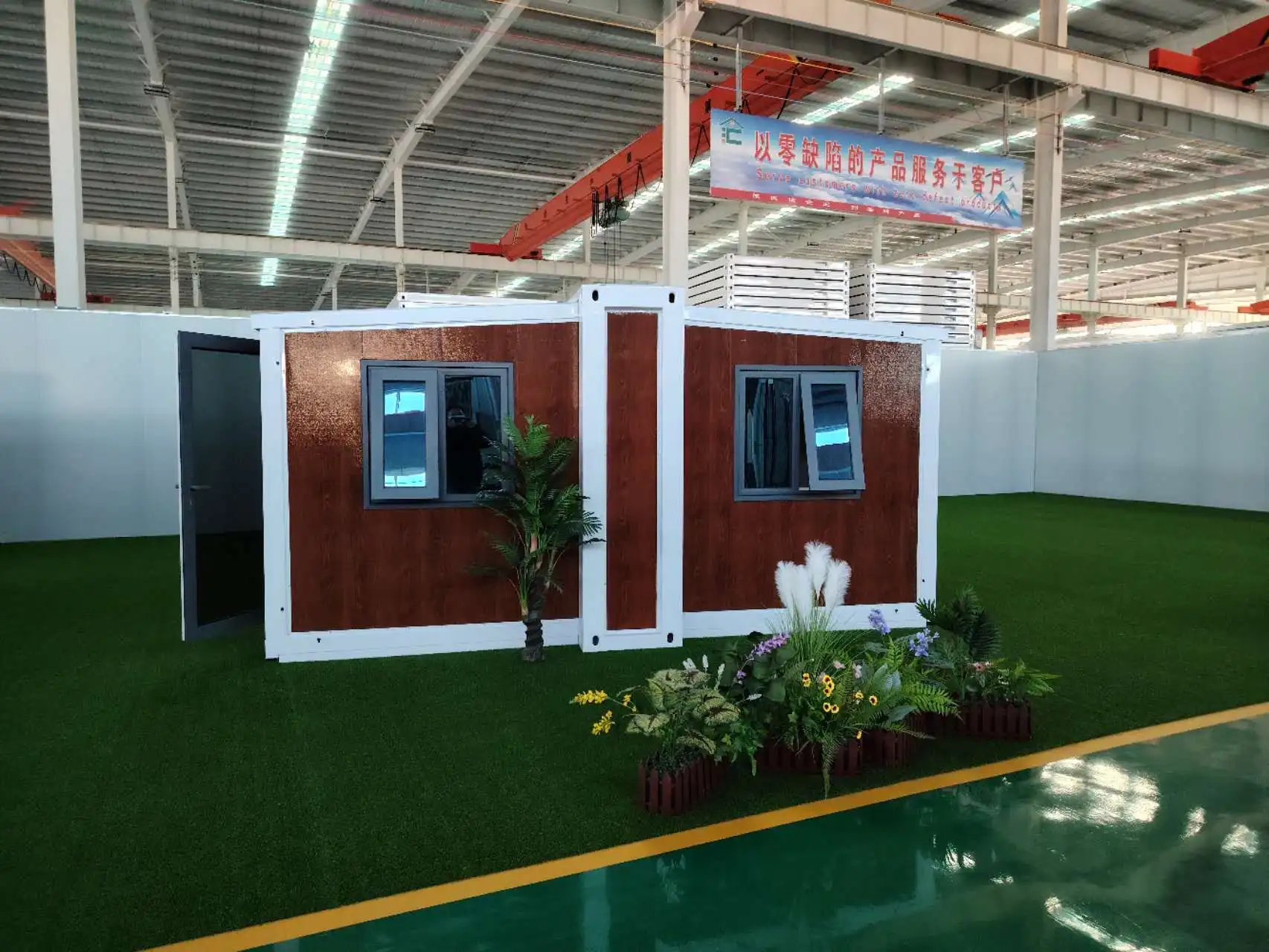

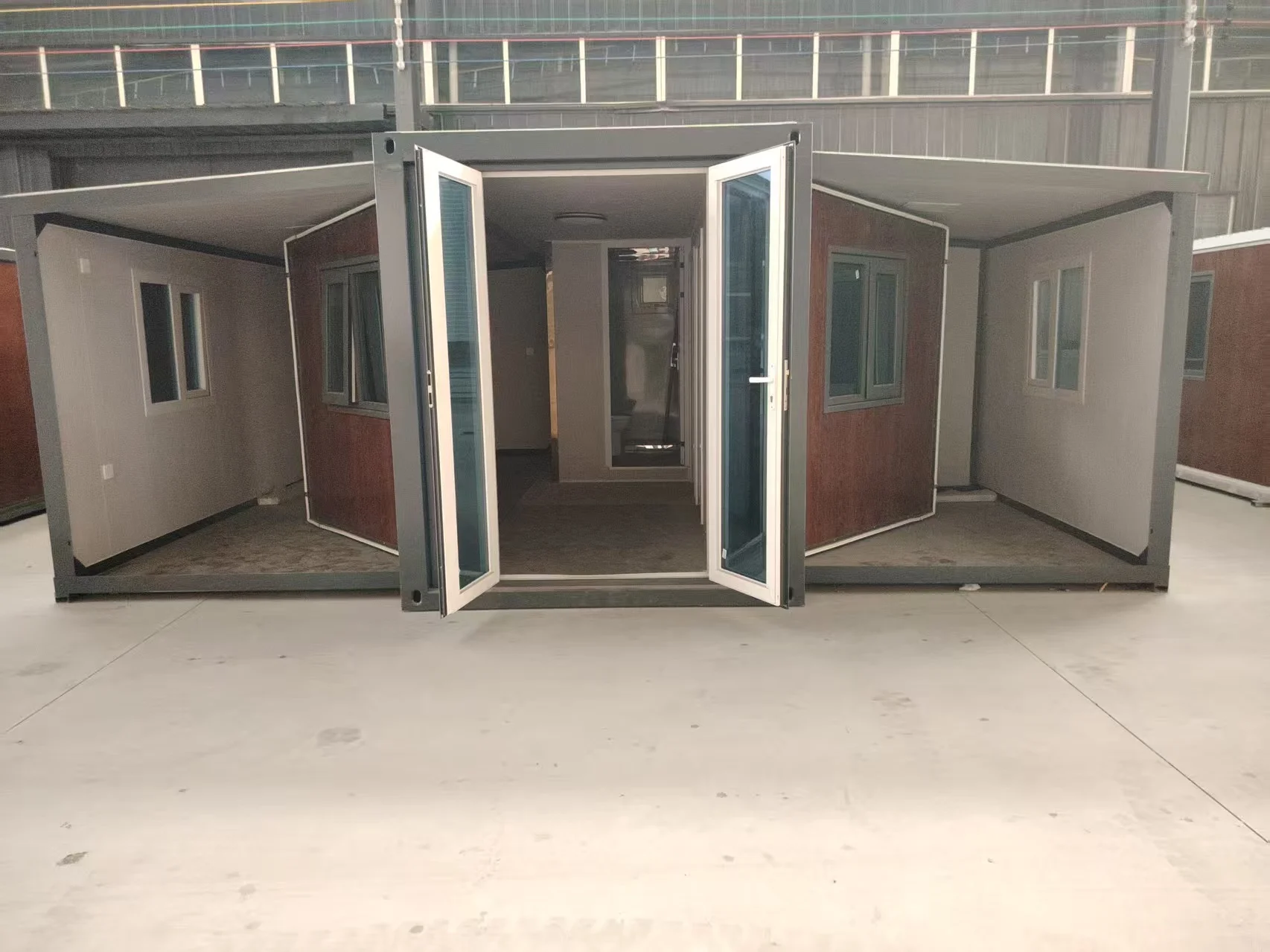

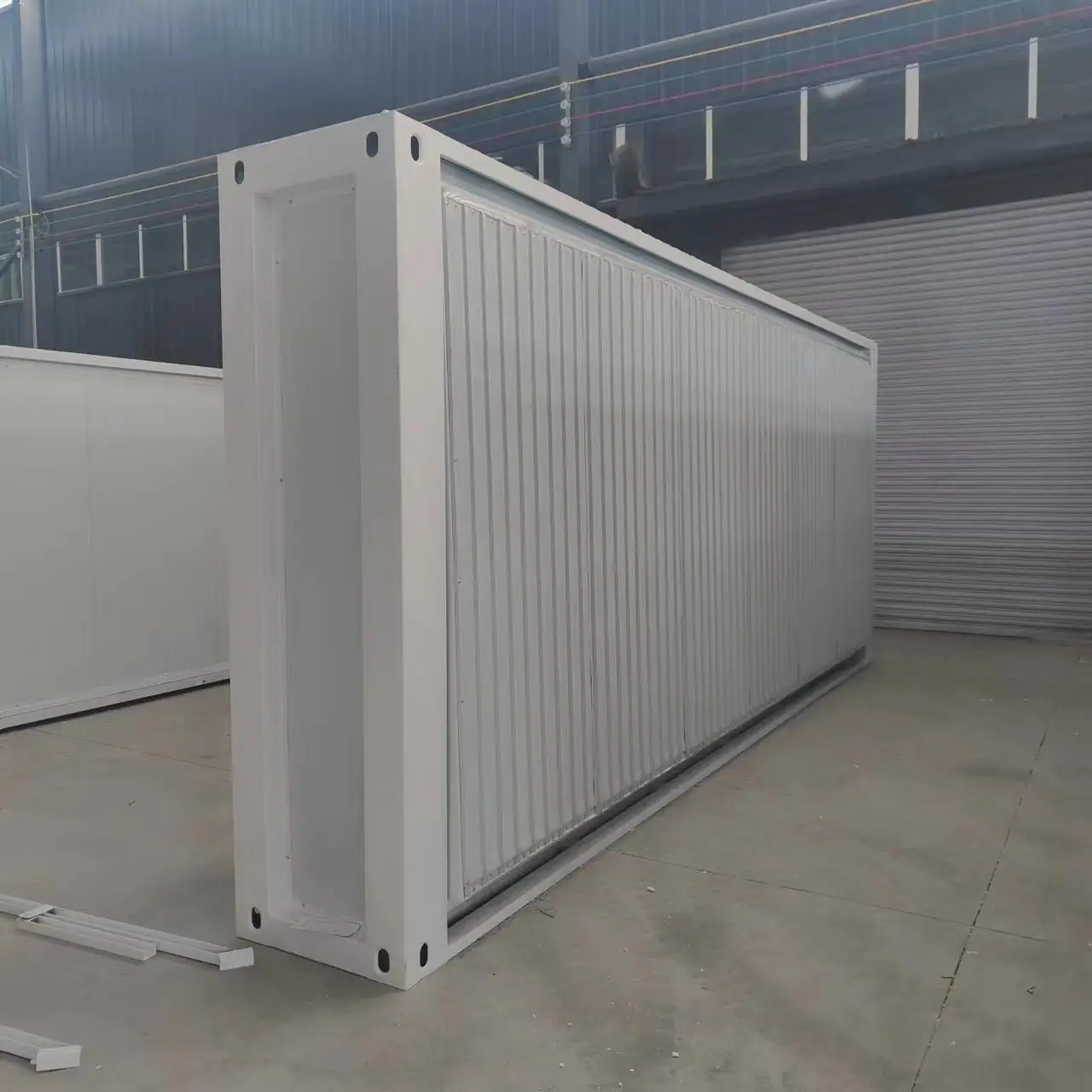

Detailed Images:

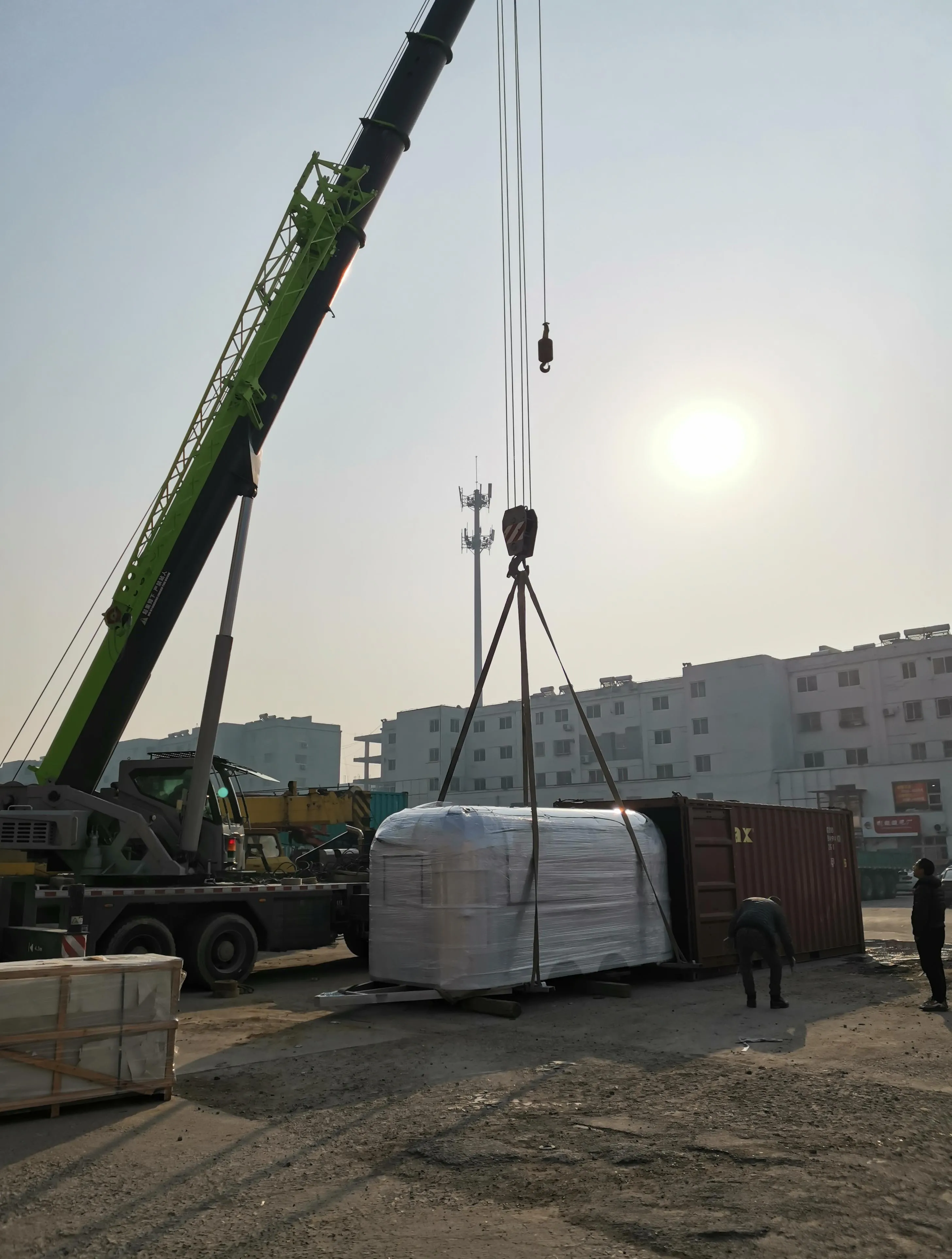

PACKING AND SHIPPING :

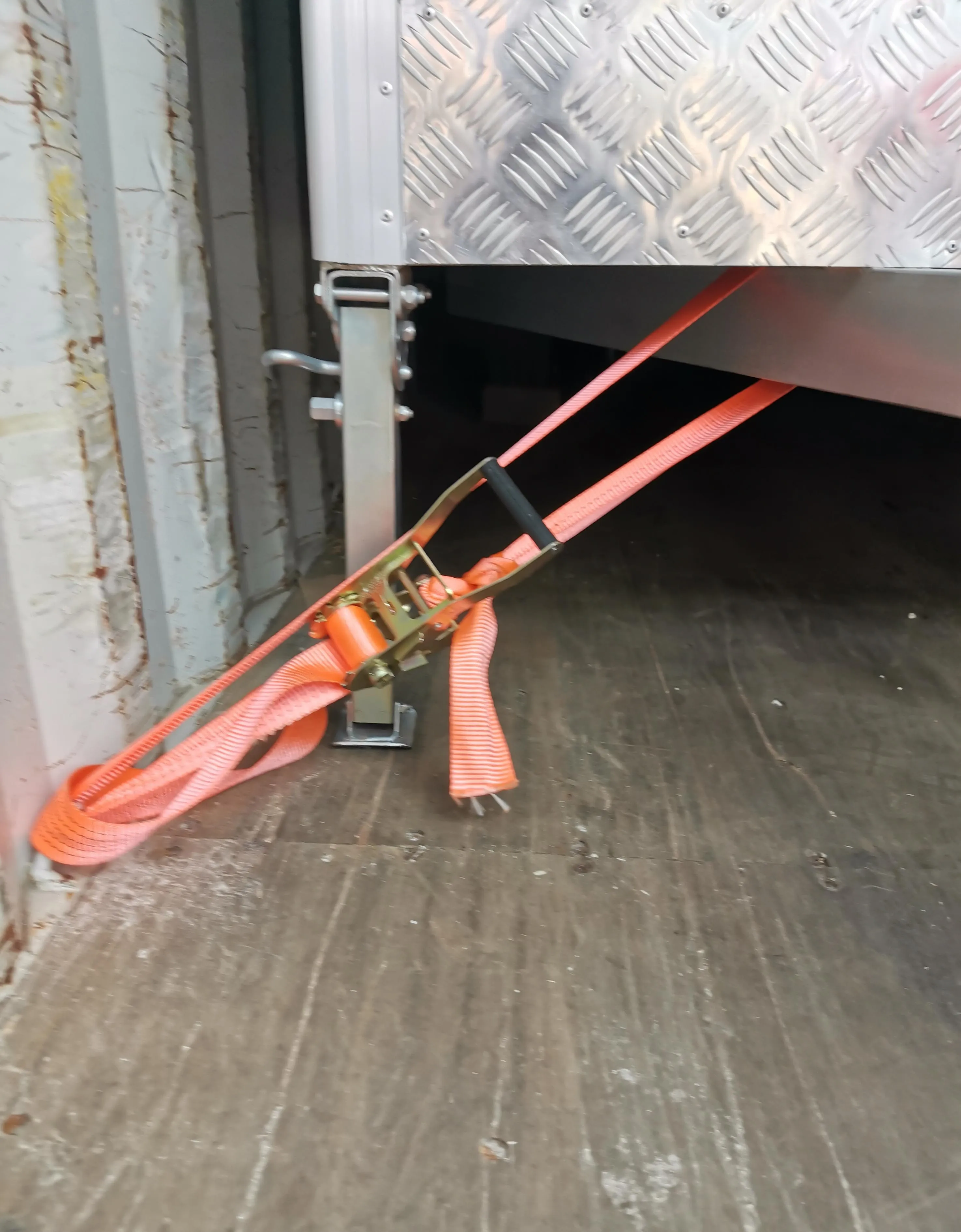

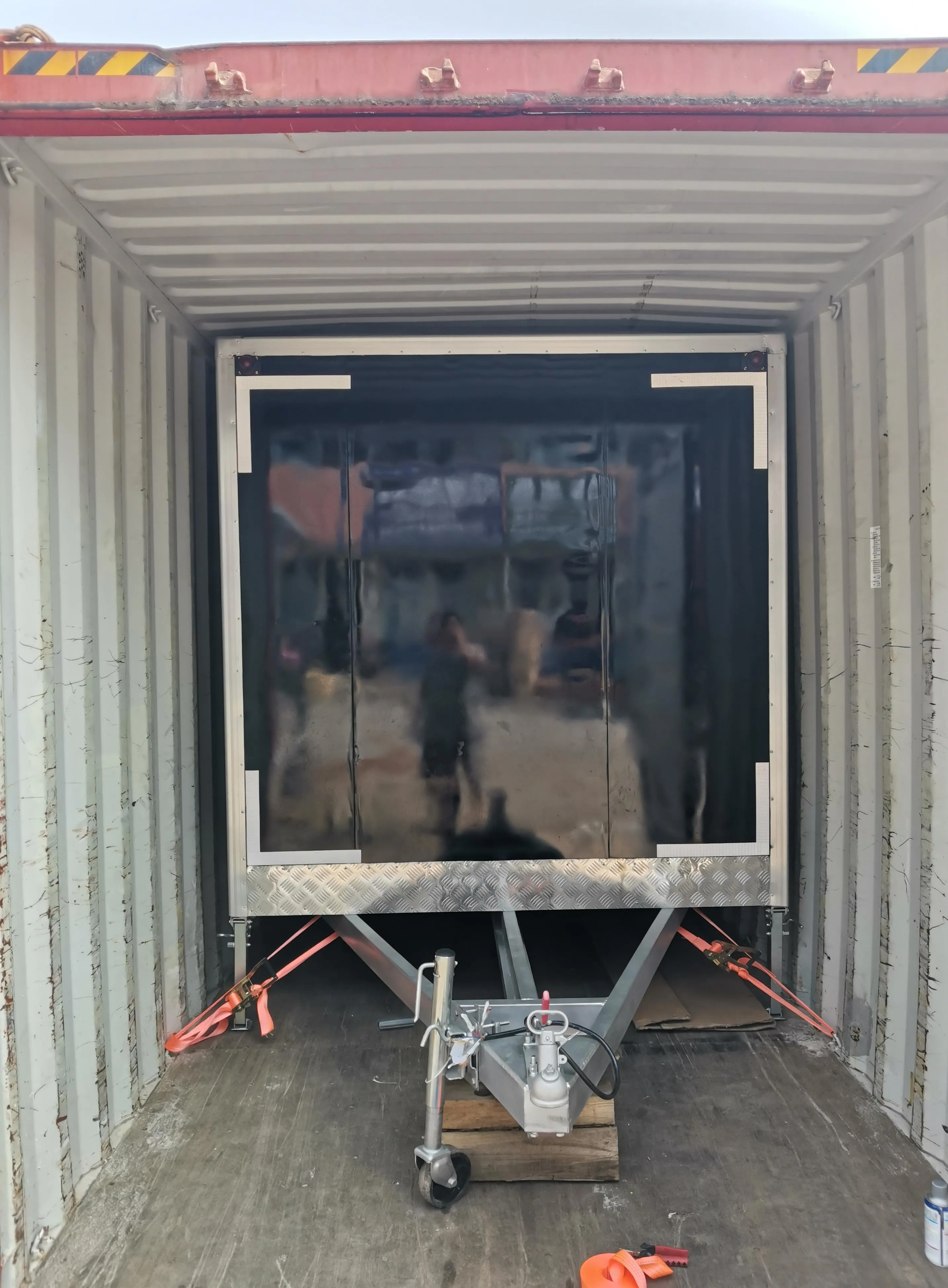

We tie up and secure each trailer to ensure the safety of transportation







About us&Company Informartion:



QINGDAO HAIXI VEHICLE CO., LTD.

      Our factory has been engaged in the processing and production of trailers and dining trucks since 2000. This year, we started to promote our products since we moved into Alibaba. We hope to cooperate with our customers and provide our high-quality products..

    We specialize in designing and manufacturing of different types of Food trailer.
All of our products comply with international quality standards and greatly appreciated in variety of different markets throughout the world.
    Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.



FAQ:

Q1, Are you manufacturer?
Yes, we are manufacturer with own workshop;
Q2, Is sample order accepted?
Yes,sample order is accepted. You can place a trail order to evaluate the product quality and fabrication skill first.
Q3, Is customized order accepted?
Yes, customized order is accepted, both dimension of trailer, and equipments, we can design as your request.
Q4, what is payment Terms for making order?
Our payment terms is T/T or use Trade Assurance
Q5, How about the delivery?
After a 40%-50%deposit(if the machine is customized,you need to pay 50% deposit, if the amount is little,you need to pay full payment),we will prepare the products .
Q6, How long of the validity term of the quotation?
The validity term of the quotation is 30days.
Q7, How long of the guarantee period?
The Guarantee period is one or two years.
Q8, Can we visit your factory?
Yes,of course,we are so happy if you visit our factory.
Q9, After-sales service
According to the equipment which you have bought,we will discuss more information or technology about the machine with you,also send you pic or vedio about how to use and install it.



Our Service:

We provide quality products, quality pre-sales and after-sales service, product after-sales protection



Contact with Us:

If you have any need, please feel free to contact me :WhatsApp +8613675420369 OR +8613176869056
