Asphalt Heater Unit bitumen melting machine asphalt decanter

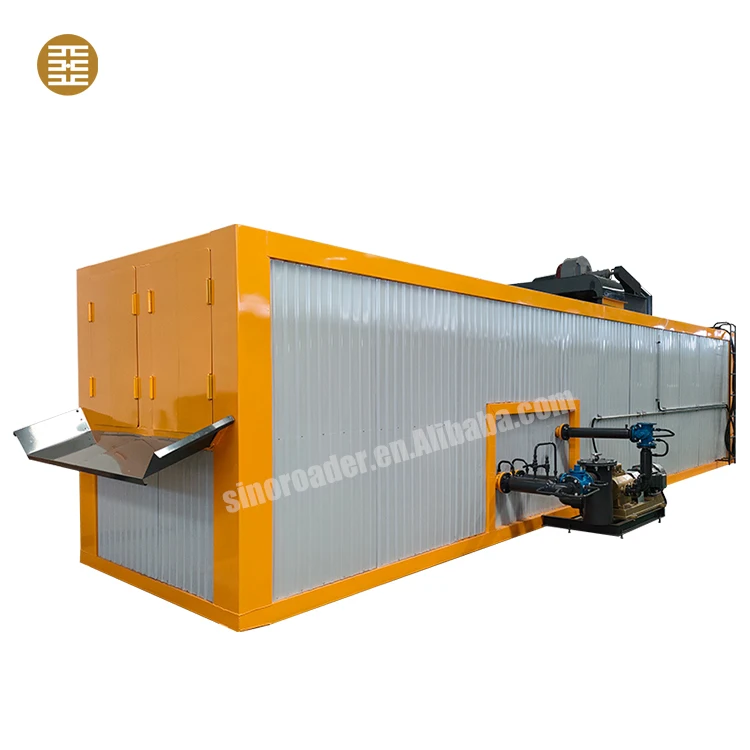

 The Description of Asphalt Heater Unit bitumen melting machine asphalt decanter

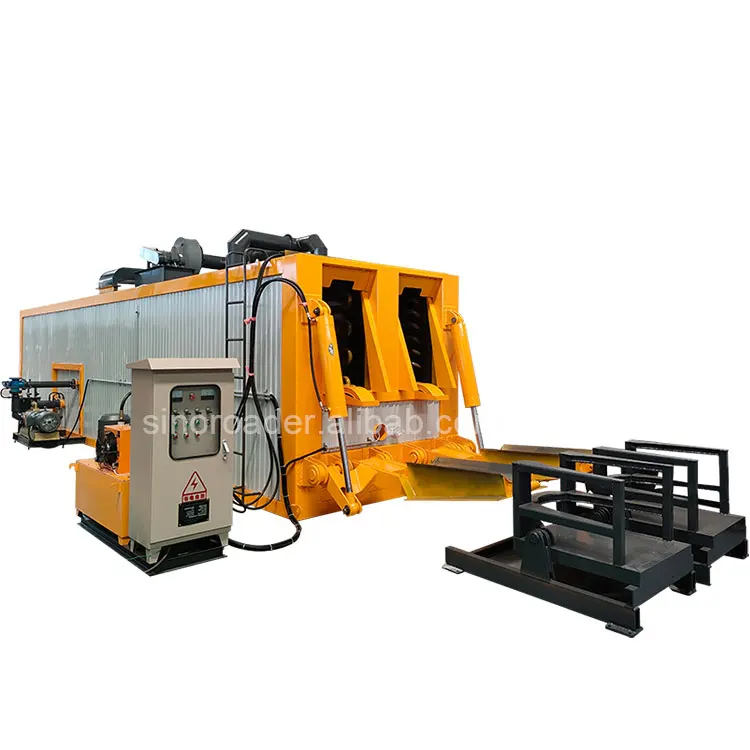

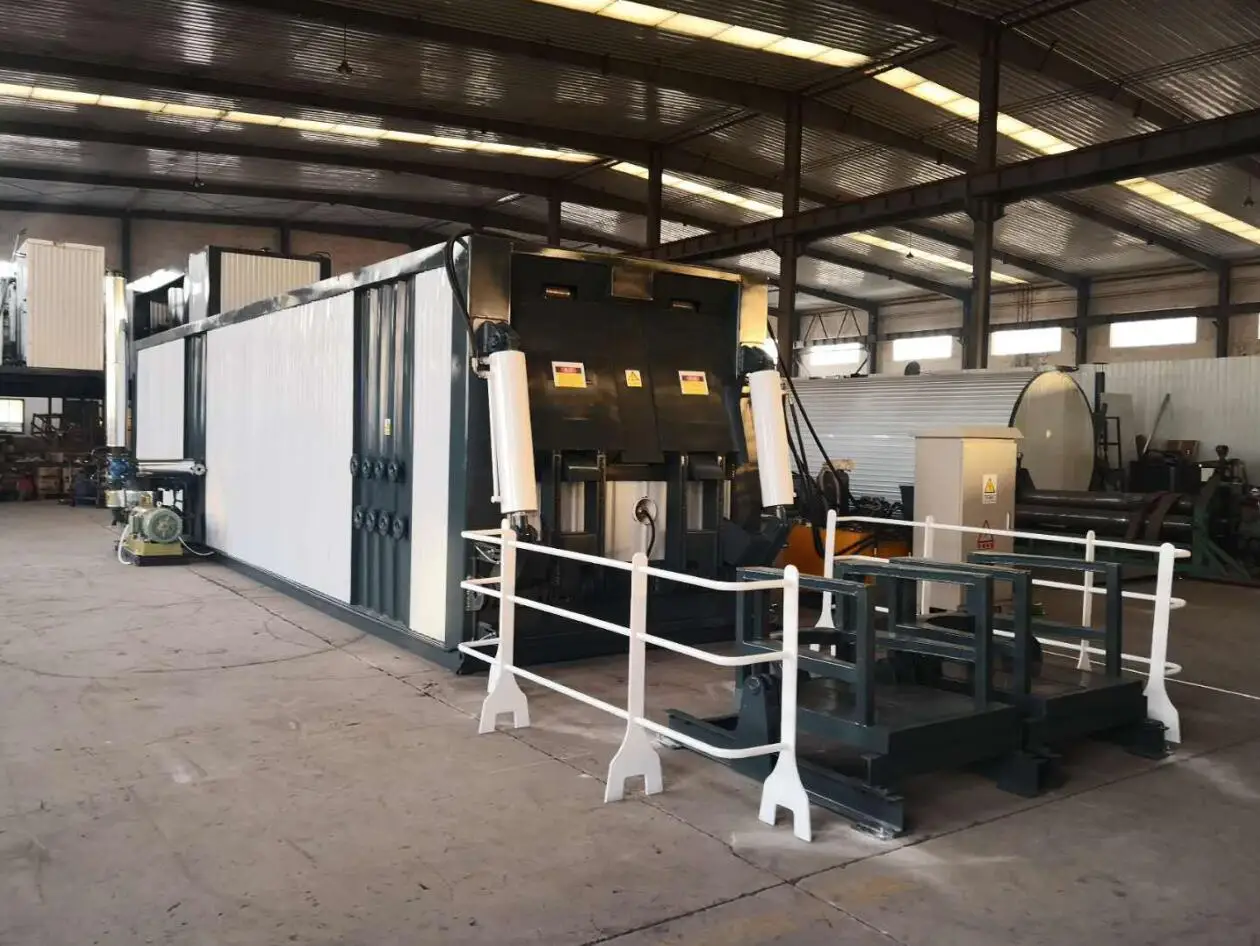

Heating chamber consists of two compartment, upper compartment and lower compartment. There are coiled pipelines which convey heat transfer oil in the upper compartment, hot emission air of diesel burner also exhausts into the upper compartment; heat transfer oil and hot emission air work together to heat the asphalt barrel. When bitumen become melt, it drops down to lower compartment, finally the barrel is emptied. The lower compartment is a melting bitumen pool, beneath it is another compartment which has a lot of coiled heat transfer oil pipelines and a duct for the hot emission air to pass through; the heat transfer oil and hot emission air keep heating the melting bitumen until it becomes liquid; then bitumen pump starts and pump the liquid bitumen to bitumen storage tank through bitumen pipelines. Filtrating device is installed in bitumen pipelines to remove the impurities in the bitumen.

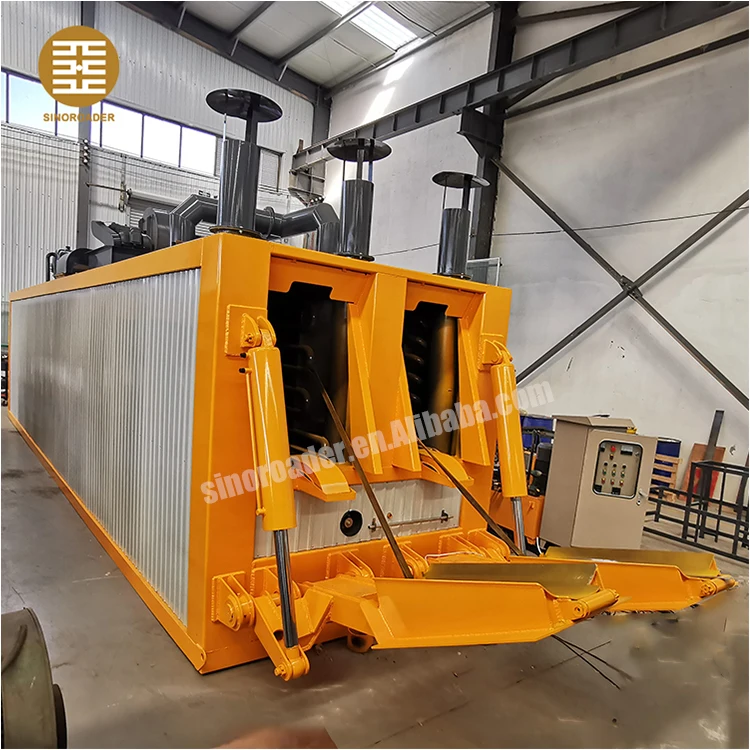

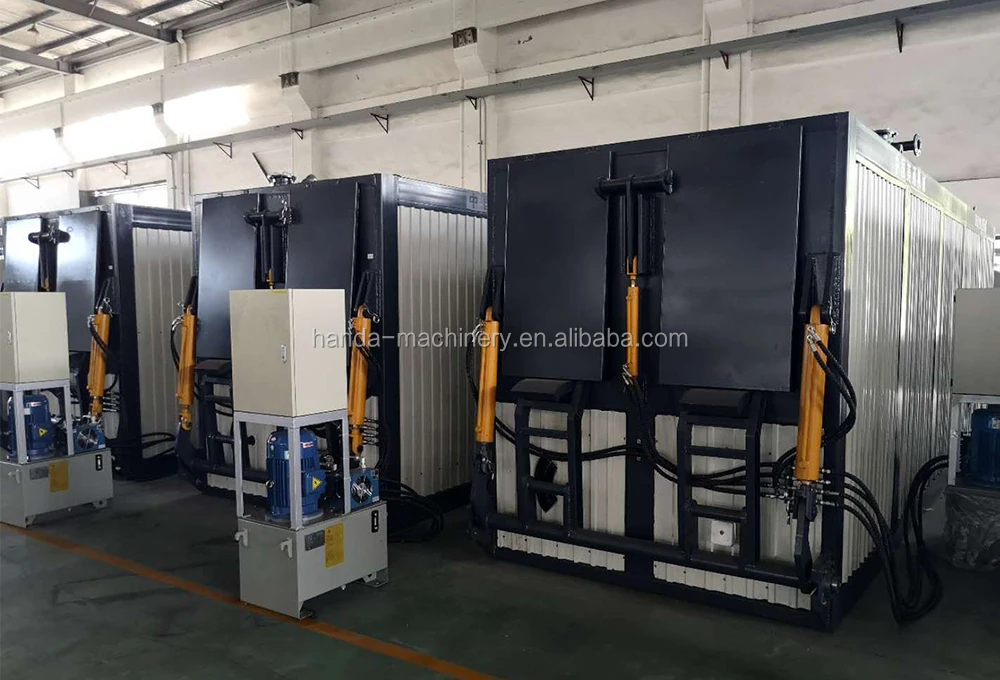

Doors on both end of the heating chamber are spring doors that are automatically shut immediately after barrels come through it. Spring doors are easy for barrels coming in and getting out, and able to minimize heat loss as well.

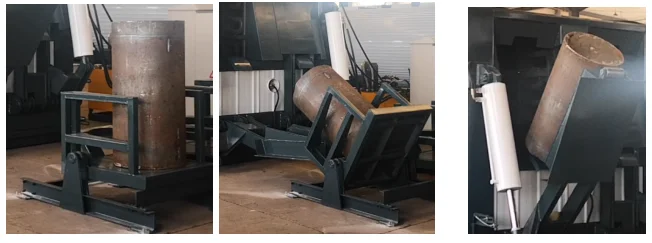

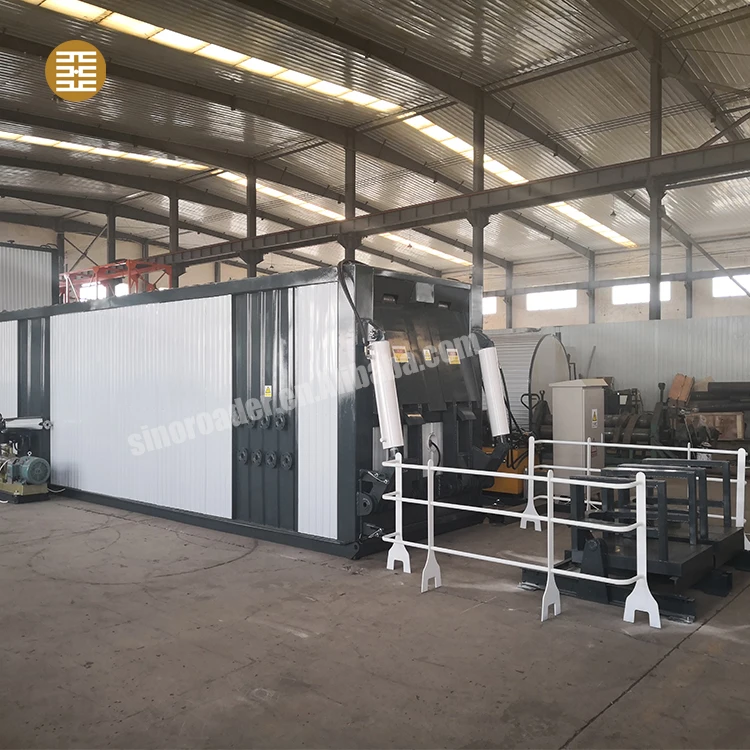

1. Structure of this Equipment is a closed chamber with spring doors on both ends. Bitumen barrels are elevated by a small gantry crane and then pushed into the heating chamber by hydraulic propulsion unit. The Equipment is of nice shape, compact and neat design, high production efficiency, stable and reliable performance, no bitumen waste or pollution; and it is able to operate under all kinds of working conditions.

2. Automatic impurity removal. This Equipment has a function of automatic impurity removal. Filtration devices are installed in bitumen pipelines, and impurities in the barrelled bitumen can be removed by such filtration devices.

3. Completely bitumen removal from barrel. Temperature in heating chamber is quite high, and each barrel can be heated by hot emission air and heating coils closed to it; thus bitumen get melt and drop down very quickly and completely from barrels, and there is no bitumen adhere to barrel and there is almost no waste.

Service of  Asphalt Heater Unit bitumen melting machine asphalt decanter

According to the production demand, guide to choose the right equipment;

Provide technical consultation ;

ensure punctual delivery.

Train the users  for safe production.

We are responsible for all the repairs that caused by our quality problems within one year’s warranty.

The customers whose products have passed its warranty date are entitled to enjoy our after-sales service for life

if you have some other questions at the Asphalt Heater Unit bitumen melting machine asphalt decanter,please contact us:
