Products Description

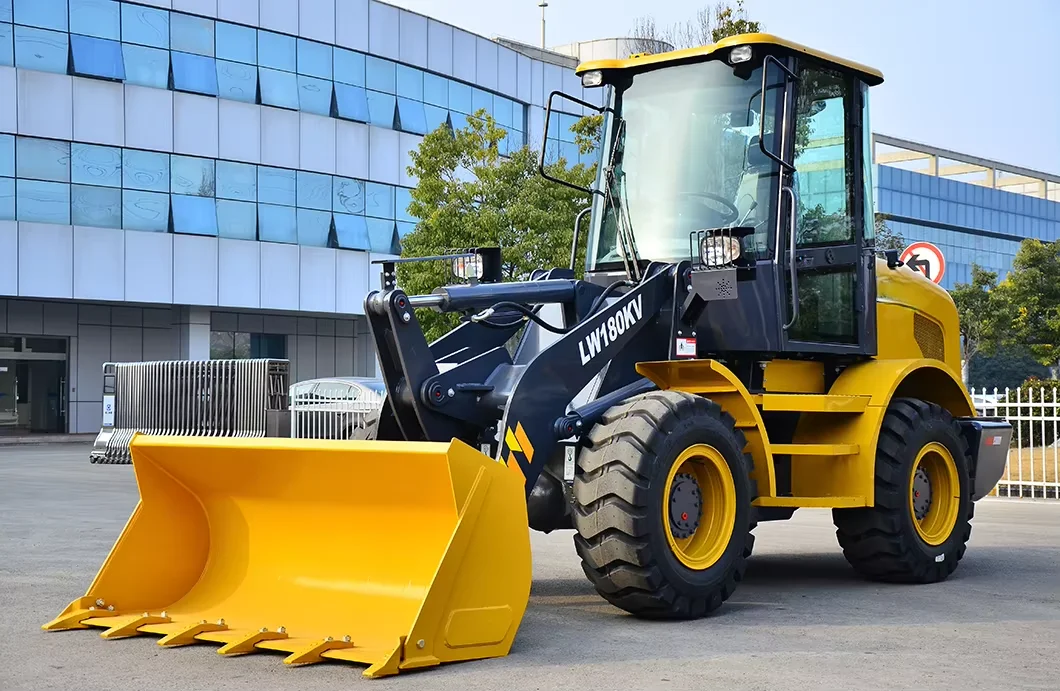

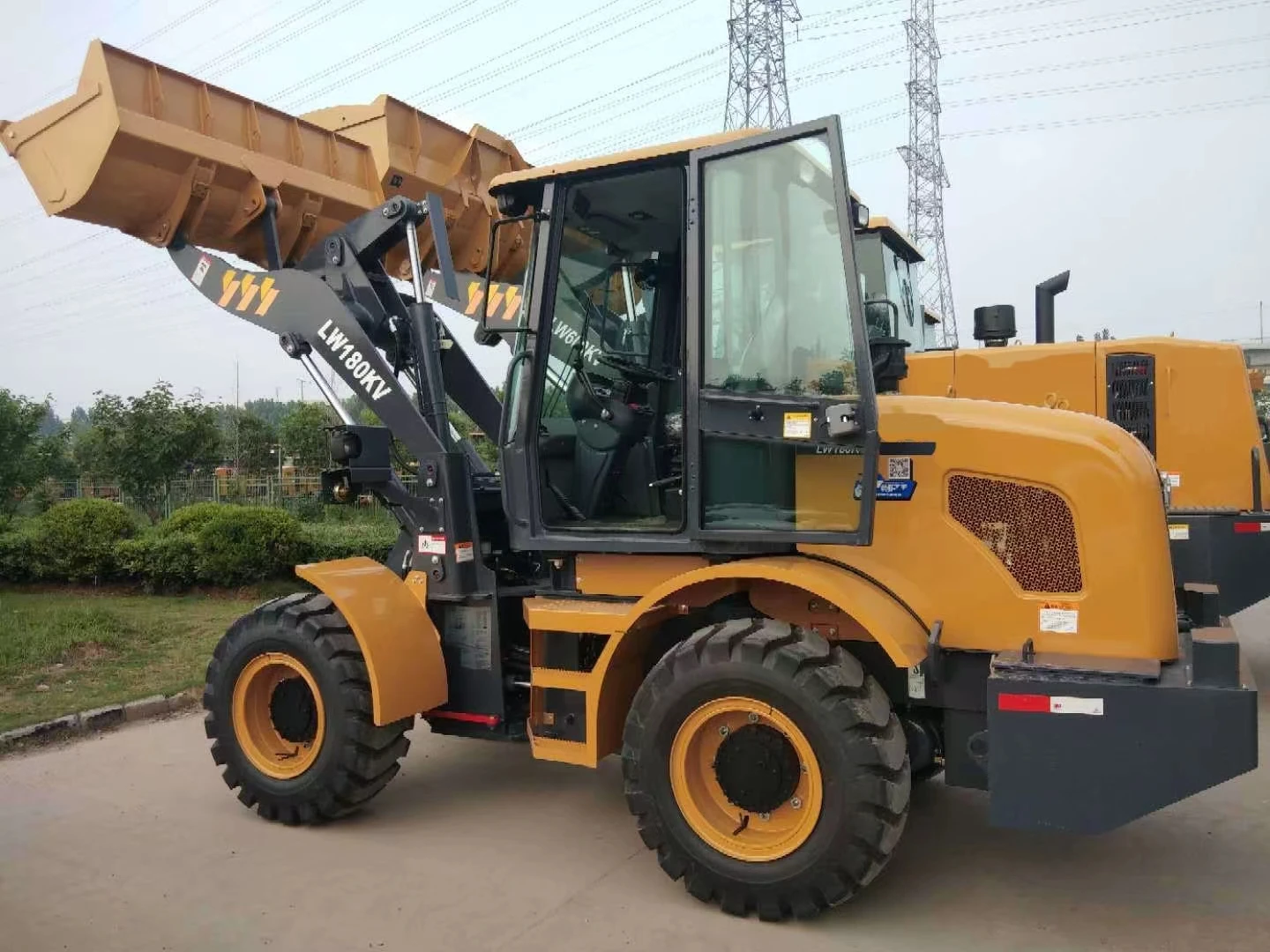

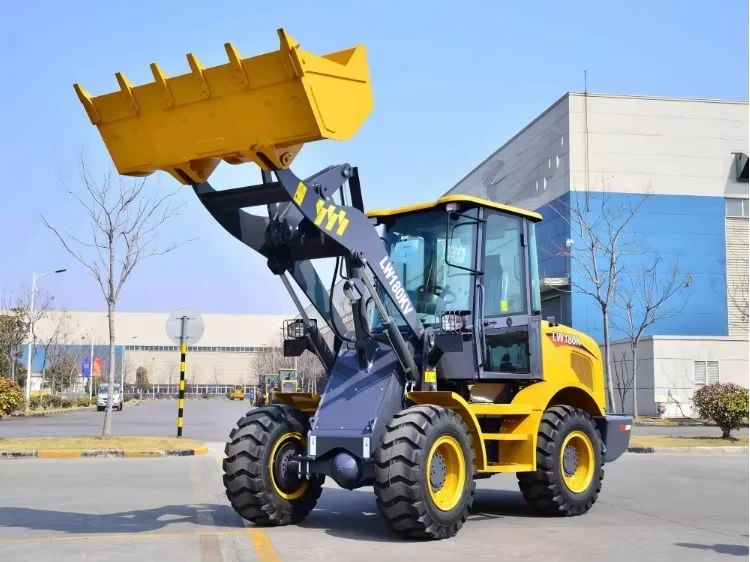

LW180KV
*Unique heavy-duty drive and structural parts boast high carrying capacity.
*The all-new optimized working device challenges the efficiency limit of small-sized loaders.
*The streamline exterior, large-view glasses, and arc ballast feature beautiful modeling and are in line with international
mainstream level.
*The human-oriented design guarantees safety, reduces the fatigue, and builds an excellent operating environment for you.
*The optional hydraulic pilot control, FOPS/ROPS cab, A/C, and audio system feature comfortable operations and high driving safety.
Performance Highlights:
*The extended wheelbase (2,300mm) design applied adapts to diversified super-heavy working conditions, with the stability leading the industry.
*With powerful digging force (The breakout force of LW180K is ≥58kN) and strong breaking force, it handles diversified materials with ease.
*It boasts the industry’s best traveling speed (26km/h), featuring high rapidness and efficiency.
*The diversified dumping heights (at 2,650~2,970mm) are at choice to meet the operation needs in diversified applications.
*The all-new optimized working device challenges the efficiency limit of small-sized loaders.
*The streamline exterior, large-view glasses, and arc ballast feature beautiful modeling and are in line with international
mainstream level.
*The human-oriented design guarantees safety, reduces the fatigue, and builds an excellent operating environment for you.
*The optional hydraulic pilot control, FOPS/ROPS cab, A/C, and audio system feature comfortable operations and high driving safety.
Performance Highlights:
*The extended wheelbase (2,300mm) design applied adapts to diversified super-heavy working conditions, with the stability leading the industry.
*With powerful digging force (The breakout force of LW180K is ≥58kN) and strong breaking force, it handles diversified materials with ease.
*It boasts the industry’s best traveling speed (26km/h), featuring high rapidness and efficiency.
*The diversified dumping heights (at 2,650~2,970mm) are at choice to meet the operation needs in diversified applications.
Specification
Description | Unit | Parameter value |
Rated operating load | kg | 1800 |
Bucket capacity | m³ | 0.9~1.1 |
Machine weight | kg | 6200 |
Dump clearance at maximum lift | mm | 2650~2970 |
Reach at maximum lift | mm | 900~1000 |
Wheel base | mm | 2300 |
Tread | mm | 1550 |
Max.breakout force | kN | ≥58 |
Hydraulic cycle time-raise | s | 5 |
Total hydraulic cycle time | s | ≤8.5 |
Min. turning radius over tyres | mm | 4470 |
Articulation angle | ° | 35 |
Gradeability | ° | 28 |
Tyre size | 16/70-20 | |
Overall machine dimension L×W×H | mm | 5980×2060×2950 |
Model | YC4D80-T20 | |
Rated Power/Speed | kW/rpm | 58/2400 |
