2S200 20 3/4' 2 Way NO Stainless Steel Solenoid Valve For Water Air Oil 12V 24V 110V 220V
- Category: >>>
- Supplier: Ningbo Brando Hardware Co. Ltd.Ningbo Ltd.
Share on (1601371704377):
Product Overview
Description

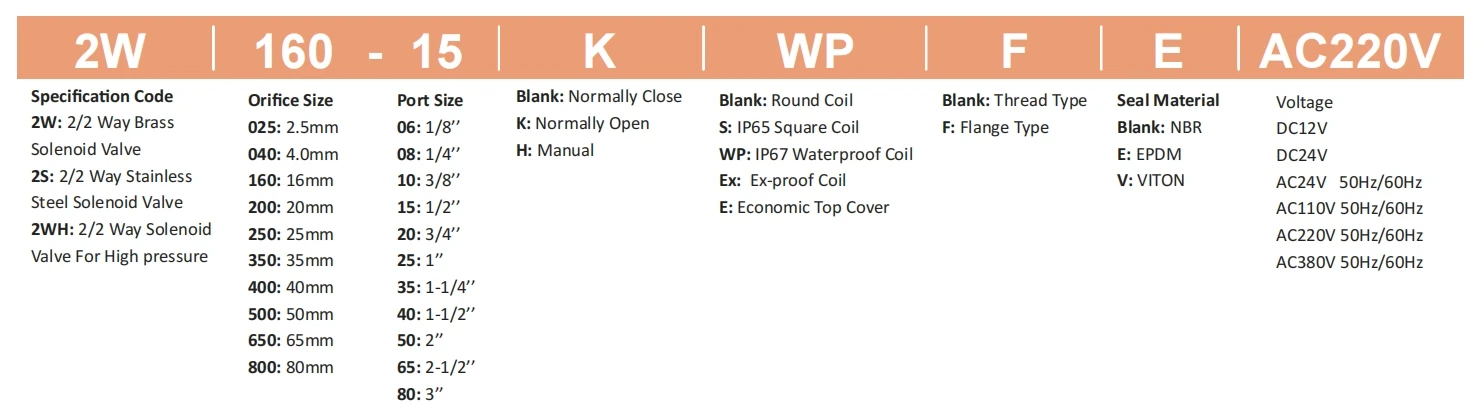

How To Order
Technical Data
2W Series (Brass) | |||||||||||||||
2S Series (SS304) | |||||||||||||||
Orifice Size (mm) | 2.5 | 4 | 15 | 20 | 25 | 35 | 40 | 50 | |||||||
Port Size (Inch) | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1-1/4'' | 1-1/2'' | 2'' | |||||||
Medium | Water, Air, Oil, Gas | ||||||||||||||
Action | Direct Acting | Direct Lifting Diaphragm | |||||||||||||
Function | 2 Way Normally Closed, 2 Way Normally Open | ||||||||||||||
Fluid Viscosity | 20 CST below | ||||||||||||||
Pressure Range | 0 to 1 MPa | ||||||||||||||
Seal Material | NBR: -5 to +80℃ EPDM: -5 to +120℃ FKM: -10 to +150℃ | ||||||||||||||

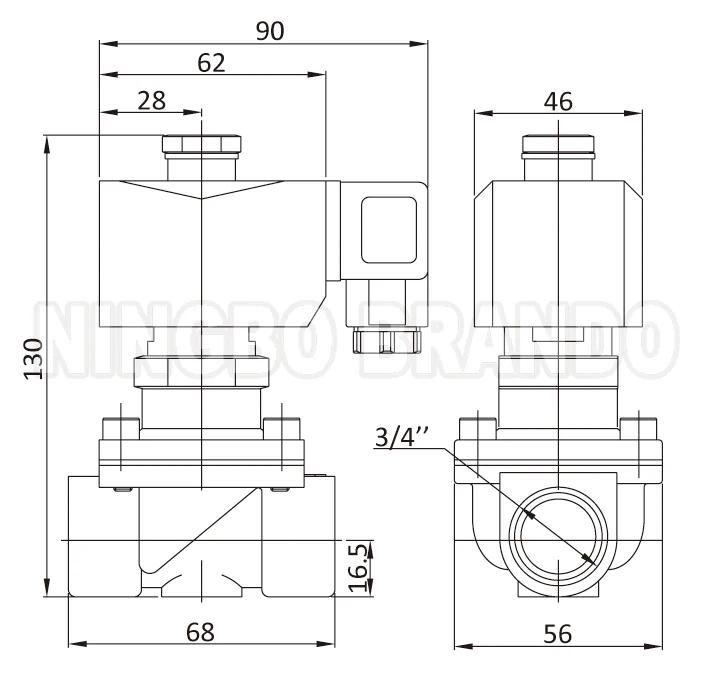

Main Dimension
2S200-20K
Normally Open

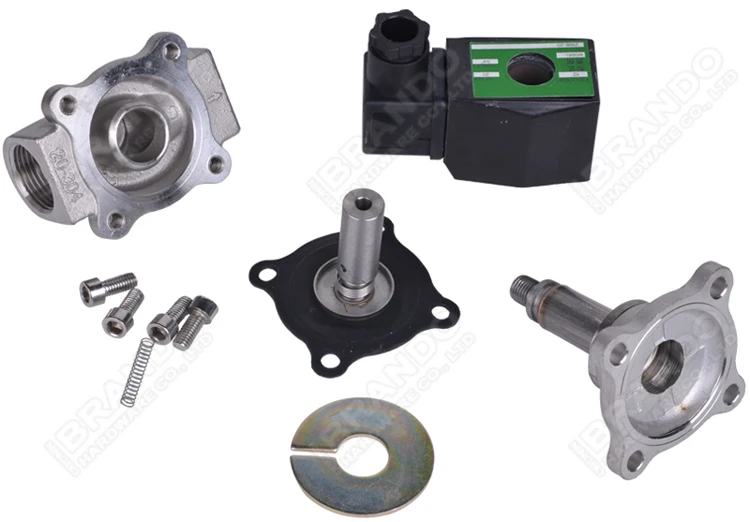

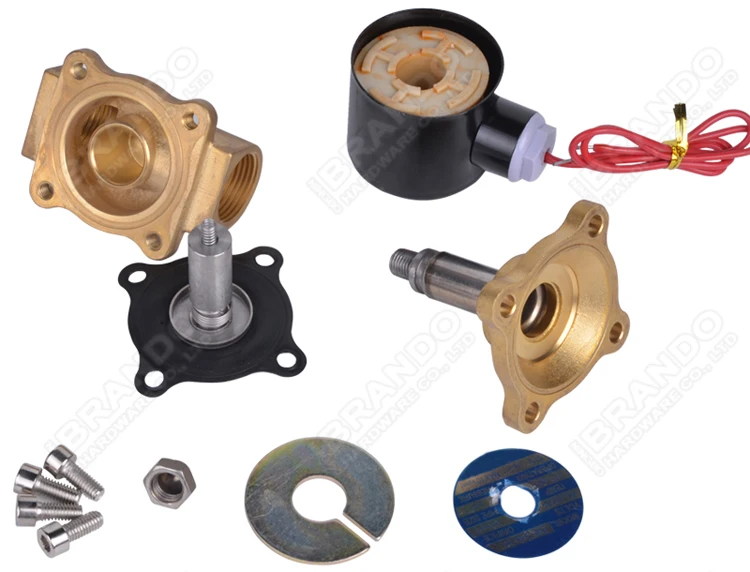

Solenoid Valve Disassembly

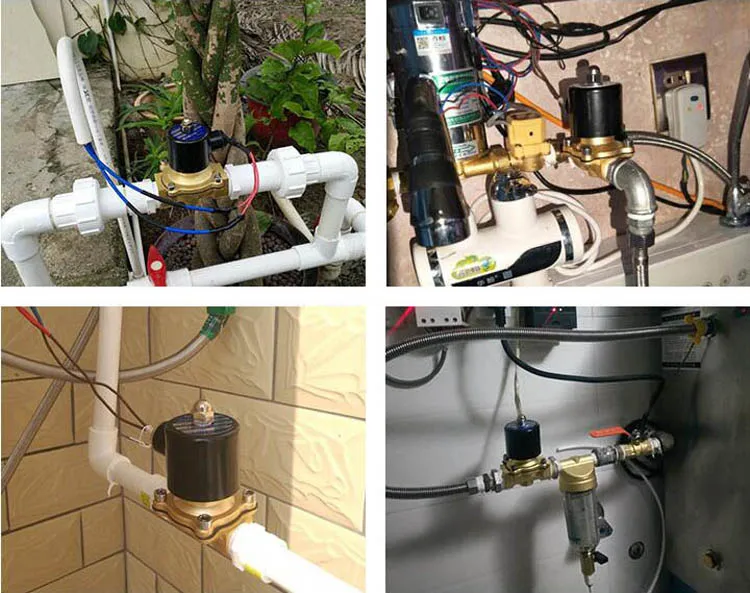

Application Examples
OEM ODM Service
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

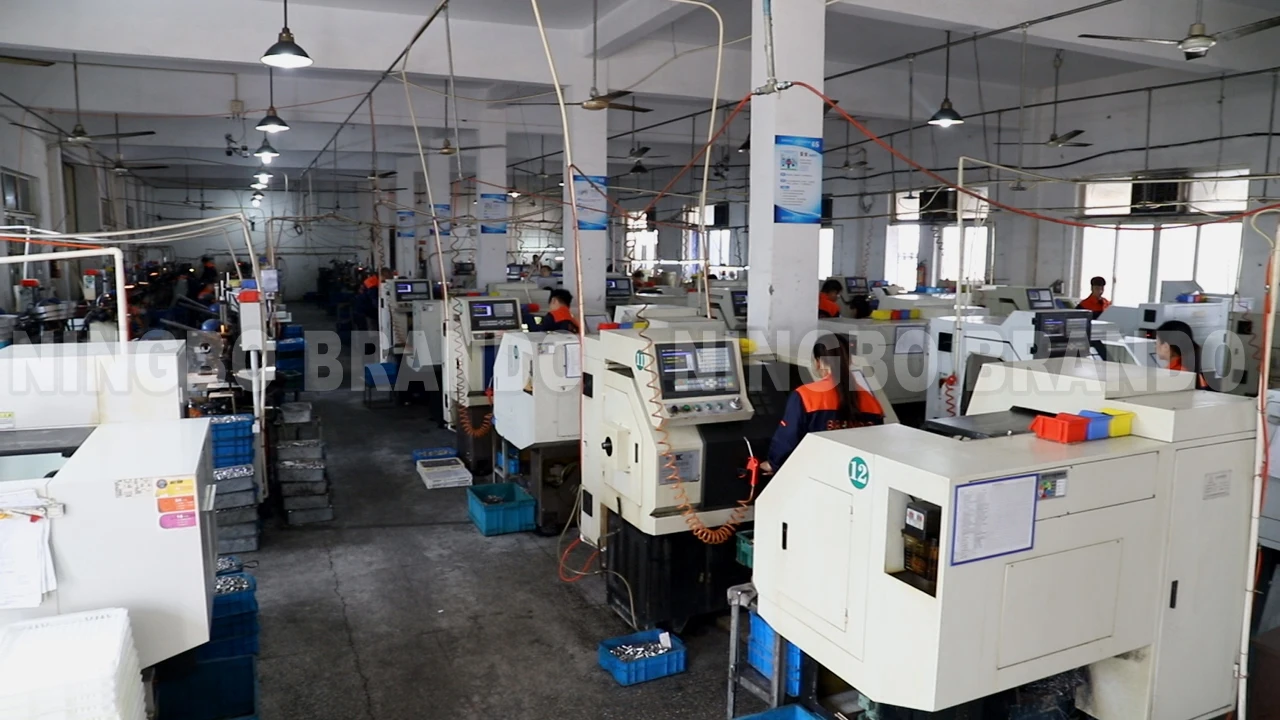

Our Production
Packing&Shipping
Internal Box
Carton
Pallet
