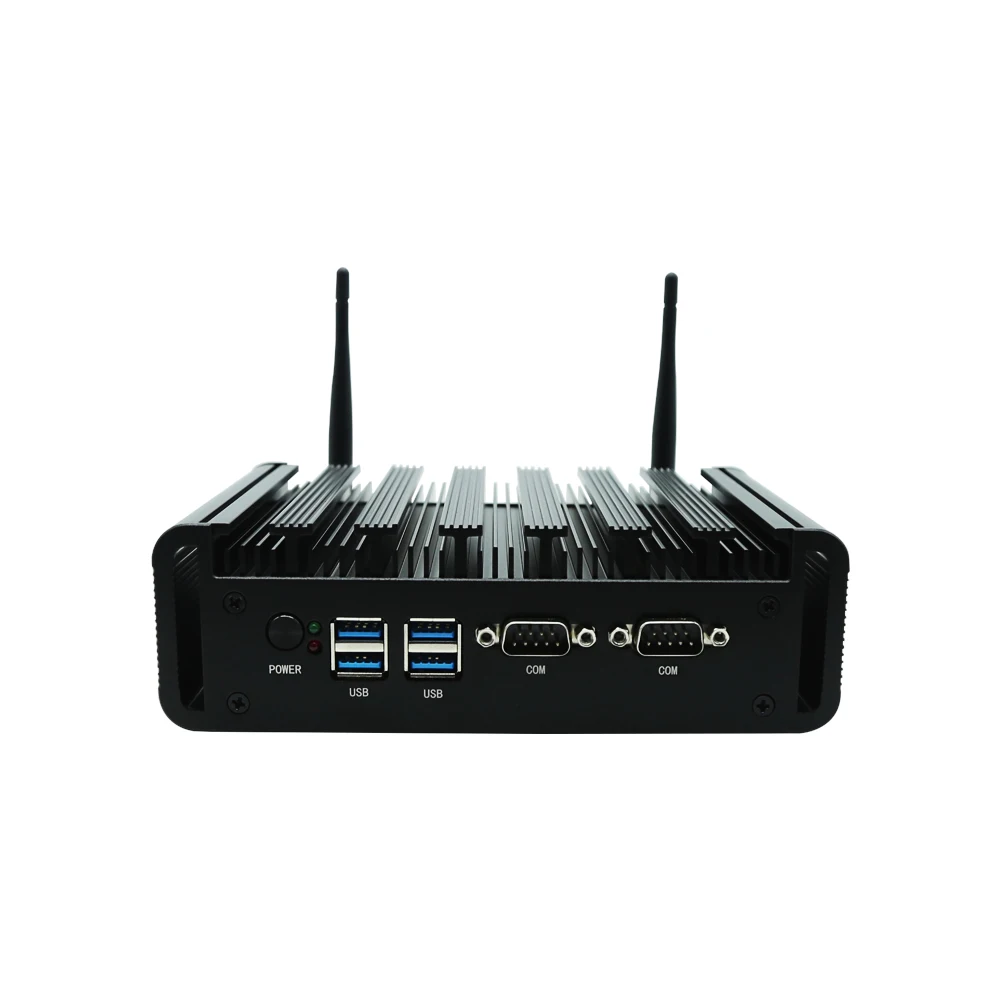

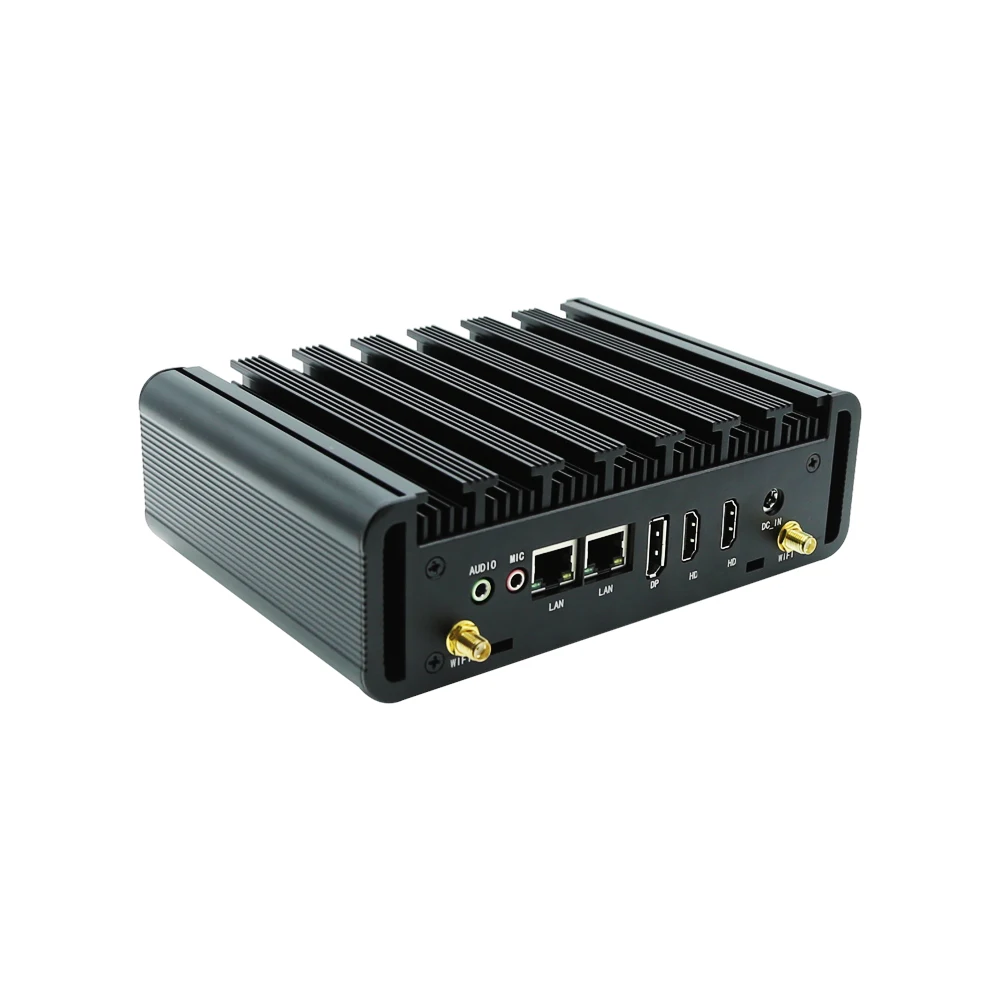

Multiple Processors Mini PC I Ntel C Ore I5 8265U Dual RJ45 Lan M.2 Slot For NVME/SATA 2280 SSD Fanless PC

Share on (1601371769809):


Price:$280.00-371.00

Quantity:


Product Overview

Description





Product Description


Product Name
Low cost Fanless mini pc Intel Core i3-8145U, Core i5-8265U/8365U/8269U, Core i7-8565U/8569U,
Core i3-10110U, Core i5-10210U/10310U, Core i7-10510U/10610U/10710U Embedded mini computer 12V Three display
Processor
 Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core
i5-8265U 4 Cores 8 Threads 1.6GHz up to 3.9GHz
Operating System
Pre-installed oem cracked Win10 OS
Package
Standard: 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xVESA mount
Optional: Wi-Fi antennas, 1xHDMI cable, 1xUser Manual

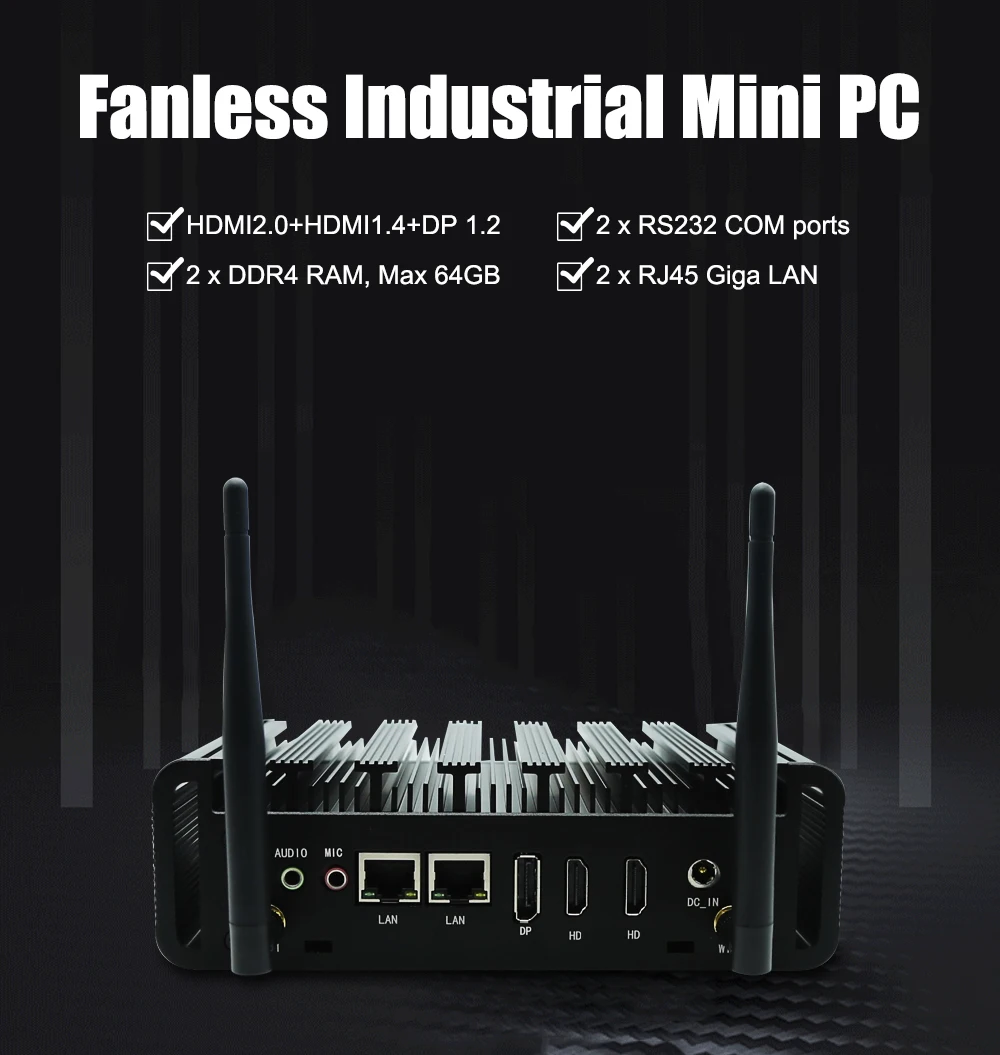

  • Product Highlight

- Full Aluminum Alloy Silver/Black/Blue color shell, Exquisite production craft
on outside design with high quality and stable performance, slim dimension
173*127*39MM.
- Fanless system without cooling fan, no any noise, work as long as 24 hours.
- Low consumption TDP only 15W, save much energy and eco-friendly.

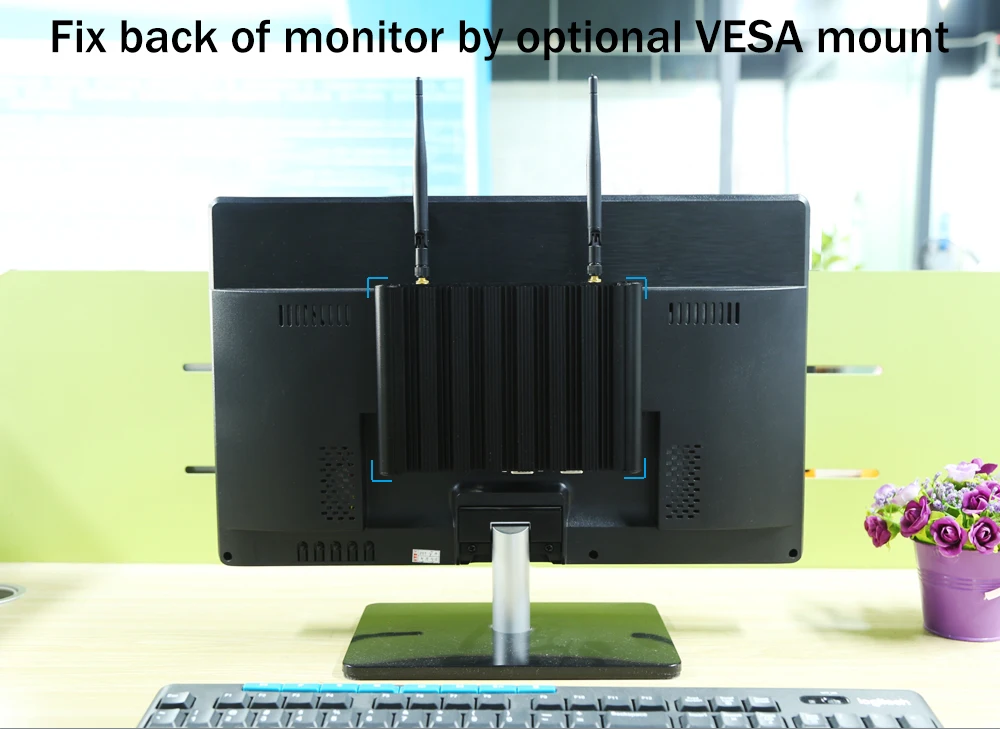

- Can stand up by free bracket or can be mounted back of monitor or wall.
- Support HDMI and VGA dual display output synchronously.
- Two Kensington Lock holes let the device more safe in school, offiffiffice, hotel, etc.



Basic Information:
CPU
  Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core
i5-8265U 4 Cores 8 Threads 1.6GHz up to 3.9GHz
TDP
15W
Motherboard
120 x 120mm customized size
BOIS
AMI BIOS, ACPI Supported
Chipset
Intel KABYLAKE
Memory
2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB/64GB

OS
Windows 7/Windows 8/Windows 10/Linux
PXE
YES
Audio
ALC662 sound chip, 6-channel
Intel Panther Point HDA
Network
2 x Onboard RTL8111 Gigabit Ethernet NIC
10/100Mbps/1000Mbps BaseT LAN
Video
IntIntel® UHD Graphics

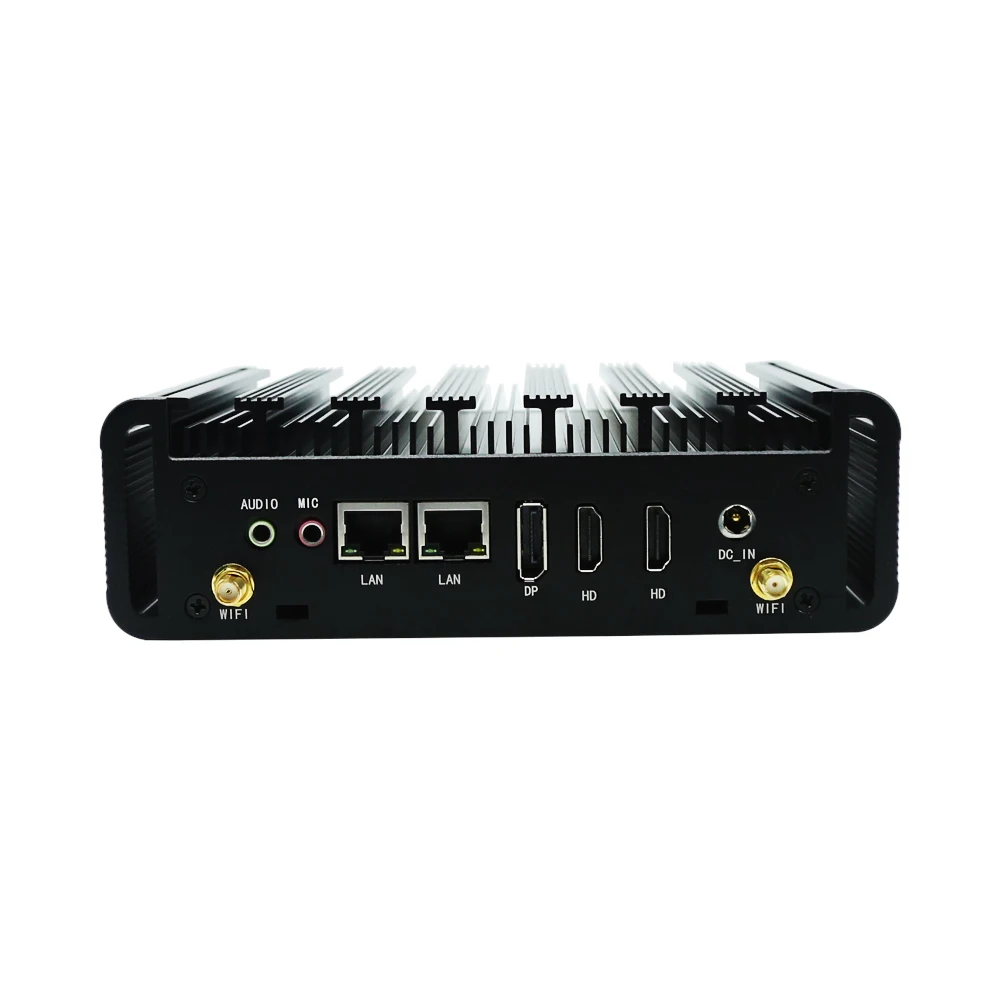

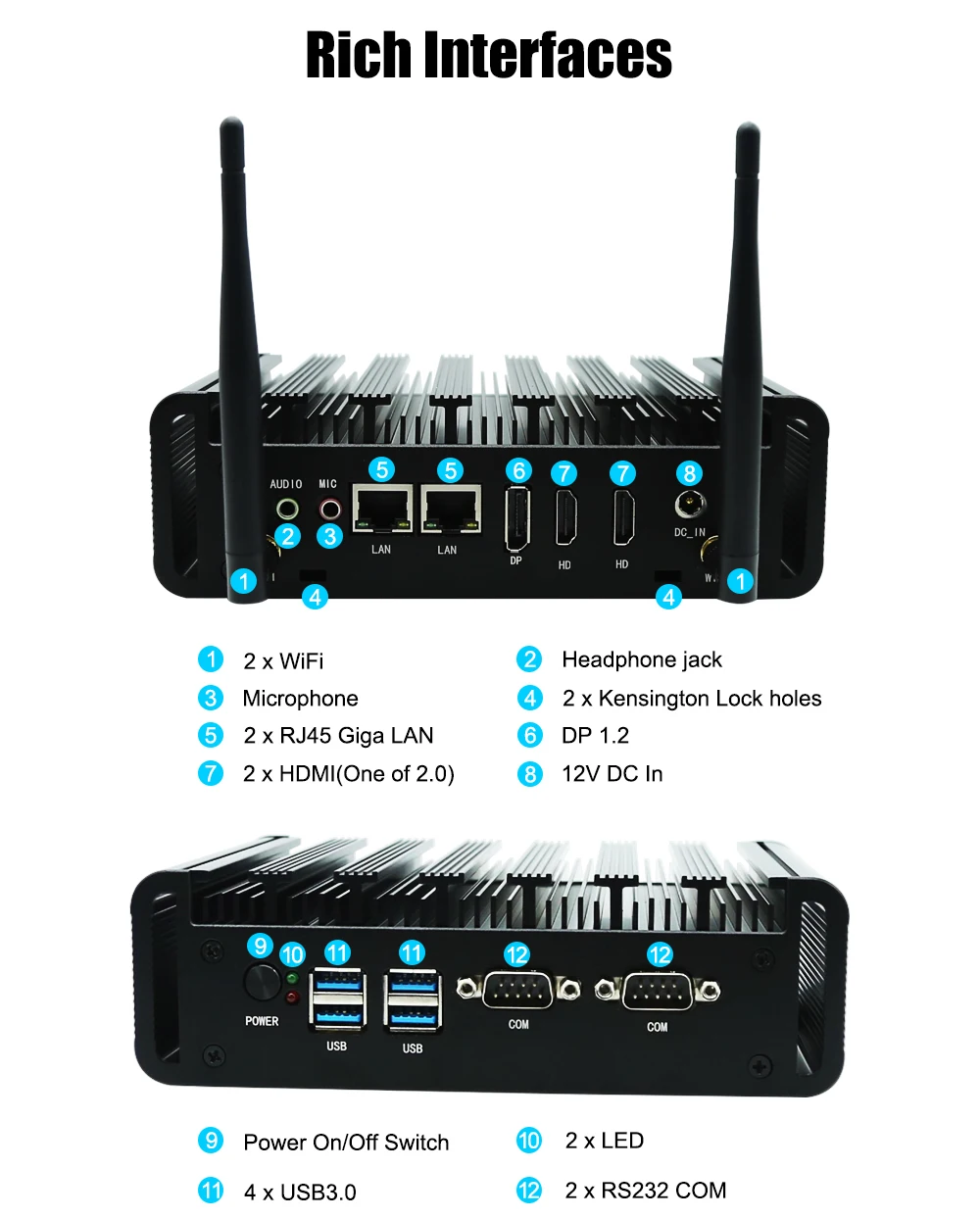

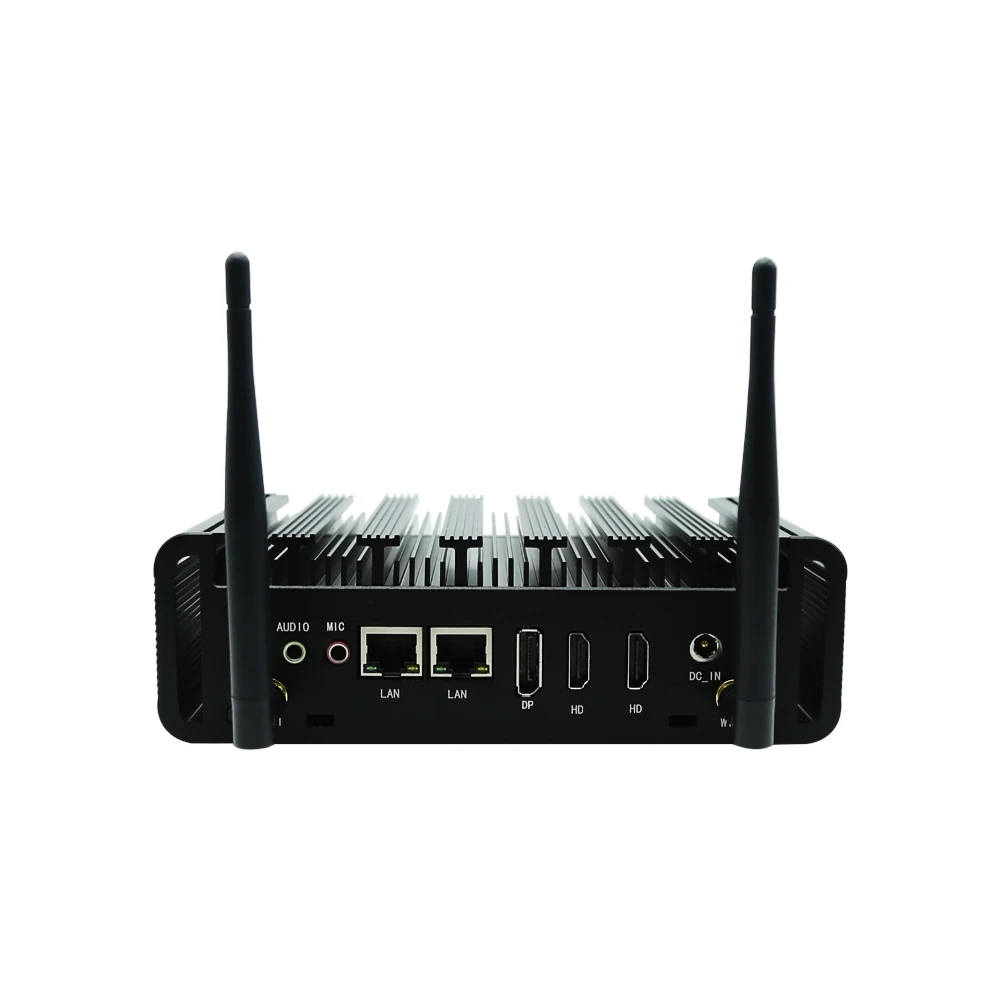

Input/output port
Switch
1 x Power On/Off Switch
Power
1 x 12V DC In
LED
2 x LED

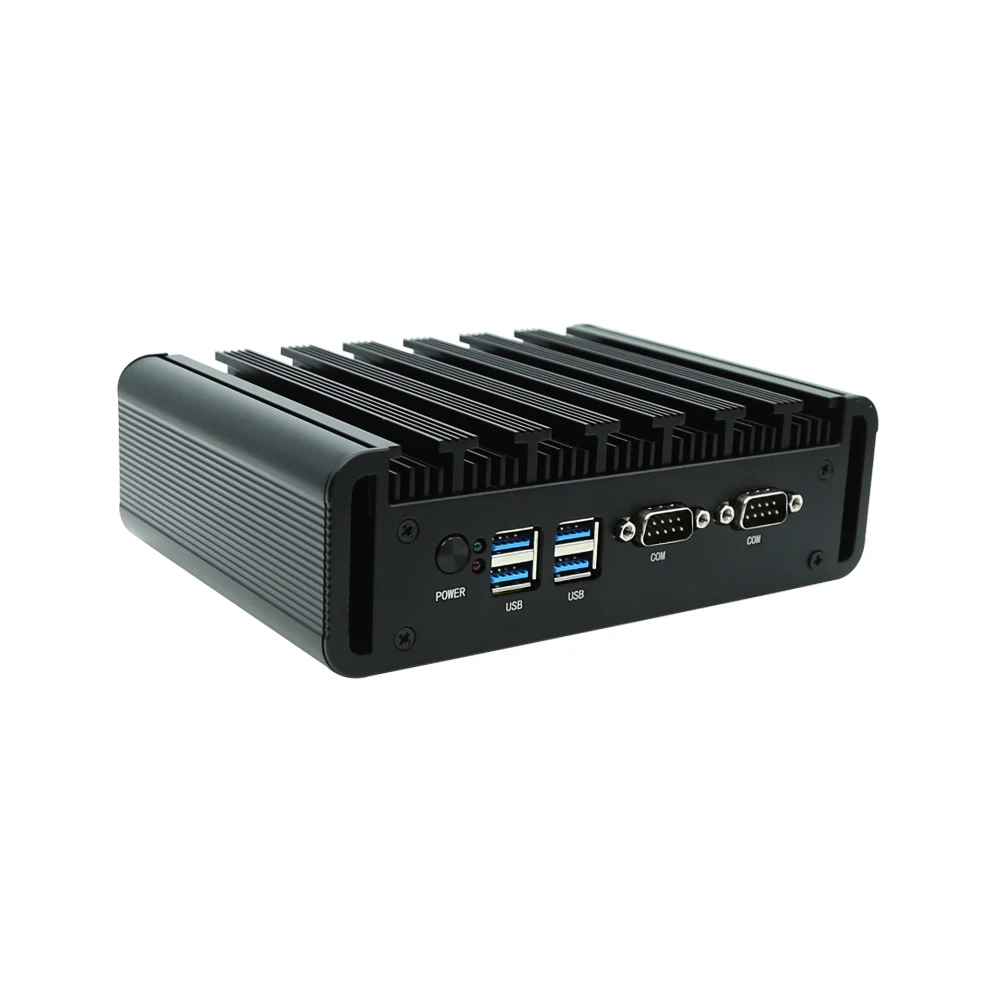

USB
4 x USB3.0

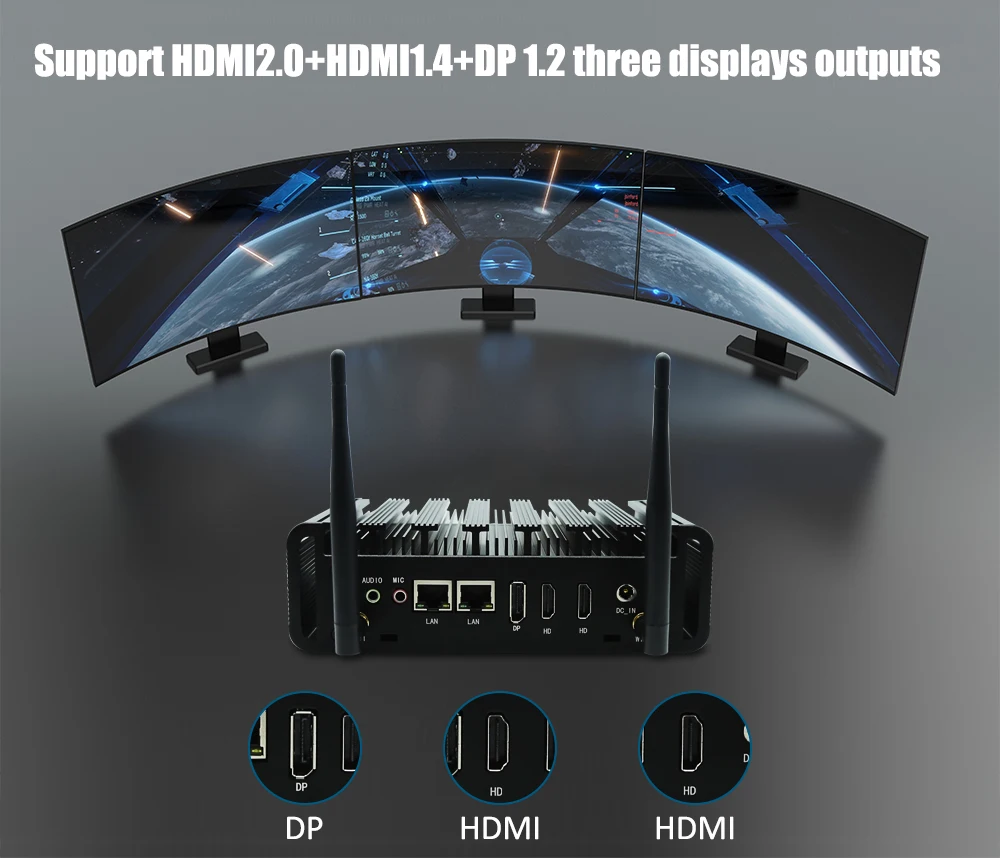

Display
1 x DP, 2 x HDMI
LAN
2x RJ45 Giga LAN
Audio
1 x MIC, 1 x SPK
Others
2 x Kensington Lock holes

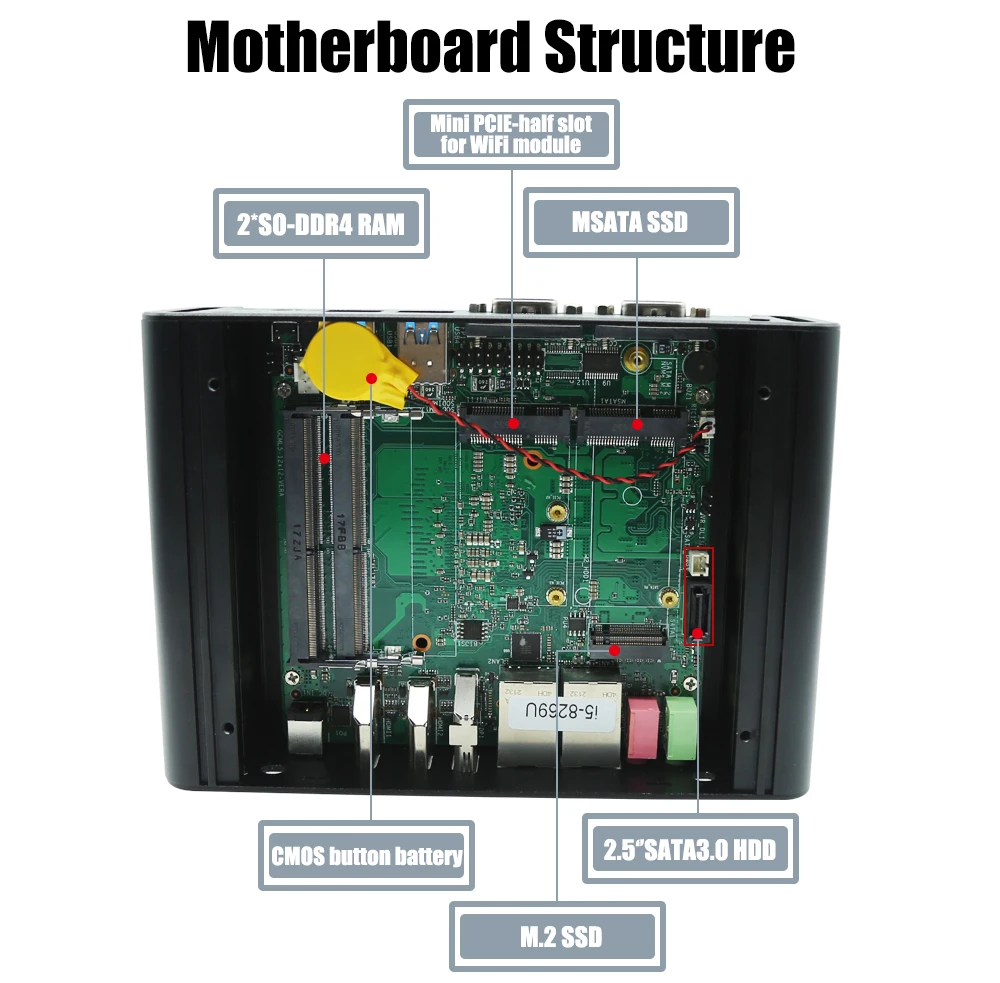

Storage
MSATA
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module
1 x mini PCIE-half port for Wi-Fi module
Antenna
2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input
DC100-240V AC/50-60Hz
Output
DC +12V~+19V, recommend 12V/5A
Operating Temperature
0/+70 Centigrade
Storage Temperature
-20/+85 Centigrade
Relative Humidity
0%~90% (non-condensing)

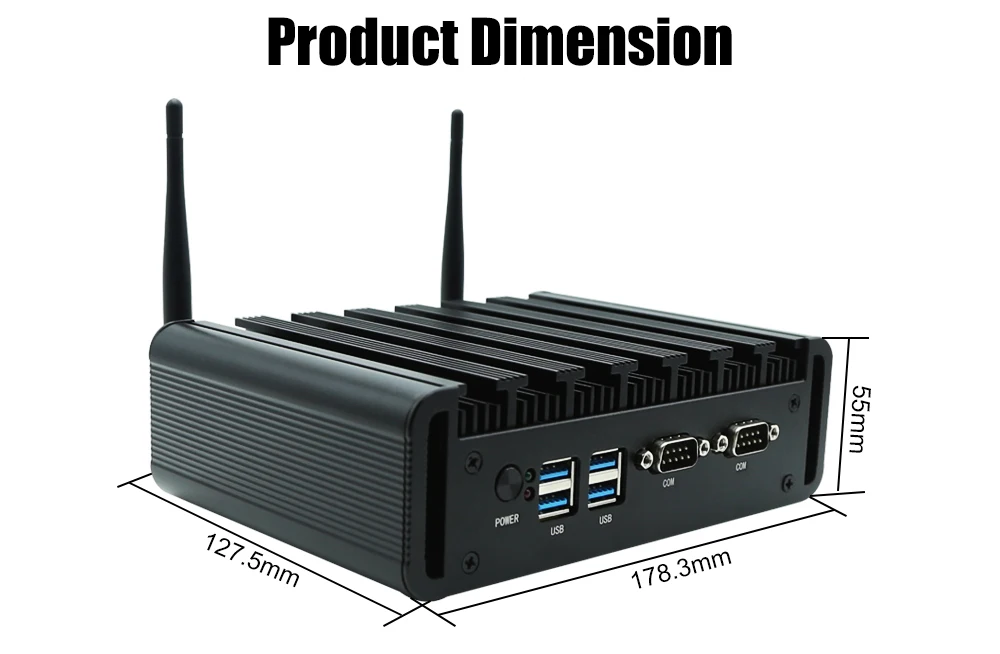

Product Dimension & Details
Size
178.3x127.5x55.0mm
Weight
Net 2kg, Gross 2.5kg

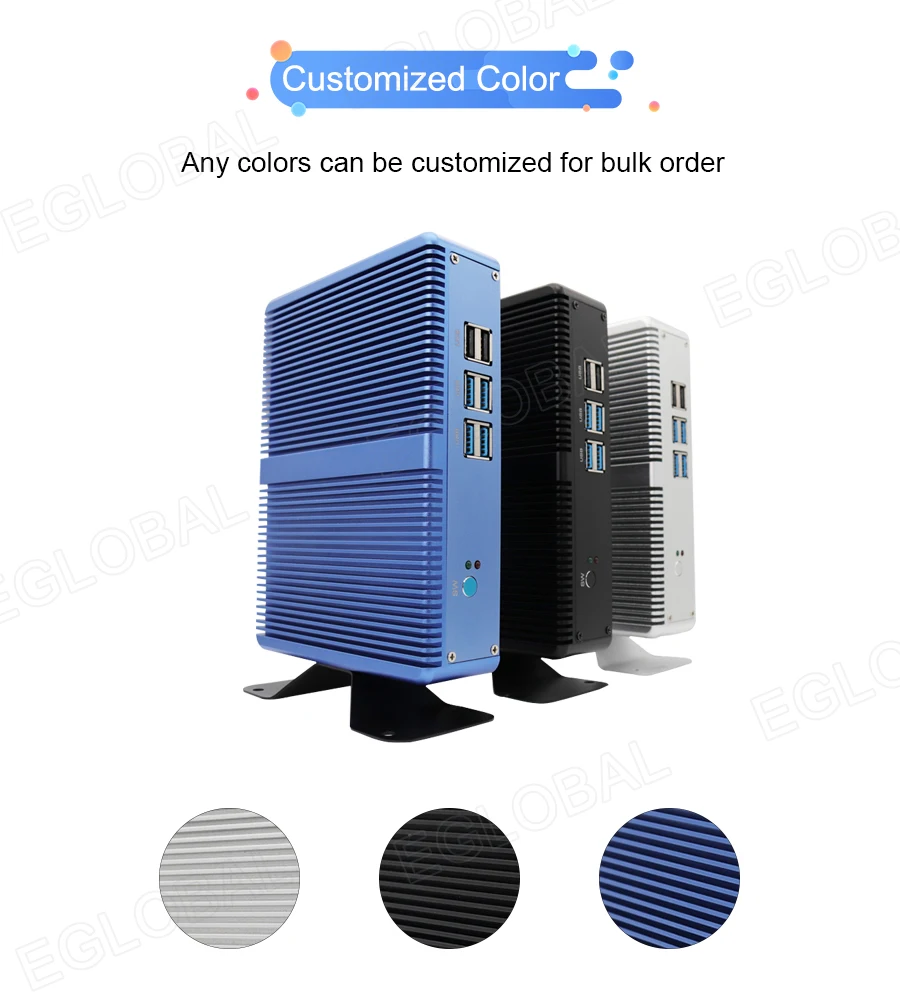

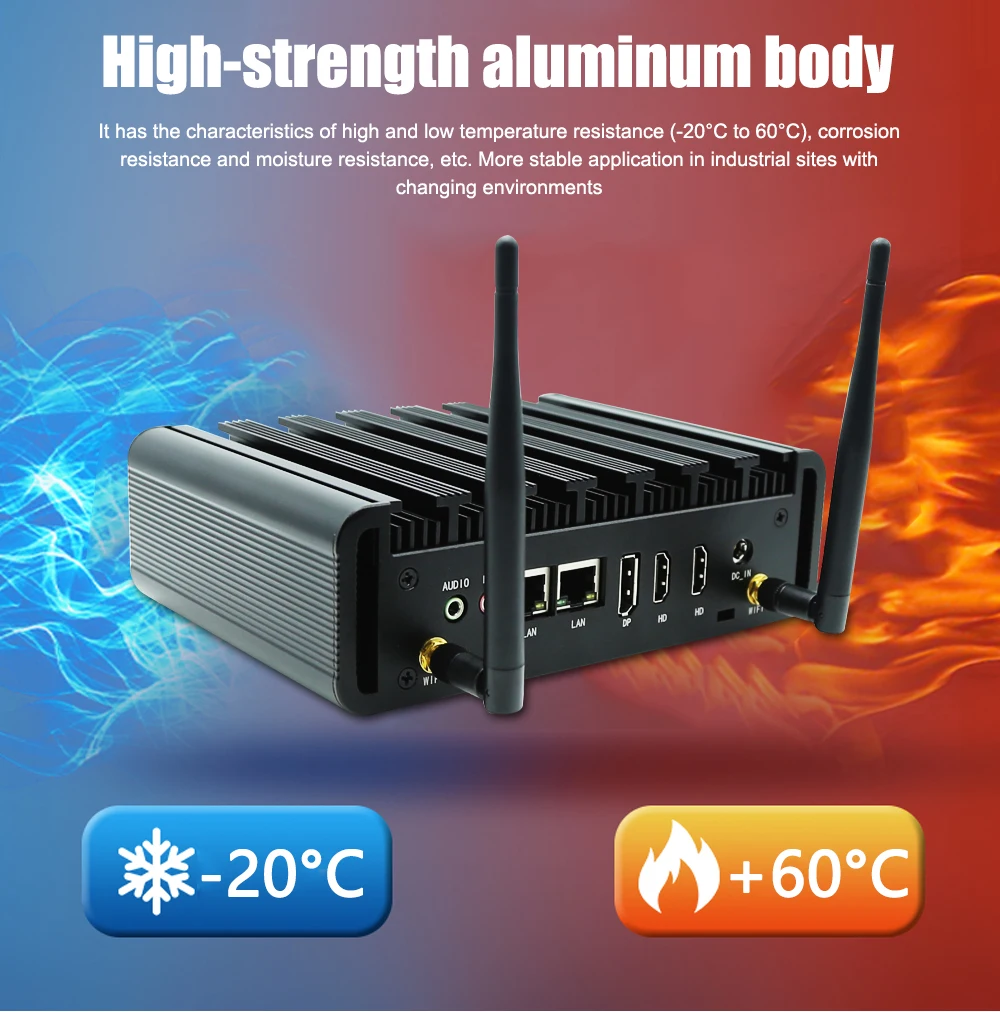

Shell
Silver/Blue/Black color aluminum alloy(any customized color for bulk order)
Cooling Mode
Fanless
Functions
Calls on function automatically, Wake-On-LAN, Kensington Lock

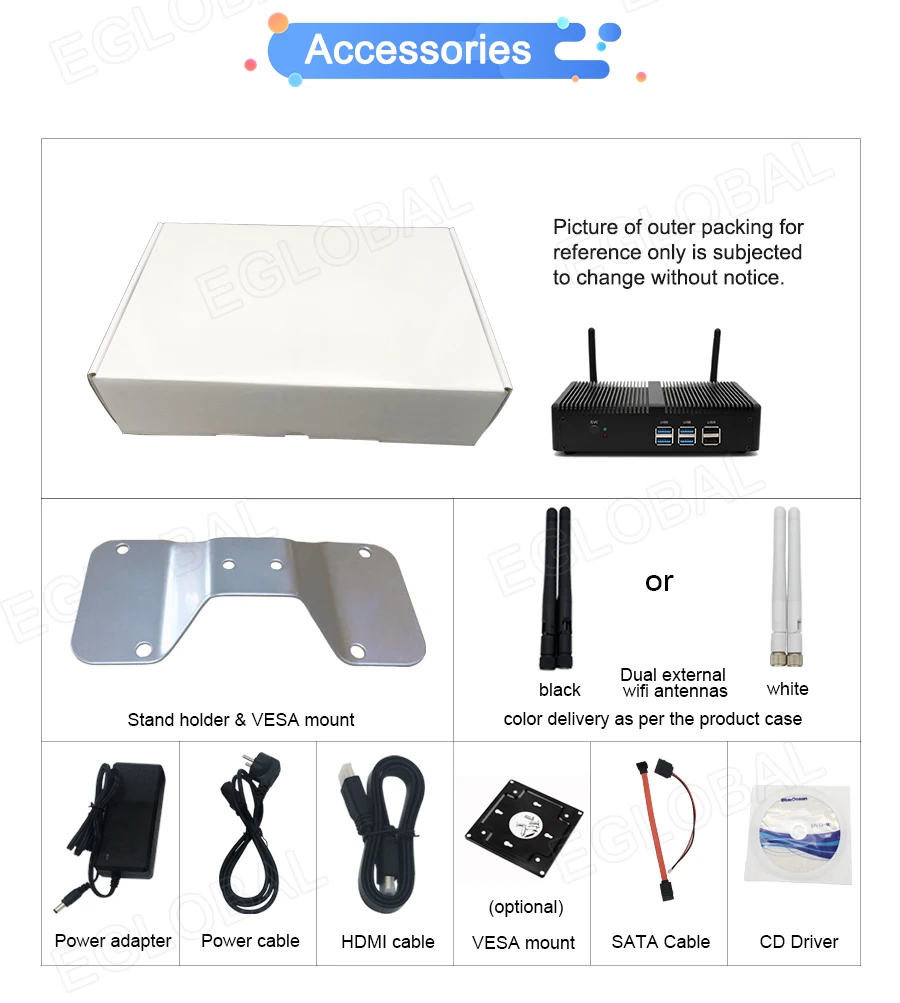

Package Content
Standard
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xBracket
Optional
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount

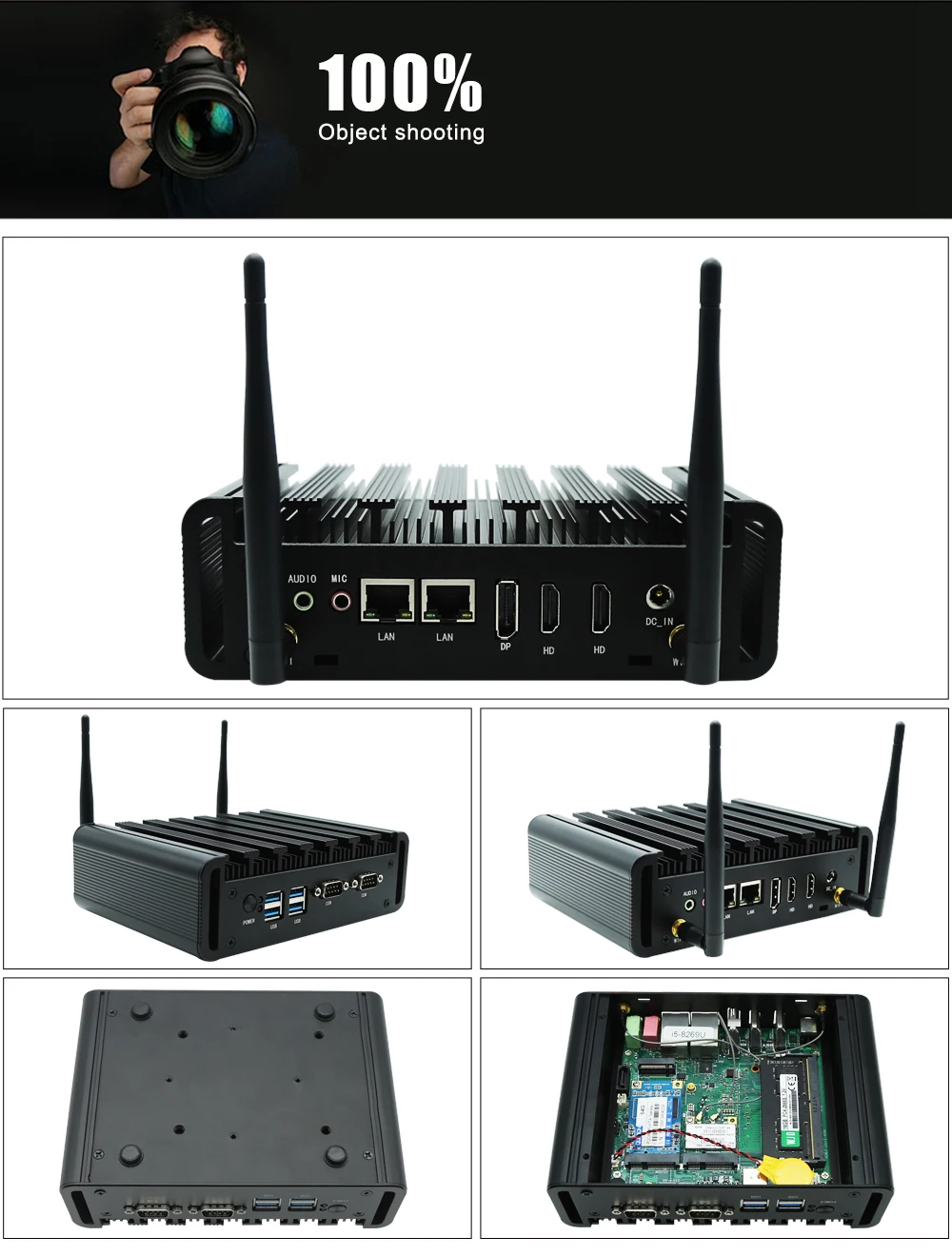

Details Images




Product Usage


The mini computer fit for entertainment, office, games, surveillance, bank, school, hospital, POS, KTV, etc.




Packing&Shipping




FAQ


Welcome to read the following questions carefully at first when you place order via the product link. Thanks.
Q: What Operating System is Mini PC I buy here?
A: Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is NOT responsible and makes no compensation for trial OEM system.

Q: What brand of Ram, SSD and HDD I buy here?
A: Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingfast, phison etc, what brand we use depends on our test and our stock.

Q: Can I get some samples?
A: We are honored to offer you samples for quality check, MOQ is 1 set, welcome to order via the link directly.We also provide free OEM service for your sample order, just feel free to contact our Sales here.

Q: How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality control from the very begining of manufacturing and 3 Years Wareanty.

Q: How about Shipping?
1. We send to buyer's address specified on Aliexpress. Please check your address/city/ post code, making sure it's matched with you shipping address.
2. We can't control the delivery time because it is processed by Third-party service. If parcel has not arrive within expected
time, please contact us, we will extend the delivery date before open dispute.
3. Normally we shipping free by faster shipment such as DHL, EMS,Fedex,Our express agent special line,etc.it depends on different countries and different cases.but for those remote areas,we have to shipping free by registered post, it will be slower than EMS, DHL,Fedex,etc.you can also add extra fee for DHL EMS Fedex etc faster shipment, thanks for understanding.All goods will be packed to make sure they arrive at high condition.

Q: How about Tax?
1. Normally we declare item as MINI PC CASE or TV BOX with value(like $20-$100), buyers are fully responsible for paying fees involved, such as dispatching fees, storage costs, brokerage, taxes or VAT etc.
2. If you have special requirement of the value,please leave a message to us when you make order.
3. Due to the tax problem, buyer refuse to receive the goods, buyer need to be fully responsible for the freight back and
forth.Thank you for you cooperation.

Q: What's EGLOBAL's Warranty?
1. EGLOBAL Mini pcs have 3 years warranty service is completely reliable and professional technical team. Motherboard warranty time 3 years, ram, hard drive, accessories(excluding gift) etc warranty time 1 year.
2. Within warranty time, if mini PC appear non-human damages and quality problems, buyer return Mini PC or Mini PC components, we free repair/exchange Mini PC or Mini PC components ( include RAMs, Hard Drive, Motherboard and other accessories ). Within 1 month, seller bear all the shipping cost for return(maximum 15USD)and resend;Over 1 month to 1 year, buyer self bear the shipping cost for return and seller bear shipping cost for resend; Over 1 year to 3 years, buyer bear all shipping cost return and resend.
3. Within 15 days, we accept refund or exchange goods (buyer bear all the shipping cost, if non-human damages and quality problem, we bear all shipping cost.
4. All time calculate from the day buyer receive goods.


Q: How to solve the product problem?
A: Welcome to contact our Sales about any problems, they will provide nice service to each customer directly.
