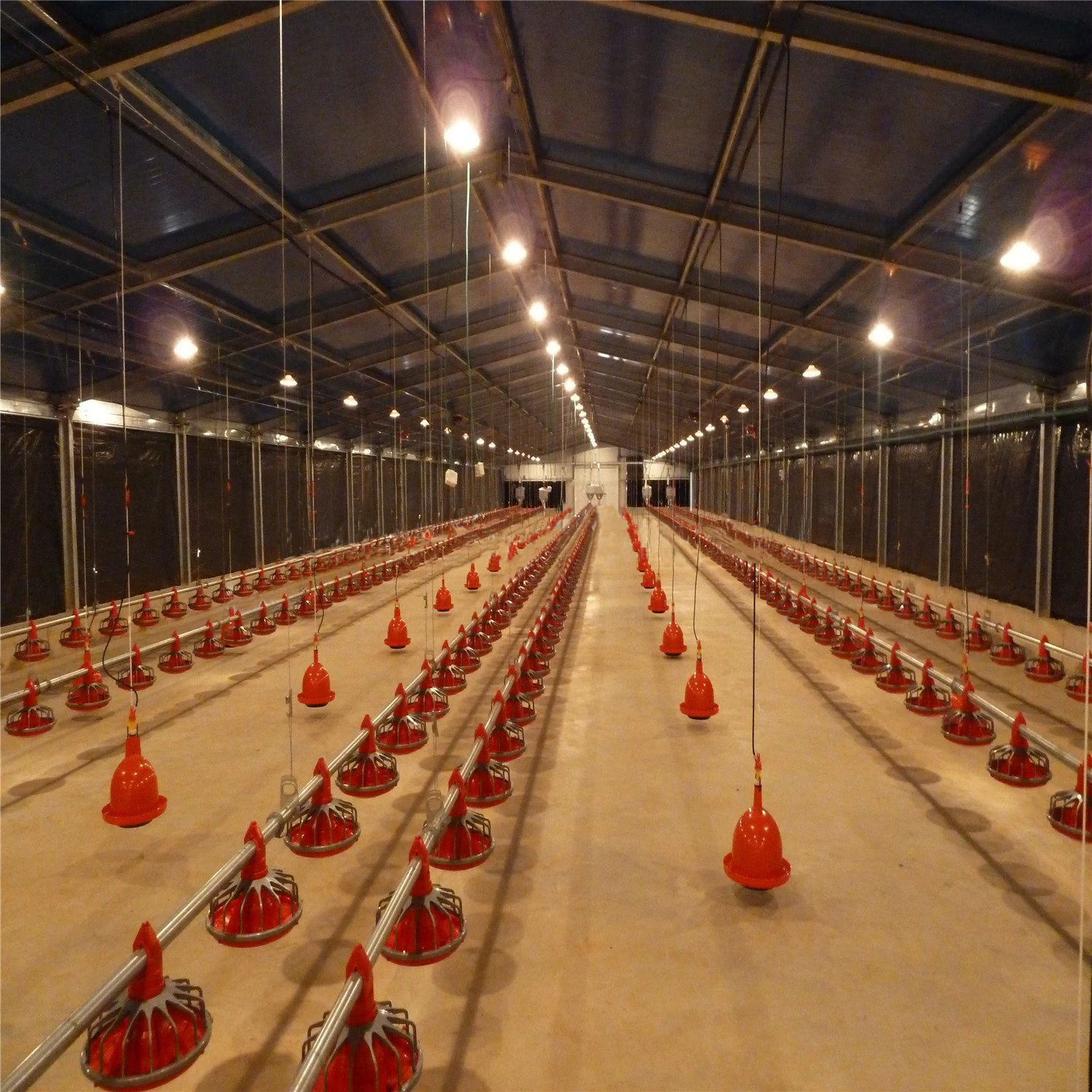

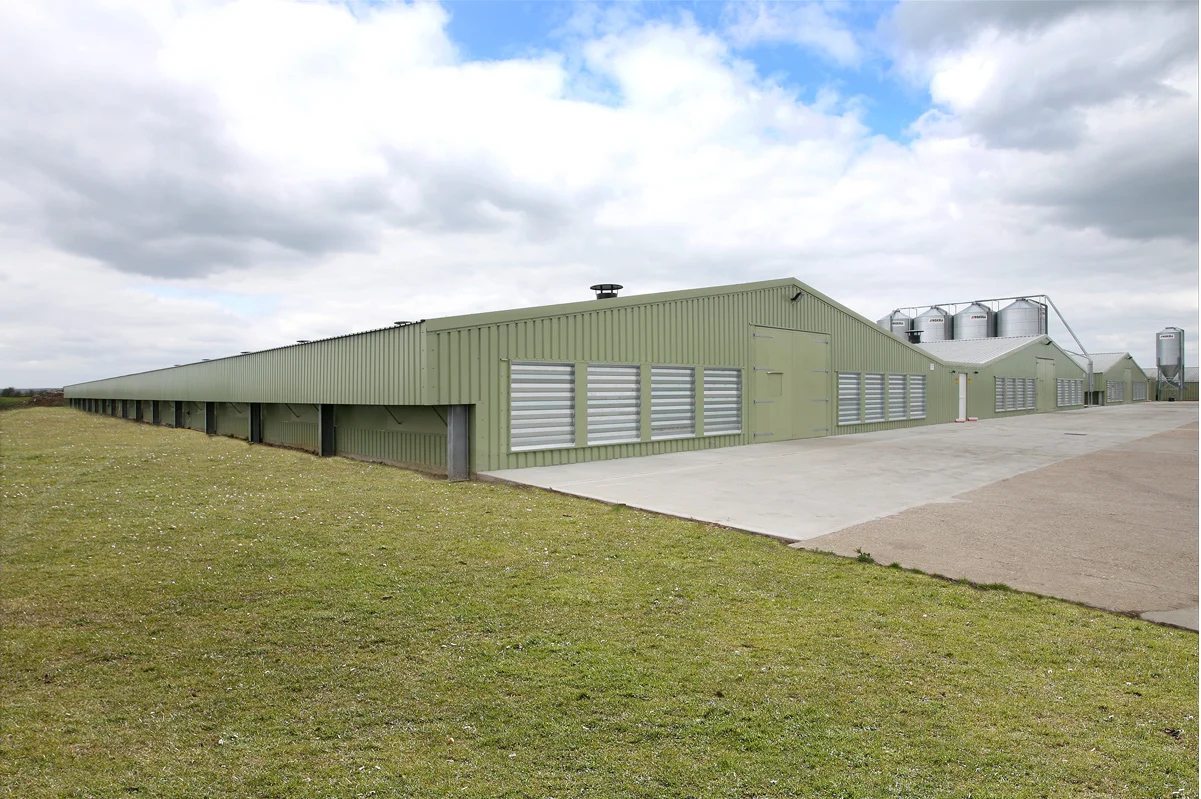

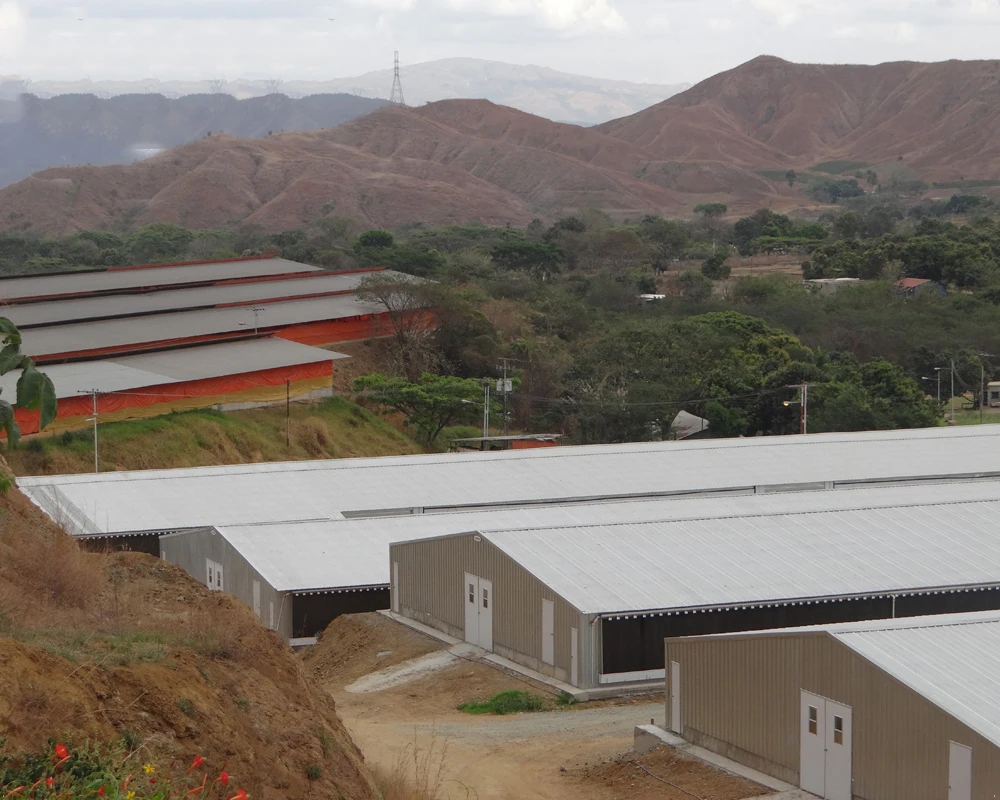

Steel Structure Egg Chicken House Sandwich Panel Chicken Broiler House Design

Name

steel structure chicken poultry house.

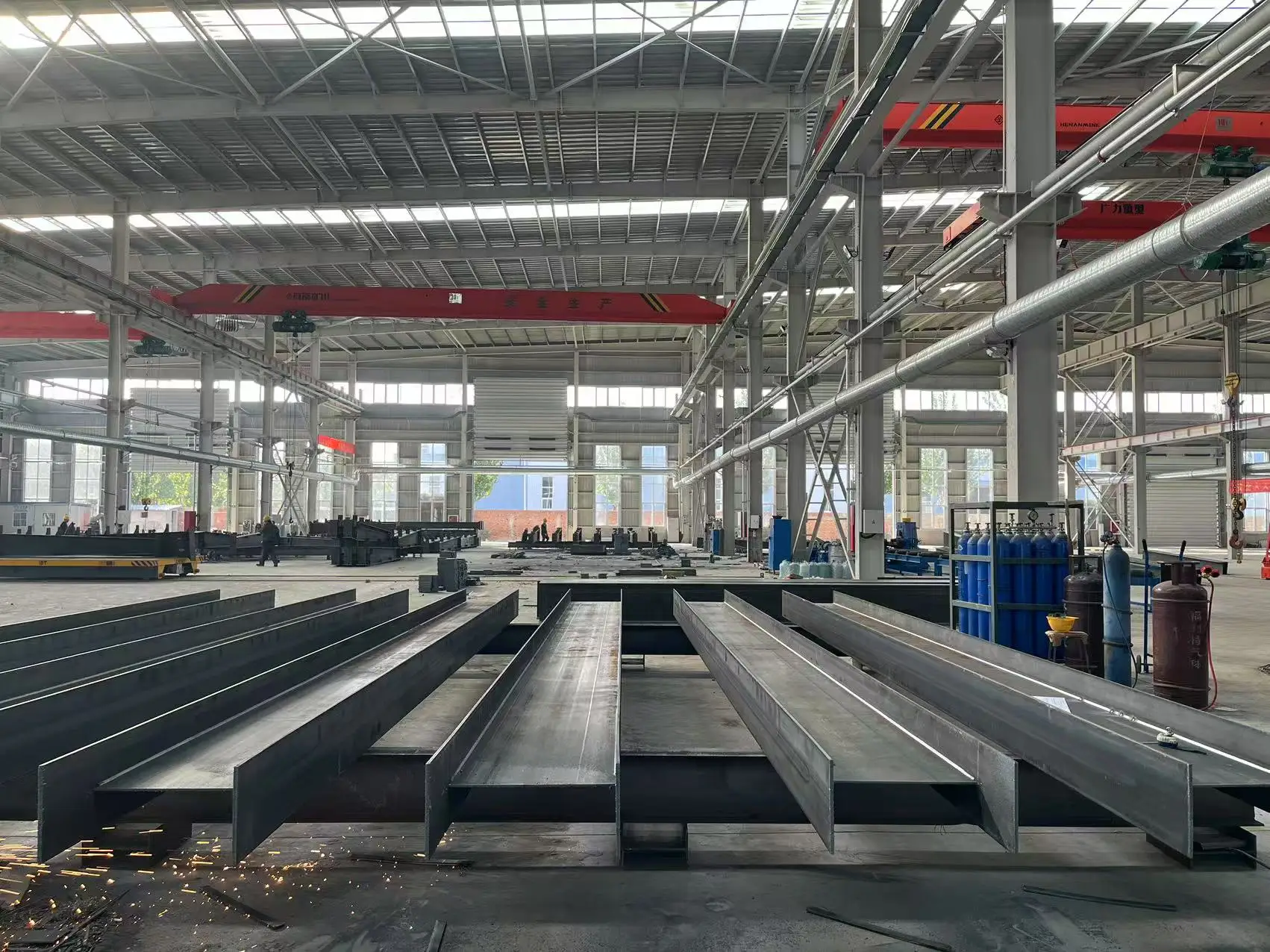

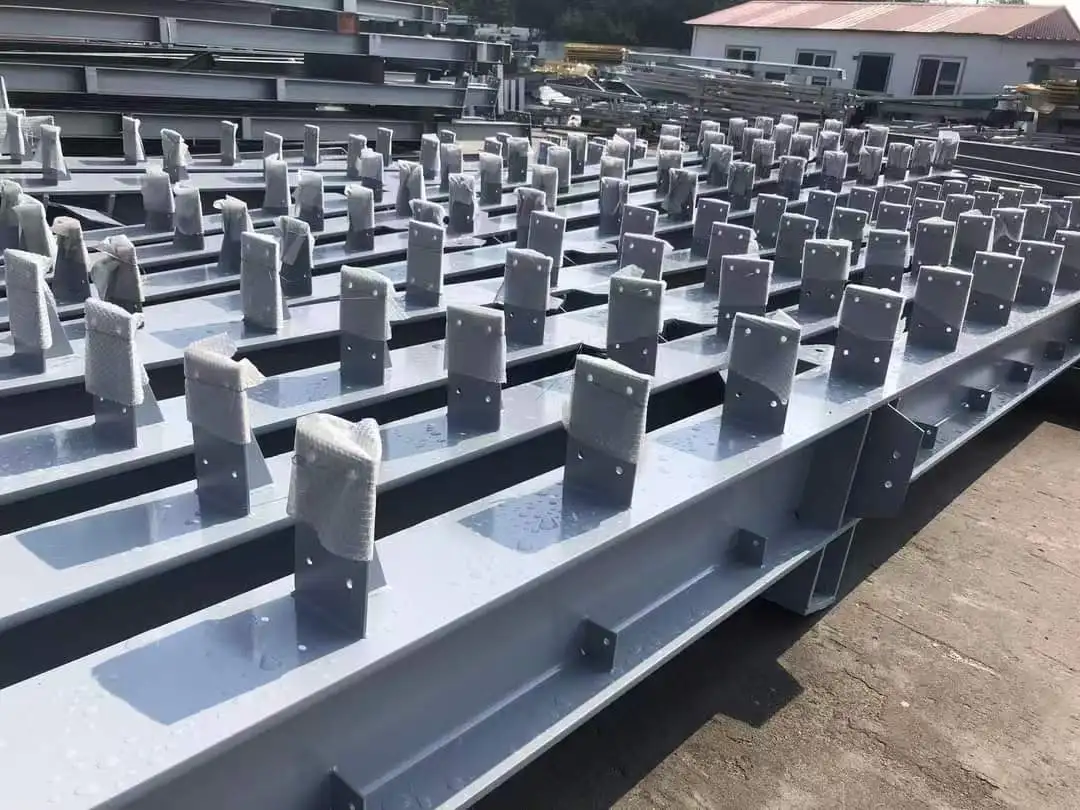

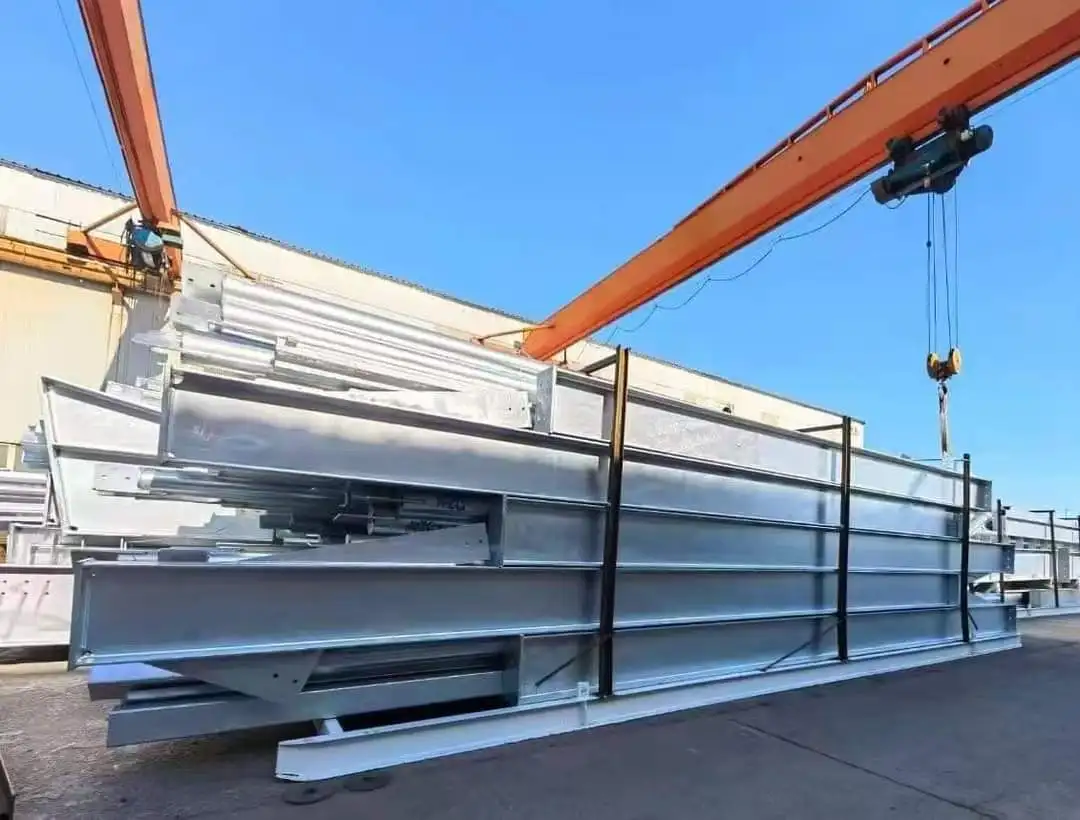

Main frame

solid H-shape steel Beam

Purlin

C,Z-shape

Roof and wall

a)Color-coated corrugated steel sheet; b) Rock Wool Sandwich Panels;
c) EPS Sandwich Panels;d)Glass wool Sandwich Panel

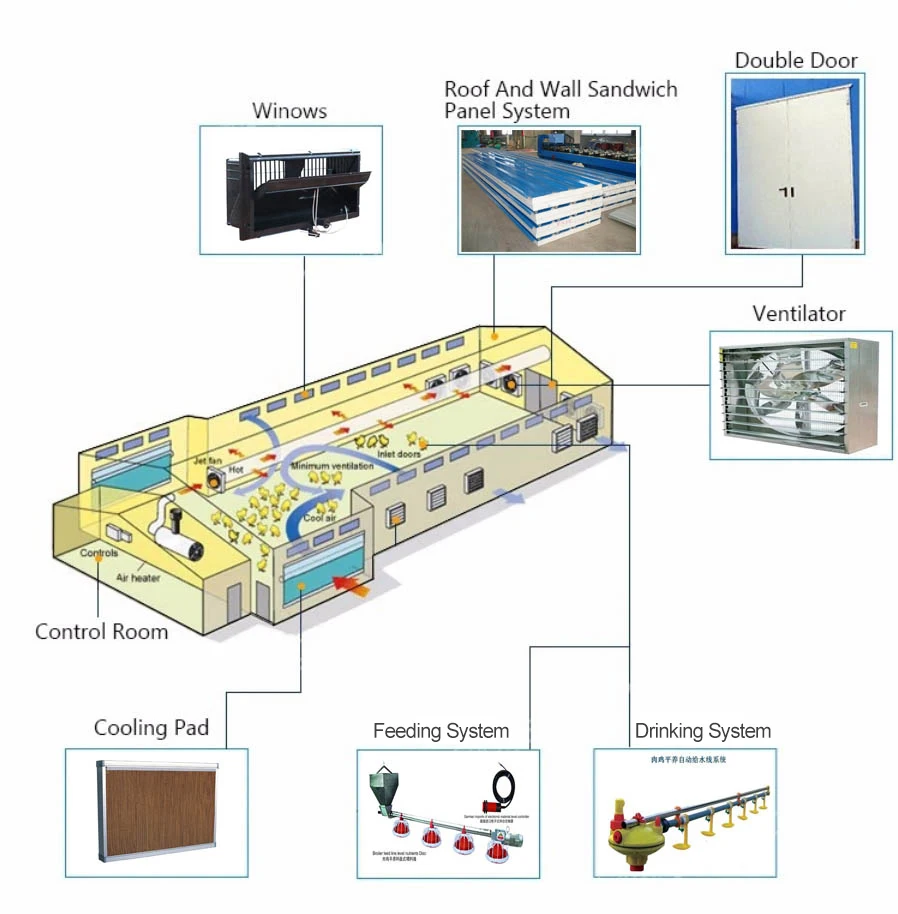

Cooling pad System

The cooling pad works in the condition of negative pressure and is installed in the side wall or the gable wall, and the fans are
installed on the opposite side.The water film of the recyclable water system is formed in the surface of the pad when the air goes
through the pad, and the heat will be taken up by the water's evaporation.

Ventilation System

Hot summer weather, intensive farming, breeding farms for temperatures up to 40 or even higher, use sheds fan ventilation cooling
water curtain cooling products after the temperature can be controlled at 28 DEG C, is beneficial to improve the growth rate of
the animal, improve feed conversion rate.

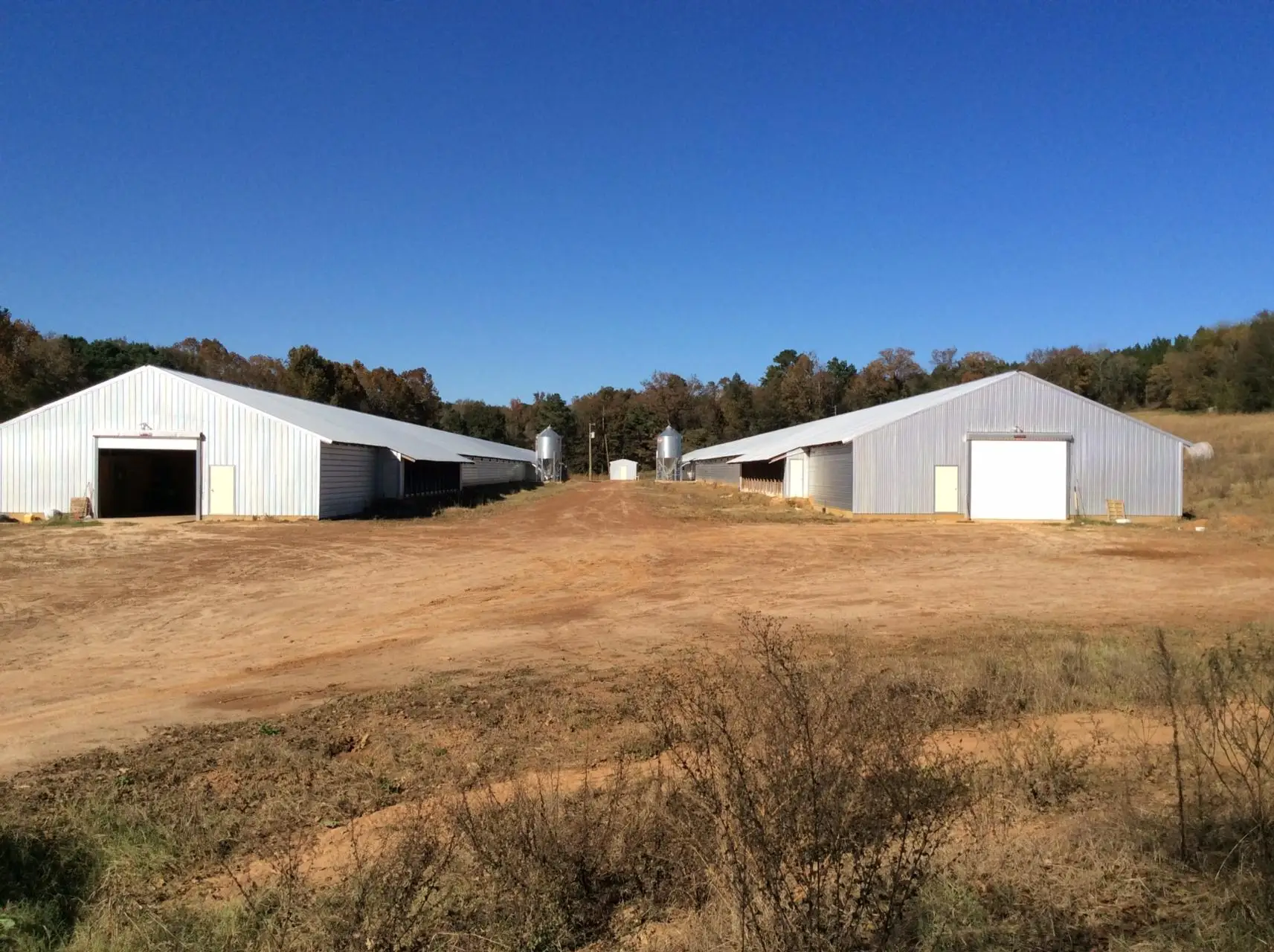

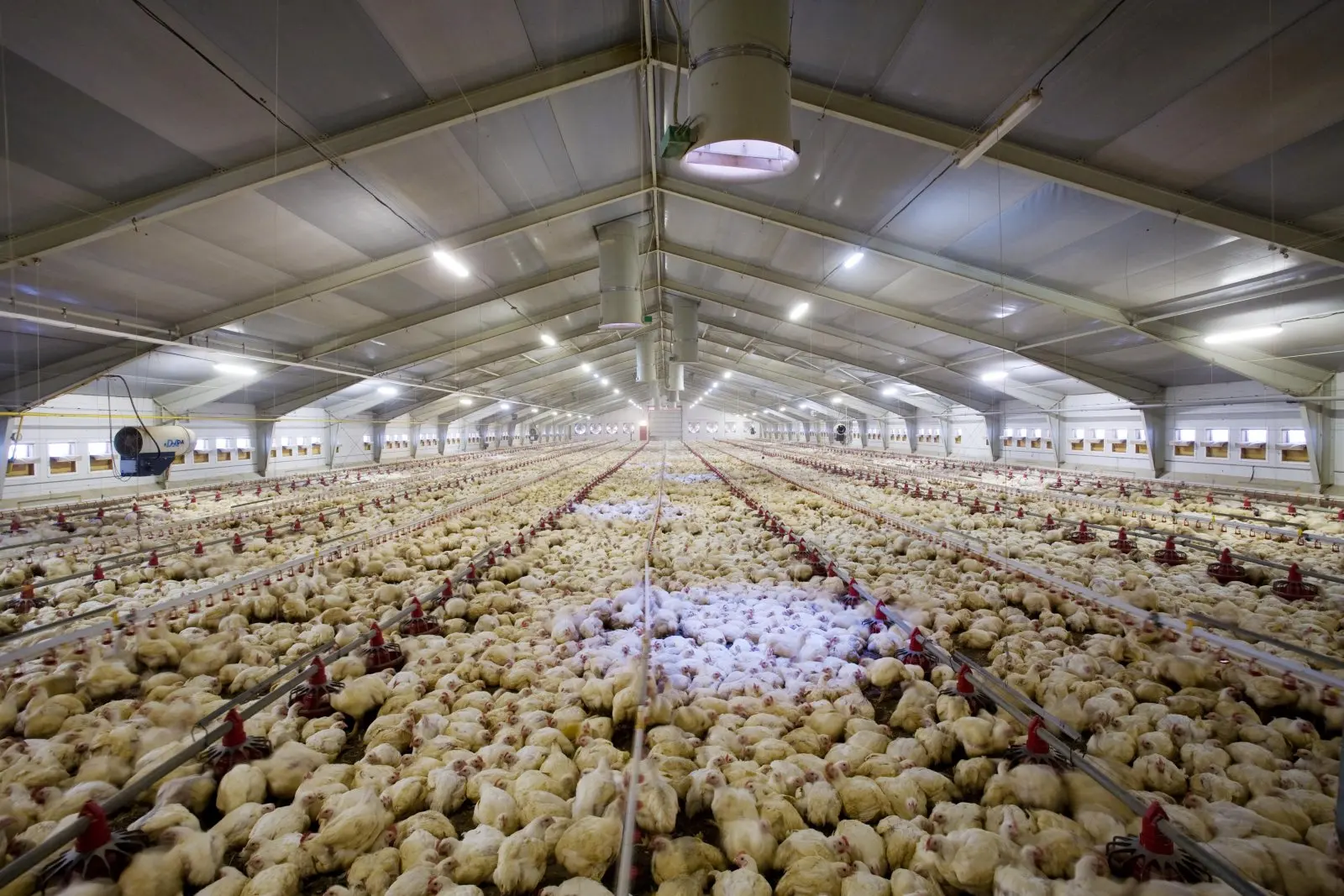

Different height for broiler and egg poultry house

Based on the chicken raising type, free range raising type and cage raising type, the poultry house divided into free range
raising type poultry house (height 2.1m-2.6m) and cage raising type poultry house (height 3.2m--8m)

Accomdation

15-18 broilers per square meter, 18-20 laying hens per square meter
