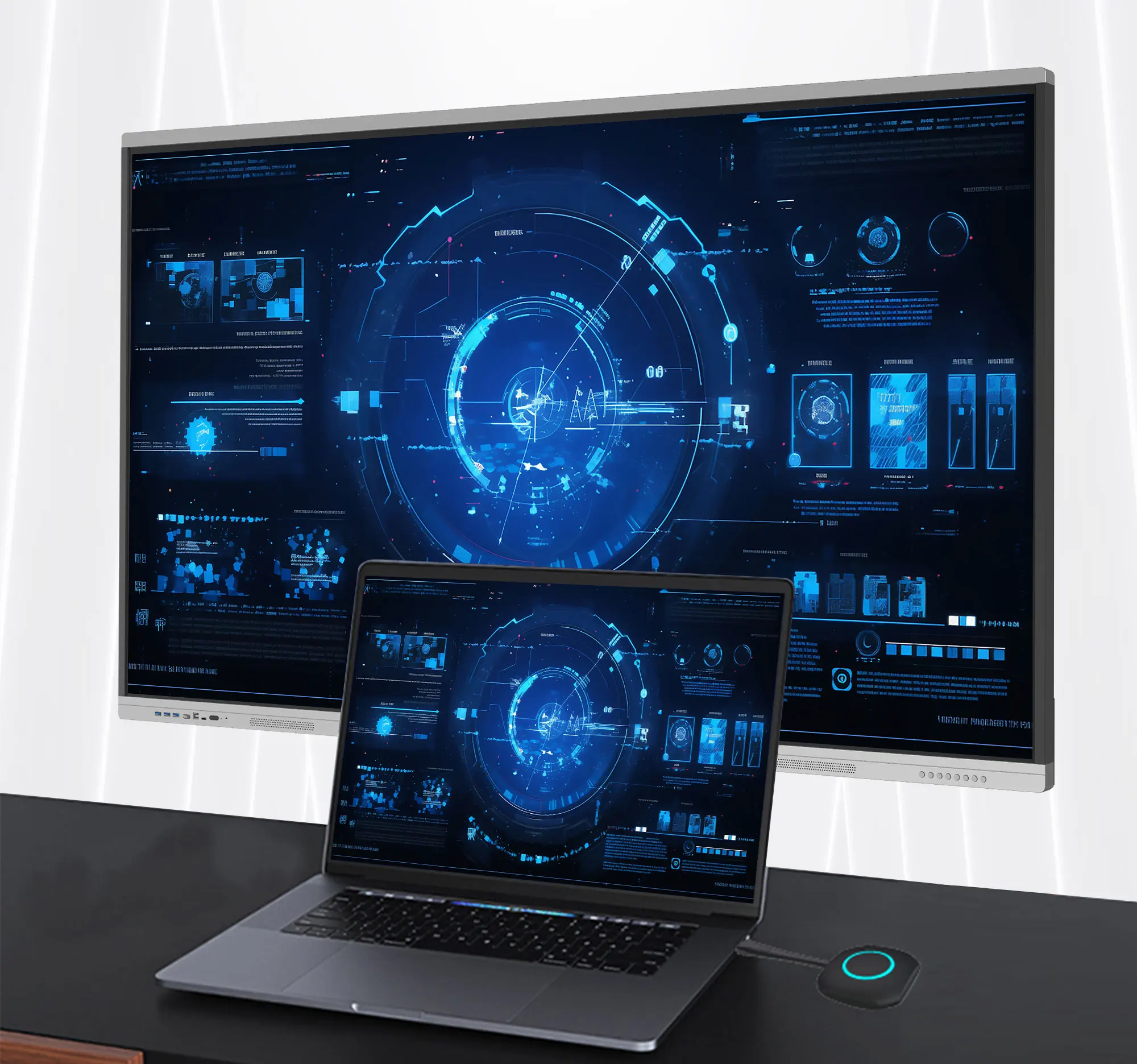

86 Inch E Learning Interactive Touch Display All In One Whiteboard for School Meeting Rooms
- Category: >>>
- Supplier: Shenzhen Hdfocus Technology Co. Ltd.Shenzhen Ltd.
Share on (1601372436678):
Product Overview
Description
Products Description
Color | Black |
Screen Size | 86" |
Resolution | 4K 3840*2160 |
Operation System | Android / Wind0ws (Dual system) |
Touch Type | Infrared 20 touch points |
Weight | 79kg |
Dimension | 1953*108*1164mm |
Specification
Panel Size | 86 inch | ||||||
Resolution | 4k 3840×2160 | ||||||
Panel back light | TFT-LCD Module | ||||||
Panel Protection | Anti-Glare glass | ||||||
Picture scale | 16:9 | ||||||
refresh frequency | 60Hz | ||||||
Panel Specification | 8 bit | ||||||
Gamut NTSC(Typ) | 72% | ||||||
contrast ratio(Typ) | 1400:1 | ||||||
Backlight Type | DLED | ||||||
Life Span | ≥30000 hours | ||||||

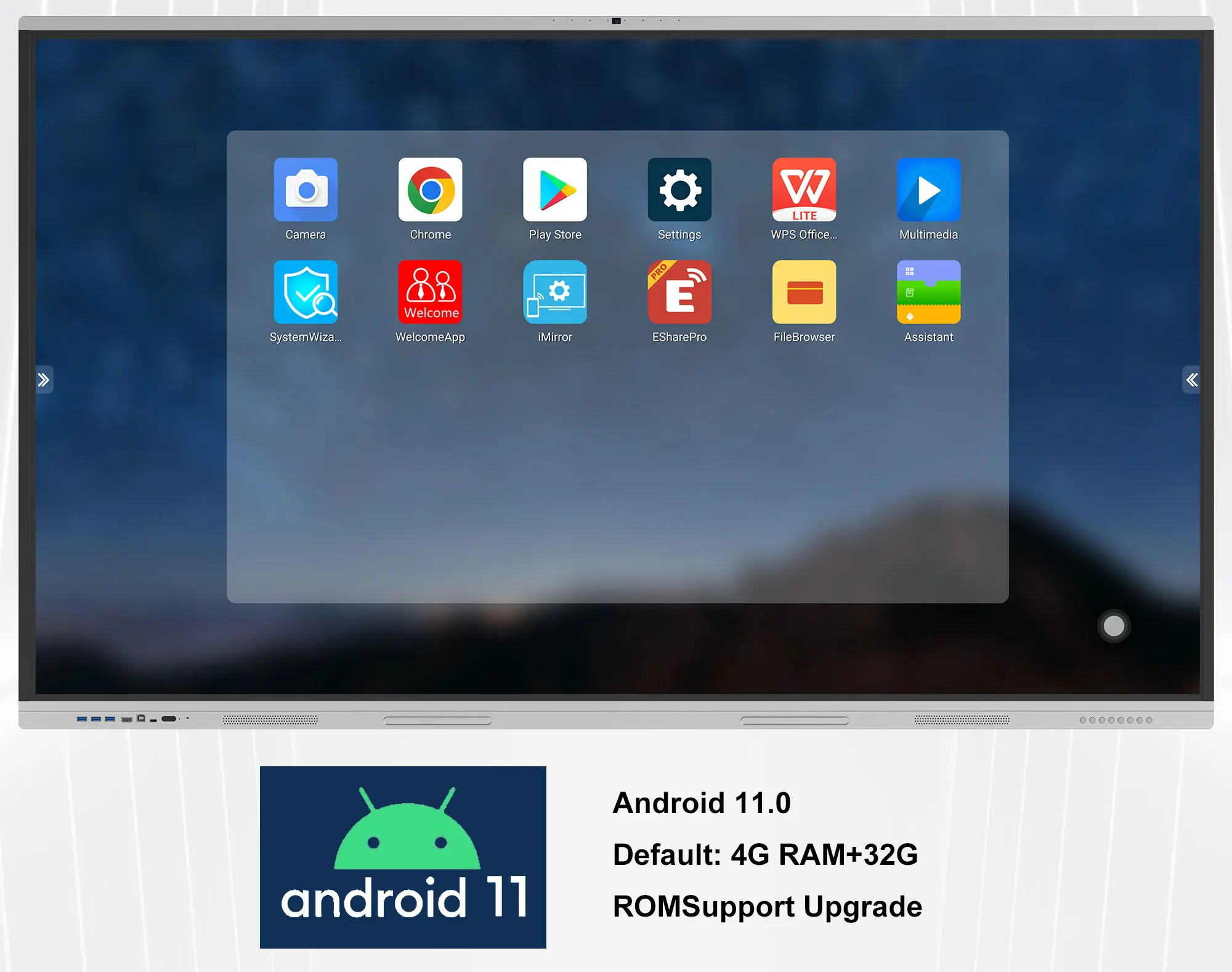

Android Configuration | |||||||
CPU | Quad-core ARM Cortex-A55 | ||||||
GPU | Mali-G52 MP2(2EE) | ||||||
RAM | 4GB/8GB DDR4 | ||||||
ROM | 32G/64G/128G EMMC | ||||||
WIFI | 2.4/5 GHz | ||||||
Bluetooth | Support | ||||||
Android OS | Android 11.0/Android 13.0 | ||||||
Input/output | HDMI 2.0, VGA, TV-RF, USB 2.0, USB3.0, TF card, AV, RGB, RS232, Touch Port, Earphone, SPDIF, RJ45, TYPE-C, MIC, DP | ||||||

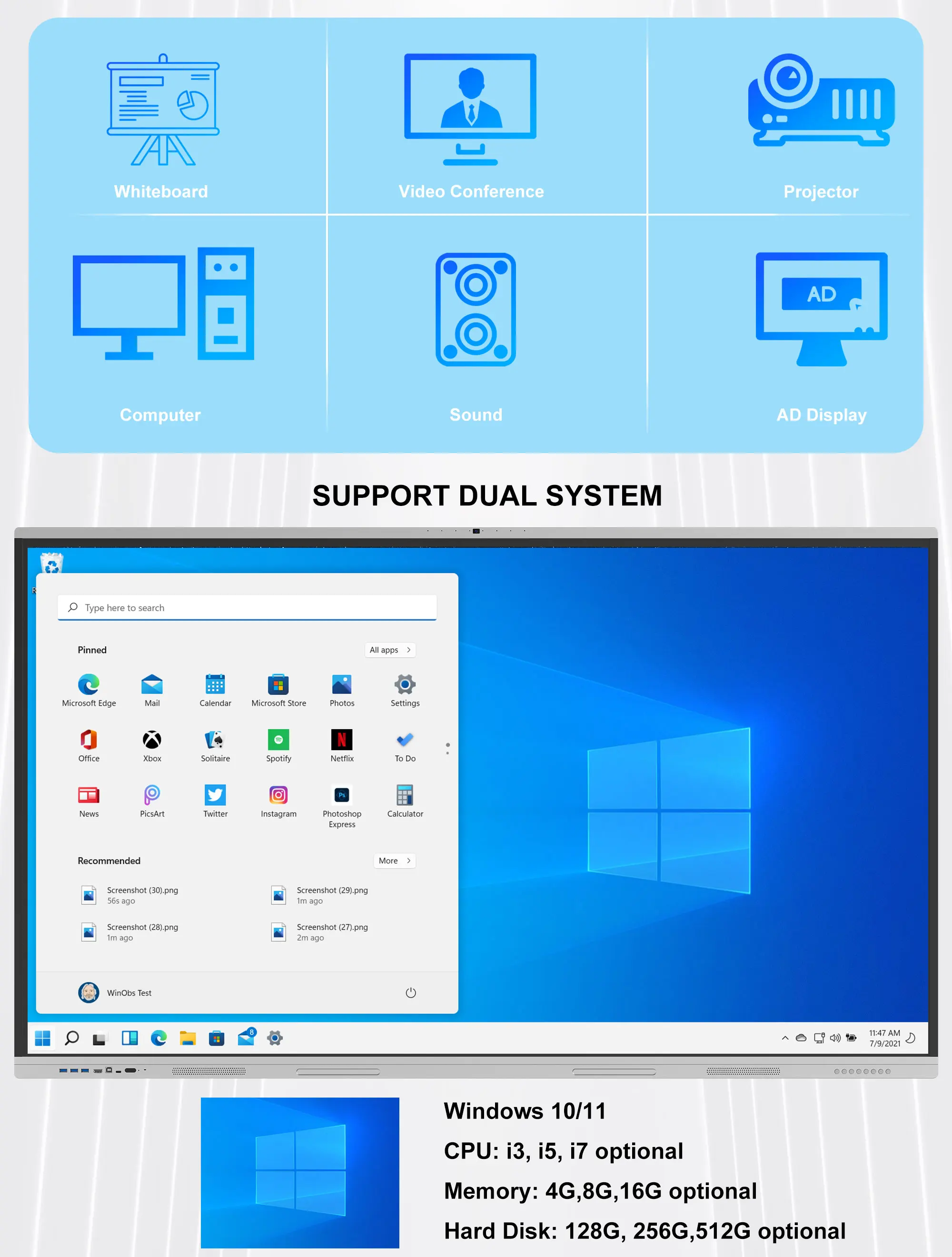

Wind0ws Configuration | |||||||
CPU | i3/i5/i7 | ||||||
RAM | 4/8/16/32/64 GB DDR4 | ||||||
Internal memory | 128G/256G/512G/1TB SSD | ||||||
Wind0ws OS | Wind0ws 8.1/10/11 | ||||||
HDMI | HDMI*1 | ||||||
USB | USB 2.0*2, USB 3.0*4 | ||||||
RJ45 Port | RJ45*1 | ||||||
WIFI | 2.4GHz/5 GHz | ||||||
Touch Screen | |||||||
Touch Type | Infra-red | ||||||
Points | 20 points | ||||||
Response Time | Less than 5ms | ||||||
Touch Way | Pen, Finger or other | ||||||
Position Accuracy | ±1mm | ||||||
Resolution | 32767 * 32767 | ||||||
Others | |||||||

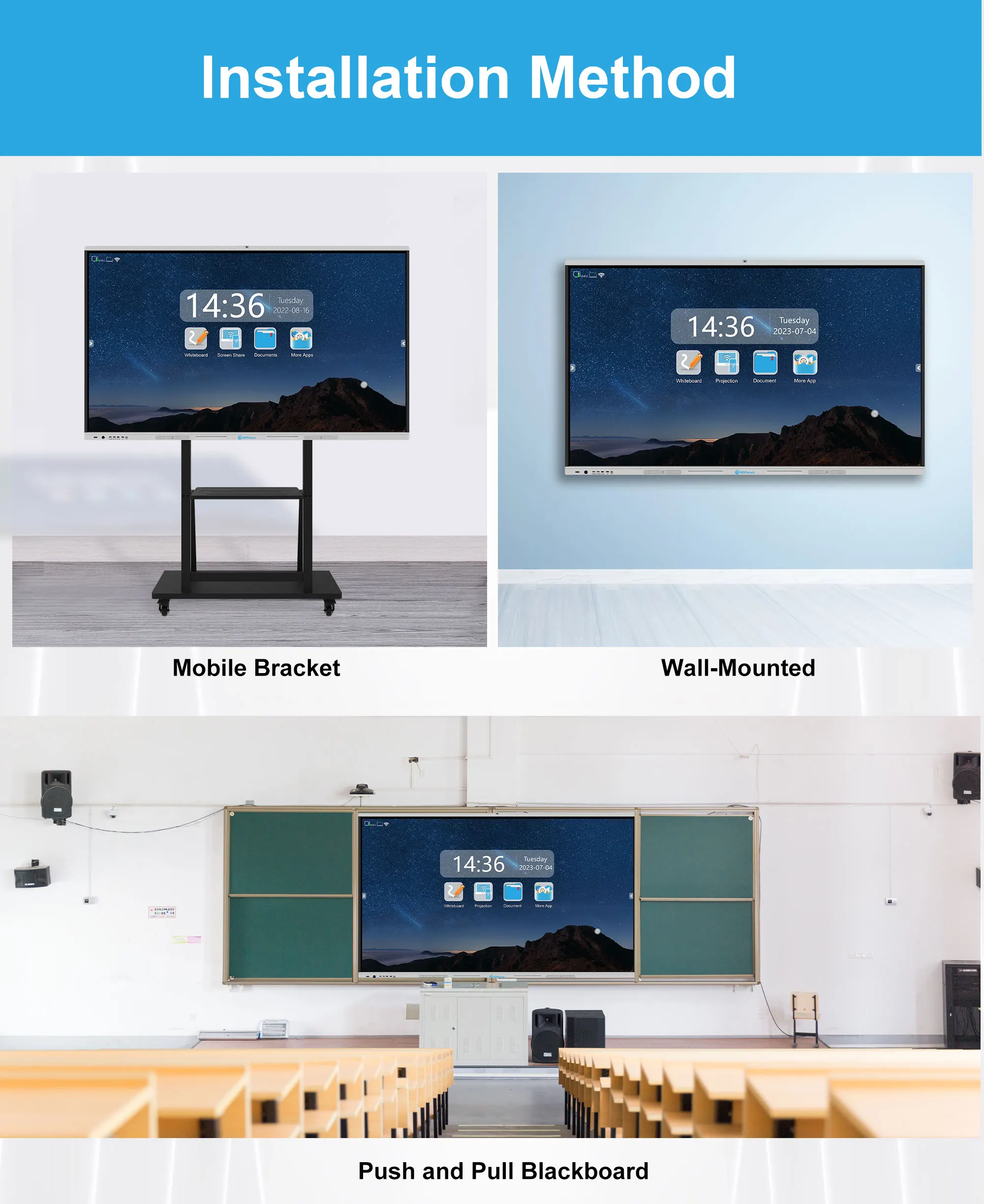

Accessories | Remote Controller.Wall Mount Racker.Touch Pen.User Manual.Power cable | ||||||
Speaker | 2*10W speakers (Front) | ||||||
Voltage | 100 V ~ 240 V, 50-60 Hz | ||||||

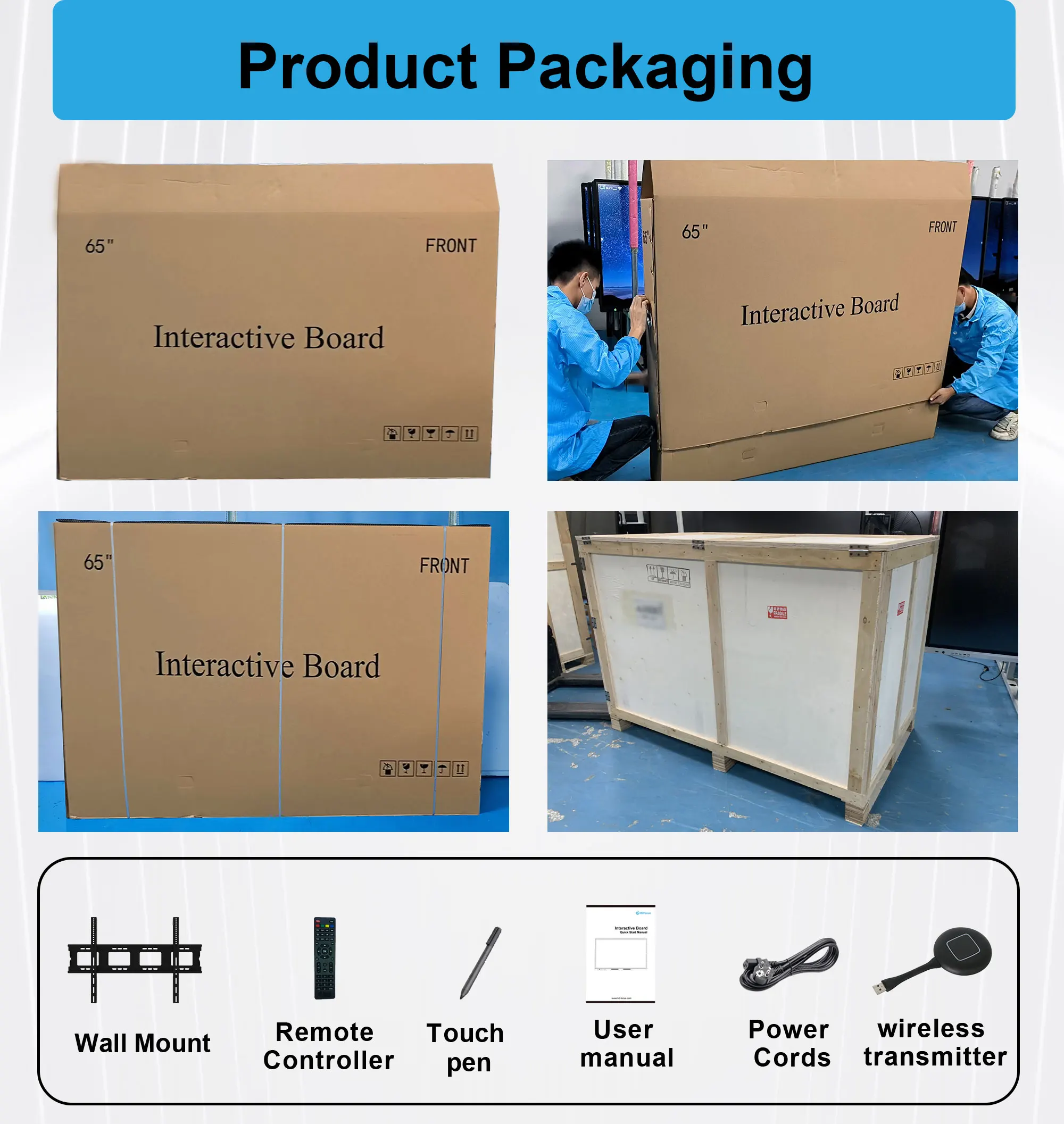

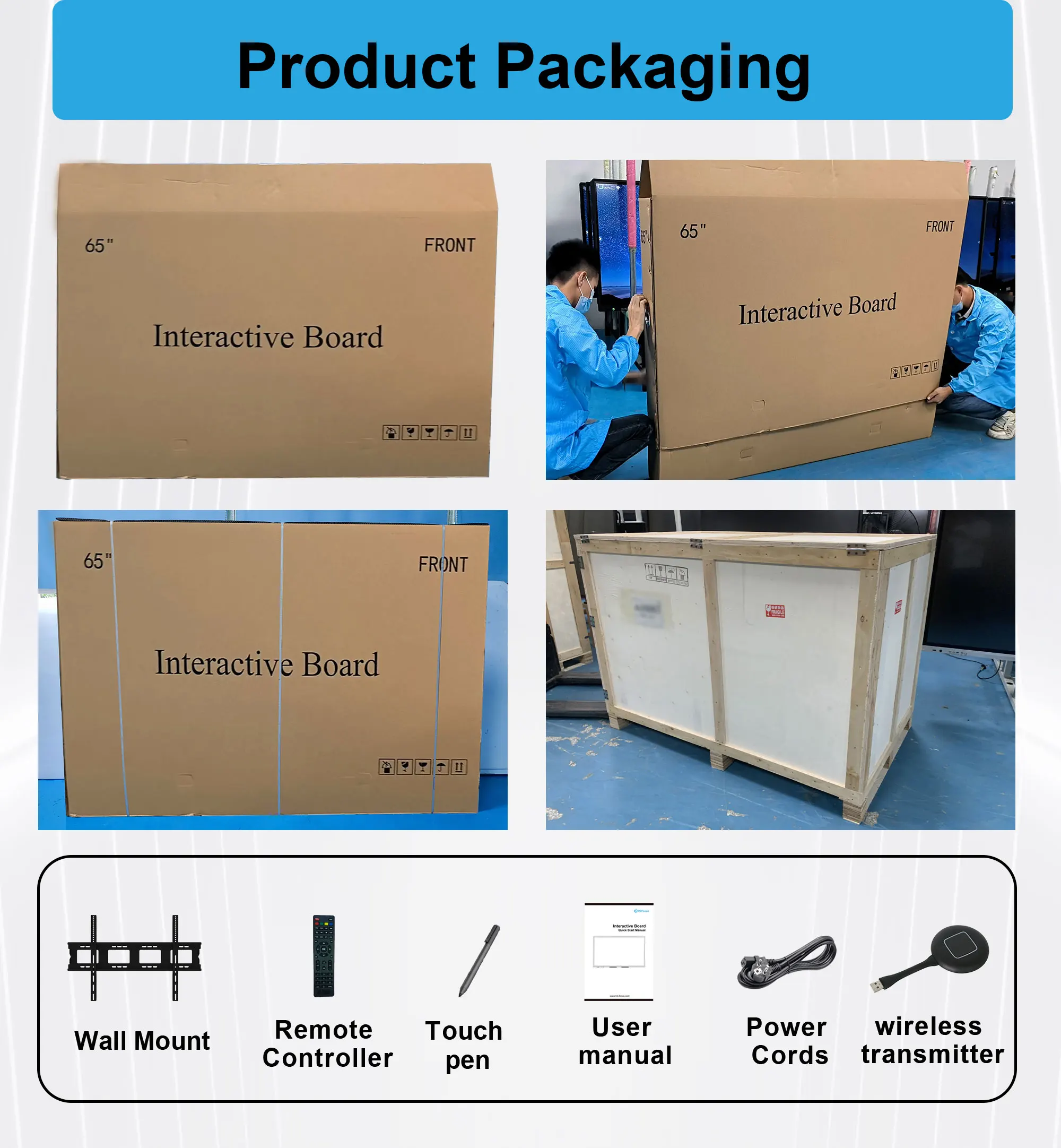

Product Packaging
Company Profile
Shenzhen HDFocus Technology Co., Ltd is a professional manufacturer focus on the digital signage for 10 years+. Now HDFocus is the SKA Supplier and also got AAA the highest credit level on Alibaba.

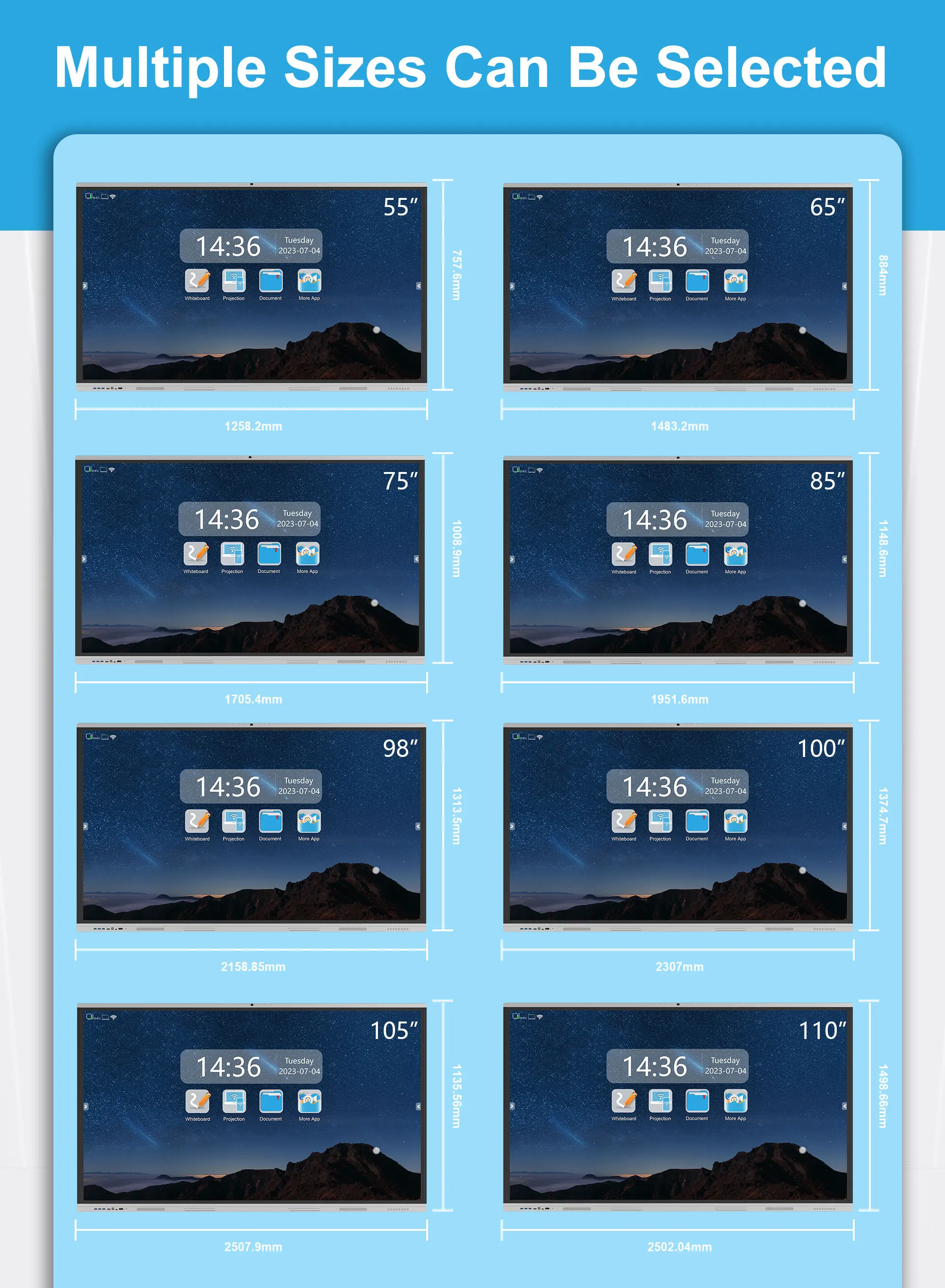

Our interactive whiteboard size are 55" 65" 75" 85" 86" 98" 100" 110" with Infrared or Capacitive 20 touch points, which are export to more than 80 countries such as America, Canada, Japan, Russia, UK, Germany, France, Italy, Singapore.
HDFocus has rich experience on OEM and International Trade service, we focus on the high quality and stable performance hardware, our interactive whiteboard get the HDMI certificate, we are looking for the experts on software or system integration like you to be our local distributor!

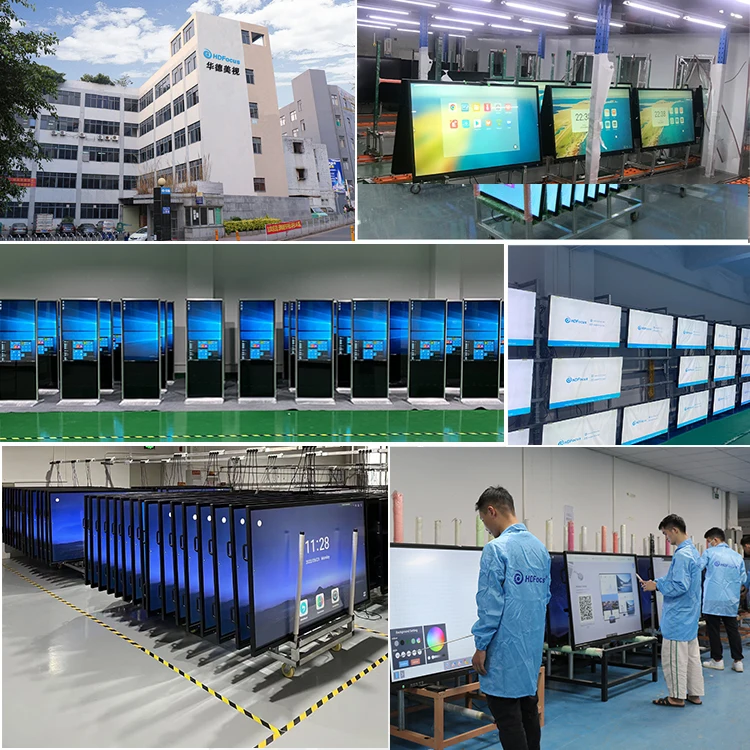

Production Process of Interactive Board
FAQ
1. Are you manufacturer of interactive board?
Yes, we are the manufacturer of interactive board located in Shenzhen, China.
2. What's the lead time of interactive board?
The lead time for sample order is 5 days, for FCL order is 20 days.
3. What's your warranty policy?
Our warranty time is 1 year, can extend with reasonable cost.
4. How can I pay for you?
You can pay us by T/T, Credit Card, Western Union, PayPal, Alibaba Trade Assurance, L/C.
5. How to resolve the problems after I buy from you?
We have the professional sales and technique team to support you, most important, our engineer could do you favor online or onsite. You will find us when you need.
