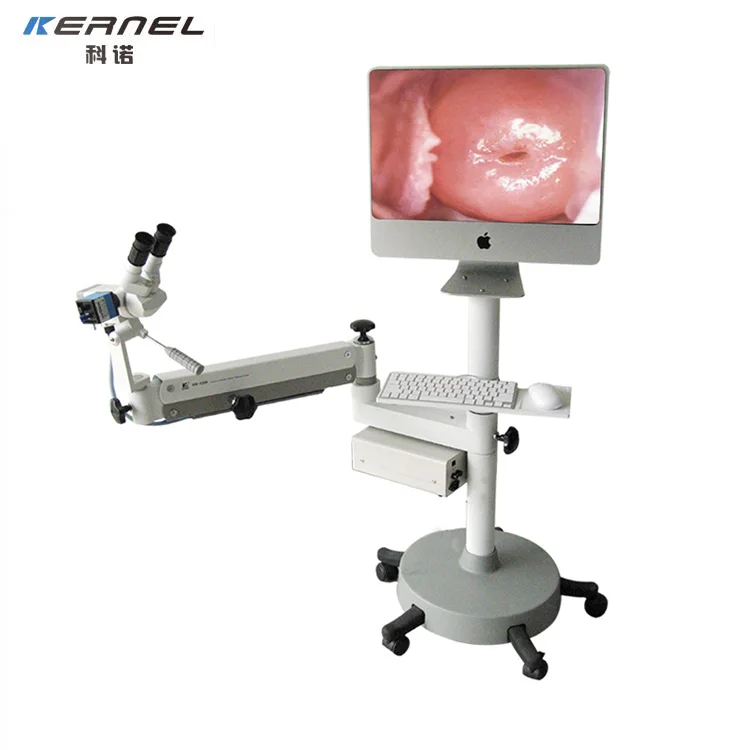

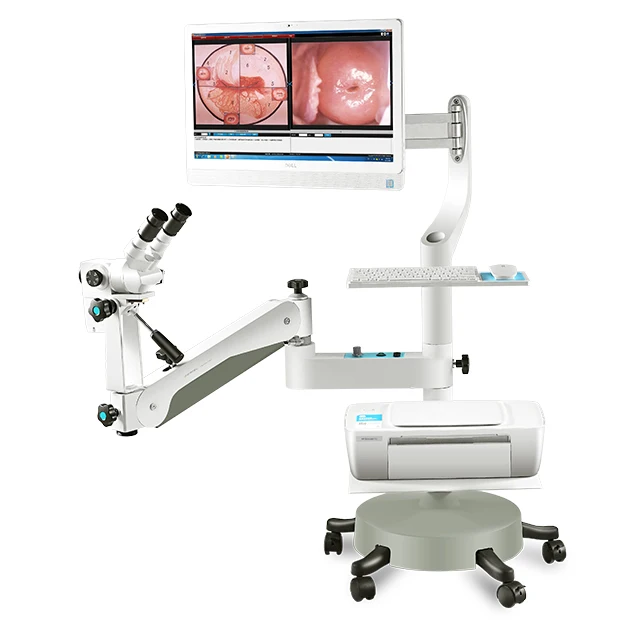

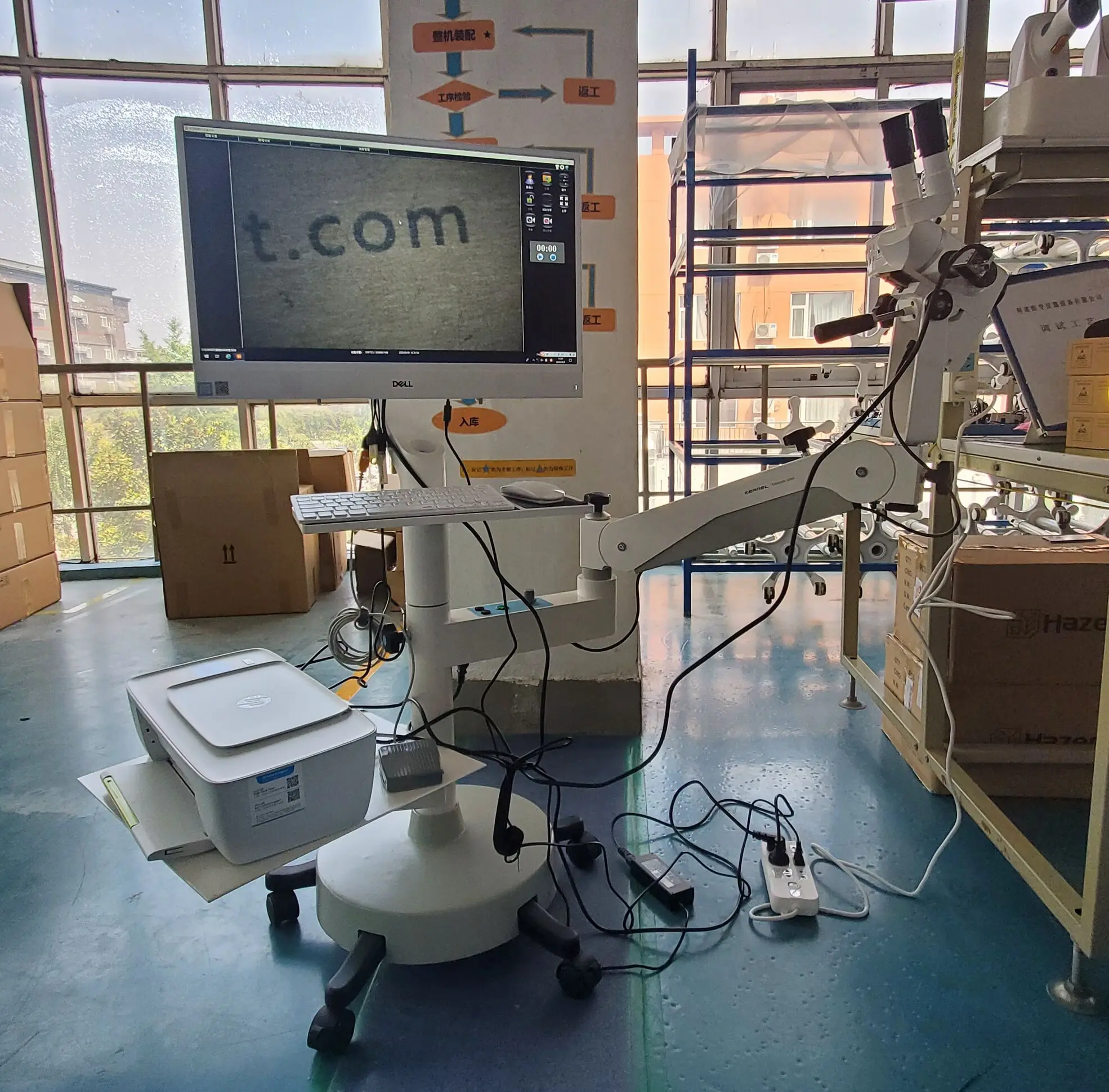

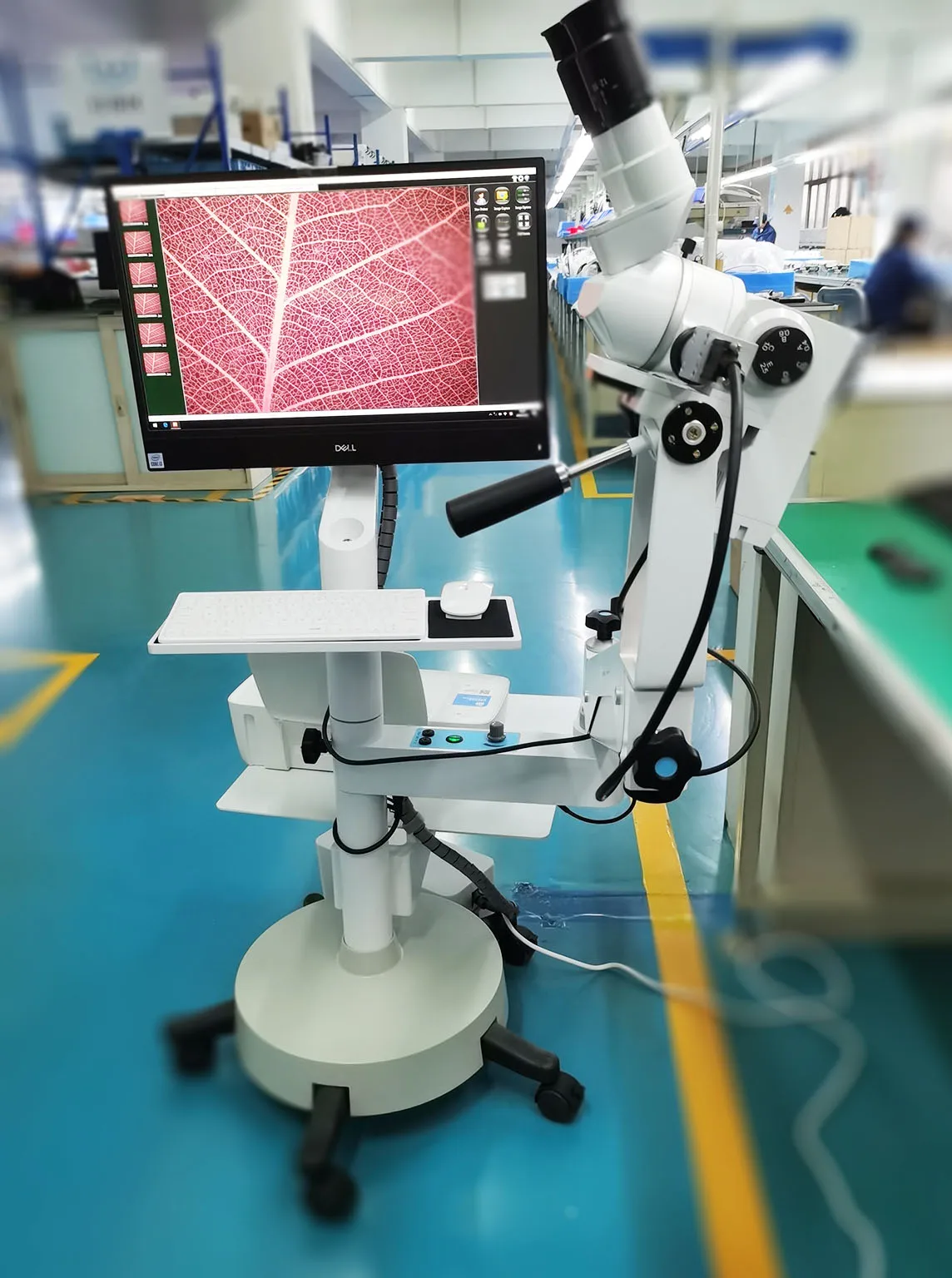

Kernel KN 2200BII Optical Vaginal Colposcopy Machine Medical Device Gynaecology Video Optical Colposcope for Gynecology
- Category: >>>
- Supplier: Kernel Medical Equipment Co. Ltd.Kernel Ltd.
Share on (1601372604497):
Product Overview
Description
Product Description
*Clinical value of colposcope
Most women undergo a colposcopic examination to further investigate a cytological abnormality on their Pap smears. Other indications for a patient to have a colposcopy include:
*Immunosuppression such as HIV infection, or an organ transplant patient
*Assessment of diethylstilbestrol (DES) exposure in utero
*As a part of a sexual assault forensic examinationdone by a Sexual Assault Nurse Examiner
*An abnormal appearance of the cervix as noted by a primary care provider
Why KN-2200BII is the top end model?

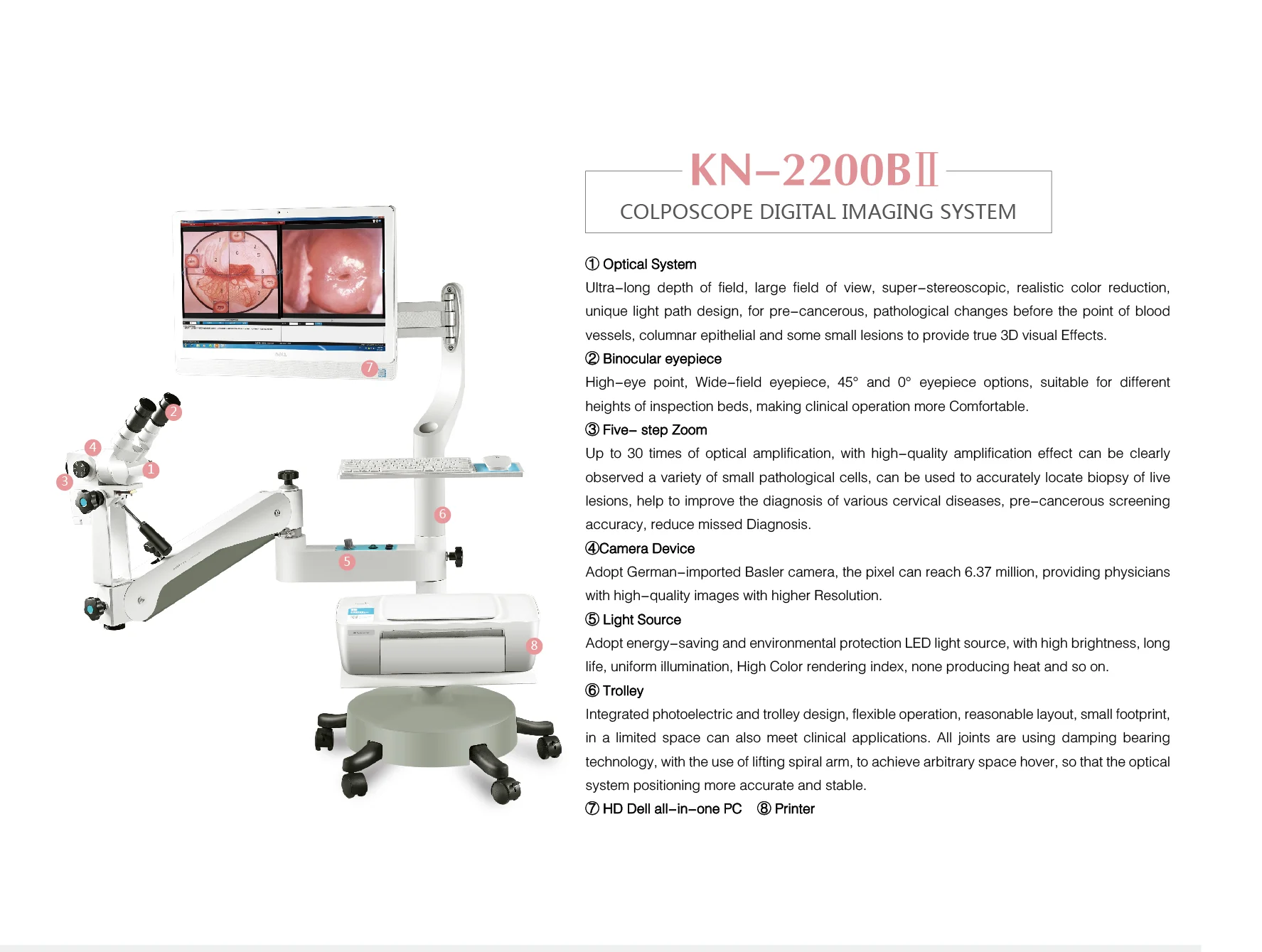

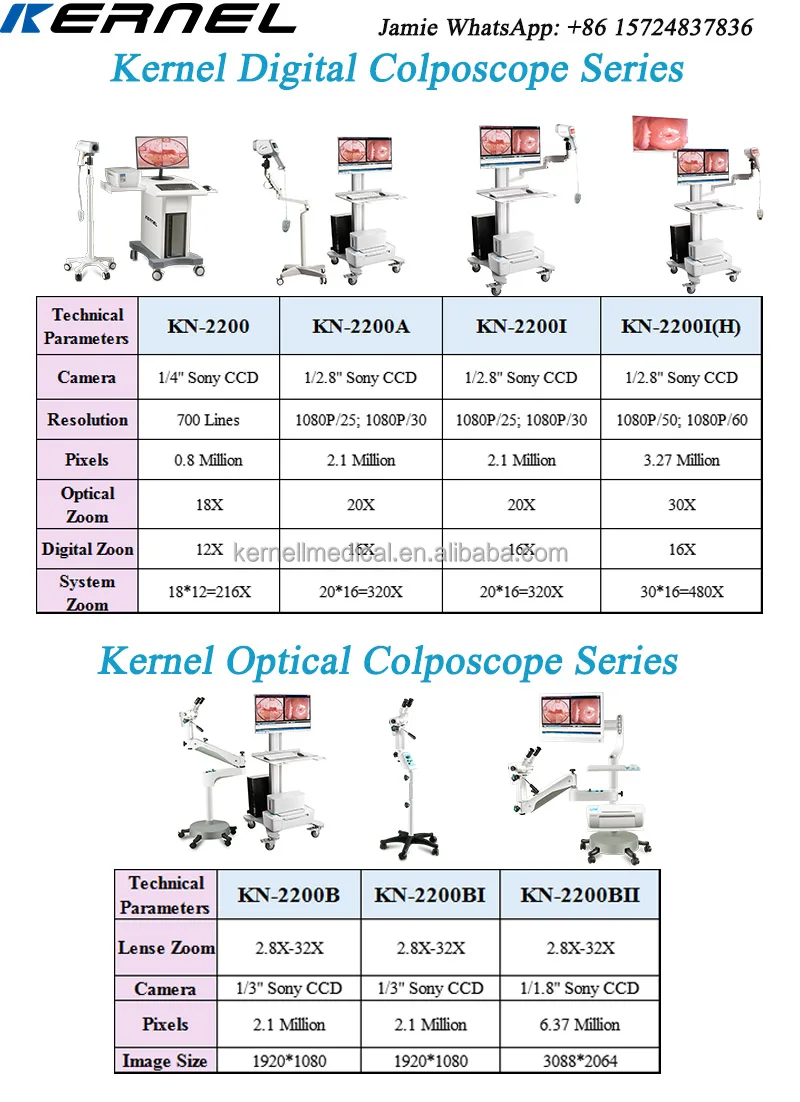

**Golden standard of Kernel KN-2200 series,with superb German Basler camera 6.37 million effective pixels.
**Combining the advantages of microscope optical system and electronic colposcopy imaging system, it is the perfect combination of optics and electronics.
**Extra long depth of field, super large field of view, super three-dimensional sense, realistic color reproduction, unique light path design, providing true 3D visual effects for pre-cancerous, pre-lesional punctiform vessels, columnar epithelium and some tiny lesions .
**50times System Magnification ,17 times optical amplication,3 times Digital amplification.able to output divine clear view of the examination lesion parts. Provide doctors with 3D visual image of the epithelial tissues,and different levels of the blood vessels.
**Combining the advantages of microscope optical system and electronic colposcopy imaging system, it is the perfect combination of optics and electronics.
**Extra long depth of field, super large field of view, super three-dimensional sense, realistic color reproduction, unique light path design, providing true 3D visual effects for pre-cancerous, pre-lesional punctiform vessels, columnar epithelium and some tiny lesions .
**50times System Magnification ,17 times optical amplication,3 times Digital amplification.able to output divine clear view of the examination lesion parts. Provide doctors with 3D visual image of the epithelial tissues,and different levels of the blood vessels.
**LED light source, lifespan more than 20,000 hours.
**Horizontal Resolution up to 2064.
*Application
1.Suitable for gynecology examination and cervical cancer early diagnose
2.On the clinical, checkup with vulva, vagina, cervix and other part
* LED light source, luminance can be adjusted freely
* Fast manual focus control, white-balance auto-adjustment.
* Unique beam splitter design and CCD imaging trimming, makes imaging stereo, acquire the best observation effect for the various level of lesions.
* Built-in scale, can measure the size of lesions.
* Five-step magnification and focus, strong stereoscopic effect, distinct gradation, large viewing.

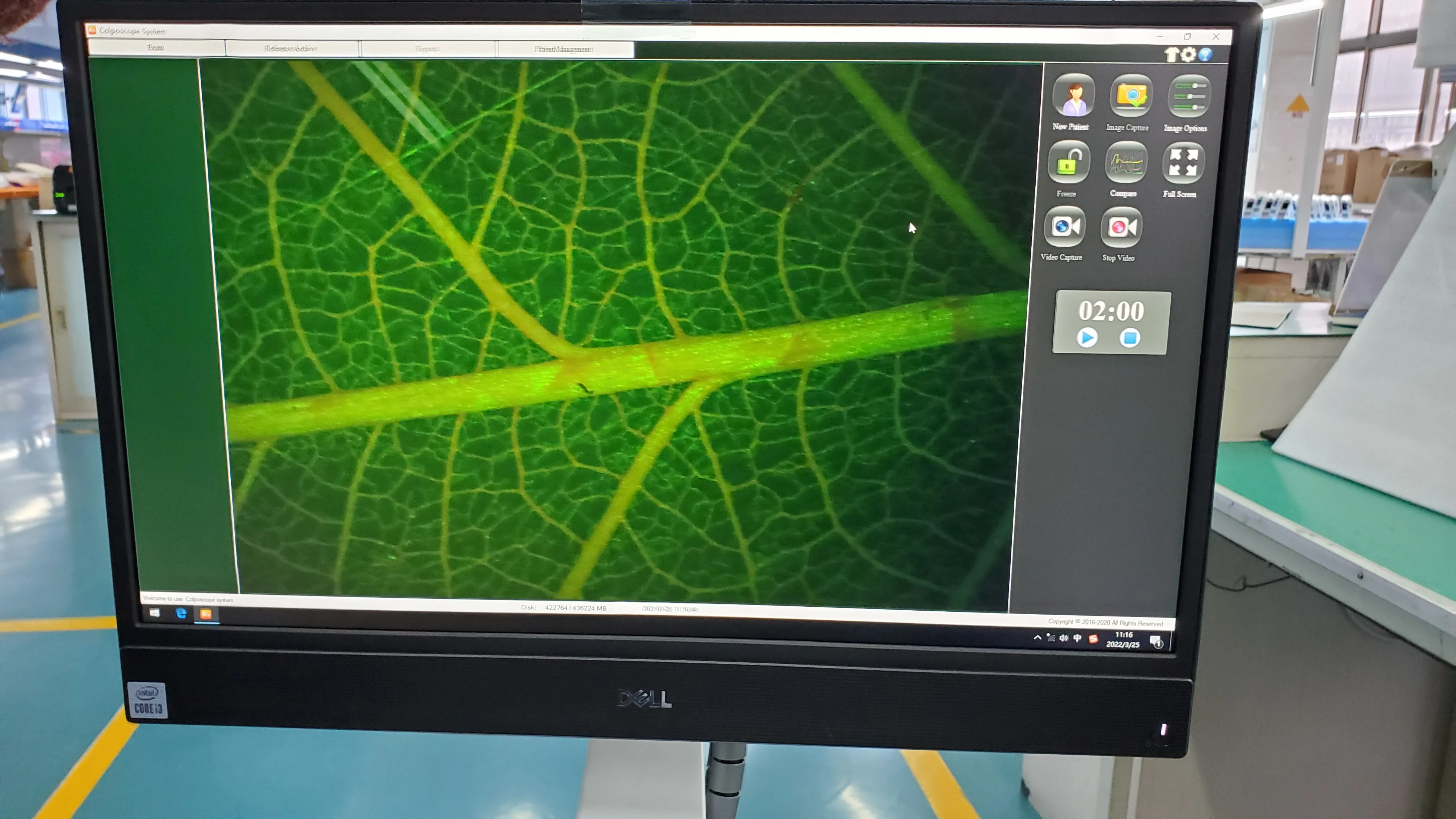

* Equipped with green filter, easy to observe capillary of lesions.
* Flexible, convenient, lockable swing arm, barrier-free design, easy to adjust to any angle

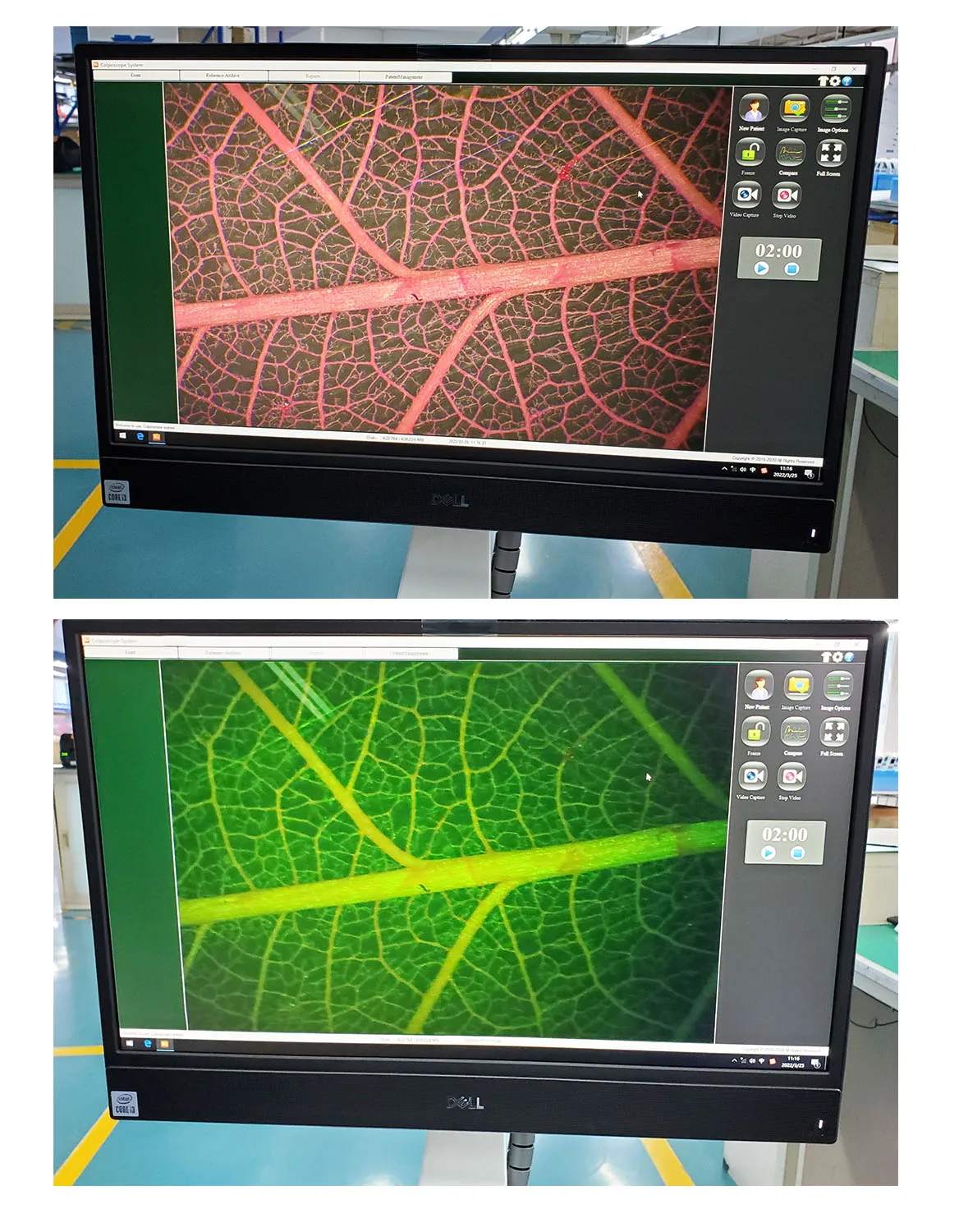

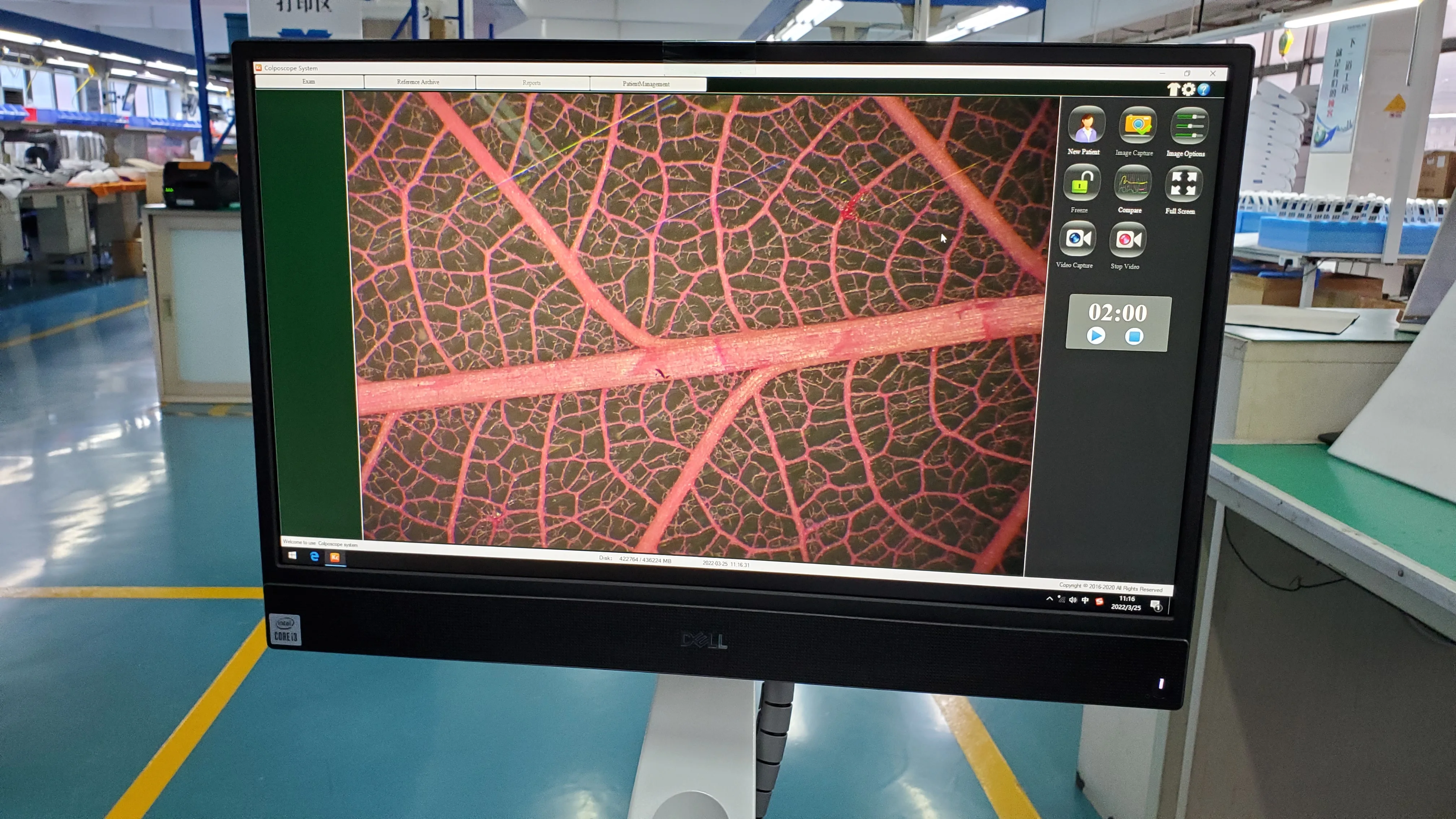

* Multi-function management software with the ability of image observation, capture, video recording, freezing, editing, report printing and storage.
* Special Software package, with the function of acetic acid reaction countdown, applicable to dynamic observation of examination and operative treatment.
* Support Win7/8/10
1.Suitable for gynecology examination and cervical cancer early diagnose
2.On the clinical, checkup with vulva, vagina, cervix and other part
*Features
* High resolution and high definition observation system* LED light source, luminance can be adjusted freely
* Fast manual focus control, white-balance auto-adjustment.
* Unique beam splitter design and CCD imaging trimming, makes imaging stereo, acquire the best observation effect for the various level of lesions.
* Built-in scale, can measure the size of lesions.
* Five-step magnification and focus, strong stereoscopic effect, distinct gradation, large viewing.
* Equipped with green filter, easy to observe capillary of lesions.
* Flexible, convenient, lockable swing arm, barrier-free design, easy to adjust to any angle
* Multi-function management software with the ability of image observation, capture, video recording, freezing, editing, report printing and storage.
* Special Software package, with the function of acetic acid reaction countdown, applicable to dynamic observation of examination and operative treatment.
* Support Win7/8/10
*Parameters
KN-2200BII | Specifications | ||

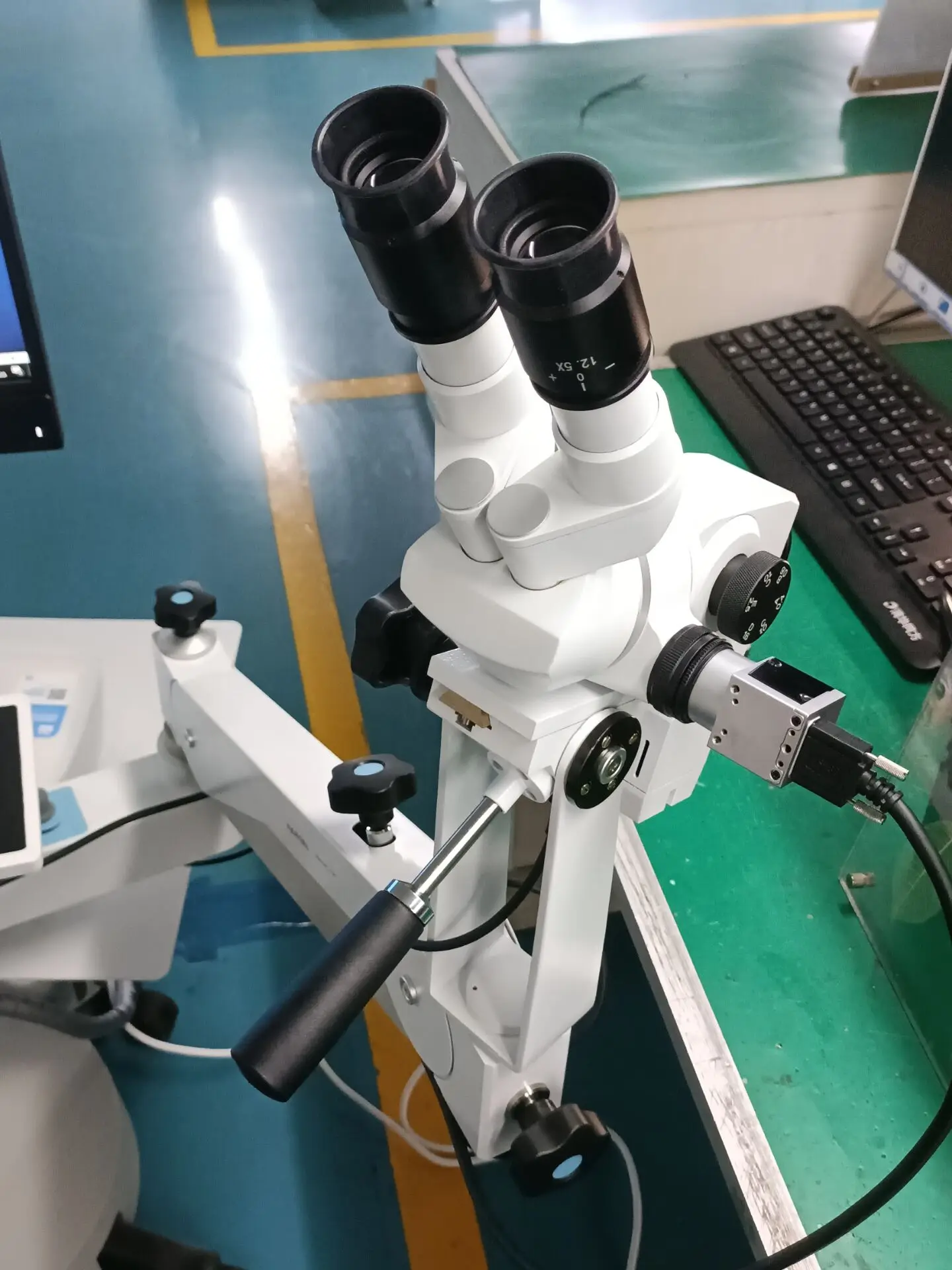

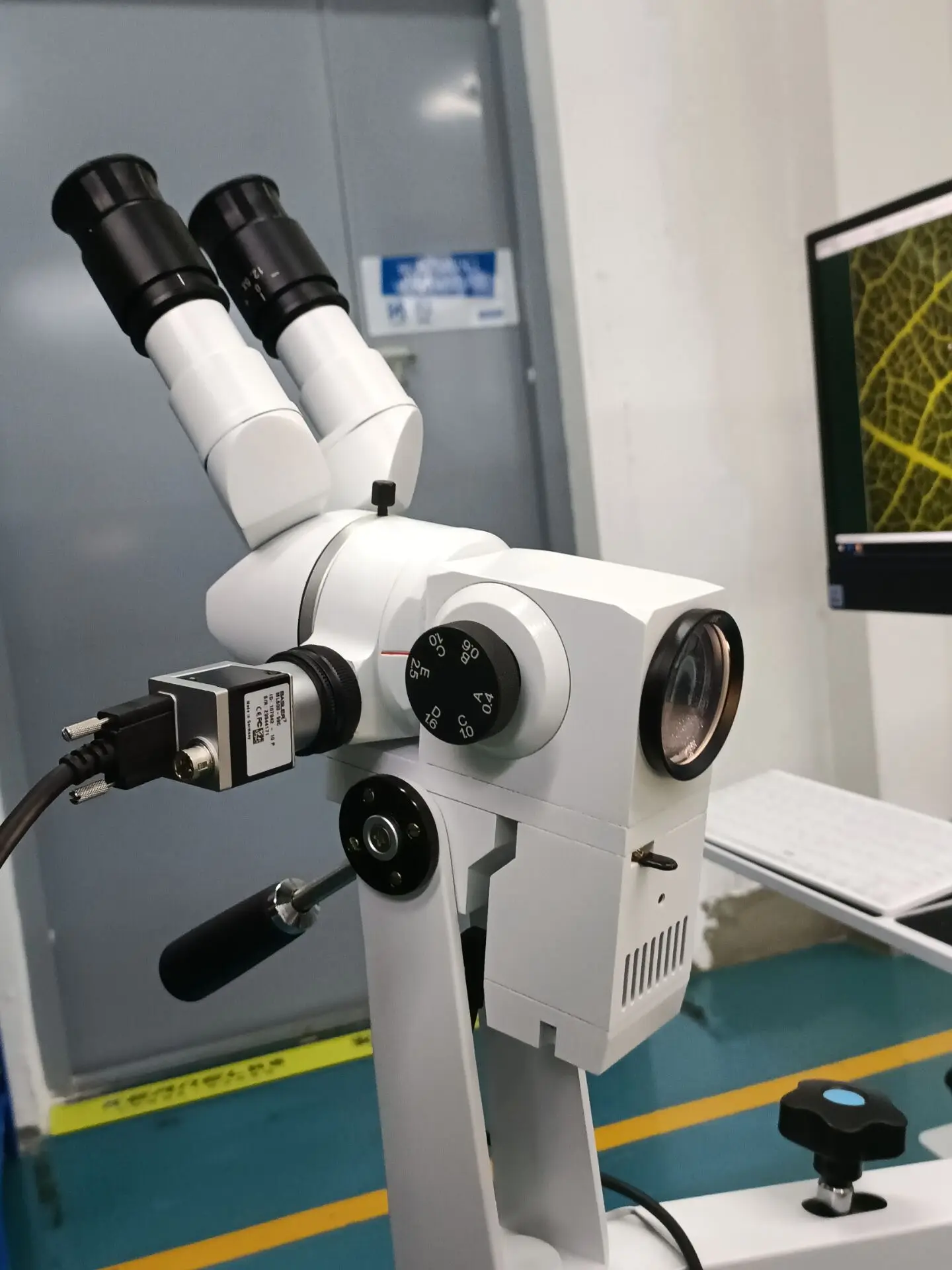

Optics System | Binocular eyepiece focus | 160mm/125mm, Built-in accurate measurement ruler | |
Eyepiece | 12.5x/20x, wide-angle vision adjustment(Refraction adjustment) 0±5D | ||
Work distance | 300mm | ||
Eye-distance adjustment range | 50-75mm | ||
Micro focusing range | 0-40mm | ||
Image collection Raster | f 4.5-f 32 | ||
Cold light source | Green Filter | ||
Light illumination | ≥30000Lux | ||
Optics magnification times | 2.8-17/3-20/4-27/5-32 times | ||
Camera System | Type | 1/1.8'' color CCD camera, successive scans | |
Level Resolution | ≥3088*2064 lines | ||
pixels | 637 million | ||
Signal Noise Ratio of lens | ≥50 dB | ||
Details Images
Customer Feedback
Related Products
Recommend Products
Certificate
Packing & Delivery
Package: | Standard Export Packing in Carton Box for Gynecology colposcope . |
Delivery Time: | Within 7 work days after payment. |
Delivery Way: | By air (DHL/ Fedex / UPS etc.) By sea, By Land, |
Warranty: | We Provide 1 years Warranty. |
Cooperation Item: | OEM/ODM, or other item you want. |
Price Term: | EXW, FOB Price at USD |
MOQ: | 1pc as sample order. |
Company Introduction
FAQ
Q1. Can I have a sample order for the product?
A: Yes, we welcome sample order to test and check quality.
Q2: How long will the delivery time?
A: Quantity 1 - 10 units, in 7 days.
Q3. Do you have any MOQ limit for the product order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q7: Whats the warranty time?
A:The machine comes with 1 year manufacturer's warranty (500 hours for bulbs)
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send the new with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality.
Q2: How long will the delivery time?
A: Quantity 1 - 10 units, in 7 days.
Q3. Do you have any MOQ limit for the product order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q7: Whats the warranty time?
A:The machine comes with 1 year manufacturer's warranty (500 hours for bulbs)
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send the new with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
