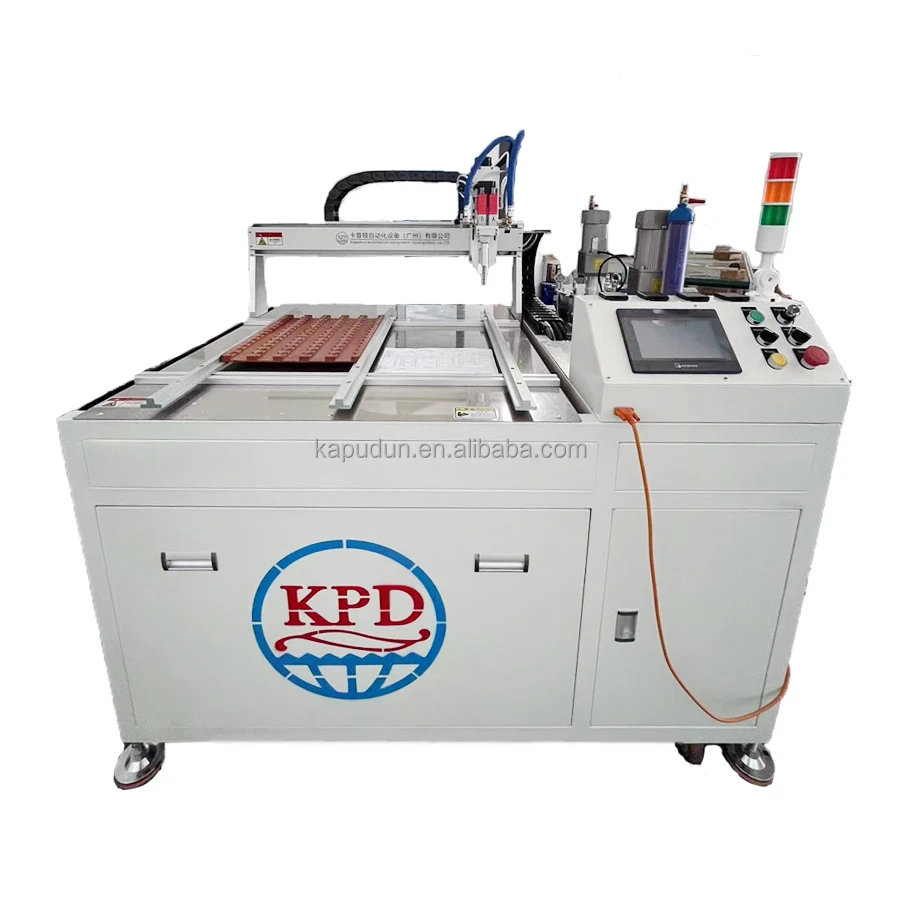

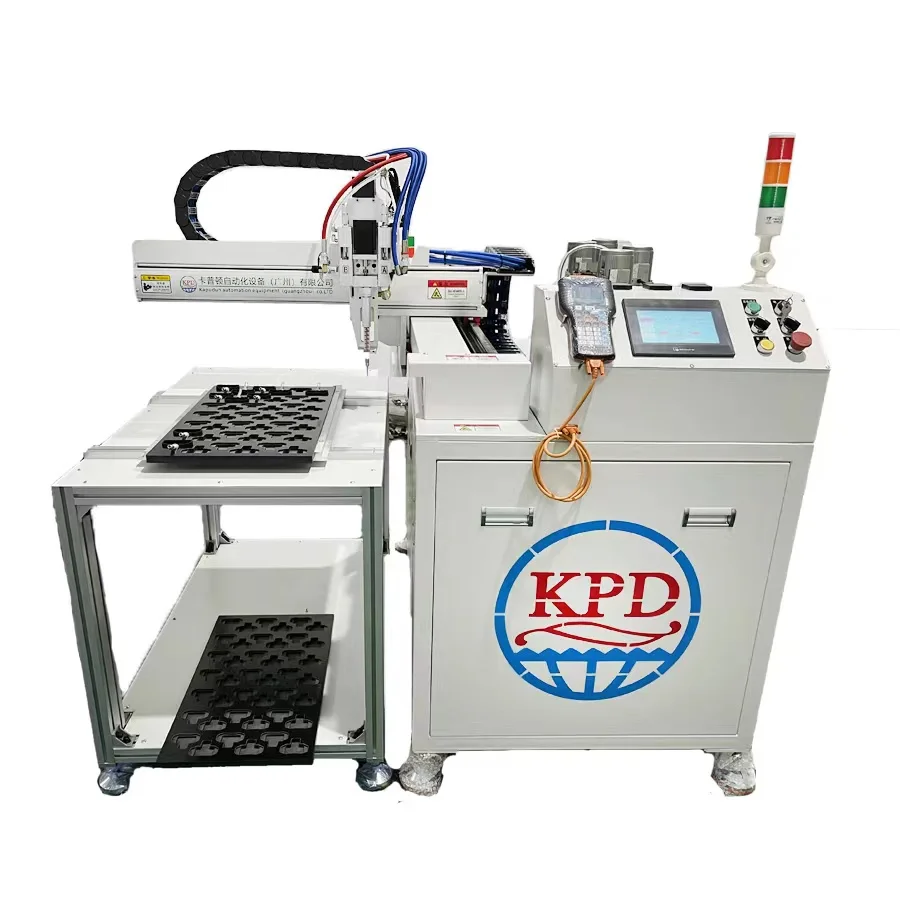

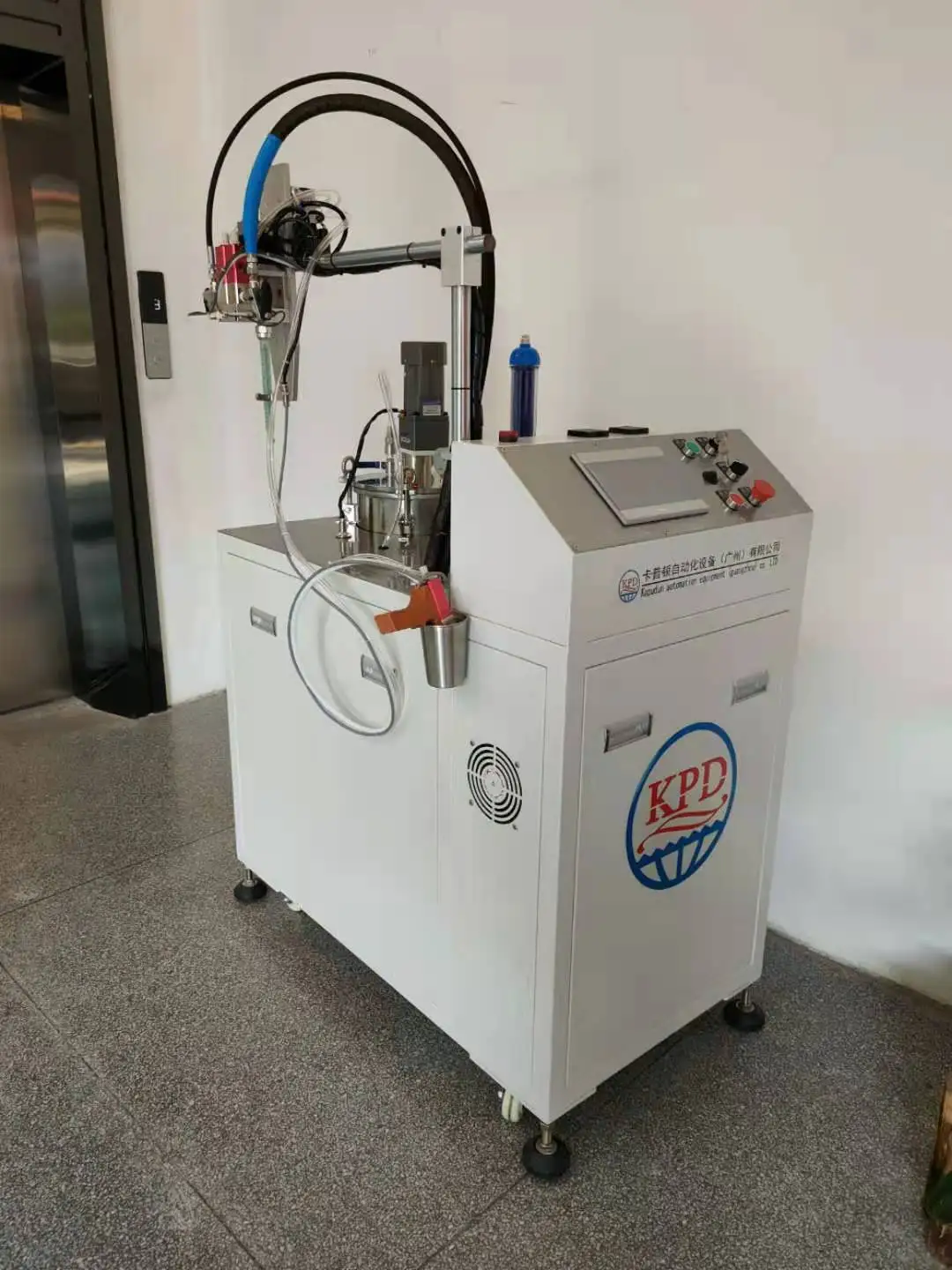

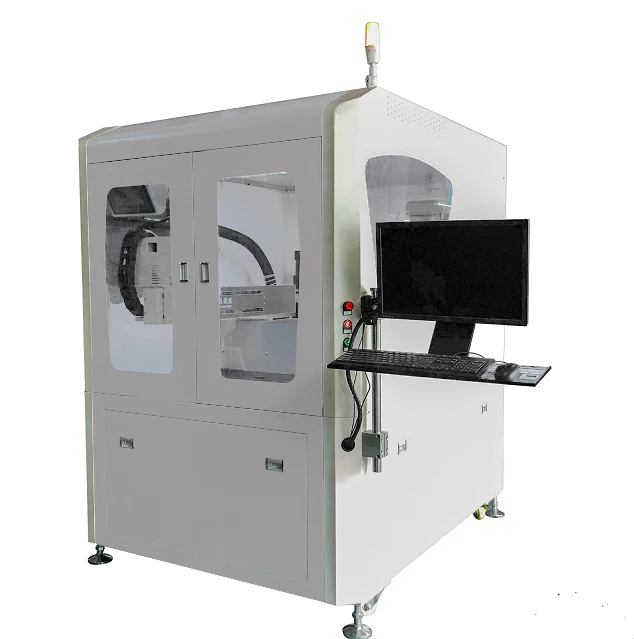

Metering Mixing and Dispensing Machine PU Resin Dynamic Polyurethane Dosing System 2 Component Silicone Epoxy Resin Machine
- Category: >>>
- Supplier: Kapudun Automation Equipment(GuangZhou) Co. LtdKapudun Ltd
Share on (1601373616458):
Product Overview
Description
Product Description
two-component resin automatic metering/mixing/dispensing machine. This system is using servo motors, high-precision metering valves and PLC control mode and this is specially designed for low and medium viscosity resins. (such as epoxies, urethanes, silicones and acrylics) Our system is suitable for potting of abrasive and high-viscosity materials in PCB, Electric parts, Motors, EV motors, LED and others applications. We specialize in providing solutions for high viscosity materials supplying.
Specification
Model | KPD-700 |
Mixing ratio | 1:1--10:1 adjustable |
Dispensing Speed | According to customer's product requirements and glue types |
Motion trail | Dot , line ,curve ,circle |
Operation Range (X*Y*Z) (mm) | 700*700*100mm |
Axis | 3 Axis (X,Y,Z) |
Maximum Speed | X,Y 500mm/S, Z 300mm/S |
Accuracy | ±2%(output volume)±2%(mixing) |
Teaching Method | Manual Data Input/Optional: LCD Touch Screen |
Motor system | precision stepper motor |
Transmission mode | Precision Stepping Motor+Timing belt |
Control Panel | Teach pendant (optional:PC or Touch Screen) |
Power supply | AC220V 50HZ 2KW |

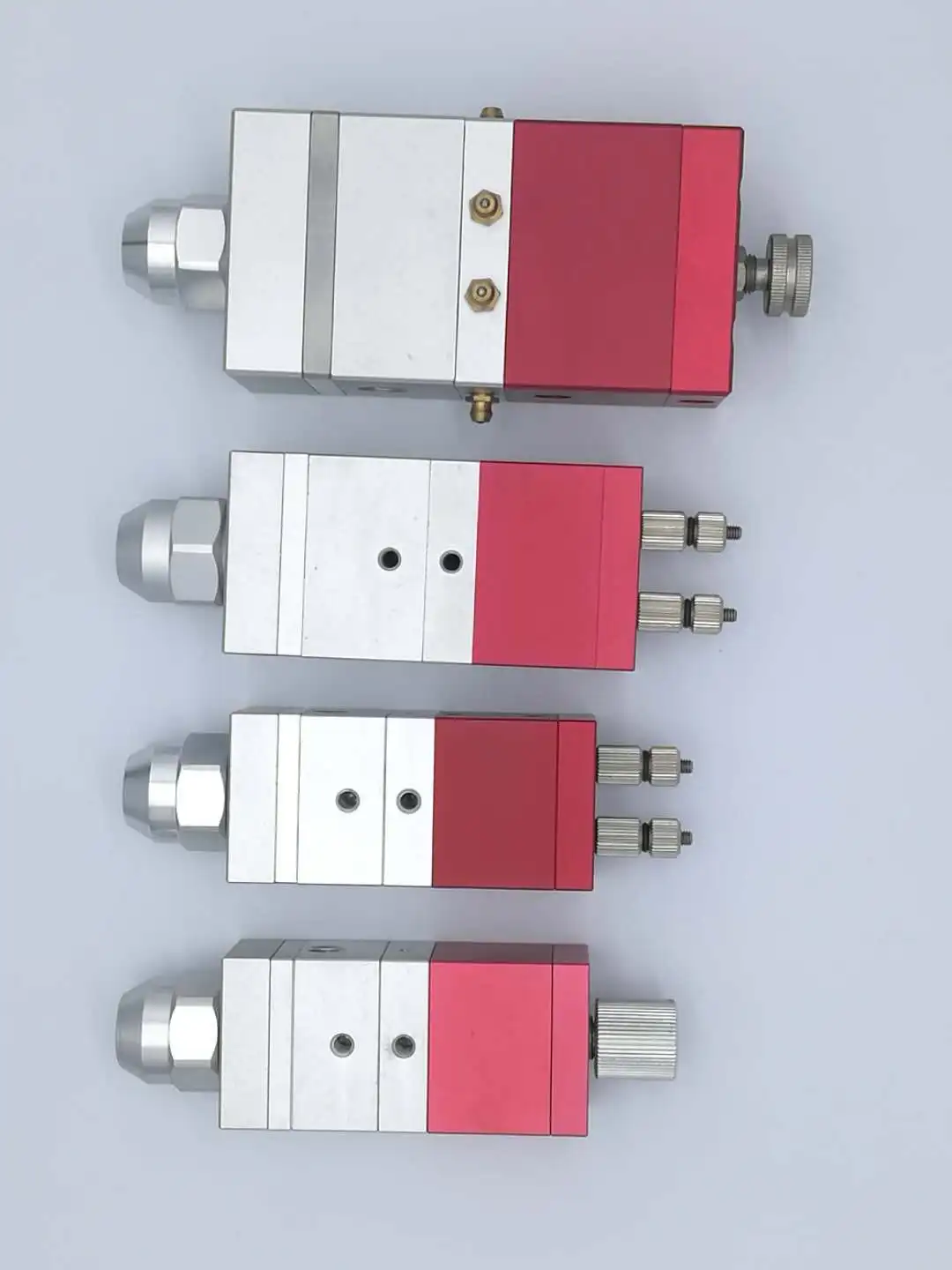

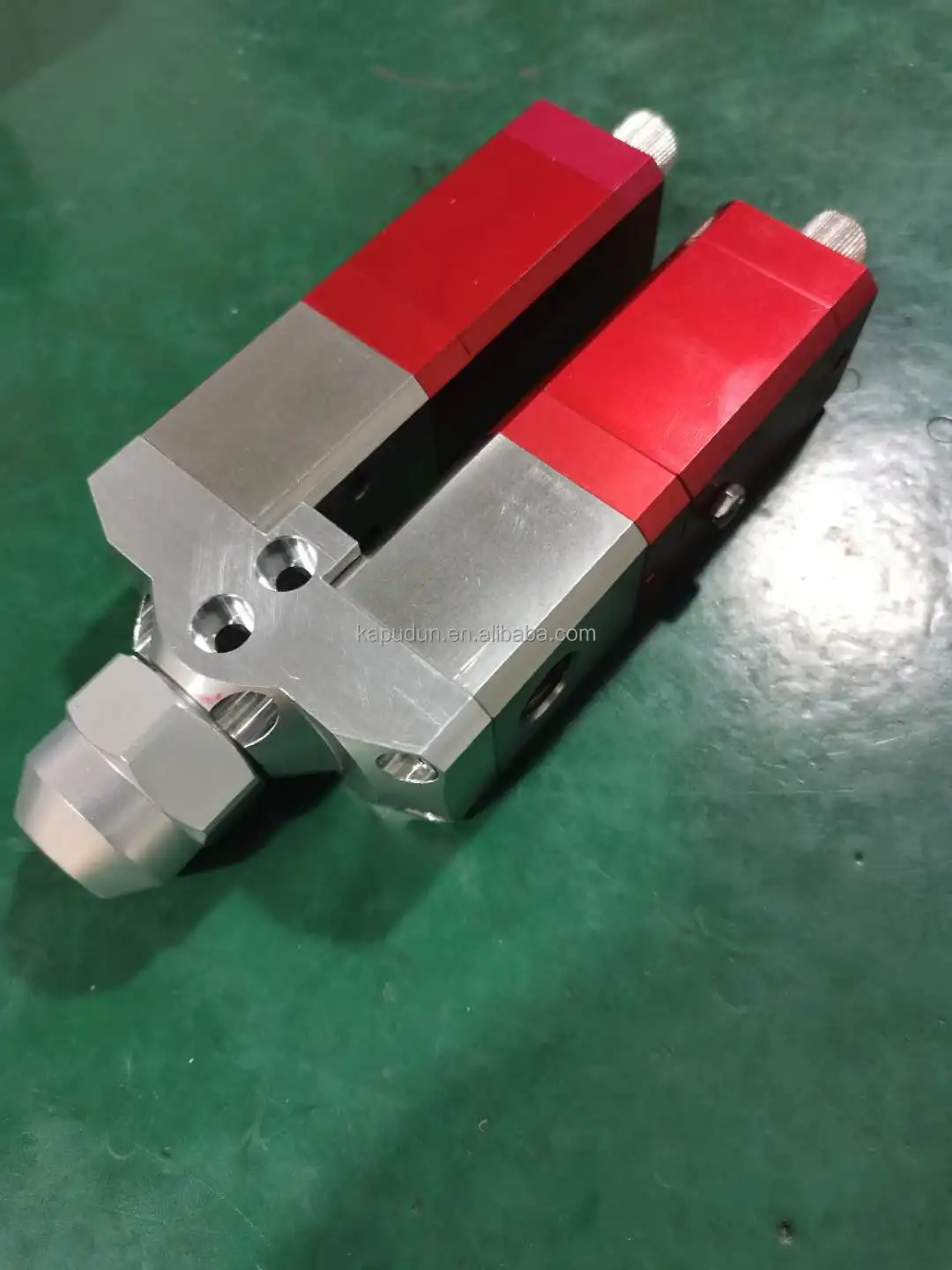

Out-glue control system | AB glue back suction valve, achieve AB glue independent operation |

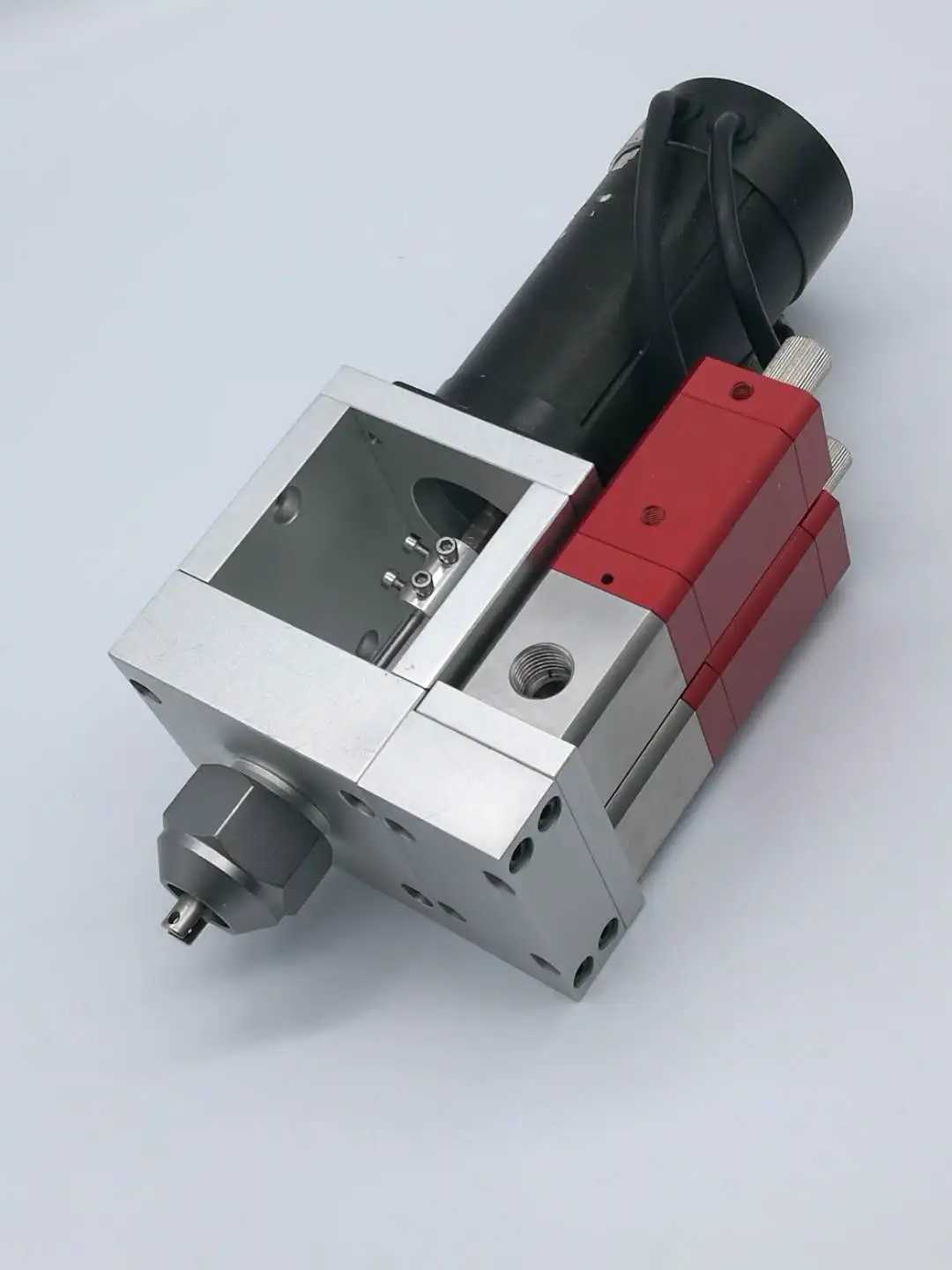

Mixing method | dynamic mixing/static mixing |
Viscosity range | 50-20000cps |
Power Source | Electricity + Pneumatic |
Air pressure requirement | 0.4 to 0.8MPa (4 to 8kg/cm2) as dry air |
Size | 1300(L) *900(W)*1650(H)mm |
Feed system | manual/semi-automatic(vacuum suction) |
Work condition | Humidity:20-90%, Temperature :0-40°C |

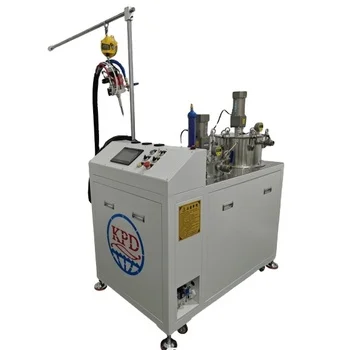

Semi-Automatic Electronic Potting Machine Epoxy Resin Dispenser Urethane Casting Meter Mix Machine
Main function
* Heating Function
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
Application
1. Transformer potting and casting
2. Water meter reader silicone/polyurethane dispensing machine
3. Electronic part controller ab glue dispensing machine
4. Emc Filter ab urethane dosing and filling machine
5. Motor and generators's potting, magnet bonding, encapsulation of transformers. igniter filters, igniters
6. sensor and actuator, safte device , lighting transformer ab epoxy resin and hardener mixing machine
Main function
* Heating Function
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
Application:
1. PCB protection ab glue dispensing machine
2. Battery two component epoxy filling and dosing machine
3. Led driver and power supplier silicone dispensing machine ab part silicone mixing machine
4. Automotive senor and modules two component ab glue dispensing machine
5. Switch gear ab urethane dispensing and dosing machine
6. SPDs epoxy 2k dosing and mixing machine
Main function
* Heating Function
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
Machine Application
1. Solar frame silicone glue dispensing machine
2. junction box ab glue potting machine
3 solar PV-junction box silicone ab glue dispenser
4.Tire pressure sensor epoxy dosing and mixing machine
5. Solar inverters ab gluing machine glue potting machine
Main function
* Heating Function
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
AB PU/silicone/epoxy compound meter mix dispensing machine application
electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor,
circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
Main function
* Heating Function
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
two component ab glue machine application
1 filter bonding and sealing machine
2 Plug and Cable Potting machine
3 Photovoltaic Potting machine
4 Plug and Cable Potting machine
5. LED Potting machine
Main function
* Heating Function
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
AB adhesive material glue machine application
Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , boattery cover , rectifier and so on ...
Main function
* Heating Function
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
Machine application
Typical products encapsulated include cable splice, coils, power supplies, sensors, transducers, switches, and control modules.
1)Potting and vacuum encapsulation of electronic/ electrical assemblies, sensors, connectors, coils, and other electronic components.
2) Overmolding of harness breakouts, watertight electrical connectors, cables, cable end seals, and other printed circuitry.
3) Bonding or sealing
1)Potting and vacuum encapsulation of electronic/ electrical assemblies, sensors, connectors, coils, and other electronic components.
2) Overmolding of harness breakouts, watertight electrical connectors, cables, cable end seals, and other printed circuitry.
3) Bonding or sealing
Main function
* Heating Function
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional

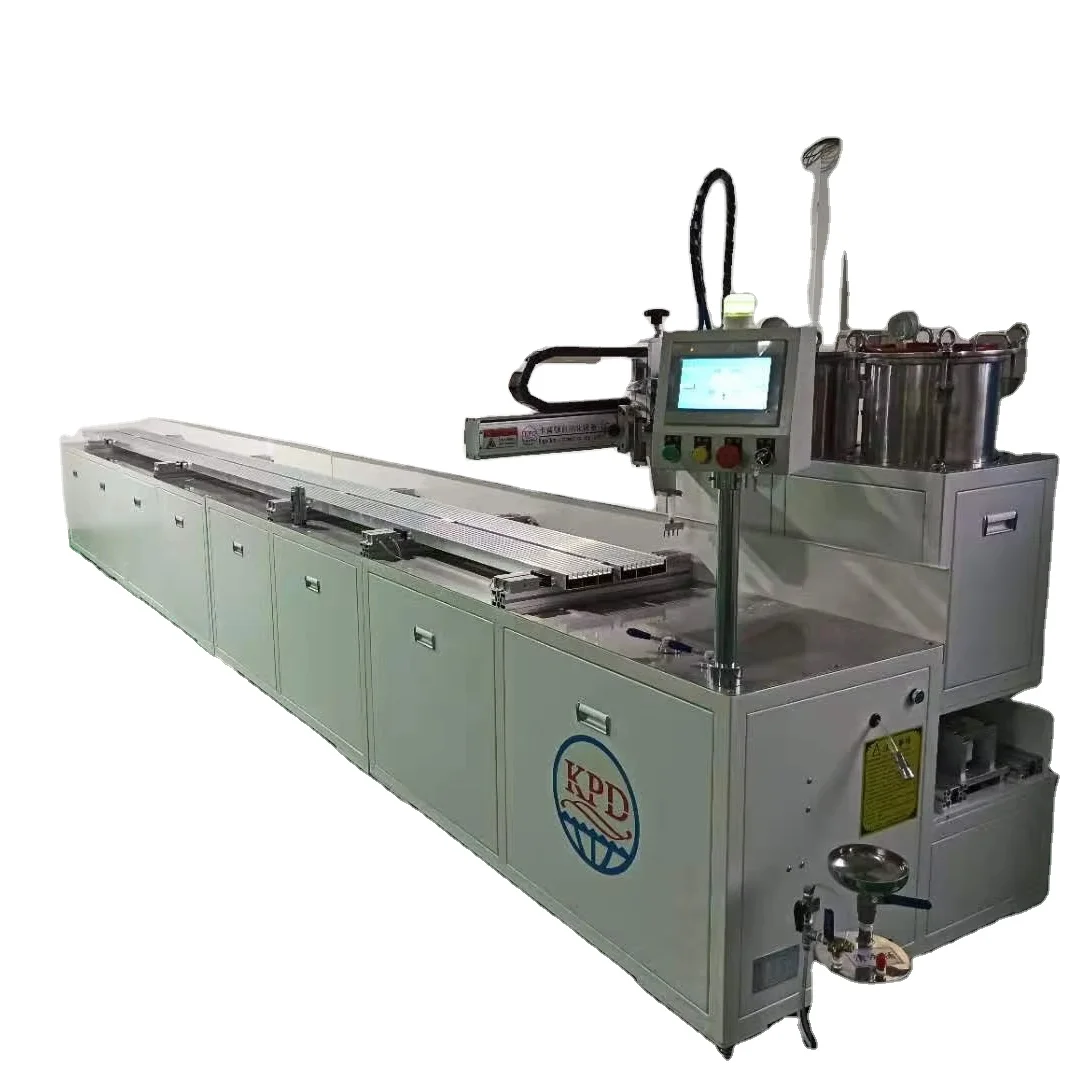

LED flexible strip glue dispenser system robot automatic silicon epoxy PU ab glue dispensing machine
1. led strip silicone glue dispensing machine
2, underwater led light ab urethane Pu Dispenser
3. led display, led moduel, wall washer ab glue potting mixing machine
Main function
* Heating Function
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
* Auto cleaning mixing nozzle Function
* Vacuum function for degassing bubble
* Auto feeding pump for filling the resin from customer tank to our machine bracket
* Key parts of the equipment are made of highly wear-resistant materials to reduce the number of maintenance times.
* Anti-precipitation stirring function in storage tanks.
* Easily set AB glue mixing ratio to meet various application requirements.
* Other custom-option for various applications.
* Tank level sensor
* Dynamic/static mixing motor for optional
Machine gluing application
* transformers
* capacitors
* cable connections
* electric junction boxes/cable protective boxes/cable splice & gasket kits
* led drivers
* agricultural, horticulture, tunnel & landscape led drivers
* electric motors
* batteries
* electric sensors
* circuit boards
* capacitors
* cable connections
* electric junction boxes/cable protective boxes/cable splice & gasket kits
* led drivers
* agricultural, horticulture, tunnel & landscape led drivers
* electric motors
* batteries
* electric sensors
* circuit boards
Main function
1.Automatic edge finding:
2. Automatic glue amount:
4. One-click start: Eliminate the tedious preparation work before starting up, and realize automatic operation to working status
with one click;
5. Glue heating:
6. Anti-sedimentation mixing:
7. Visual mixing:
8.Disassembly-free automatic cleaning:
9.Patented glue-controlled suction valve: effectively avoiding inaccurate proportions
and greatly improving the product qualification rate;
2. Automatic glue amount:
4. One-click start: Eliminate the tedious preparation work before starting up, and realize automatic operation to working status
with one click;
5. Glue heating:
6. Anti-sedimentation mixing:
7. Visual mixing:
8.Disassembly-free automatic cleaning:
9.Patented glue-controlled suction valve: effectively avoiding inaccurate proportions
and greatly improving the product qualification rate;
Ab Pu spraying machine in construction industry
. Main application: Purification Board, Fire Door, Wall Board, home board and other composite board. Mgo board, sandwich panel Xsp panel, honeycomb panel Machine can be applied for different types of boards, such as cellullar boards, fiber cement boards, calcium silicate boards, OSB boards, furniture boards, aluminum composite panel,sandwich rockwool panel, Heat Insulation Eps Xps Fiber Cement Sandwich Panels OSB SIP, aluminum honeycomb core boards, Refrigerated carriage board, Structural Insulation Panels (SIPs),etc
Machine Spare part
Below are some part of our ab glue machine.
Company Profile
The two-component Mixing and Dispensing System accurately meters, mixes and dispenses two-component materials like potting compounds, encapsulants, casting materials and adhesives. The two components are precisely metered using gear pump technology, programmable from a simple control panel. The mix ratio, dispensing rate and dispensed quantity can be set-up quite accurately, providing consistent, error-free metering, mixing and dispensing. The control panel is menu-driven and password protected.
Our machine is designed with a unique modular approach, for simple configuration and maintenance. Each machine is built to match your material and process, with appropriate material reservoir sizes and dispensing hose lengths. Reservoir options include agitation, heating and drying (the latter for moisture sensitive materials like polyurethanes).
Material is fed from the two integrated gravity-fed reservoirs through the gear pumps where it is accurately metered, through flexible hoses to a dispensing head. Industry standard static mixing nozzles/ dynamic mixing are used for homogeneous mixing. The mixture is free of air bubbles.
This metering, mixing and dispensing system is configured for standalone operation, triggered by a fingertip switch or foot pedal.
It can also be configured to work with automation for consistently dispensed amounts and accurate placement.
The Metering, Mixing and Dispensing System is able to process a number of materials including silicones, polyurethanes andepoxies.
Our machine is designed with a unique modular approach, for simple configuration and maintenance. Each machine is built to match your material and process, with appropriate material reservoir sizes and dispensing hose lengths. Reservoir options include agitation, heating and drying (the latter for moisture sensitive materials like polyurethanes).
Material is fed from the two integrated gravity-fed reservoirs through the gear pumps where it is accurately metered, through flexible hoses to a dispensing head. Industry standard static mixing nozzles/ dynamic mixing are used for homogeneous mixing. The mixture is free of air bubbles.
This metering, mixing and dispensing system is configured for standalone operation, triggered by a fingertip switch or foot pedal.
It can also be configured to work with automation for consistently dispensed amounts and accurate placement.
The Metering, Mixing and Dispensing System is able to process a number of materials including silicones, polyurethanes andepoxies.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
