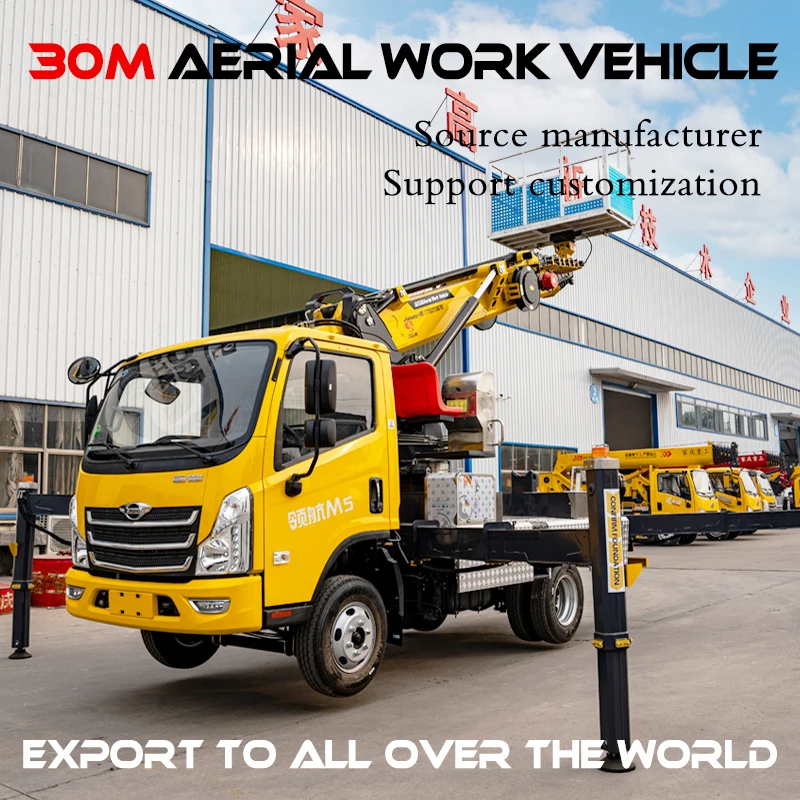

ISUZU Ladder Lift Truck Hydraulic Rising Lift Platm 23m 30M 35M Boom Lift Aerial Work Platform With Basket
- Category: >>>
- Supplier: Jining Jiaqing Special Vehicle (Group) Co. Ltd.Jining Ltd.
Share on (1601374434180):
Product Overview
Description
Jining Jiaqing Special Vehicle (Group) Co., Ltd. also known as JQCM Truck Crane Factory,is a leading producer of multifunctional cranes, vehicle-mounted cranes and aerial work vehicles. Adhering to “quality first, customer first”, it aims to provide high-quality products and services globally.
Alibaba Enterprise Advanced Certification,annual export sales of 40,000,000 USD,China's largest lifting equipment production base, factory production staff of 350 people,sales technology design after-sales 150 people, quality inspection 16 people, providing fully customized services. 24 hours online.
Color Customization, Chassis Customization: ISUZU, HOWO, Foton, Dongfeng, FAW
We provide ODM/OEM customized services, looking for agents worldwide
Contact suppliers for exclusive services and preferential prices

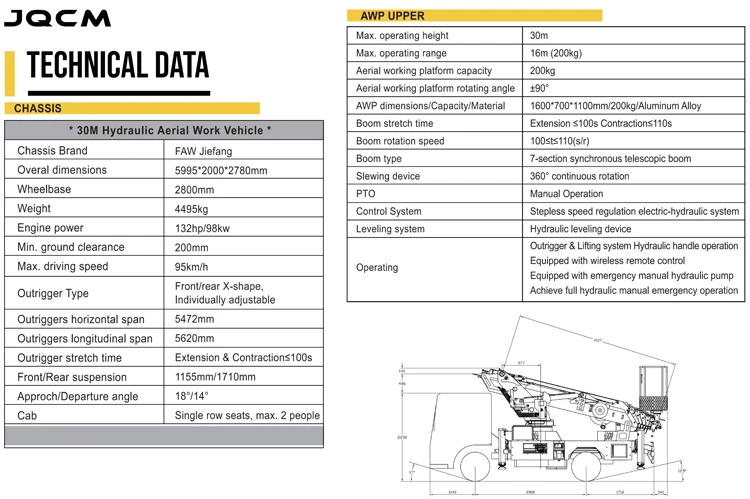

Products Description
Brand | JQCM | Minimum ground clearance | 200mm |
Chassis model | ISUZU/HOWO/FOTON/FAW | Outrigger retraction time | <100S |
Vehicle size | 2995*2000*2780 | Outrigger lateral span | 5472mm |
Wheelbase | 2800mm | Outrigger longitudinal span | 5620mm |
Mass | 4495kg | Boom type | Seven-section synchronous telescopic boom |
Maximum height | 30m | Engine horsepower | 132 horsepower |
Maximum amplitude | 16m (200kg) | Front overhang/rear overhang | 1155/1710mm |
Maximum speed | 95km/h | Forward/rear reach | 0/340mm |
Working platform | Aluminum alloy working platform | Approach/departure angle | 18°/14° |
Platform load | 200/120/80kg | Power take-off system | Manual operation |
Platform size | 1600*700*1180 | Control system | Electro-hydraulic proportional stepless speed regulation |
Platform rotation | 90° | Leveling system | Hydraulic leveling device |
Slewing device | 360° continuous rotation | Walkway | Aluminum pattern anti-slip |
Brake type | Air brake | Cab | Single row/2 people |
Arm lifting and lowering type | Dual variable amplitude cylinder | Outrigger | Front and rear X-shaped/individually adjustable |
Arm extension time | 100<100 | Operation | Turntable hydraulic handle operation, get-off hydraulic handle operation, and wireless remote control. Equipped with emergency manual hydraulic pump. The whole vehicle can realize full hydraulic manual emergency operation |
Arm rotation speed | 100 | ||
Fuel type | Diesel |
Product features:
1: Good maneuverability, vehicle parameters meet the requirements for blue license plate: good working performance, wide operating area,
2: Flexible and changeable operating performance, multiple operating options: stable operation, compound actions can be performed: safety device, emergency manual operating system, ensure high-altitude operation safety and reliability
3: Human-machine engineering improves safety and comfort
4: Adopts double-variable lifting cylinder design: vehicle height 2.78 meters, small turning radius, no need to leave the vehicle body
1: Good maneuverability, vehicle parameters meet the requirements for blue license plate: good working performance, wide operating area,
2: Flexible and changeable operating performance, multiple operating options: stable operation, compound actions can be performed: safety device, emergency manual operating system, ensure high-altitude operation safety and reliability
3: Human-machine engineering improves safety and comfort
4: Adopts double-variable lifting cylinder design: vehicle height 2.78 meters, small turning radius, no need to leave the vehicle body

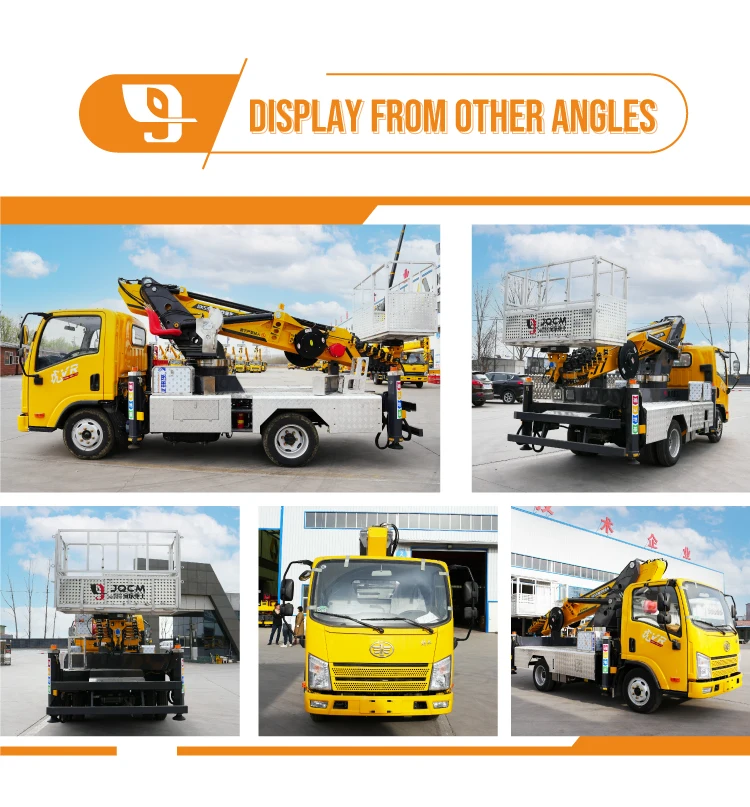

More details

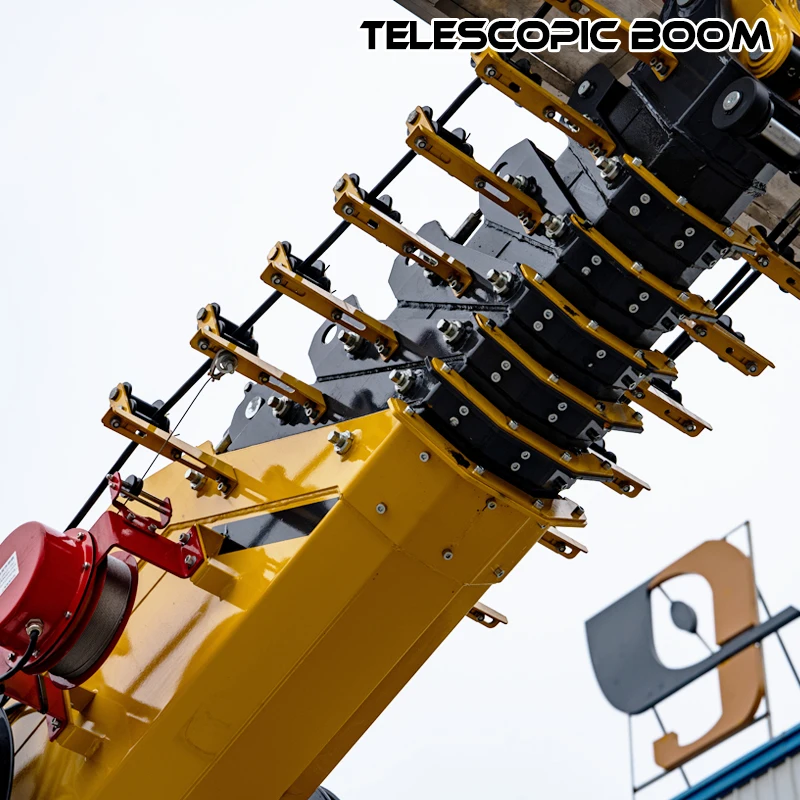

Seven-section synchronous telescopic arm
Made of high-quality materials, high strength, free telescopic and retractable, easy to move up and down
Made of high-quality materials, high strength, free telescopic and retractable, easy to move up and down

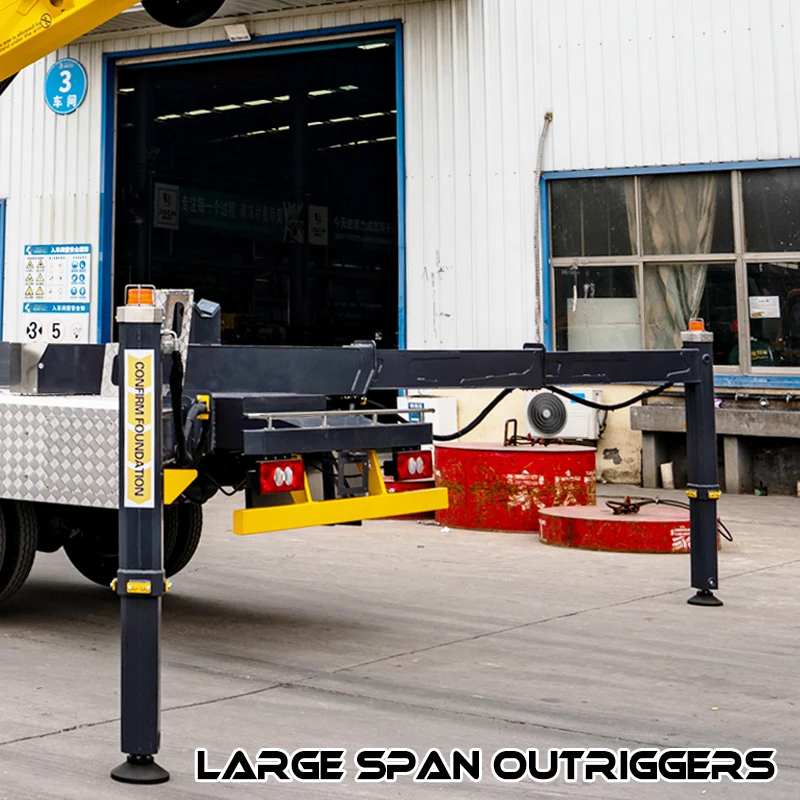

Large span hydraulic outriggers
X-shaped outriggers with stable center of gravity 5 fully hydraulic outriggers are individually adjustable
X-shaped outriggers with stable center of gravity 5 fully hydraulic outriggers are individually adjustable

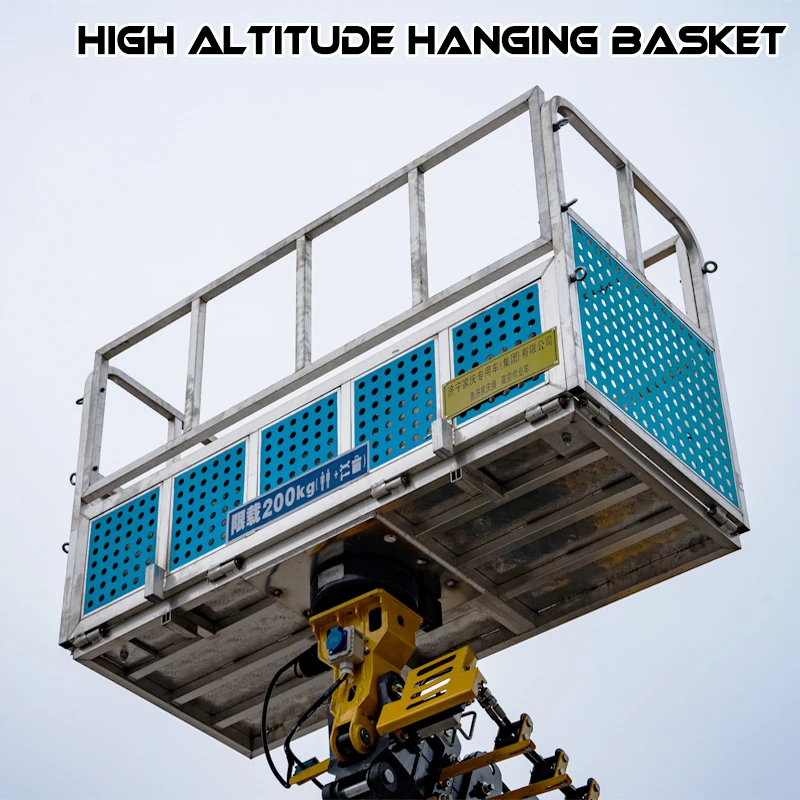

Remote control alloy hanging basket
The hanging basket can be flexibly rotated in all directions and can be controlled by wireless remote control
The hanging basket can be flexibly rotated in all directions and can be controlled by wireless remote control
Visual monitoring system
The whole vehicle uses an electronic control system to operate the LCD screen, which is safer and more reliable
The whole vehicle uses an electronic control system to operate the LCD screen, which is safer and more reliable
Operating Station
Optimally & ergonomically designed top
seat console guarantees all day comfort tooperator.
Multi-function steering wheel, original PTOair conditioning + electric doors and windows + central locking, electric heated
rearview mirrors.Air brake, cruise control, complete interiors.
rearview mirrors.Air brake, cruise control, complete interiors.
Certifications

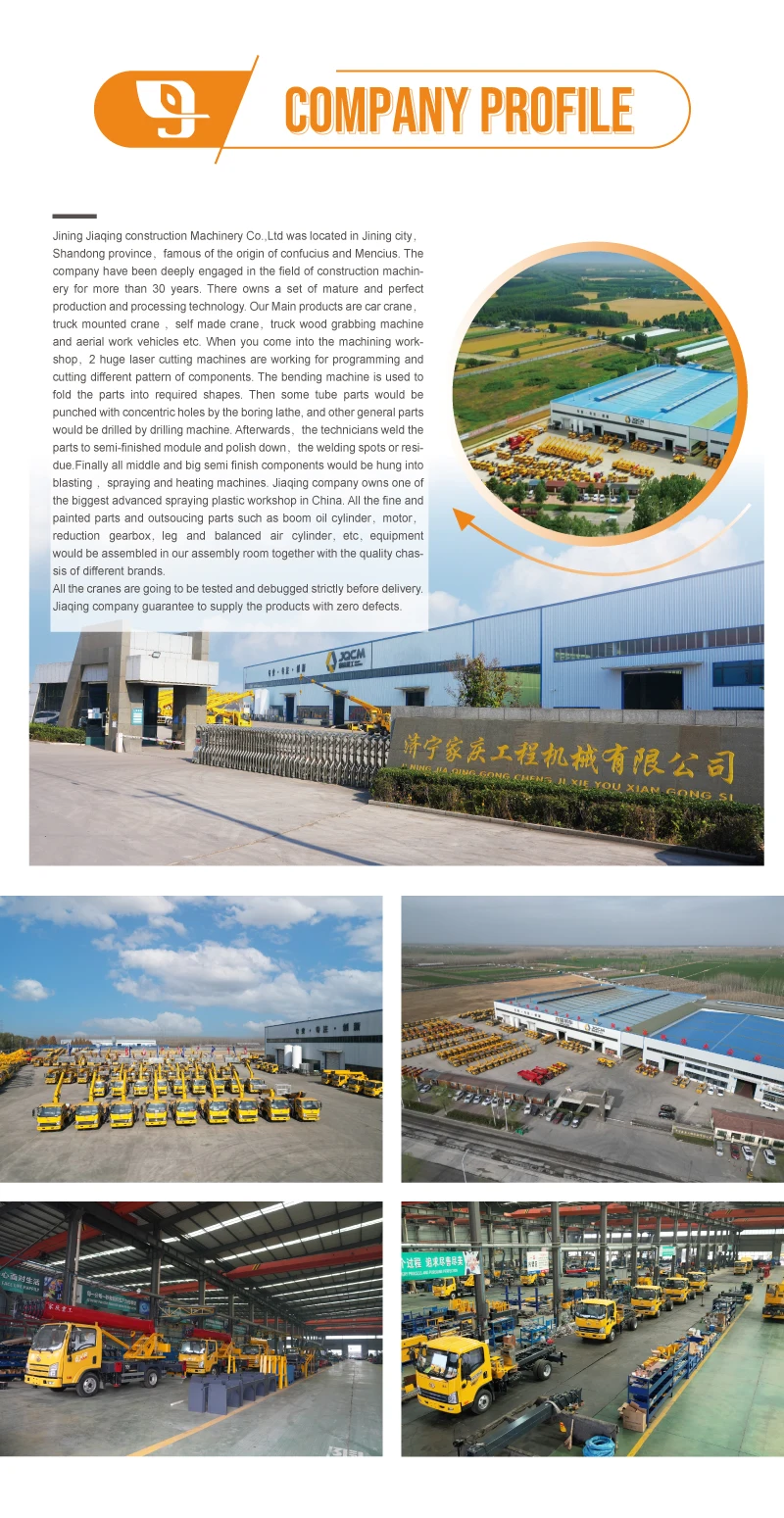

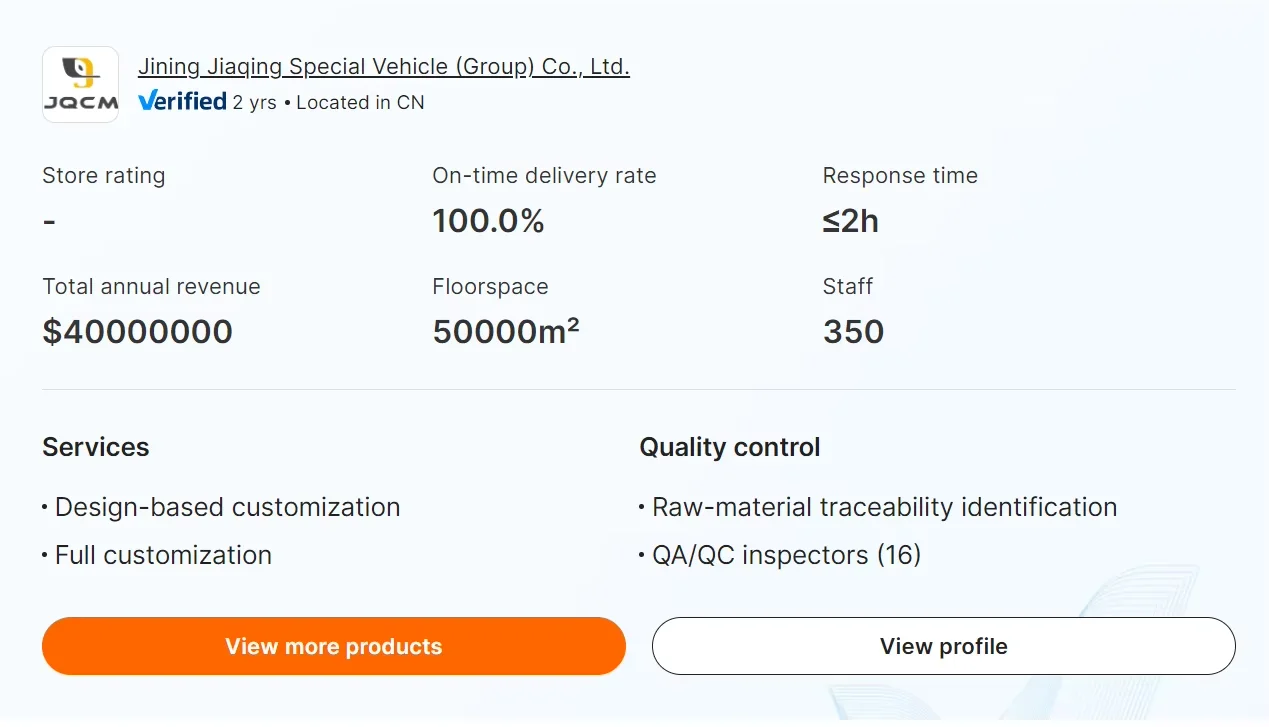

Company Profile
