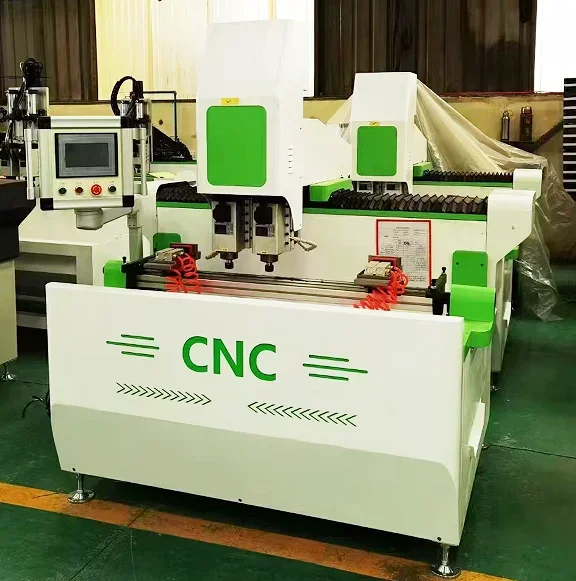

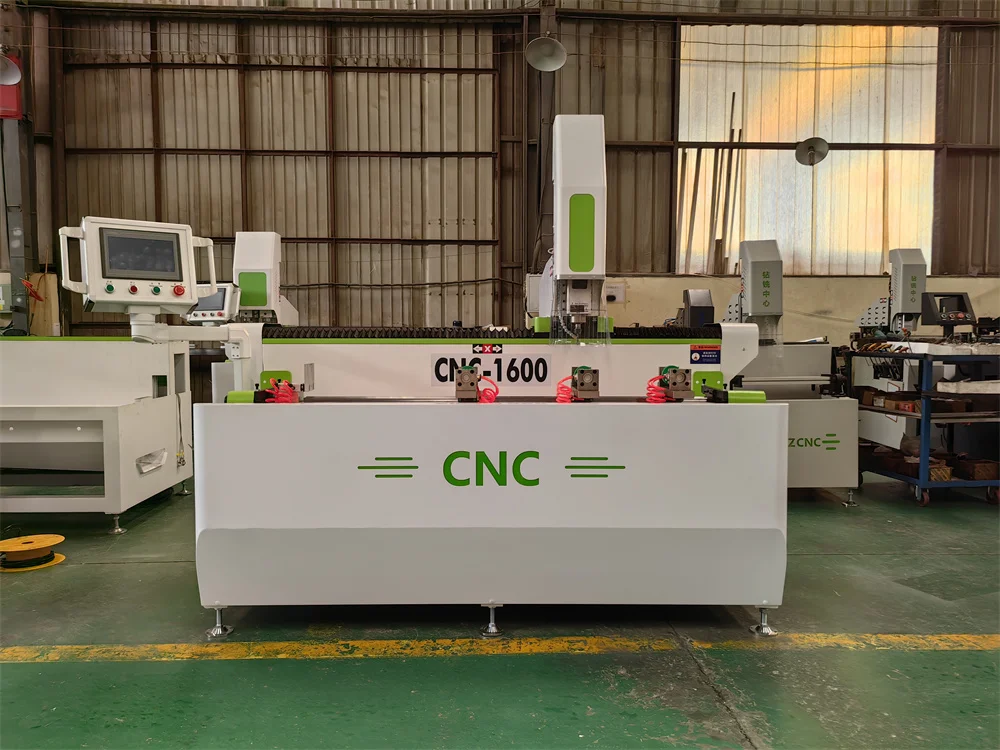

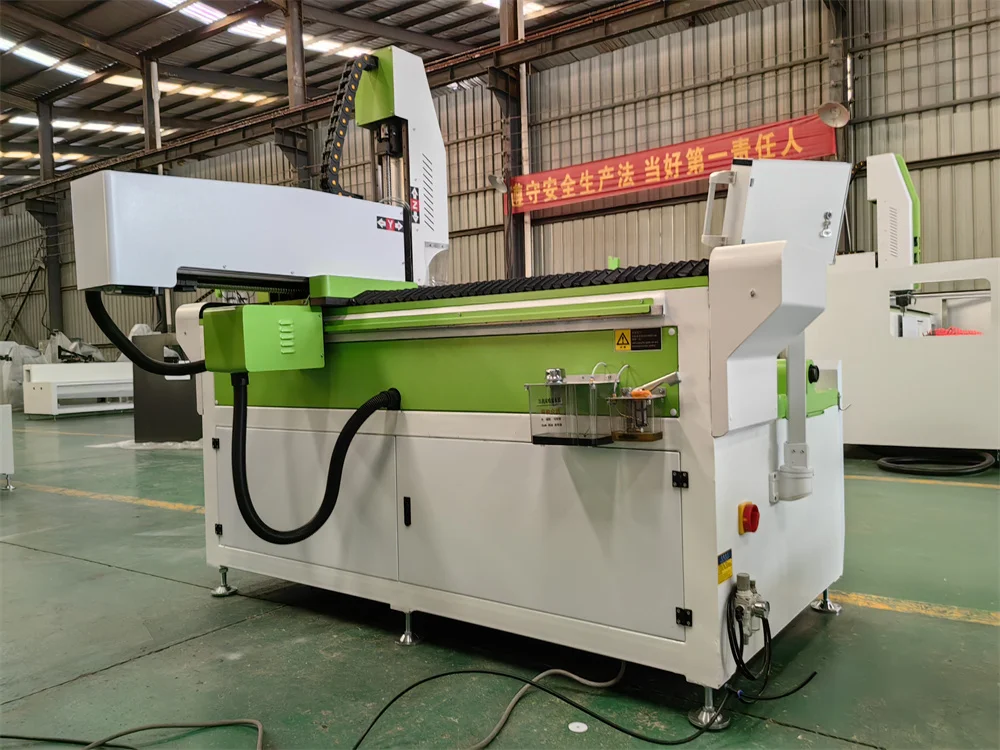

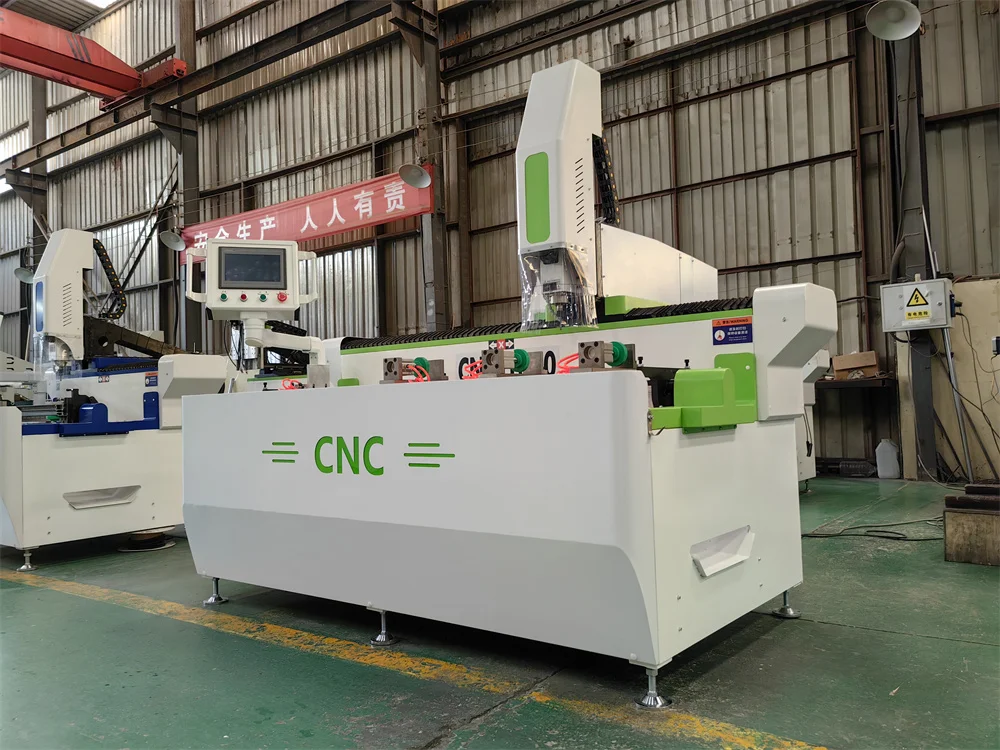

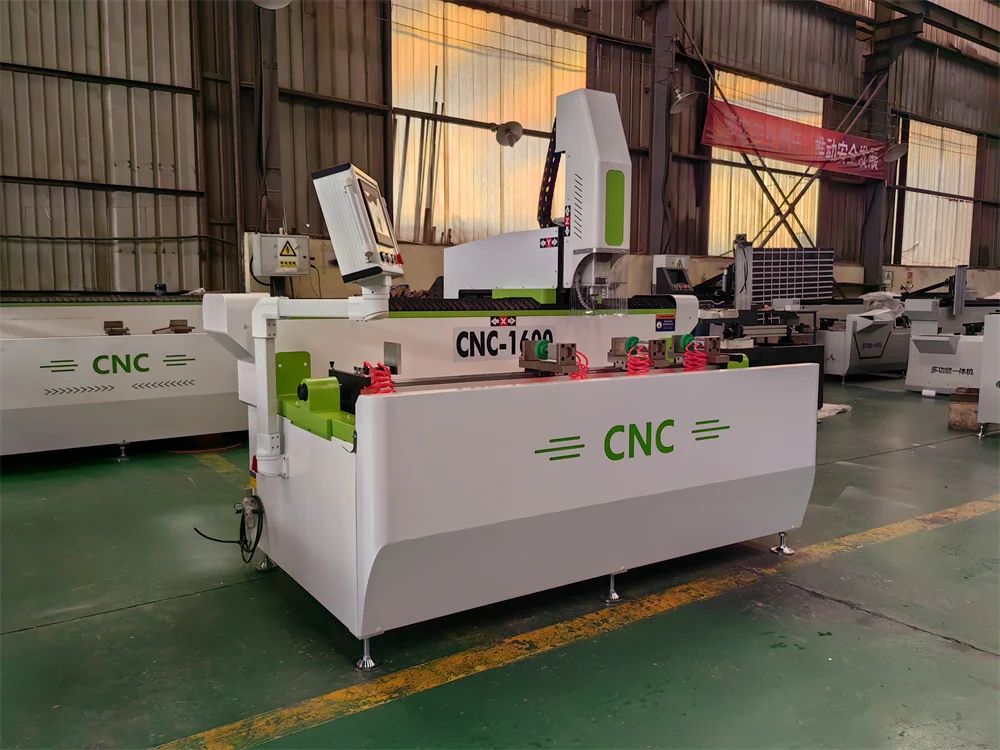

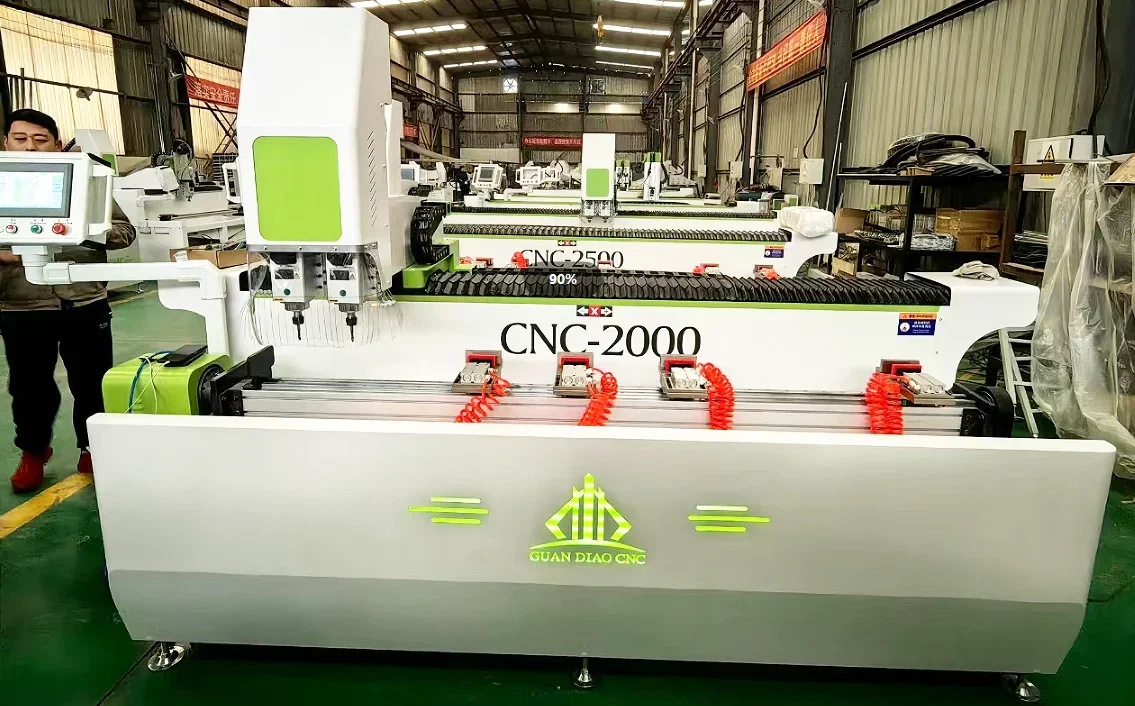

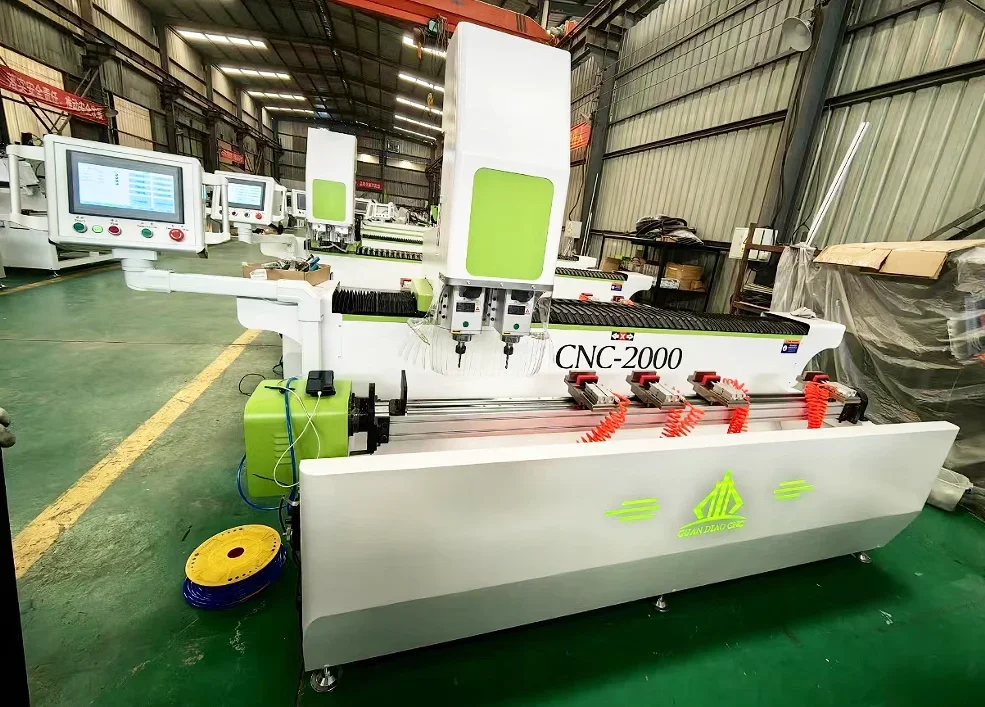

Cnc 3000 Industrial Aluminum Profile Cnc Drilling And Milling Machine For Window And Door
- Category: >>>
- Supplier: Jinan grandio CNC Equipment Co. ltdJinan ltd
Share on (1601375803926):
Product Overview
Description
Product Description
Specification
<Features>
1. Main performance characteristics:
*Suitable for drilling, milling, round holes, special-shaped holes, plane engraving and other processing of aluminum alloy
profiles.
*The system adopts Red Sea CNC System.

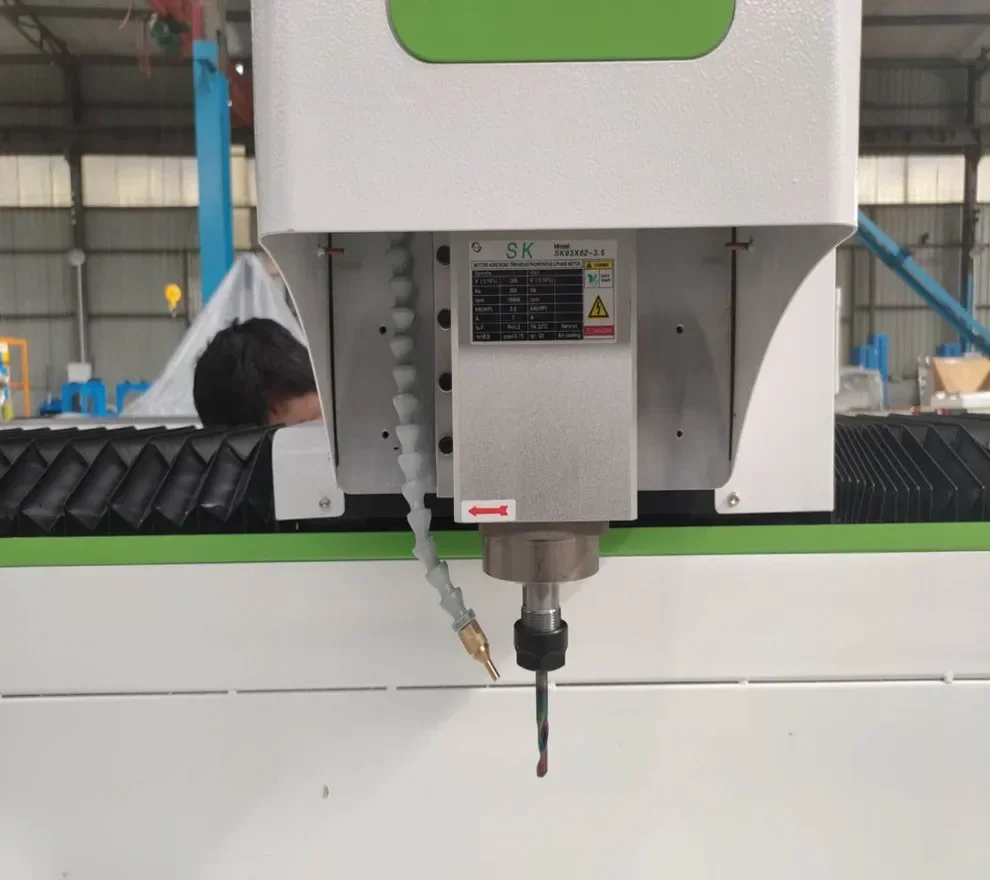

*Using electric spindle, high precision, good safety and high reliability.

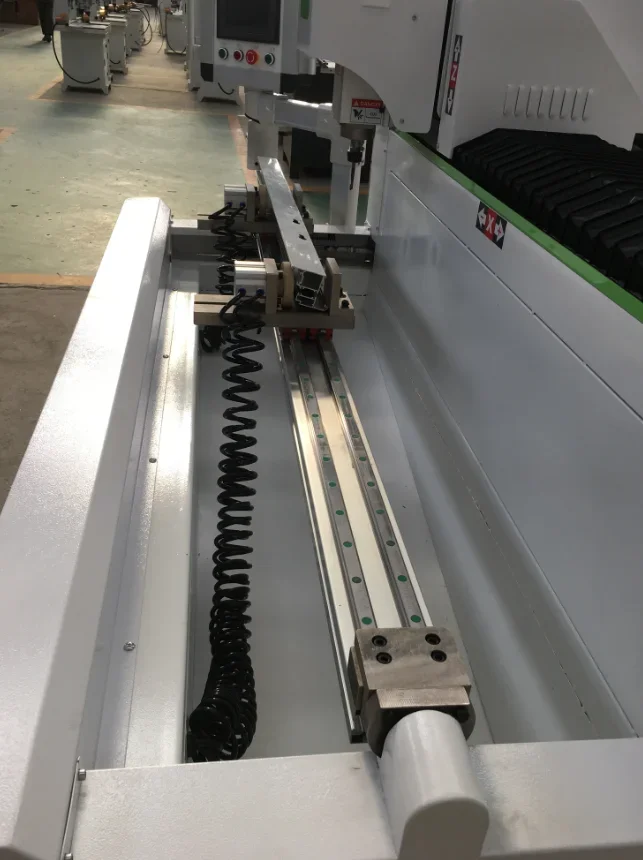

*X-axis adopts high-precision helical gear and helical rack, Y-axis and Z-axis adopt high-precision ball screw transmission,
stable transmission and high precision.
*Automatic conversion of processing codes through programming software, simple operation, high efficiency and low labor intensity.
*The table is flipped 180°. -90~0°~+90°, the profile can be processed on three sides by one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the table over, with high efficiency and high precision.
1. Main performance characteristics:
*Suitable for drilling, milling, round holes, special-shaped holes, plane engraving and other processing of aluminum alloy
profiles.
*The system adopts Red Sea CNC System.
*Using electric spindle, high precision, good safety and high reliability.
*X-axis adopts high-precision helical gear and helical rack, Y-axis and Z-axis adopt high-precision ball screw transmission,
stable transmission and high precision.
*Automatic conversion of processing codes through programming software, simple operation, high efficiency and low labor intensity.
*The table is flipped 180°. -90~0°~+90°, the profile can be processed on three sides by one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the table over, with high efficiency and high precision.
Parts Item | Parameters | Part Item | Parameters |
CNC machine system | Customized system english | Power supply | 220V/60Hz |
Motor | Leadshine Servo | Spindle power | 4.5Kw*2 |
Driver | Leadshine Servo | Spindle Rotating | 18000/24000RPM |
Reducer | Japan Shimpo | Working pressure | 0.5-0.6MPa |
Limit Switch | Omron | X axis travel | 3000mm |
Rack Pinion | High Precision | Y axis travel | 420mm |
Rails | HIWIN from Taiwan | Z-axis travel | 350mm |
Spindle | HQD | Power source | CHNT |
Spindle quantity | Double | Tool holder | ER20,ER25 |
Inverter | Best | Turning angle | 180°. -90~0°~+90° |
Cylinder | Hansanhe pneumatic | Weight | 2000KG |
Electromagnetic valve | Delixi | Out size | 4200x1700x1900MM |
Drill hole carving machinery metal samples cutter woodworking machinery parts milling machine for easy operate Automatic conversion of processing codes through programming software, simple operation, High efficiency and low labor intensity 8. Turn the table 180°. -90 ~ 0 ° ~ + 90 °, the profile can be processed on three sides in one clamping, and deep through holes can be processed(Special hole), deep hole processing is realized by turning the worktable, with high efficiency and guaranteed accuracy..
1. The integral cast iron bed adopts the automatic anti-backlash ball screw as the transmission part, which has good rigidity and stable operation. The overall vibration of the machine tool is small;
2. Use high-speed driver, stepping motor, work efficiency..
3. The anti-dust and waterproof device makes it easier to clean, rust and maintain the mechanical transmission part.
4. It has various advanced advantages in the industry, as many as 10 power-off memory functions, which greatly reduces the phenomenon of waste workers and waste..

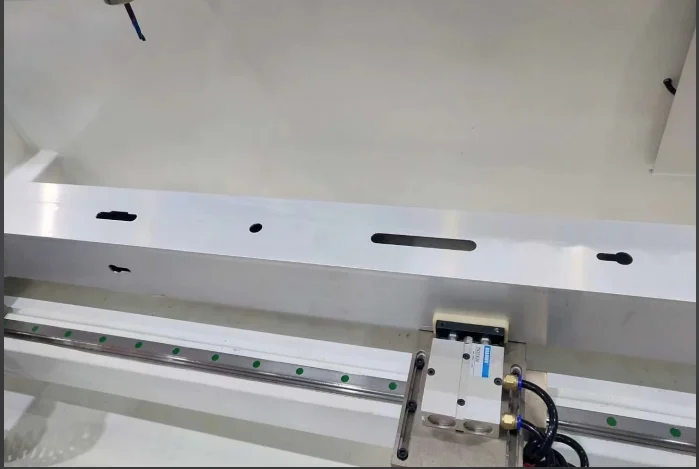

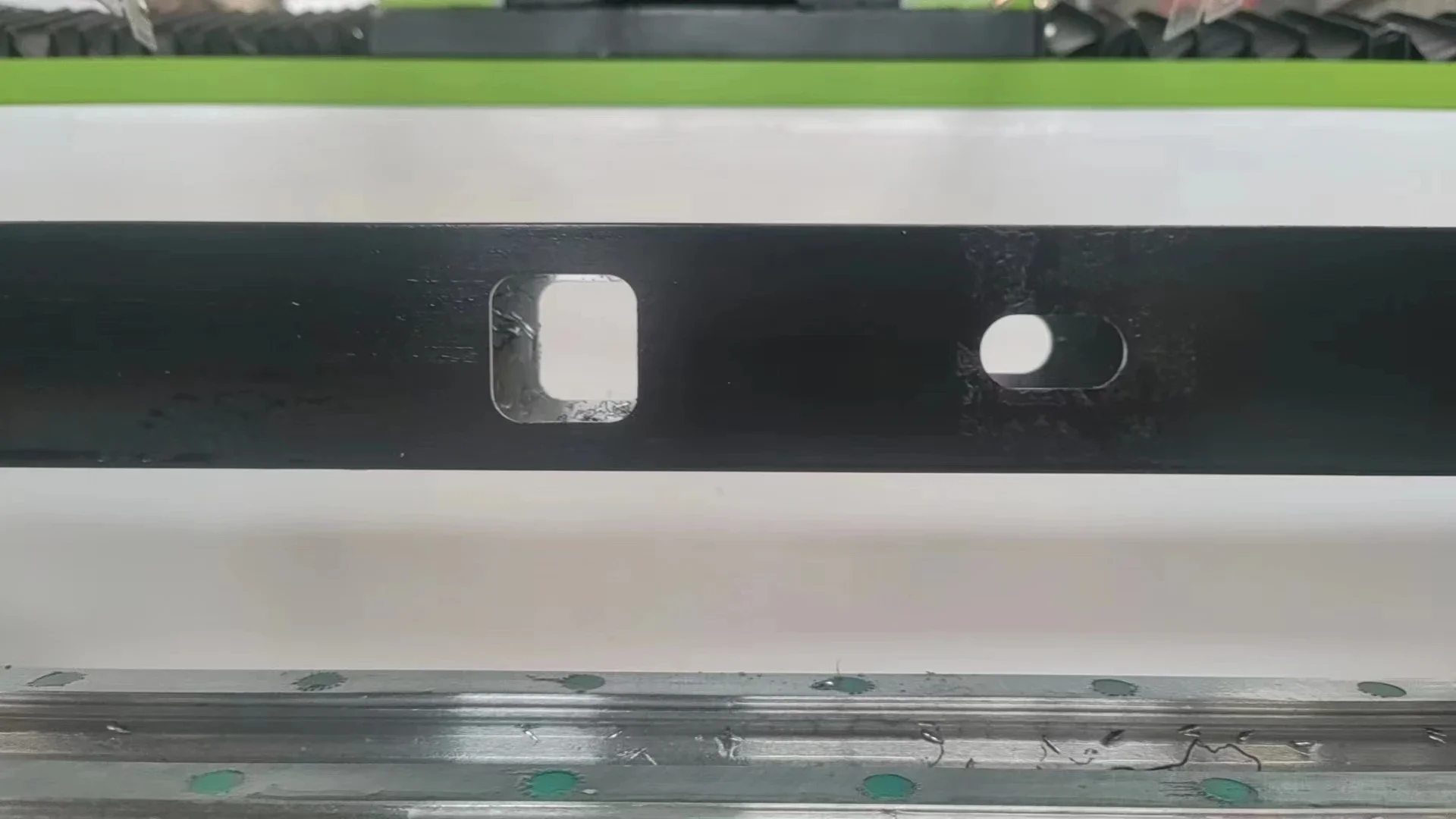

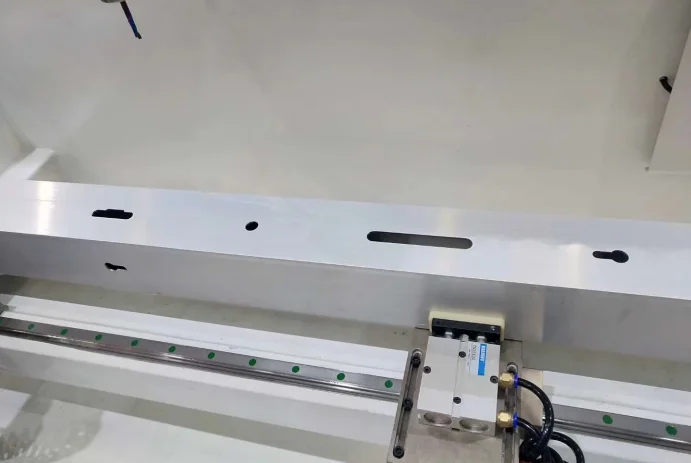

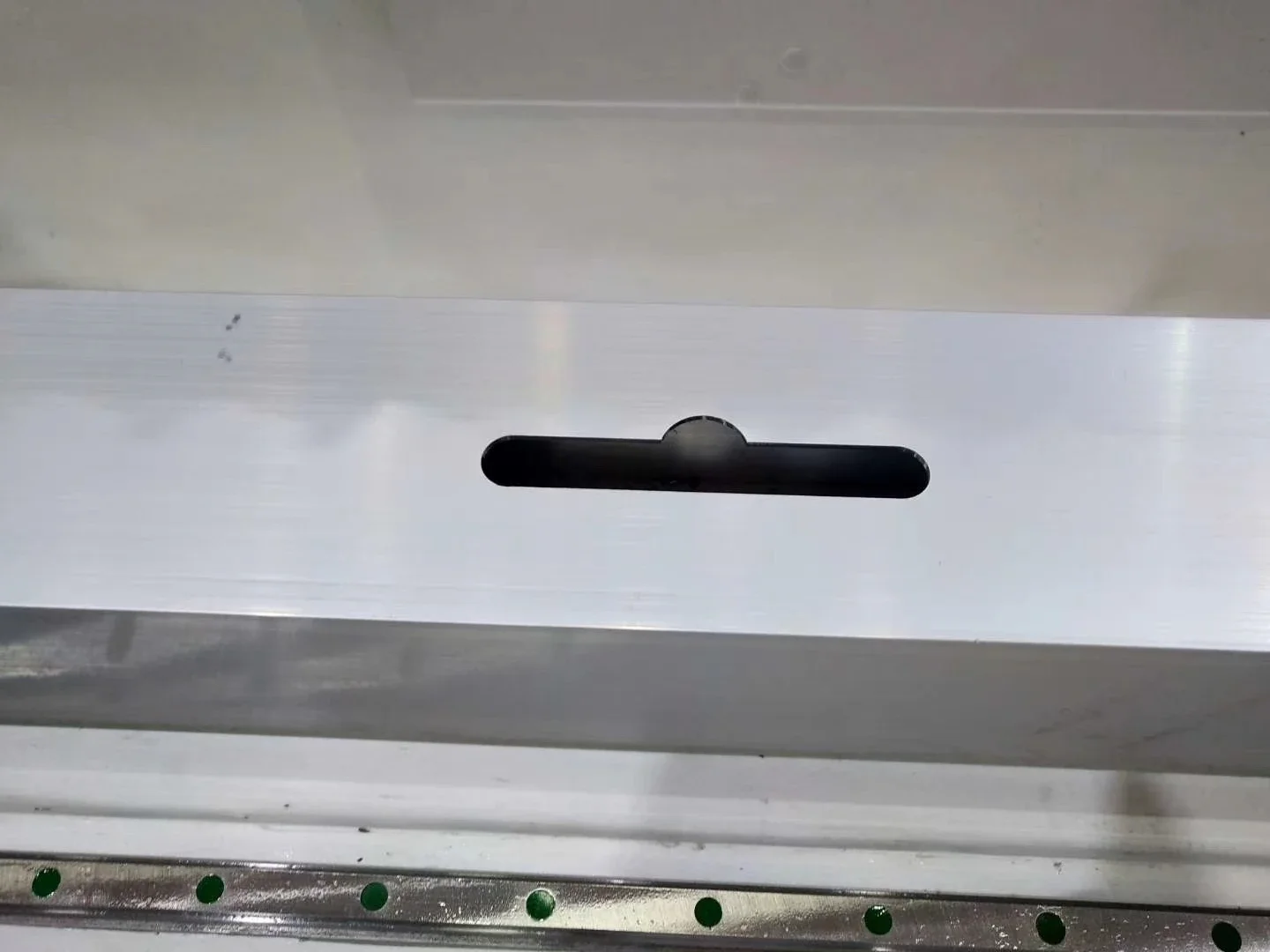

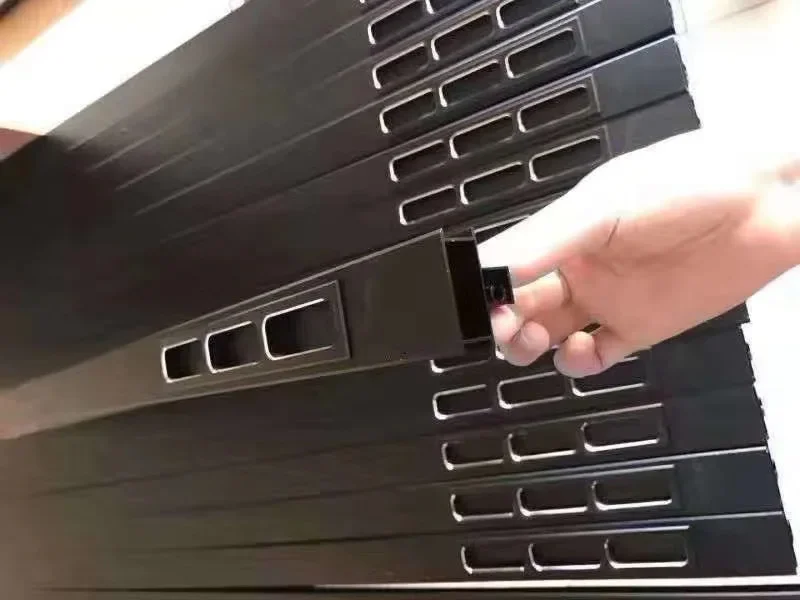

Sample products

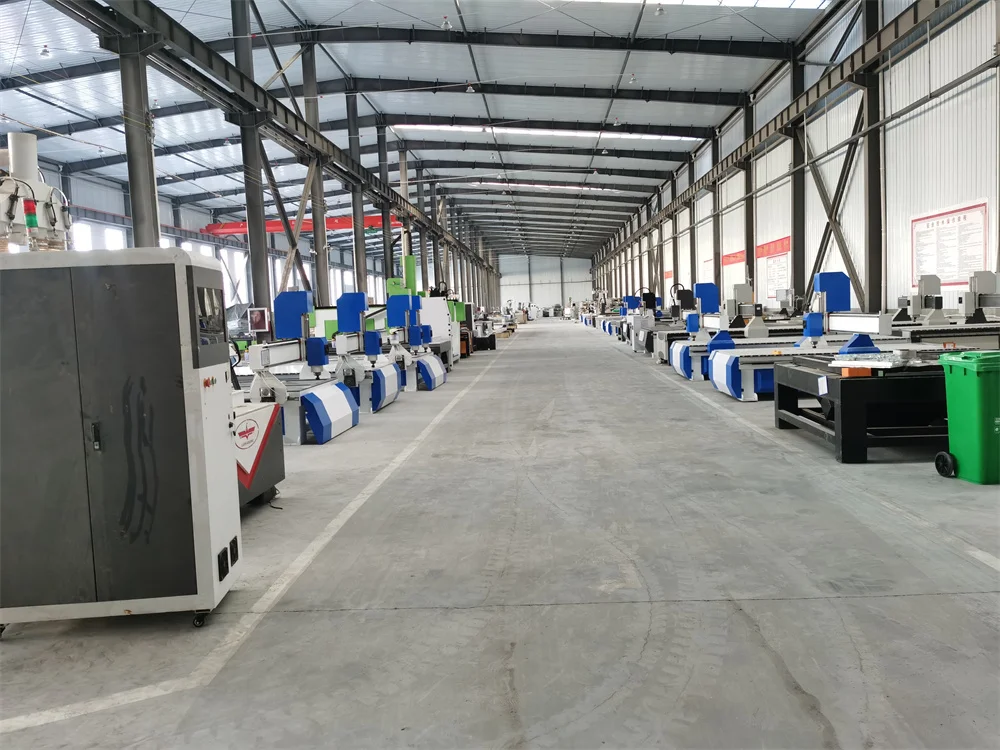

Company Profile
Shandong Grandio CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine,
We offer our customers best solutions, including product design,installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive..
We offer our customers best solutions, including product design,installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive..
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding.If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us
your port name. There will be best shipping freight and machine price send to you..
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us
your port name. There will be best shipping freight and machine price send to you..
Any need please contact me thank you！！！
