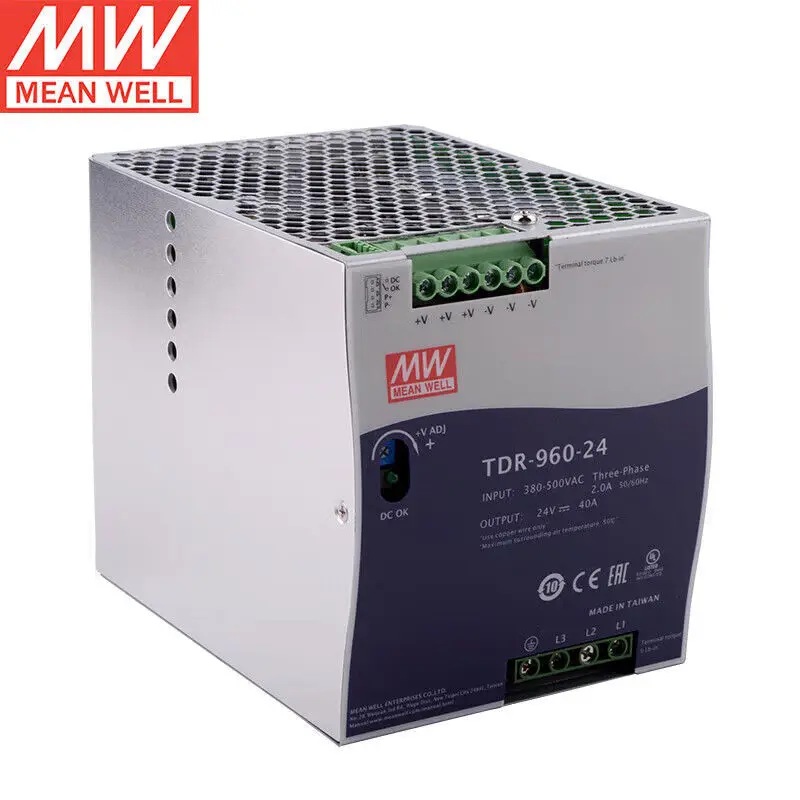

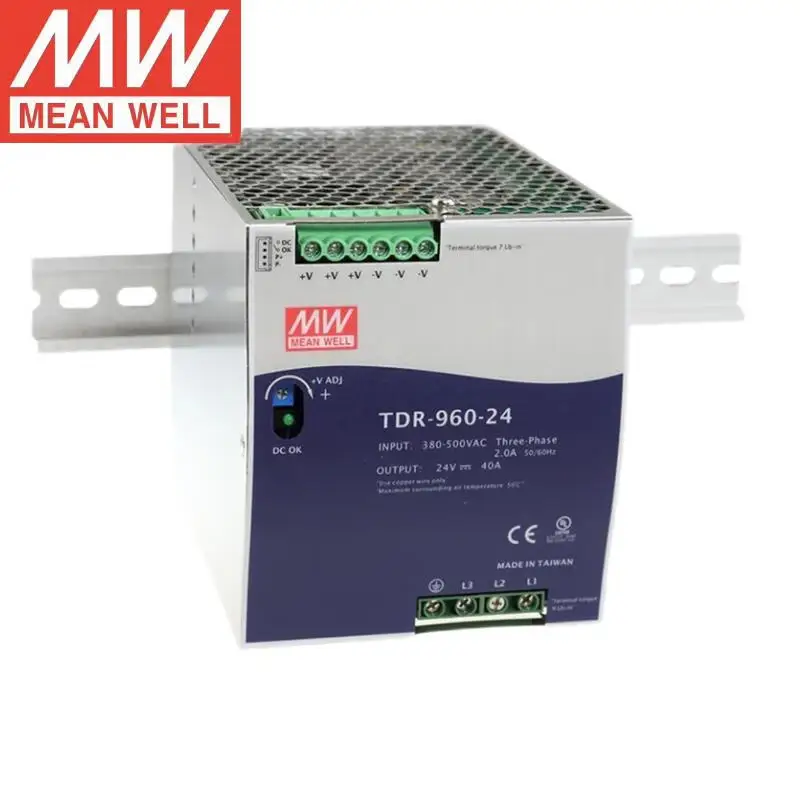

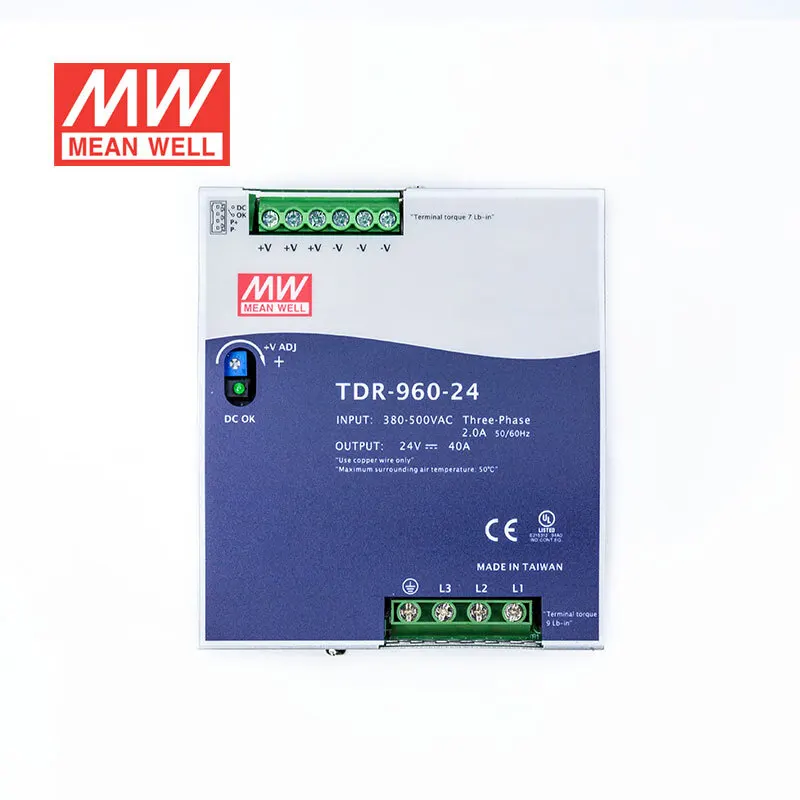

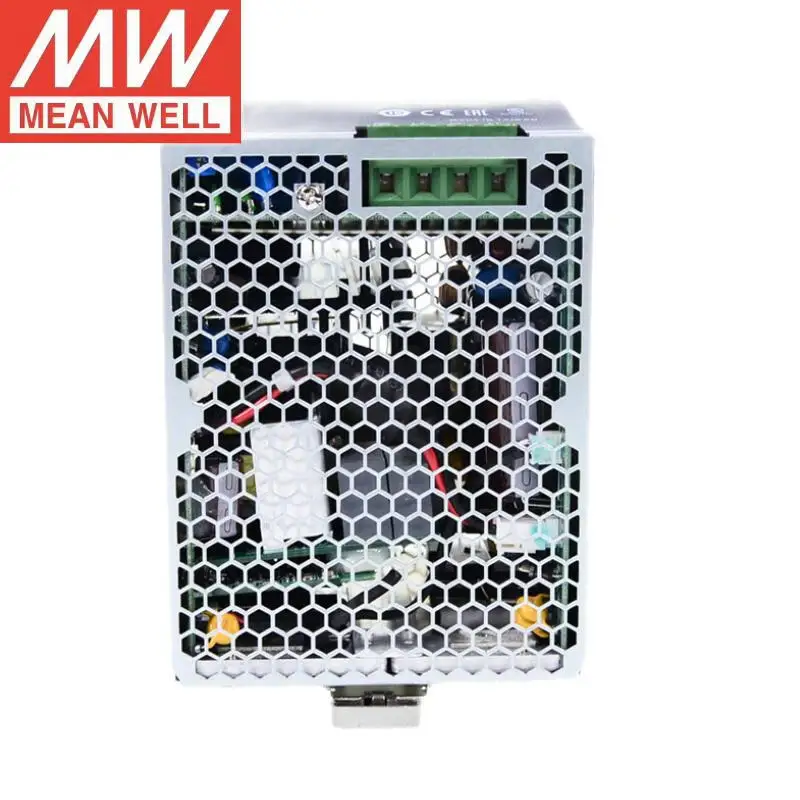

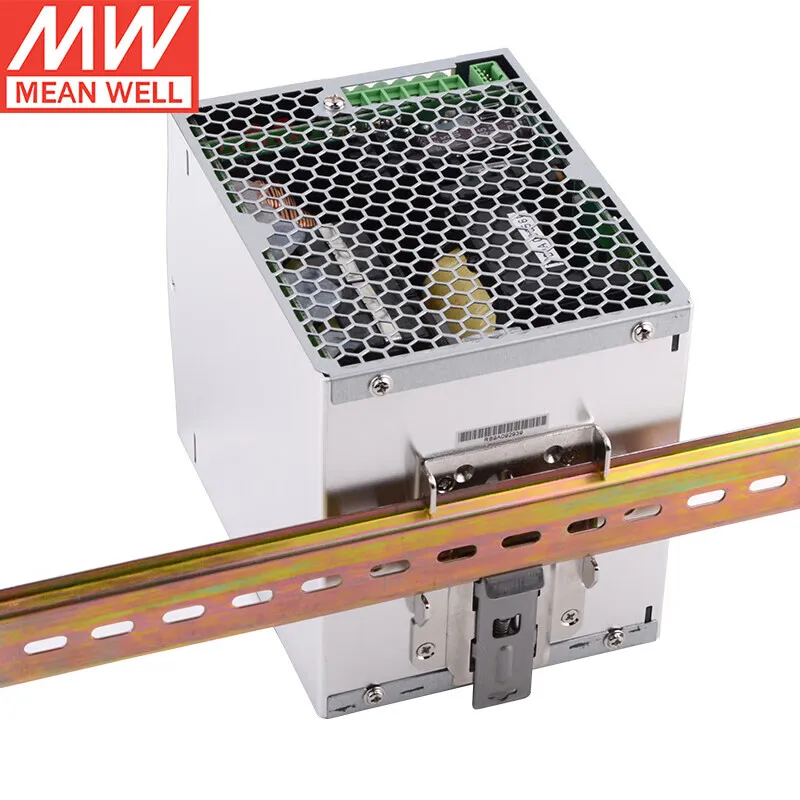

Mean Well TDR 960 24 960W 24V AC DC 40A DIN Rail Switching Power Supply Slim 3 Phase High Input SMPS Industrial Use Single 12V
- Category: >>>
- Supplier: Terwth (Suzhou) Electronic Technology Co. Ltd.Terwth Ltd.
Share on (1601377284591):
Product Overview
Description
Specification
Product Name | Mean Well TDR-960-24 Switching 960W Power Supply |
Input Voltage | 340 ~ 550VAC, 480 ~ 780VDC |
Output Voltage | 24V |
Model Number | TDR-960-24 |
Output Type | Single |
Output Frequency | 47-63HZ |
Output Current | 40A |
Type | AC-DC |
Warranty | 3 Years |
Protection | Short Circuit Protection, Overloading Protection, Overvoltage protection, Over Temperature Protection |
Material | Metal Case |
Working Temp | -30 ~ +70℃ (Refer to "Derating Curve") |
Input Leakage Current | <3.5mA / 530VAC |
Over Voltage | 29 ~ 33V |
Efficiency | 94% |
Dimension | 110*125.2*150mm (W*H*D) |
Packing | 2.47Kg ; 6pcs/15.8Kg/1.47CUFT |
Product Description
Company Profile
Certifications
Exhibition
Packing & Delivery
FAQ
Q1: Are you Meanwell official authorized distributor?
A1: Yes, we are.
Q2: What is the MOQ?
A2: Small order welcome, MOQ=1PC.
Q3: What about the lead time and shipment?
A3: Standard ( popular model ) can be shipped within 5 day, bulk order can be delivered within 20~35 days.
For shipping, we often use DHL, FedEx, UPS, and TNT. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.
Q4: What is the warranty for your Power Supply?
A4: 2 ~ 5 years based on different series.
Q5: What is your payment terms?
A5: We accept pay via Bank Transfer, Paypal, Western Union and Trade AssurancE.
A1: Yes, we are.
Q2: What is the MOQ?
A2: Small order welcome, MOQ=1PC.
Q3: What about the lead time and shipment?
A3: Standard ( popular model ) can be shipped within 5 day, bulk order can be delivered within 20~35 days.
For shipping, we often use DHL, FedEx, UPS, and TNT. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.
Q4: What is the warranty for your Power Supply?
A4: 2 ~ 5 years based on different series.
Q5: What is your payment terms?
A5: We accept pay via Bank Transfer, Paypal, Western Union and Trade AssurancE.
