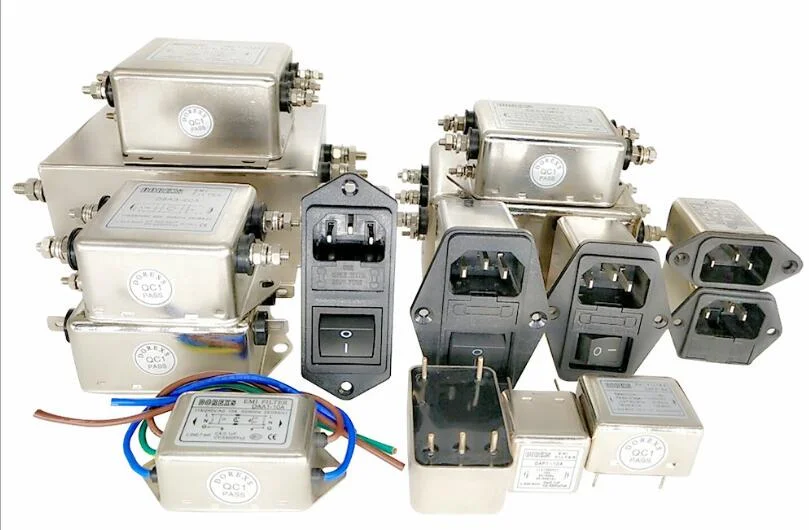

EMI Single phase ac power line filter plug type
EMI Single phase ac power line filter plug type
EMI Single phase ac power line filter plug type
EMI Single phase ac power line filter plug type
EMI Single phase ac power line filter plug type
EMI Single phase ac power line filter plug type
EMI Single phase ac power line filter plug type

EMI Single phase ac power line filter plug type

Share on (1602500440):


Price:

Quantity:


Product Overview

Description





Product Description




BONENS
Used in various small electronic equipment and electronic measuring instruments




Technical parameters:
Rated voltage ................................................................................. 115/250VAC
Operating frequency ....................................................................................... 50/60Hz
Rated current....................................................................................... 1A ~ 10A
Test Voltage................................................ line - Line: 1500VDC line - ground: 1500VAC
Insulation resistance ........................................................................> 50MΩ @ 500VDC
Temperature .......................................................................................... <30 ° C


Power filter product list (customization is acceptable)：


model
Rated current
Leakage current
Shell model
model
D
A
H
DAI1-1A
1A
<0.5mA
I1
DAI1-3A
3A
<0.5mA
I1
DAI1-6A
6A
<0.5mA
I1
DAI1-10A
10A
<0.5mA
I1
DAI2-1A
1A
< 0.5mA
I2
DAI2-3A
3A
< 0.5mA
I2
DAI2-6A
6A
< 0.5mA
I2
DAI2-10A
10A
< 0.5mA
I2
DAI3-15A
15A
< 2.0mA
I3
DAI4-20A
20A
< 2.0mA
I4

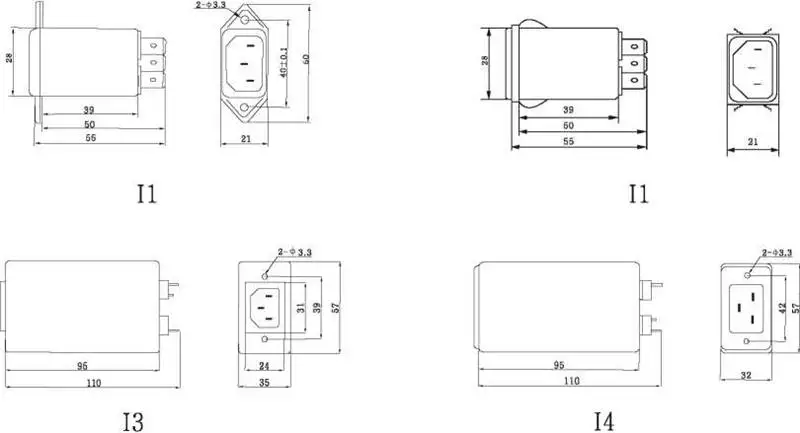

Drawing

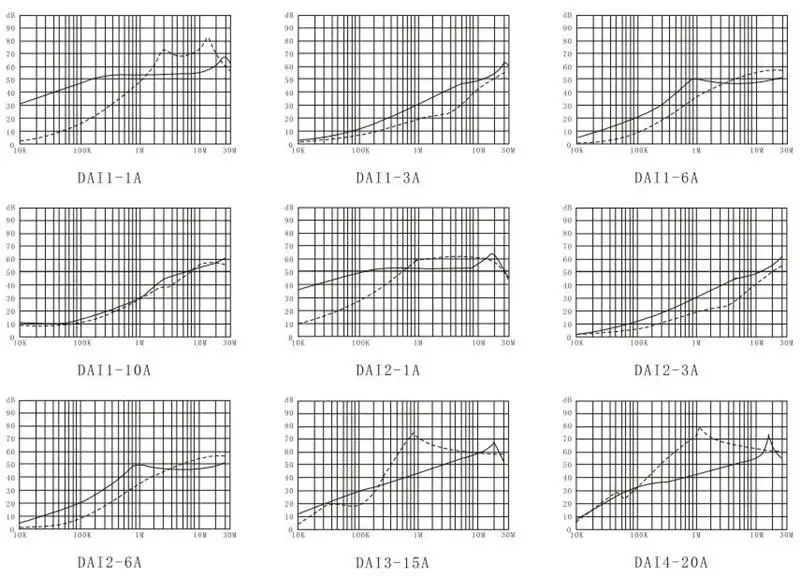

Insertion Loss:
___________(Common Mode)
___________(Differential Mode)
