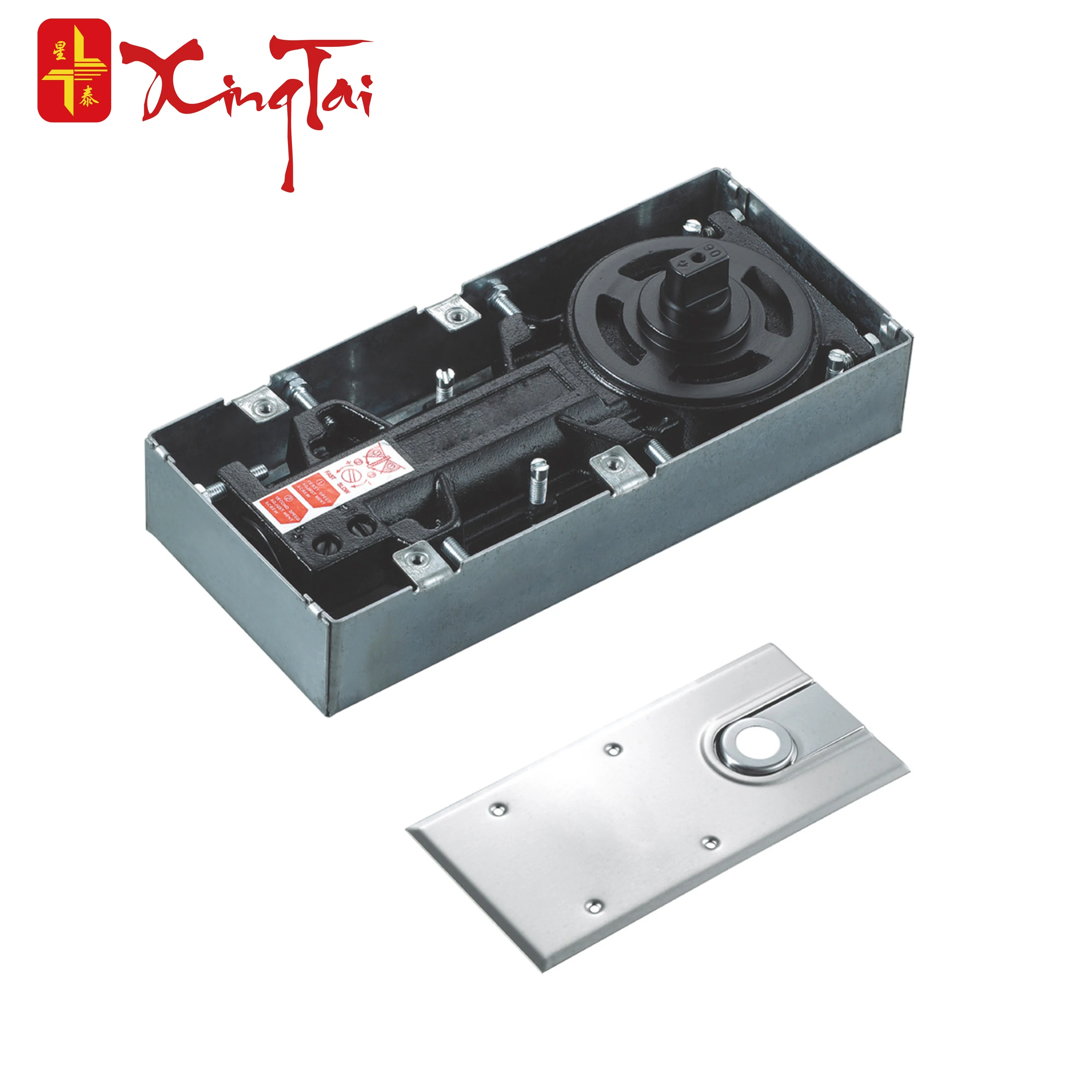

YG 730 High quality glass door hydraulic floor spring hinge door closer
- Category: Door Closers >>>
- Supplier: Xingtai Door Control Hardware Factory
Share on (1603030353):
Product Overview
Description
Products Description

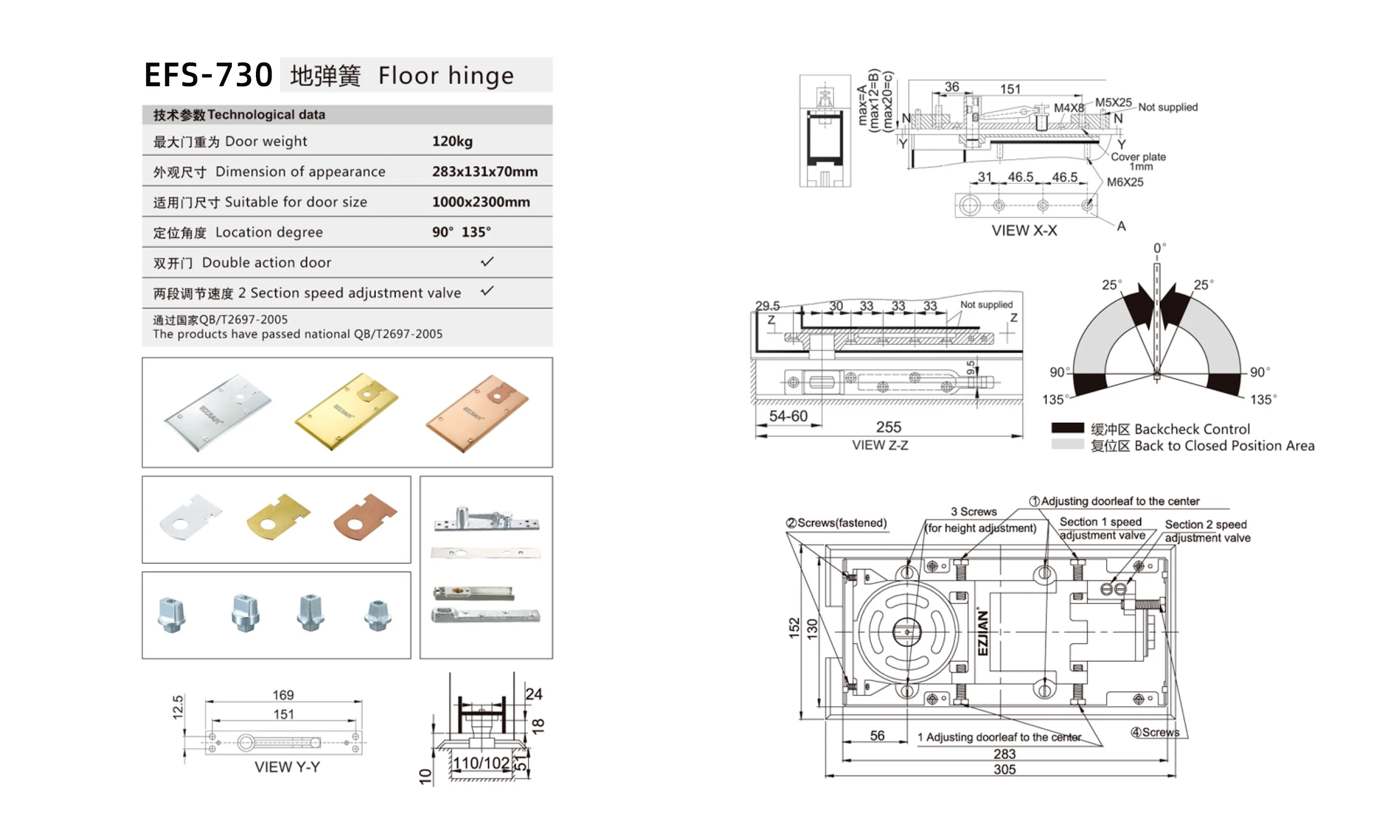

Item | Value |
Model | EFS-730 |
Material | Iron body |
Cover Plate | 201#/304#Stainless Steel |
Cover Plate Finish | Satin/Polished |
Max Door Weight | 105kg |
Dimension of Appearance | 283*135*70mm |
Max Door Size | 1000*2300mm |
Max Open Angle | 135° |
Location Degree | 90° |
Closing Speed Adjustment | Speed1：0°~25° |
Speed2：25°~90° | |
Application Temperature | -30℃~55℃ |
Double action door | Yes |
2 Section speed adjustment value | Yes |
Logistics mode can be negotiated.
OEM/ODM is available.
Function:
* Select the high quality steel for transmission parts. The service life of Itally oil seal is over half a million
times.
* General designed is suitable for opening doors with left/right hand and single/double opening.
* Filled with high quality anti-icing hydraulic oil, ensuring that closing speed won't be affected at minus 20 degrees.
* Can adjust 5mm all around in the metal box, and adjust ±2° in longitudinal direction during zero calibration, making
installation easier.
* Applicable in all public glass & wooden doors
times.
* General designed is suitable for opening doors with left/right hand and single/double opening.
* Filled with high quality anti-icing hydraulic oil, ensuring that closing speed won't be affected at minus 20 degrees.
* Can adjust 5mm all around in the metal box, and adjust ±2° in longitudinal direction during zero calibration, making
installation easier.
* Applicable in all public glass & wooden doors
