Pipe belt tube rubber conveyor belt

Product Overview

Description

Pipe belt tube rubber conveyor belt

1. Mainly used in conveying powdery and granular materials, allows material to be conveyed through difficult terrain and over long distance.

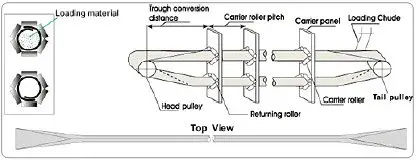

2. The belt form from Flat to U shape and finally to pipe shape, folding the materials and realizing the process of enclosed conveying.



Advantages:

1. Avoids pollution by preventing falling or spillage of carried products.

2. Avoids damage to belt inner surface, as fallen objects do not attach to belt surface.

3. Prevents other substances from entering, assuring purity of products.

4. Reduces abrasion between the products and inner belt surface which increases when conveyor belts are in pipes, enabling greater transportation degree than other commonly used belt.

5. Traditional conveyor belts only allows conveying at a straight line which needs extra space for curves. Tube from conveyor belts offers simplified transport system which help saves space and cost.

6.Good weathering, ozone, UV light, aging resistance properties
7.High boding strength between laminates, long life span.



Type:

1.According to the different convey condition, the tube shape conveyer belt can be classified in different types such as high temperature resistance tube shape conveyer belt(materials temperature not above 200degree)
2.Heat resistance tube shape conveyer belt (materials temperture not above 125 degree
3.Acid, alkali resistance tube shape conveyer belt and common purpose tube shape conveyer belt etc.
4.Belt core type: steel cord or EP fabric, etc.



Product Details:
Standard: DIN, SABS,AS, BS, RMA,JISK, ISO, etc.



Pipe Dia.                (mm)	LoadArea (m2)(75%)	Belt Speed (m/min)	Conveying  Capacity(m3/hr)	Max. Lump Size (mm)	Horizontal Min.Length(M)	Equivalent Tranditional Conveyor Belt
100	0.006	100	36	30	15	300
150	0.013	120	95	30-50	18	300-450
200	0.024	130	185	50-70	20	500-600
250	0.037	140	310	70-90	23	600-750
300	0.052	150	475	90-100	25	750-900
350	0.072	175	750	100-120	30	900-1050
400	0.095	200	1140	120-150	35	1050-1200
450	0.15	225	2000	150-200	40	1200-1500
500	0.215	250	3200	200-250	50	1500-1800
550	0.285	275	4700	250-300	60	1800-2000
600	0.425	300	7650	300-400	70	2000-2400
