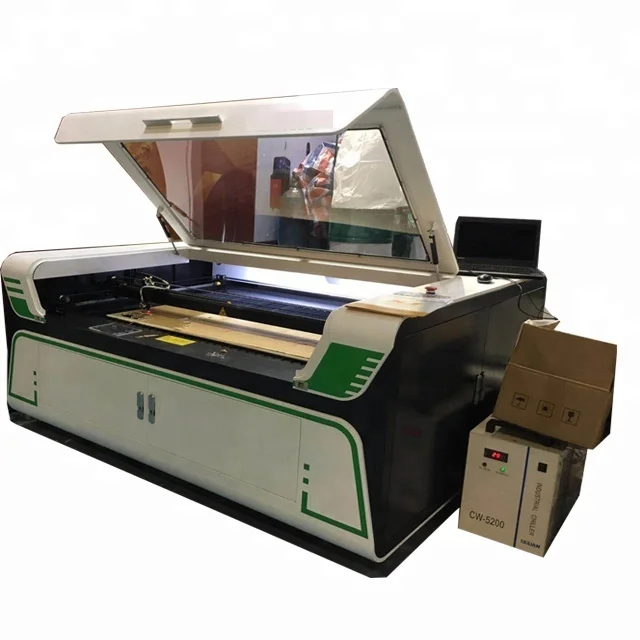

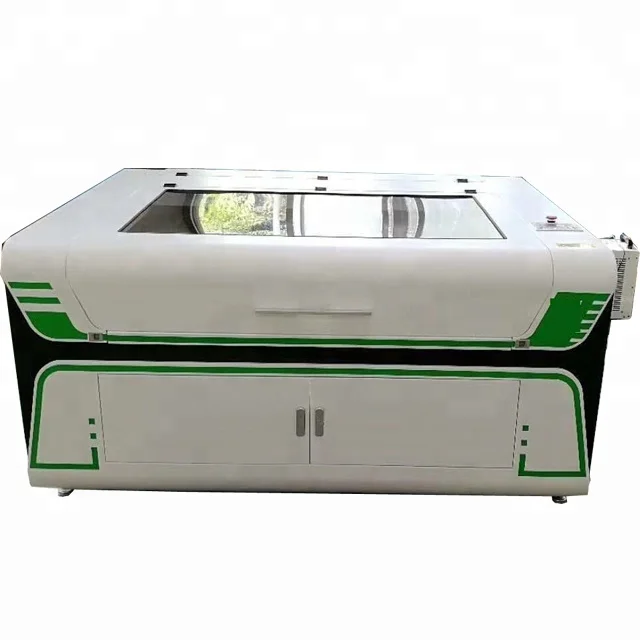

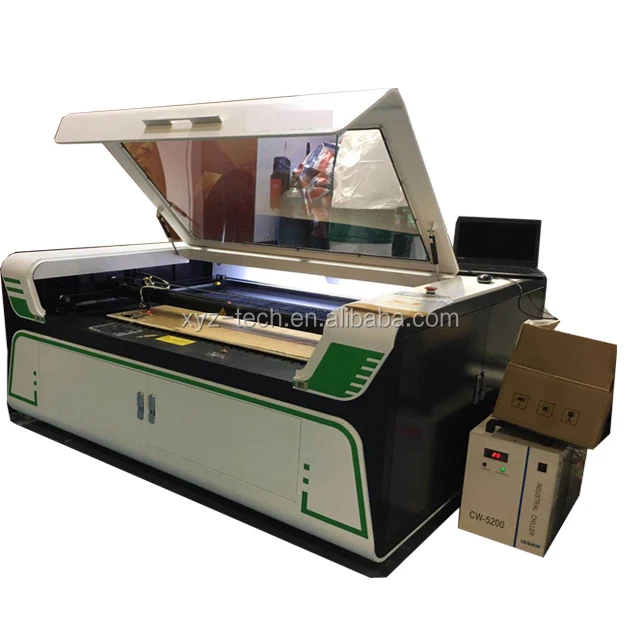

jinan XYZ TECH CO2 3d crystal laser engraving machine price XJ3050 XJ6090 XJ1390 XJ1410 with Rotary Attachment

Product Overview

Description

jinan XYZ-TECH CO2 3d crystal laser engraving machine price XJ3050 XJ6090 XJ1390 XJ1410 with Rotary Attachment



Features:

1) stepper motor and guide-rails ensures long time movement without adjusting,the machine is durable and steady. Perfect dustproof and pollution defending design grestly improves the machine stability.



2) Can be restored from power off , resume on break point.



3) Full-automatic water cooling system can be optional.



4) Back door can be opened to process long material and easily feeding.



5) The latest DSP laser control system has user-friendly windows operation interface , supporting dictate format of DWG, PLT, BMP , DXF ,AI, transmitting files directly from CoreDraw ,AutoCAD etc.



Teachnical parameters:

Model	XJ6090
Engraving range	900*600mm
Laser type	Hermetic and detached CO2 laser tube
Poweer adjusting	0-100% controlling,no segment and adjusting by software
Laser tube cooling mode	Circulating-water-cooling
Machine control and drive	Speedy DSP controlling ,stepper motor
Power	60W(80W,100W for optional)
Resolution	<0.0254mm
Setting accuracy	<0.0254mm
Repetition accuracy	<0.0254mm
Max engraving speed	1000mm/sec
Max cutting speed	400mm/sec
Min size of  engravedletters	Chinese letter engraving 1.5mm,english letters engraving 0.8mm,cutting 1mm
Max cutting thickness	≤acrylic 30mm
dicate	Transmil file directly from Coreldraw ,AutoCAD etc.
Working voltage	AC110V/220V 50/60Hz



Optional equipment:

Rotary attachment

Motorized up-down table

Special water-cooling

Vacuum table

Red-light position

DSP off-line operation with usb flash



Applicable Materials:

wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials.



Applicable industries:
Advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized embroidery and clipping, packaging and paper industry



Samples:

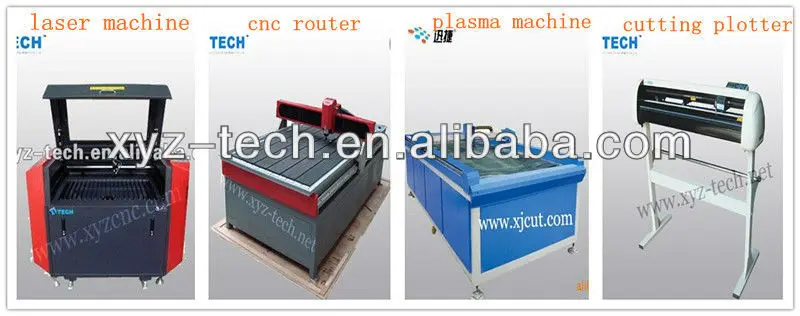

      JINAN XYZ-TECH CNC EQUIPMENT Co.,LTD specialized in laser engraving and cutting machine, CNC router, plasma cutting machine and cutting plotter etc. if you are intersted, pls contact me.we hope to cooperate with you!



 Looking for distributors all over the world ! hope to cooperate with you!
