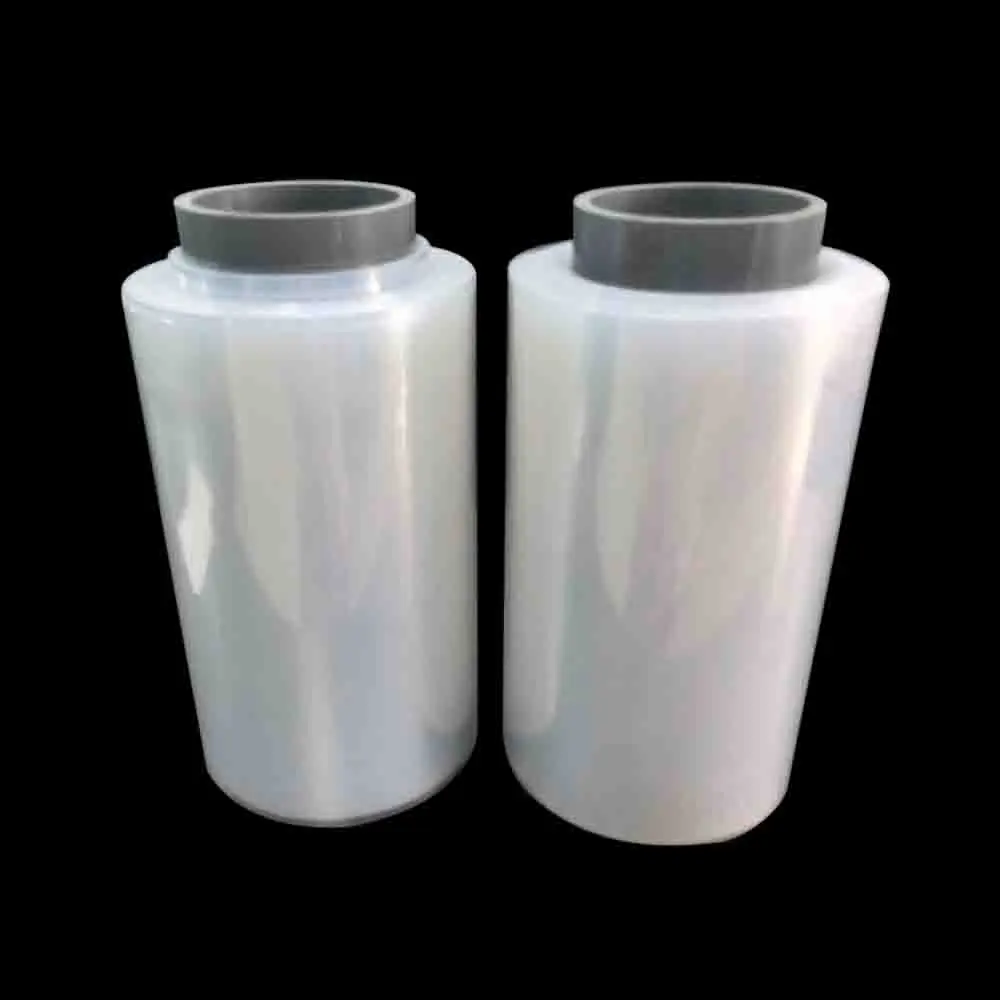

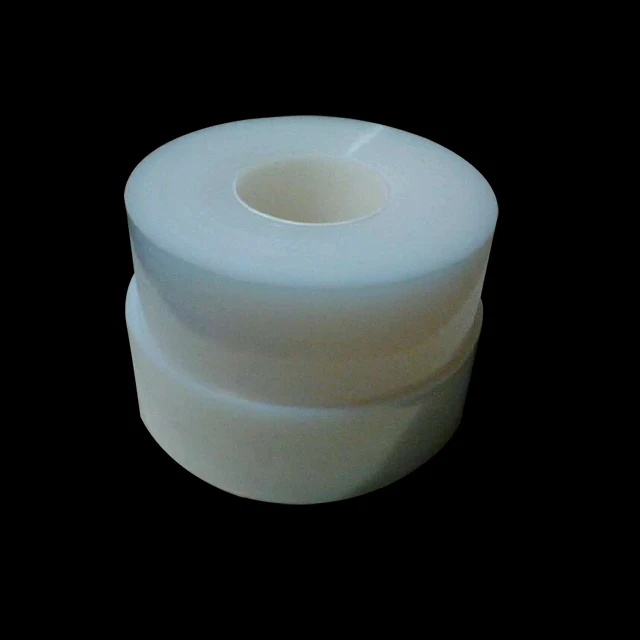

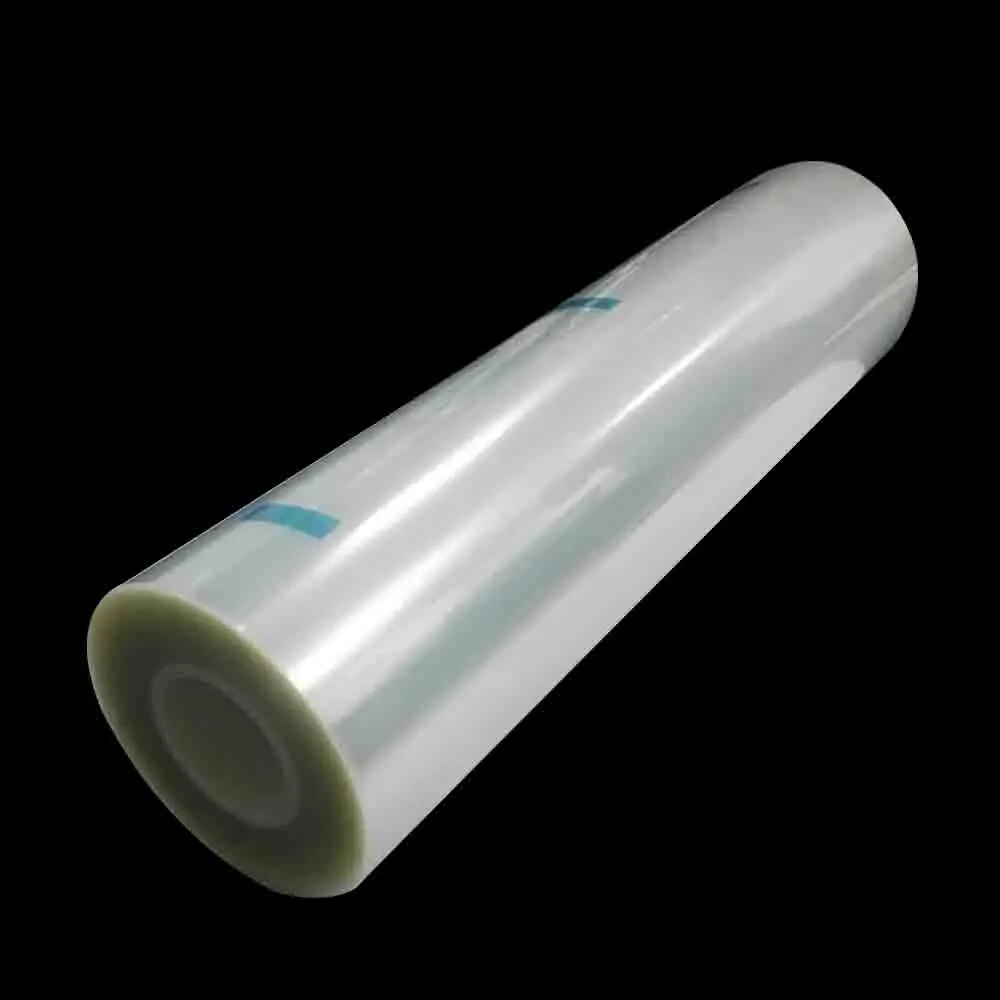

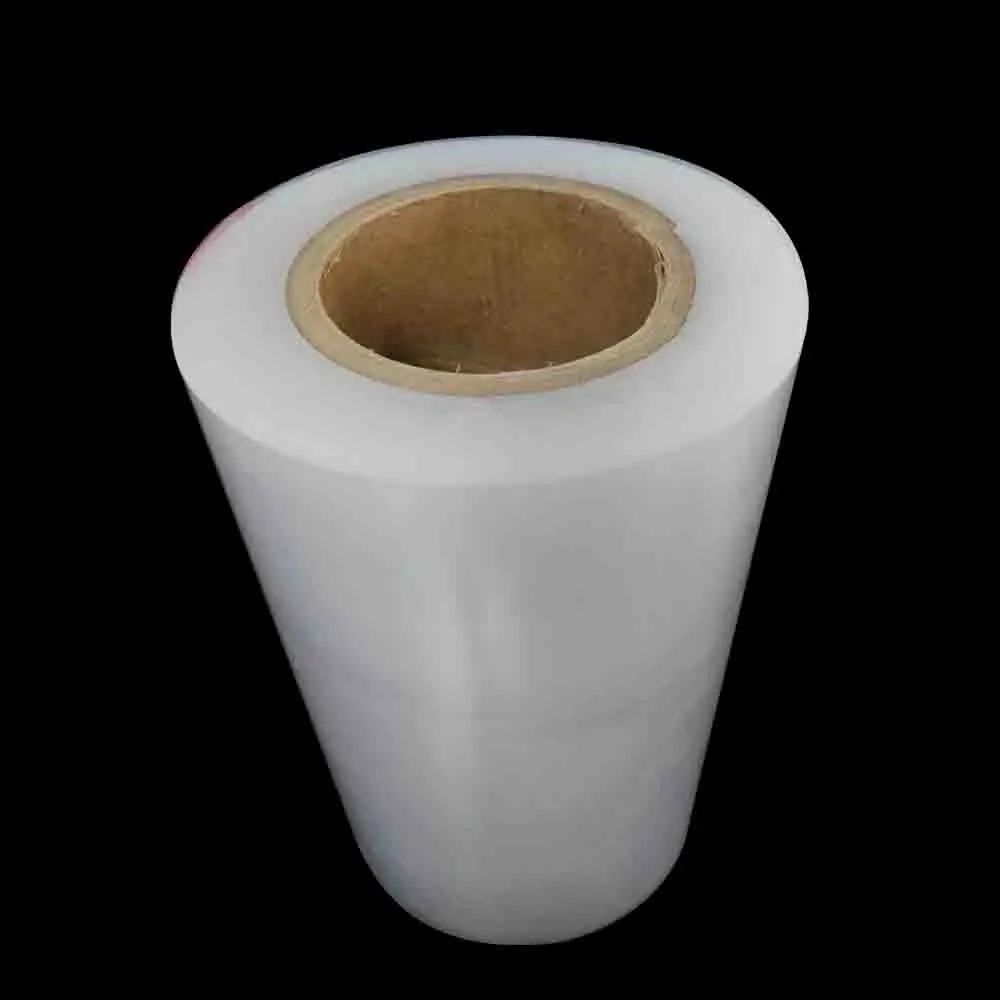

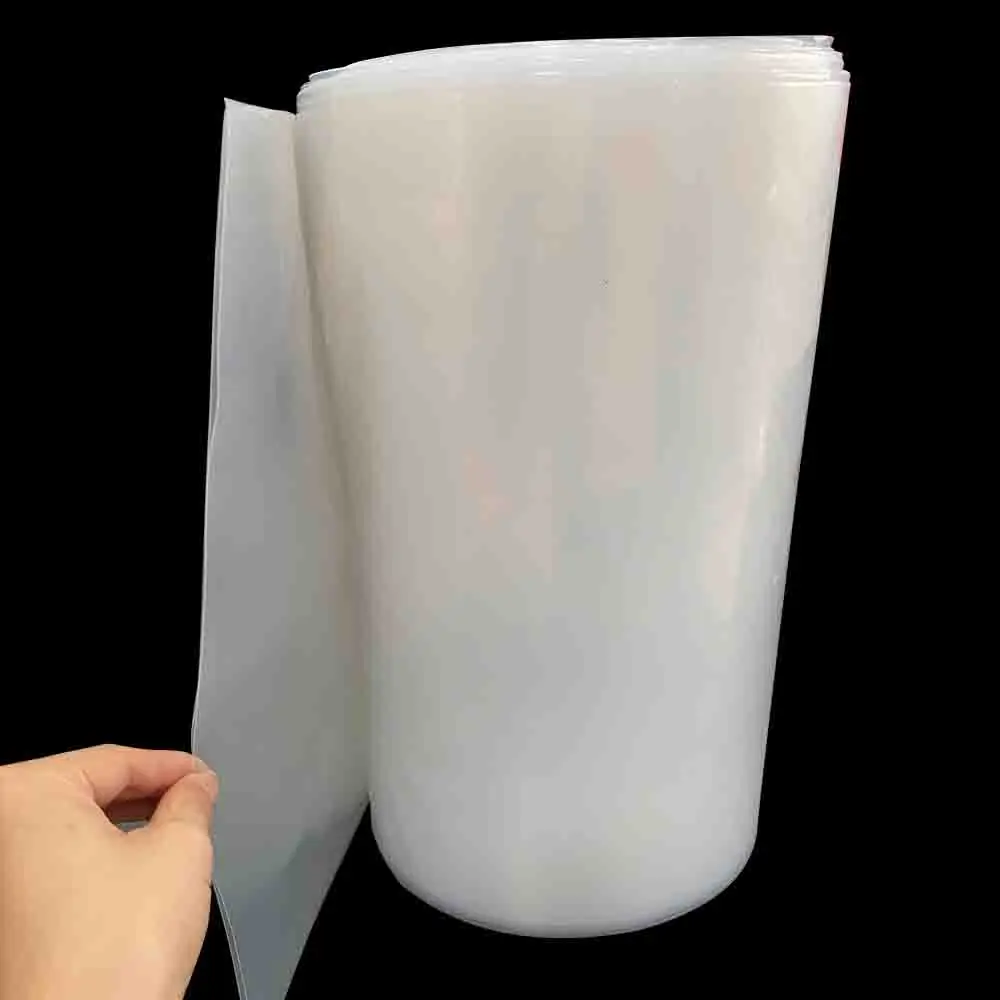

Fluorinated Ethylene Propylene Copolymer Film

Product Overview

Description

Fluorinated Ethylene Propylene Copolymer Film

Thicknesses from 0.03mm to 0.3mm

* Excellent thermal stability: Usable throughout a wide thermal range -200 to +200°C

(-328 to +392°F)

* Chemical Inertness: Resists almost all chemicals, such as strong acid, strong alkali,

salt, and organic solvent.

* Anti-stick property: The lowest surface energy of all plastic films; displays excellent

mould release and anti-stick properties.

* Electrical reliability: High electrical insulation characterised by low-dialectic constant

and dissipation factor and by high dialectic strength over a wide range of temperature

and frequency.

* Resistance to weathering: Inert to outdoor exposure; with unchanged mechanical

and physical properties after 10 years.

* Non-flammability: Will not burn in air or gas having an oxygen concentration of less

than 95%.

* High transparency: Transparent, with excellent transmission of ultraviolet rays and

visible rays; lowest refractive index of all plastic films; characterised by very low light

reflection. Standard Specifications of FEP Film

Thickness		Size and width
mm	inches	Width (mm)
0.03	0.0012	400-800
0.05	0.002	400-800
0.1	0.004	400-1200
0.15	0.006	400-800
0.2	0.008	400-800
0.25	0.01	400-1200
0.3	0.012	400-800



Also available: Surface treatment for bonding applications.(sizes from 0.03mm to

0.1mm treated by corona discharge, larger sizes chemically etched) Pigmented films

available for specialist applications (e.g. release film) red, white, black, chromed.

Perforated films available for release film applications.









FEP Film Properties

Property	Value	Units	Method
Physical Properties
Specific Gravity	2.15		ASTM D1505
Tensile Strength (machine direction)	290	Kg/cm2
Tensile Strength (transverse direction)	275	Kg/cm2
Elongation (machine direction)	350	%
Elongation (transverse direction)	360	%
Bending Resistance	>100,000	cycles
Co-efficient of friction (static) (to steel ball)	0.1-0.4		Bauden-Rebens
Contact Angle (water)	110-115	degrees
Optical Properties
Transmittance (wavelength 0.2 to 3)	95	%
Refractive Index	1338	N25
Thermal Properties
Melting Point	270	°C
Lowest temp of thermal decomposition	420	°C	10°C/min temp rise
Specific heat	0.28	Cal/g.cm
Co-efficient of thermal conductivity	6×10-4	Cal/sec °C.cm	ASTM C177
Co-efficient of linear expansion	8.3-10.5×10-5	1/°C	ASTM D696
Heat Shrinkage Rate (machine direction)	-0.4	% 0.005mm	30 min at 150°C
Heat Shrinkage Rate (transverse direction)	+0.3	% 0.005mm	30 min at 150°C



Usage : Mainly used in electrical components, wire insulation, 3D Printer ,Wind Energy

 , semiconductor green house  , LED, Building Membrane struction . solar photovoltaic

modules
