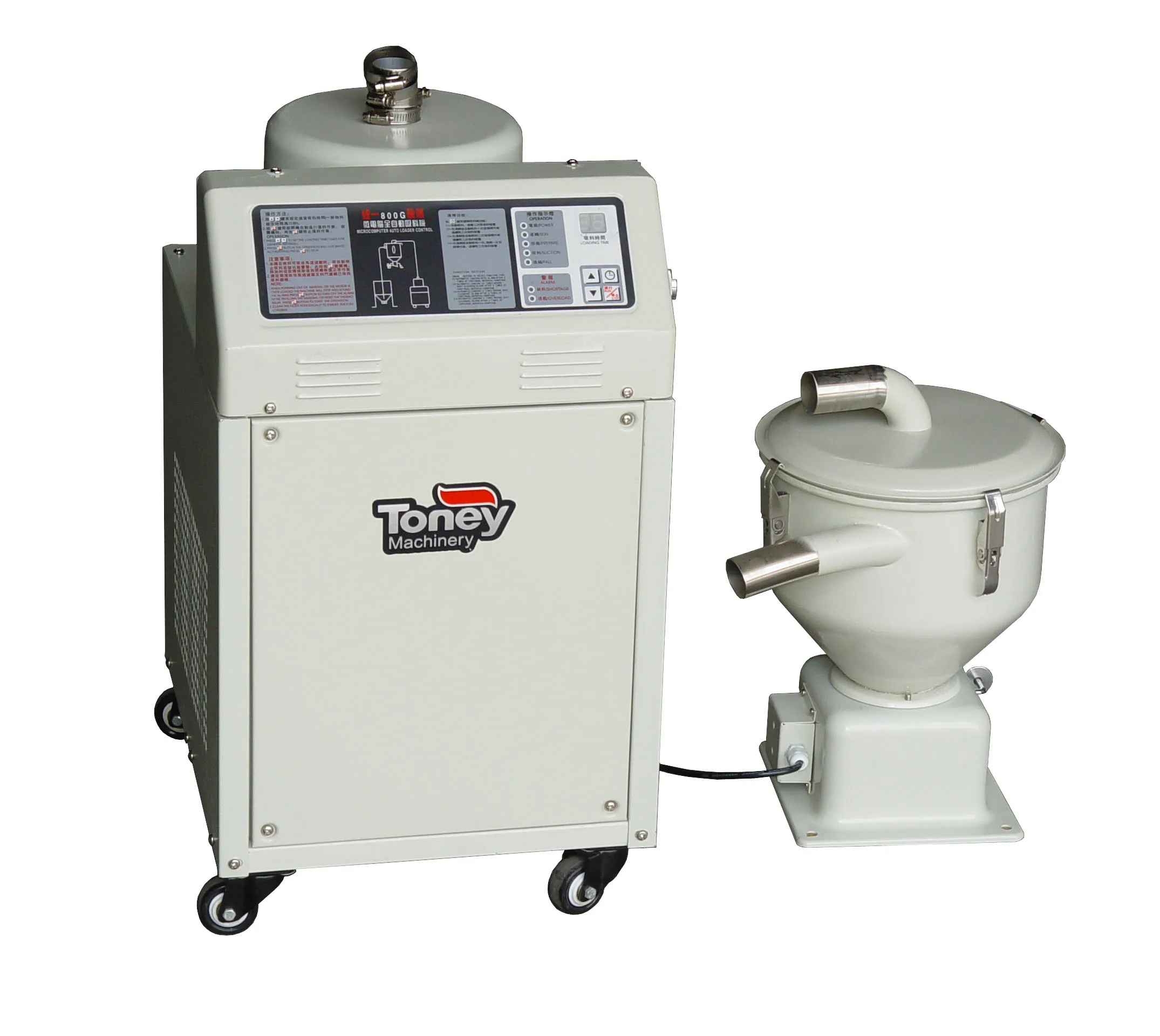

Industrial vacuum hopper loader for Plastic pellets conveying
Industrial vacuum hopper loader for Plastic pellets conveying

Industrial vacuum hopper loader for Plastic pellets conveying

Share on (1604682969):


Price:RUB 39,625.95

Quantity:


Product Overview

Description


Product Description

 Industrial  vacuum hopper  loader  is full-automatic suction machine, a kind of auxiliary equipment, can be used together with kind of plastic machines and hopper  drying machines, adopting international advanced technology, its made of stainless-steel, saving labor and ensuring safe feeding operation, it has alarm design when the material is empty and it also has motor over-loading protection system, it is widely welcomed by a lot of manufacturers.



Plastic material hopper loader special feature :

1)Auto loader for pellets with fully automatic programmed operation,
2)Automatic alarm for overload or shortage of material
3)Auto loader for pellets equipped with high-speed motor, small volum with strong power,suitable for different type of new material.
4)The auto loader for pellets with staniless steel hopper separated to ensure safety and convenient.
5)Separate filter installed the piling up of powder easy to remove.
6)Atomatic pump reverse system.

7)This auto loader for pellets is save time &increase efficiency for conveying pellet.

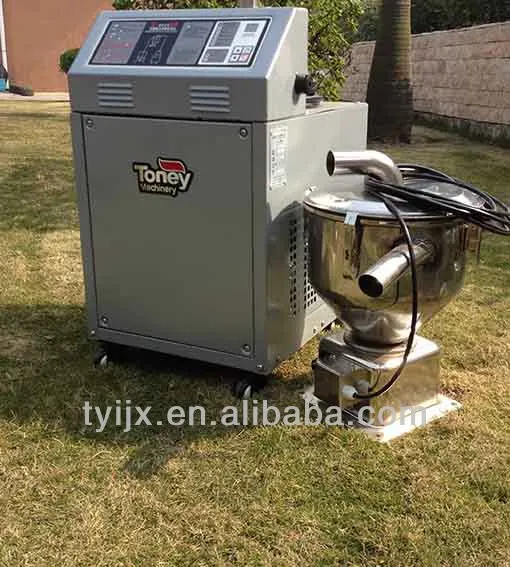

1

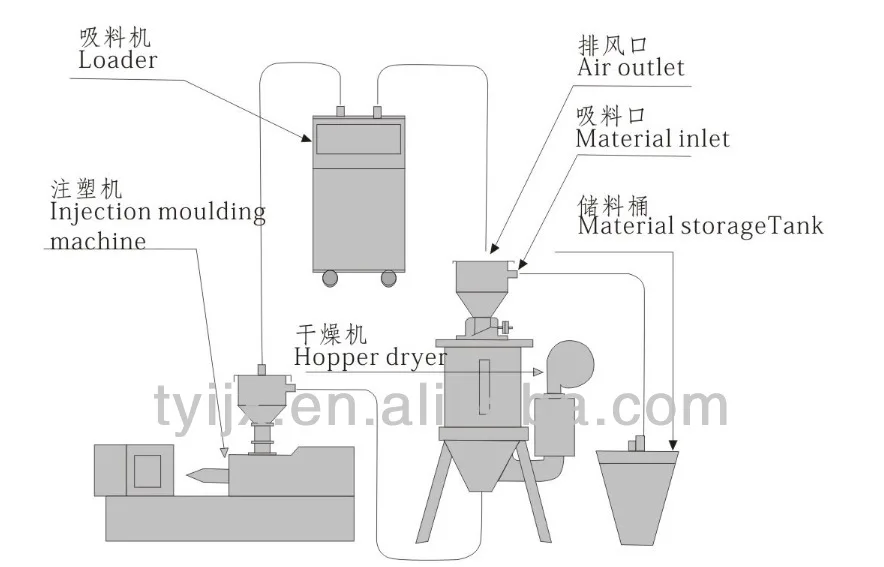

auto loader installation.JPG


Packaging & Shipping

 Vacuum hopper loader is packing with wrap film inside and fumigation wooden box outside

 Can be ready for shipping within 15 days after received paymentpacking

Our Services

We offer manufacture directly price.

Free export wooden box packaging if quanity over 10 sets

Free delivery to DongGuan & ShenZhen logistic company warehouse to save your cost

Professional engineer free online technology support.

we can offer the suitable model accourding to your special requirement. any question welcome to ask us at any time.

Yuki contact information

Company Information

1. 25 year experience for plastic auxiliary equipment & 10 years Gold Supplier in Alibaba.


2.  Main product: industrial robot, industiral chiller, Mold temperature controller, plastic mixer, hopper dryer, auto loader,Plastic crusher/granulator, dehumidifying dryer, water cooling tower etc.,


3. Taiwan company located in Dongguan city since 2001, Become public company from April 25th,2016.


4. Taiwan technology & Taiwan engineer.  have received the international certificates.


5. Own the factory land & factory space covered 15,000 m2



6. Attend international exhibition for plastic machine.

TONEY MACHINERY COMPANY INTRODUCTION

Attend International Exhibition For Plastic Machine

}$XGDW09F)Z[Q}ZM{$WR5_S





How to choose the right model for this auto loader

please advise detail requirement as below, so we can figure out the suitable machine for you:



1, what's the material you are going to load?



2,what are the physical characteristics of the material, such as shape, sticky,



moisture, content, weight and etc.



3,what's the producing capacity in your requests.





All type auto loader specifications

Model

SAL-300G

SAL-400G

SAL-700G

SAL-800G

SAL-800G2

SAL-900G

SAL-900G3

SAL-5HP

SAL-7.5HP

Motor

Type


Carbon brush


Induction


Carbon brush


Induction


Induction


Induction


Induction


Induction


Induction


Specificat
ion

1KW/1.3HP
1

0.75KW/1.1HP
3

1KW/1.3HP
1

1.1KW/1.5HP
3

2.2KW/3HP
3

1.5KW/2HP
3

1.5KW/2HP
3

3.8KW/5HP
3

5.5KW/7.5HP
3


Conveying capacity (kg/h)

290

550

260

590

630

400+400

200+200+200

820

1000


Loading distance  (m)

3.5

4

4

4

5

4+4

5+5+5

6

8


Static wind pressure (mm/H2O)

1300

1400

1550

1800

2400

2400

2400

3000

4000


Reservoir volume (L)

7.5

10

7.5

10

10

7.5+7.5

7.5+7.5+7.5

25

40


Conveying tube inner dia (mm)

38

38

38

38

38

38

38

51

63


specification of the attached hoses (mm)

38mm×3.5m
1pcs

38mm×4m
1pcs




38mm×4m
2pcs



38mm×4m
2pcs

38mm×5m
2pcs

38mm×4m
4pcs

38mm×5m
6pcs

51mm×12m
1pcs

63mm×16m
1pcs


Dimensios (cm)

Main frame

34×34×59

45×37×66

37×30×56

42×38×64

50×40×72

60×37×71

60×37×71

55×40×76

105×60×135


Hopper

/

/

28×34×43

45×32×45

45×32×45

28×34×43
2pcs

28×34×43
3pcs

40×30×58

40×30×102


Net weight (kg)


Main frame

12

27

14

47

66

55

58

90

135


Hopper

/

/

6

7

7

6(2pcs)

6(3pcs)

10

12
