1, Ni-MH batteries are approved by UL, UN, RoHS, CE 2, Nimh battery packs are avaiable 3, OEM orders for lithium battery are welcome
4, Longer storage life Batteries. 5, Light weight and higher energy density. 6, Installed IC chip will prevent the battery pack from over charge and over discharge. 7. It helps protect battery chemistry integrity and prolongs battery life. 8, Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power. 9, Supply which requires compact size and lighter weight. 10, The battery module is wrapped by PVC.

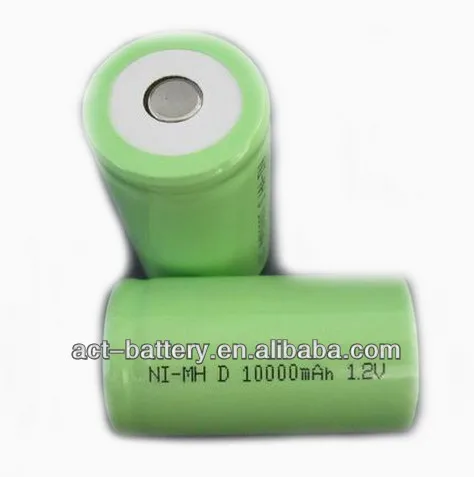

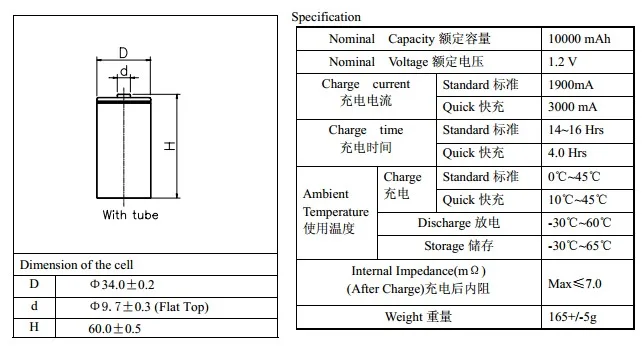

2. Specification
Item
Spec.
1
Model
nimh-D10000
2
Size
D
3
Diameter
34± 0.2 mm
4
Height
60± 0.5 mm
5
Nominal Voltage
1.2v
6
Nominal Capacity
10000mAh
7
Certificate
RoHs, CE, UN, UL
8
Discharge Cut-off Voltage
1.0V
9
Standard discharge
0.2C
10
Standard Charge
0.1C
11
Cycle life
500-1000 cycles
12
Quck Charge
4(h) approx
13
Weight(g)
165g
3. Advantages:
1) Friendly to the environment:No Cadmium, Mercury effect, Lead
2) No memory effect
3) Low internal resistance
4) Long cycle life: more than 500 -1000 cycles under normal use
5) Low self-discharge character
6) UL, CE, ROHS, EN62133, IEC, SGS certificated
4. Applications:
Cellular phones, camcorders, emergency backup lighting, power tools, laptops, electric vehicles, portable medical devices etc.
5. Cautions:
(1)Reverse charging is not acceptable.
(2)Charge before use. The cells/batteries are delivered in an uncharged state. (3)Do not charge/discharge with more than our specified current. (4)Do not short circuit the cell/battery Permanent damage to the cell/battery may result. (5)Do not incinerate or mutilate the cell/battery. (6)Do not solder directly to the cell/battery. (7)the life expectancy may be reduced if the cell/battery is subjected adverse conditions like: extreme temperature, deep cycling, excessive overcharge/ over-discharge. (8)store the cell/battery uncharged in a cool dry place. Always discharge batteries before bulk storage or shipment
6. Why choose ACT?
1. 10+ Years of experience in battery industry with extensive knowledge.

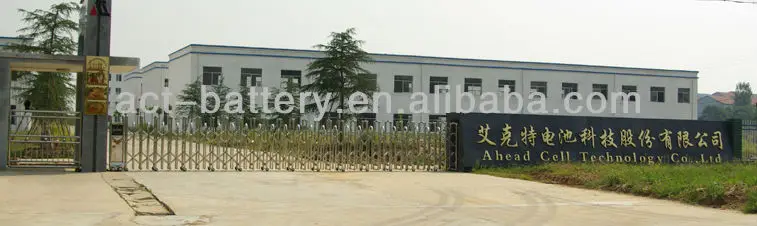

2. An own property industrail zone of 33,325 square meters.
3. More than 200 workers of production, make sure large order process.
4. Quick analyze, design and prototypes.
5. Professional battery manufacturer of nicd battery, nimh battery, lithium ion battery, li-polymer battery, LiFePO4 Batteries, Li-SOCl2 and Li-MnO2 batteryetc.

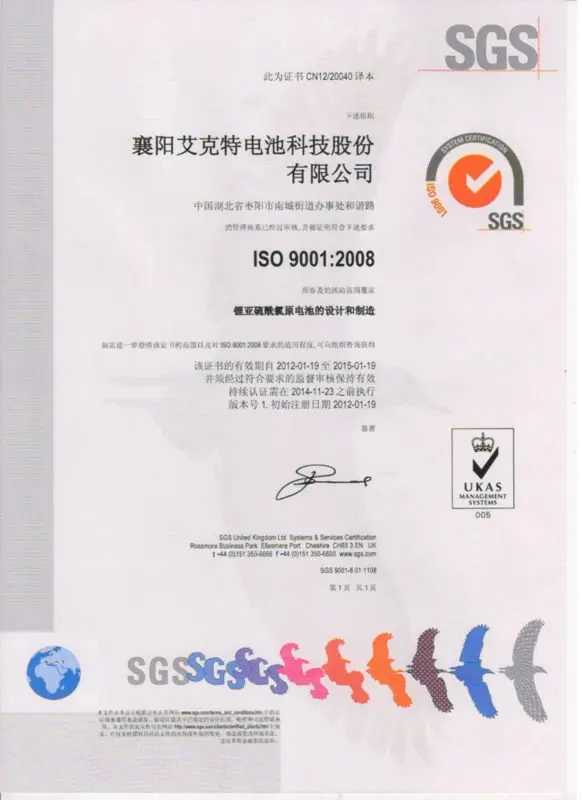

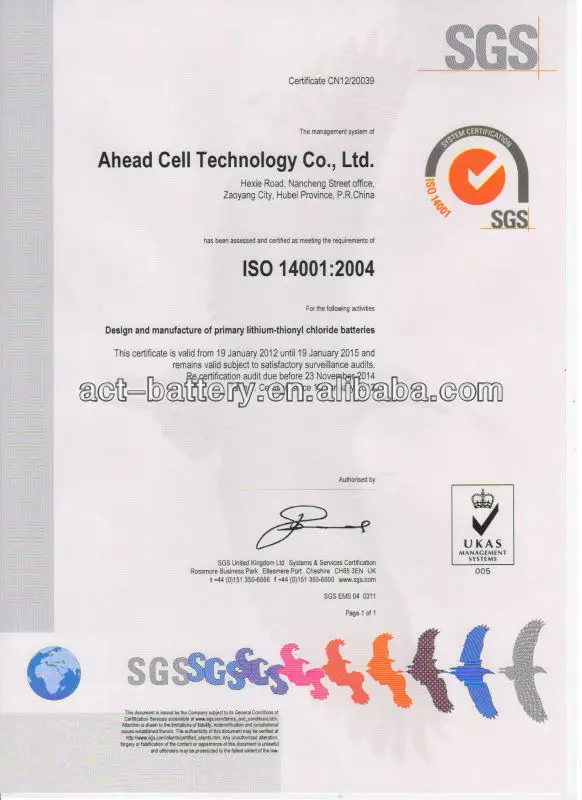

6. Established quality control systems under ISO9001 & ISO14001
7. OEM/ODM battery packs are available
8. We treat clients as friends with quick action & respond
9. Most batteries are RoHS, CE, UL, UN38.3, MSDS approved.
10. Free samples can be sent according to your request
7. Payment & Shipment:
Shipment terms: FOB shenzhen(guangzhou/hongkong...),or CIF, or Ex-work,or catch on delivery... Payment terms: deposit(30%)+ balance(70%), 100% T/T, L/C at sight, Paypal, Westunion, Escrow or others MOQ: 2pcs Delivery: 5-7 days for samples, 7-15 days for bulk production
