Product Overview

Description

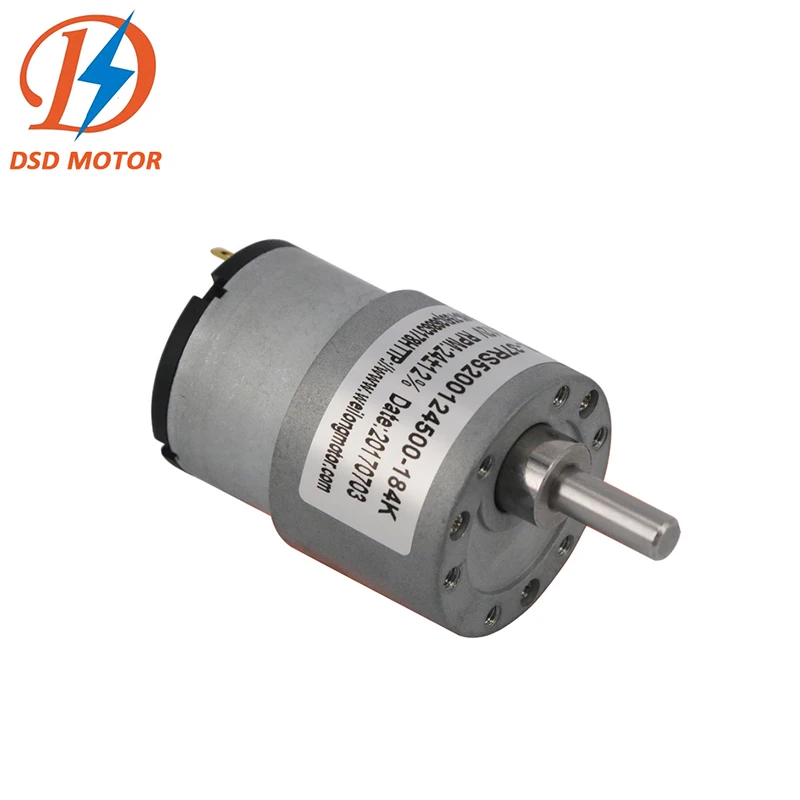

37mm 12 Volt 24V dc Gear Motor 2 rpm



Product Description

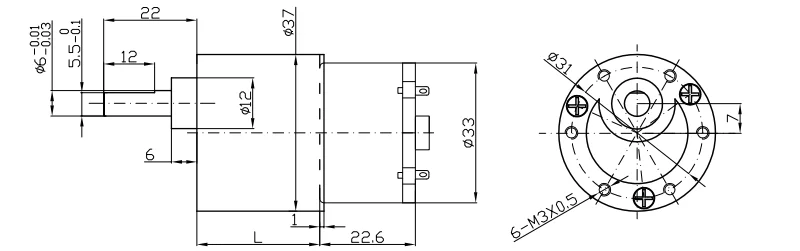

DRAWING (MM)


37RS520 drawing.png




Specifications


Specifications below are for reference only. Contact us for more.















































































































































































































































































































































































































































Model NumberRated Volt.No LoadAt Max EfficiencyStall
SpeedCurrentSpeedCurrentTorquePowerCurrentTorque
rpmmArpmmAKgf.cmWmAKgf.cm
DSD-37RS5200036000-61K3V98≤30065≤7000.820.5≥2000≥3
DSD-37RS5200033000-552K3V5.4≤1004.5≤18020.1≥650≥17
DSD-37RS5204.55300-30K4.5V176≤300116≤7000.590.7≥1400≥1.9
DSD-37RS5200053000-61K5V50≤8037.5≤1900.80.3≥800≥3
DSD-37RS5200056000-90K5V66≤15045≤5601.70.8≥1230≥5.5
DSD-37RS5200063000-121K6V24≤10018≤35020.4≥640≥7
DSD-37RS5200063000-810K6V3.7≤403.3≤1306.70.2≥430≥28
DSD-37RS5200126000-21K12V285≤90220≤3600.61.4≥1050≥2.5
DSD-37RS5200126000-61K12V100≤18068≤6002.31.6≥1000≥8
DSD-37RS5200126000-90K12V67≤7056.5≤33021.2≥1700≥11
DSD-37RS5200126000-270K12V22≤18015≤5008.91.4≥1200≥32
DSD-37RS5200126000-552K12V11≤1009≤35015.31.4≥1100≥72
DSD-37RS5200126000-810K12V7.4≤756≤450161.0≥1700≥77
DSD-37RS5200126000-2430K12V2.5≤802≤200180.4≥1800≥88
DSD-37RS5200124500-184K12V24≤6021≤2503.80.8≥780≥21
DSD-37RS5200123000-6.8K12V441≤40360≤1100.130.5≥330≥0.7
DSD-37RS5200123000-184K12V16≤6010≤2002.80.3≥290≥9
DSD-37RS5200123000-270K12V12≤6010≤10020.2≥380≥20
DSD-37RS5200123000-311K12V10≤408≤15050.4≥330≥20
DSD-37RS5200123000-552K12V5.5≤404≤12040.2≥350≥16
DSD-37RS5200123000-1656K12V2≤301.6≤9090.1≥145≥30
DSD-37RS5200121500-810K12V1.7≤81≤2340.04≥55≥15
DSD-37RS5200123000-1656K12V2≤51.2≤70180.2≥130≥54
DSD-37RS5200186500-90K18V72≤7059≤2002.61.6≥850≥12
DSD-37RS5200249000-10K24V900≤170672≤7600.64.1≥1600≥2.4
DSD-37RS5200246000-10K24V600≤60455≤2500.381.8≥660≥1.8
DSD-37RS5200246000-21K24V286≤70224≤2400.71.6≥500≥2.5
DSD-37RS5200246000-30K24V200≤40158≤18011.6≥620≥5
DSD-37RS5200246000-184K24V32≤8023≤2805.91.4≥520≥21
DSD-37RS5200244500-61K24V75≤3558≤1101.30.8≥340≥6.8
DSD-37RS5200244500-270K24V16≤4013≤8550.7≥280≥20
DSD-37RS52002411000-552K24V20≤12013≤700202.7≥1400≥47
DSD-37RS5200243000-810K24V3.5≤103≤387.60.2≥105≥32
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in




What a Model Number Tells You?


We follow some rules to create each model number. A model number would tell you a lot of useful messages. Here is a sample.


DSD-37RS520 37mm 12V 24V DC Electric Motor with Gear Reduction Low Speed High Power


So here we can learn that it is a 37mm Round Spur gear motor, 12V driving motor #555, no load input speed 6000rpm and reduction ratio 100:1. Hey, what about output speed? You need to do a little calculation. Input speed 6000rpm ÷ reduction ratio 100 = 60rpm.





Technical Data of Gearbox









































Reduction Stage234567
Reduction Ratio6.8K, 10K20K, 30K61K, 90K107K, 122K, 184K, 270K311K, 552K, 414K, 810K1243K, 1657K, 2430K
Length of Gearbox "L" mm1821.52426.52931.5
Gearbox Efficiency81%73%65%59%53%47%




Technical Data of Motor





















































































































Motor modelRated Volt.No loadLoadStall
CurrentSpeedCurrentSpeedTorquepowerTorqueCurrent
VmArpmmArpmgf.cmWgf.cmmA
DSD-52000630006≤273000≤1302600150.41≥100≥630
DSD-520012300012≤163000≤702400200.5≥90≥330
DSD-520012600012≤546000≤1505500150.86≥162≥1220
DSD-5200121200012≤4012000≤1359600454.5≥202≥3780
DSD-520024450024≤254500≤903400331.4≥122≥350
DSD-520024600024≤306000≤2004800382.3≥171≥660
DSD-520024900024≤549000≤2007200473.5≥211≥1670


Application


0506





Certifications


04





Company Information


About US


    Shenzhen Dongshunda Motor or DSD Motor is a Chinese DC motor manufacturer with years of experiences on designing and manufacturing. With a wide range of DC motors and DC gear motors, we are capable of providing solutions to your applications and making motors with custom specificatons. You only need to tell us your requirements. Our products are widely applied on household appliances, office equipments, health-care and beauty-care facilities, medical equipments, toys, electronic tools, electronic commodities, automobile parts and automatic systems as well.


  We have a professional team working on R&D and QC, we also have adequate production facilities and advanced testing equipments, which maintains our quality managing system and advcanced technology in motor industry. We have very good reputations from our customers.


    We always keep a close watch to the market, and try to provide you the best of our service. Our main target regions are: USA, Europe, South East Asia, TaiWan, Hong Kong and domestic market.


Feel free to send us inquiry and let us know if you have any concern. Factory tour is warmly welcome.070809101111
