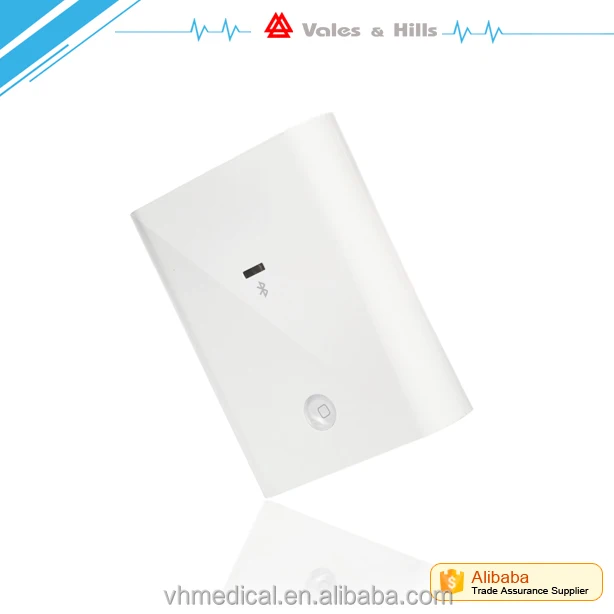

OEM Portable wireless 12 lead ecg machines for telemedicine device with SDK
- Category: >>>
- Supplier: VALES & HILLS Biomedical Tech. Ltd.
Share on (1605515002):
Product Overview
Description
333
SPECIFICATION | ||
Sampling Rate | A/D: 24K/SPS/Ch Recording: 1K/SPS/Ch | |
Quantization Precision | A/D: 24Bits Recording: 0.9µV | |
Common Mode Rejection | >90dB | |
Input Impedance | >20MΩ | |
Frequency Response | 0.05-150HZ | |
Time Constant | ≥3.2Sec | |
Maximum Electrode Potential | ±300mV | |
Dynamic Range | ±15mV | |
Defibrillation Protect | Build-in | |
Data Communication | Blue-tooth | |
Communication Mode | Stand-alone | |
Power | 2×AA Batteries | |
SDK for System Integration
The SDK only is available for iOS;
The programing language is Objective C and Swift;
SDK includes below function modules:
1. iCV200(BLE) scan
Scan iCV200(BLE) ECG device through Bluetooth, and perform callback delegate for the changed device.
2. iCV200(BLE) Connection
Connect to iCV200(BLE), send start or stop command, delegate to callback ECG data and device information.

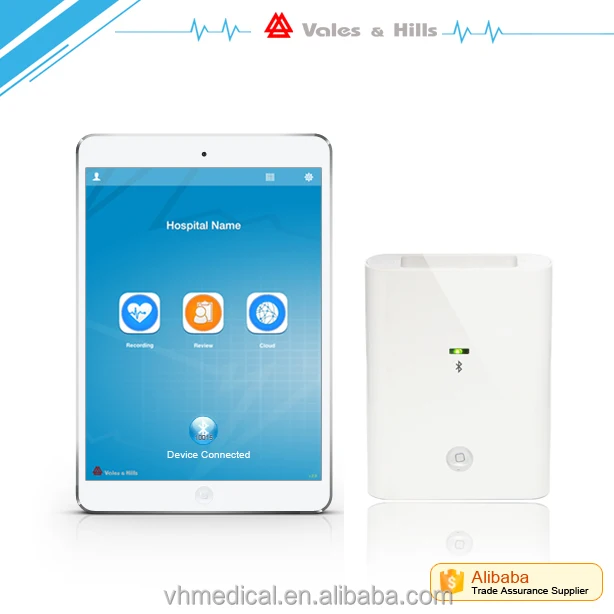

3. Draw the real-time ECG
Demonstrate how to draw the real-time ECG. The user can develop its own ECGRealtimeView.
4. ECG Analyisis
Perform ECG measurements and give some possible interpretations that must be confirmed by the physician.
Other function modules the customers required can be packed as long as vhECG Pro be of the function
