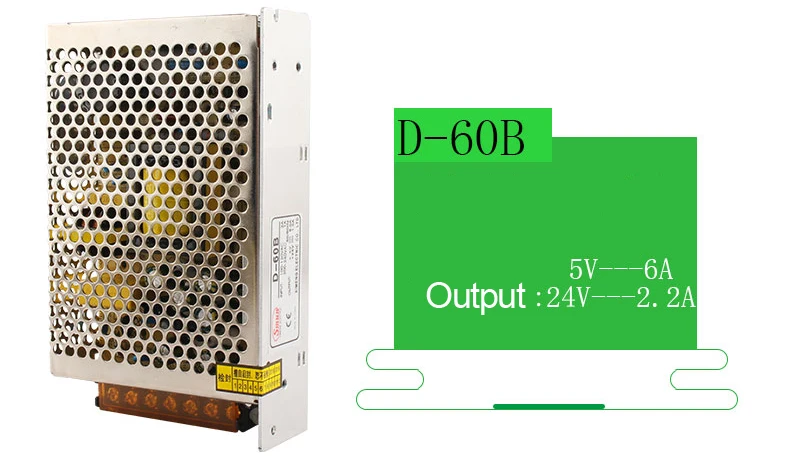

SMUN D 60B 110V/220VAC to 5V 6A/24V 2A Dual Output 60W Switching Power Supply SMPS
- Category: >>>
- Supplier: Zhejiang Ximeng Electronic Technology Co. Ltd.
Share on (1605523092):
Product Overview
Description
Dual 60W 5V 24V DC Output Switching Power Supply SMPS
Instruction
Features
· 1. AC input voltage range selected by switch
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load
· 4. LED indicator for power on
· 5. Dual output
· 6. 100% full load burn-in test
· 7. 2 years warranty
Product Description
| Model | D-60A | D-60B | D-60C | ||||||
| Output | DC Voltage | Ch1:5v | Ch2:12v | Ch1:5v | Ch2:24v | Ch1:12v | Ch2:24v | ||
| Voltage tolerance | ±2.0% | ±6.0% | ±2.0% | ±5.0% | ±3.0% | ±7.0% | |||
| Rated Current | 0.3-6A | 0.2-4A | 0.3-6A | 0.2-2A | 0-3A | 0.2-2A | |||
| Related Power | 60w | 60w | 60w | ||||||
| Wave&Noise | 60mVp-p | 120mVp-p | 60mVp-p | 150mVp-p | 60mVp-p | 150mVp-p | |||
| DC Voltage ADJ range | Ch1:-9%~+10% | ||||||||
| Set up,rise,hold up time | 200ms 100ms 30ms | ||||||||
| Input | Voltage Range | 95 ~132VAC 180-264VAC 47-63HZ 120-370VDC | |||||||
| AC Current | 2A/115VAC 1A/230VAC | ||||||||
| Efficiency | 78% | 82% | 87% | ||||||
| AC inrush current | Cold start current 15A/115V 30A /230VAC | ||||||||
| Leakage current | <3.5mA/240VAC | ||||||||
| Protection | Overload | Related output power 105-150% start overload protection | |||||||
| Protection type: cutoff output, recovery after restart power | |||||||||
| Over voltage | Ch2 :115%~135% | ||||||||
| Hiccup mode,recovers automatically after fault condition | |||||||||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | |||||||
| Storage temp, humidity | -20~+85°C 20%~90%RH Non-condensing | ||||||||
| Withstand vibration | 10-500Hz,2G 10min/1 cycle, period for 60min, each axes | ||||||||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||||
| Isolation resistance | I/P-O/P:I/P-FG:O/P-FG: 100M Ohms/500VDC | ||||||||
| Standard | Safety standard | Fit UL1012 | |||||||
| Refer | Design refer to GB4943,UL60950,EN60950 | ||||||||
| EMC standard | Design refer to GB9254,EN55022 Class A | ||||||||
| Size | size | L159*W98*H38mm | |||||||
| Package | 0.55kg, 40pcs/22kg | ||||||||
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25of ambient temperature. 2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. | |||||||||
Inner Structure
Certifications
Our Services
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
